X-Ray, CT, US, MRI Phantoms
Adult Knee for X-Ray CT, US, MRI
$9,500 USD

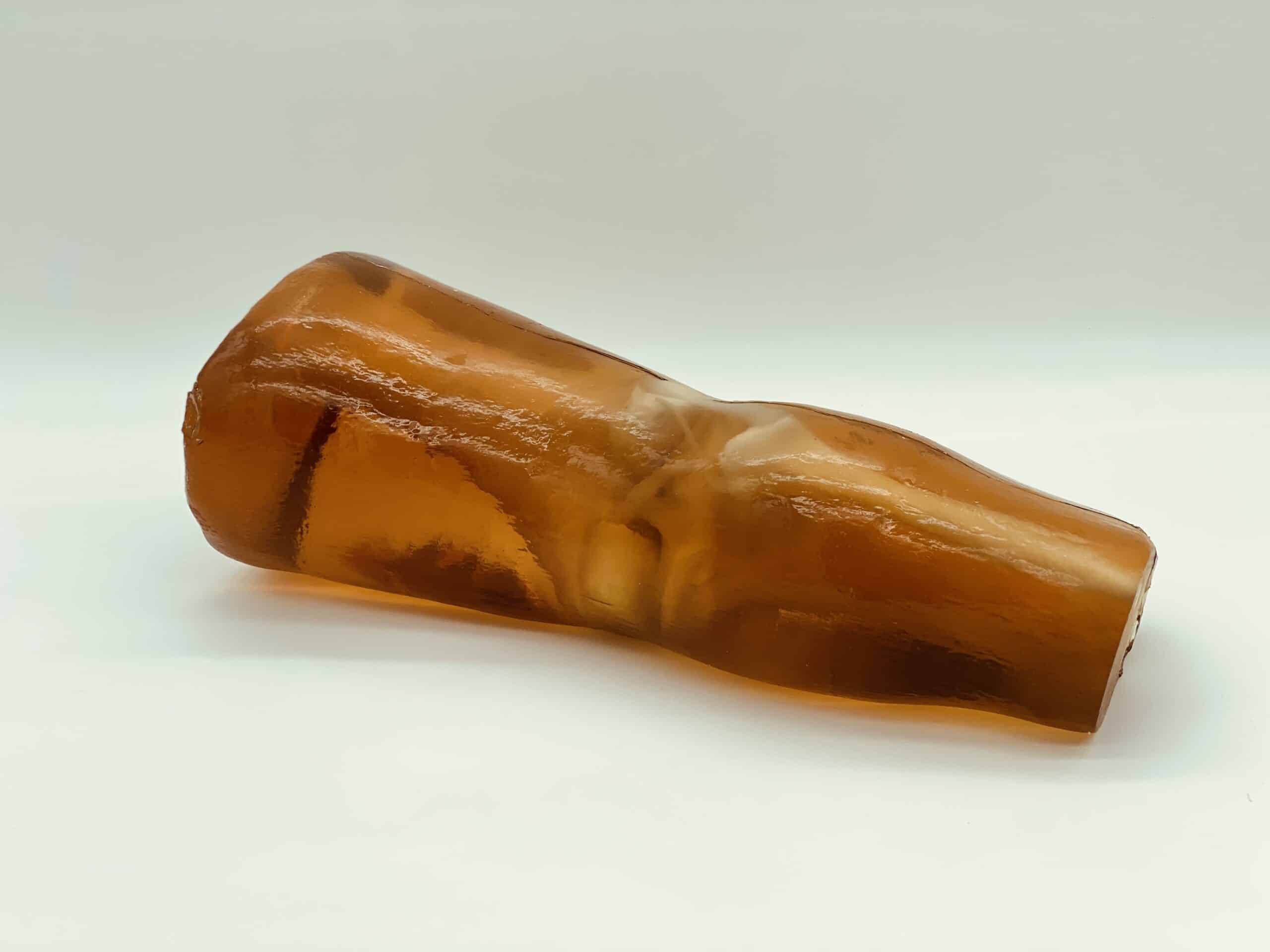

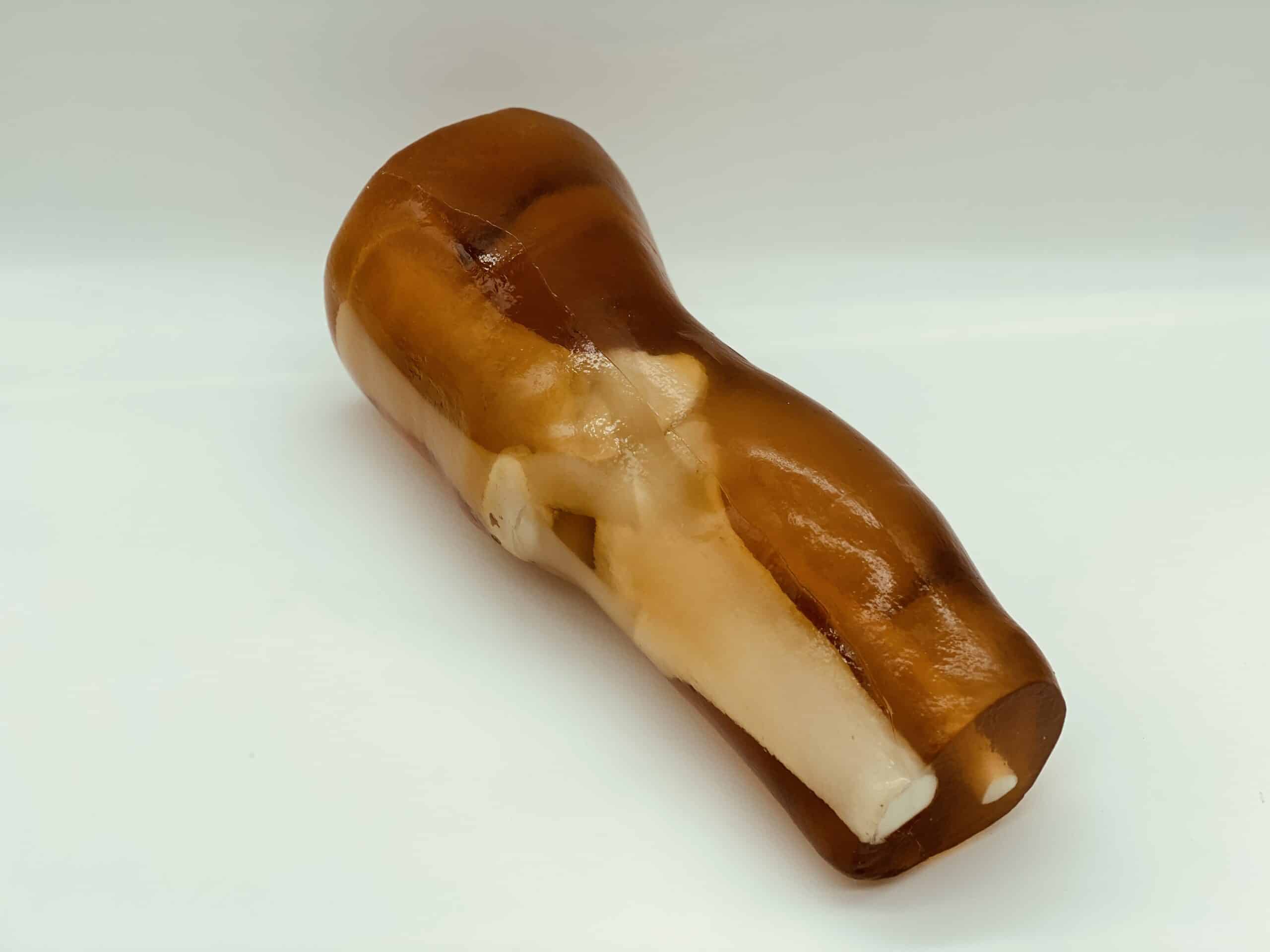

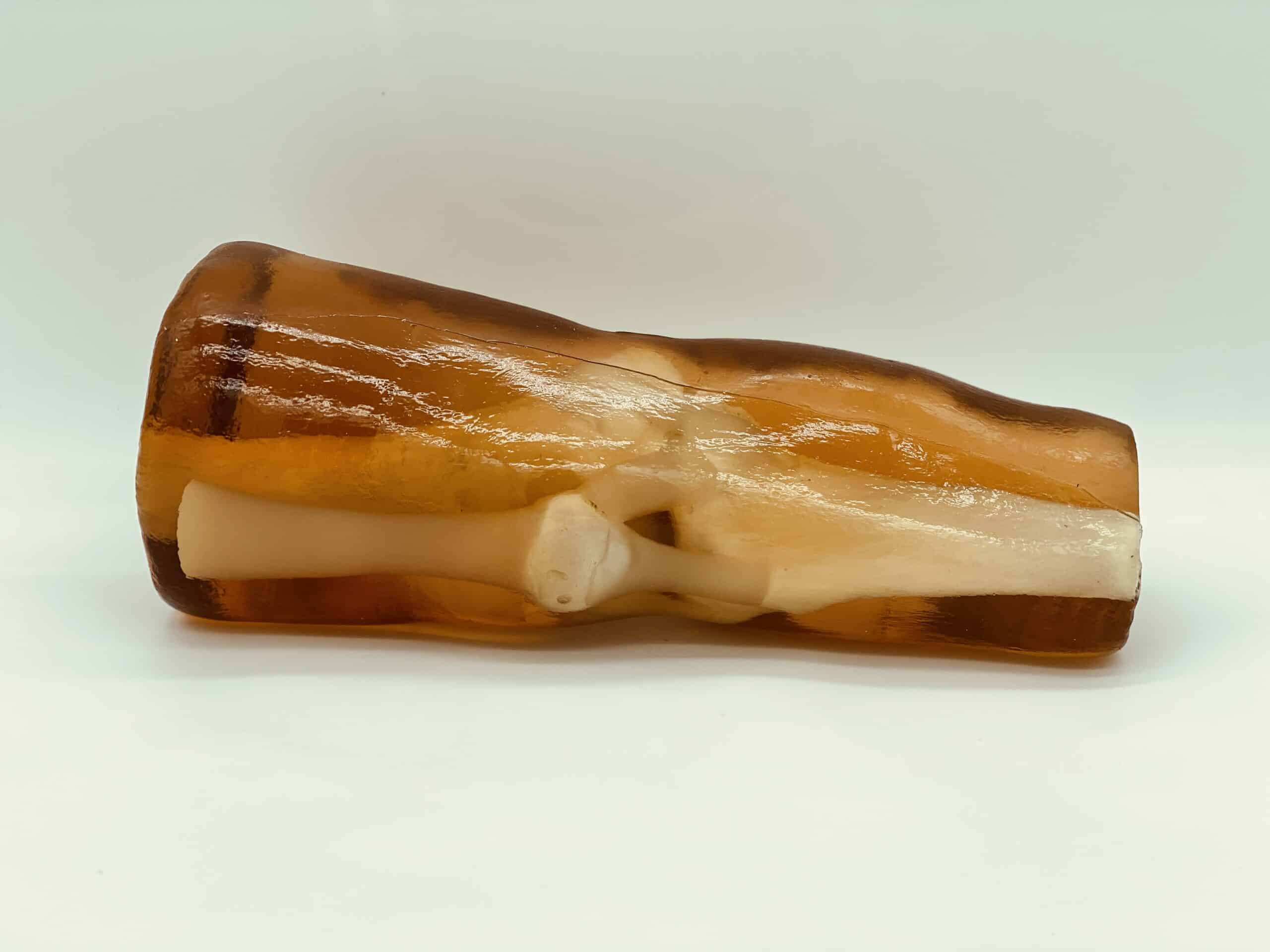

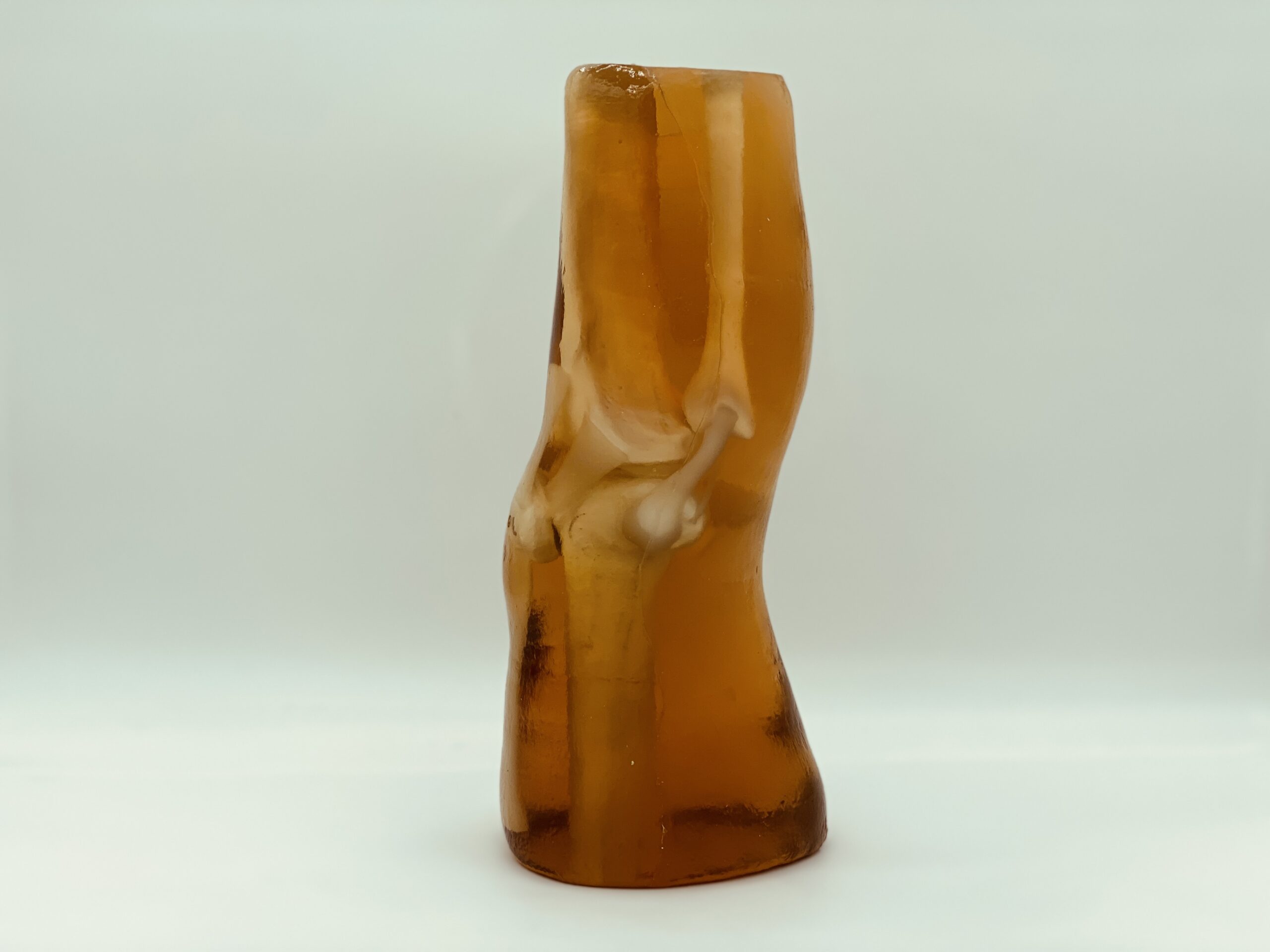

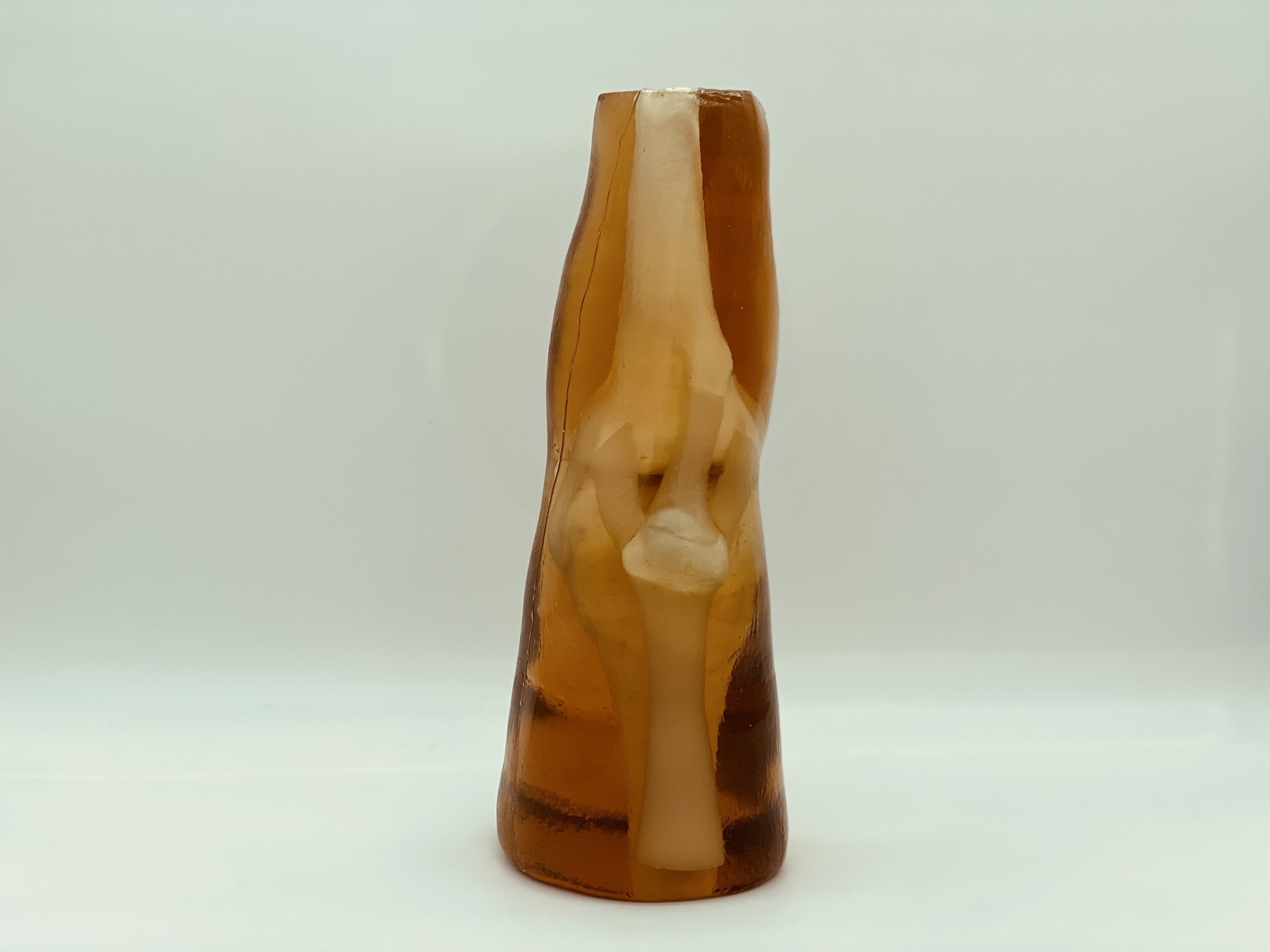

The Adult Knee phantom is designed around the structure of an average adult human knee. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US, and MRI imaging, it serves medical imaging research, and Orthopedic related studies.
Knee Model: Standard (X-Ray·CT·US·MRI)
This product can be customized based on your requirements — contact us.
The Adult Knee phantom has a complex internal structure and anatomy, which are based on an average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray/CT, US, MRI imaging applications. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials.

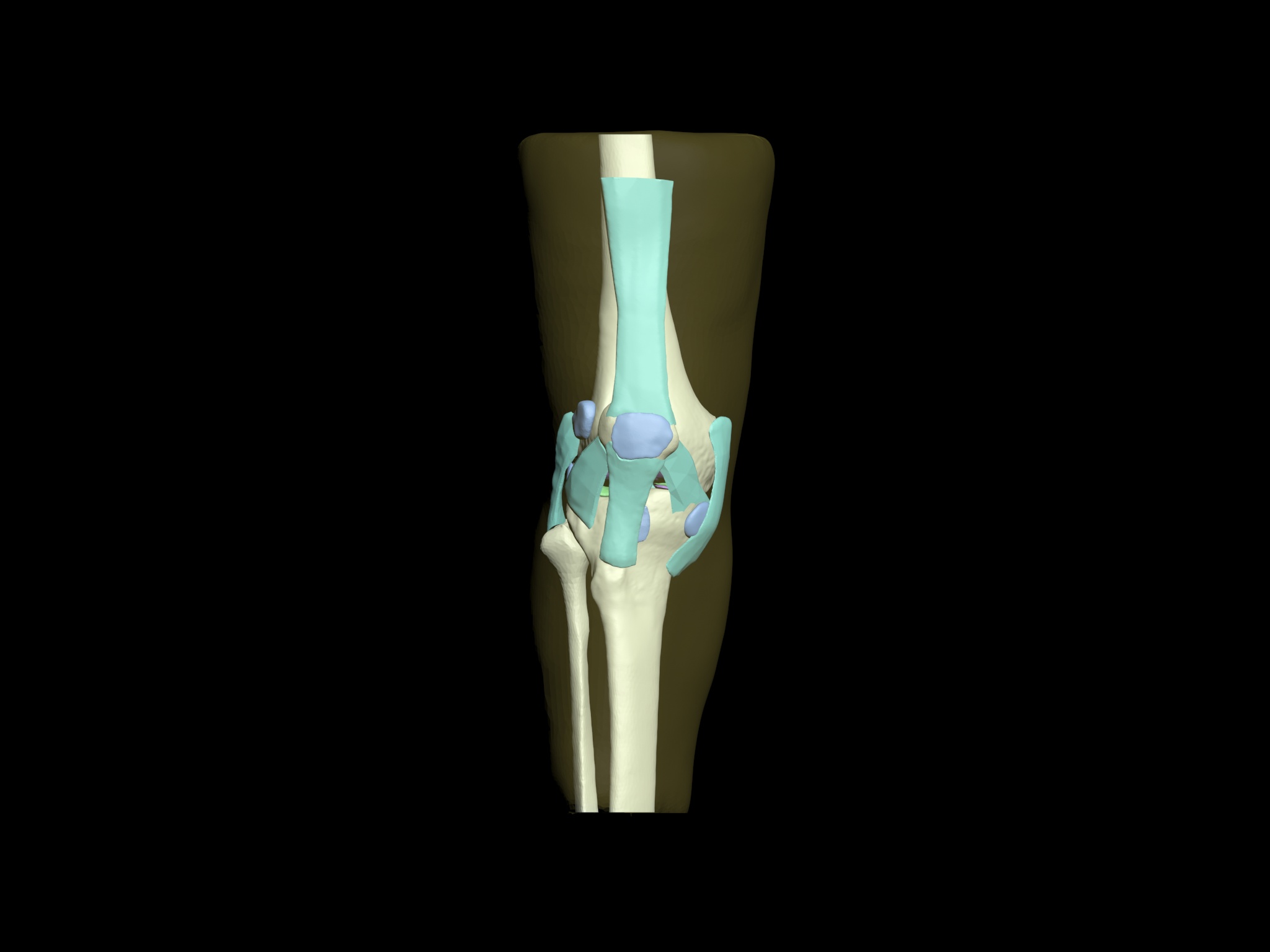

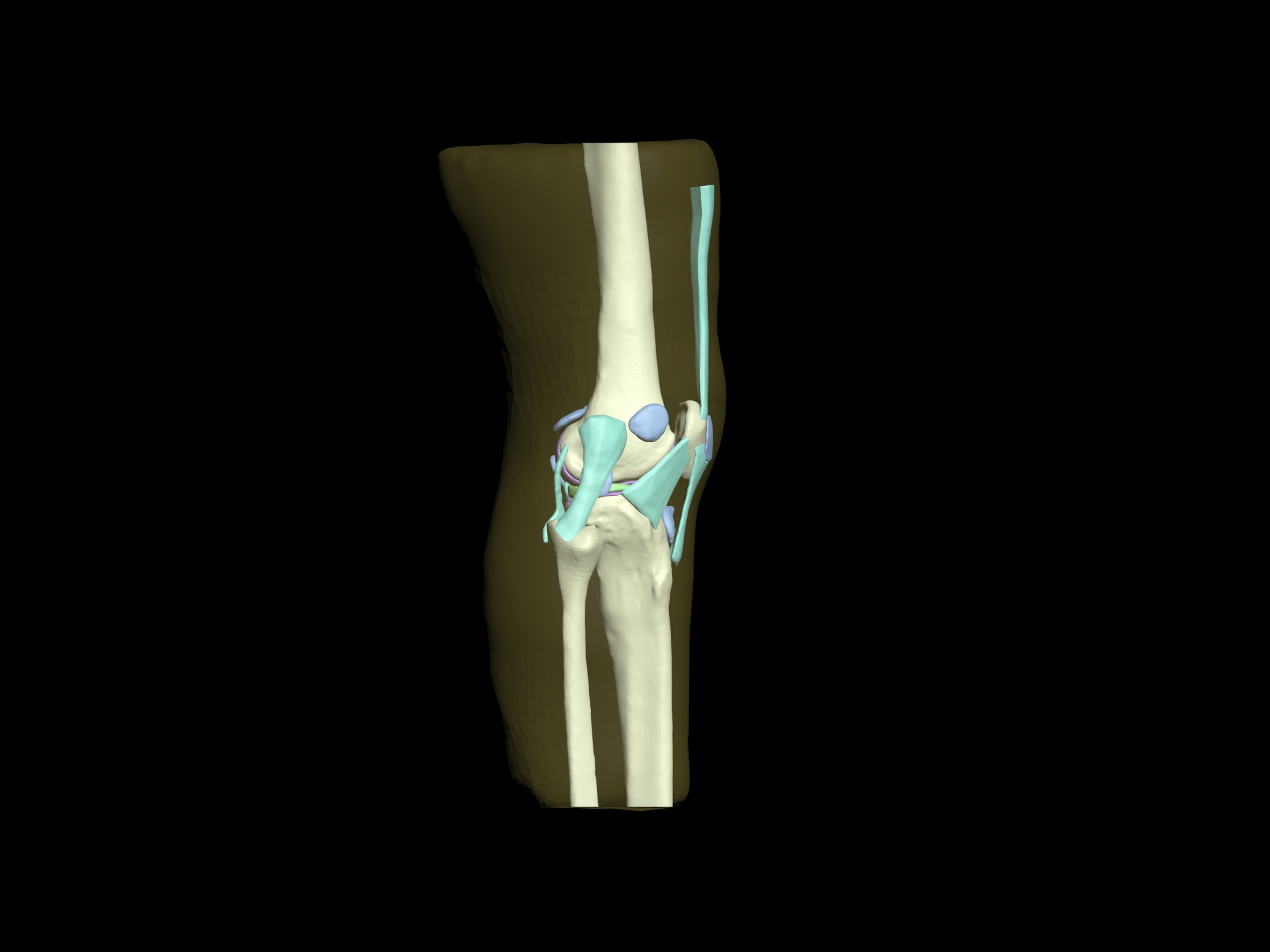

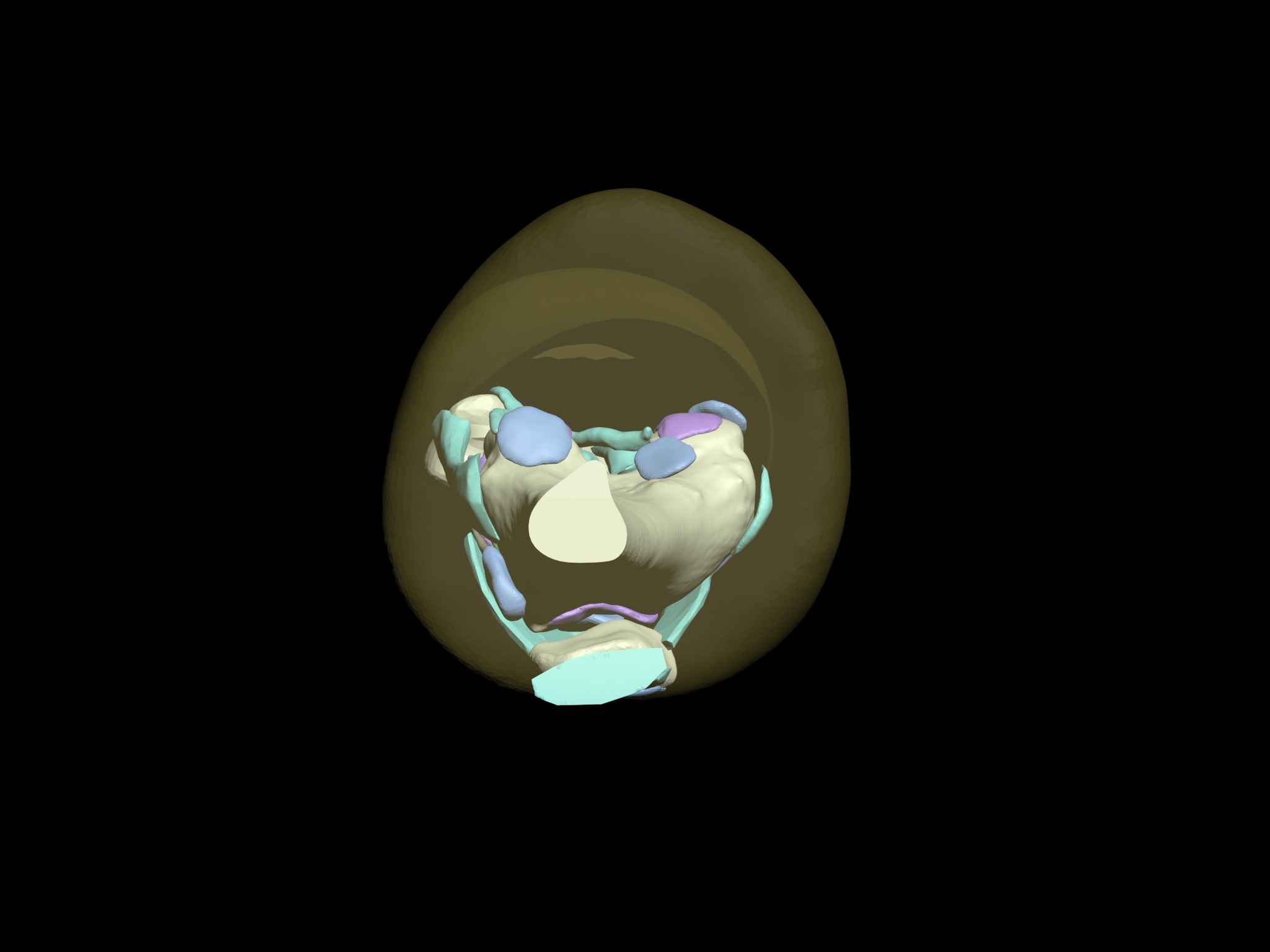

Design

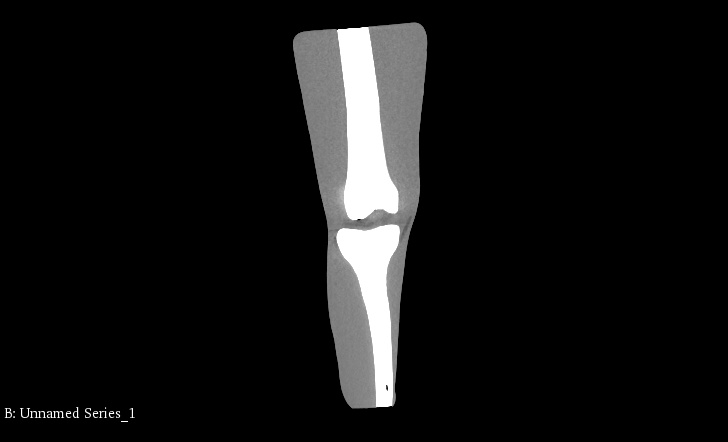

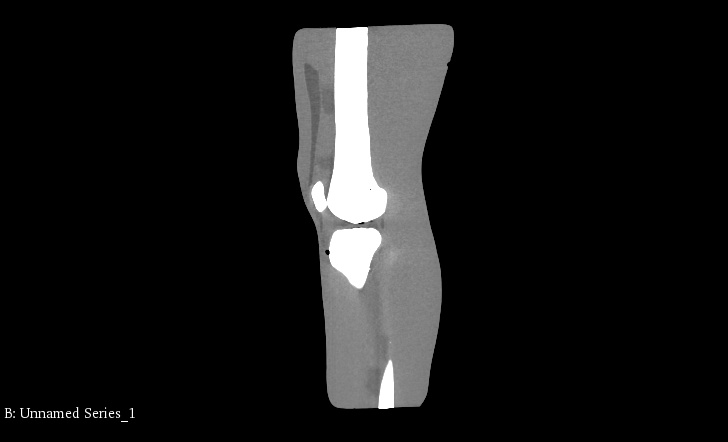

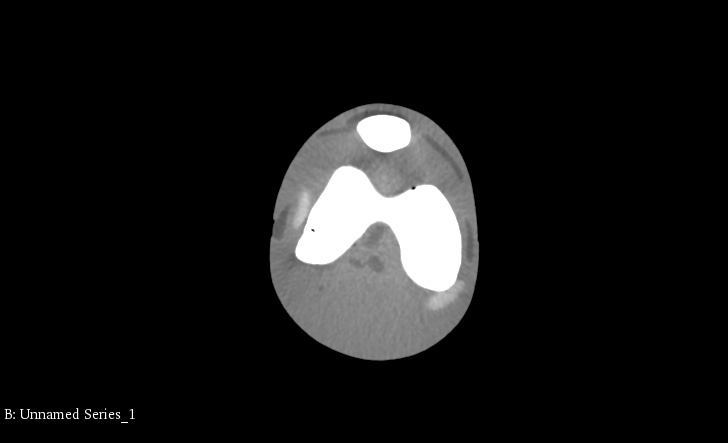

CT Scans

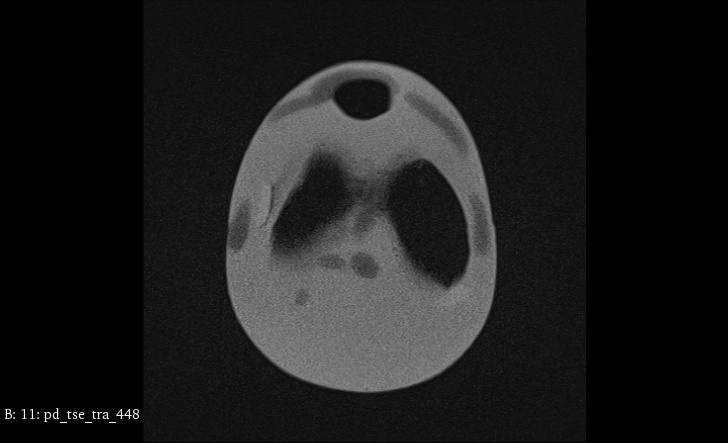

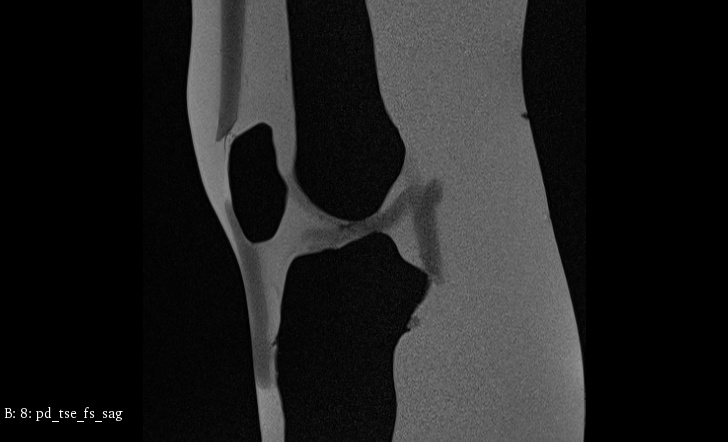

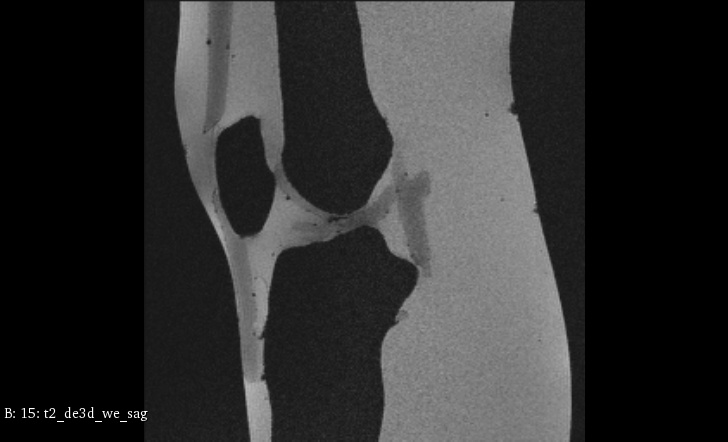

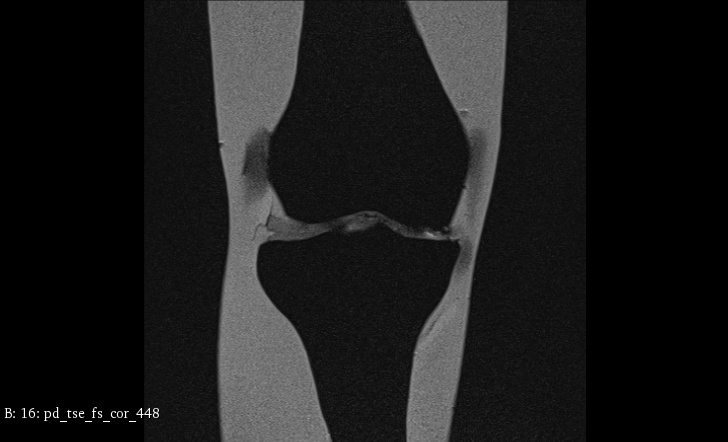

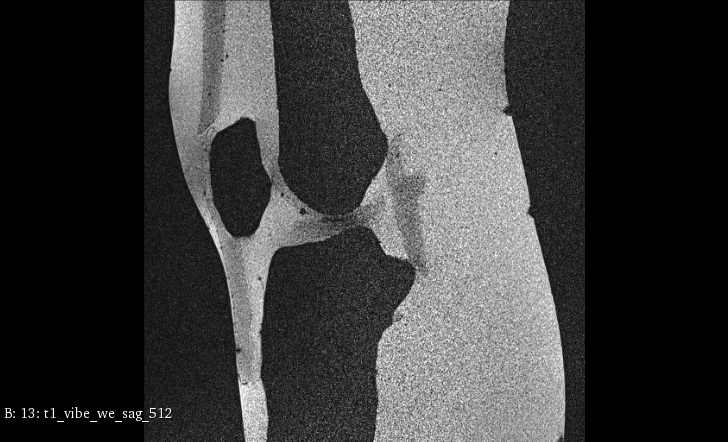

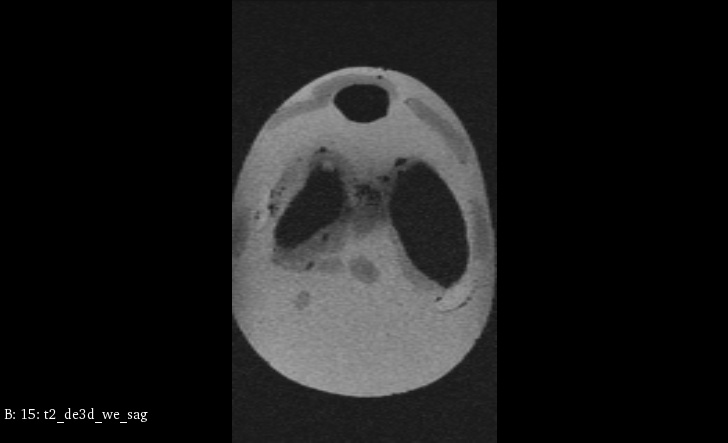

MRI Scans
- Patellar Ligament
- Partial Upper and Lower Leg
- Lateral Patellar Retinaculum
- Patella
- Medial Patellar Retinaculum
- Meniscus:
- Anterior Cruciate Ligament
- Posterior Cruciate Ligament
- Lateral Meniscus
- Arcuate Popliteal Ligament
- Medial Meniscus
- Oblique popliteal Ligament
- Condyle:
- Bursa:
- Lateral Condyle Femoral
- Subtendinous Bursa (3)
- Medial Condyle Femoral
- Semimembranosus Bursa
- Pes anserine Bursa
- Ligaments and Tendons:
- Infrapatellar Bursa
- Quadriceps Femoris Tendon
| Phantom Size | 6 x 7 x 15 Inches |
| Phantom Weight | 18 Lbs (approx.) |
| Shipment Size | 23 x 14 x 10 Inches |
| Shipment Weight | 26 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| Knee Model | Ligaments/Tendons, Bones Only |
