X-Ray, CT, US, MRI Phantoms
Adult Leg (Muscles) for X-Ray CT, US, MRI
$6,200 USD

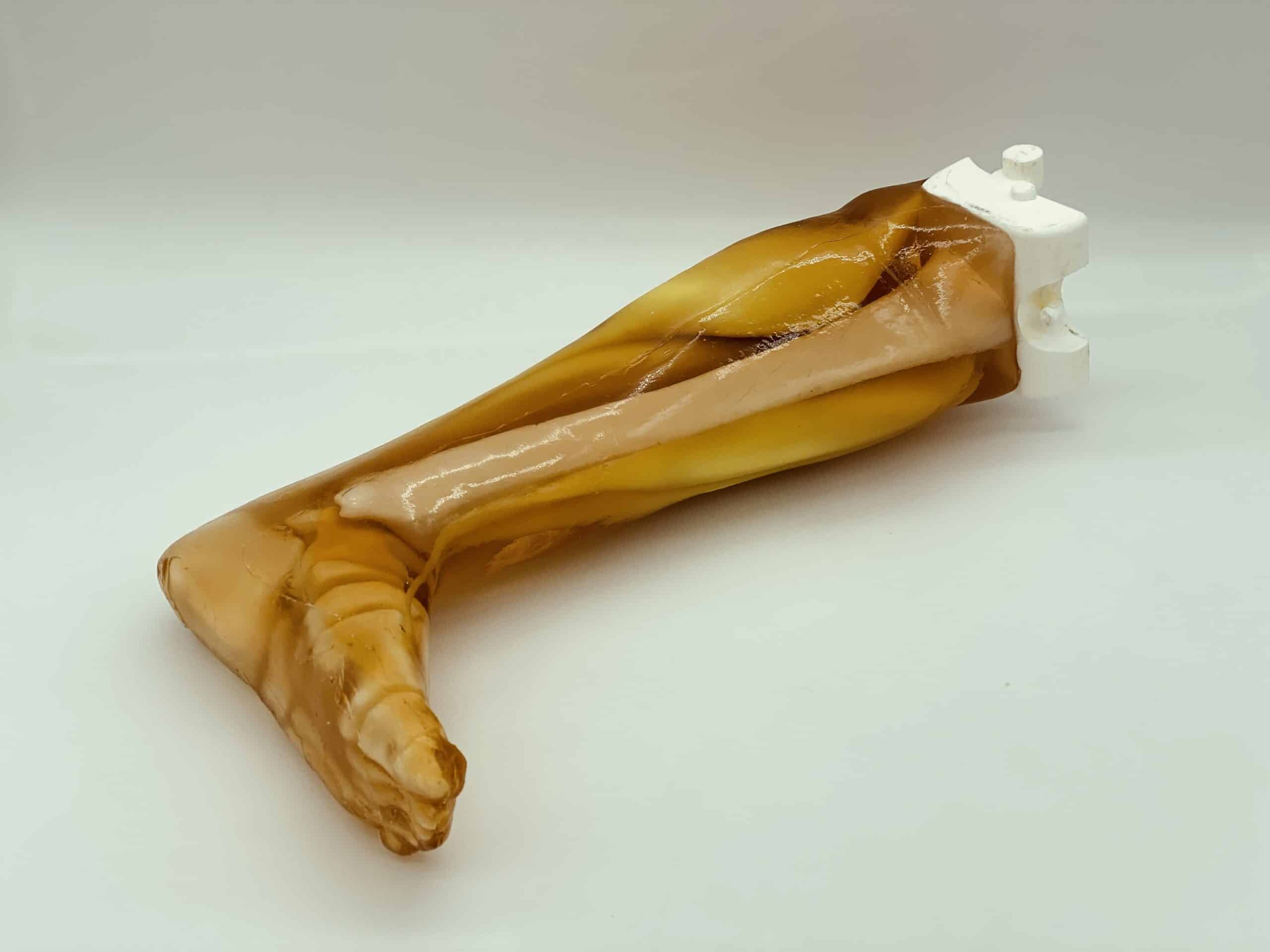

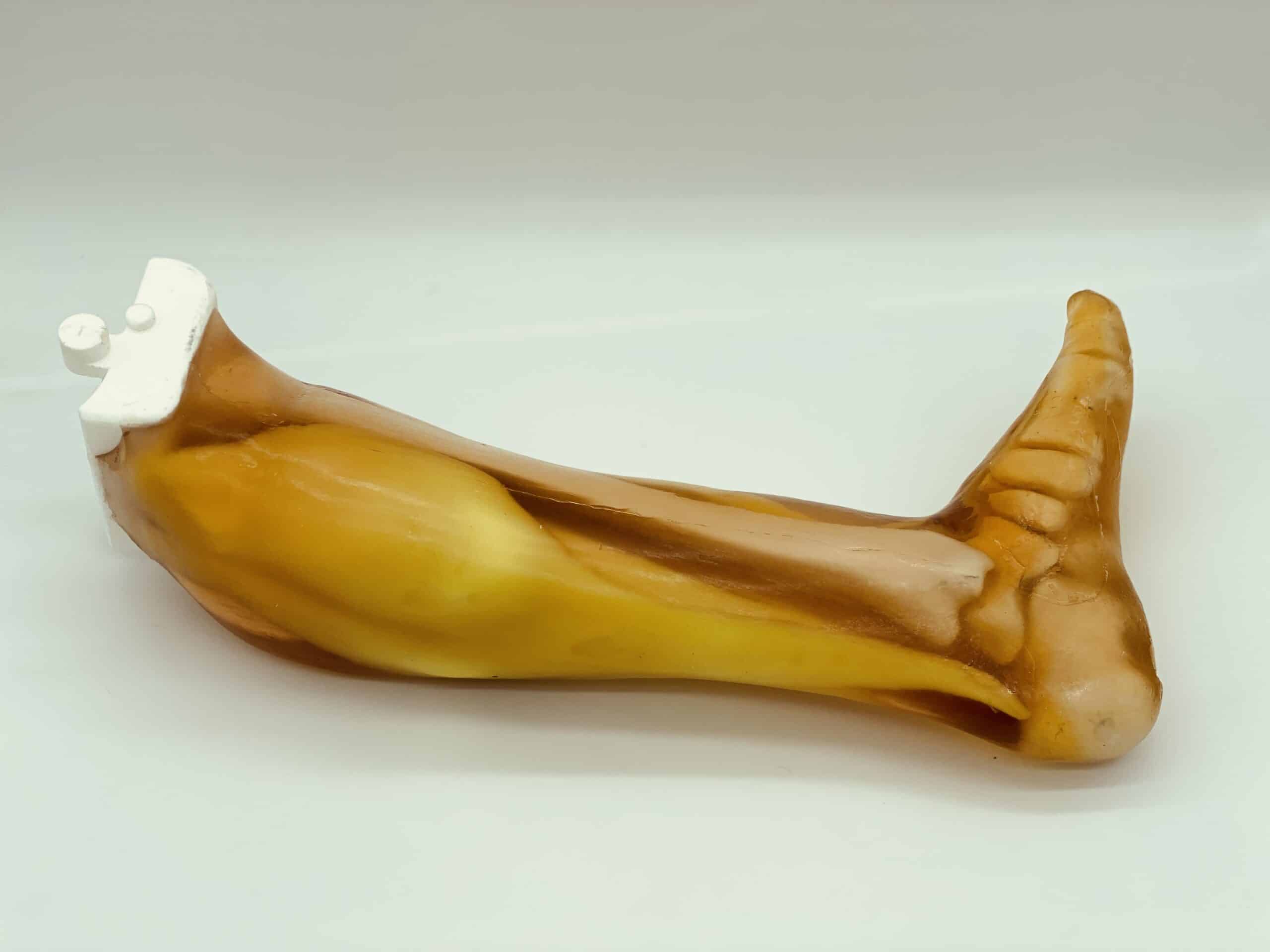

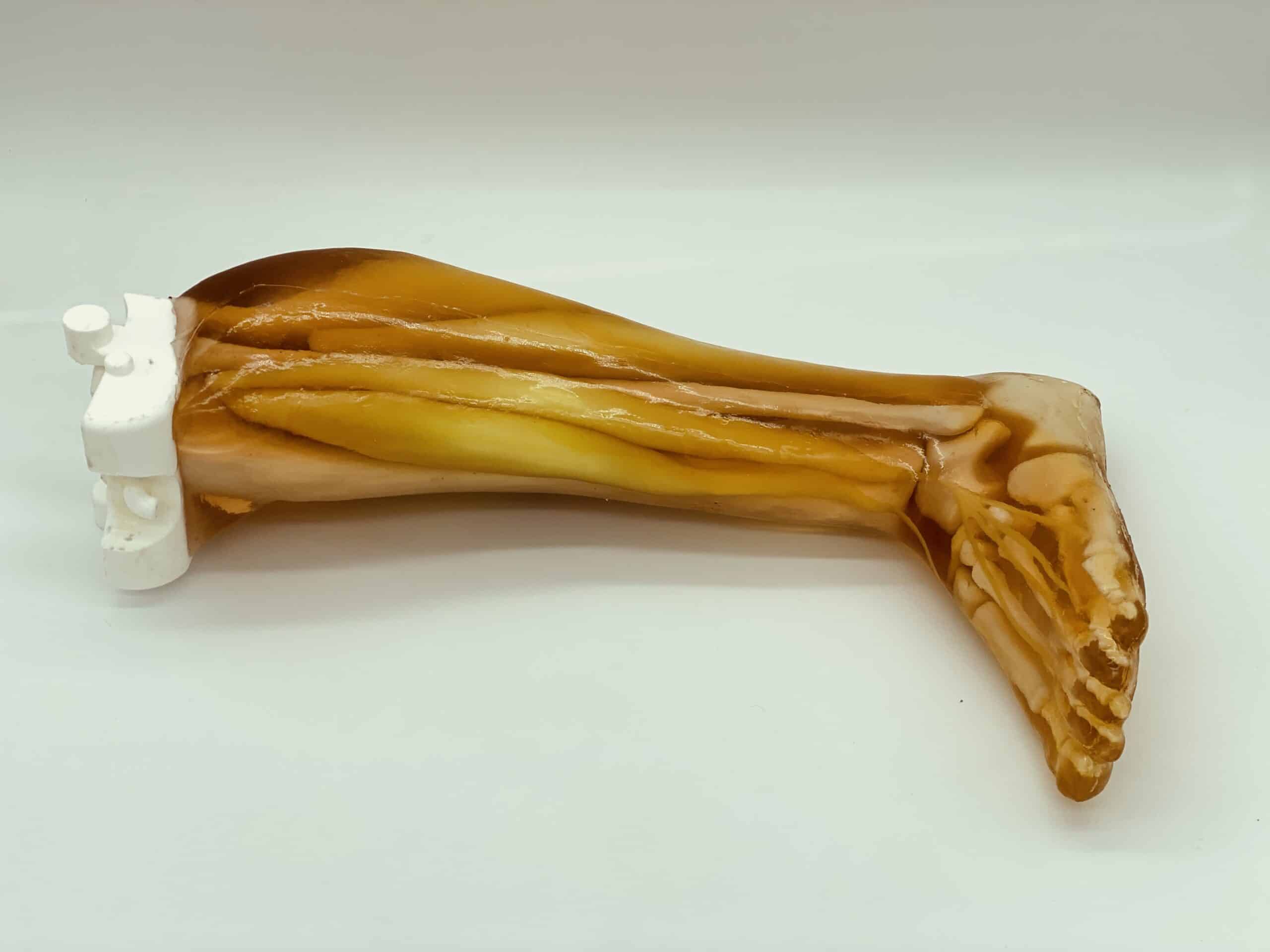

The Adult Leg (Muscles) Phantom is a realistic tool for studying and testing medical imaging devices. Based on the average anatomy of a male leg, it includes bony and soft tissue features. The LG-A02 is suitable for various X-Ray/CT, US, and MRI procedures and can be customized with pathologies or for specific training needs upon request.
Leg Model: Muscles
Muscles
Standard
This product can be customized based on your requirements — contact us.
Adult Leg Phantom for X-Ray/CT, US and MRI is a realistic phantom designed based on the average anatomy of a human male leg. It has all the essential bony and soft tissue features that make it an ideal tool to study, research, and test medical imaging devices. The LG-A02 can be used to study several diagnostic X-Ray/CT, US and MRI procedures in different orientation and positioning techniques. Upon request, this product can be customized with different pathologies as well as for specific training applications.

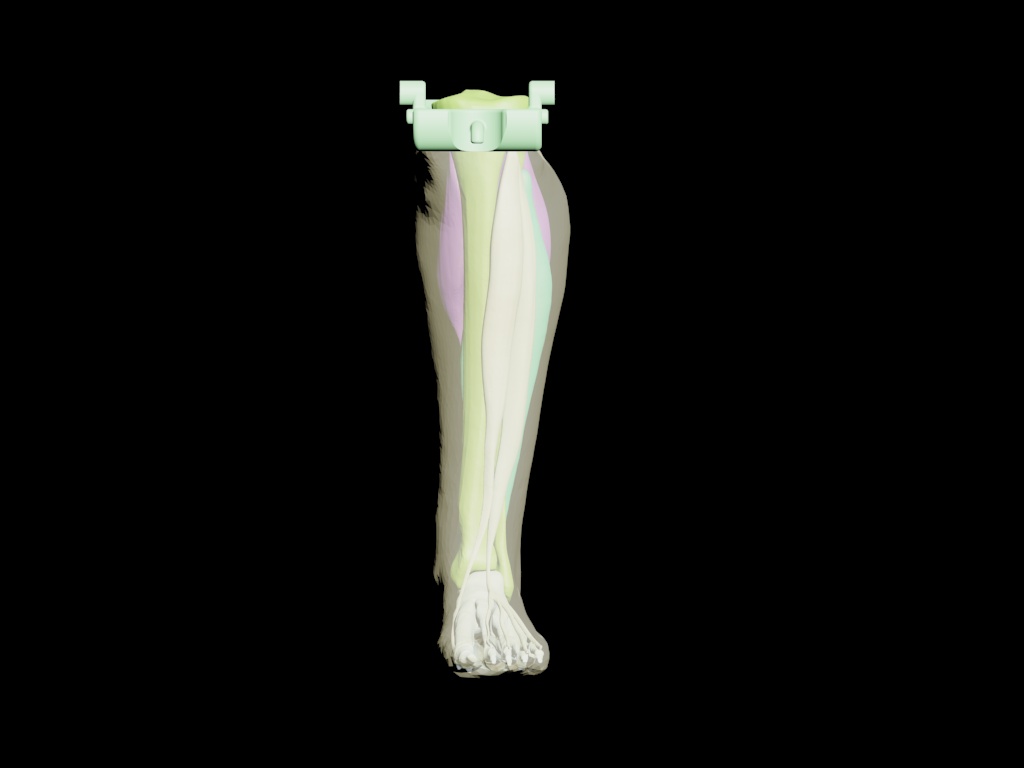

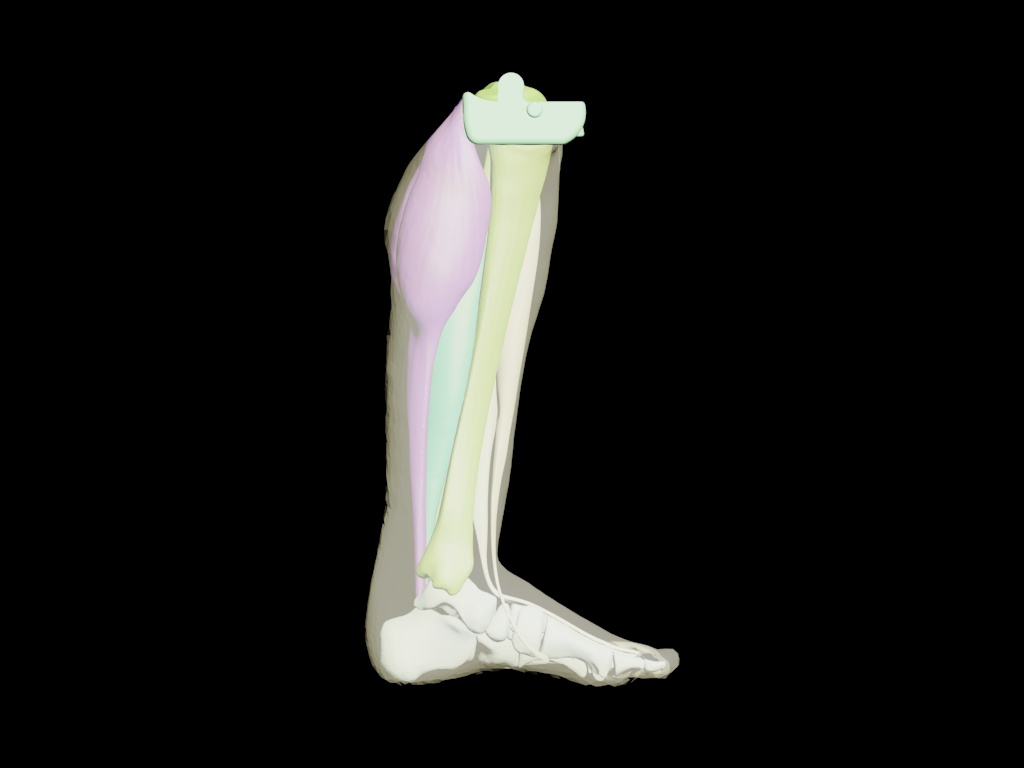

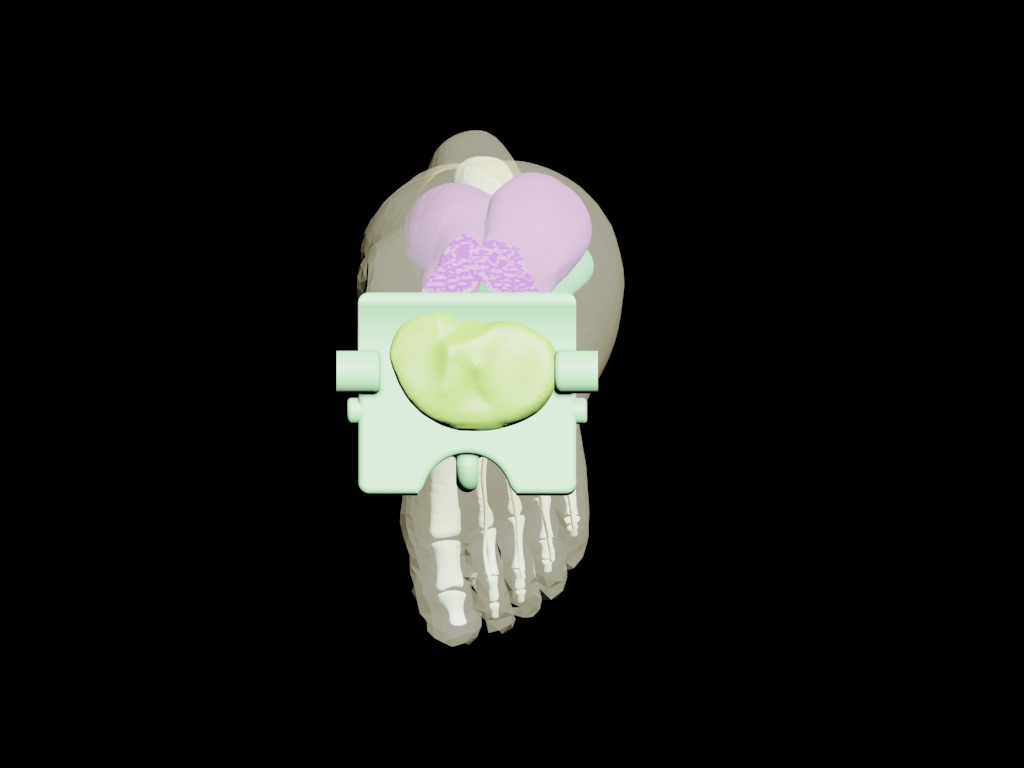

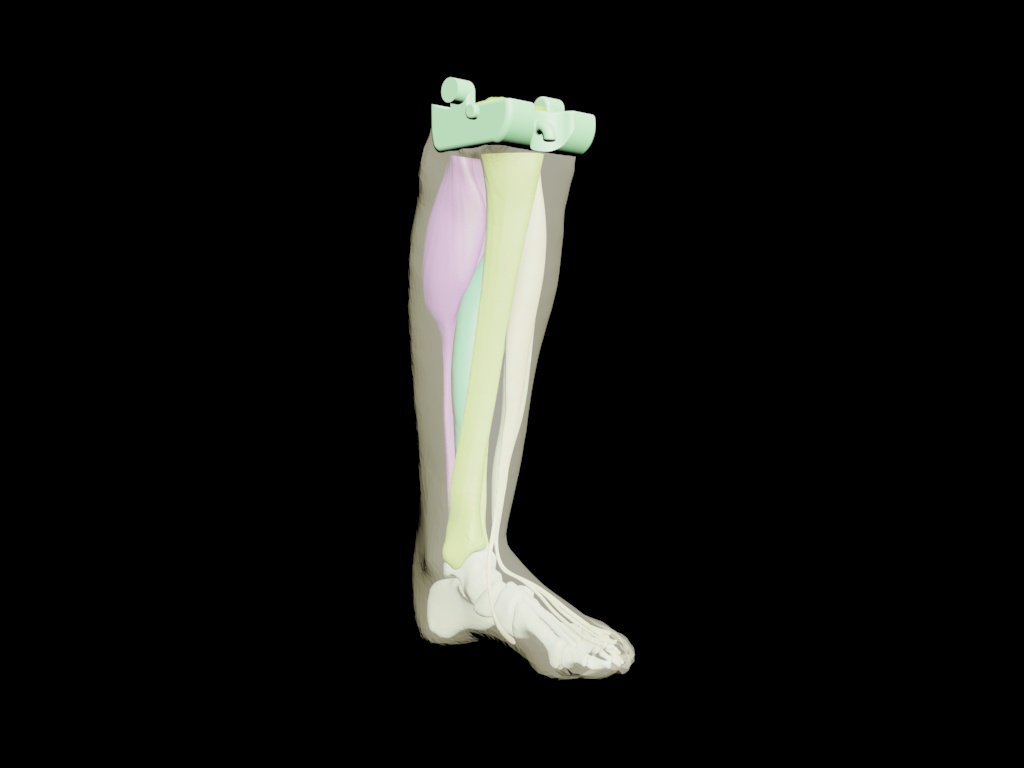

Design

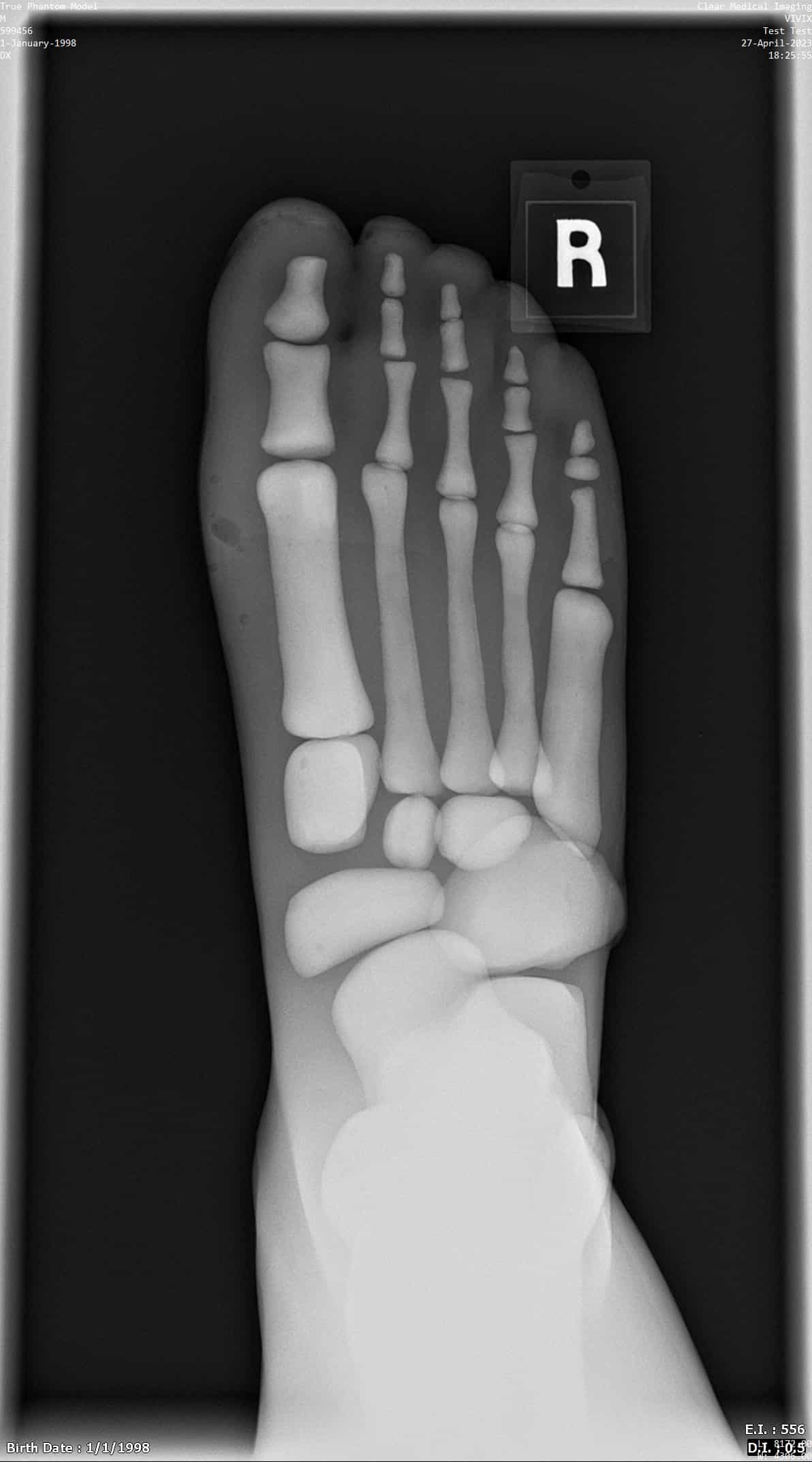

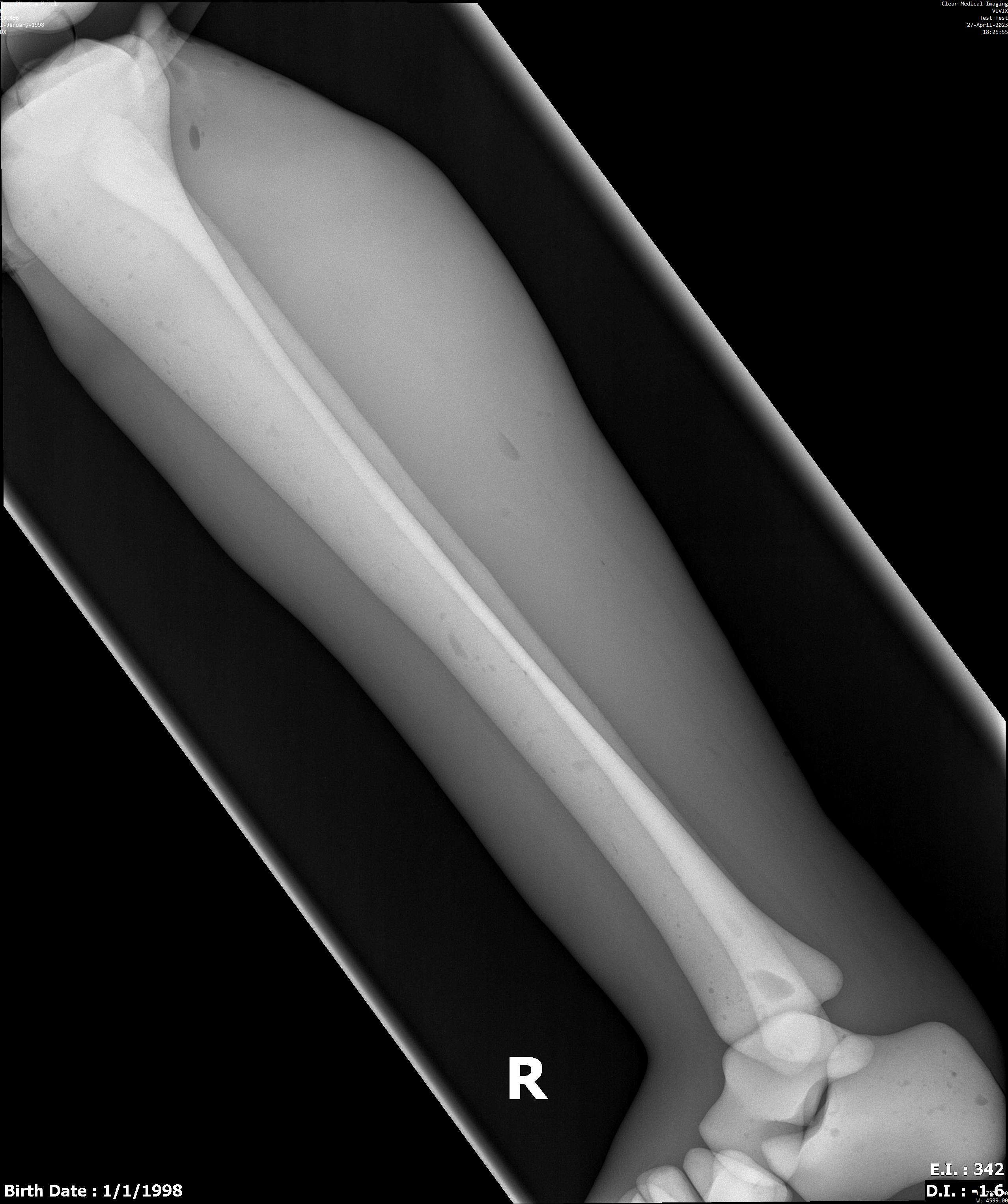

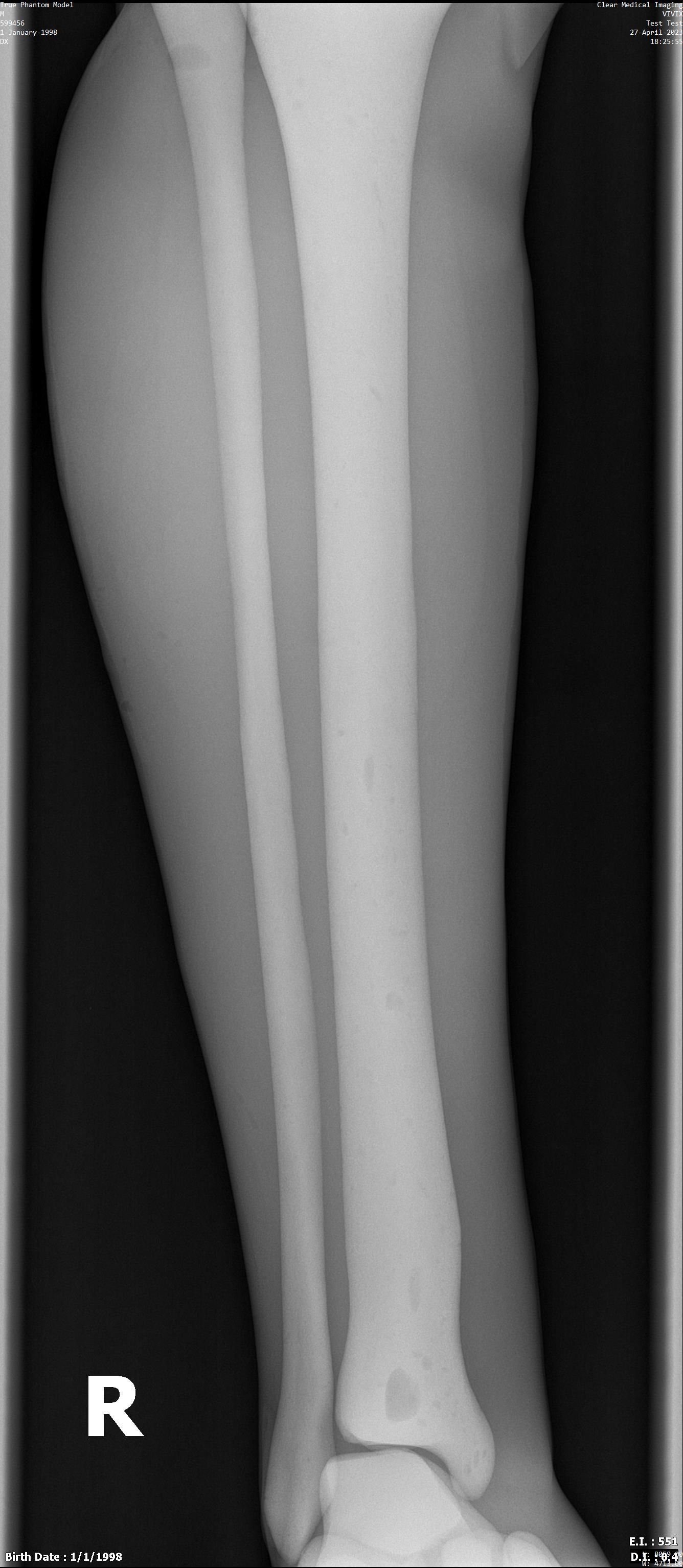

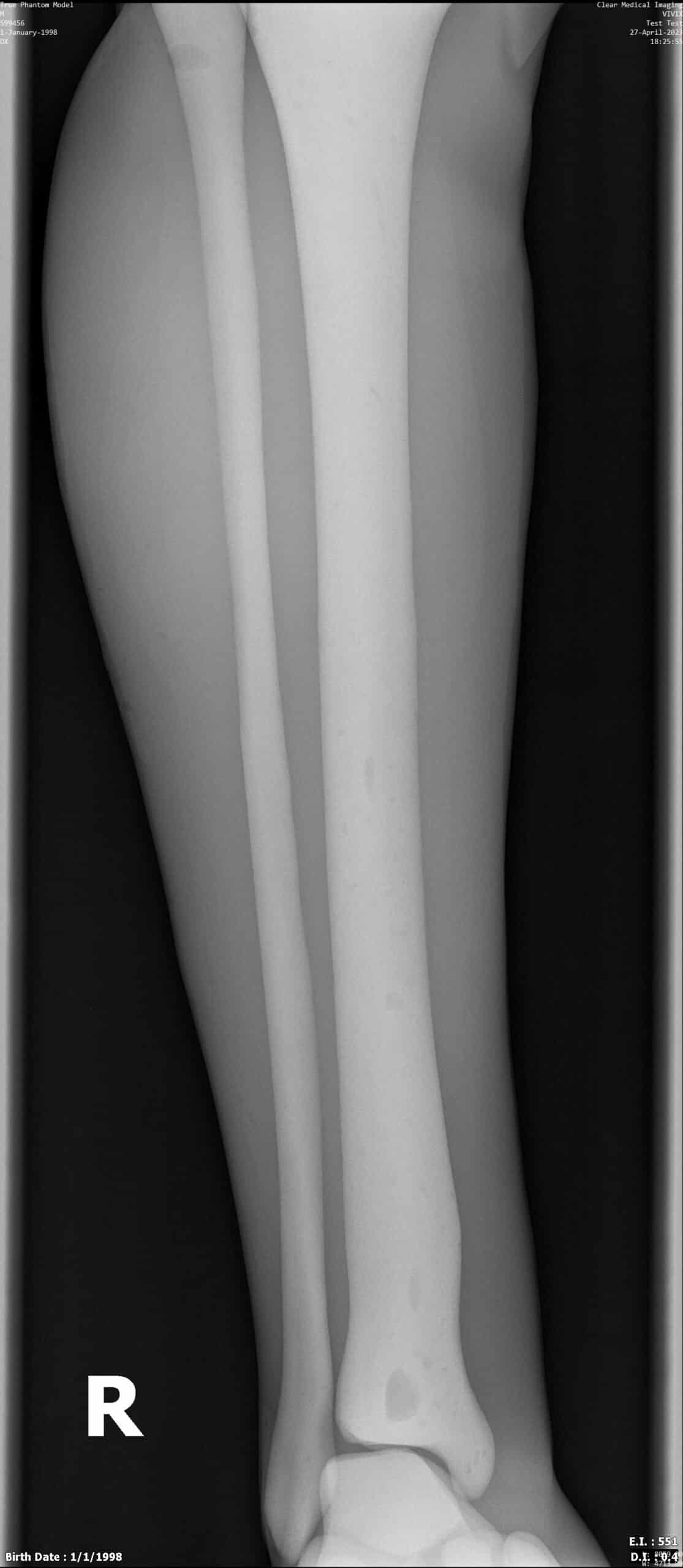

X-Ray Scans
Ultrasound Scans
- Fibula Bone
- Tibia Bone
- Foot Bones
- Major Muscle Tissues
| Phantom Size | 38 x 10 x 7 Inches |
| Phantom Weight | 26.5 Lbs (approx.) |
| Shipment Size | 36 x 24 x 12 Inches |
| Shipment Weight | 35 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Muscle Tissue | 1400 ± 10 | 1.01 | 35 | 60 | N/A | 1.3 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| Leg Model | Leg (Default – Bones Only), Leg (With Muscles) |
