X-Ray, CT, US, MRI Phantoms
Adult Knee (Extended) for X-Ray CT, US
$13,300 USD

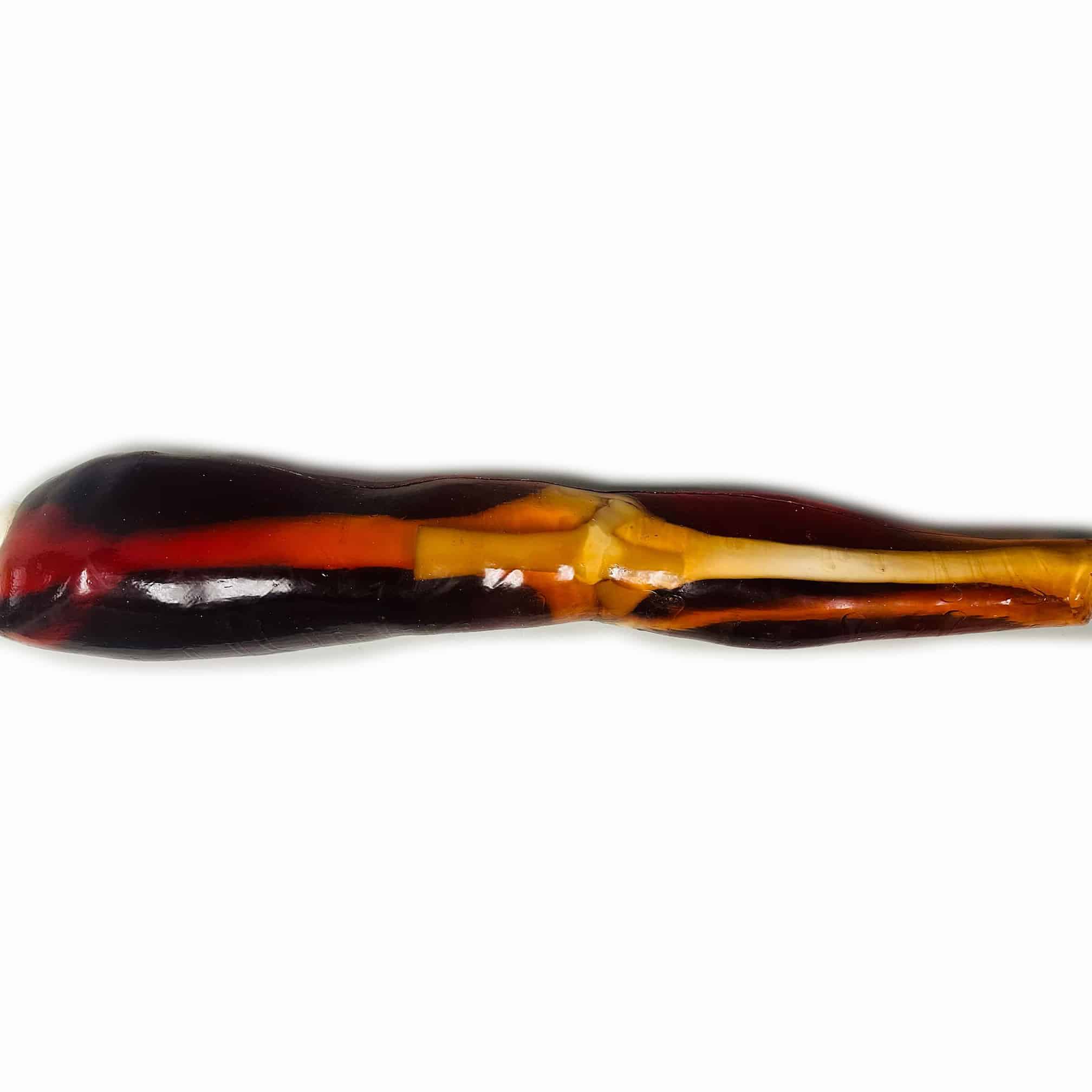

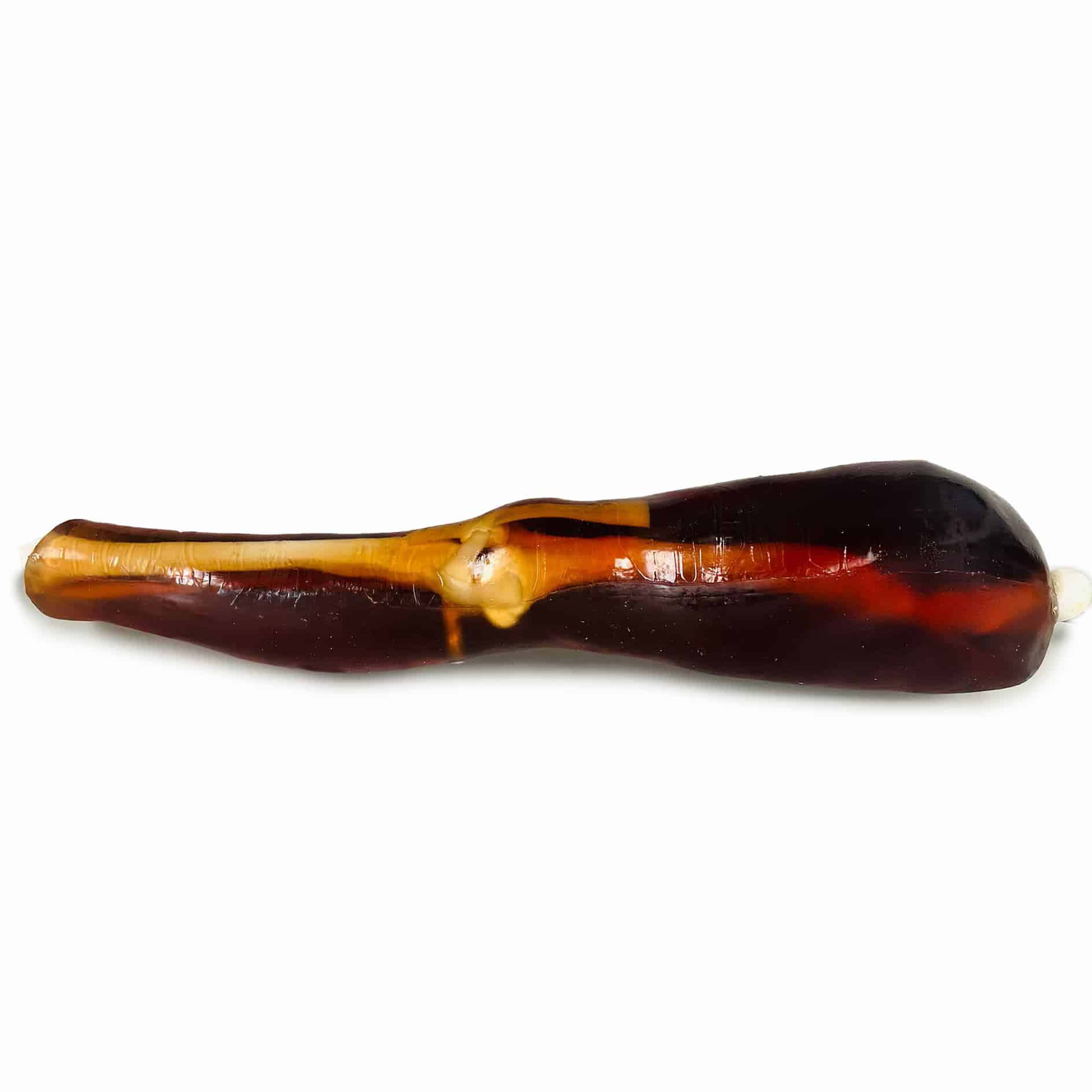

The design of this phantom is based on an average human right knee with thigh and calf regions. It is made out of several realistic tissue mimicking materials that are suitable for X-Ray CT and Ultrasound applications.
Knee Model: Extended (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.
The design of this phantom is based on an average human right knee with thigh and calf regions. It is made out of several realistic tissue mimicking materials that are suitable for X-Ray CT and Ultrasound applications.

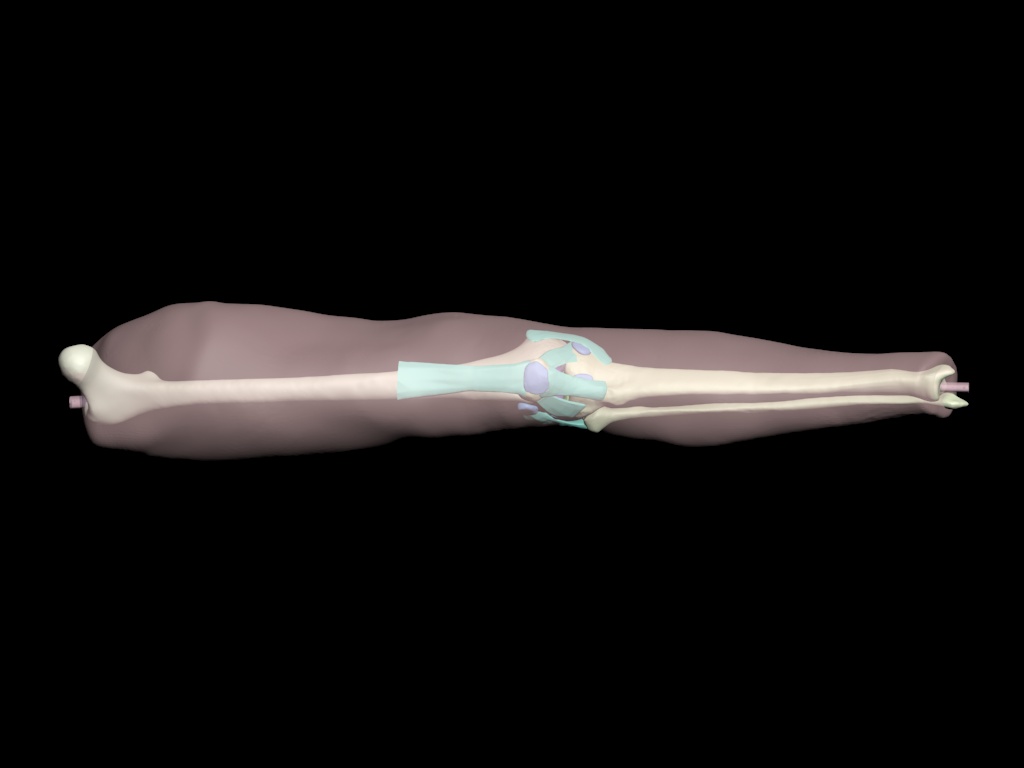

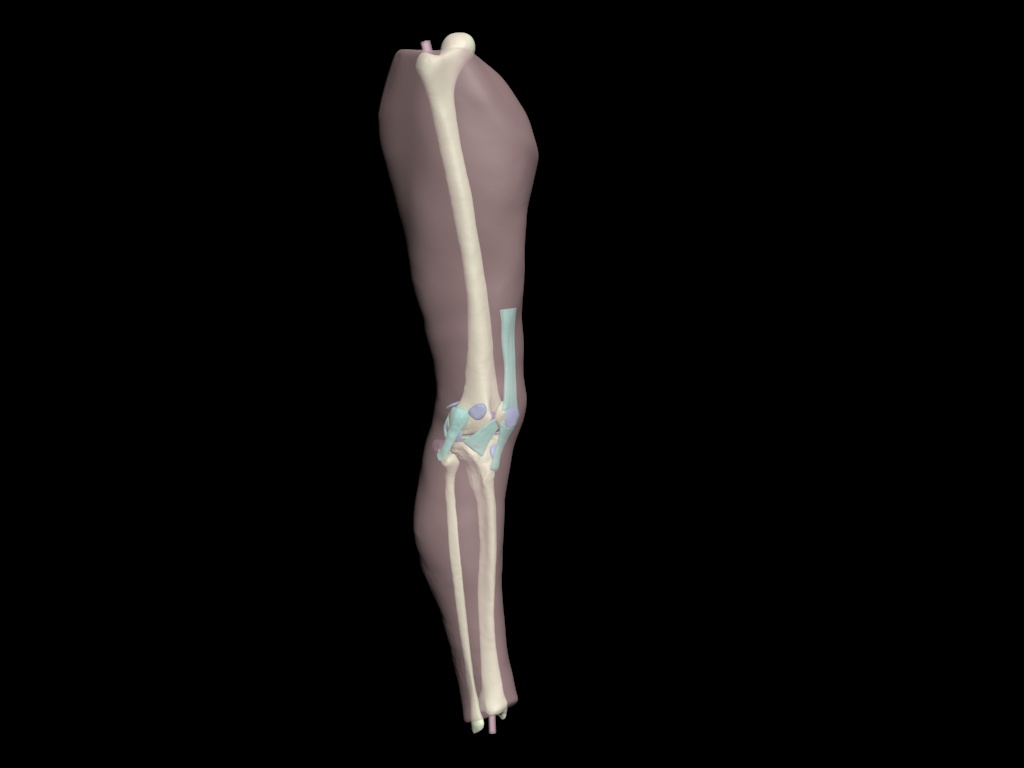

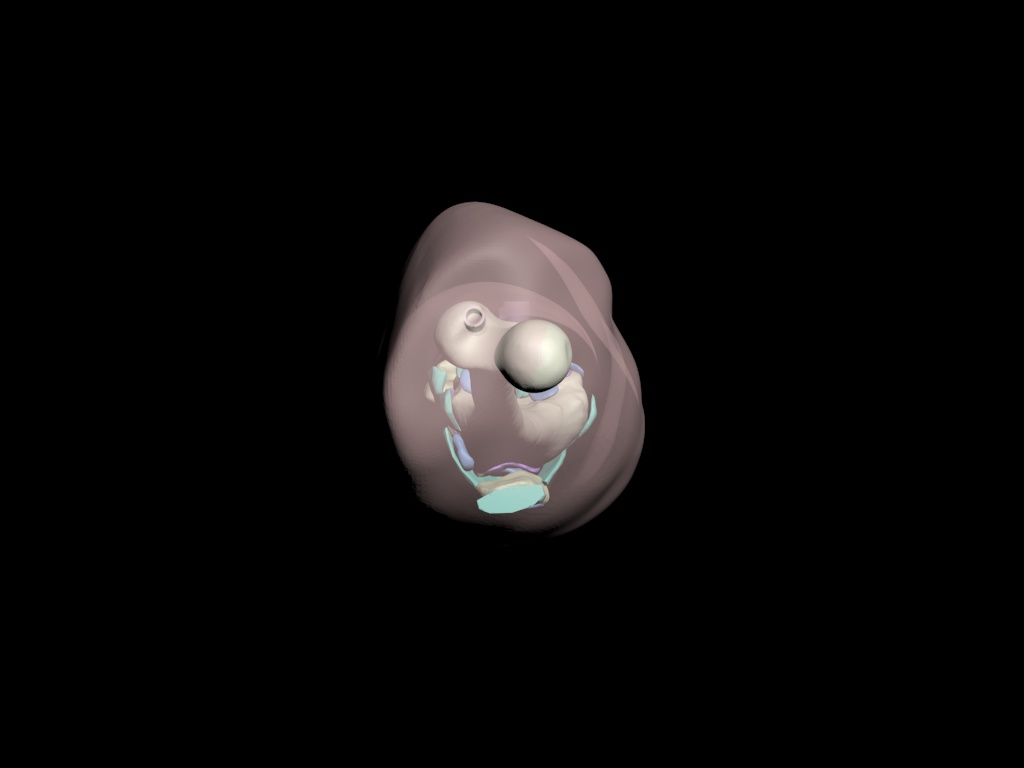

Design

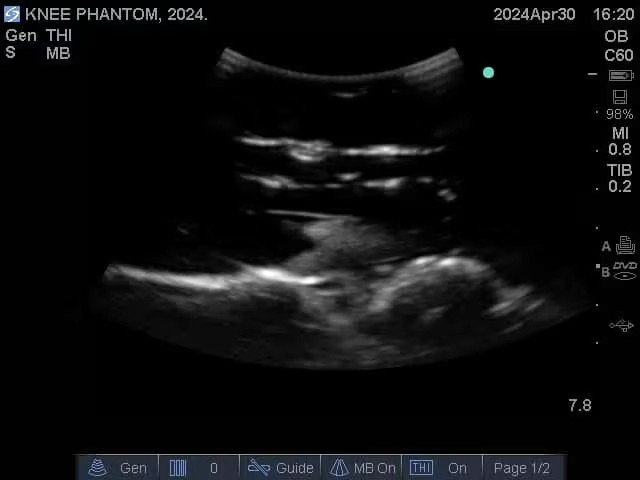

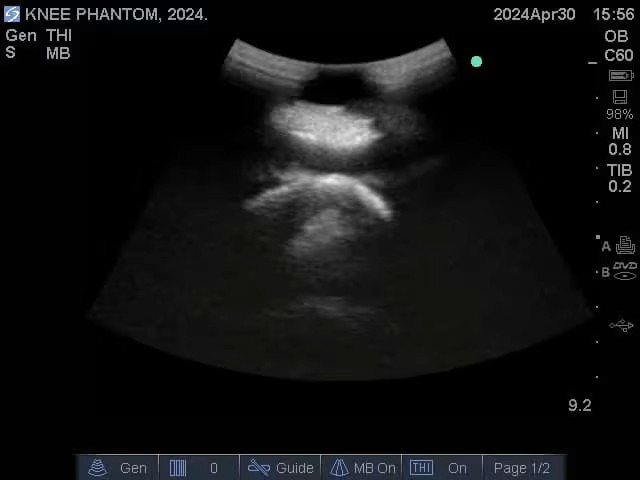

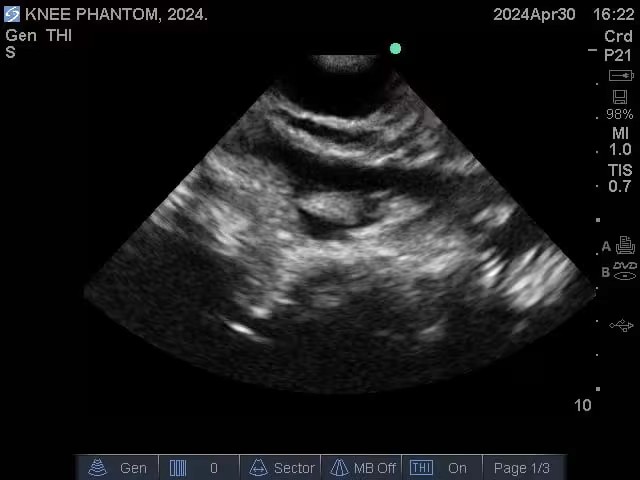

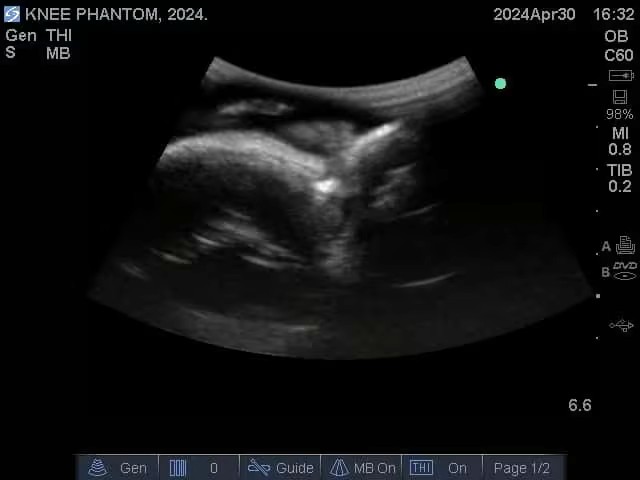

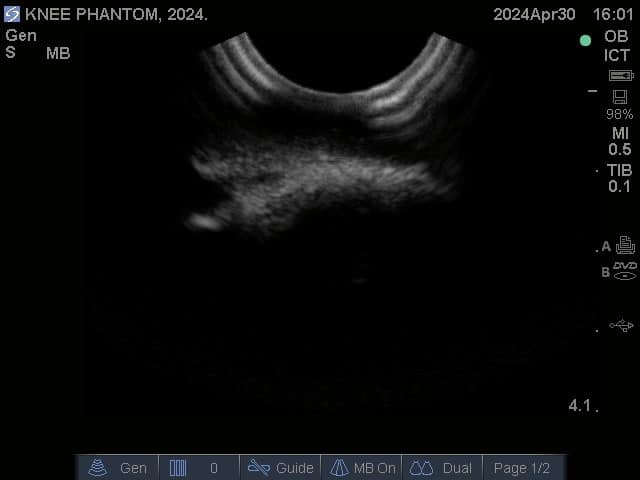

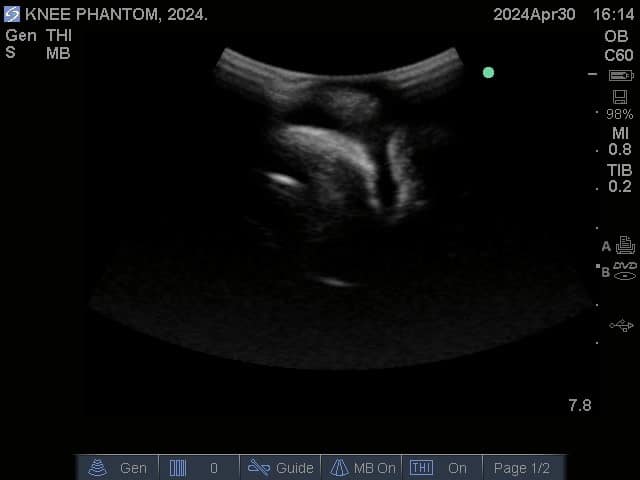

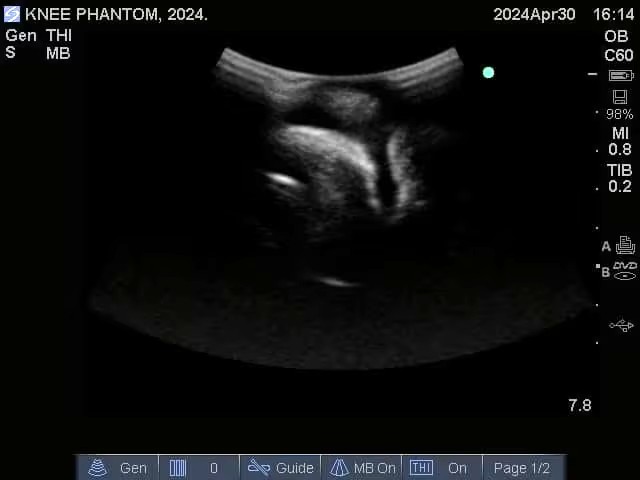

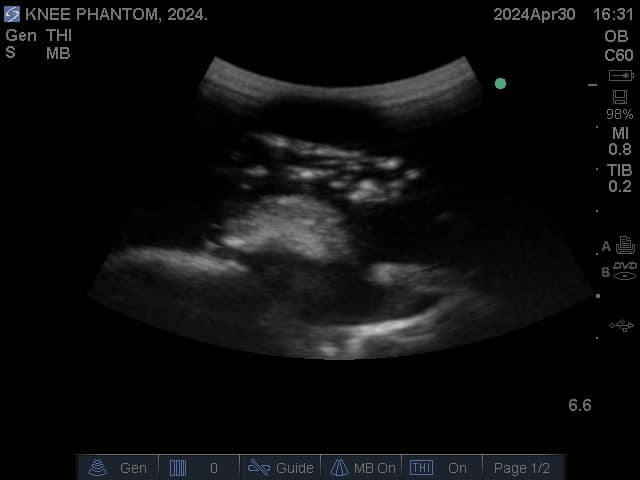

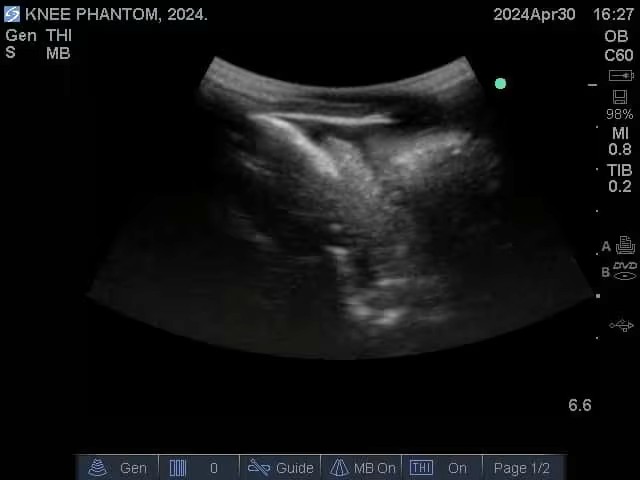

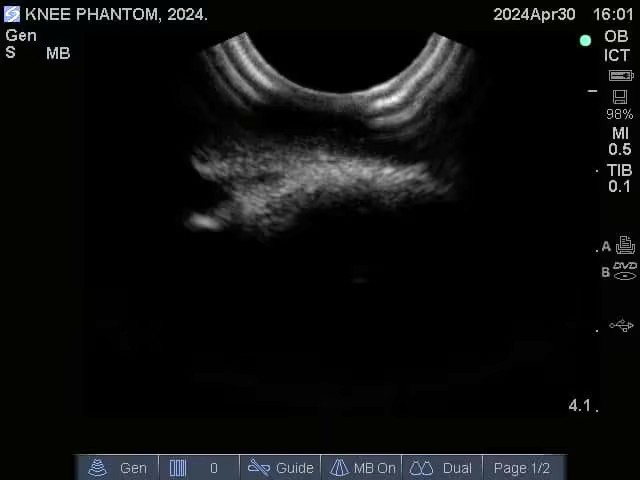

Ultrasound Scans
- Lateral Patellar Retinaculum
- Upper and Lower Leg
- Medial Patellar Retinaculum
- Patella
- Anterior Cruciate Ligament
- Meniscus:
- Posterior Cruciate Ligament
- Arcuate Popliteal Ligament
- Lateral Meniscus
- Oblique popliteal Ligament
- Medial Meniscus
- Bursa:
- Condyle:
- Subtendinous Bursa (3)
- Lateral Condyle Femoral
- Semimembranosus Bursa
- Medial Condyle Femoral
- Pes anserine Bursa
- Infrapatellar Bursa
- Ligaments and Tendons:
- Prepatellar Bursa
- Quadriceps Femoris Tendon
- Iliotibial Band Bursa
- Patellar Ligament
| Phantom Size | 7 x 8 x 35 Inches |
| Phantom Weight | 26 Lbs (approx.) |
| Shipment Size | 43 x 26 x 17 Inches |
| Shipment Weight | 50 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
