Adult Arm for X-Ray CT, US, MRI
$3,800 USD

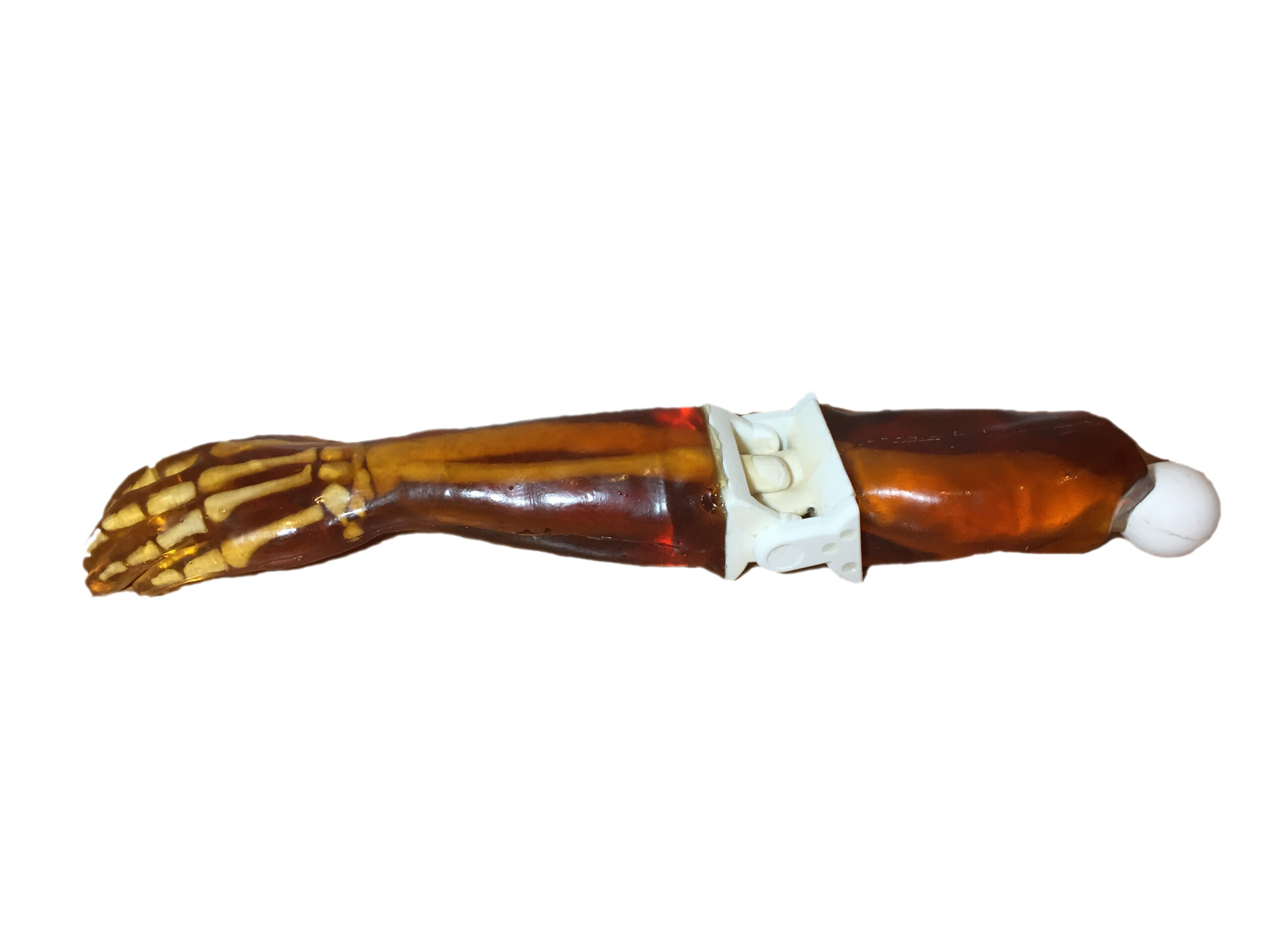

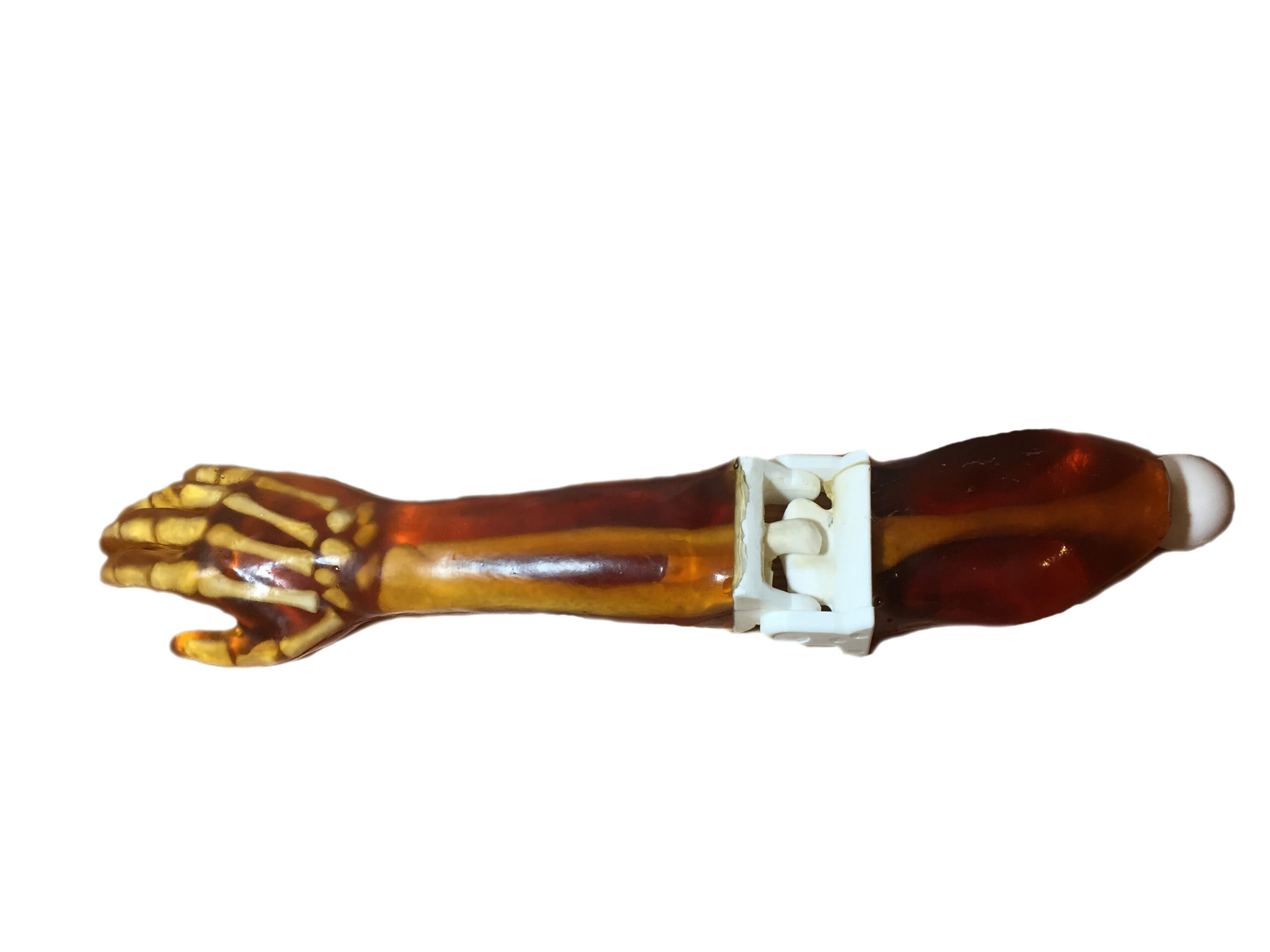

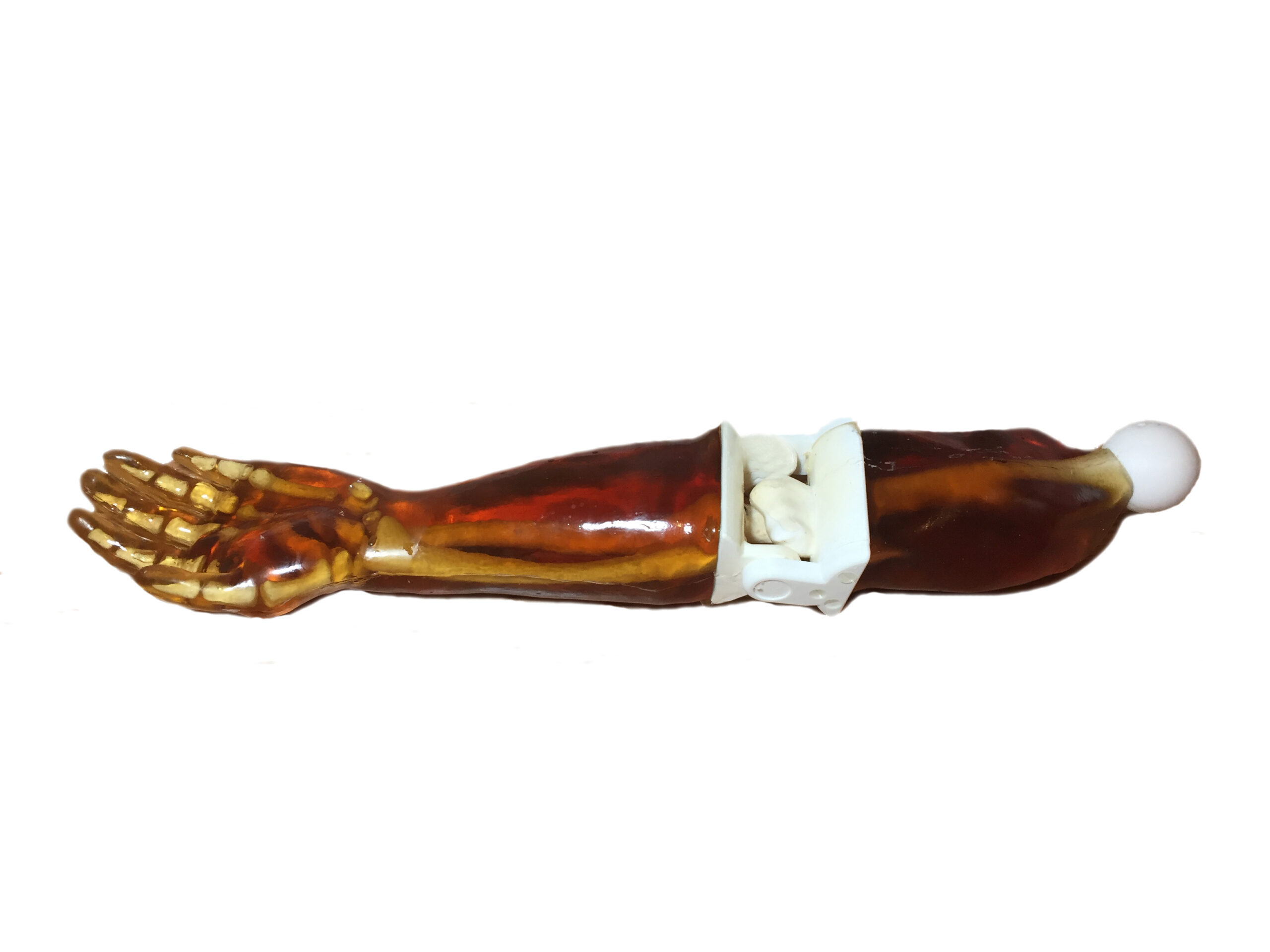

The Adult Arm for X-Ray/CT, US, and MRI has a joint at the elbow for flexibility and motion. It connects the lower arm with the upper arm. These two parts can be disarticulated as per needs. Our patented bone mimicking material allows for realistic X-ray/CT, US, and MRI images.
This product can be customized based on your requirements — contact us.
The Adult Arm for X-Ray/CT, US, and MRI has a joint at the elbow for flexibility and motion. It connects the lower arm with the upper arm. These two parts can be disarticulated as per needs. This X-Ray/CT, US and MRI Arm Phantom can be used to take x-ray images of the full arm. The model includes synthetic bones cast individually from our realistic patented bone-mimicking material. The X-Ray Arm Model is perfect for radiology schools for training and learning different settings of X-RAY without the danger of exposing an actual patient to harmful radiation.

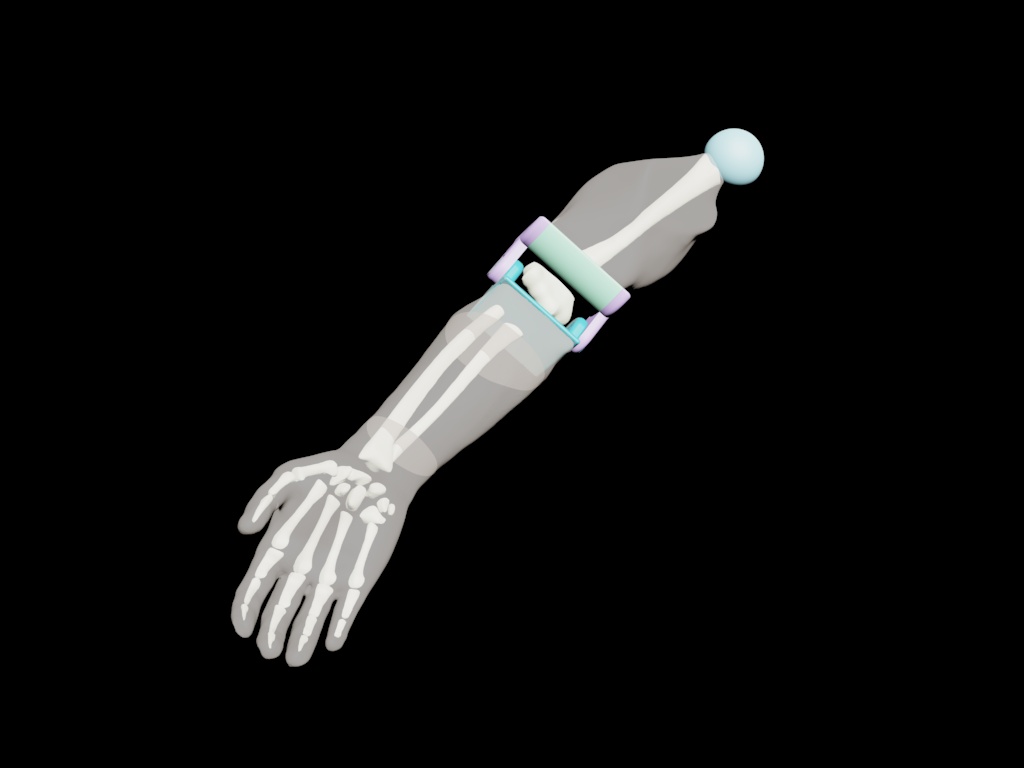

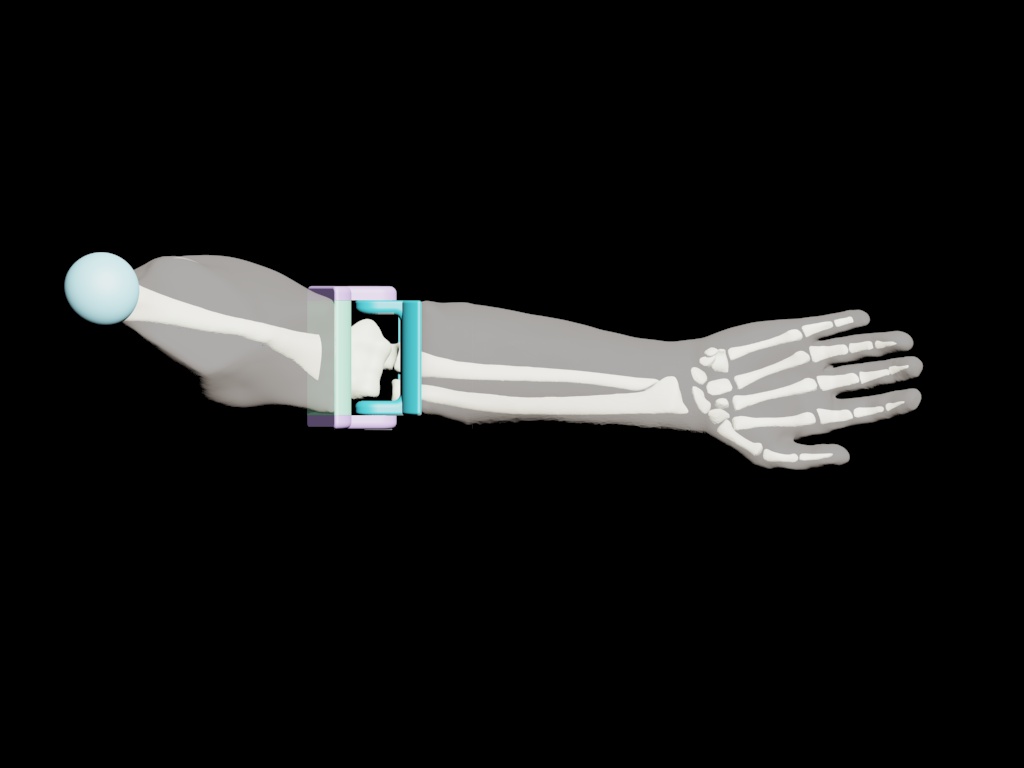

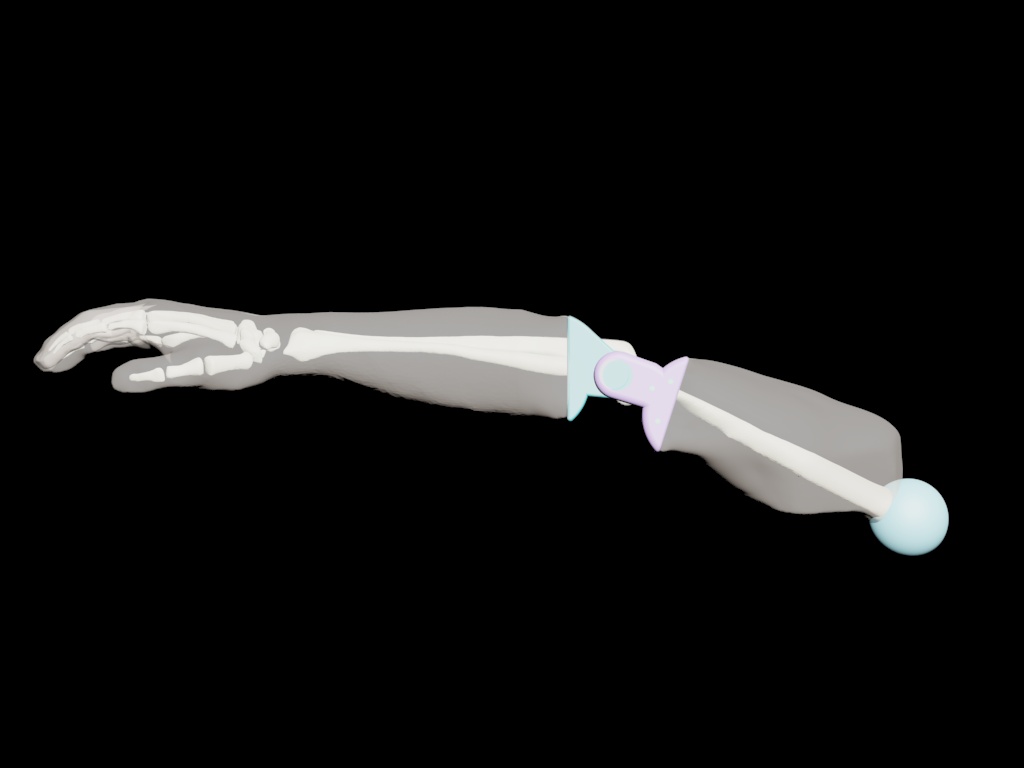

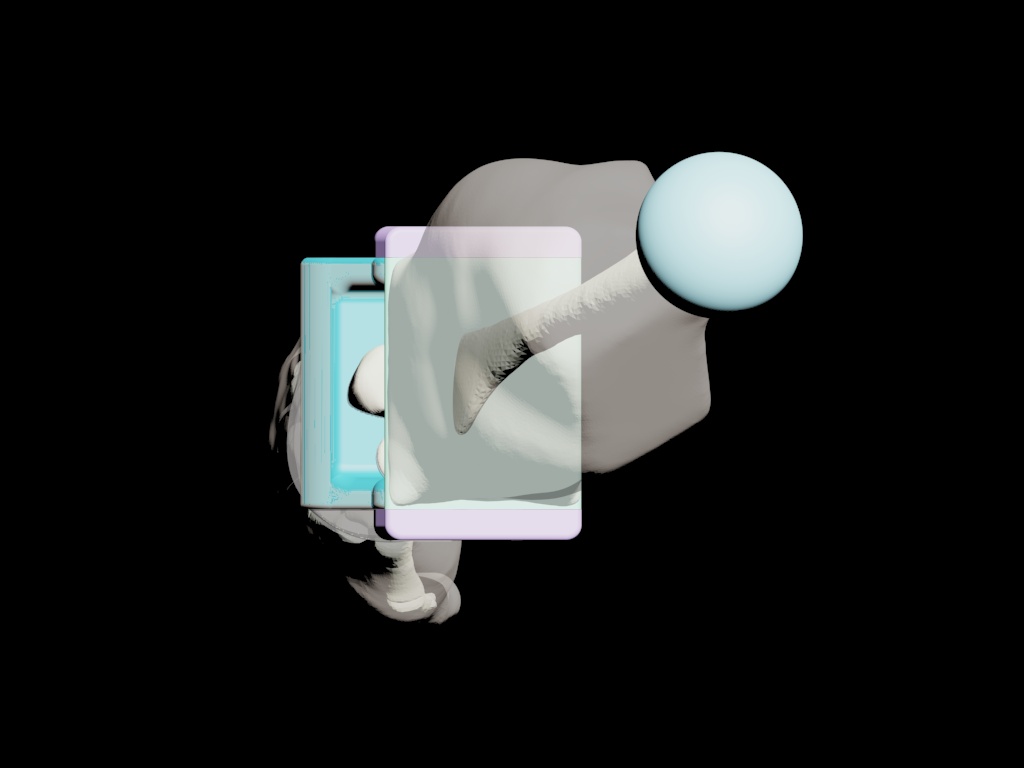

Design

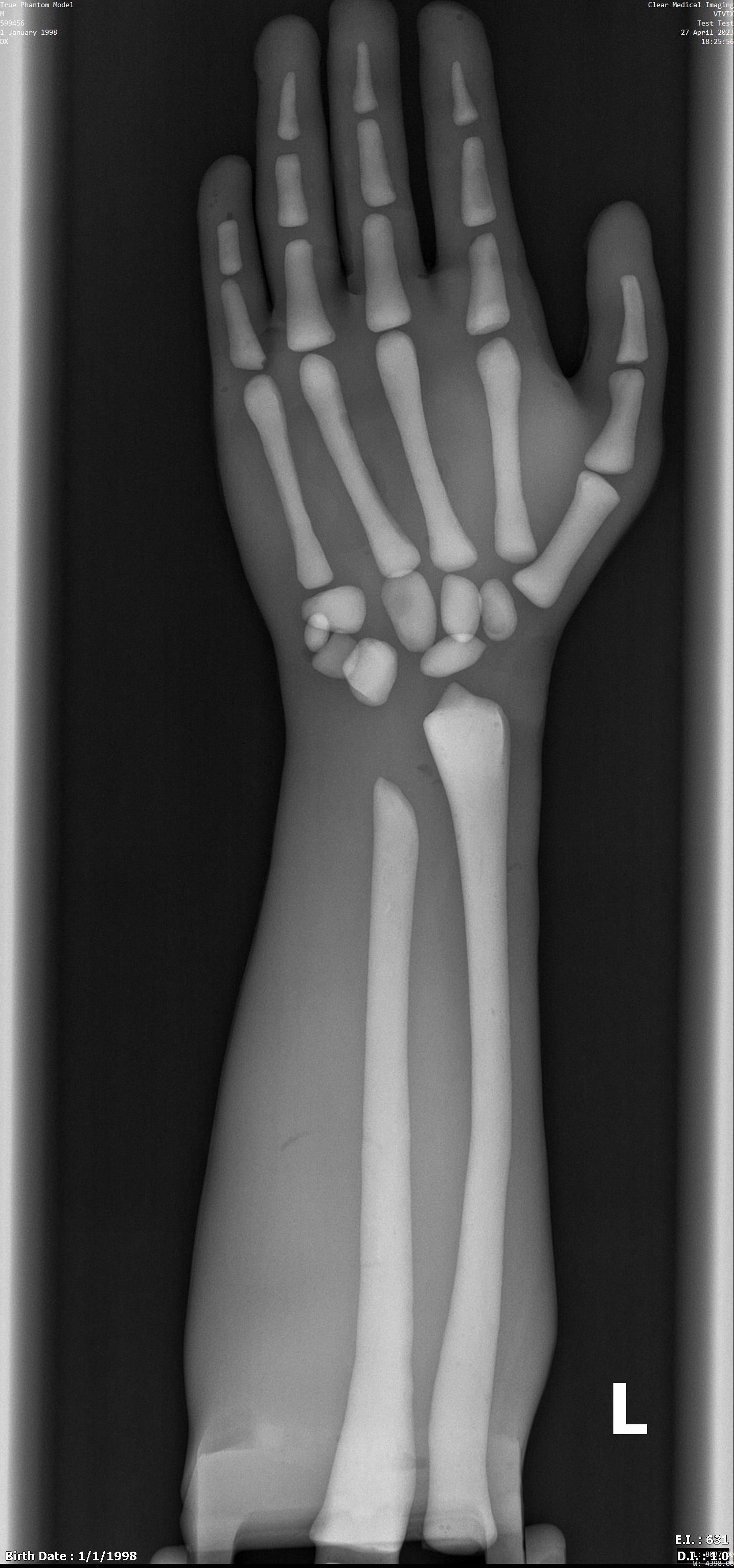

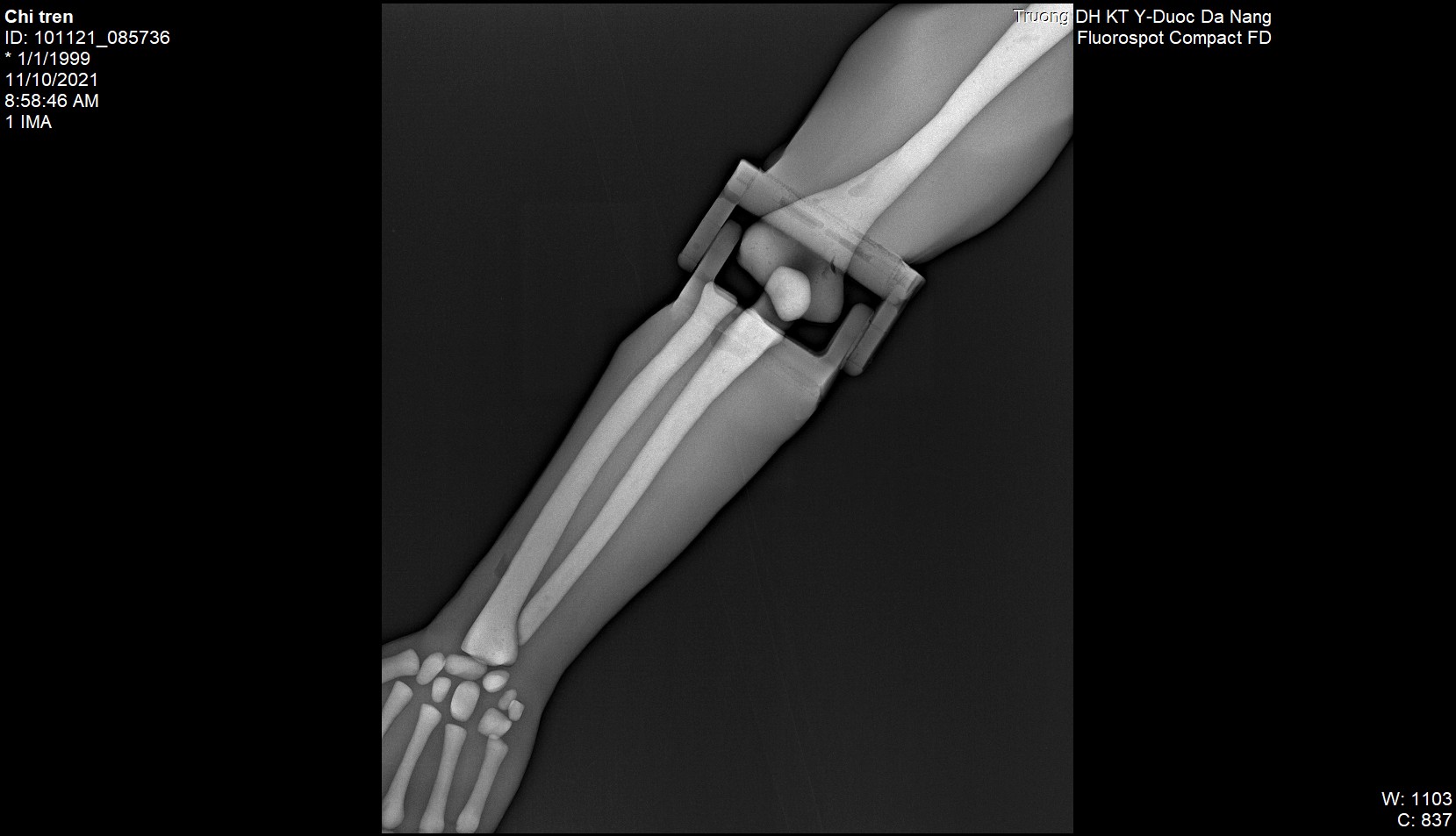

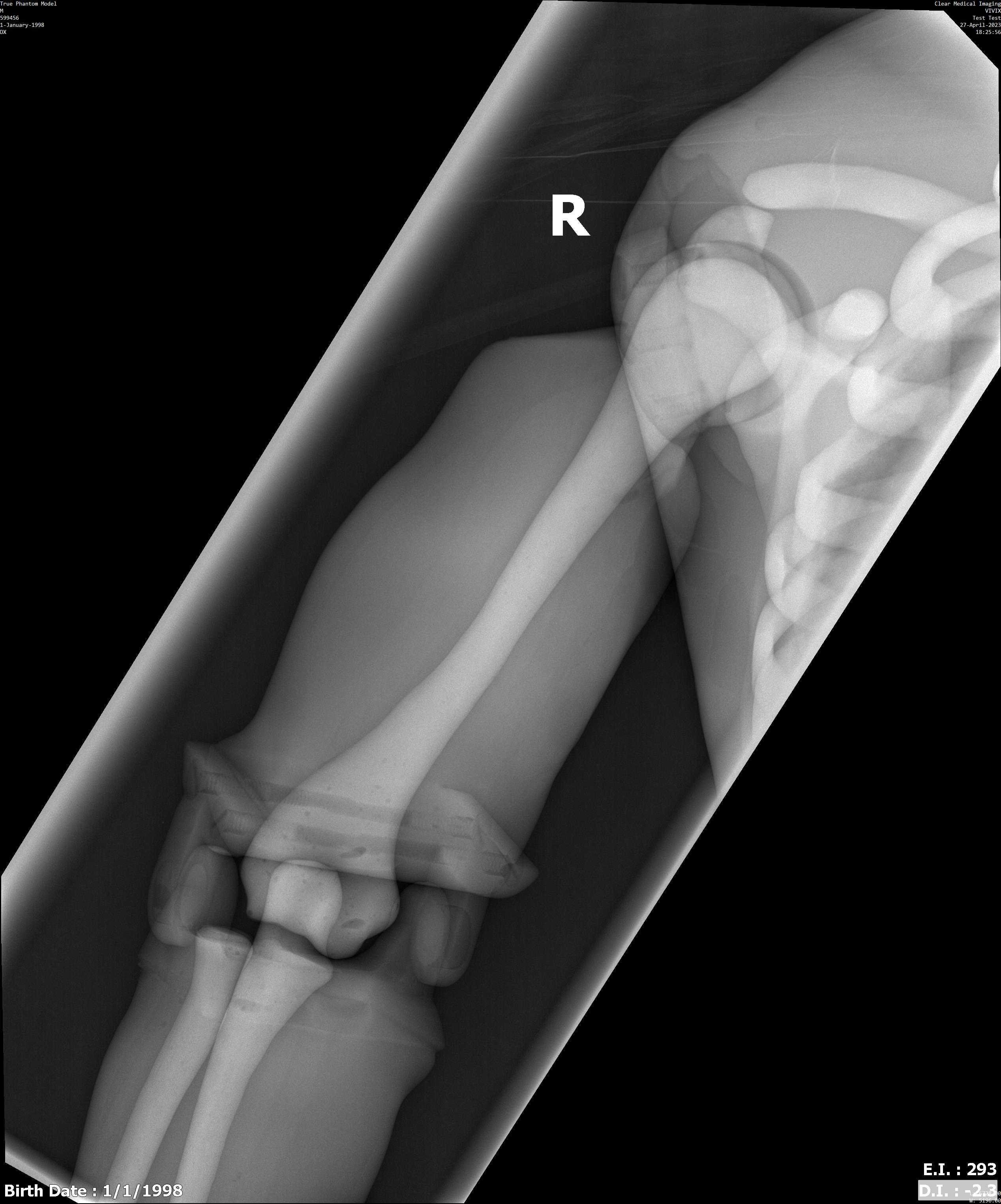

X-Ray Scans
CT Scans
- Arm (Humerus)
- Elbow Joints
- Forearm (Radius, Ulna)
- Hand (Wrist with Fingers)
| Phantom Size | 7 x 7 x 24 Inches |
| Phantom Weight | 7.7 Lbs (approx.) |
| Shipment Size | 28 x 12 x 12 Inches |
| Shipment Weight | 13.2 Lbs (approx.) |
| Type of Tissues | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| 3 | Soft Tissue | -25 |
| Arm Model | Arm (Default), Arm (Complex), Arm (With Elbow) |
