Adult Knee (Bones Only) for X-Ray CT, US, MRI
$4,400 USD

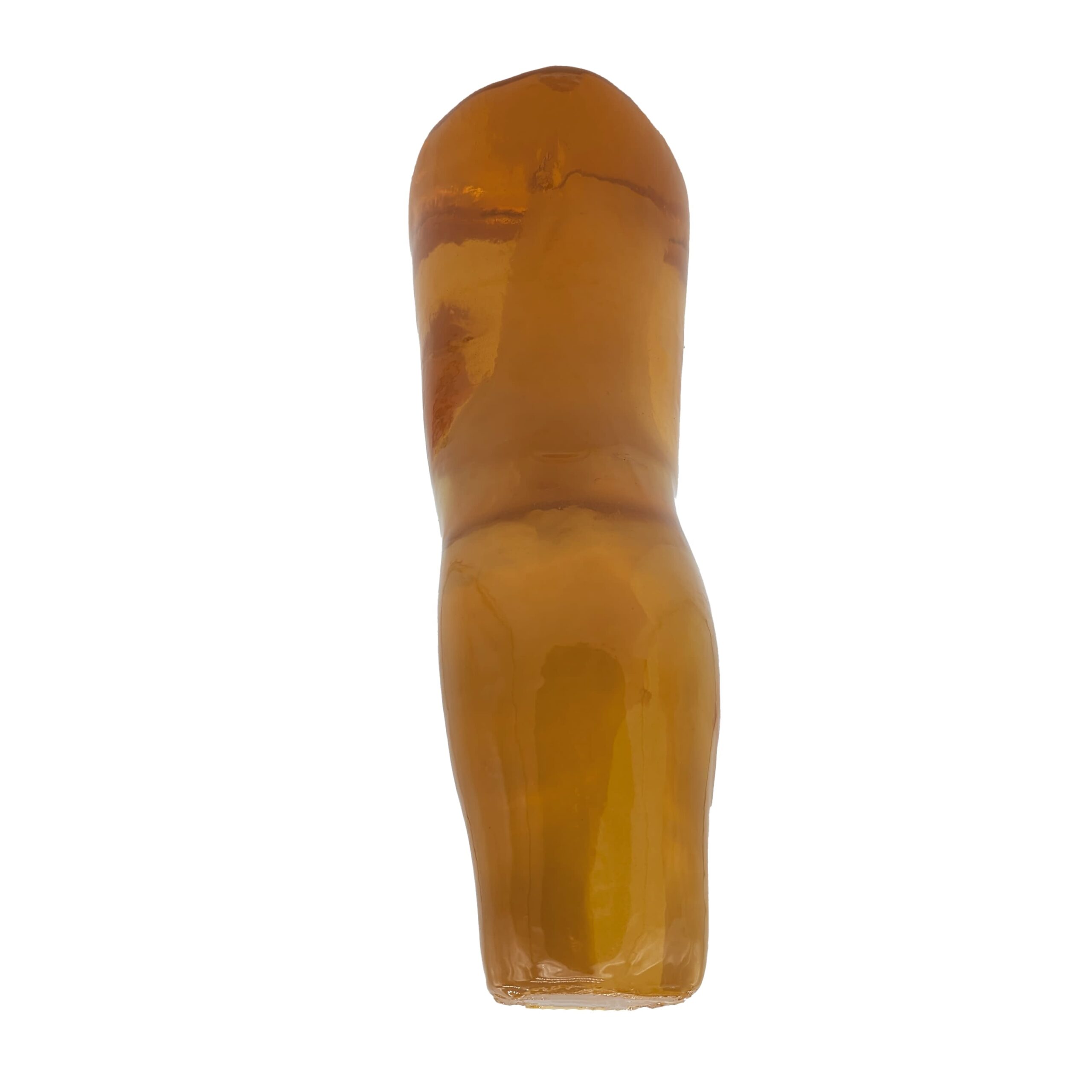

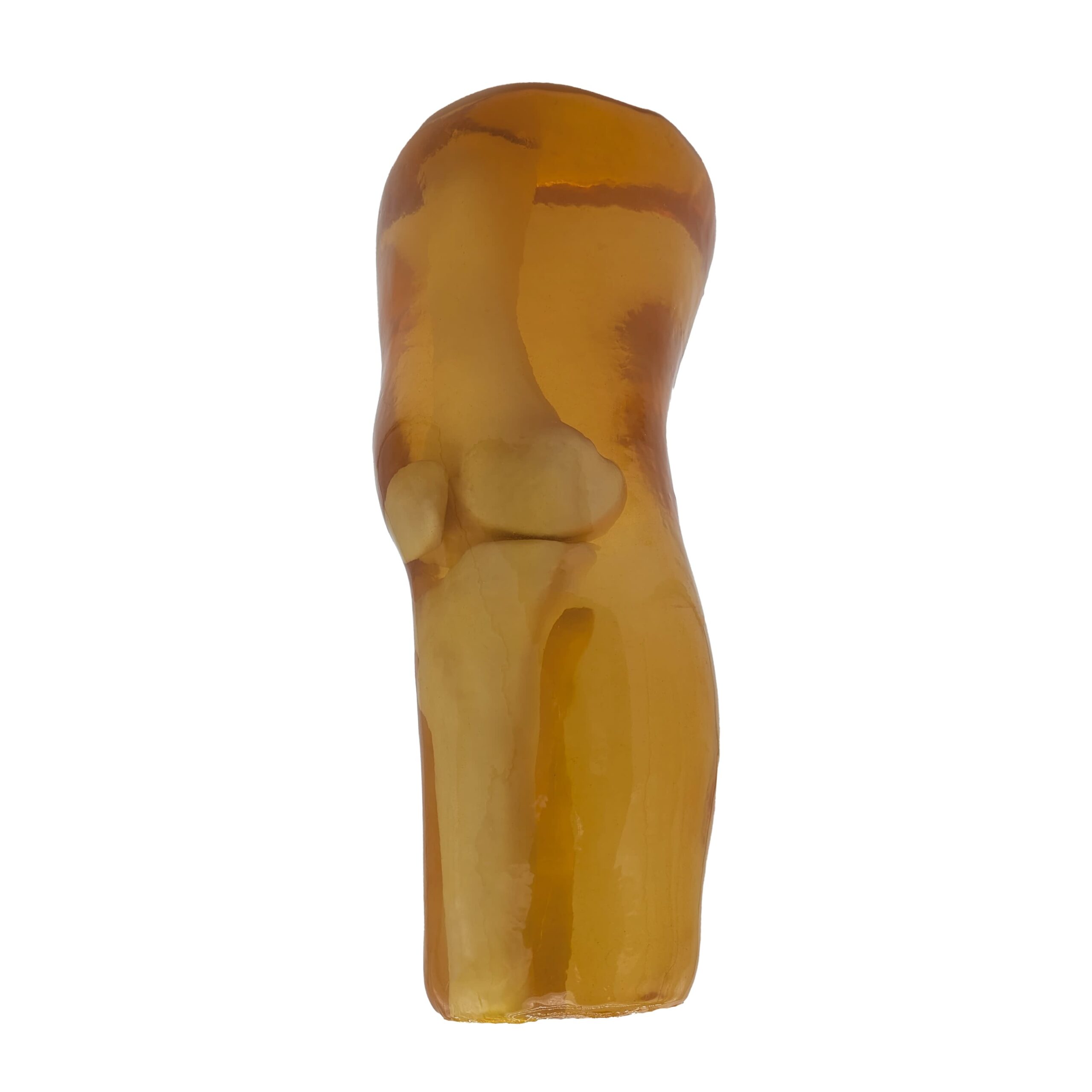

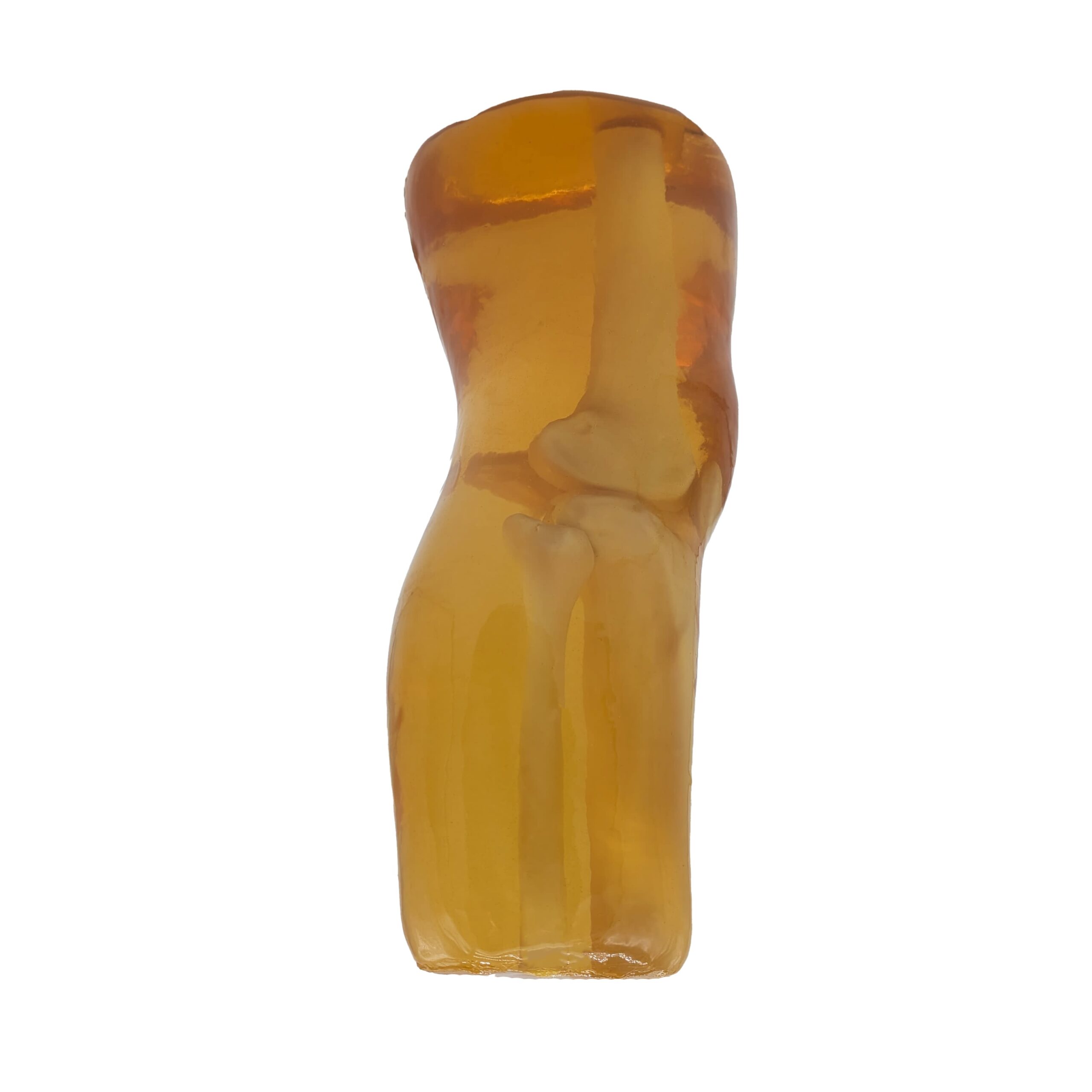

The Adult Knee phantom is designed around the structure of an average adult human knee. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US and MRI imaging, it serves medical imaging research, and Orthopedic related studies.
Knee Model: Bones Only (X-Ray·CT·US·MRI)
This product can be customized based on your requirements — contact us.
The Adult Knee phantom has an internal structure and anatomy based on the average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray, CT and US imaging applications. The soft tissue is made from realistic urethane-based tissue-mimicking materials. The phantom can be used as a tool to conduct medical imaging research, radiology training, and testing.
- Partial Upper Leg
- Partial Lower Leg
- Condyle:
- Lateral Condyle Femoral
| Shipment Size | 32 x 23 x 13 Inches |
| Shipment Weight | 26 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| Knee Model | Ligaments/Tendons, Bones Only |
