Adult Arm with Elbow for X-Ray CT, US, MRI
$4,900 USD

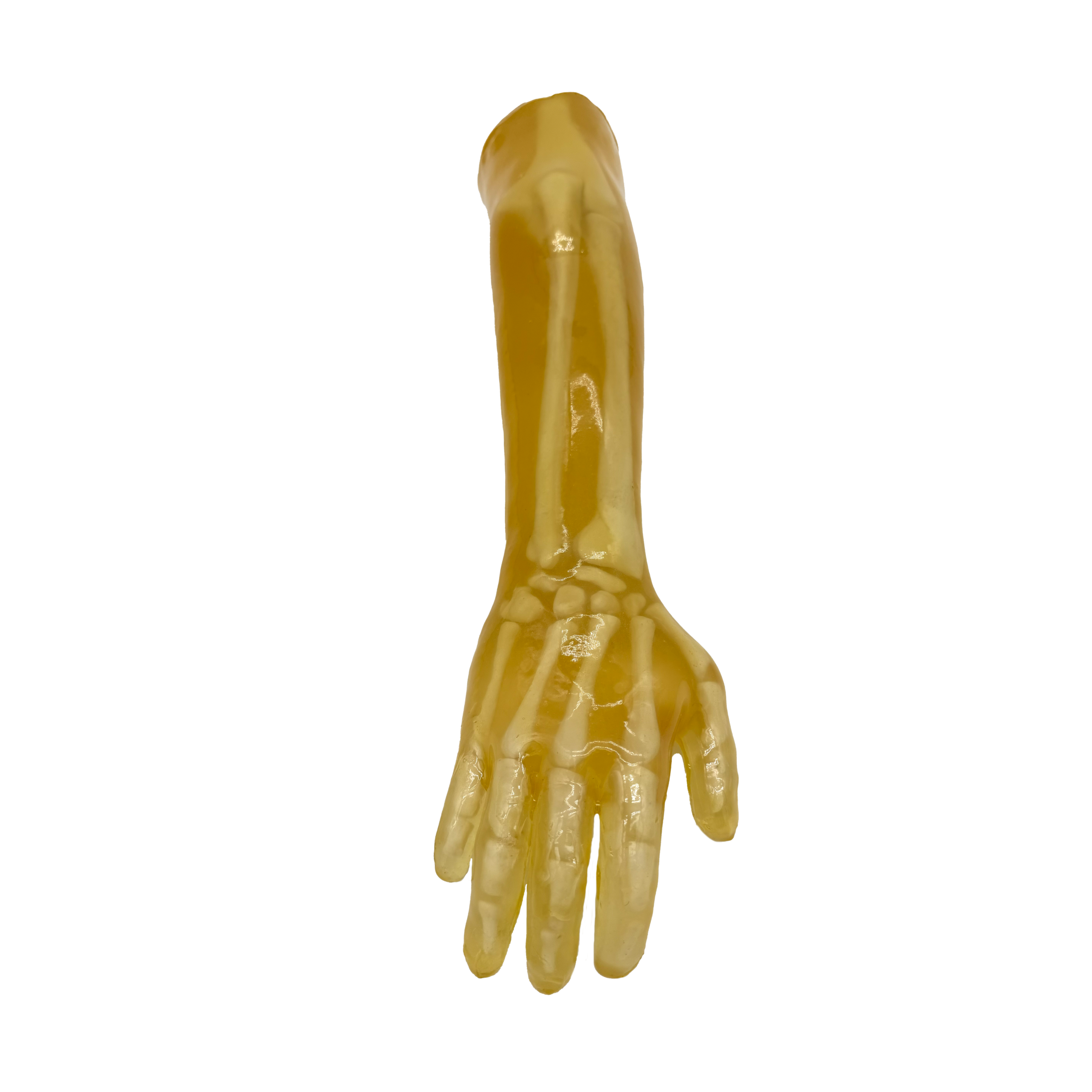

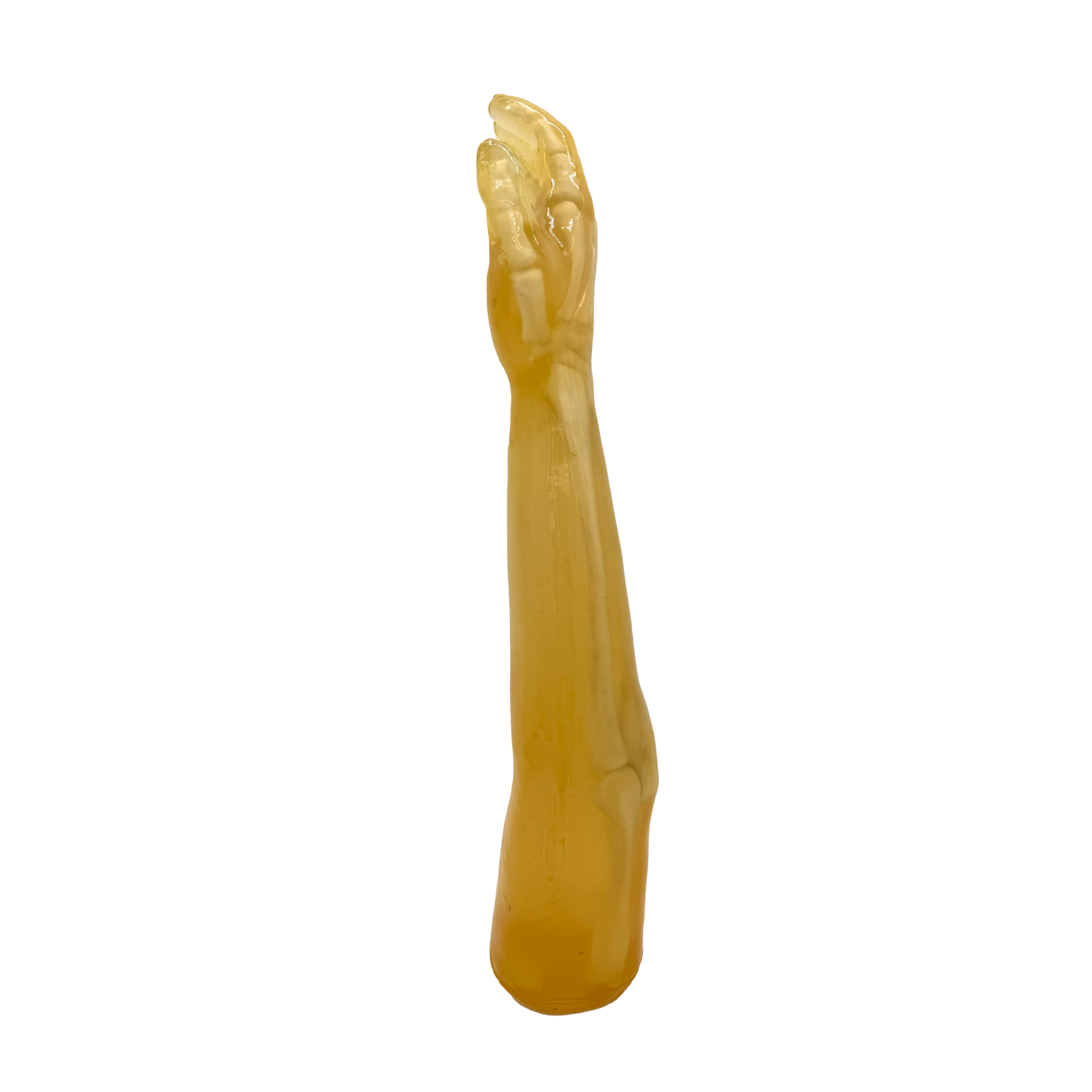

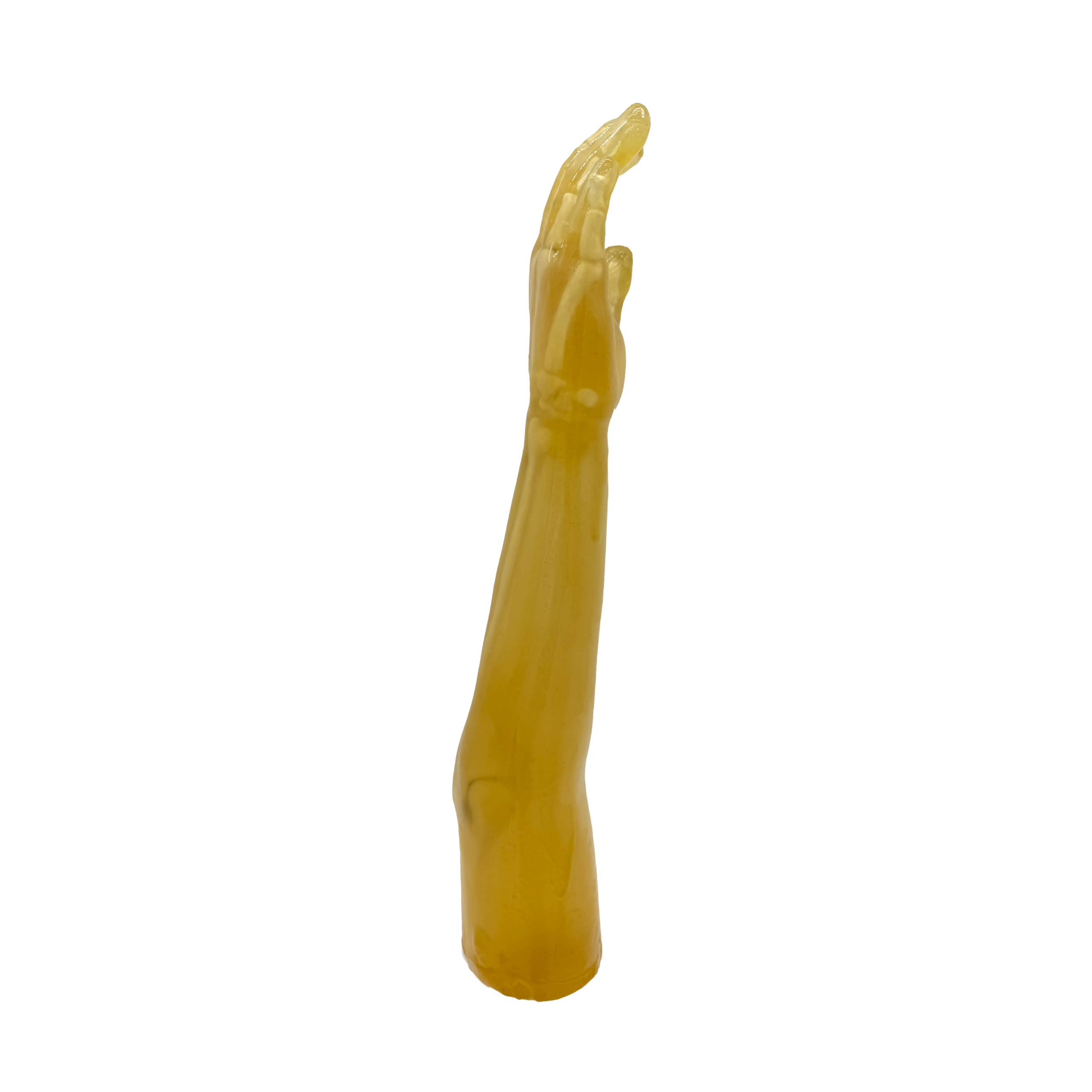

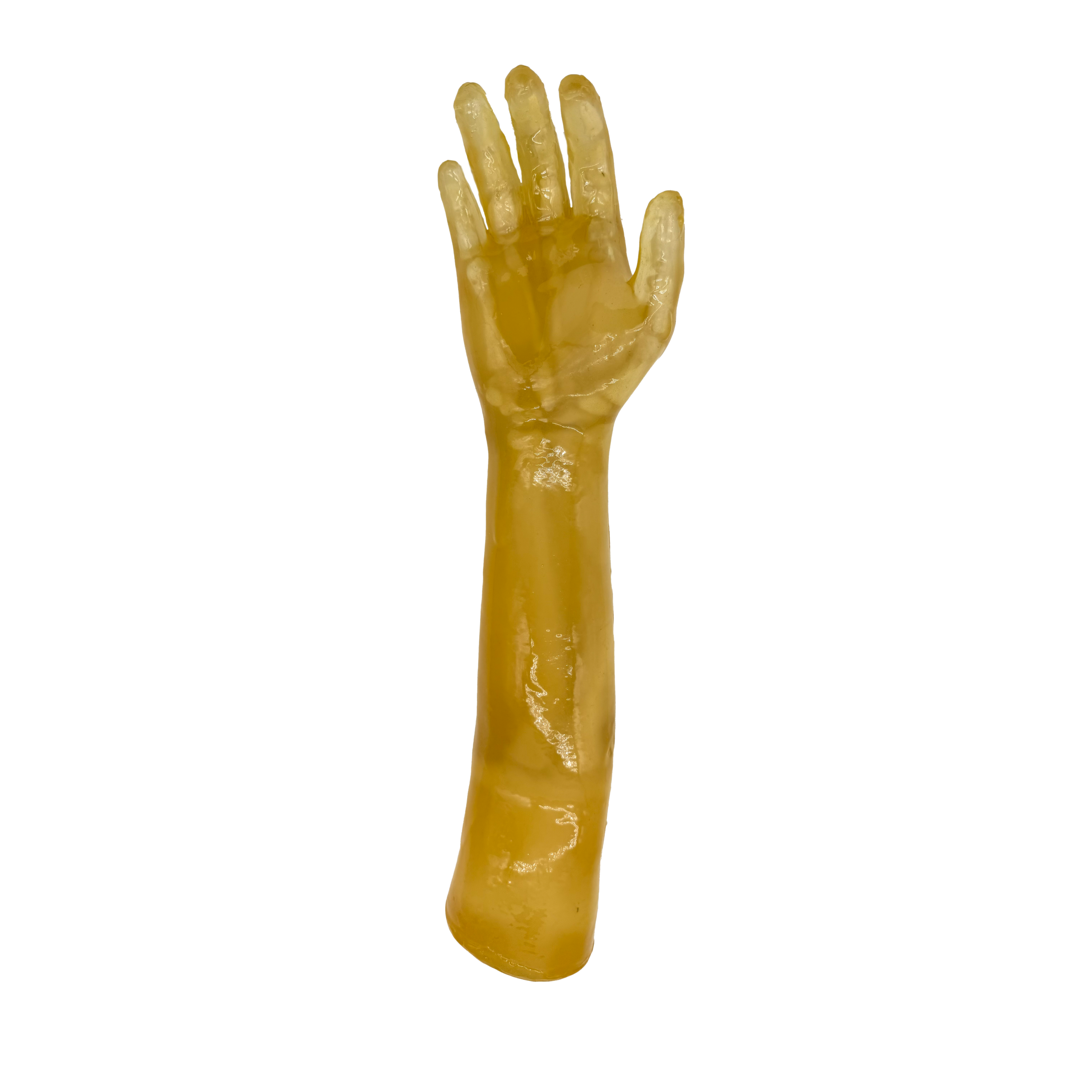

The Arm with Elbow phantom is designed around the structure of an average human adult’s arm, in X-Ray AP View. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US as well as MRI imaging, it is an ideal tool for radiology training, medical imaging research, and Orthopedic related studies.
This product can be customized based on your requirements — contact us.
The Arm with Elbow phantom is designed around the structure of an average human adult's arm, in X-Ray AP View. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US as well as MRI imaging, it is an ideal tool for radiology training, medical imaging research, and Orthopedic related studies.
- Partial Humerus
- Ulna
- Radius
- Hand
- Wrist Bones
- Finger Bones
- Realistic Soft Body Tissue
| Shipment Size | 23 x 14 x 10 Inches |
| Shipment Weight | 16 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 35 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| Arm Model | Arm (Default), Arm (Complex), Arm (With Elbow), Elbow |
