Newborn Torso for X-Ray CT, US
$4,400 USD
The Newborn Torso phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn Training Program at the University of Calgary. This phantom is an deal tool for Ultrasound-guided procedures, such as catheter insertion through the umbilical cord and bladder catheterization. It is constructed with realistic tissue-mimicking materials suitable for Ultrasound and X-Ray/CT imaging.
Torso Model: Standard (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.

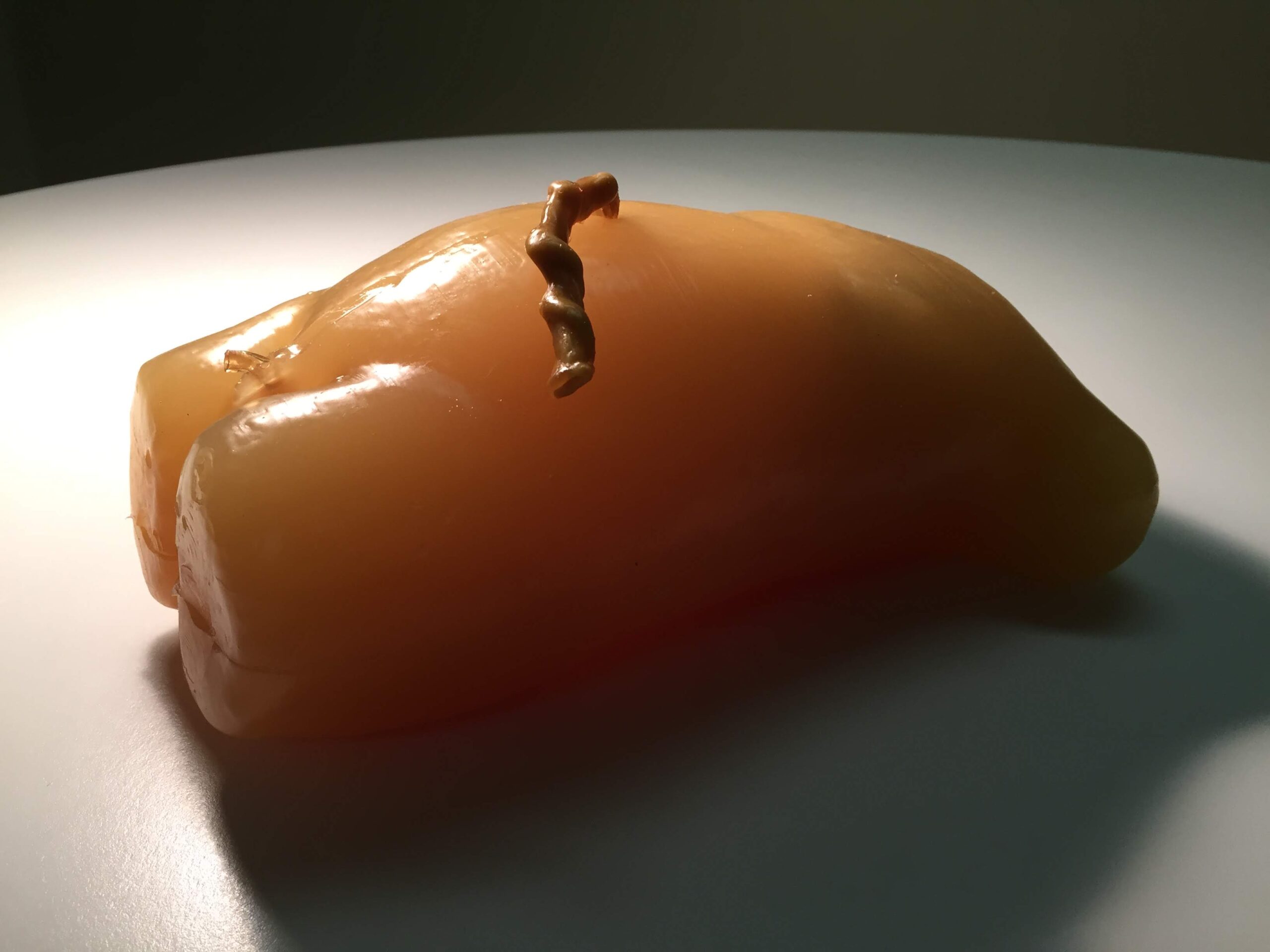

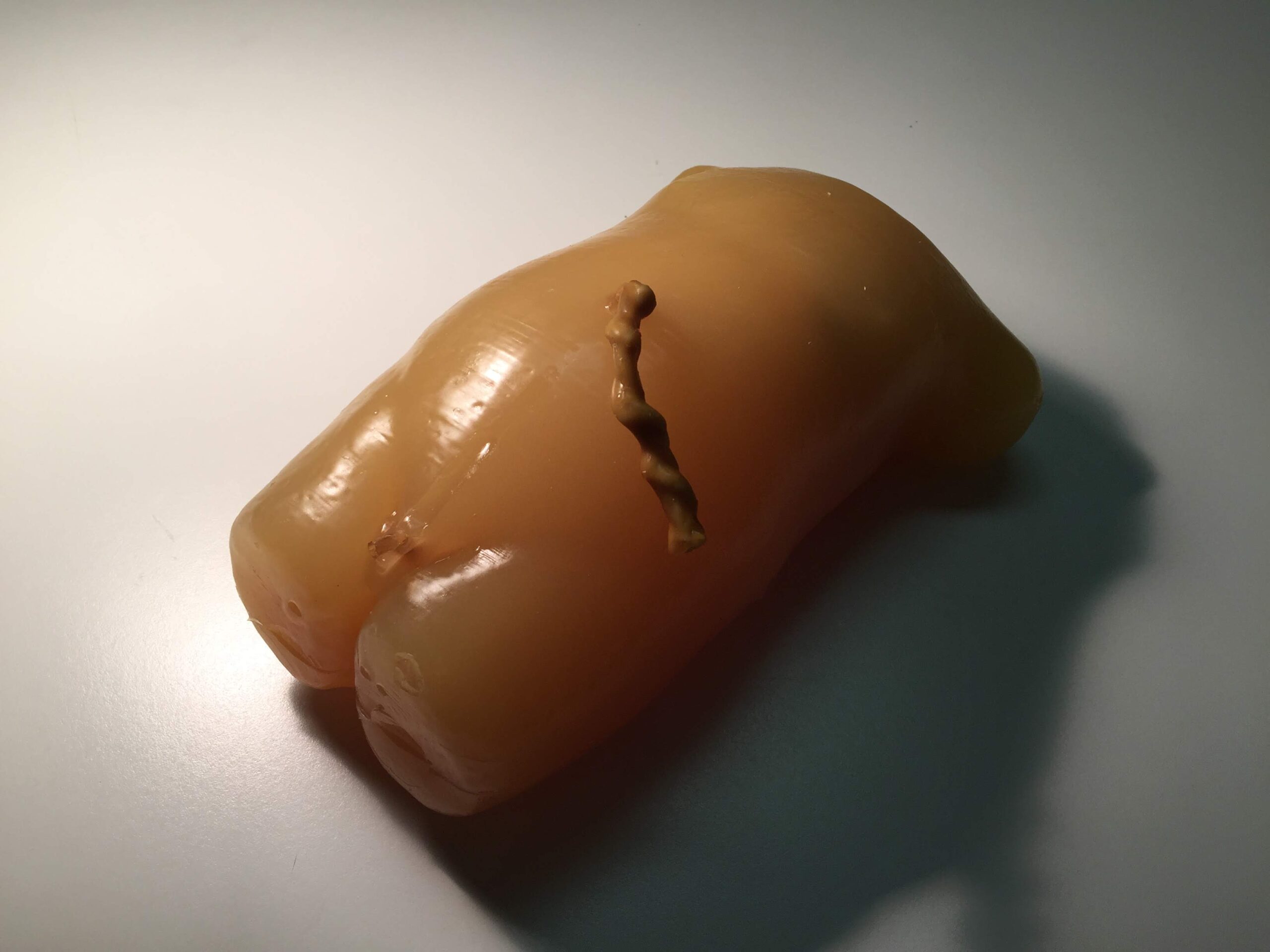

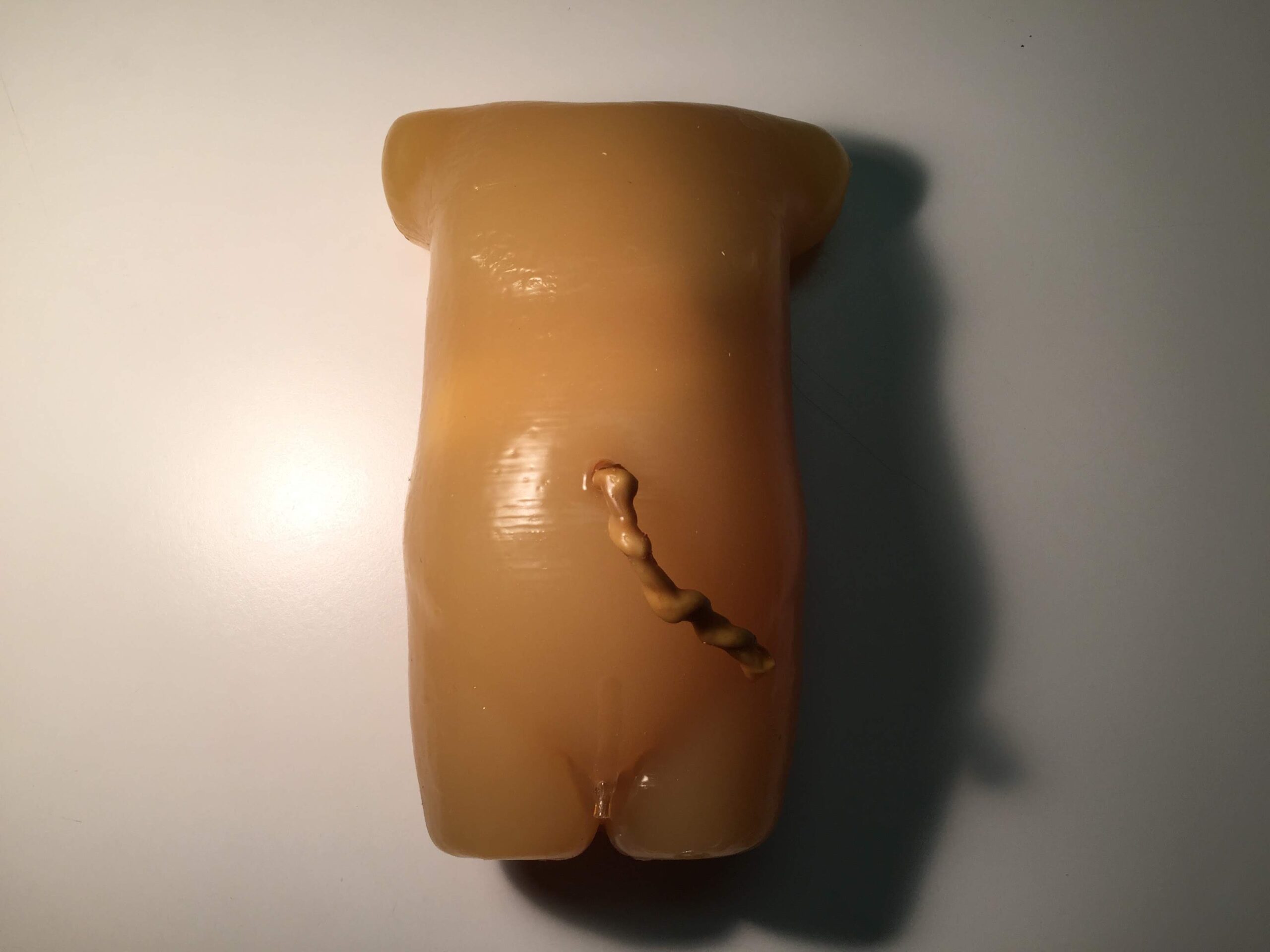

The design of our standard newborn torso phantom is based on an average newborn torso. It is made from realistic tissue-mimicking materials with ultrasound speckles suitable for Ultrasound and X-Ray/CT imaging methods. The phantom has a water-fillable umbilical cord and bladder, which can both be used for catheterization training under ultrasound guidance. The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program at the University of Calgary (Department of Pediatrics).

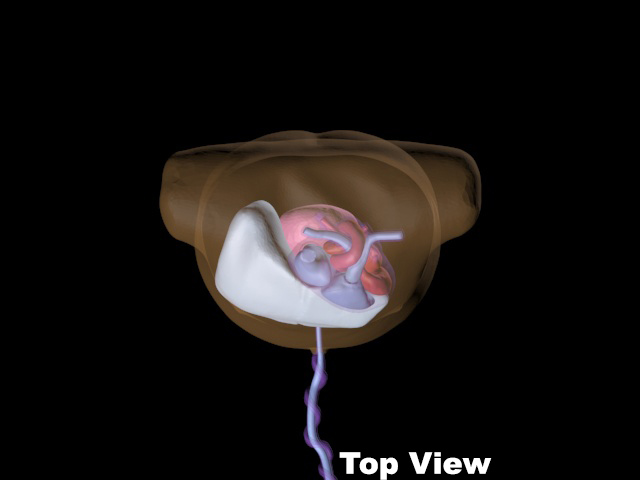

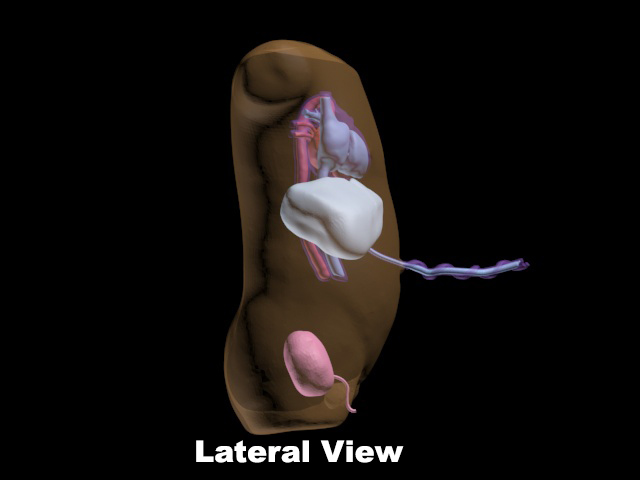

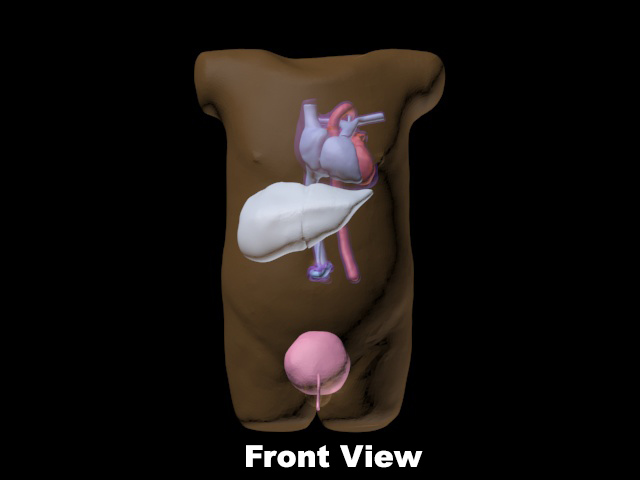

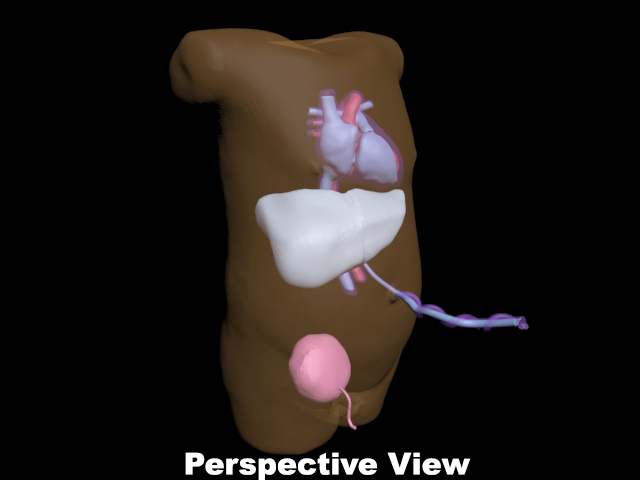

Design

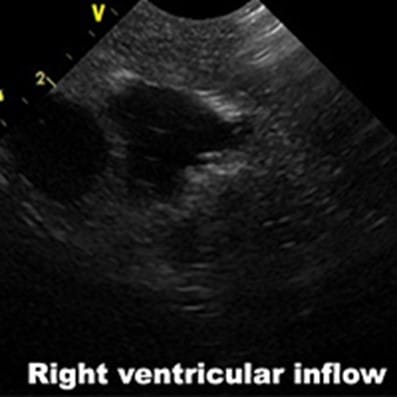

Ultrasound Scans
- Heart
- Aorta
- Inferior Vena Cava
- Water Fillable Umbilical Cord
- Liver
- Water Fillable Bladder
| Phantom Size | 6 x 5 x 9 Inches |
| Phantom Weight | 4 Lbs (approx.) |
| Shipment Size | 16 x 12 x 10 Inches |
| Shipment Weight | 8 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 20 | 70 | NO | 1.0 ± 0.2 |
| Body Tissue | 1410 ± 10 | 1.00 | 30 | 65 | NO/LOW | 1.2 ± 0.2 |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Inferior Vena Cava | 40 |
| 4 | Bladder | 35 |
| 5 | Heart | 40 |
| 6 | Liver | 110 |
