Newborn Head (Complex) for X-Ray CT, US, MRI
$3,500 USD

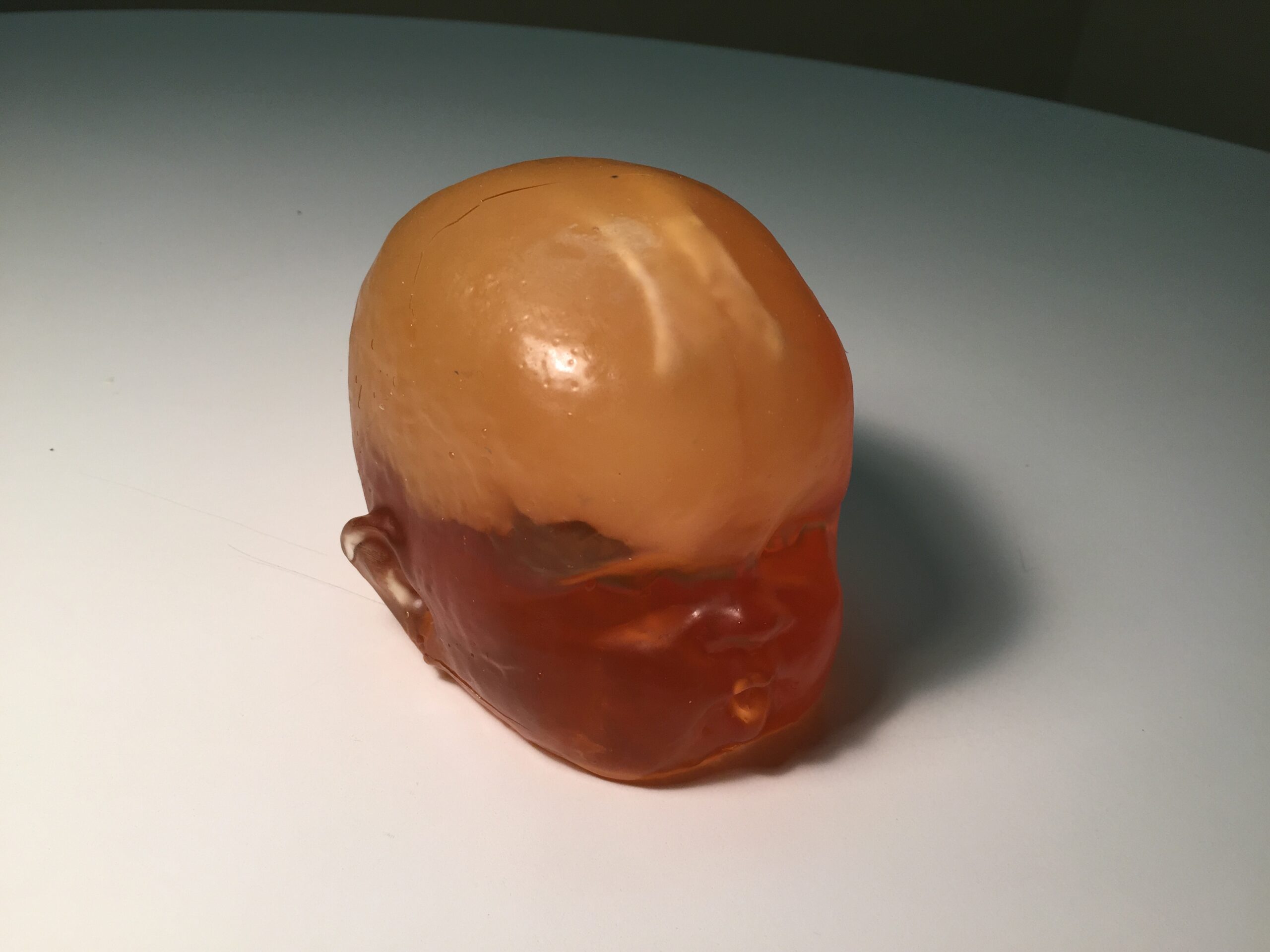

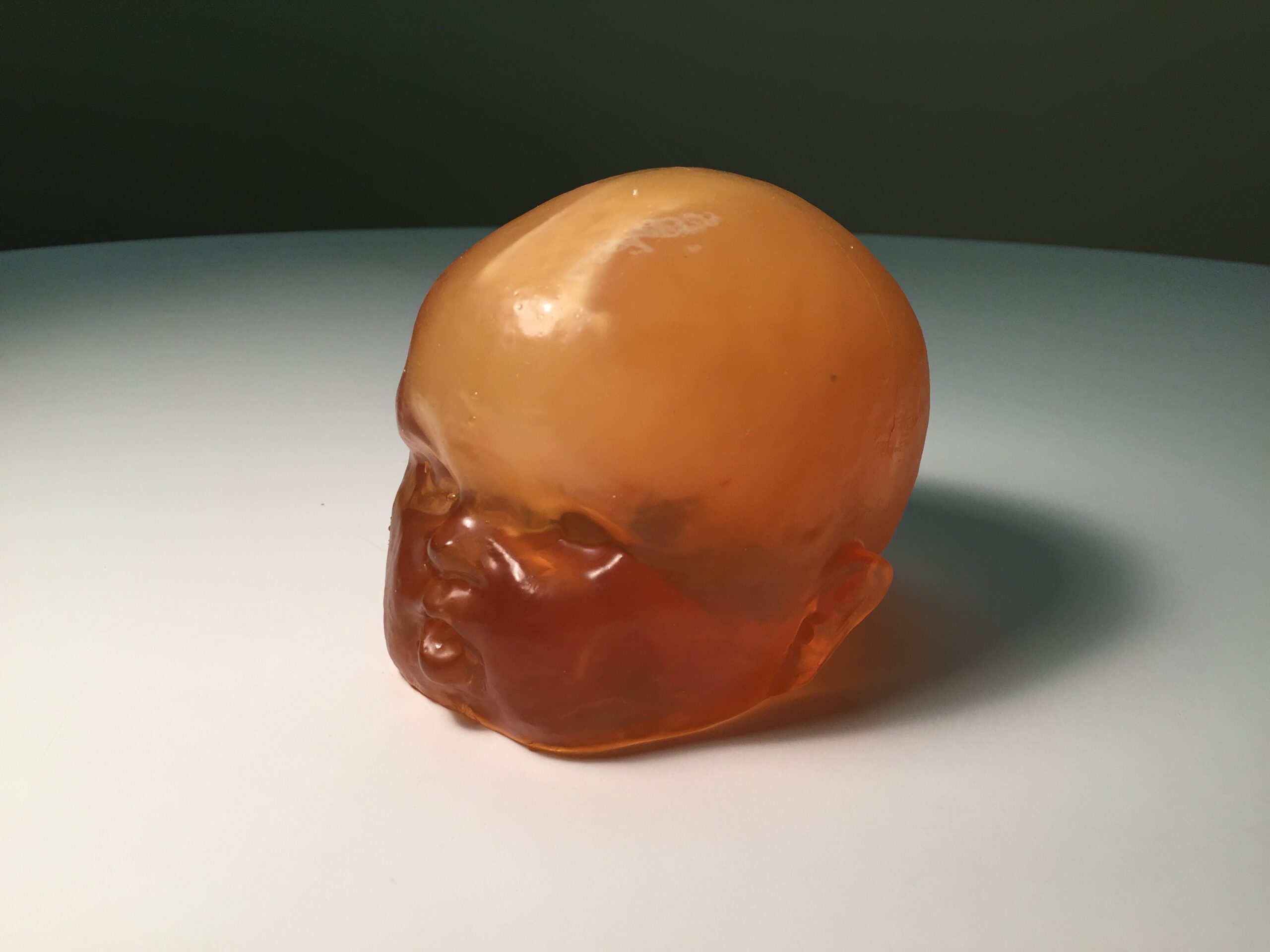

The Newborn Head (Complex) Phantom is a training tool for diagnostic medical imaging and POCUS. Based on an average newborn head, it is made from realistic tissue-mimicking materials suitable for X-Ray CT, US, MRI
This product can be customized based on your requirements — contact us.
The Newborn Head (Complex) Phantom is a training tool for diagnostic medical imaging and POCUS. Based on an average newborn head, it is made from realistic tissue-mimicking materials suitable for X-Ray CT, US, MRI. The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program at the University of Calgary (Department of Pediatrics).
Design

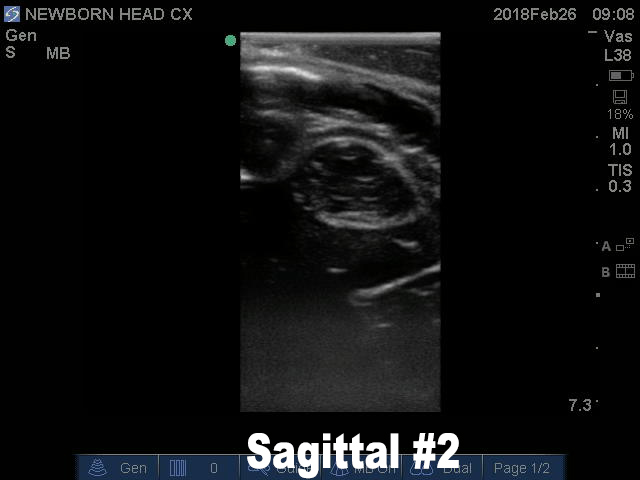

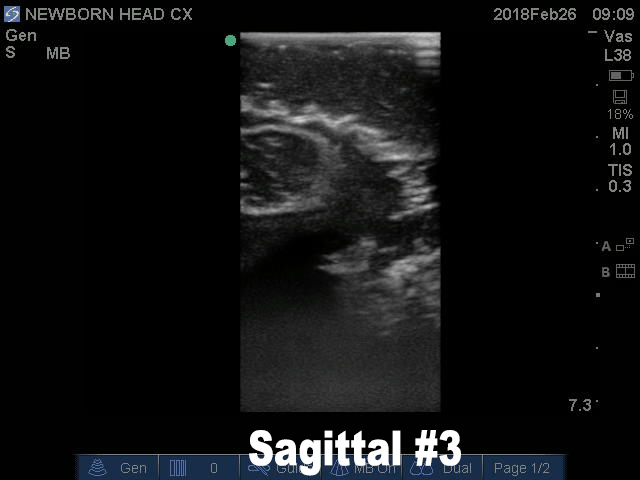

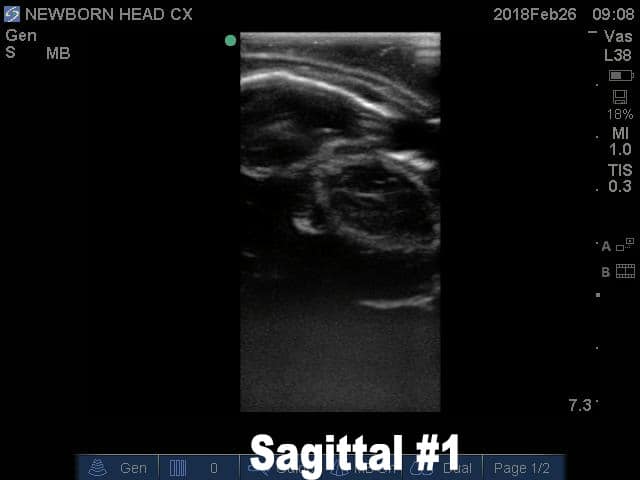

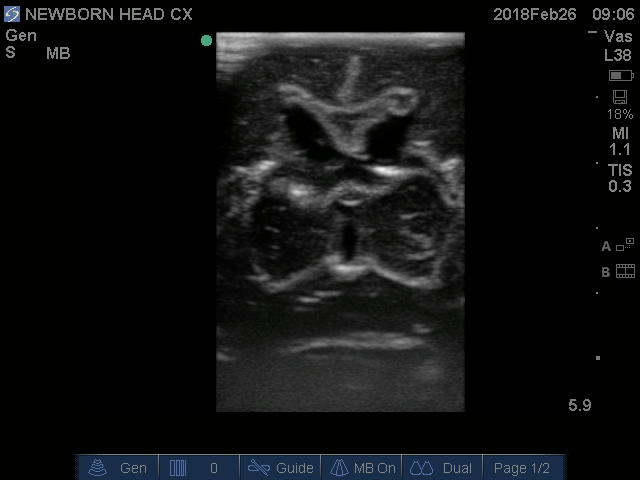

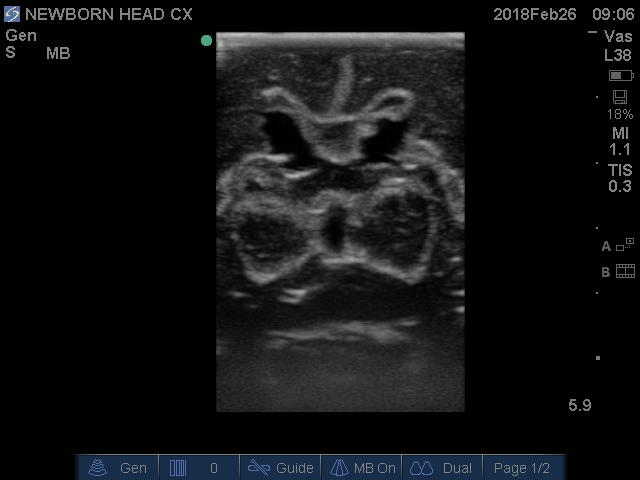

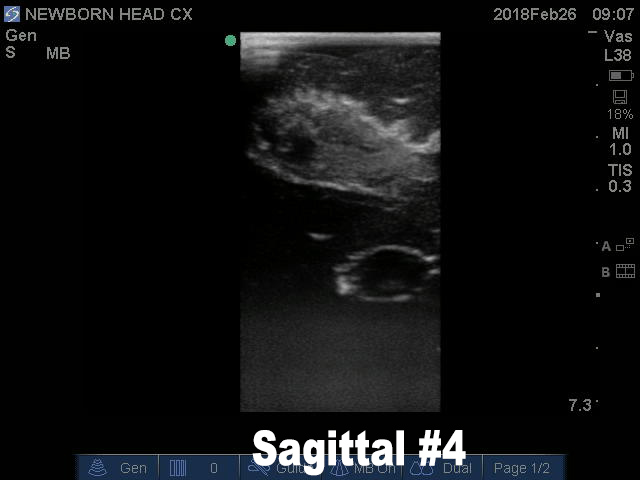

Ultrasound Scans
- Caudate
- Newborn Brain
- Putamen
- Corpus Callosum
- Thalamus
- Falx
- Choroid Plexus
- Brain Ventricles
- Cerebellum & Pons
- Septum Pellucidum
| Phantom Size | 5 x 6 x 5 Inches |
| Phantom Weight | 4 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| Newborn Head Model | Complex Head, Simple Head, Dynamic Head |
