Newborn Head (Dynamic) for X-Ray CT, US, MRI
$6,400 USD

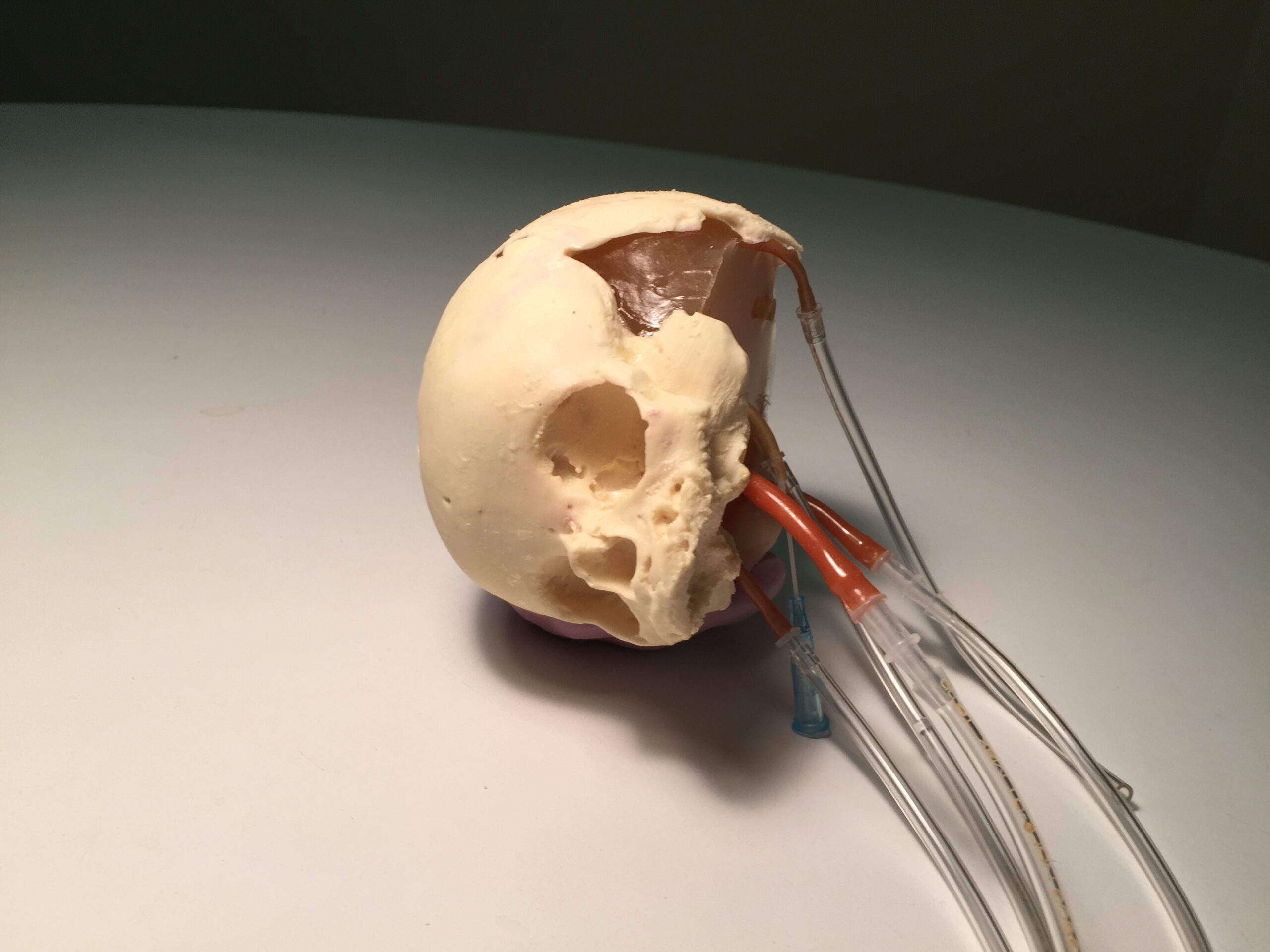

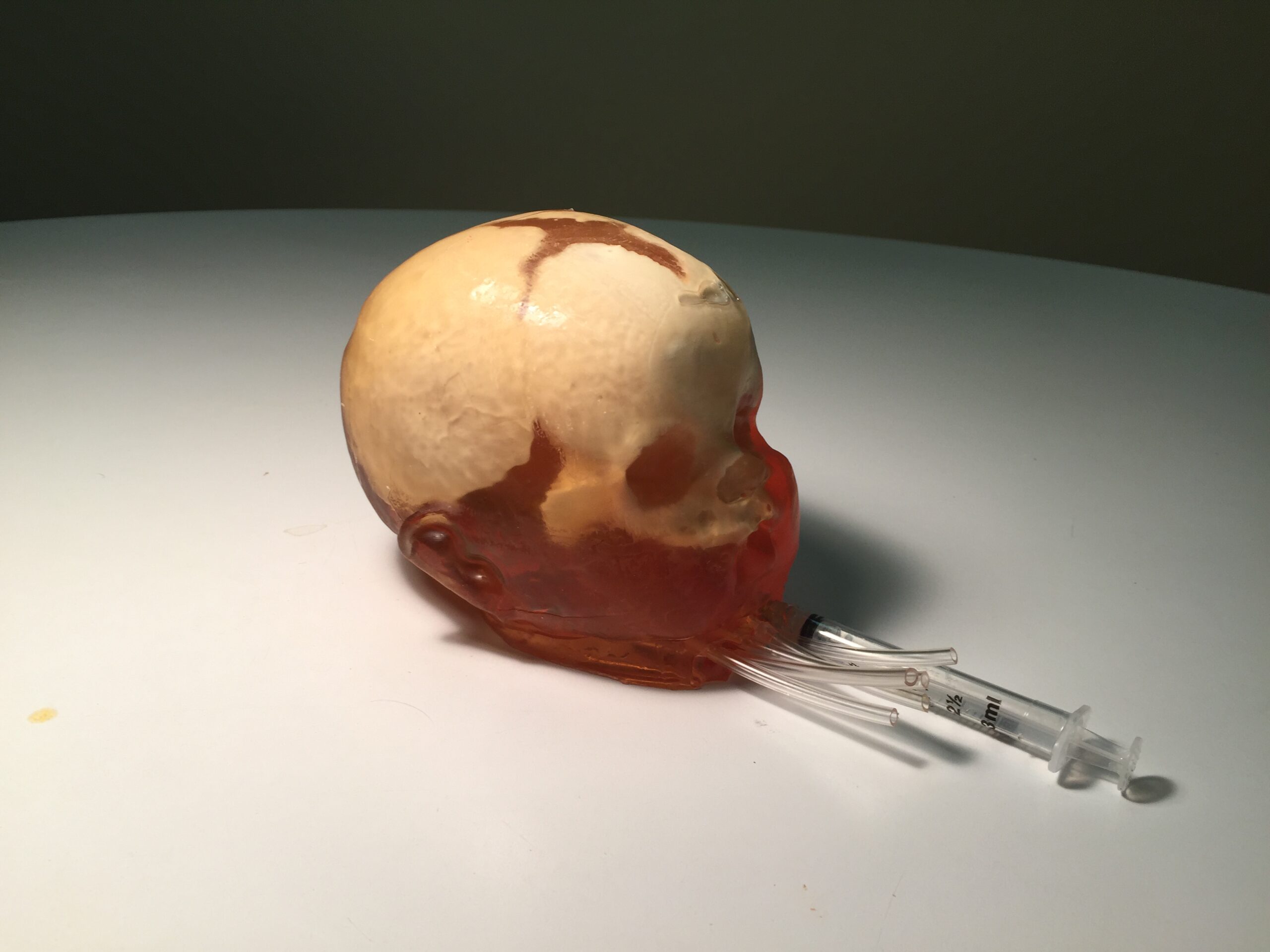

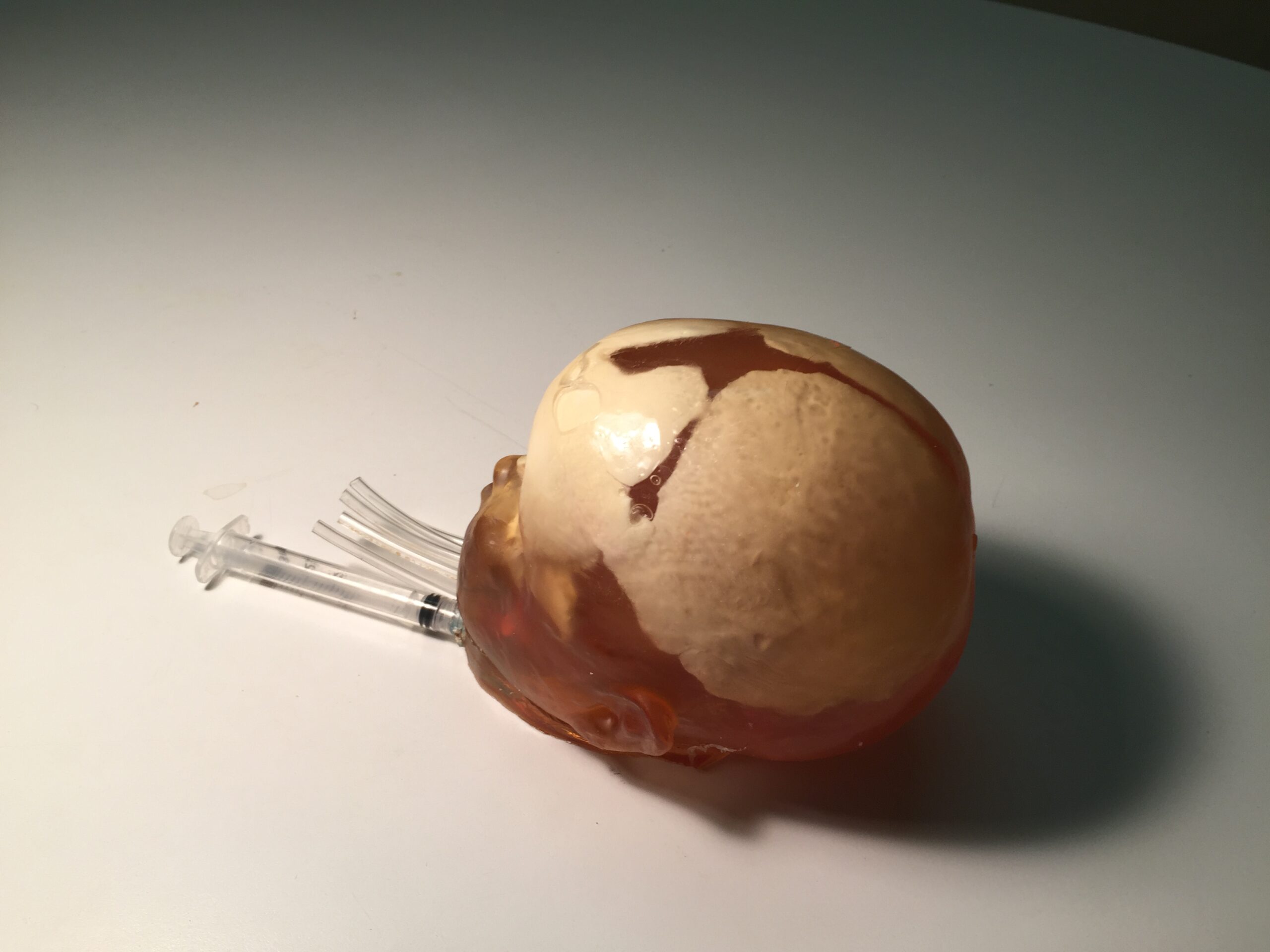

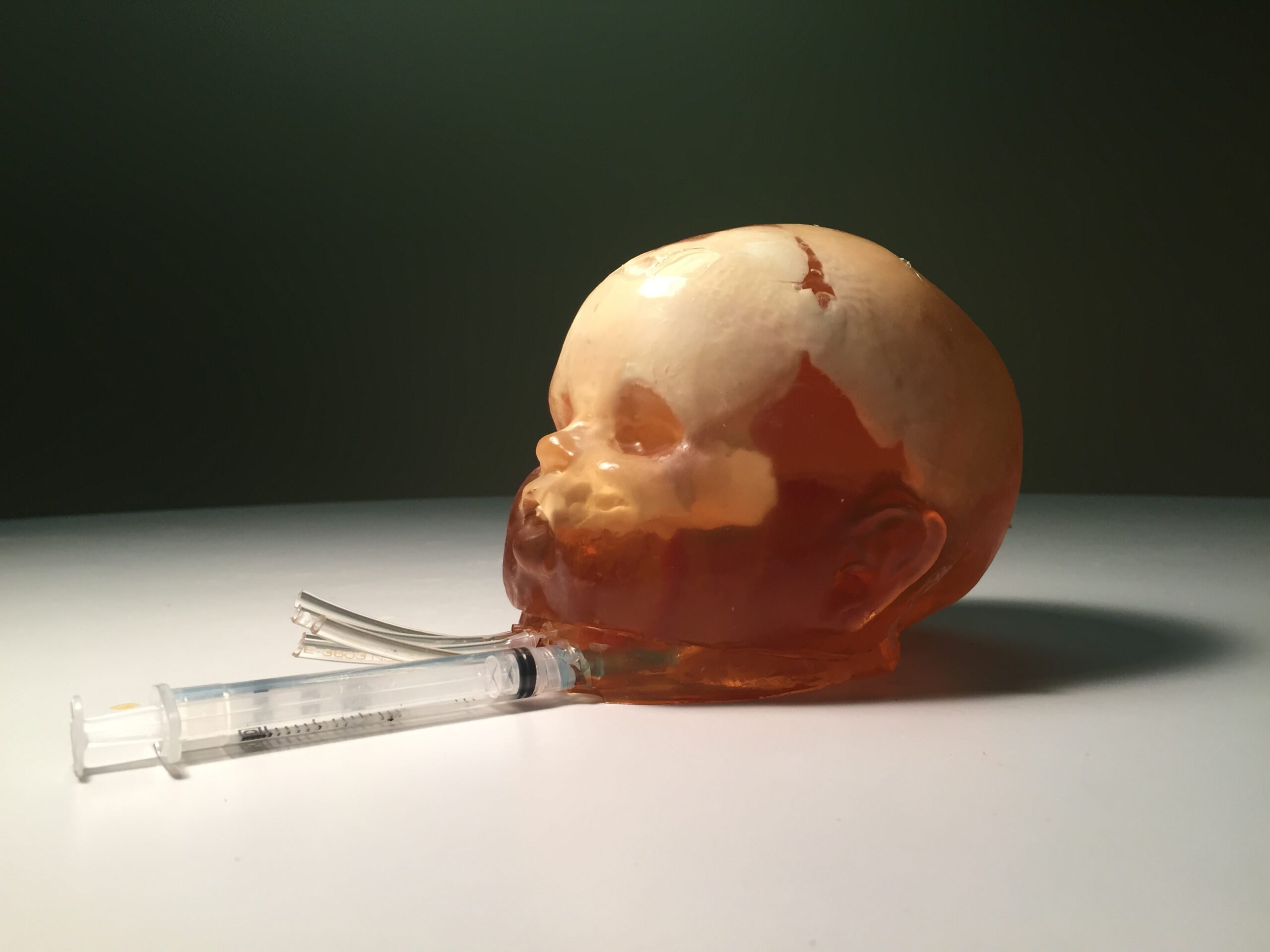

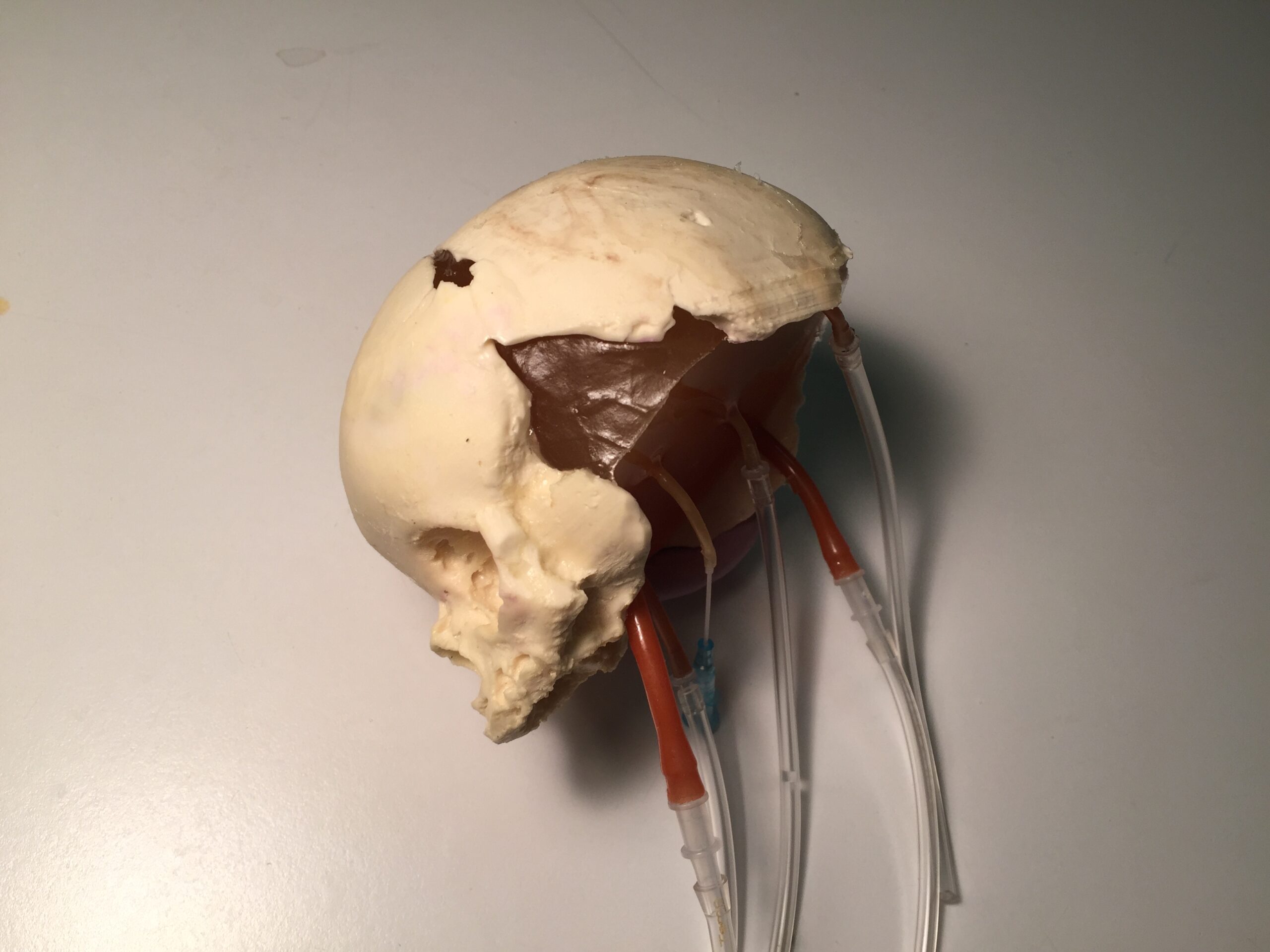

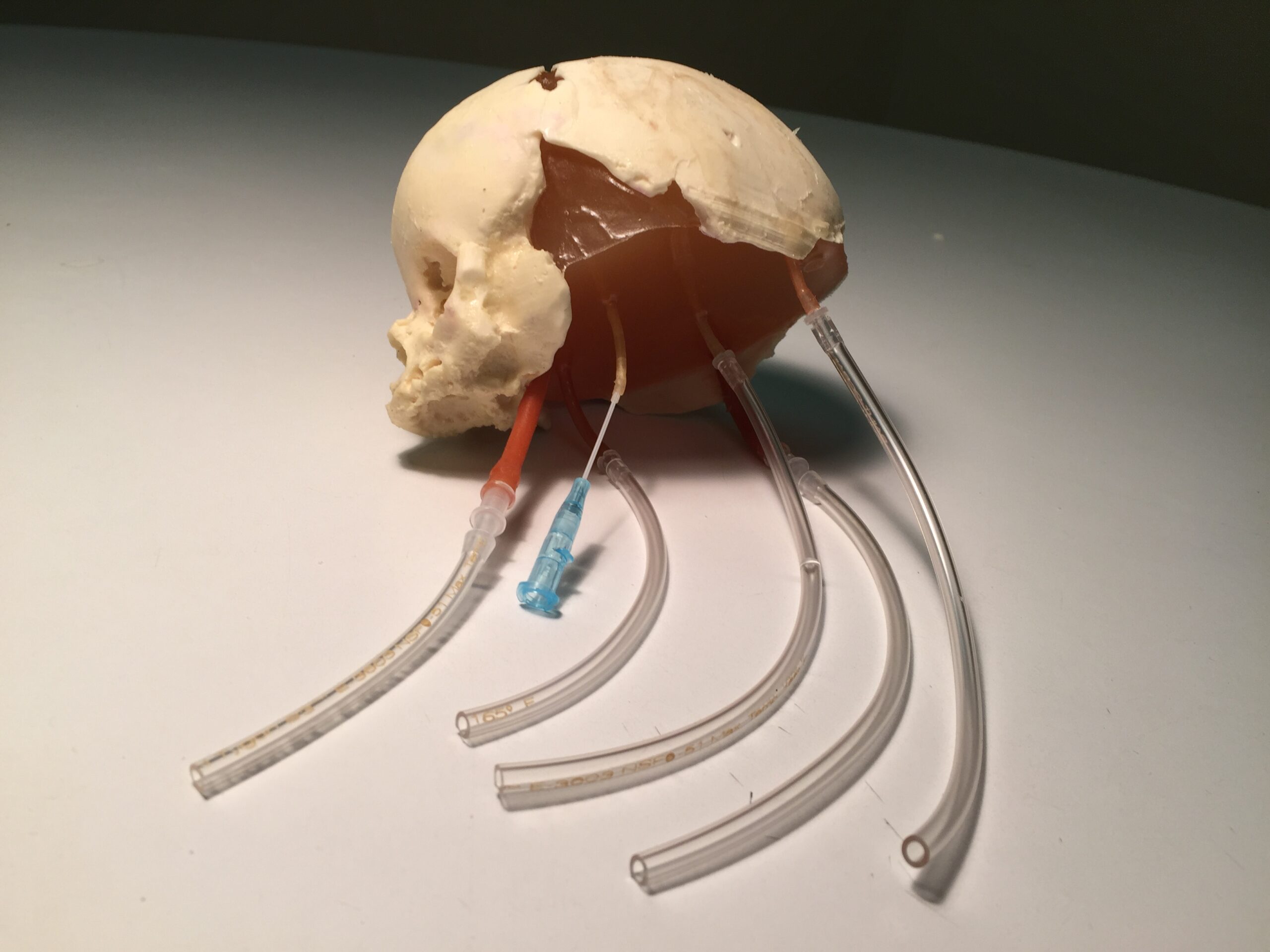

The Newborn Head (Dynamic) phantom is designed for medical imaging of blood flow beneath the skull. It resembles an average newborn head, using realistic tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. The skull pieces are individually cast from patented epoxy-based bone material.
This product can be customized based on your requirements — contact us.
The Newborn Head (Dynamic) phantom is designed for medical imaging of blood flow beneath the skull. It resembles an average newborn head, using realistic tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. The skull pieces are individually cast from patented epoxy-based bone material.

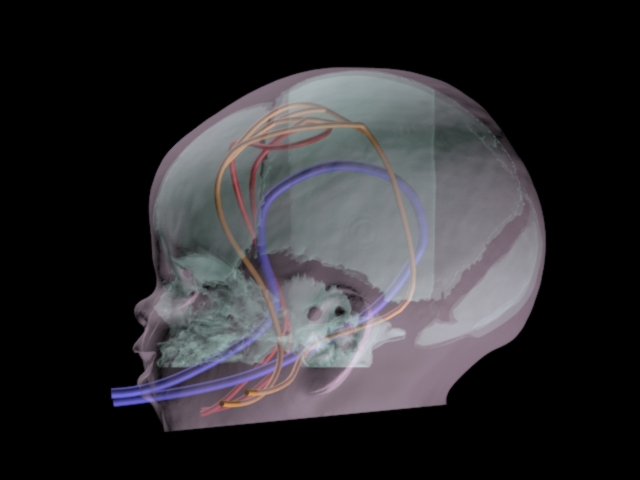

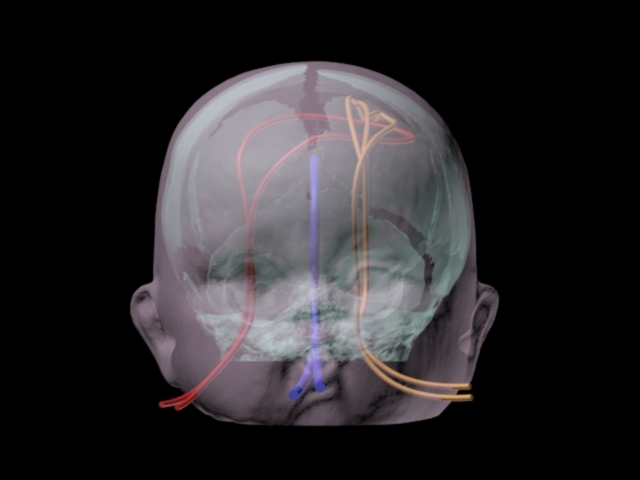

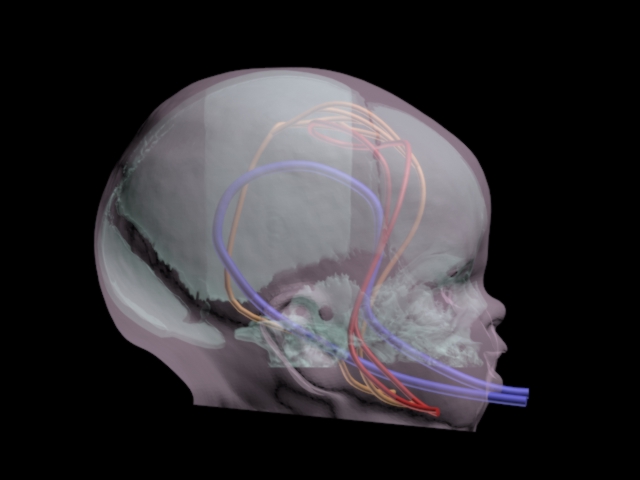

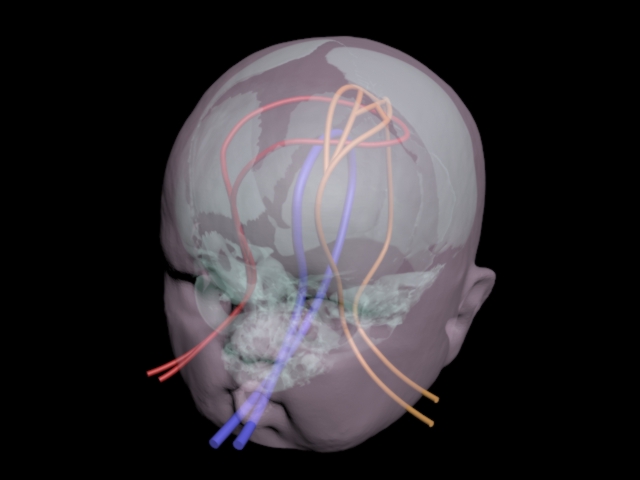

Design
- Based on an average Newborn Skull
- Realistic Newborn Brain Phantom
- Complex Blood Vessel Structures with Circle of Willis
| Phantom Size | 5 x 6 x 5 Inches |
| Phantom Weight | 4 Lbs (approx.) |
| Shipment Size | 12 x 10 x 10 Inches |
| Shipment Weight | 8 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| 2 | Cortical Bone | 1300 |
| Newborn Head Model | Complex Head, Simple Head, Dynamic Head |
