Newborn Torso (Advanced) for X-Ray CT, US
$7,200 USD
The Advanced Newborn Torso phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn Training Program at the University of Calgary. This phantom is an deal tool for Ultrasound-guided procedures, such as catheter insertion through the umbilical cord and bladder catheterization. It is constructed with realistic tissue-mimicking materials suitable for Ultrasound and X-Ray/CT imaging.
Torso Model: Advanced (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.

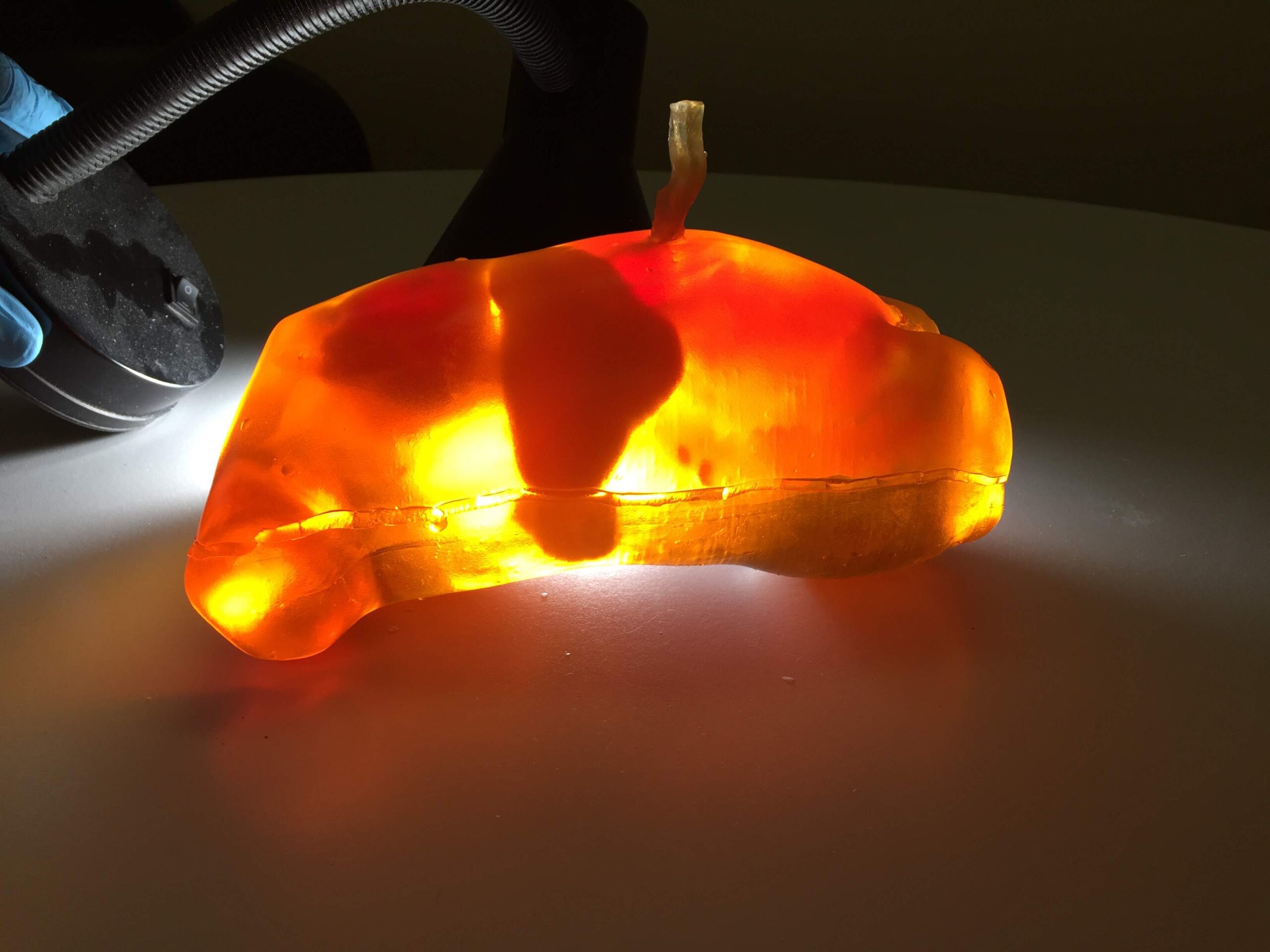

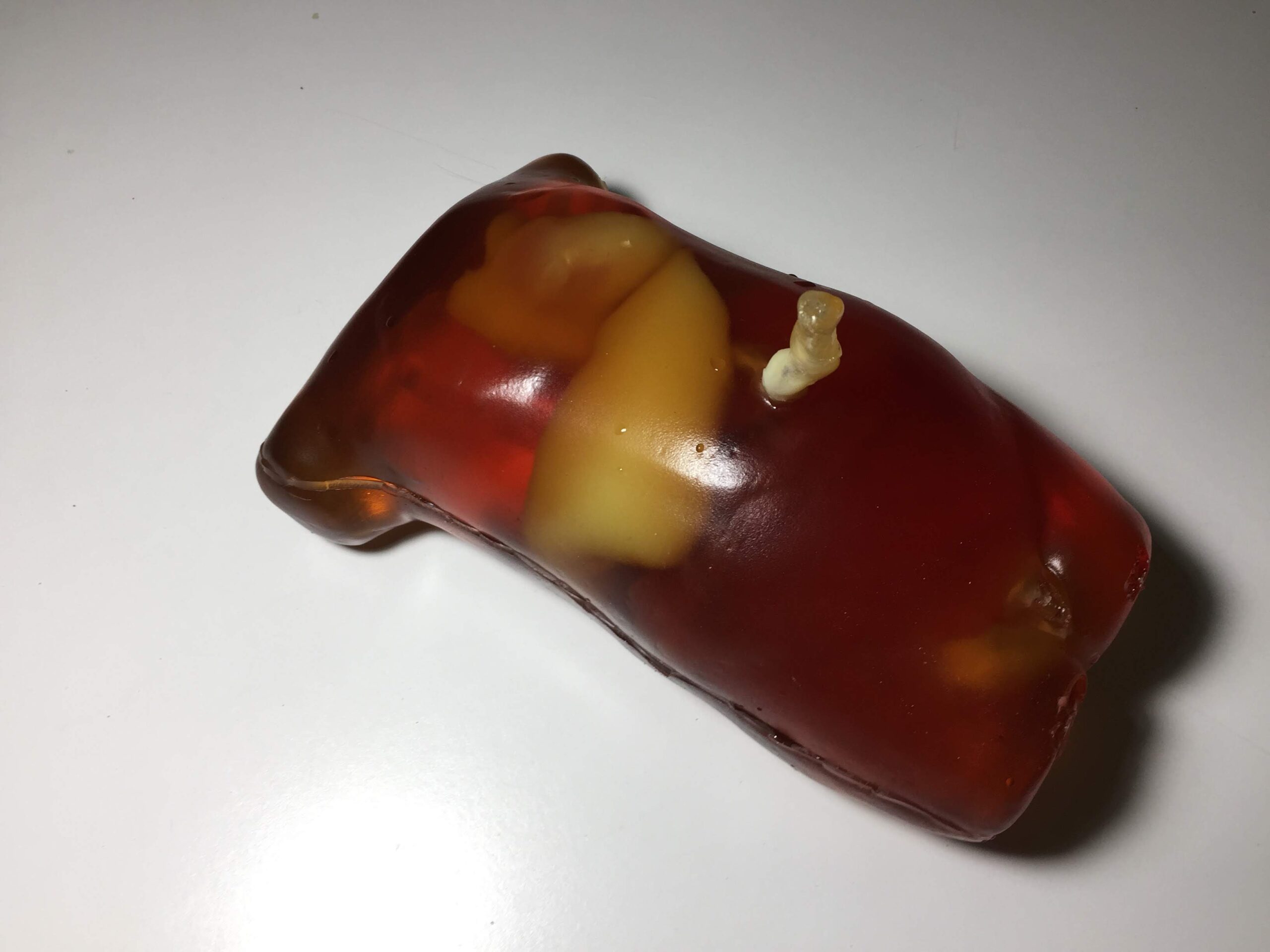

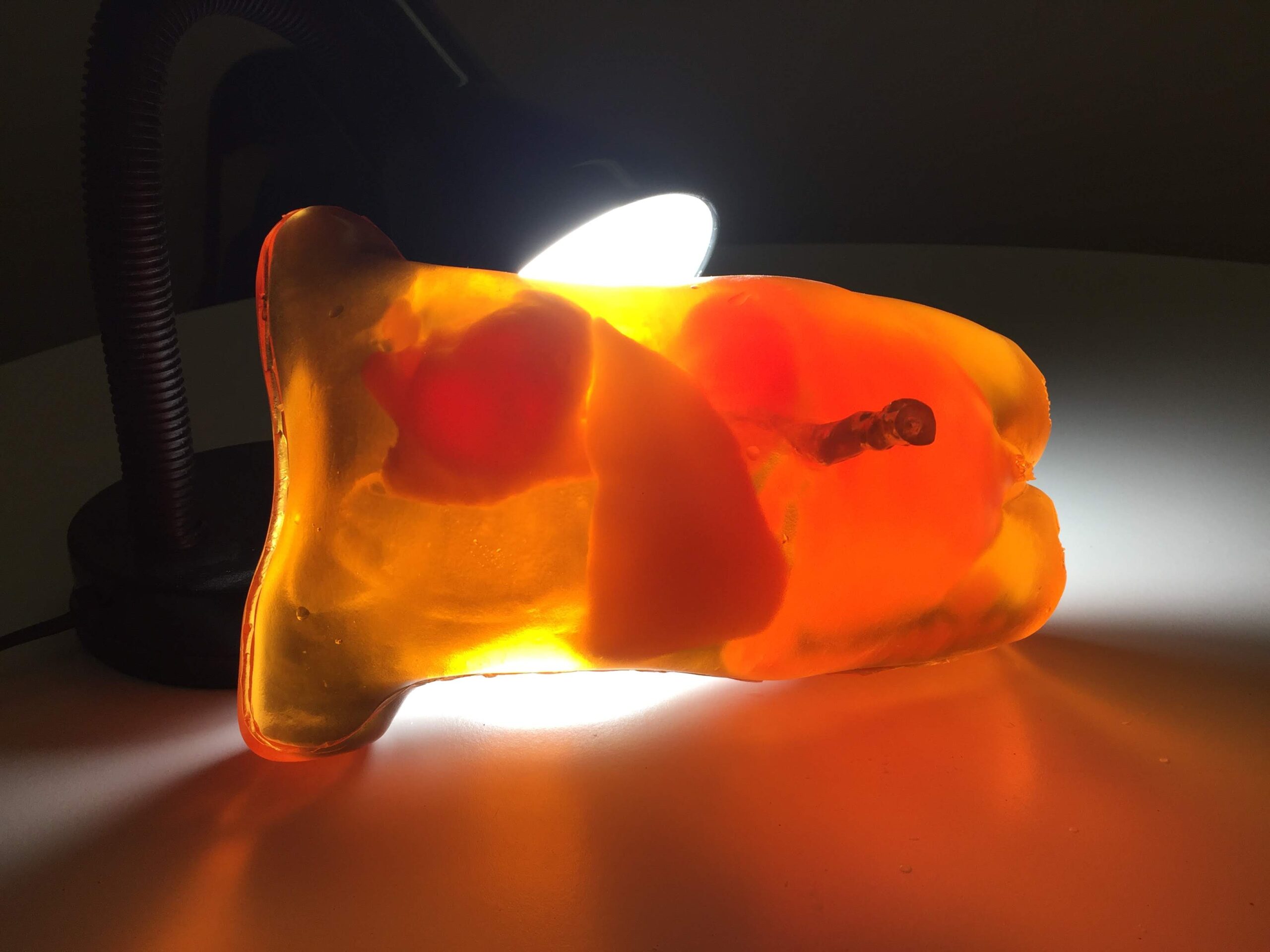

The design of this Advanced Newborn Torso phantom is based on an average newborn torso. It is made from realistic tissue-mimicking materials suitable for Ultrasound and X-Ray imaging. The phantom has a waterfillable umbilical cord and bladder, which can be both used for catheterization training under ultrasound guidance. The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program at the University of Calgary (Department of Pediatrics).

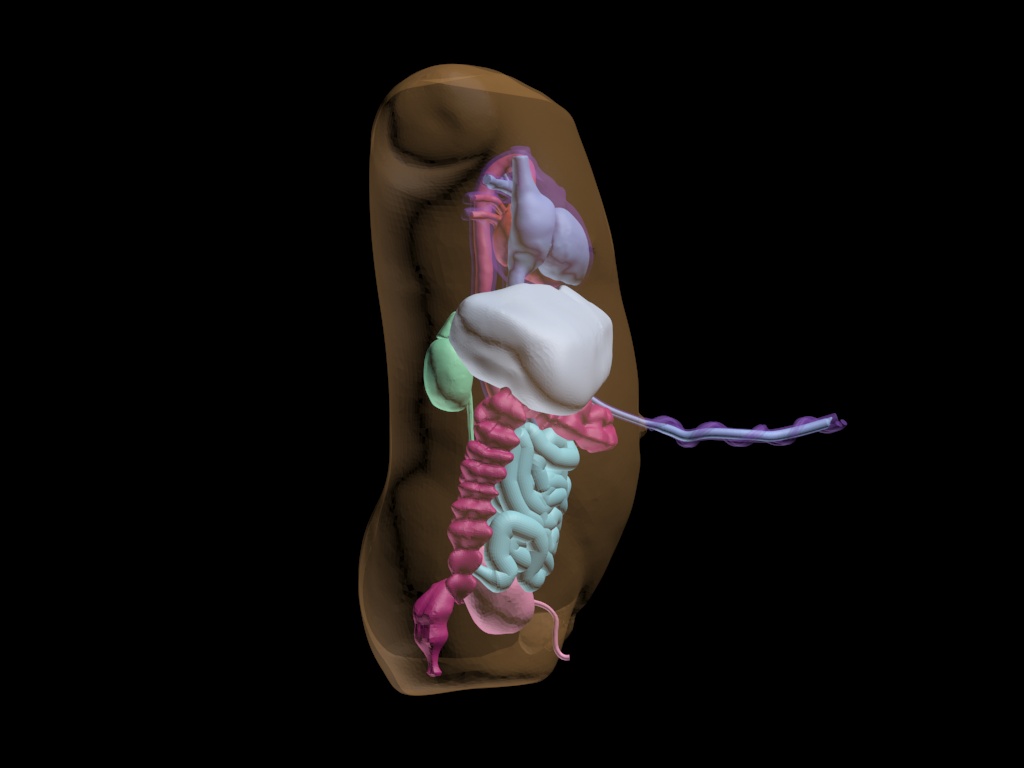

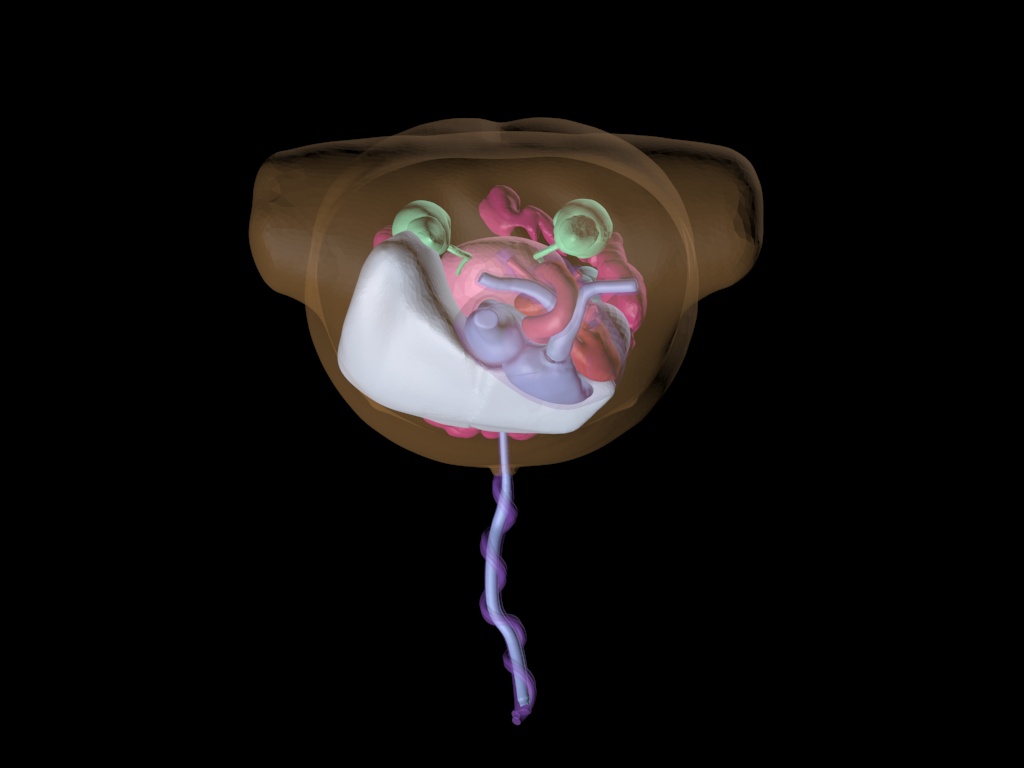

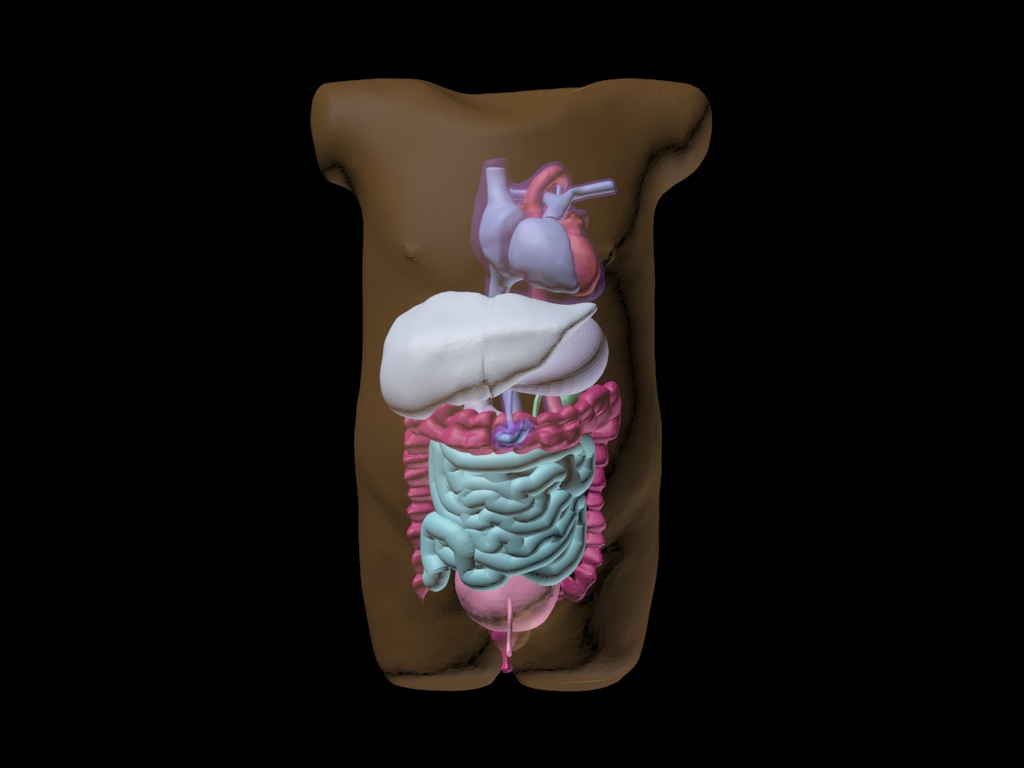

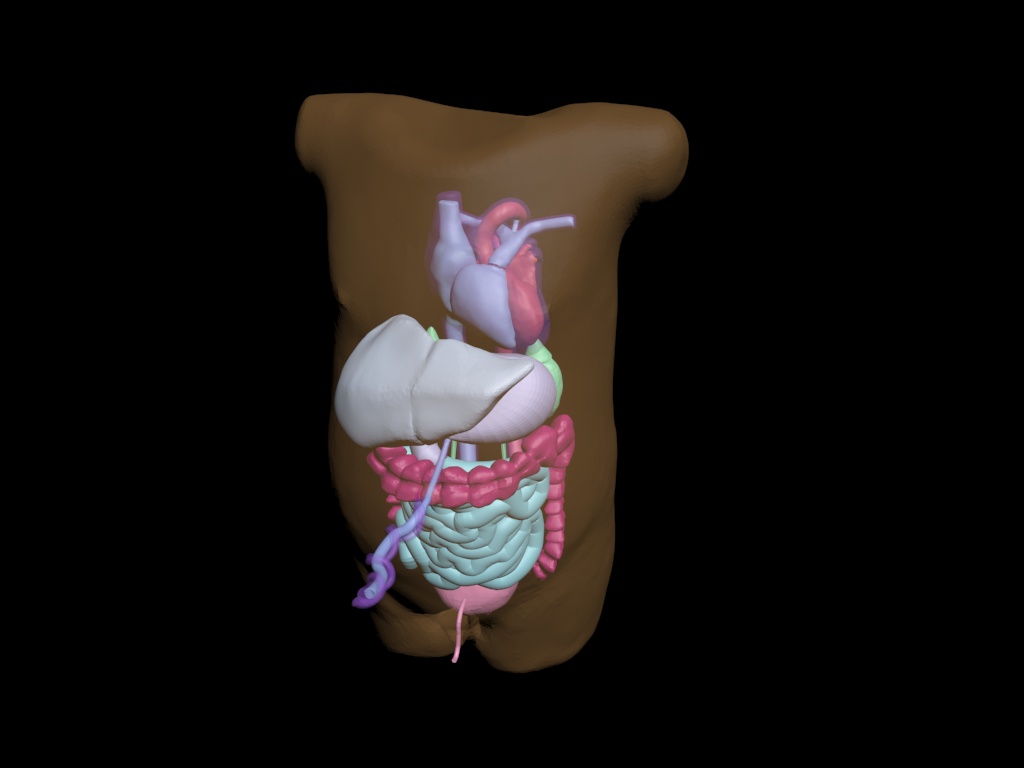

Design
- Stomach
- Heart
- Large and Small Intestines
- Aorta
- Water Fillable Bladder
- Inferior Vena Cava
- Water fillable Umbilical Cord
- Liver
- Realistic Body Tissue
- Kidneys
| Phantom Size | 6 x 5 x 9 Inches |
| Phantom Weight | 4 Lbs (approx.) |
| Shipment Size | 16 x 12 x 10 Inches |
| Shipment Weight | 8 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 20 | 70 | NO | 1.0 ± 0.2 |
| Body Tissue | 1410 ± 10 | 1.00 | 30 | 65 | NO/LOW | 1.2 ± 0.2 |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Inferior Vena Cava | 40 |
| 4 | Bladder | 35 |
| 5 | Heart | 40 |
| 6 | Liver | 110 |
