Pediatric Full Body for X-Ray CT, US
$28,800 USD

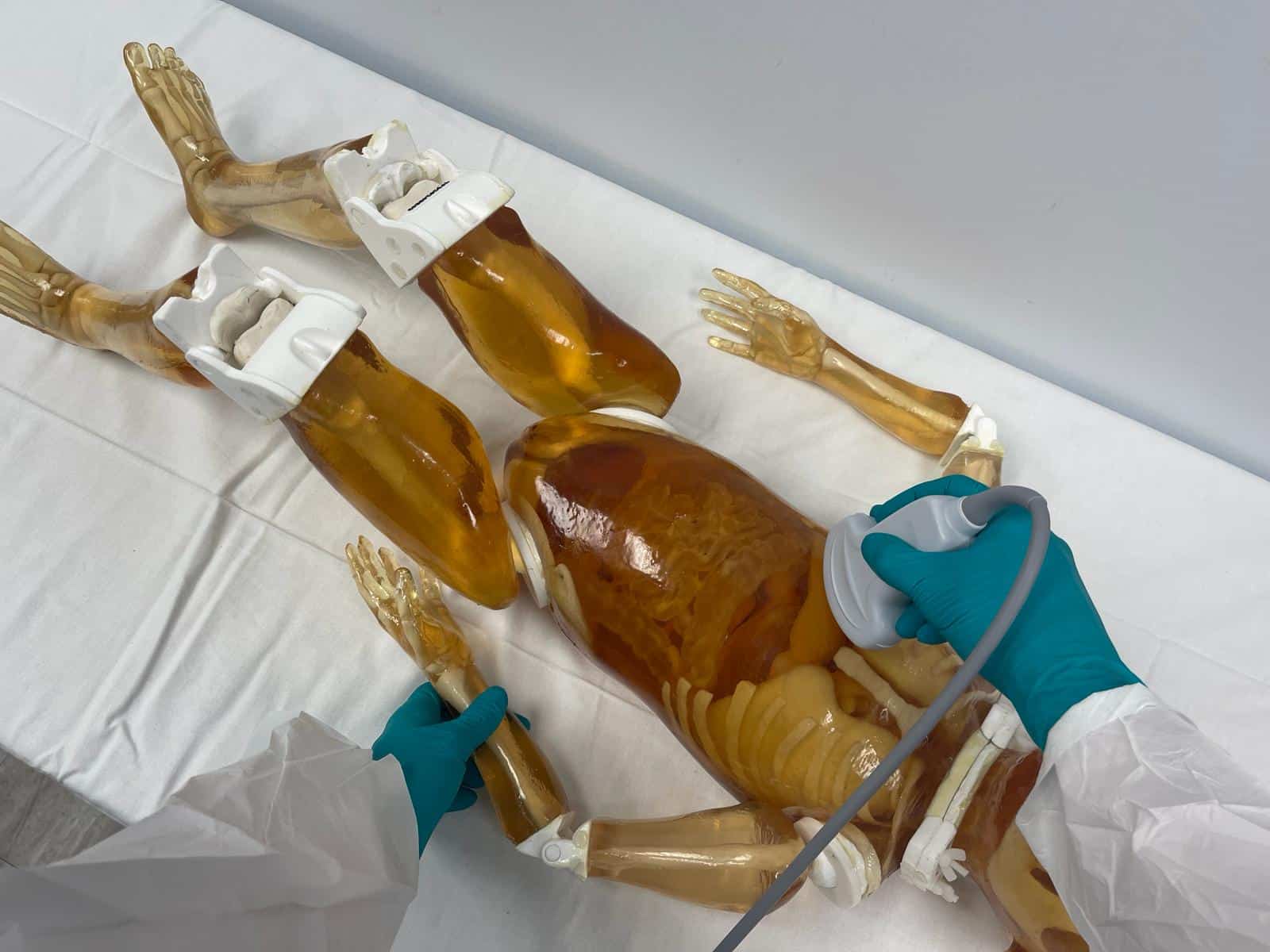

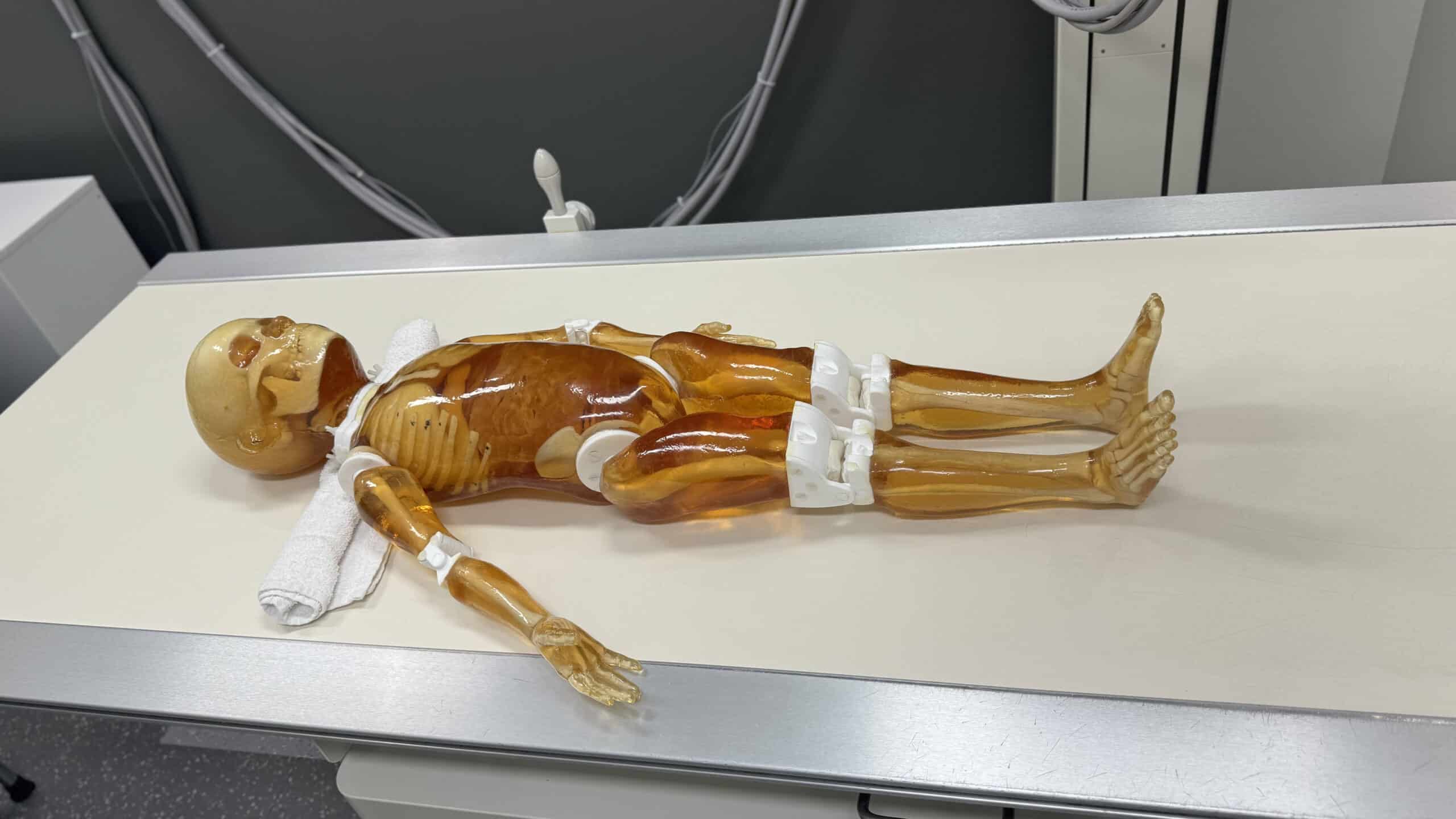

The Pediatric Full Body Phantom is an X-Ray/CT and Ultrasound-compatible training product used for training patient positioning techniques. It is popular among medical schools and teaching hospitals for training radiology students and medical professionals. This life-size phantom consists of anatomically correct organs and bones divided into 10 body parts.
Full Body Model: Standard (X-Ray·CT·US)
Standard (X-Ray·CT·MRI)
Standard (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.
4-Year-old Pediatric Full Body Phantom is an X-Ray/CT, US-compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools and teaching hospitals to train their radiology students and other medical professionals.

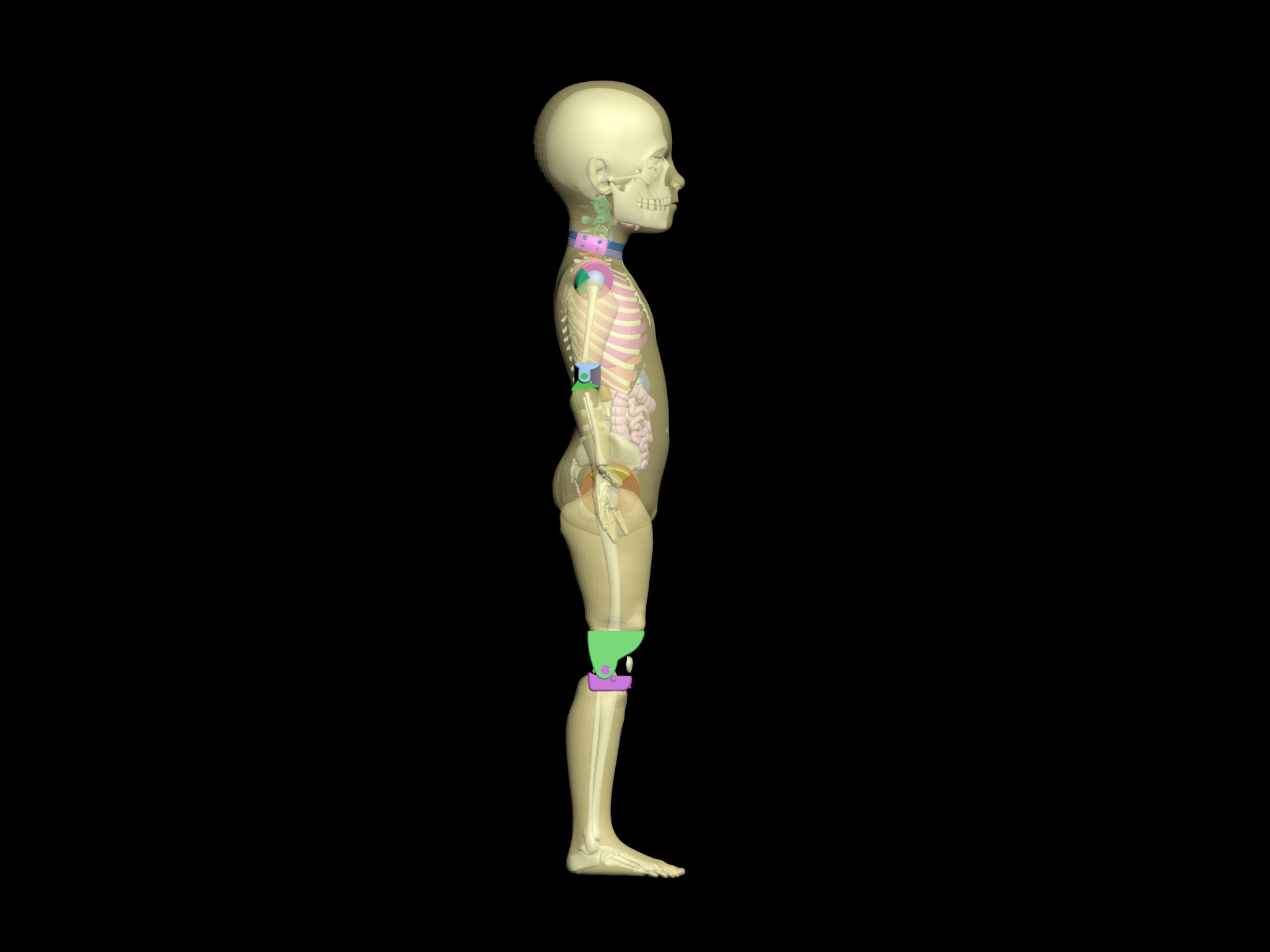

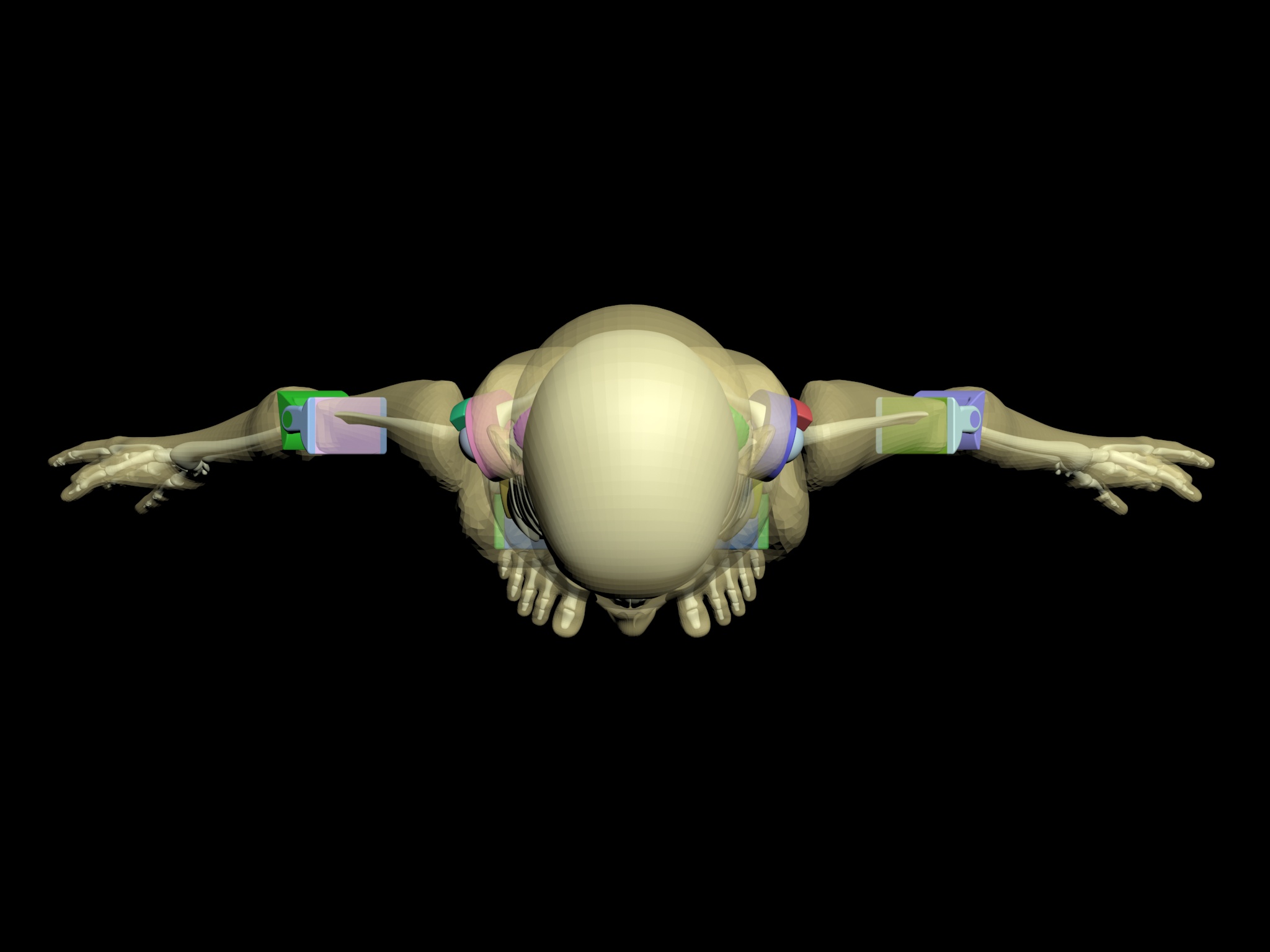

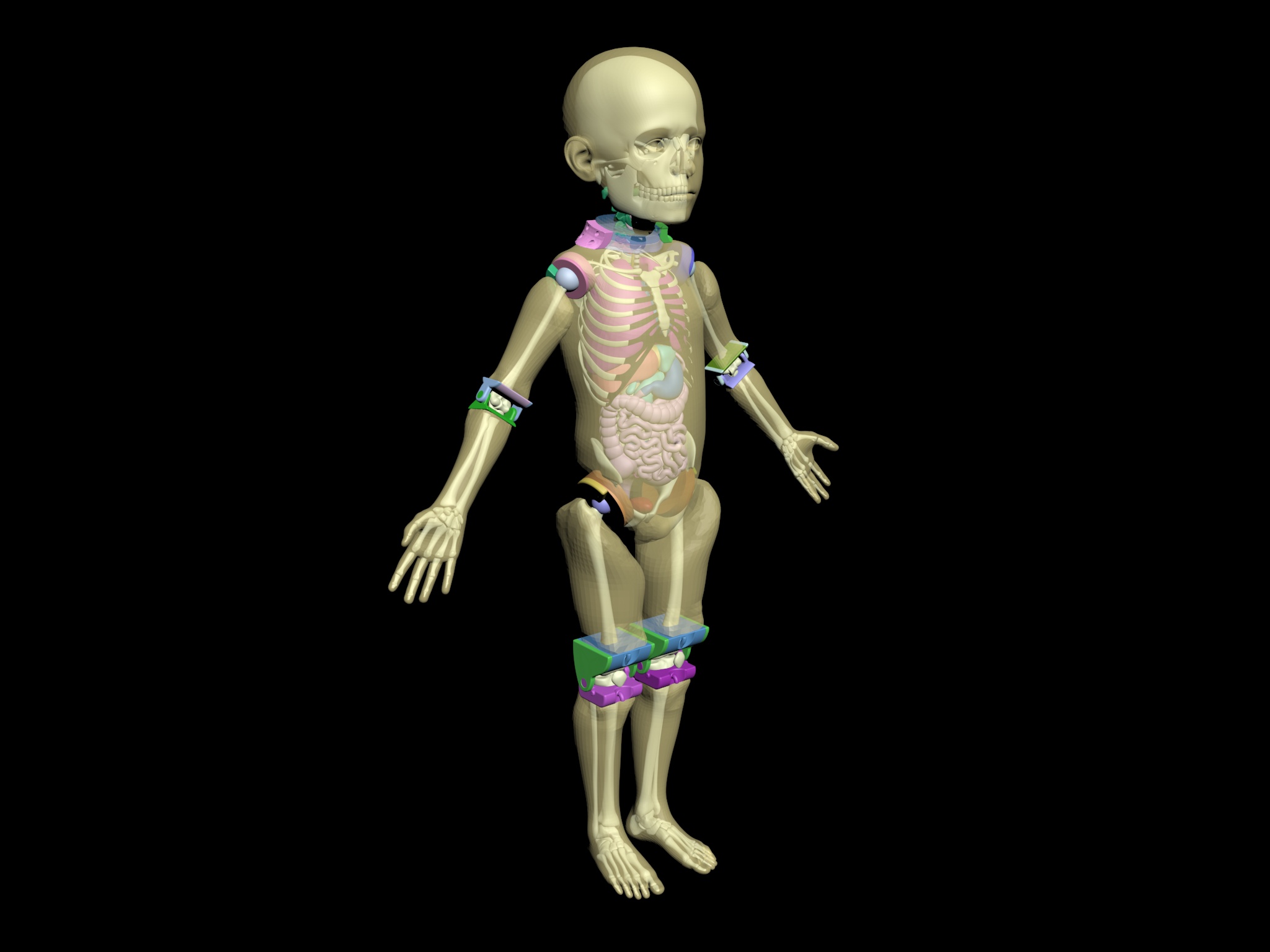

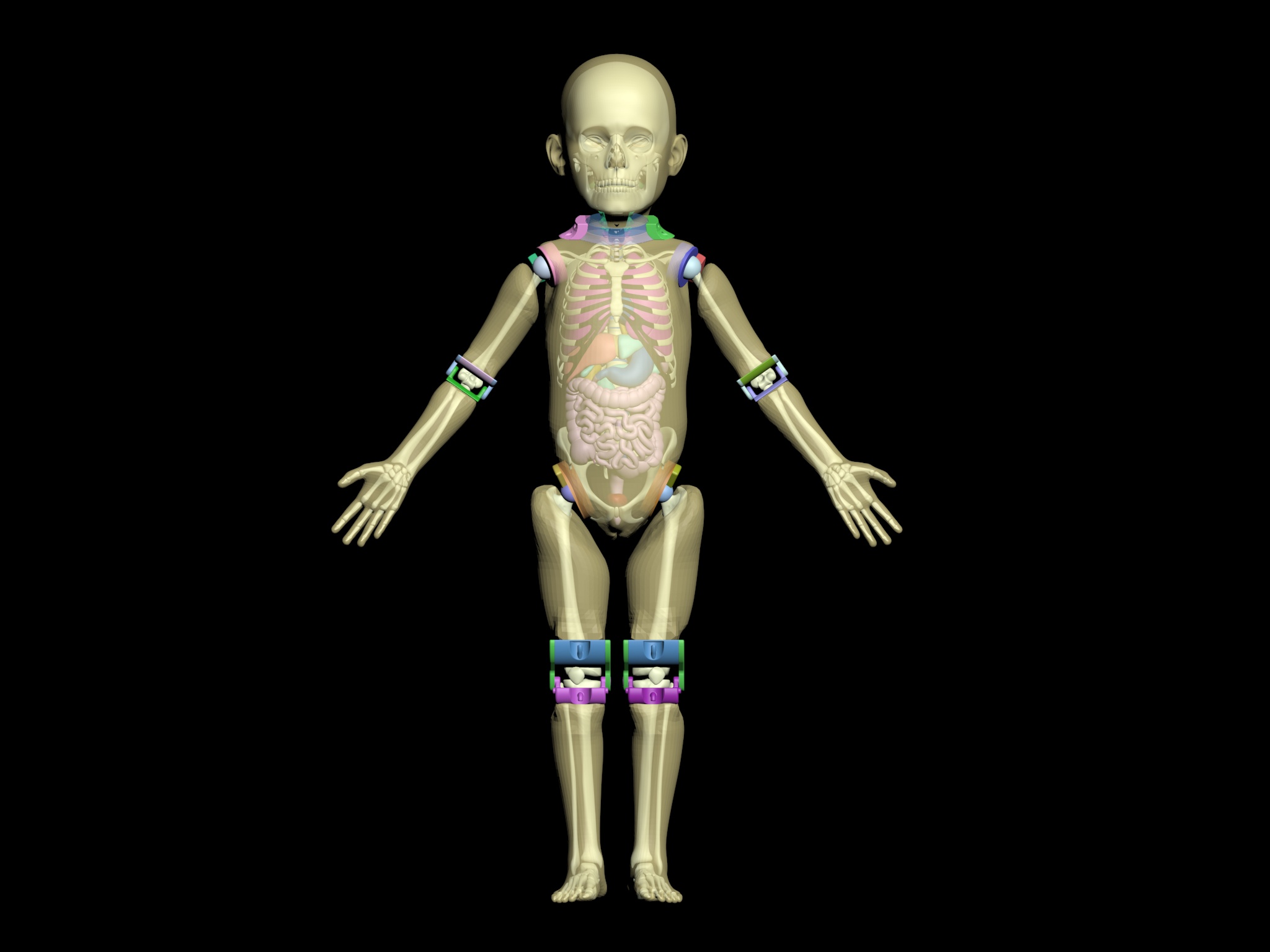

Design

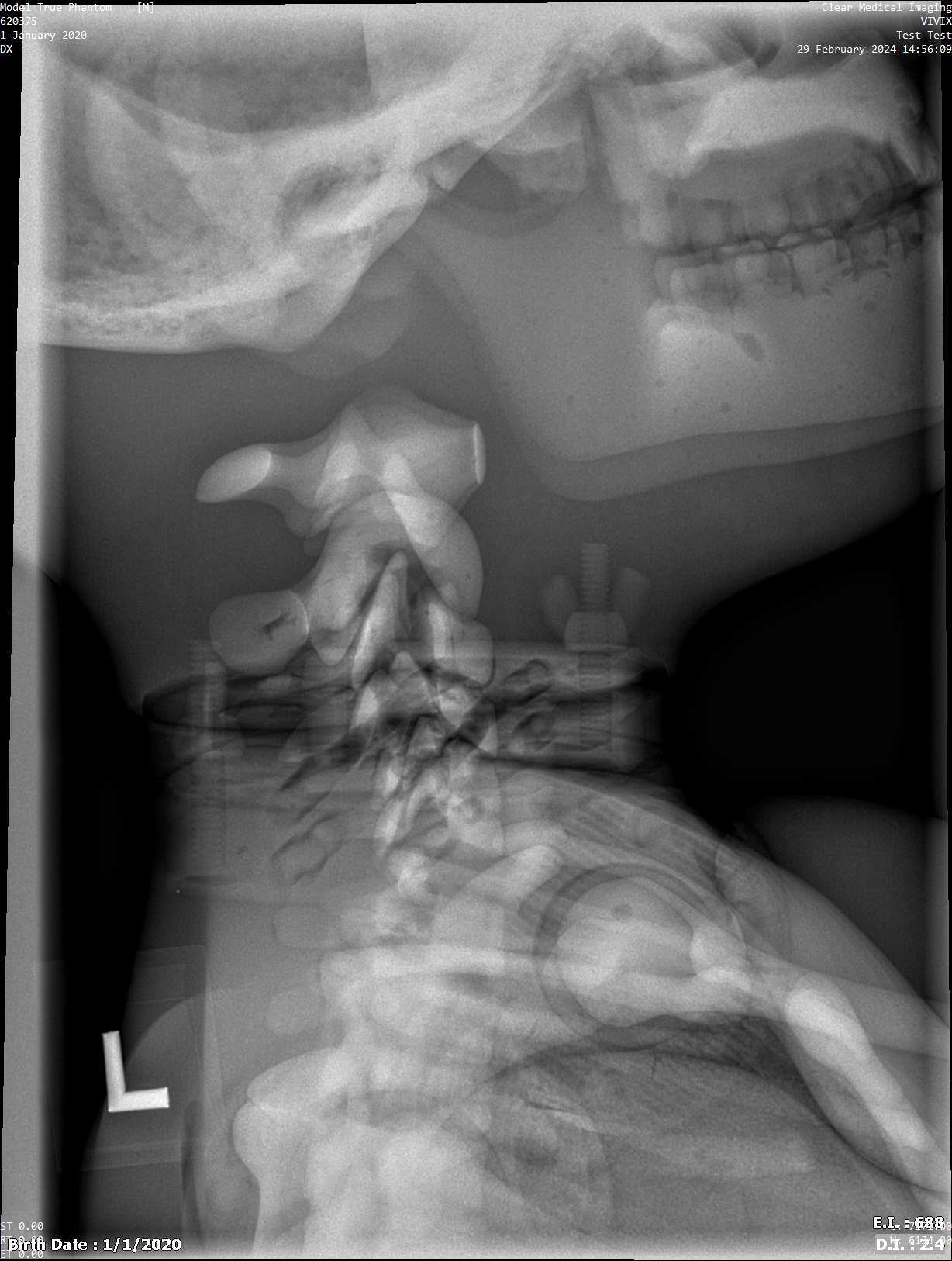

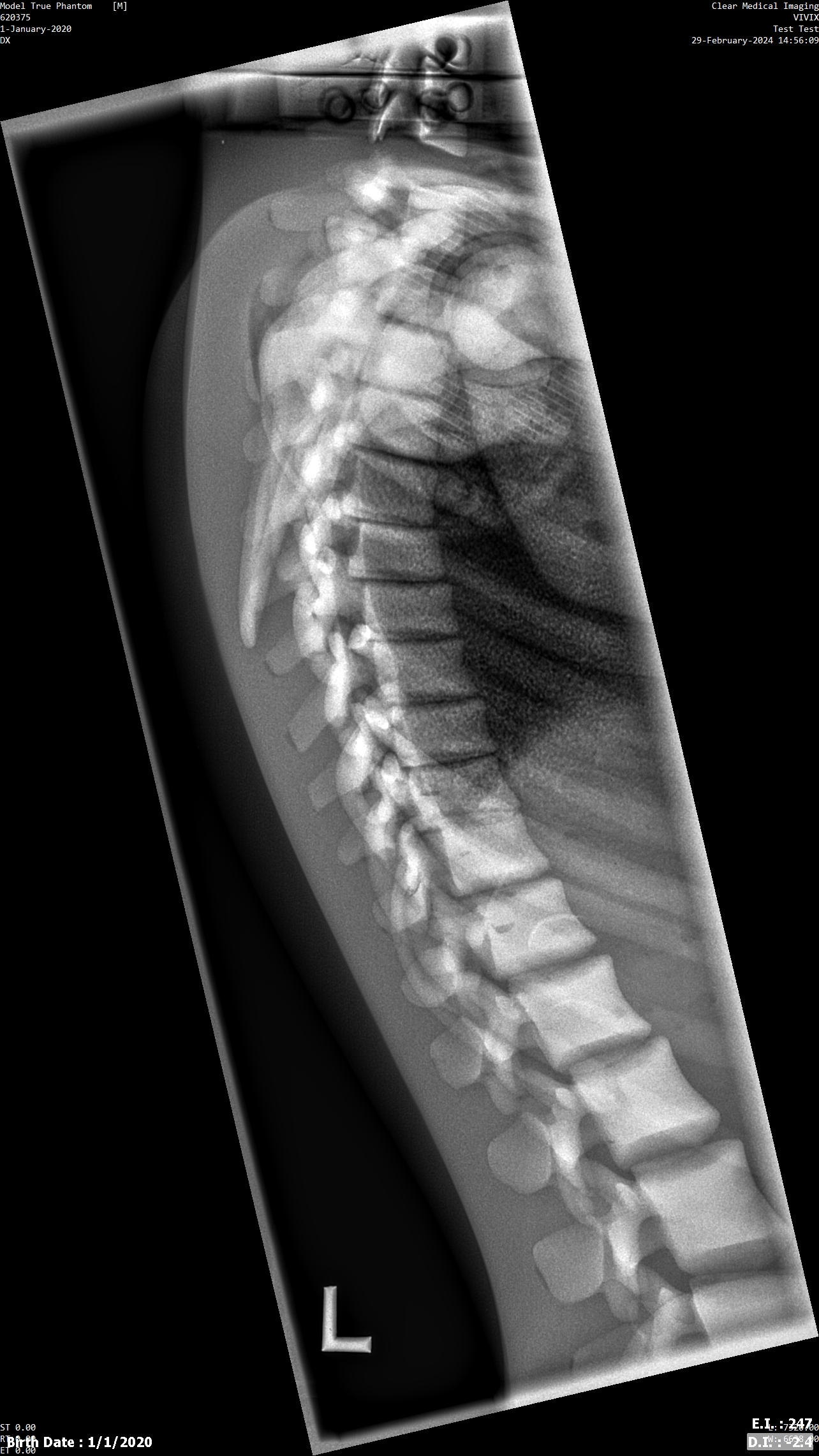

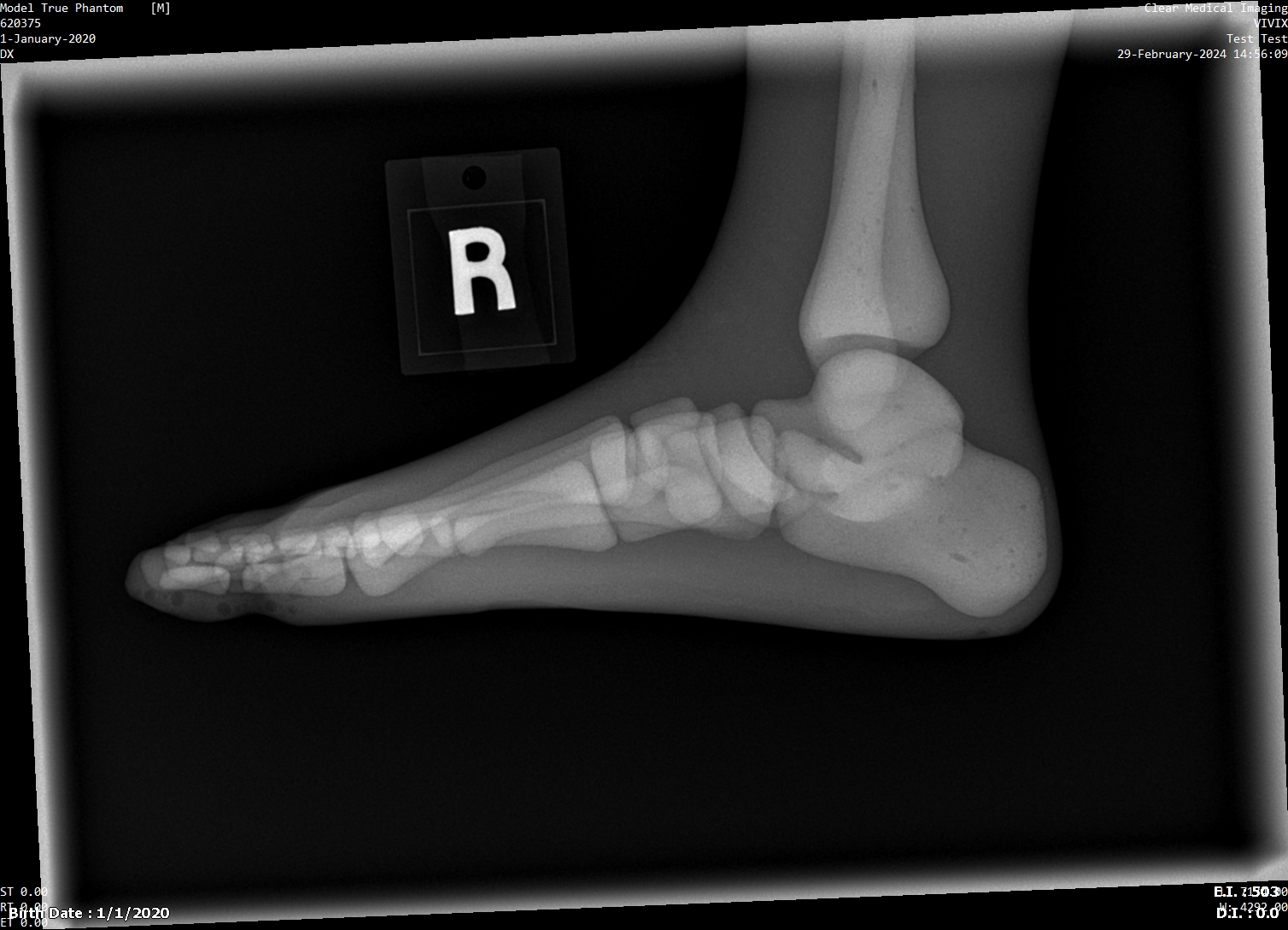

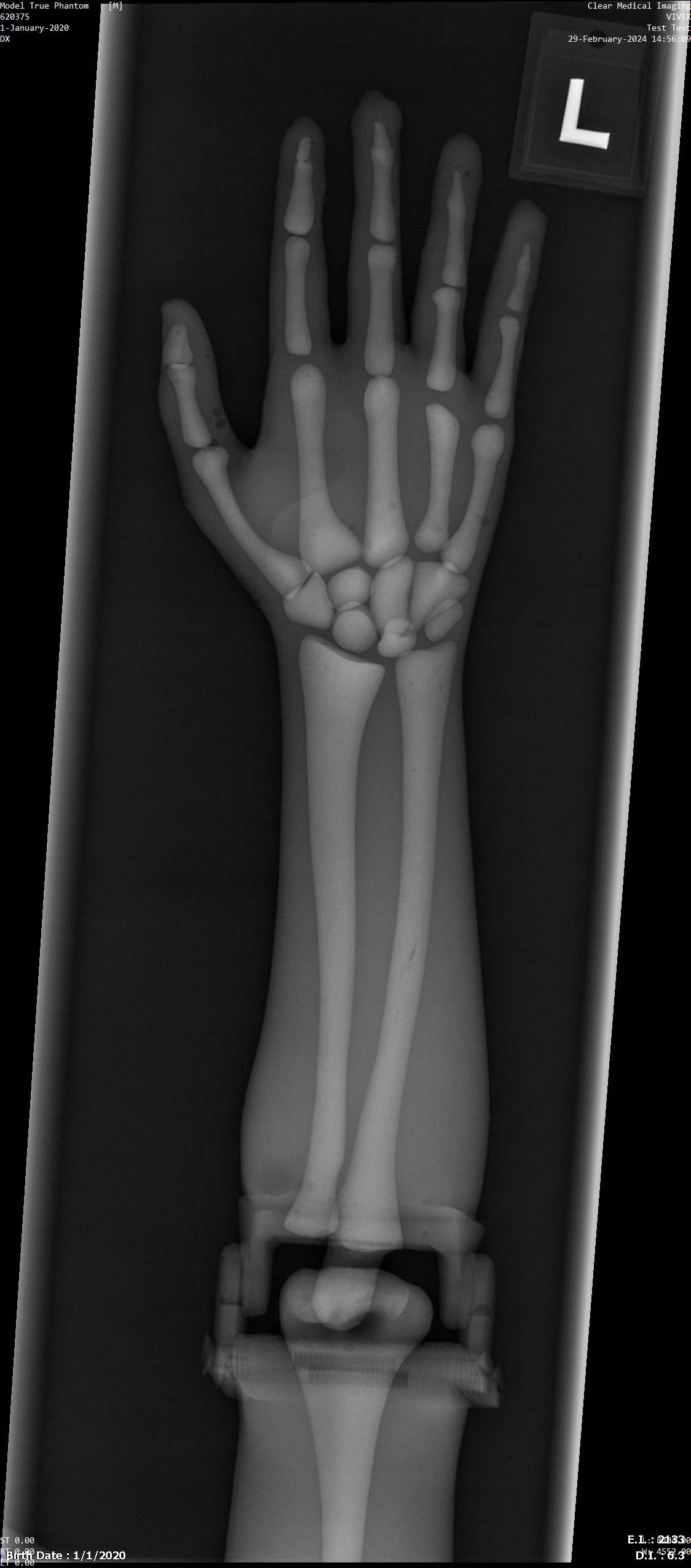

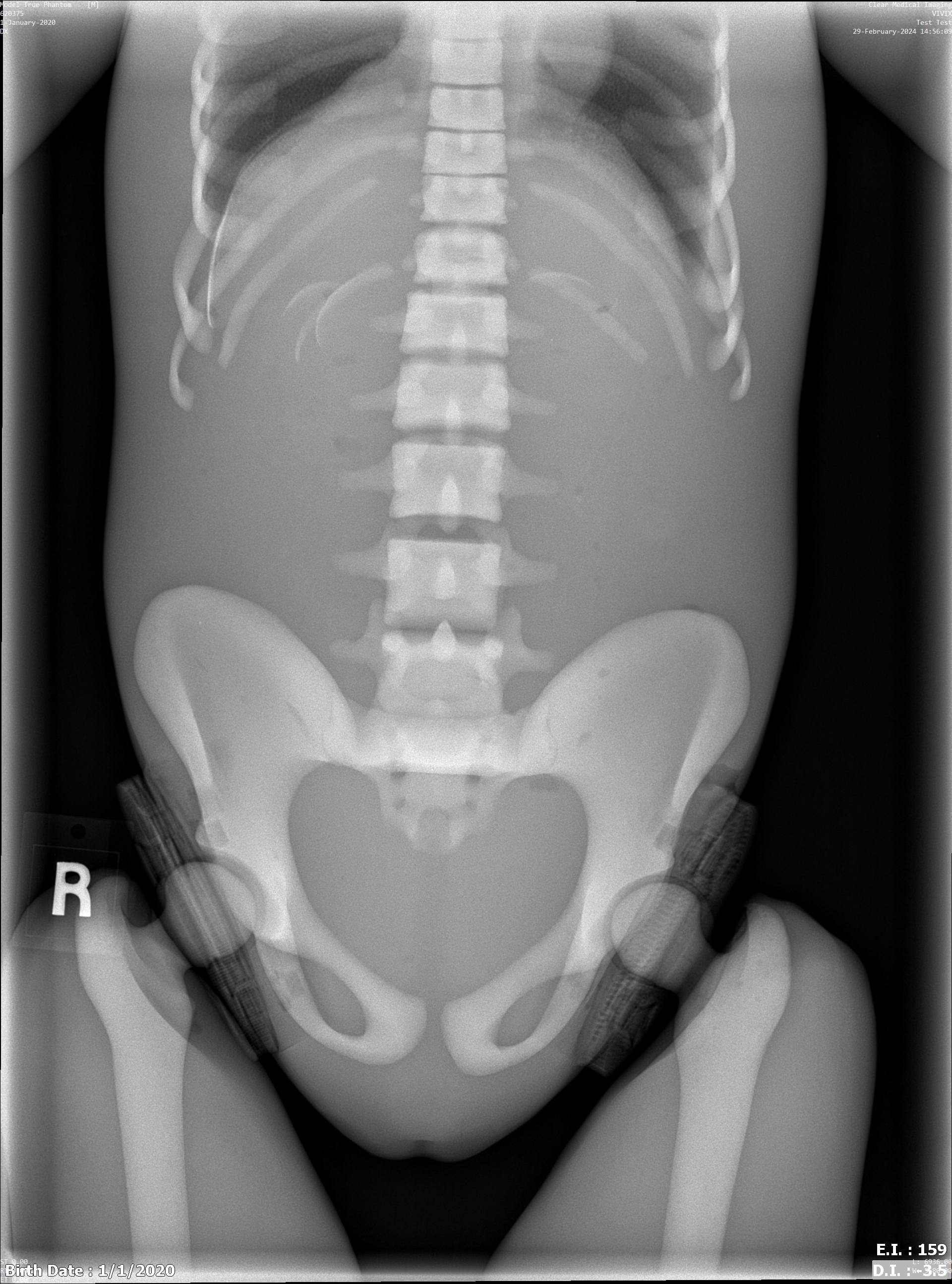

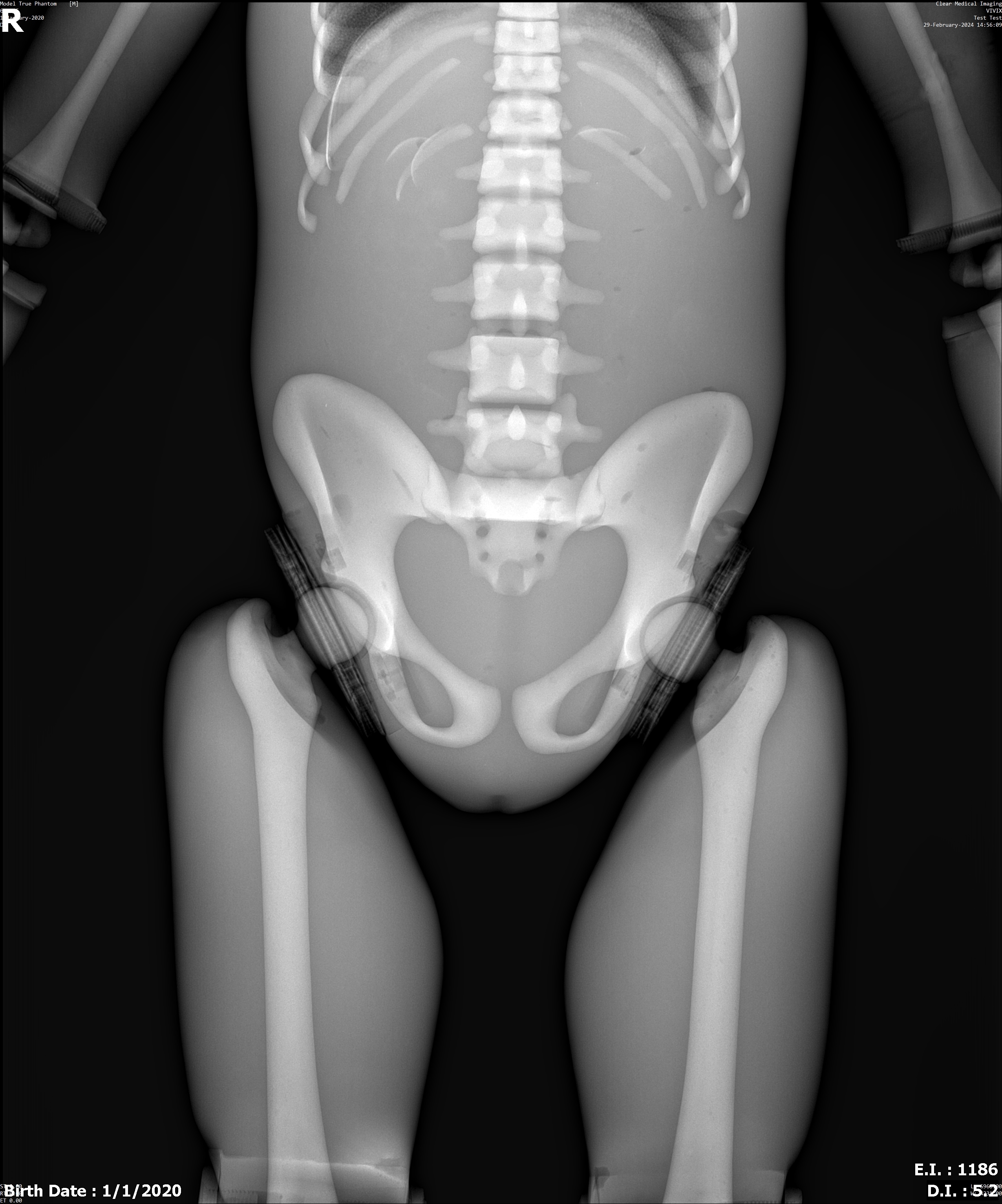

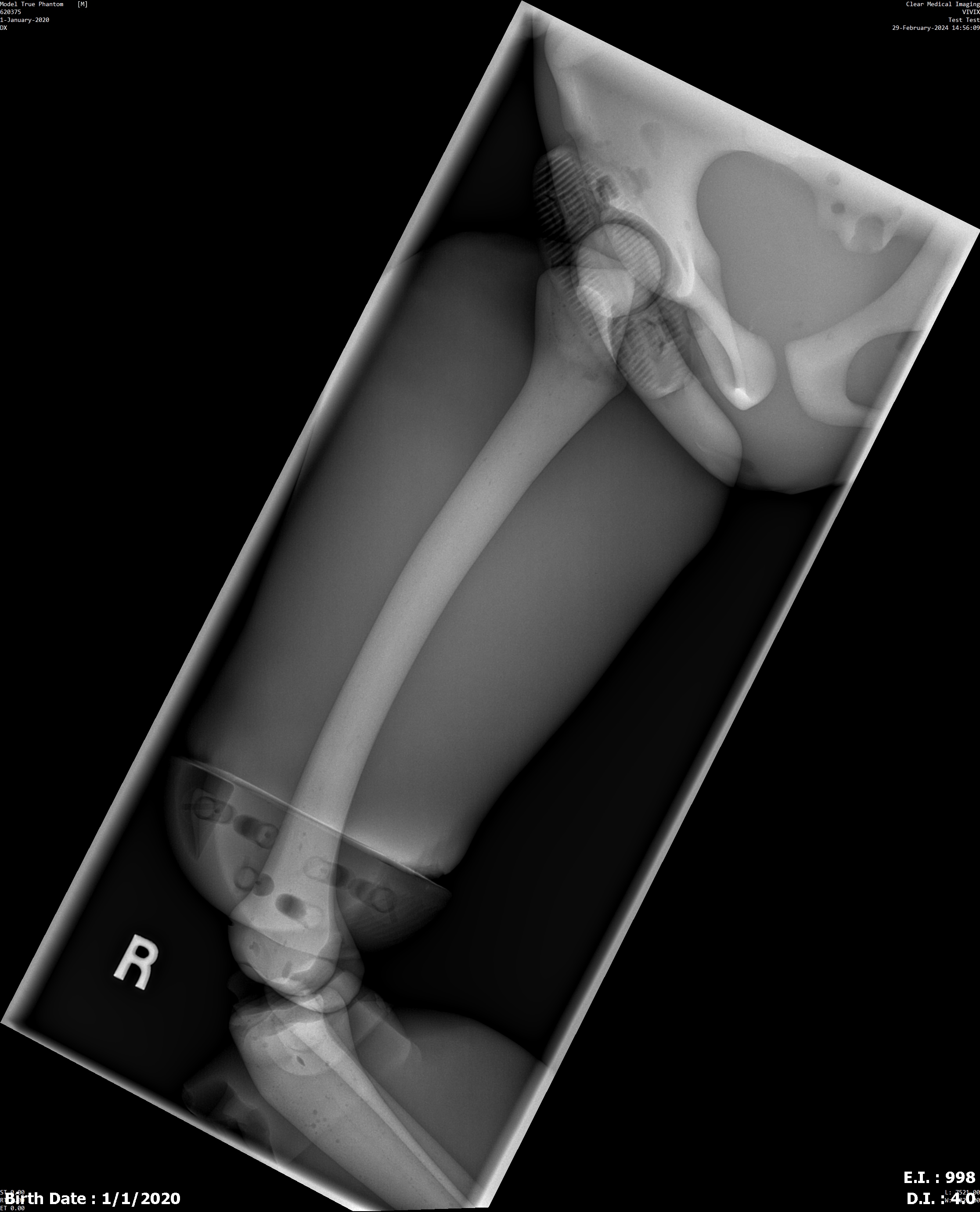

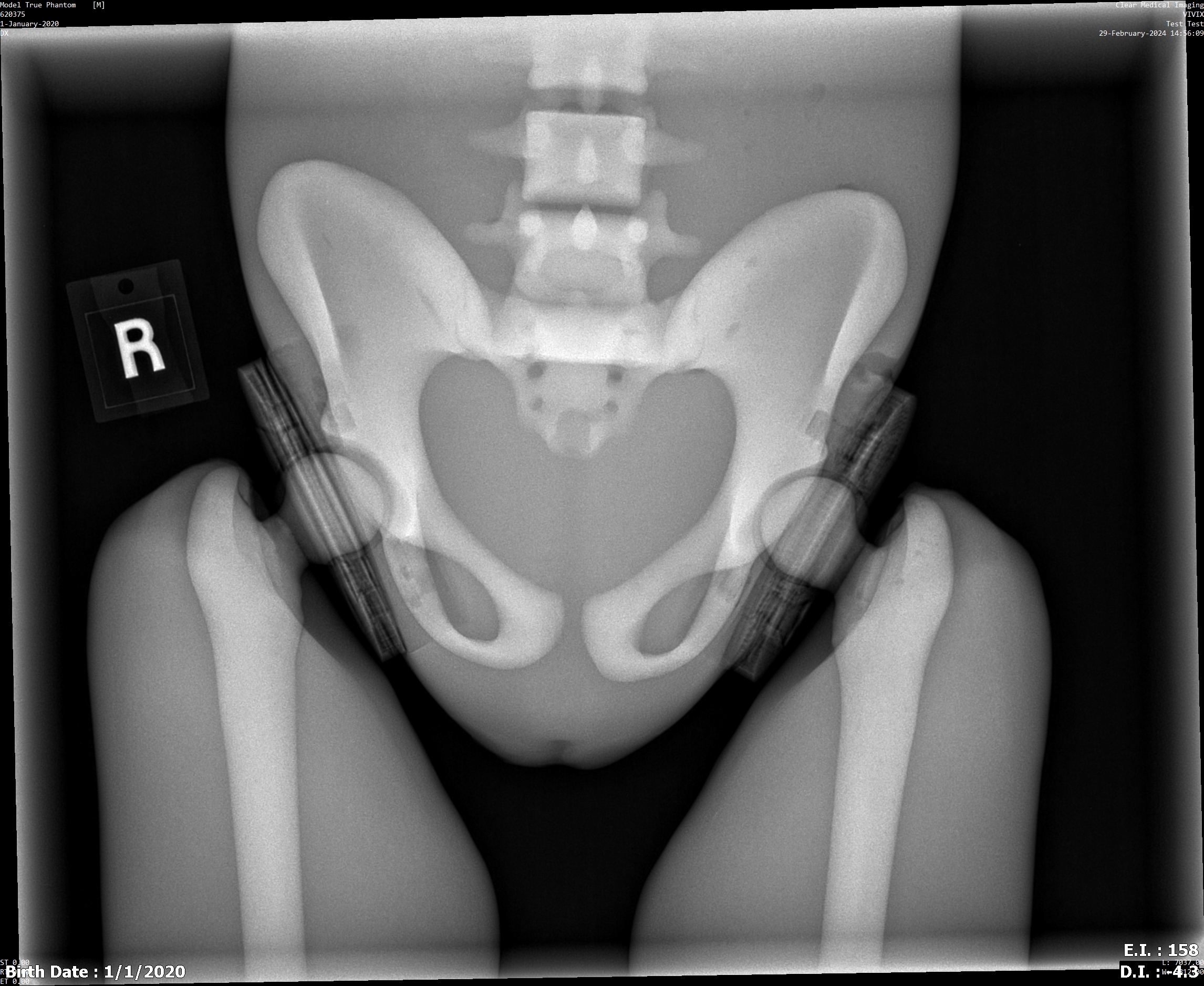

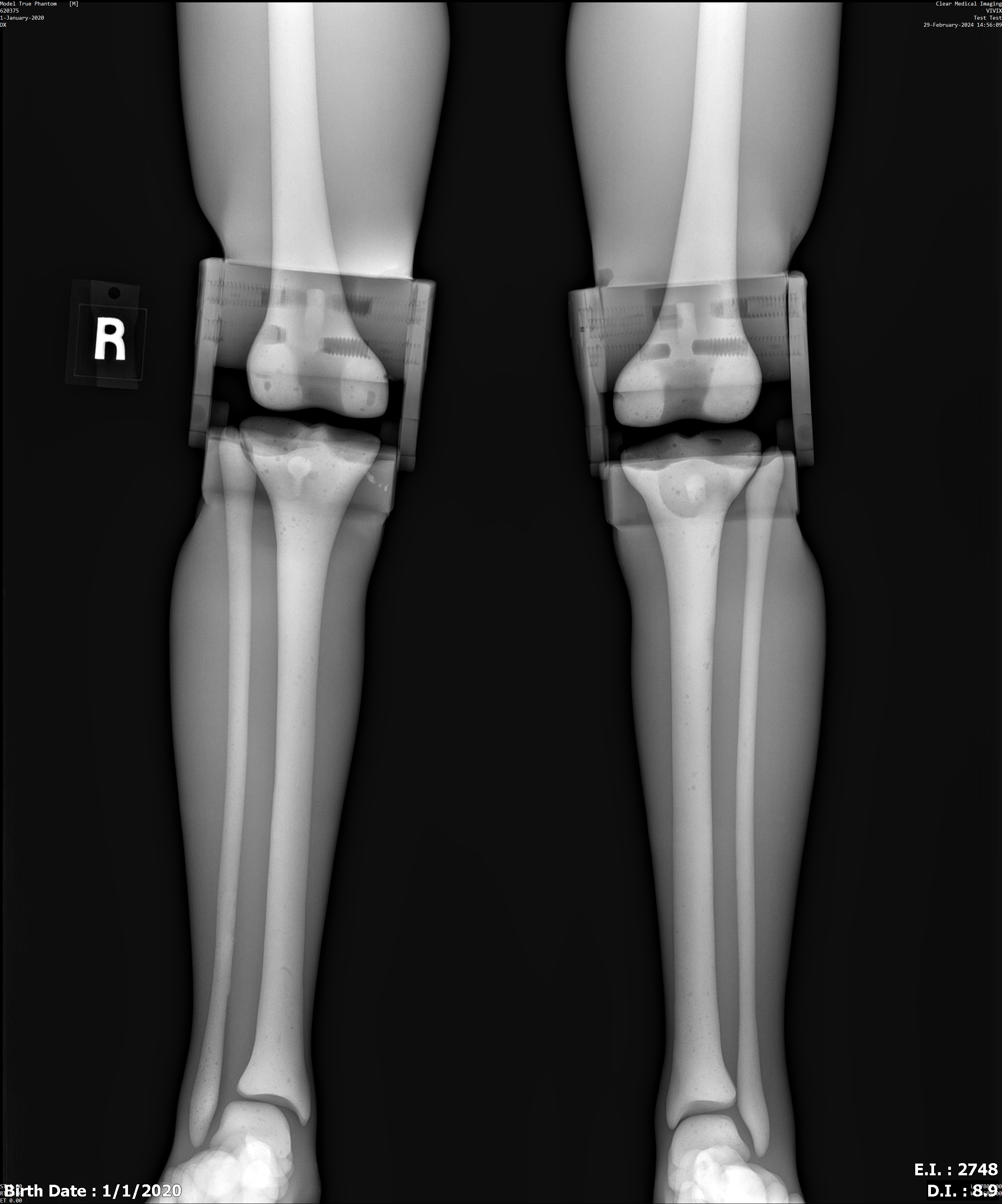

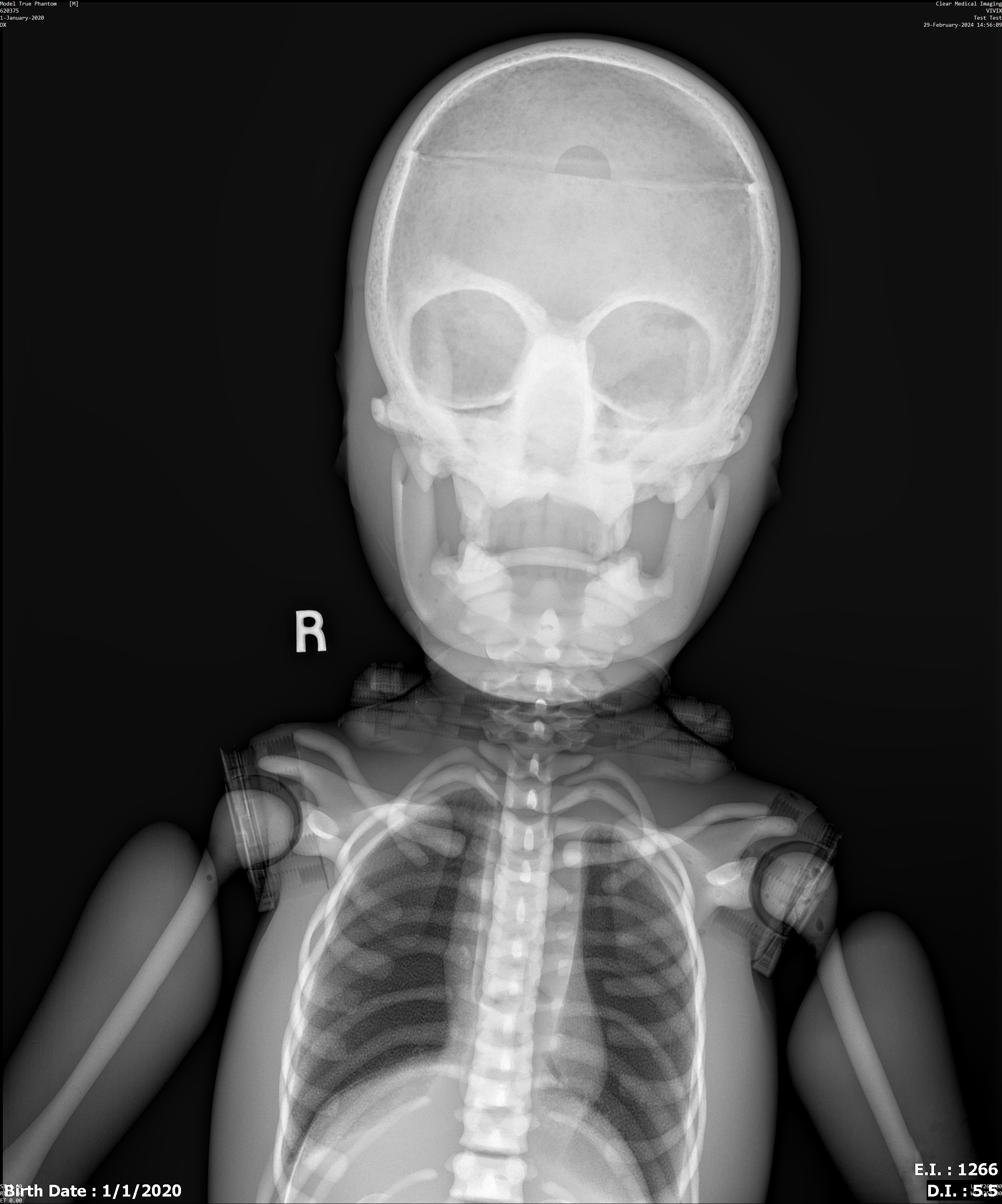

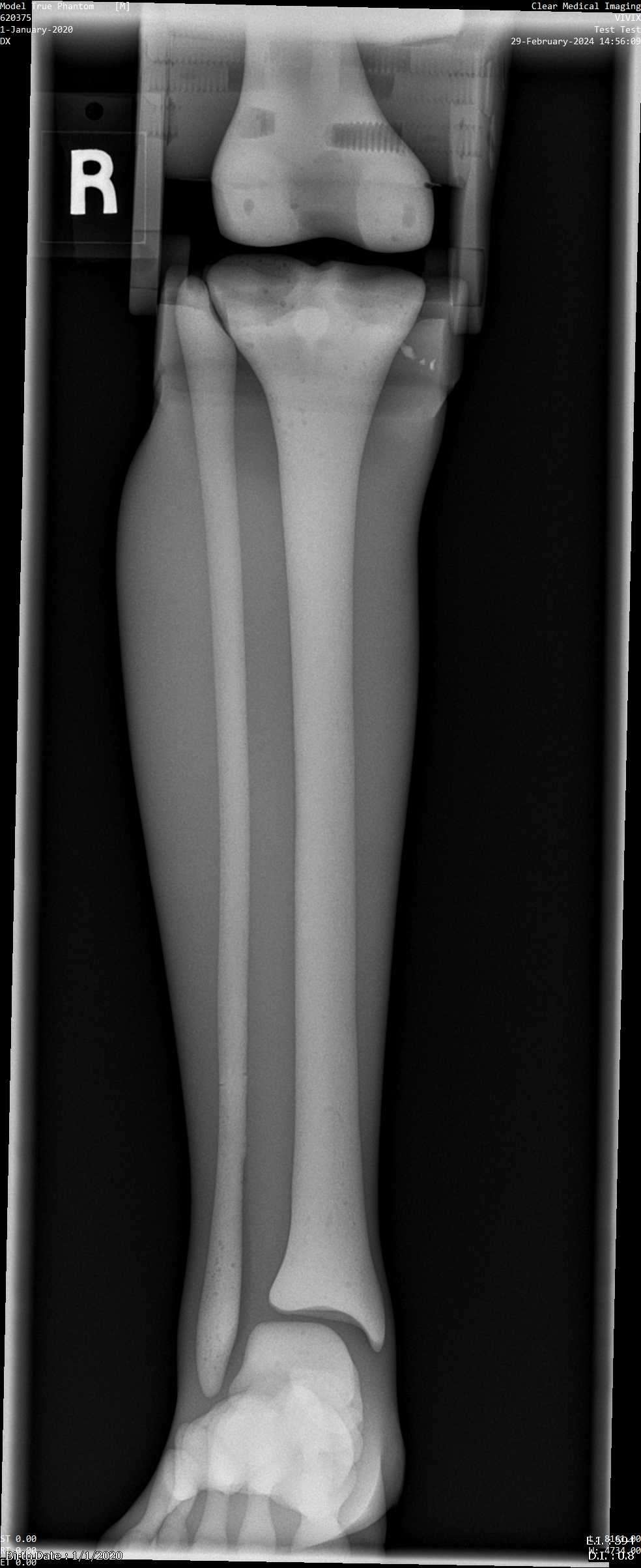

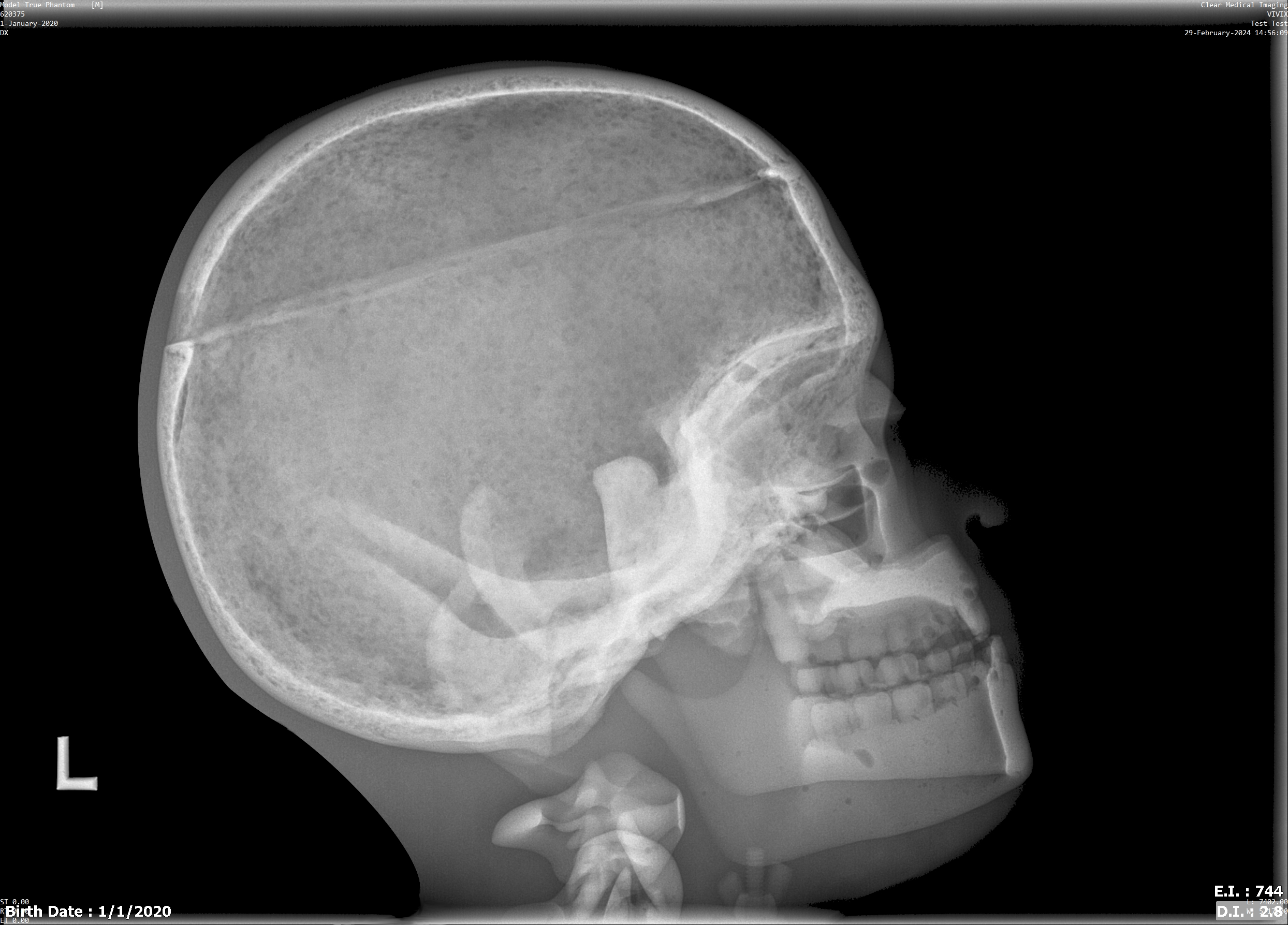

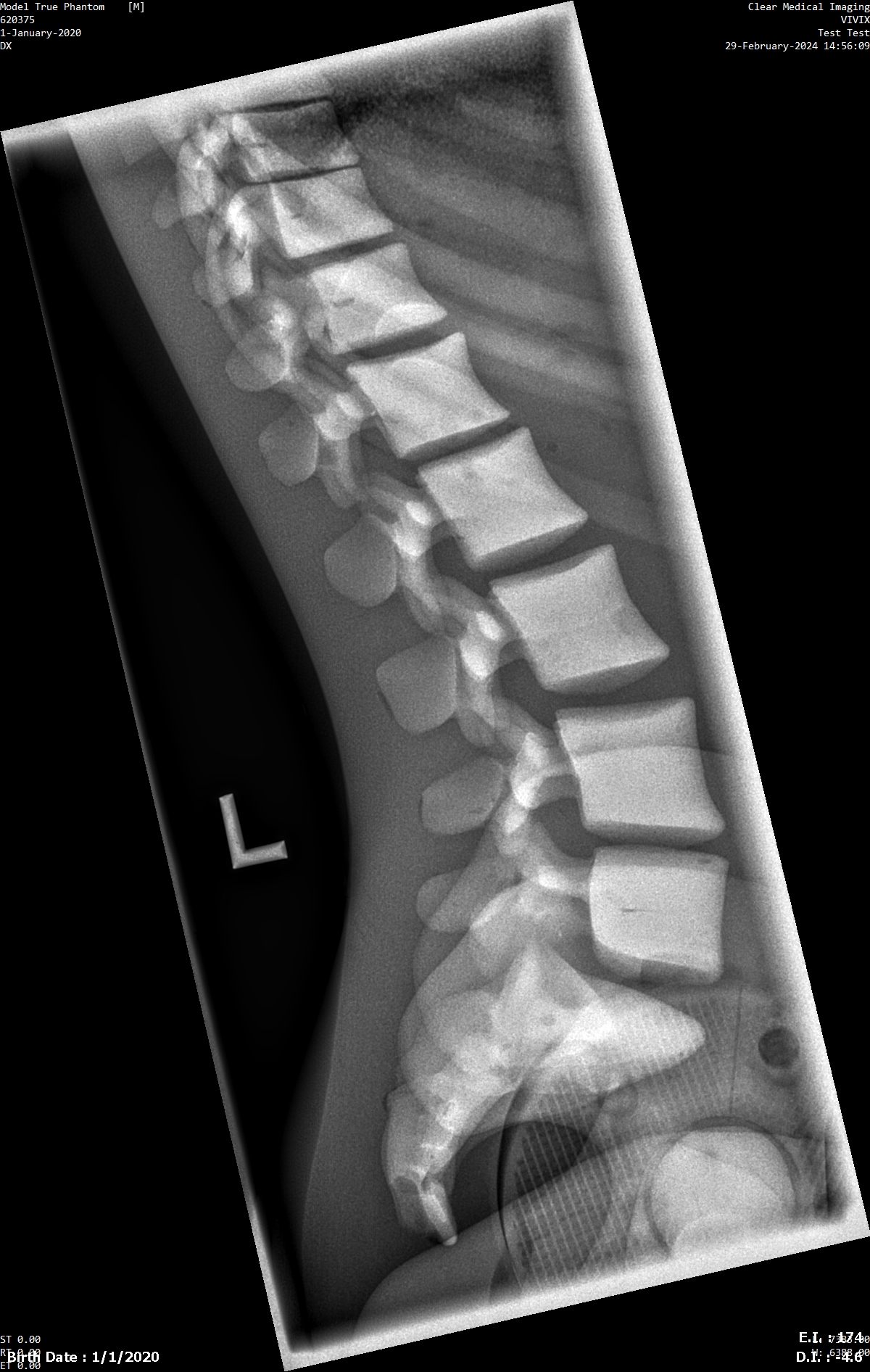

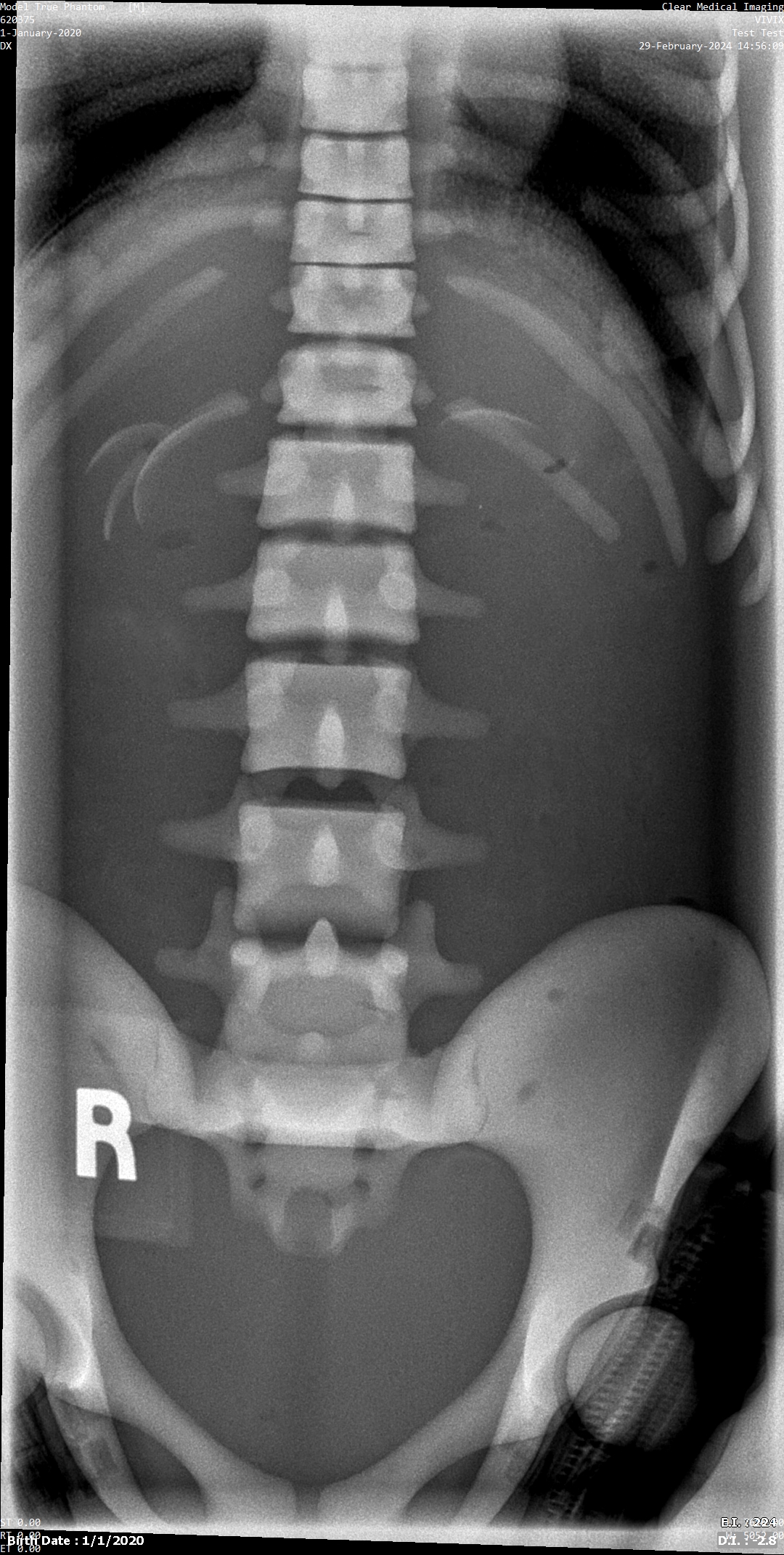

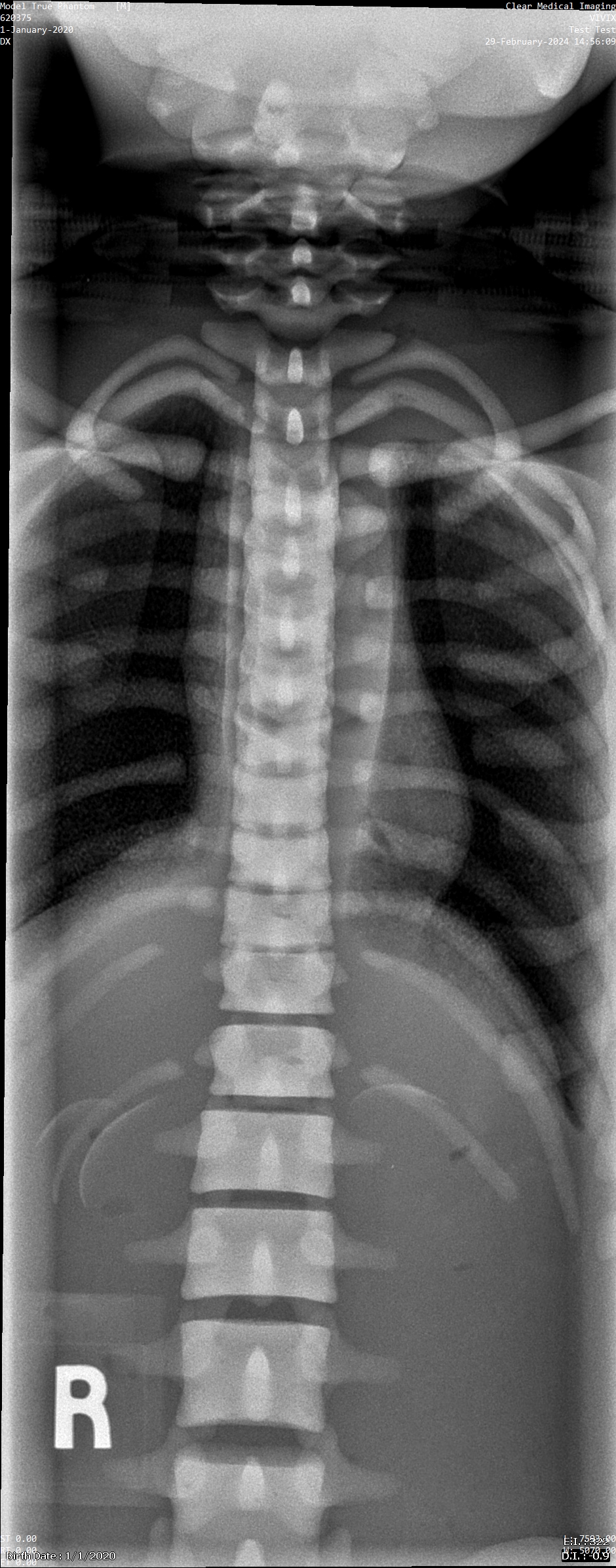

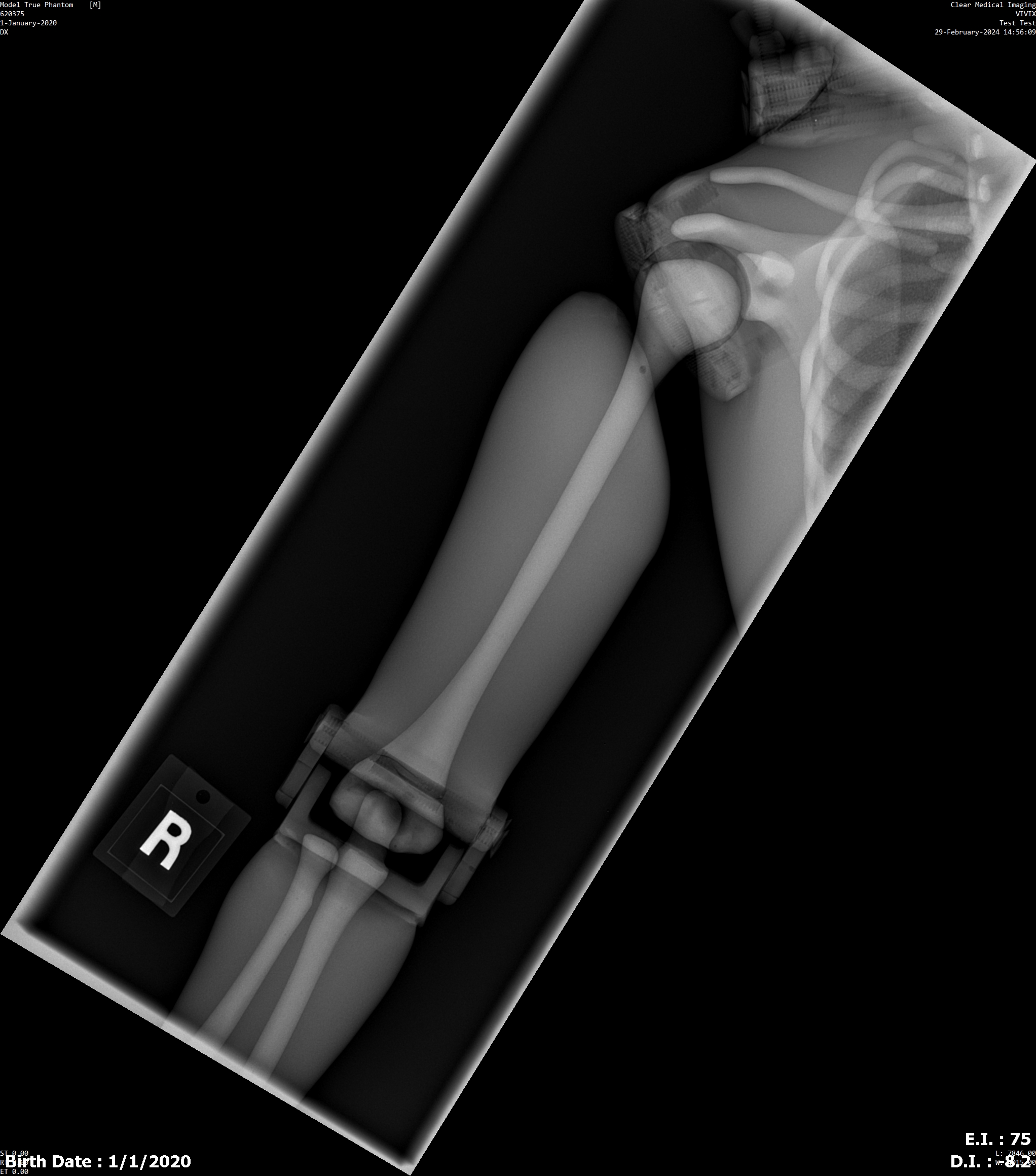

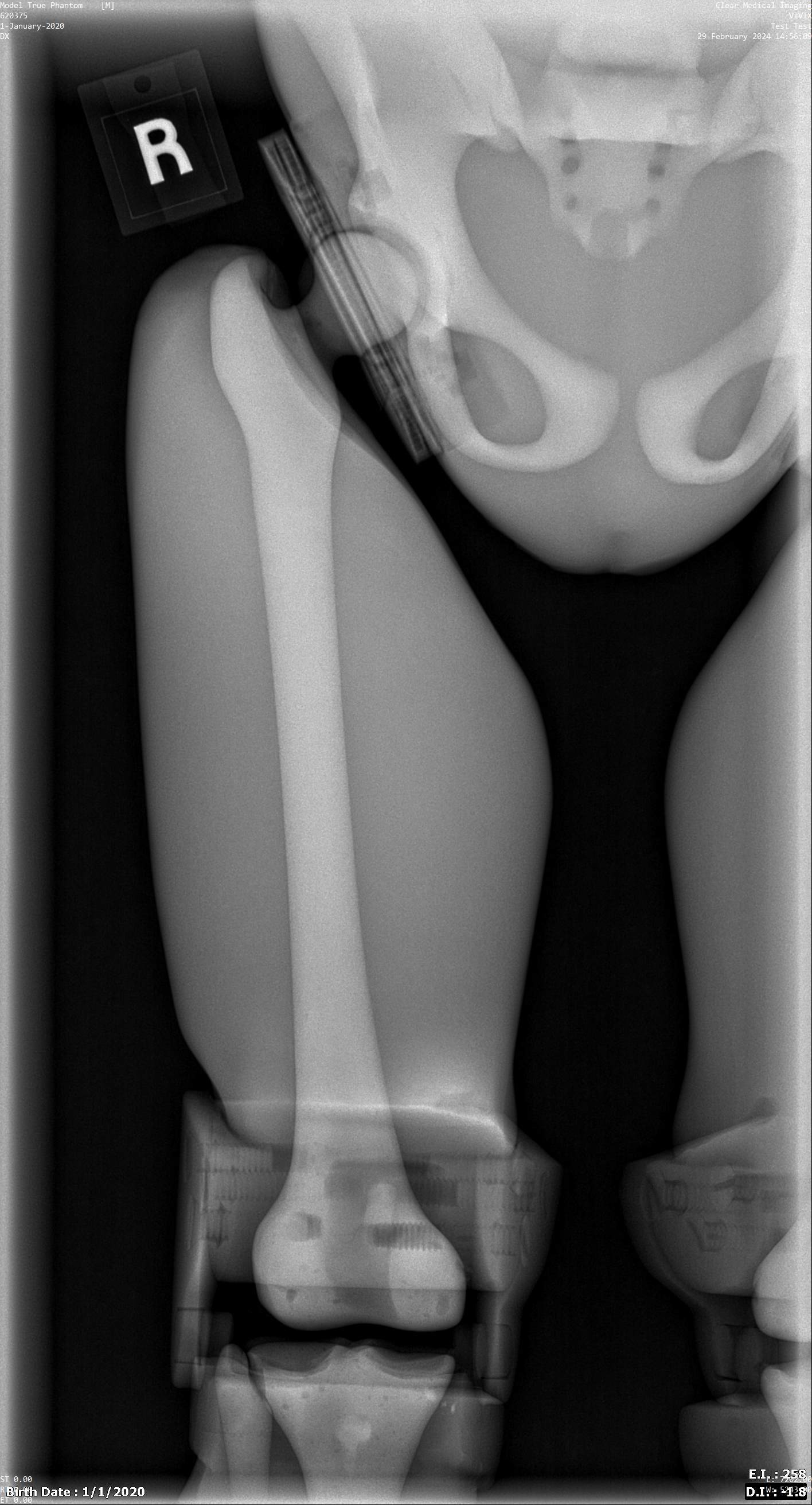

X-Ray Scans

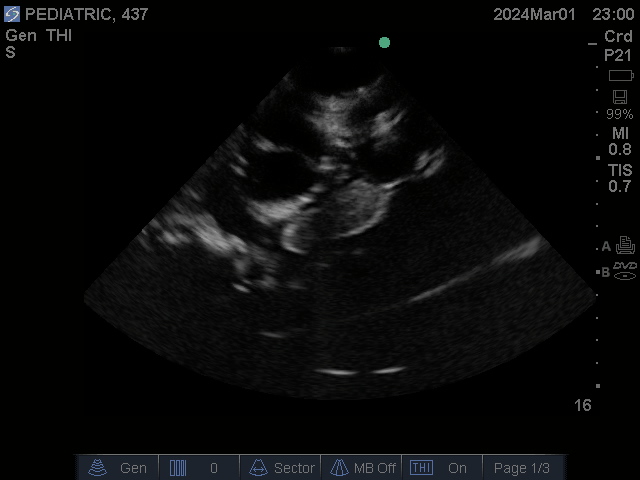

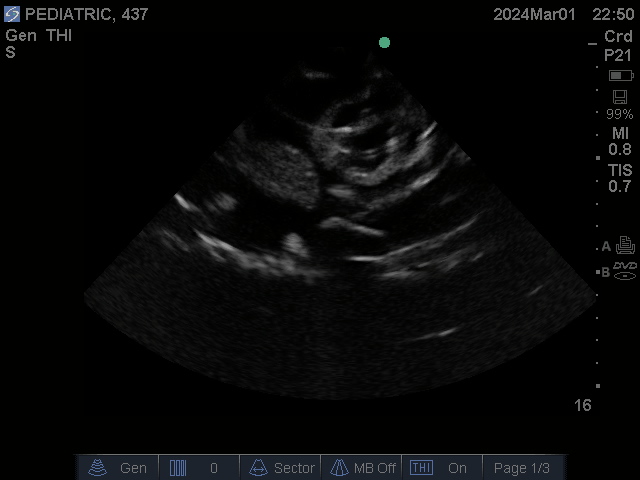

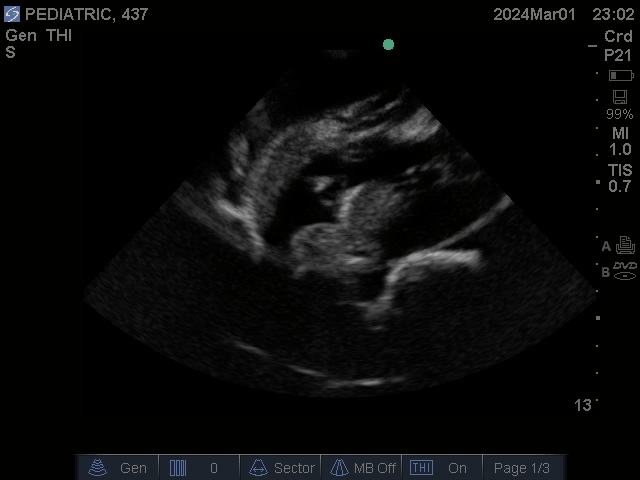

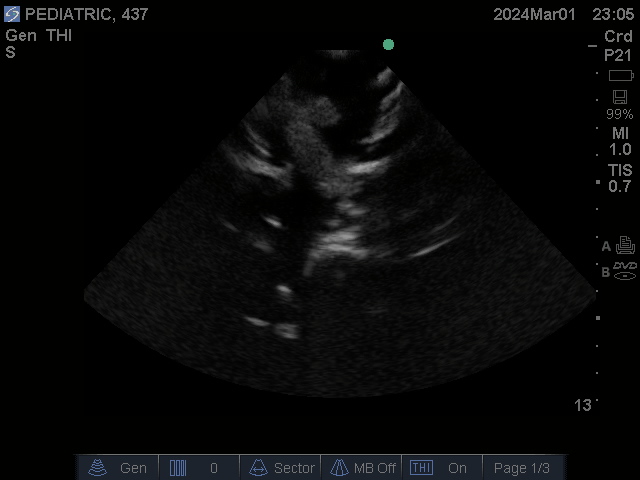

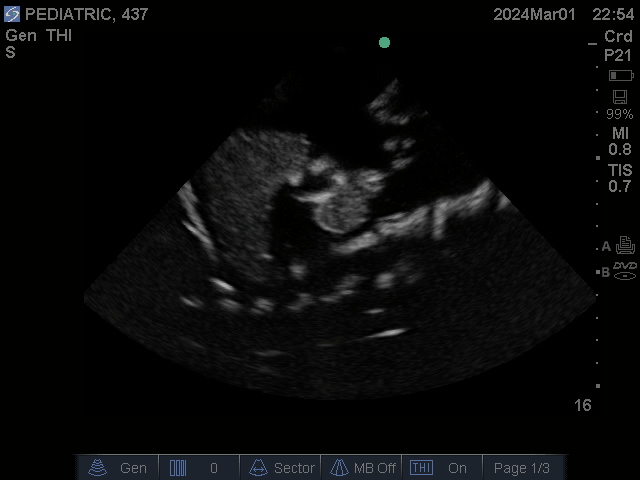

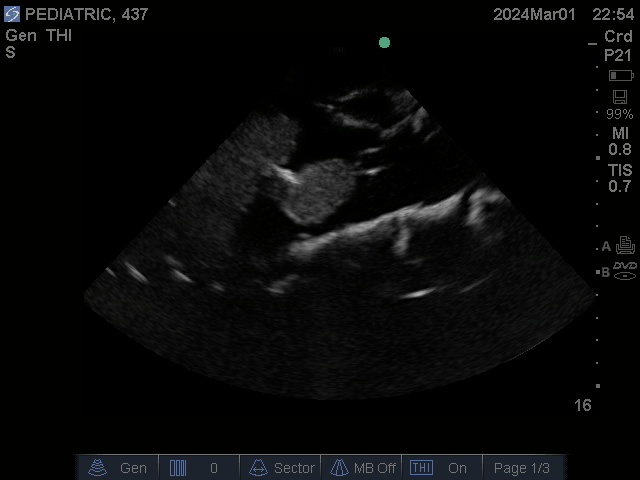

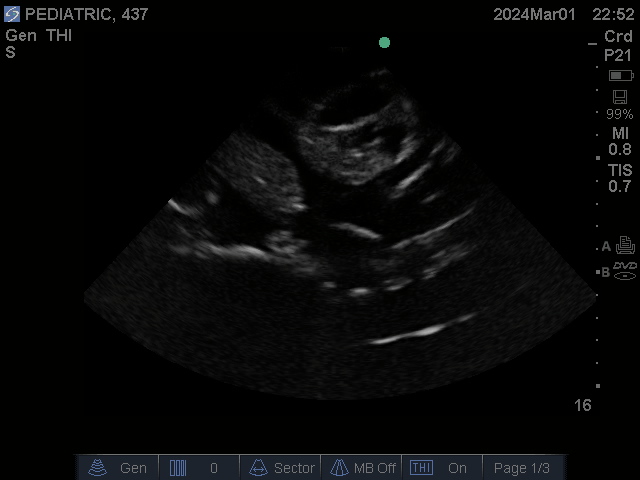

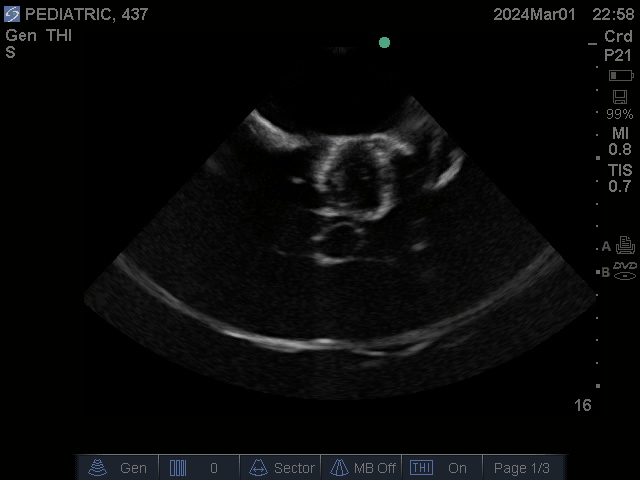

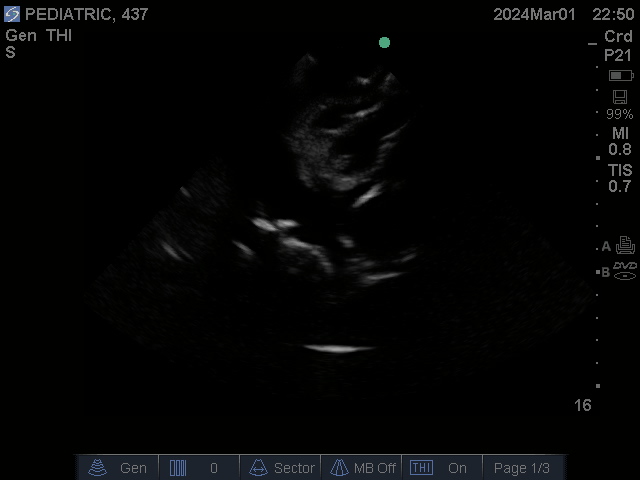

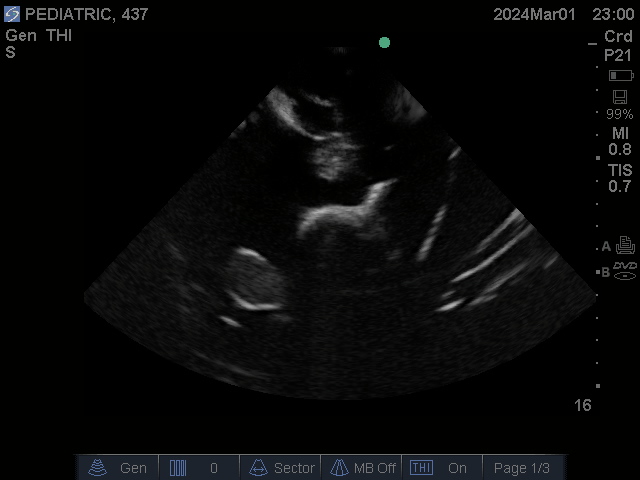

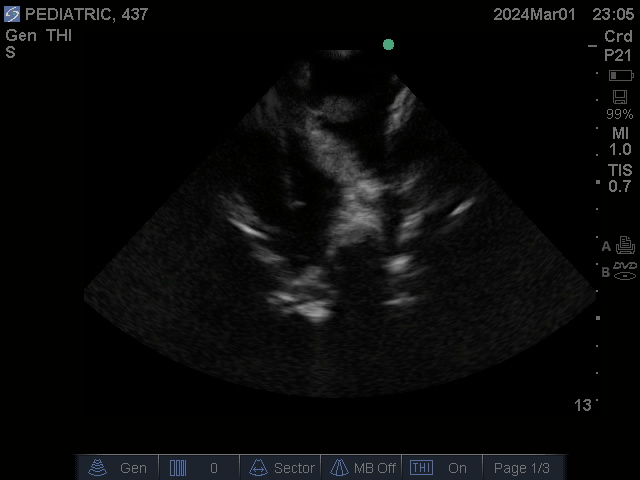

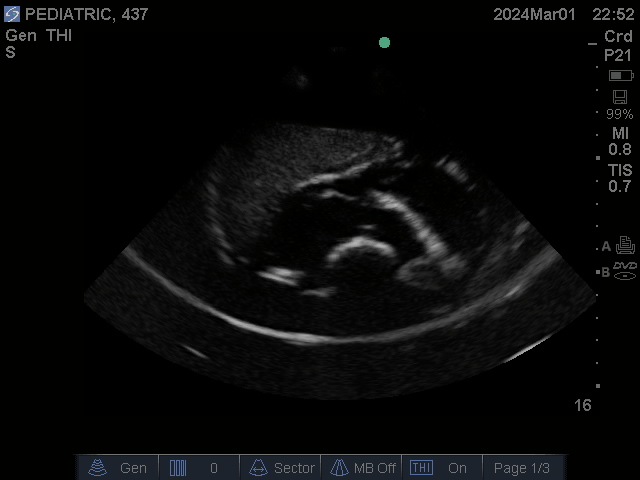

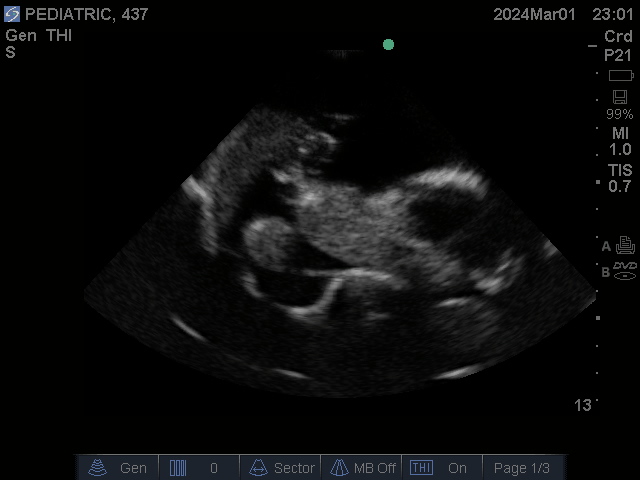

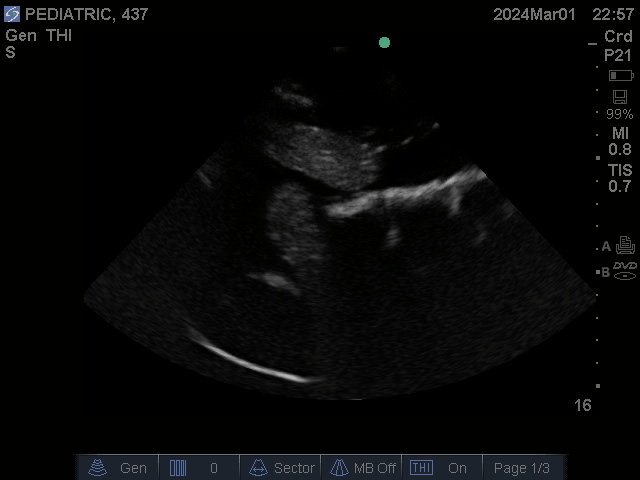

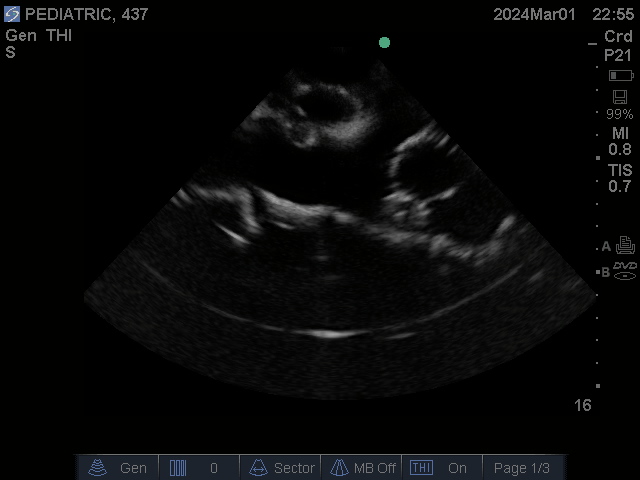

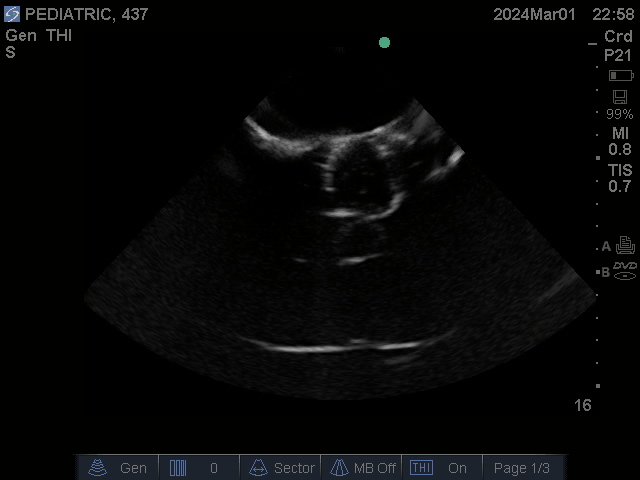

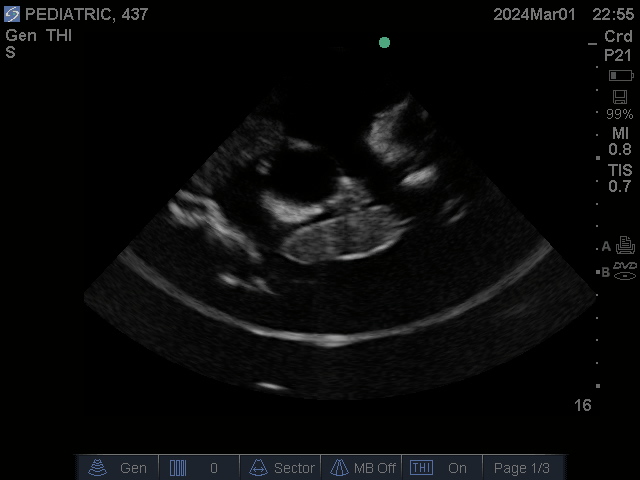

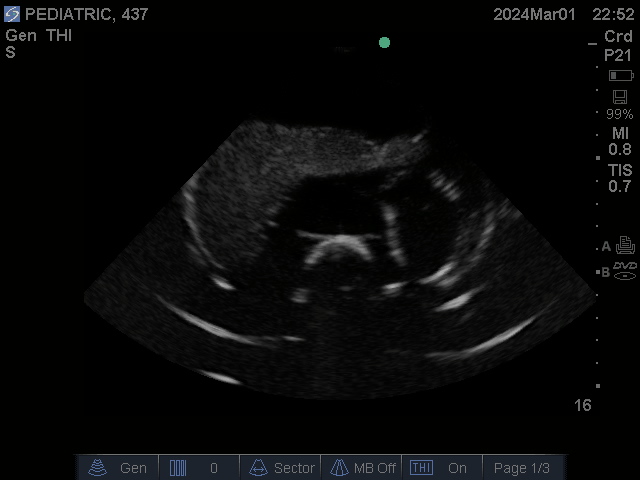

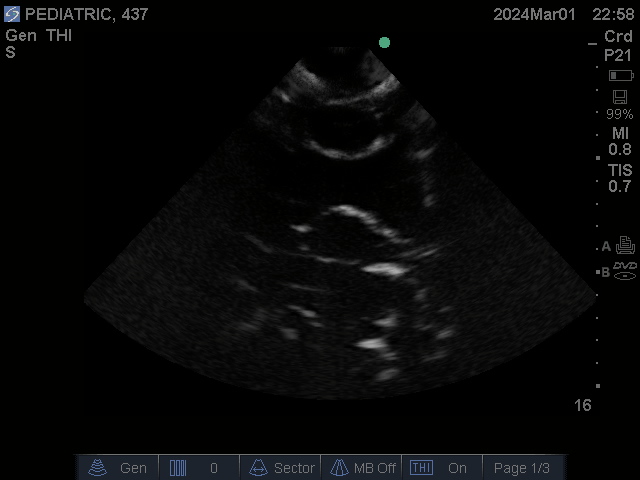

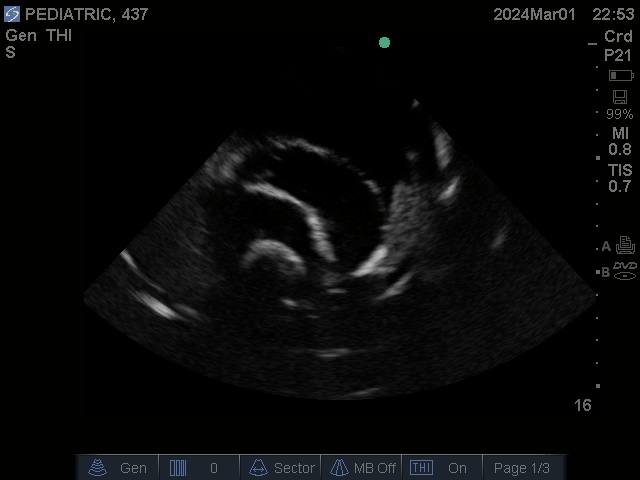

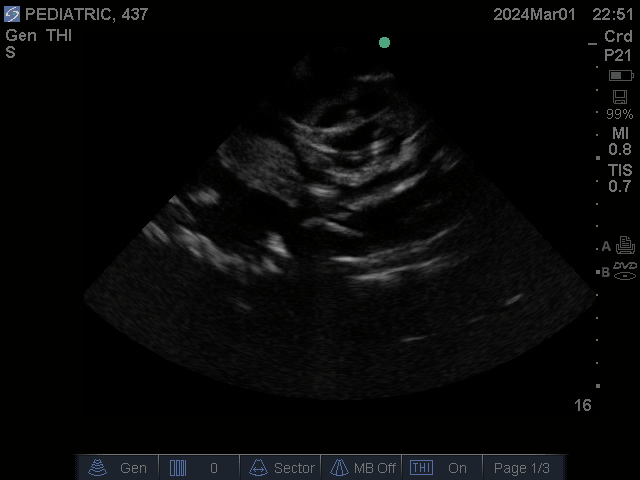

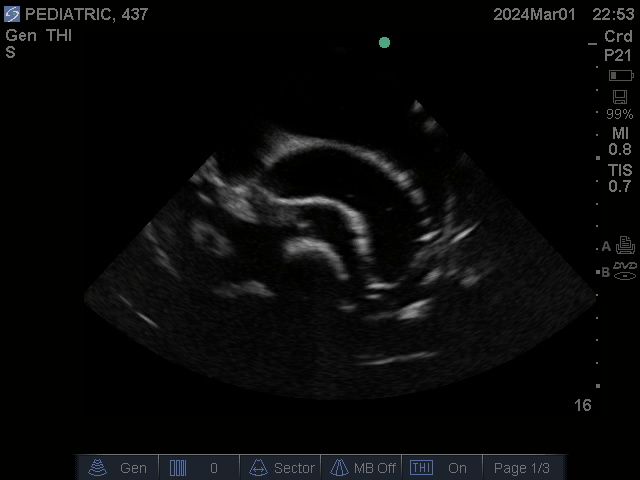

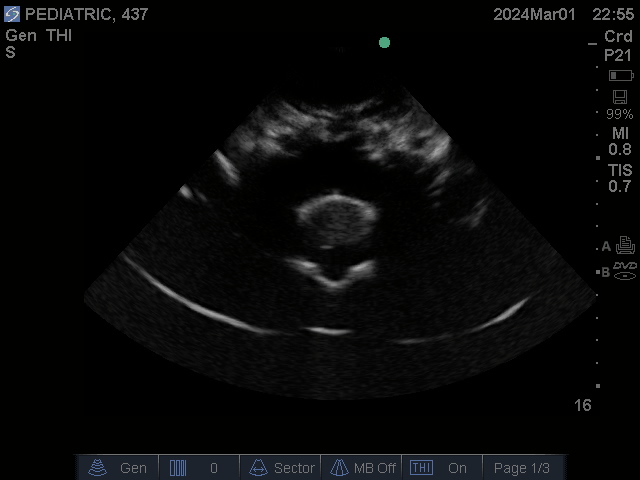

Ultrasound Scans
- Spine
- Pancreas
- Pediatric Full Body
- Ribcage
- Large and Small Intestines
- Realistic Body Tissue
- Shoulders and Clavicles
- Bladder
- Rotatable Shoulders
- Pelvis
- Prostate
- Moveable Hip Joints, Knees,
- Trachea
- Humerus
- Heart
- Elbow Joints
- and Elbows
- Lungs
- Radius and Ulna
- Detachable Head, Torso, and
- Diaphragm
- Wrist with Fingers
- Liver
- Femur
- Limbs
- Gallbladder
- Knee Joints
- Customizable with Different
- Stomach
- Tibia
- Kidneys
- Fibula
- Pathologies
- Spleen
- Foot with Toes
- Skull
- Brain (with Gray Matter)
| Phantom Size | 40 x 8 x 27 Inches |
| Phantom Weight | 40 Lbs (approx.) |
| Shipment Size | 32 x 23 x 13 Inches |
| Shipment Weight | 99 Lbs (approx.) |
| Anatomy | Ribs/ Chest | Full view/ Abdomen | Cervical Spine | Thoracic Spine | Lumbar Spine | Femur | Tib/Fib | Foot | Humerus | Hand/ Wrist | Skull | |||||
| Projection | AP/PA | AP | Lateral | AP/ Oblique | AP | Lateral | AP | Lateral | Proximal AP/ Lateral | AP/Lateral | AP/ Oblique | Lateral | AP | PA/ Oblique | AP | Lateral |
| kVp | 80 | 78 | 80 | 78 | 74 | 80 | 78 | 80 | 76 | 68 | 58 | 60 | 80 | 60 | 88 | 78 |
| mAs | 8 | 18 | 8 | 6.3 | 12.5 | 20 | 8 | 10 | 6.3 | 2 | 1.6 | 1.6 | 6.3 | 1.8 | 16 | 12.5 |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Brain Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
