Adult Full Body for X-Ray Positioning and Imaging
$28,800 USD

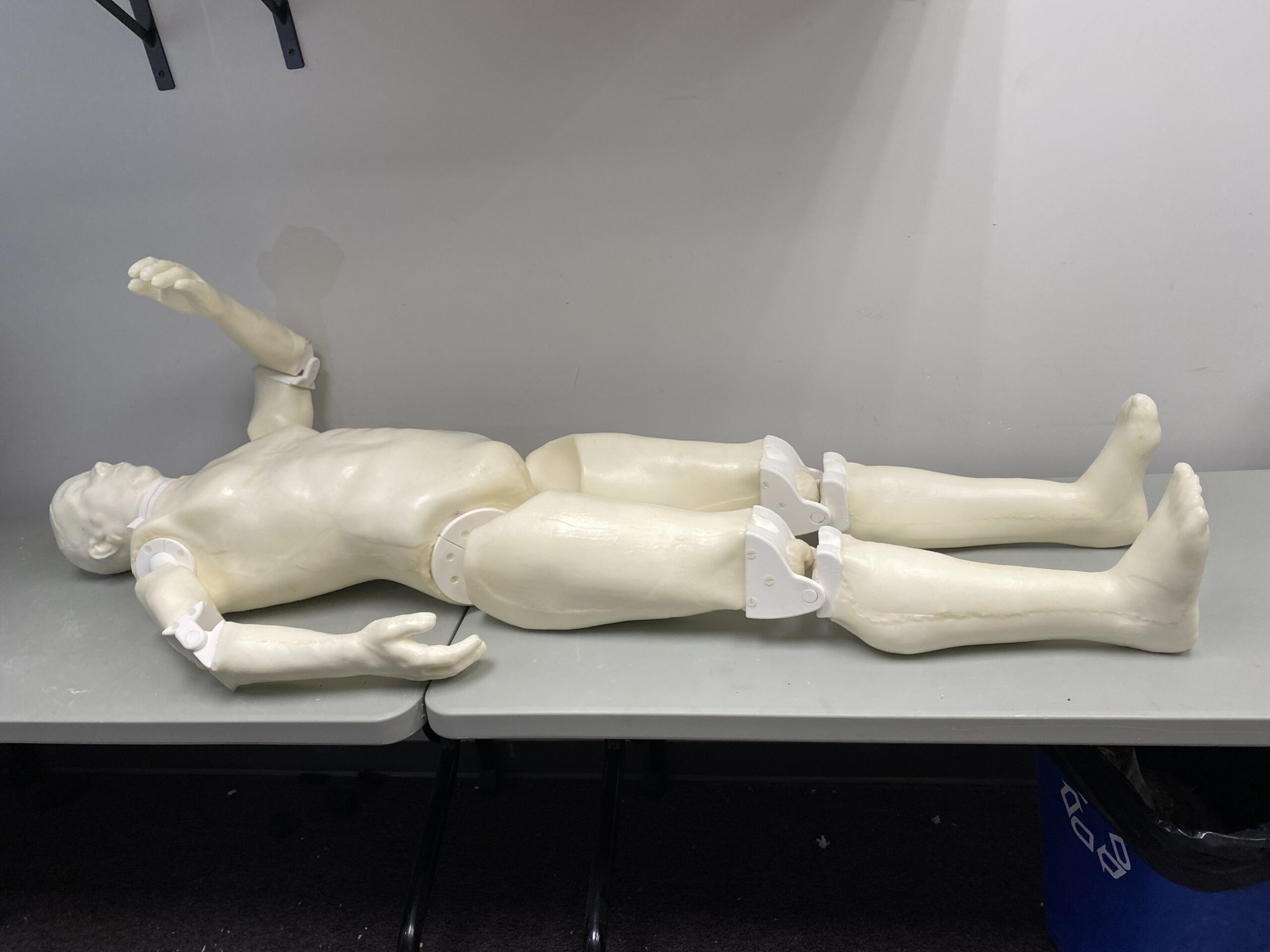

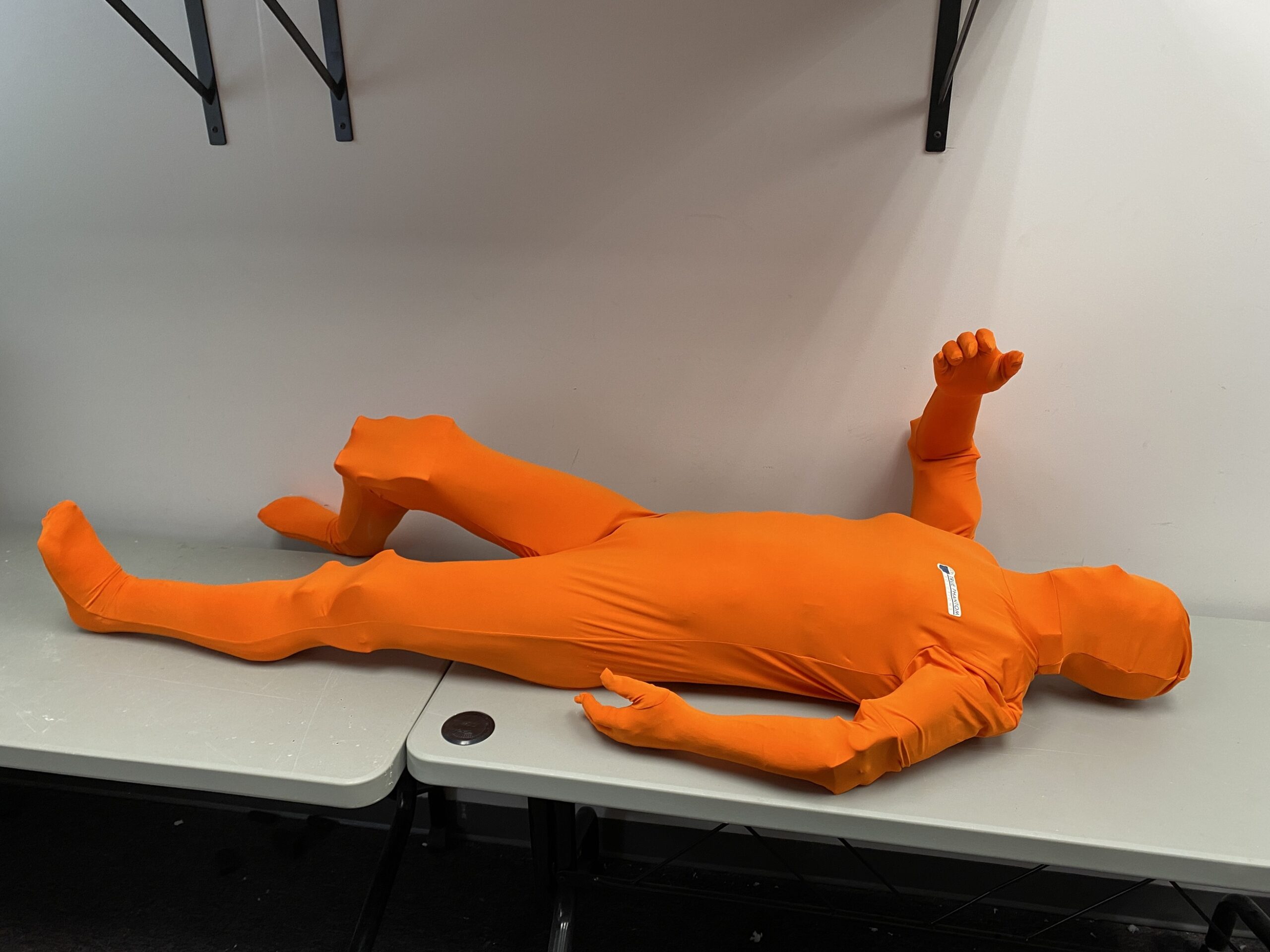

The Adult Full Body Phantom is a lightweight, 20 kg X-ray positioning and imaging training tool, with no assembly required, designed for radiology students and professionals. Made from durable synthetic materials, it allows for repeated practice without radiation risks. Articulating joints provide realistic movement, enhancing positioning skills. The bones feature an adjustable three-layered structure with inner porosity, and this X-Ray phantom can be customized with various pathologies.
Full Body Model: Standard (X-Ray)
Appearance: Translucent Amber
This product can be customized based on your requirements — contact us.
The Adult Full Body Phantom is a lightweight, 20 kg X-ray positioning and imaging training tool, with no assembly required, designed for radiology students and professionals. Made from durable synthetic materials, it allows for repeated practice without radiation risks.

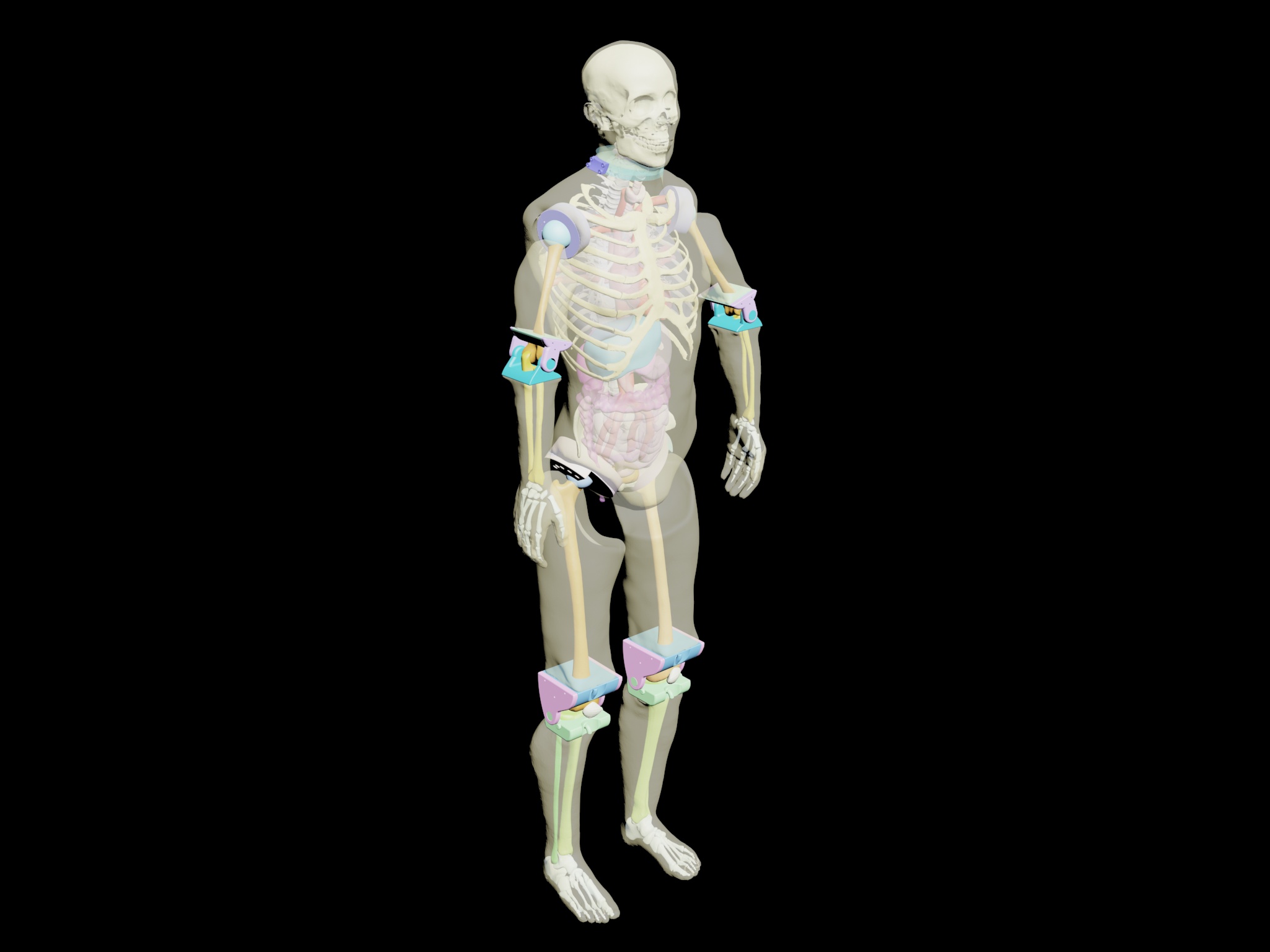

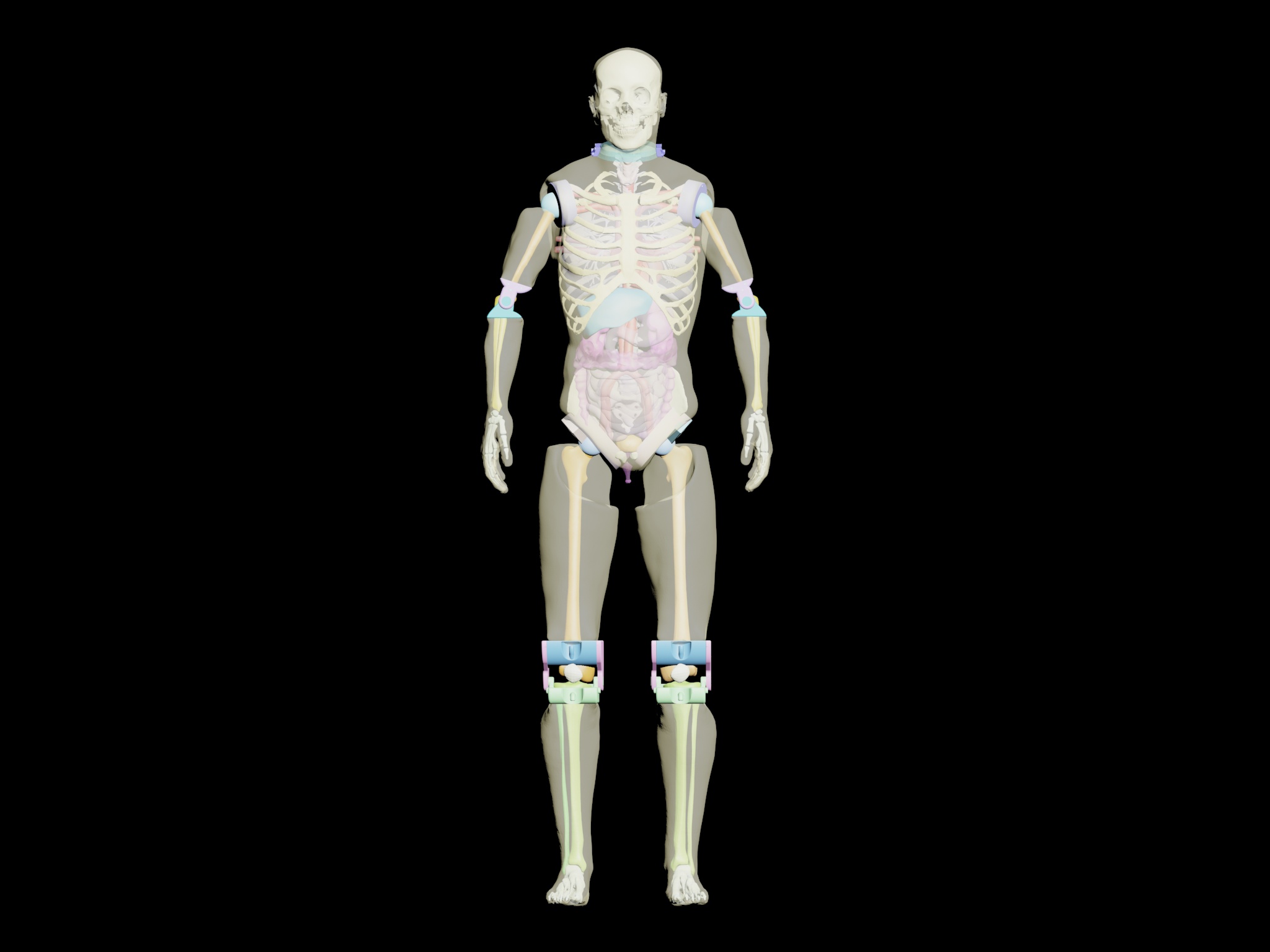

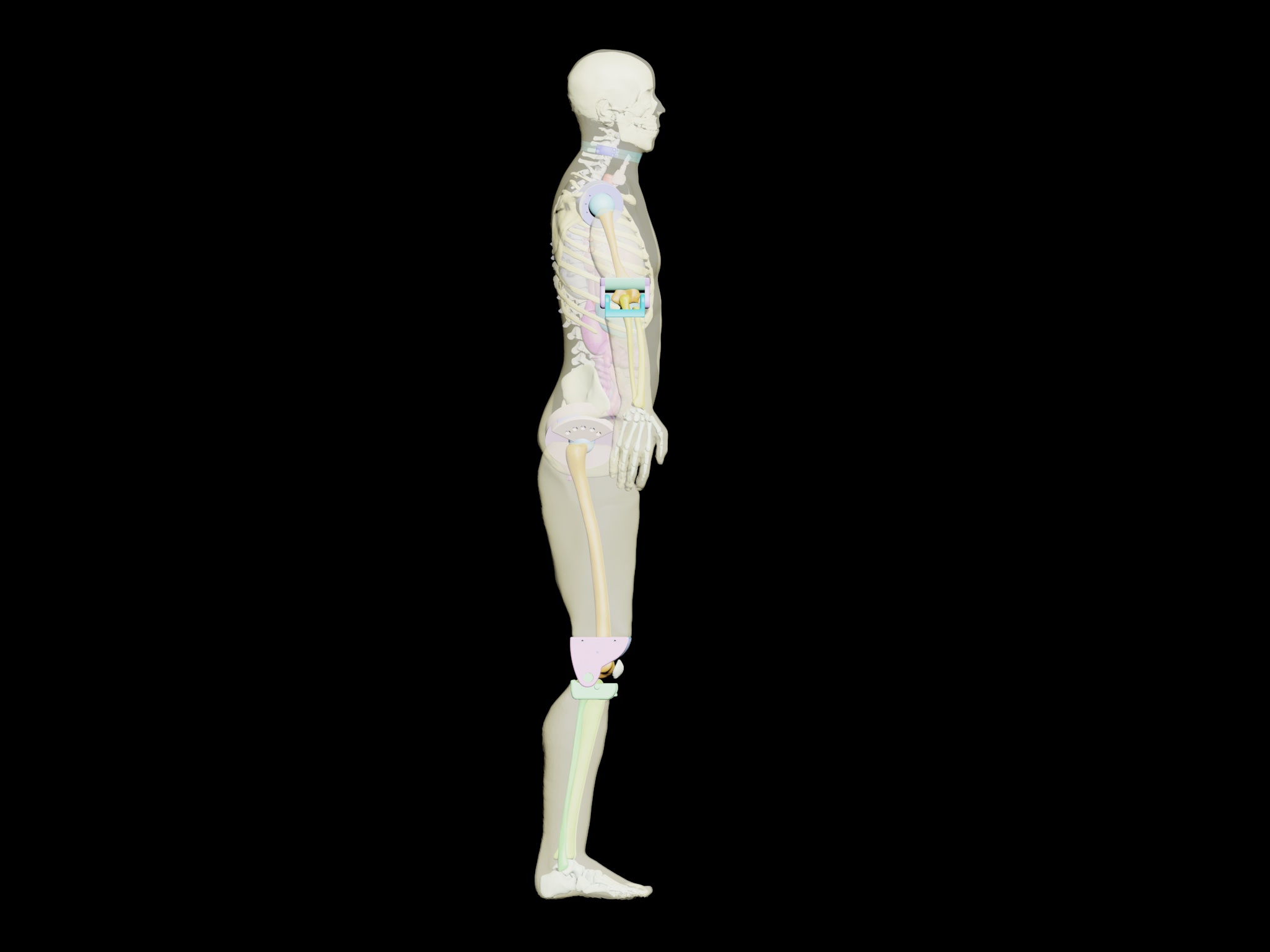

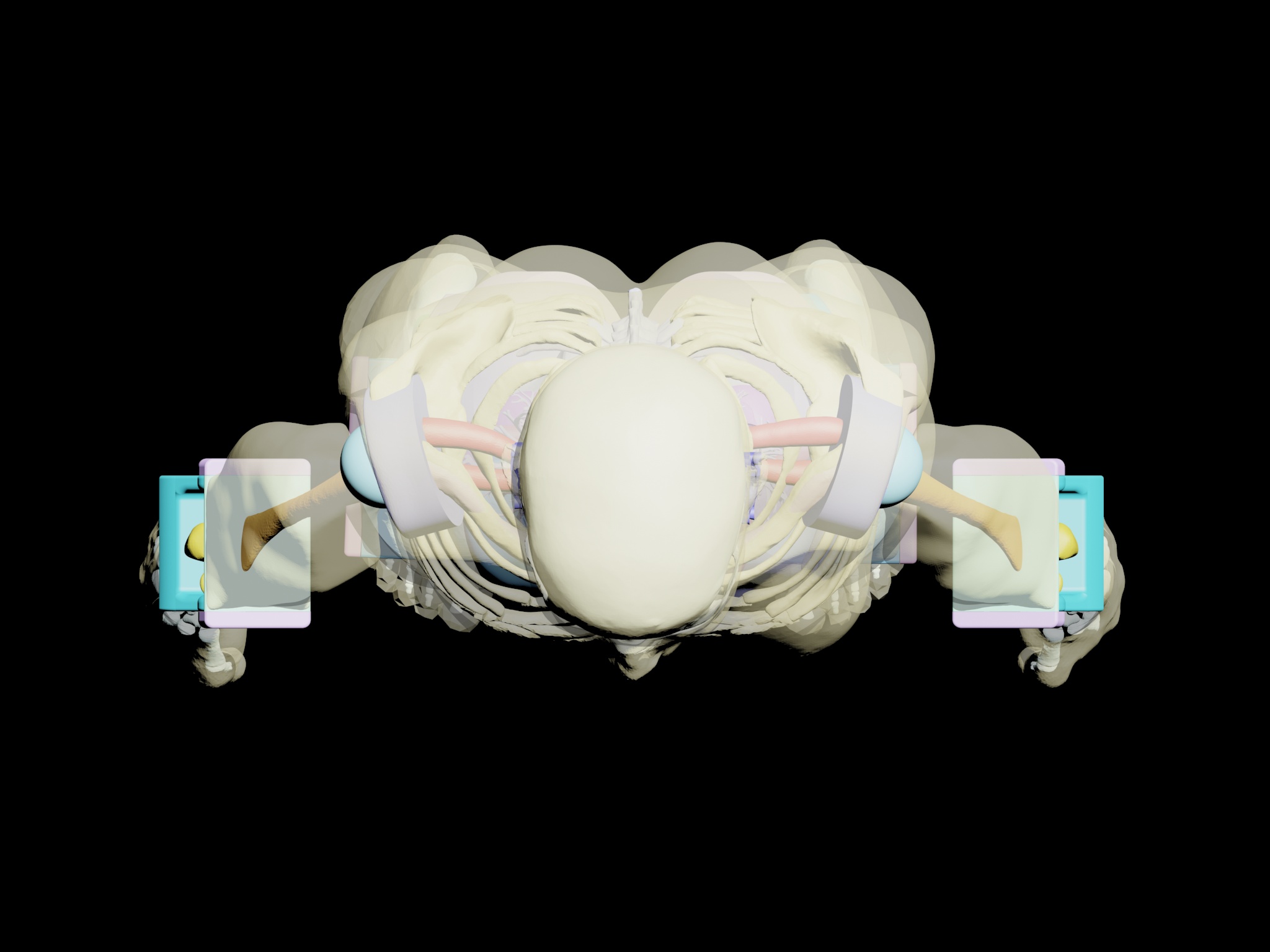

Design

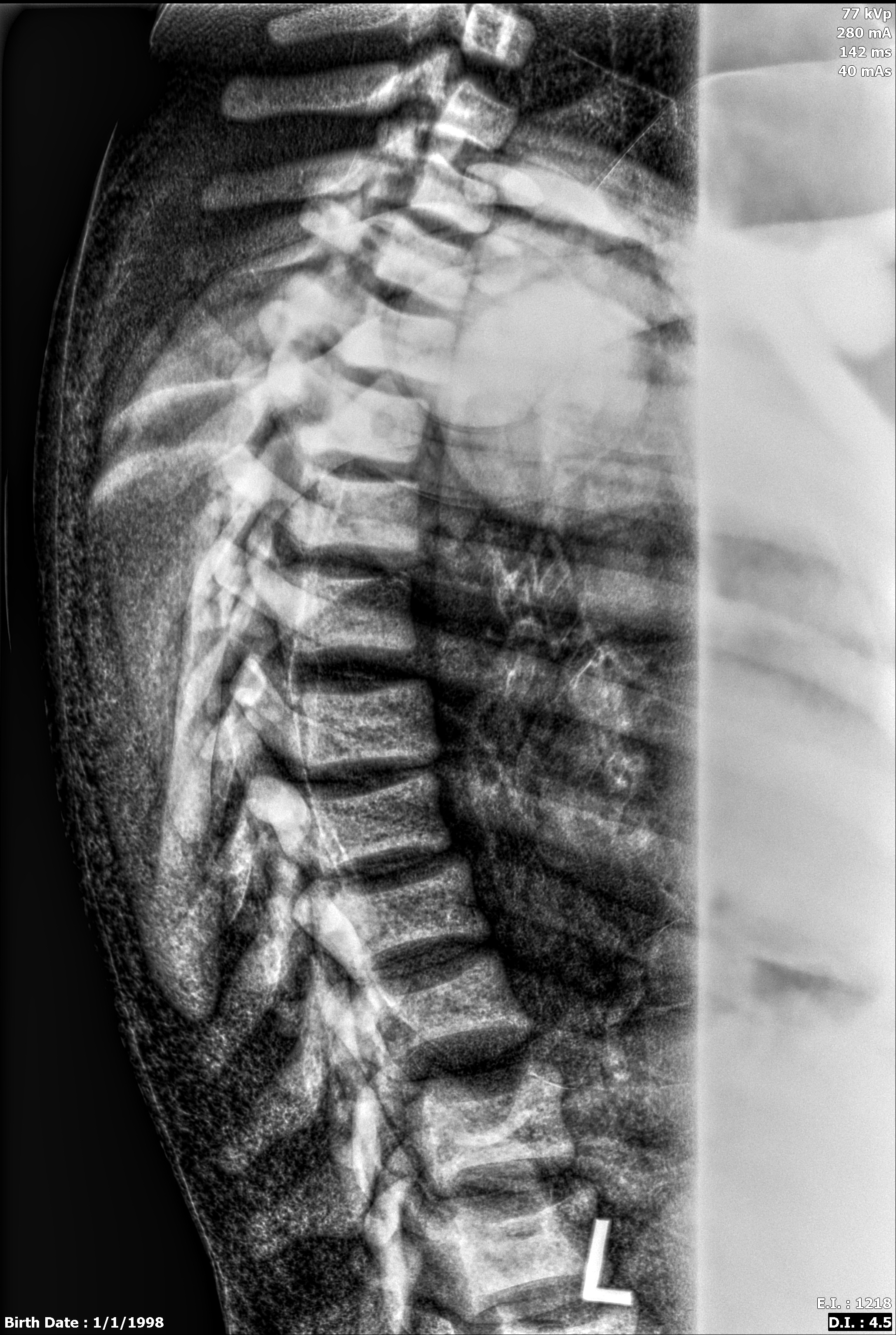

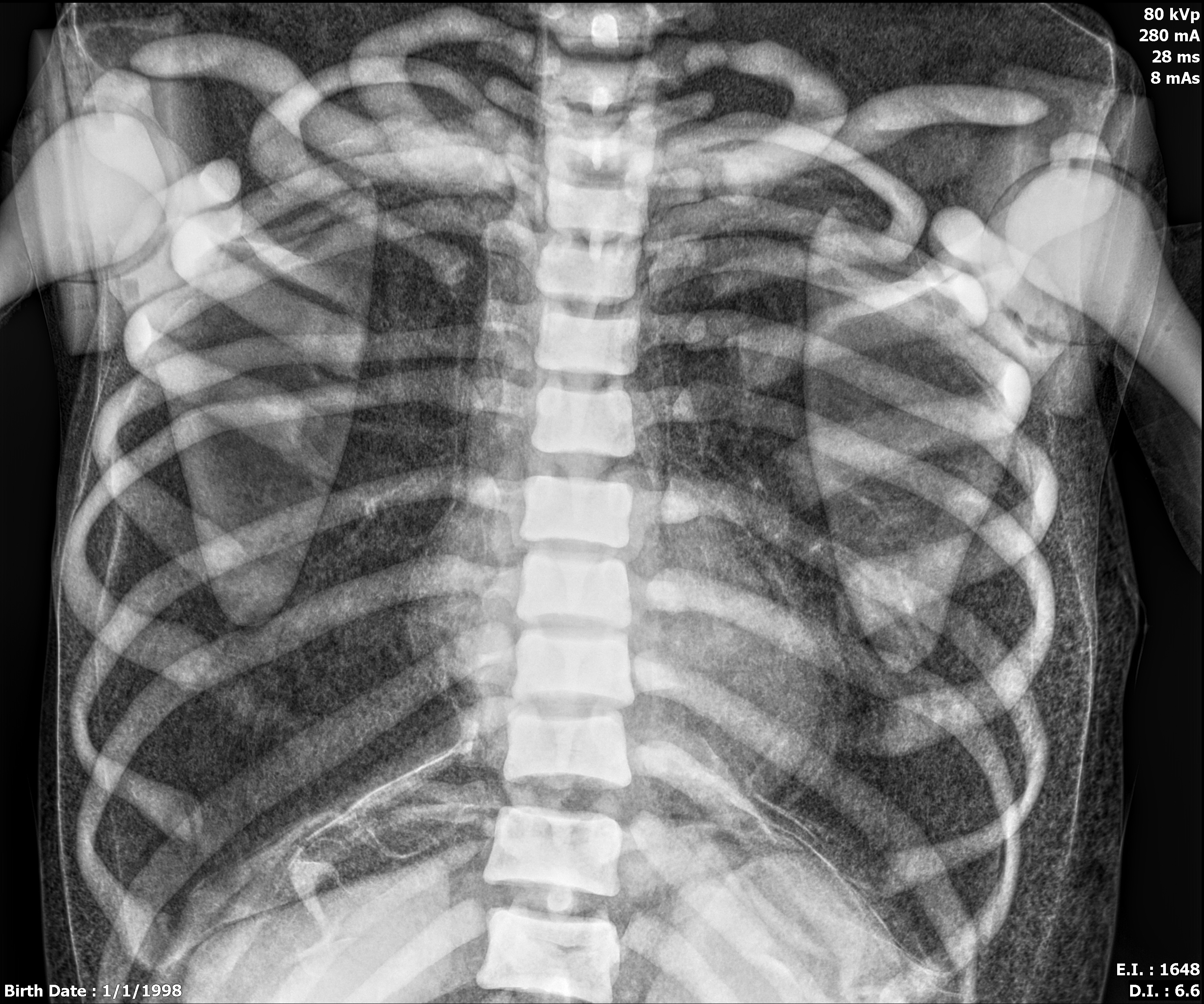

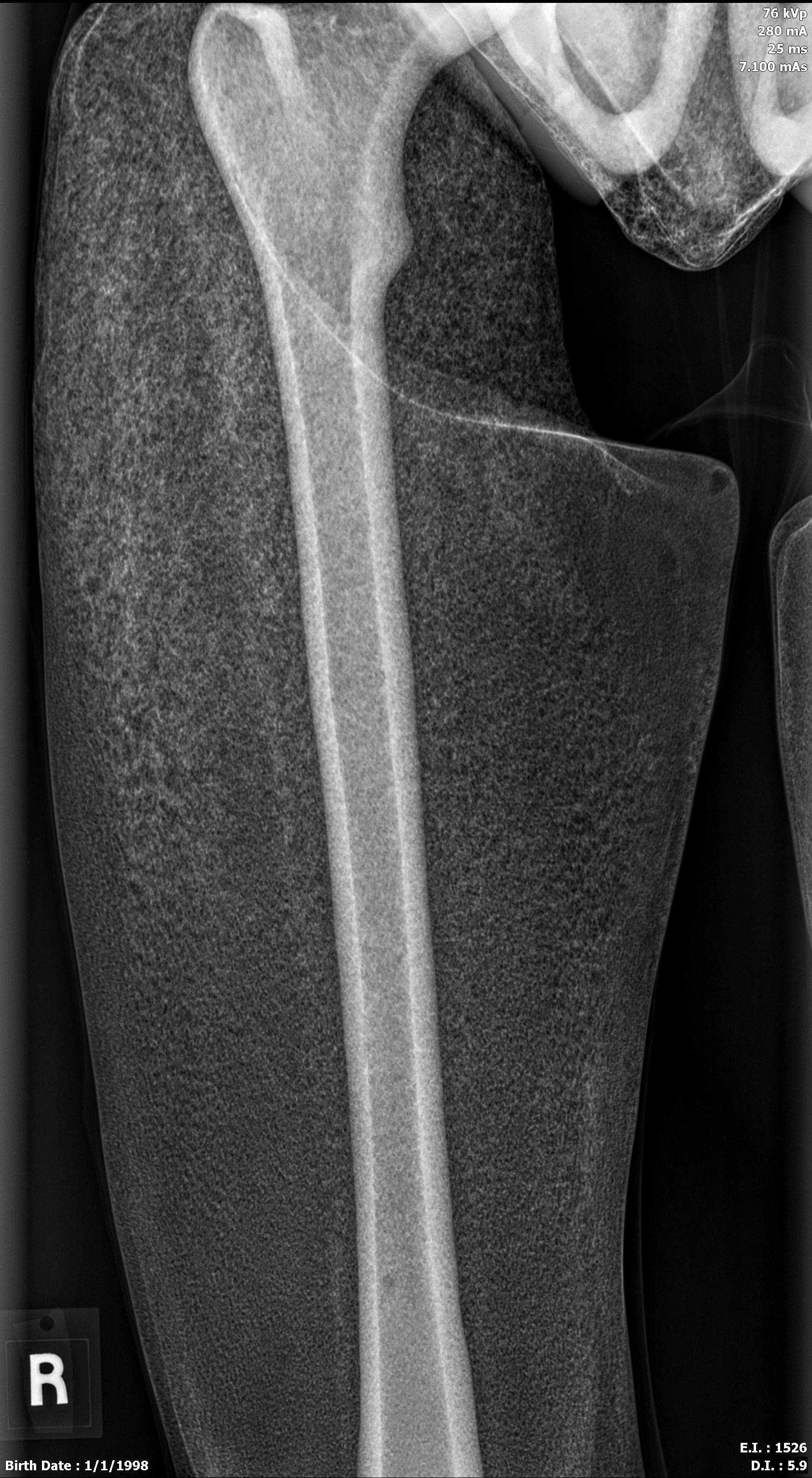

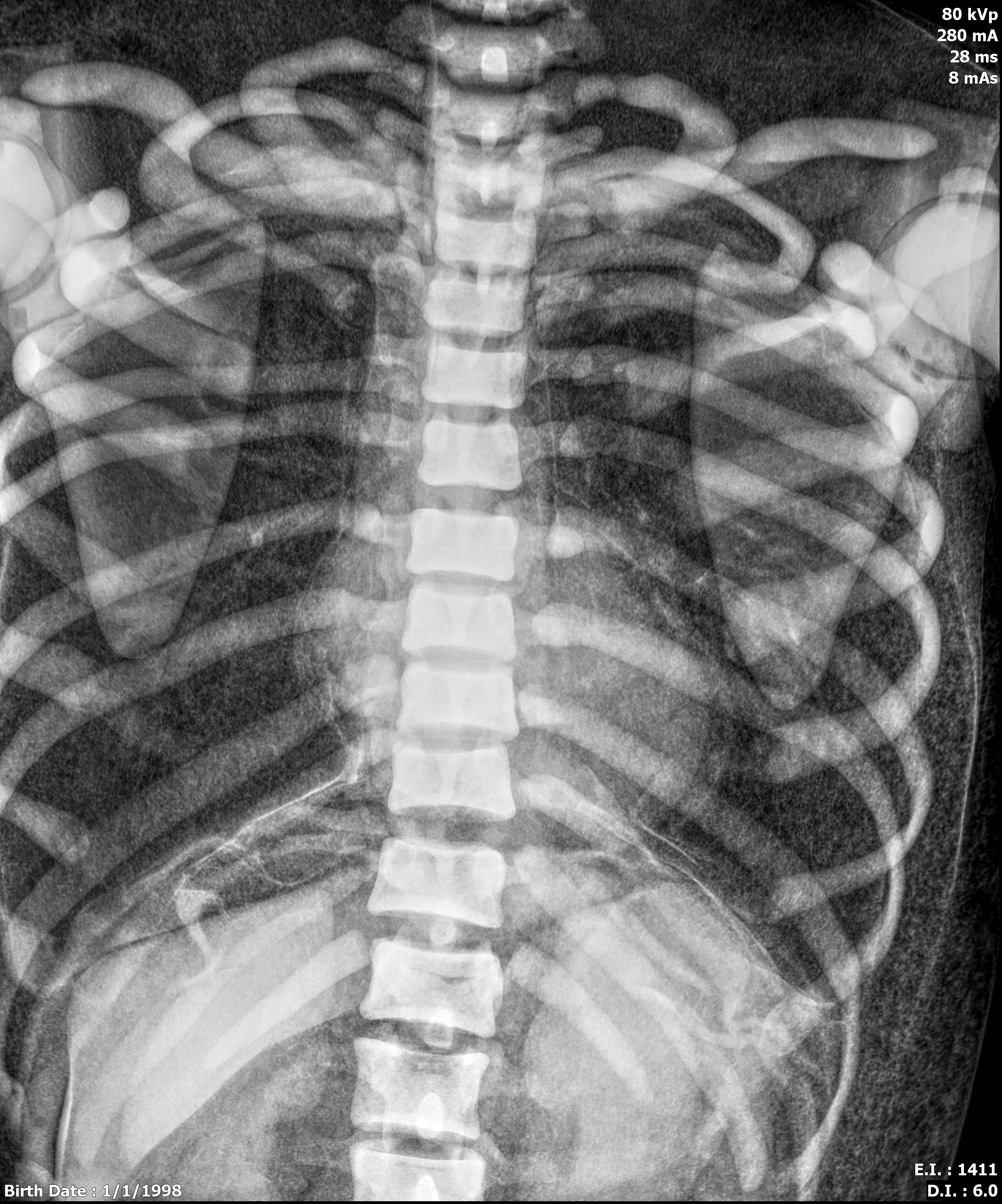

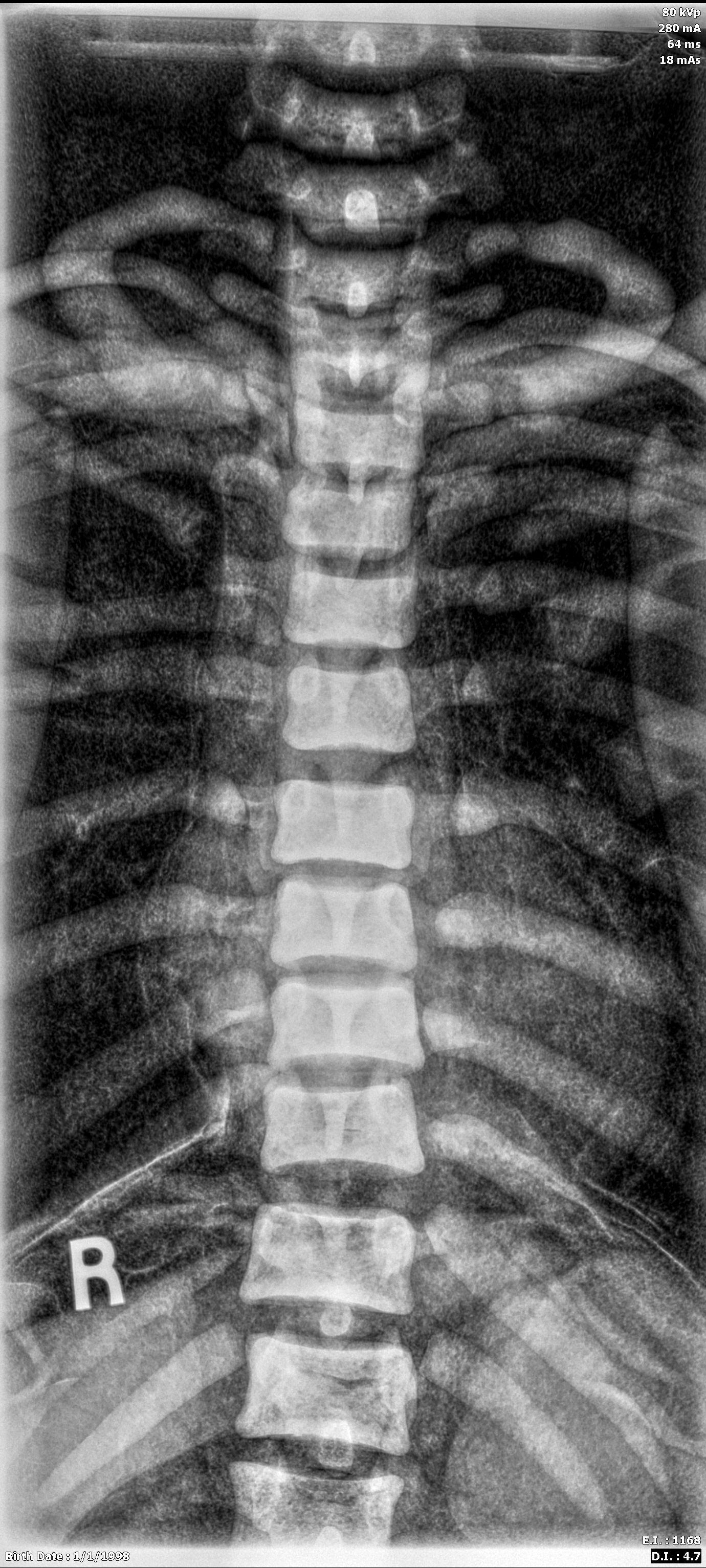

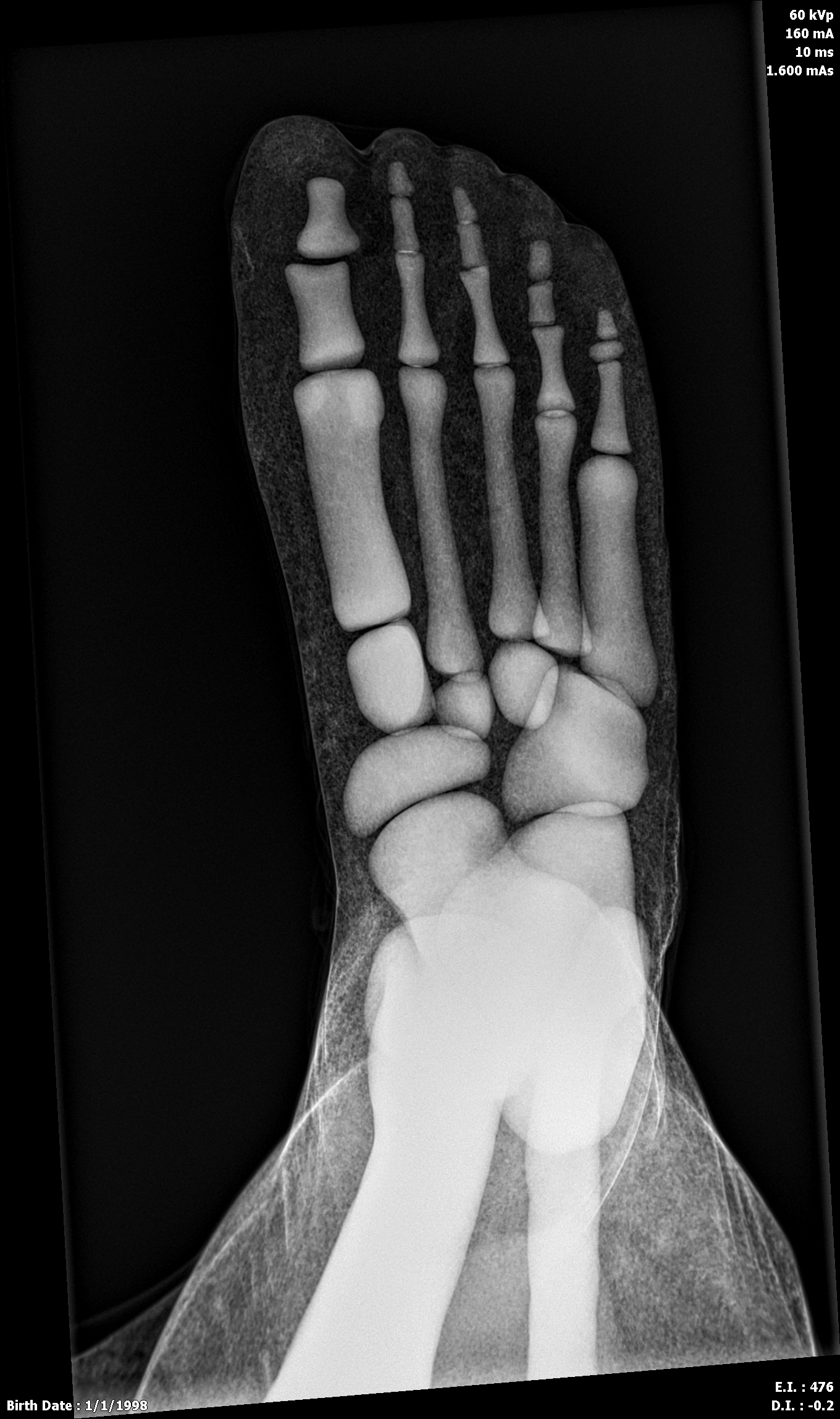

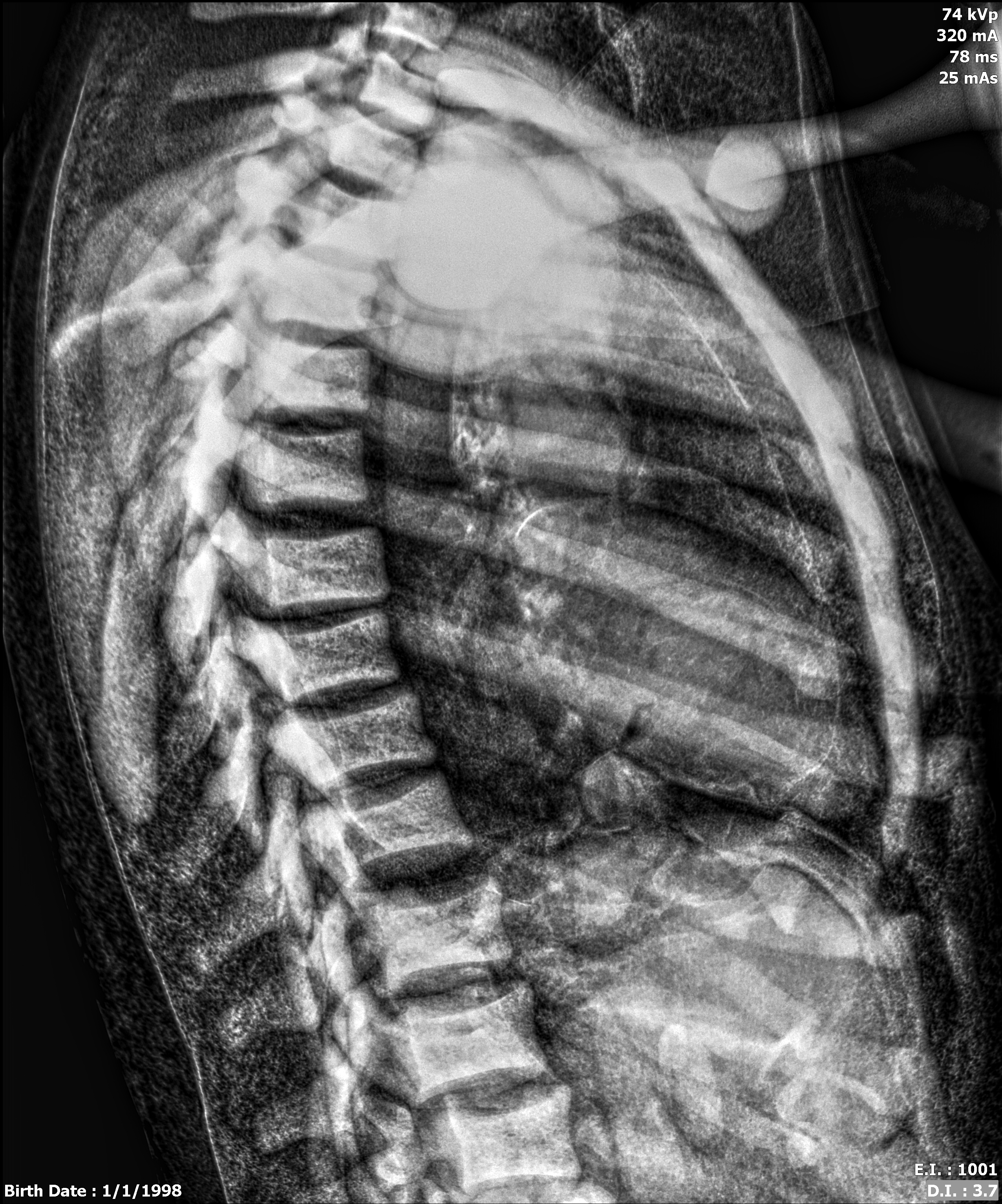

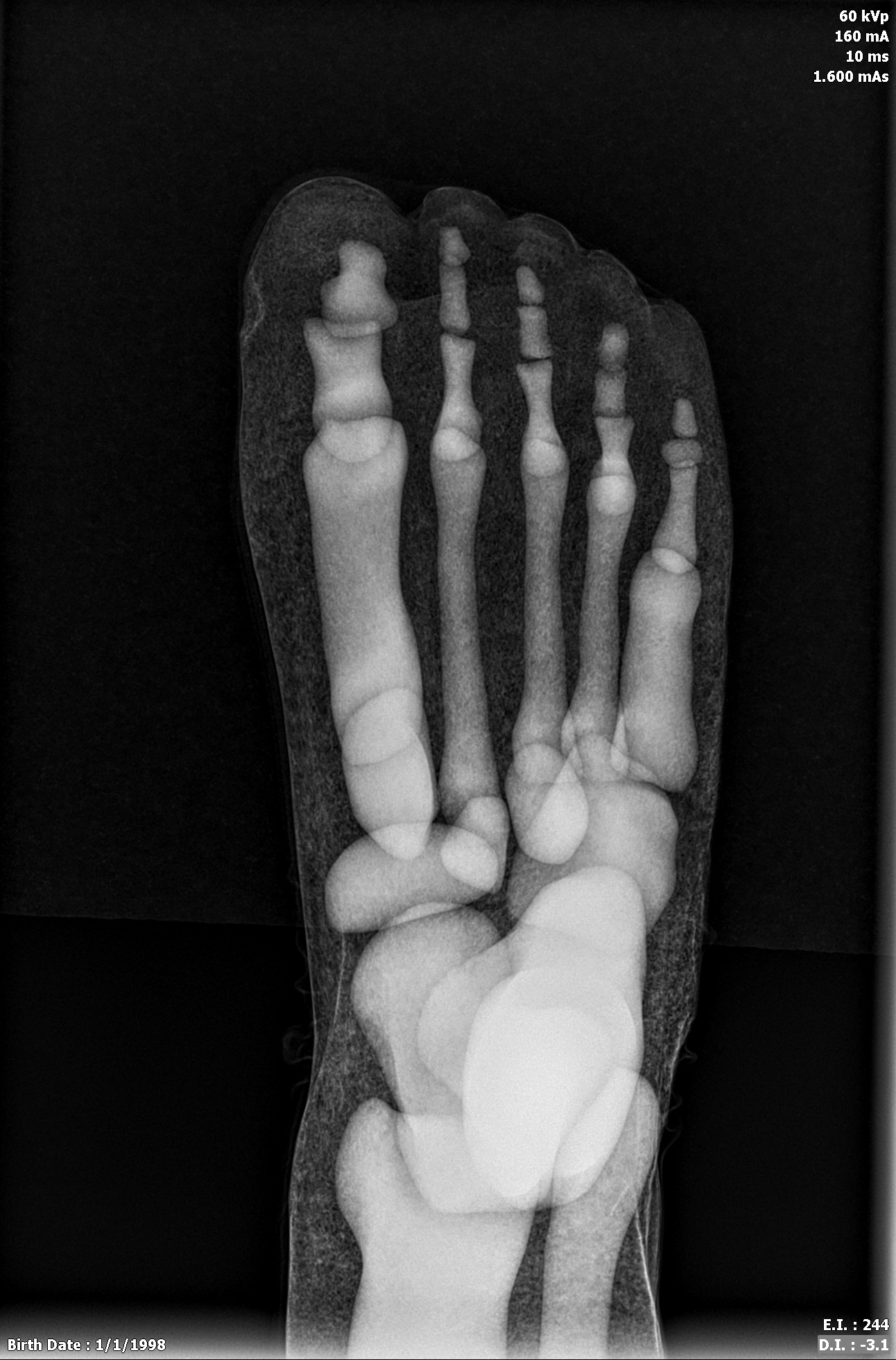

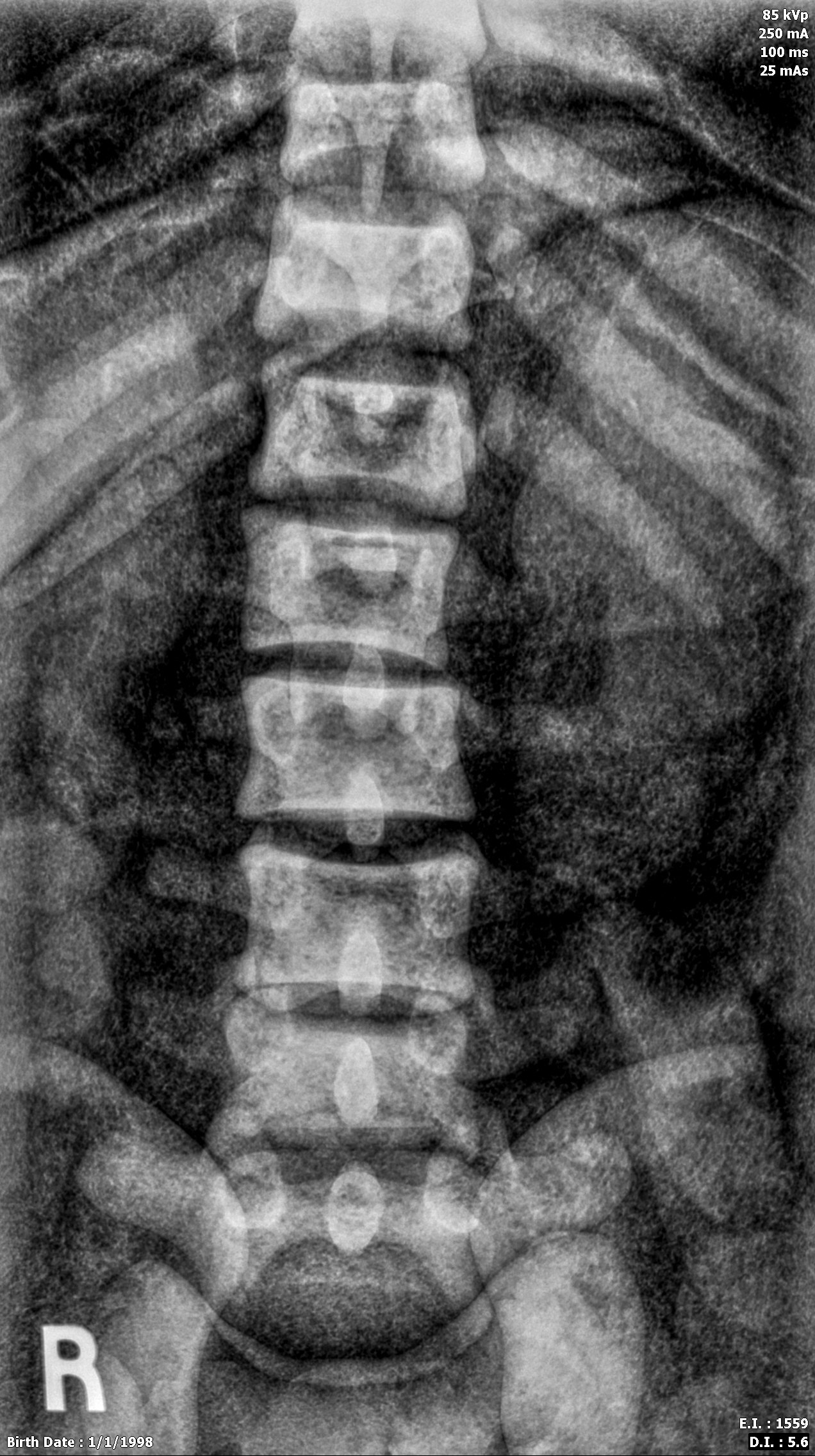

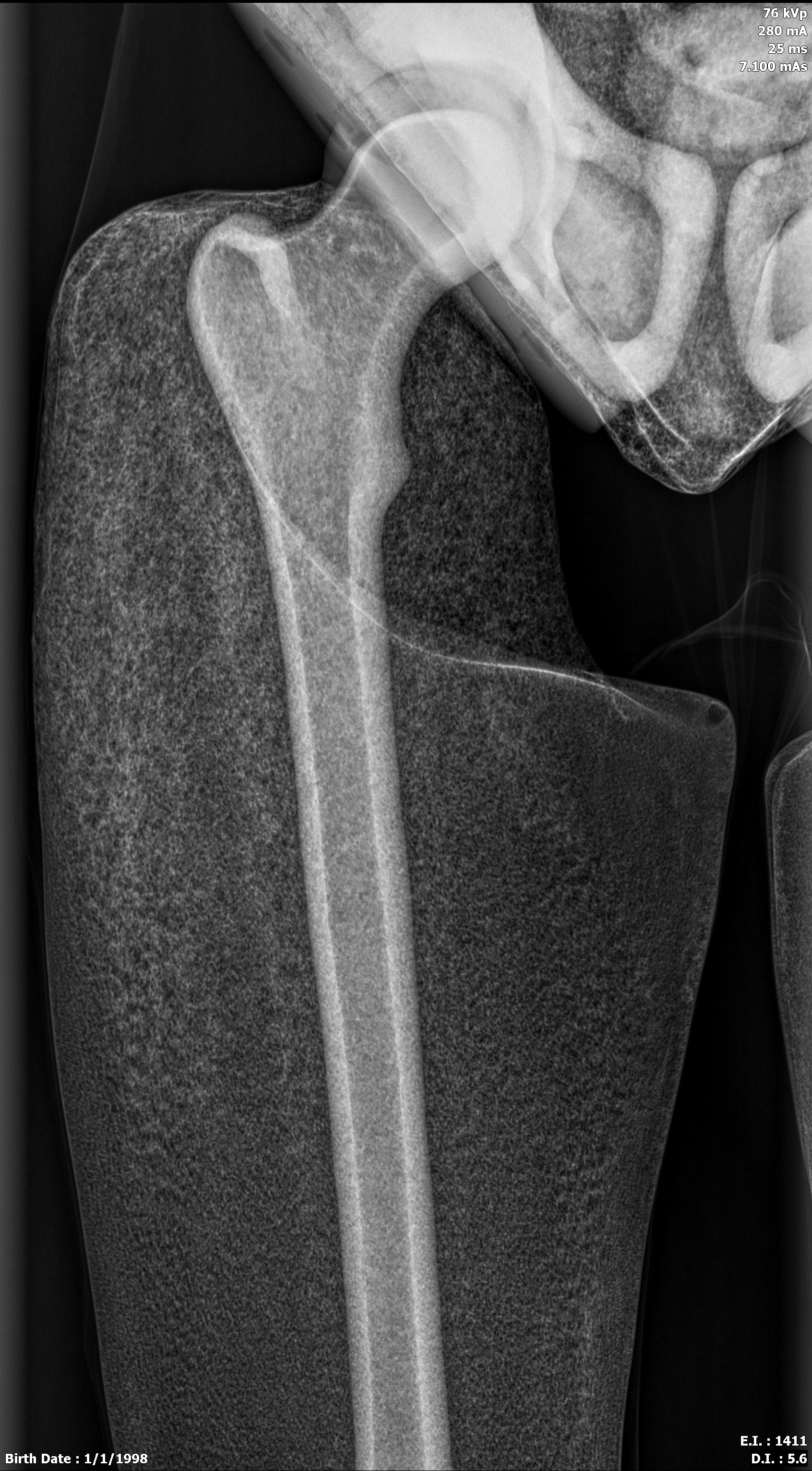

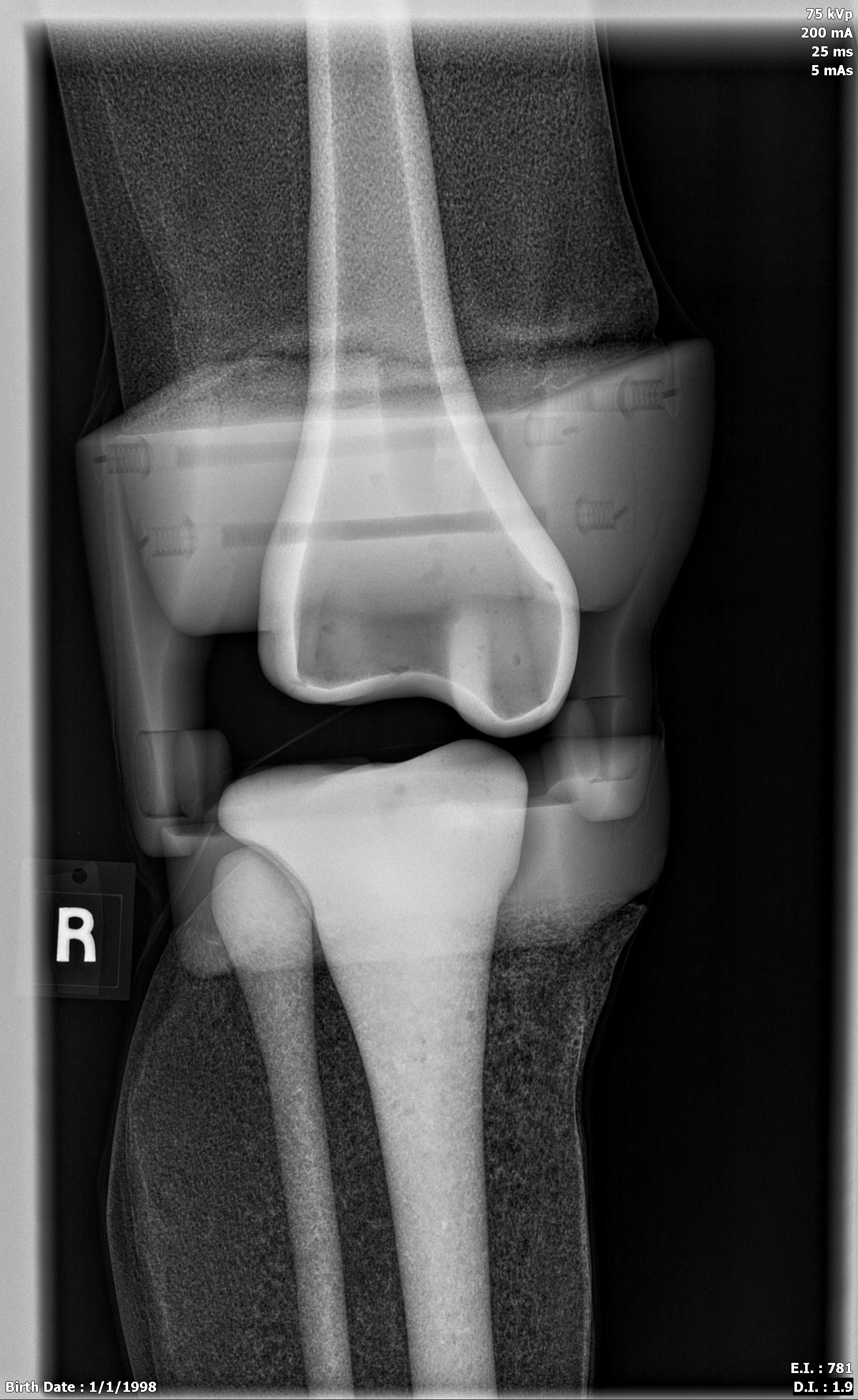

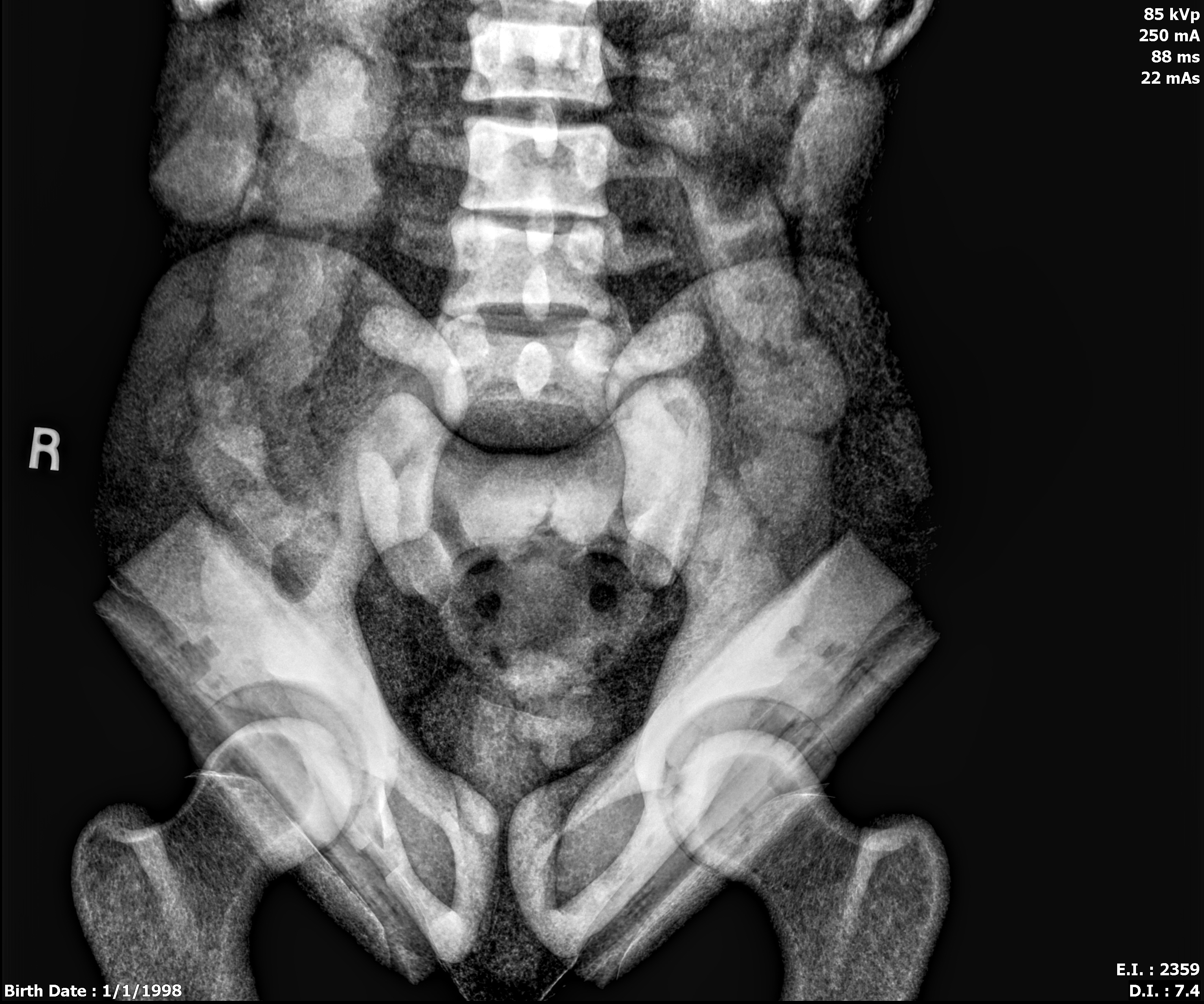

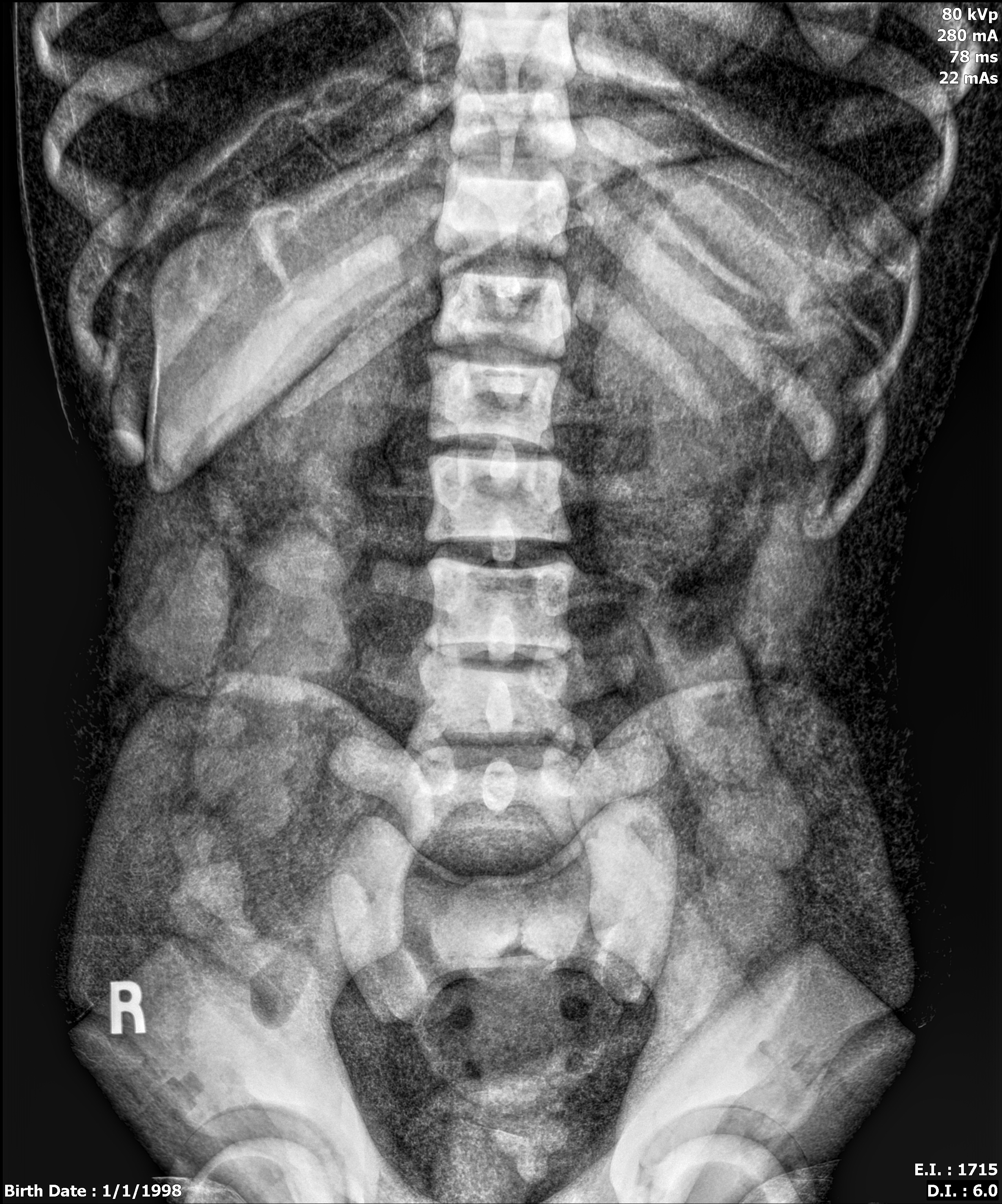

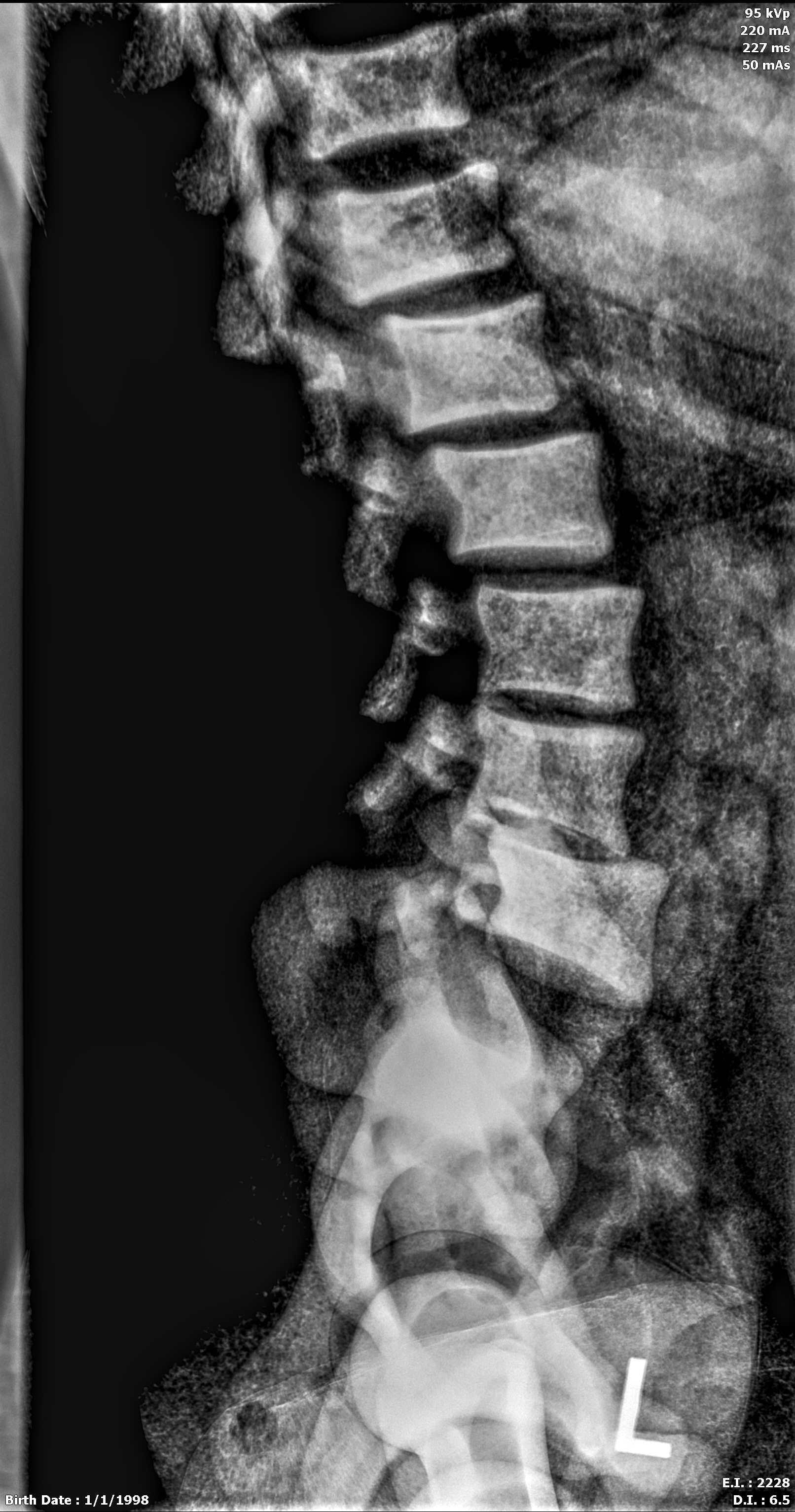

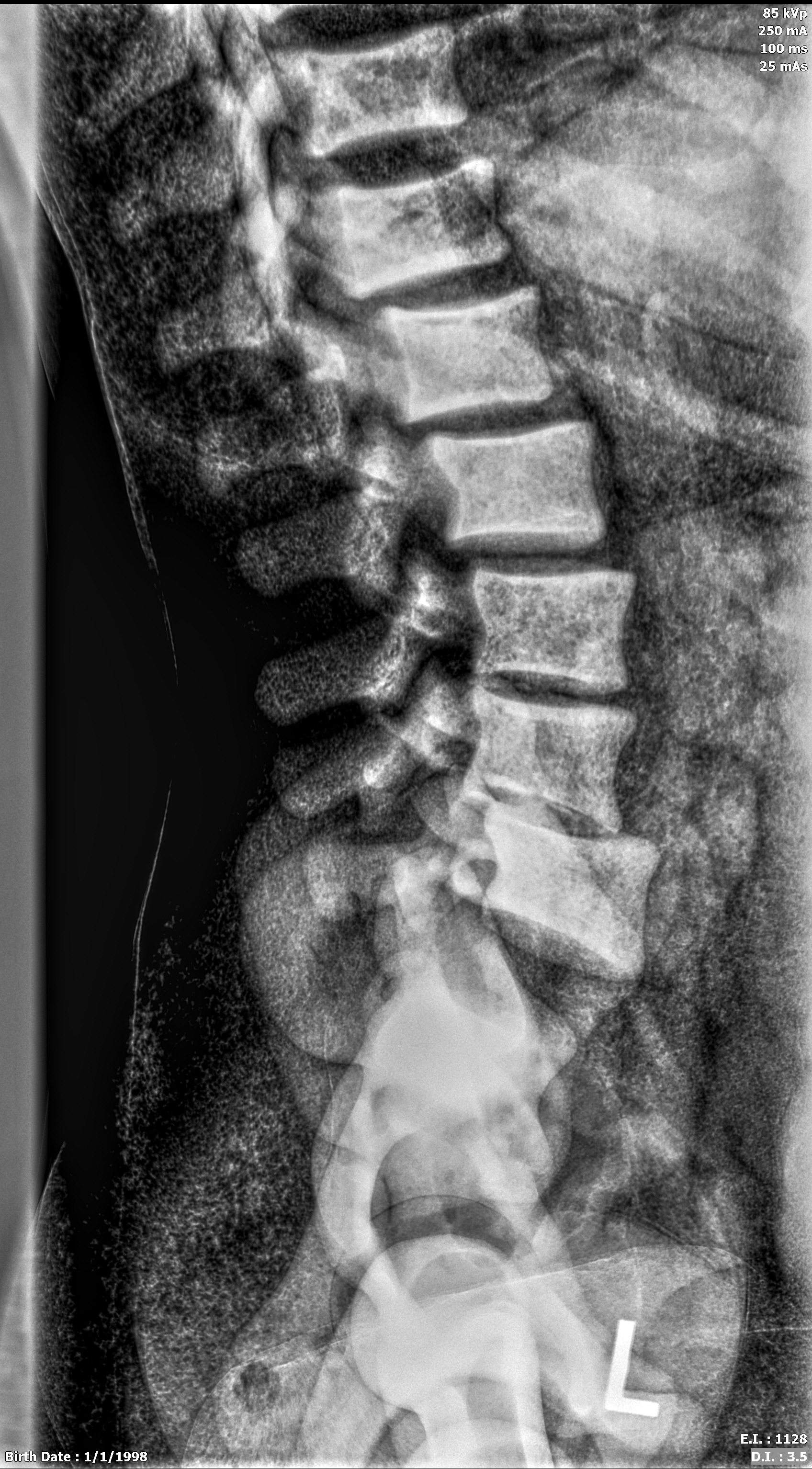

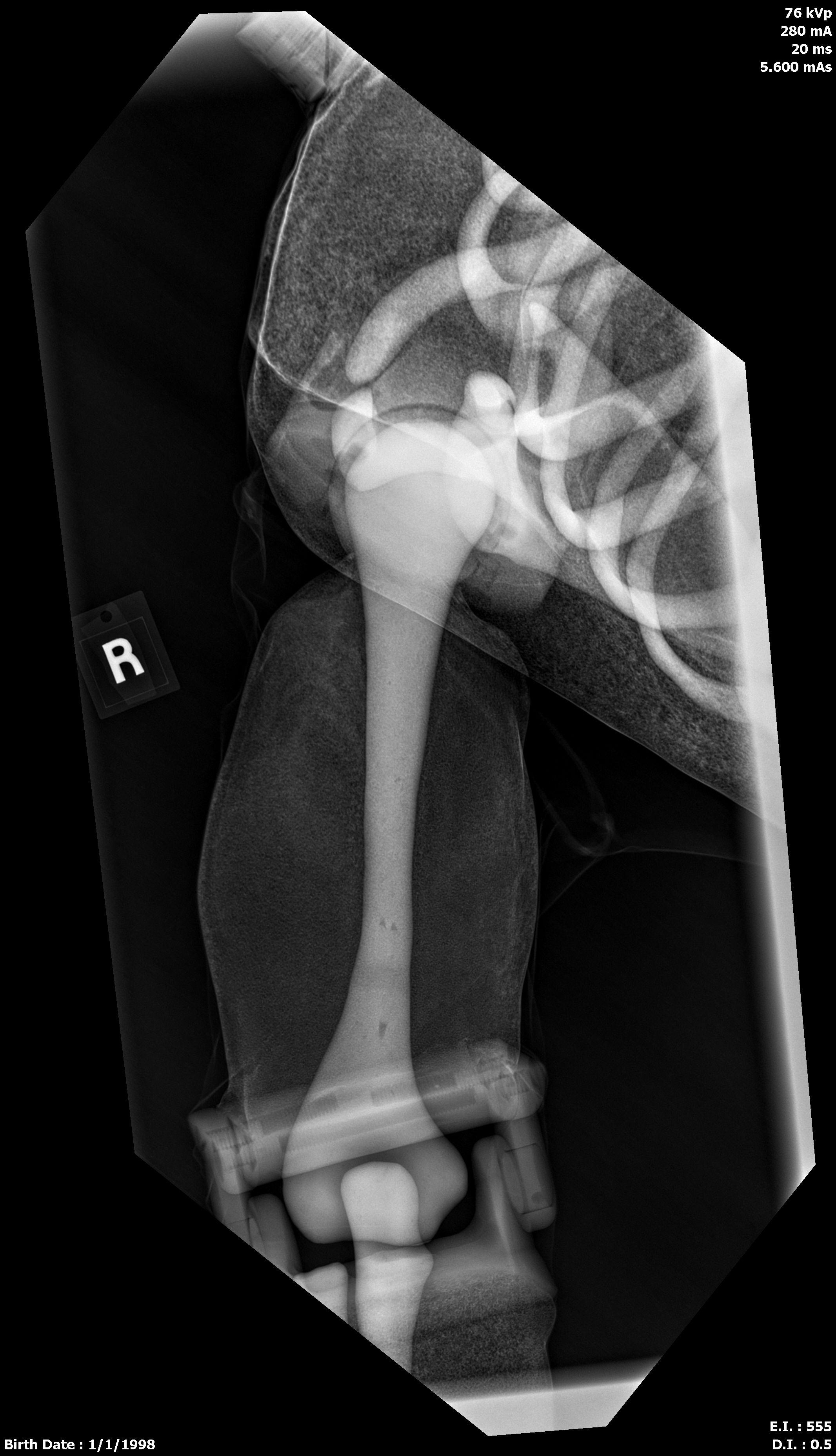

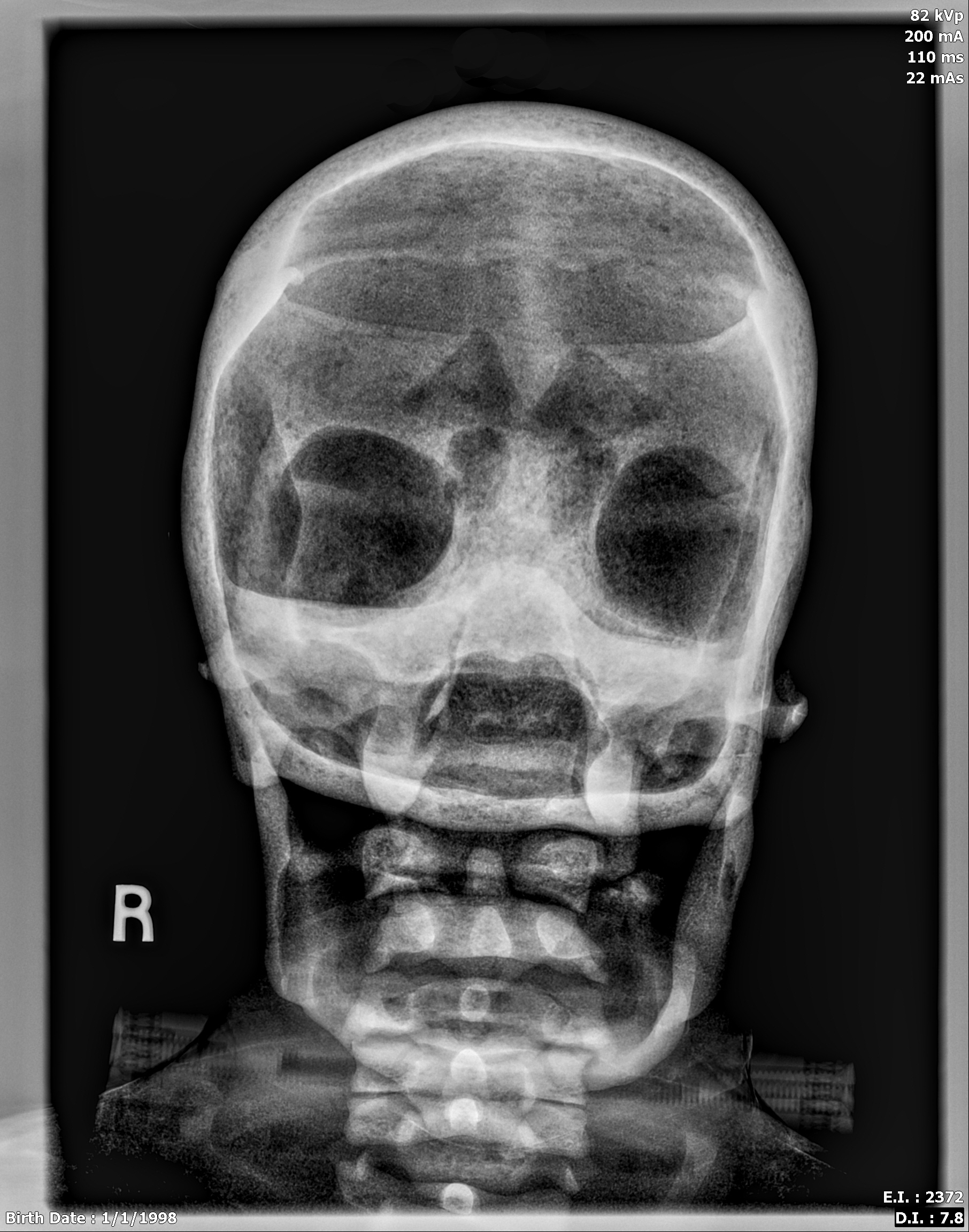

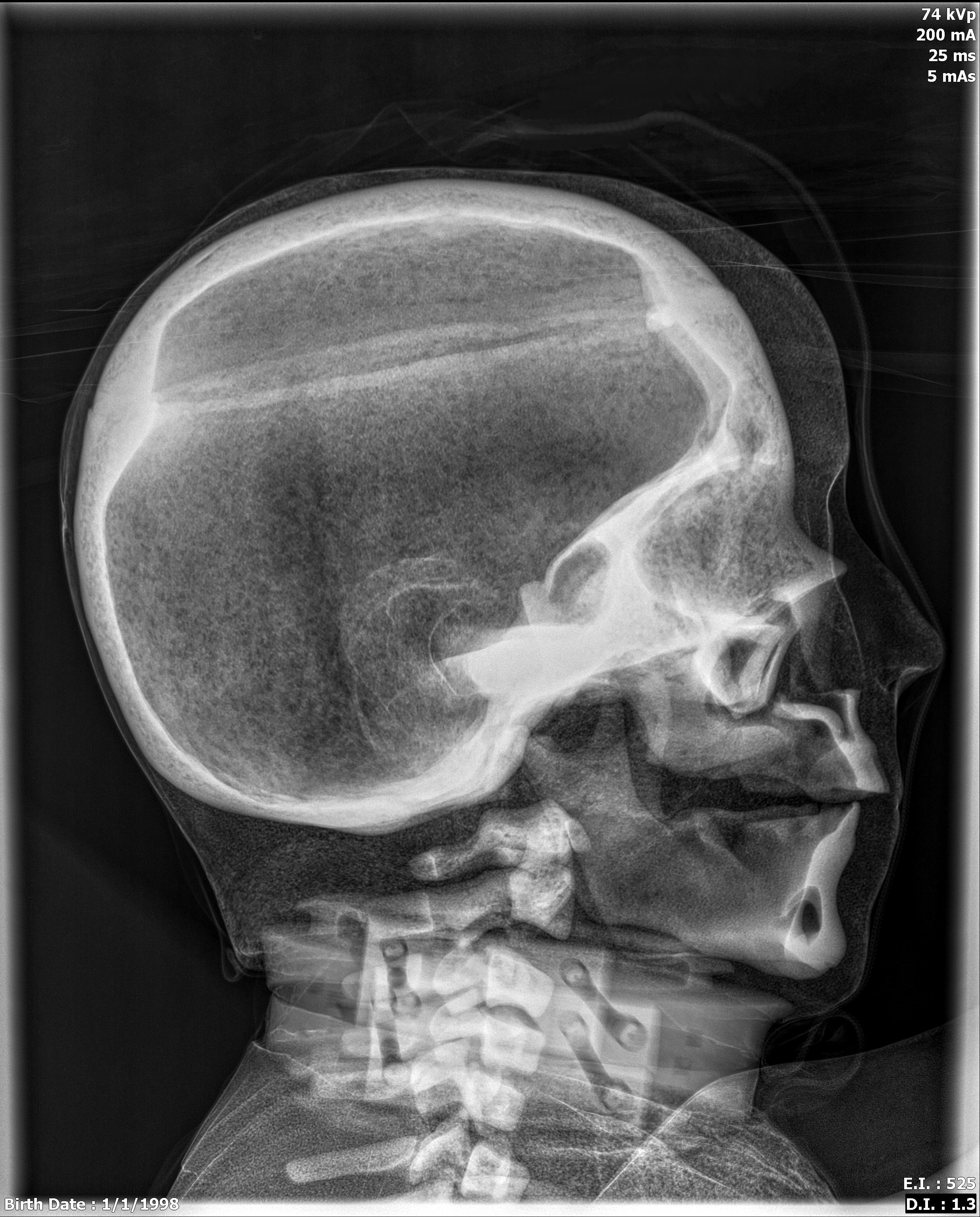

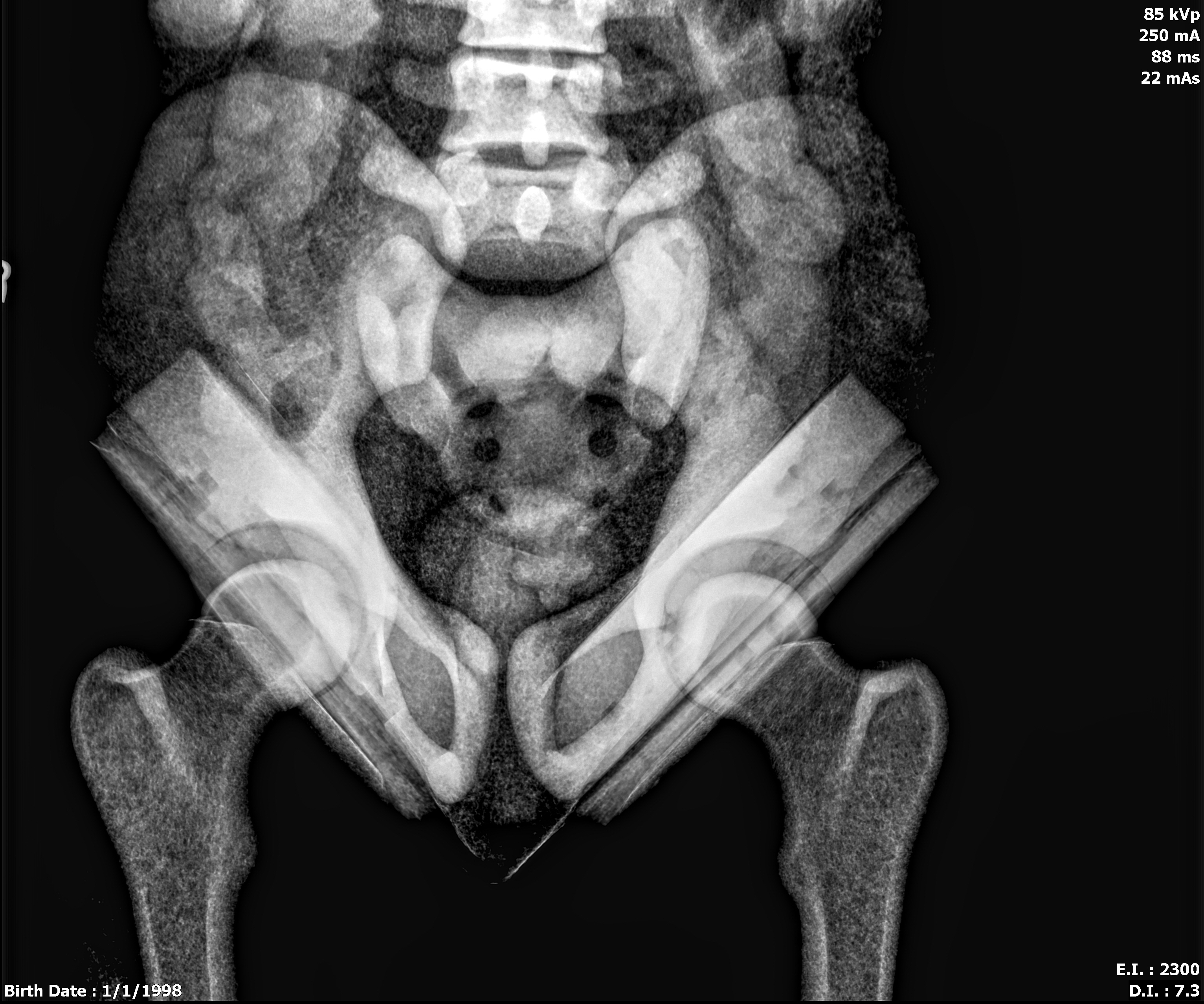

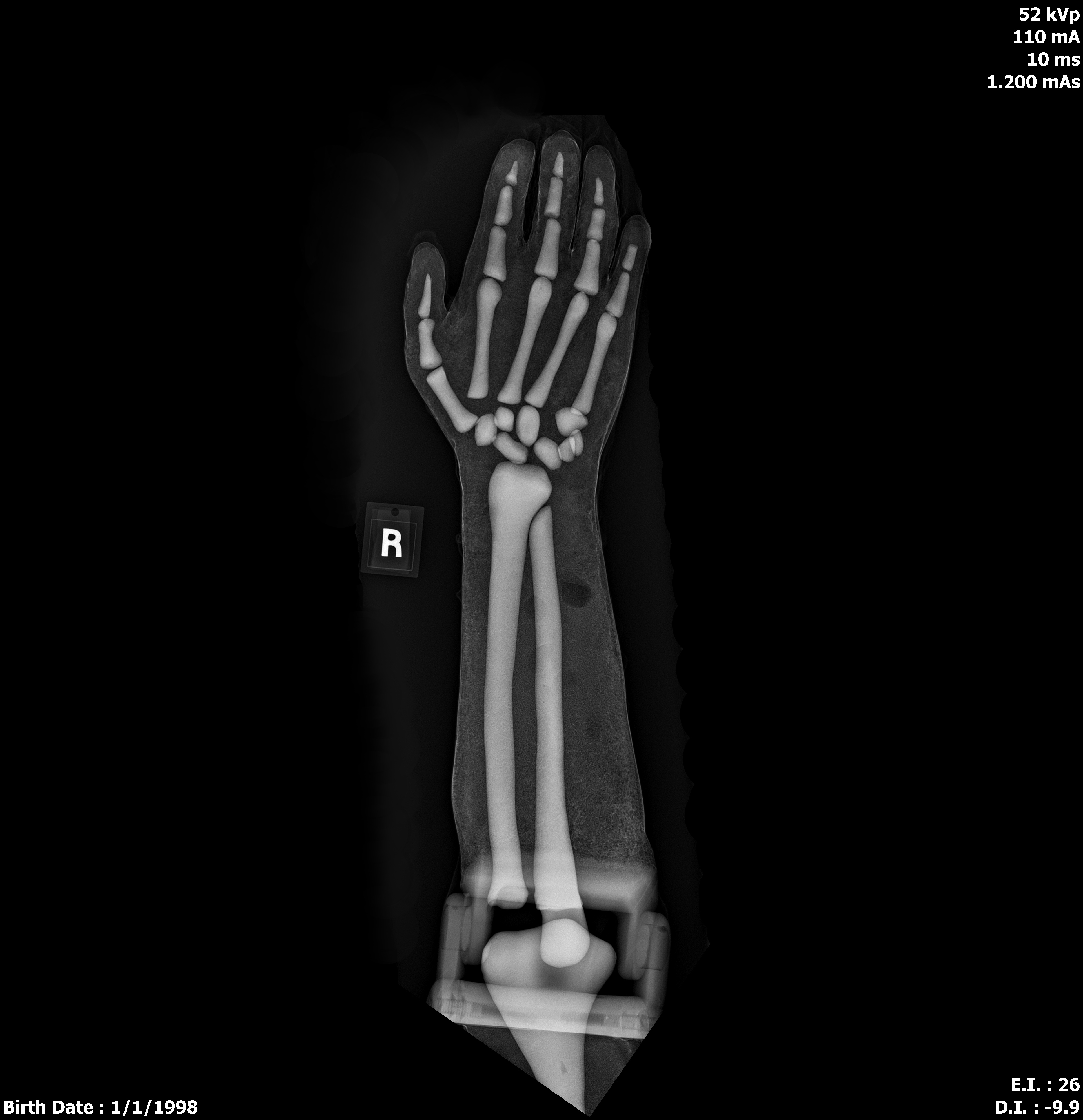

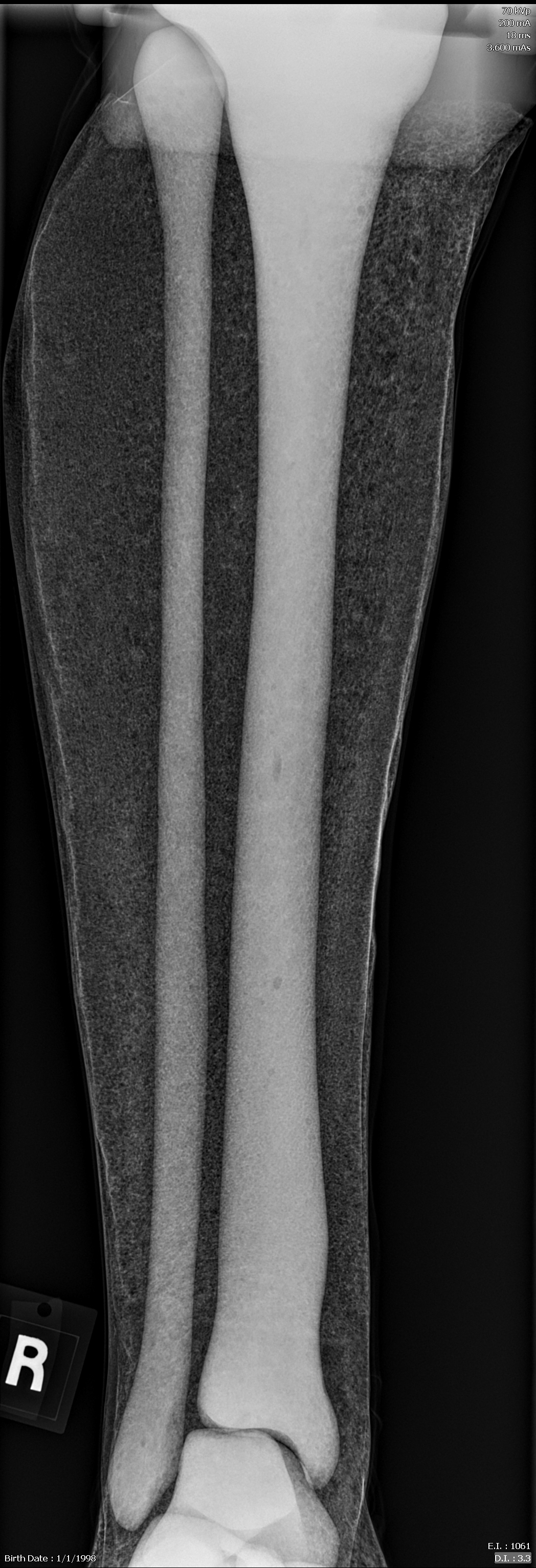

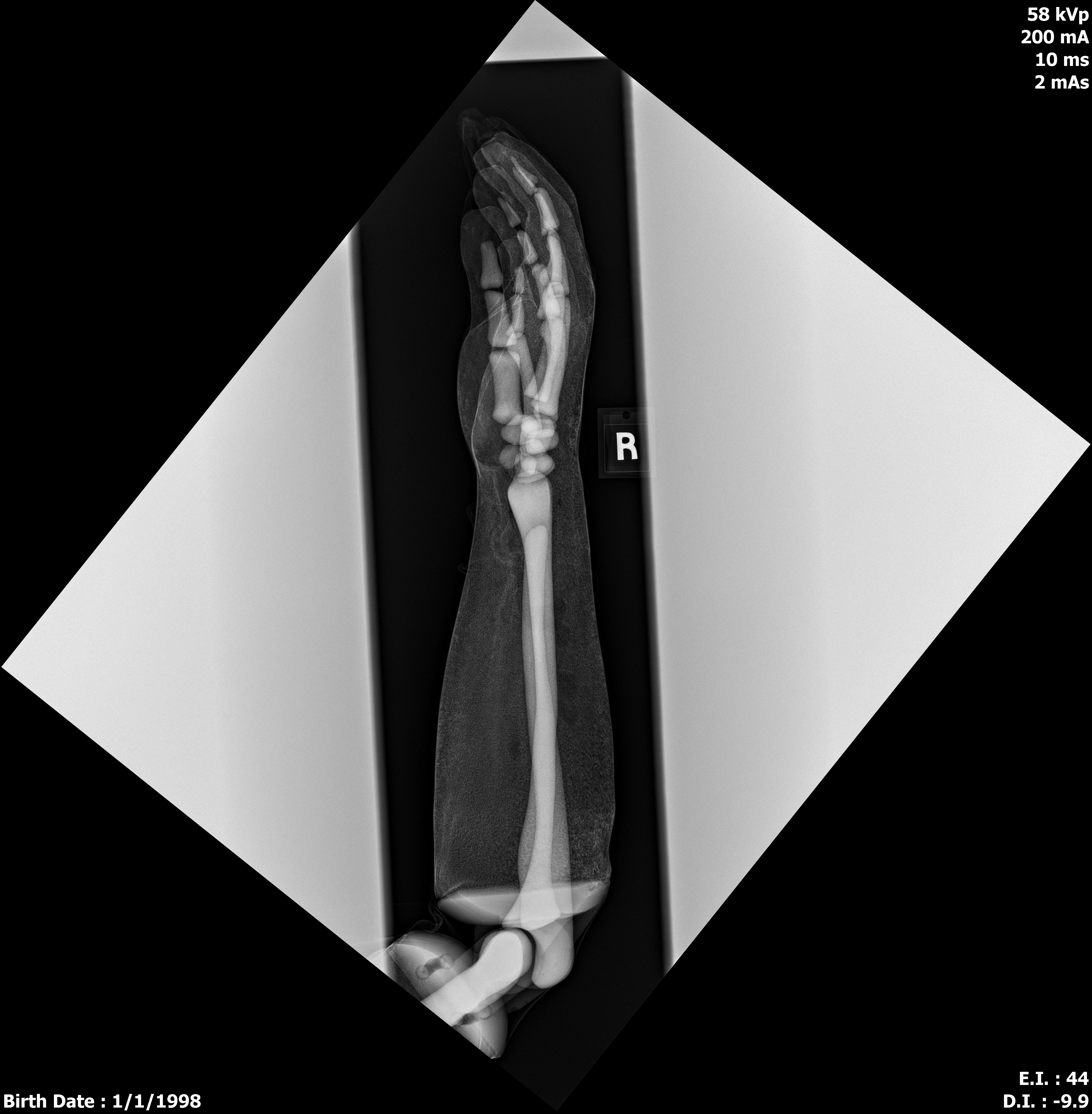

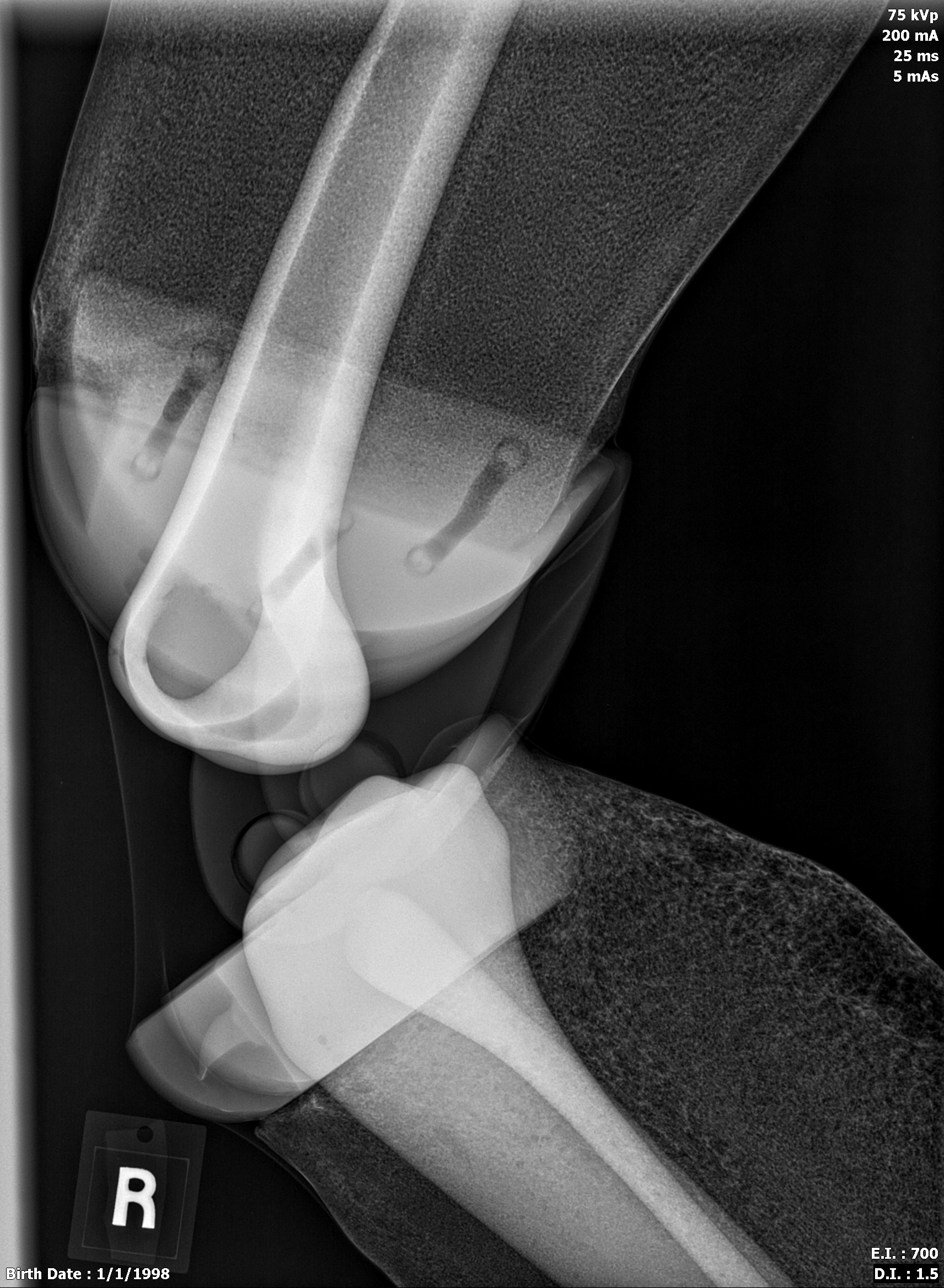

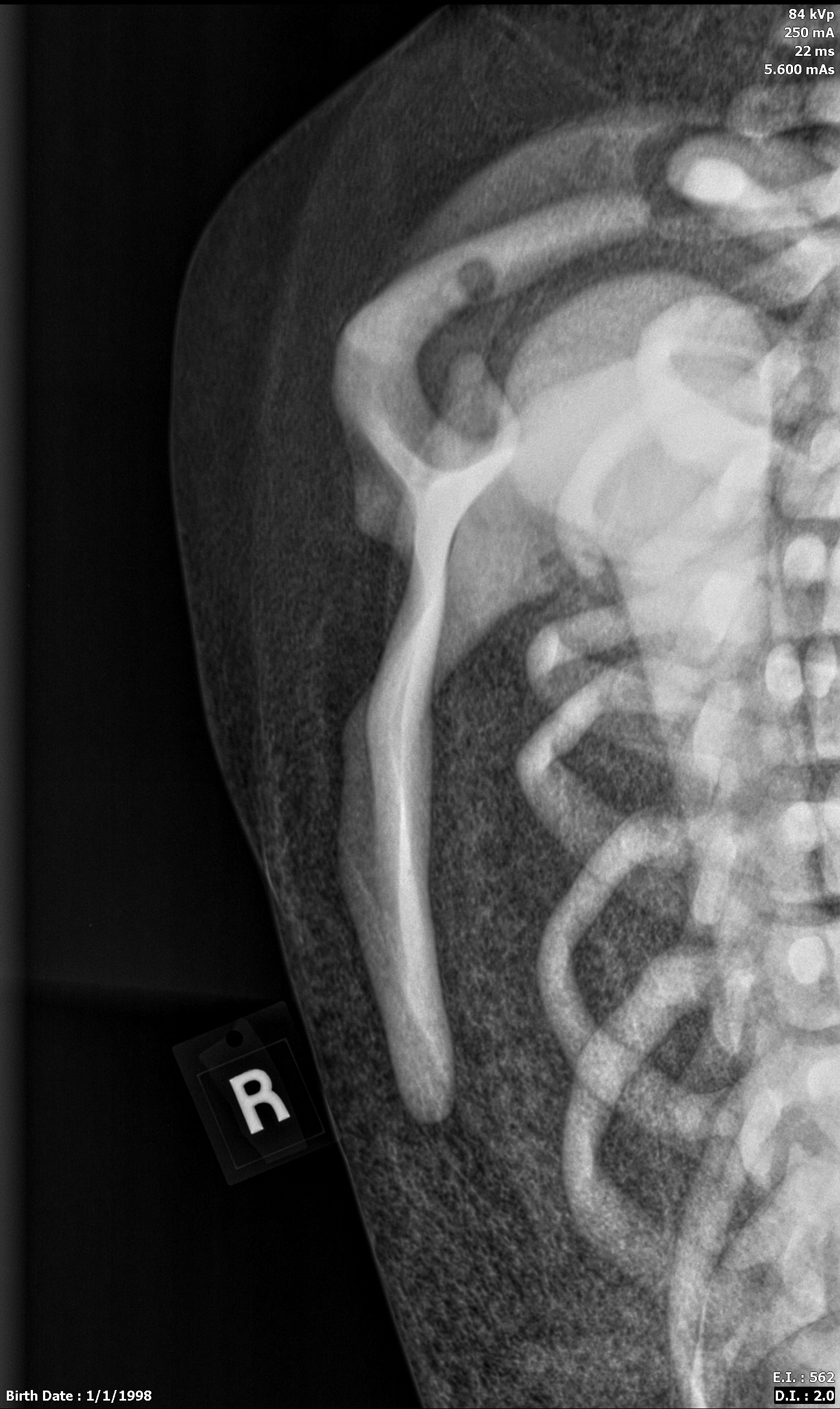

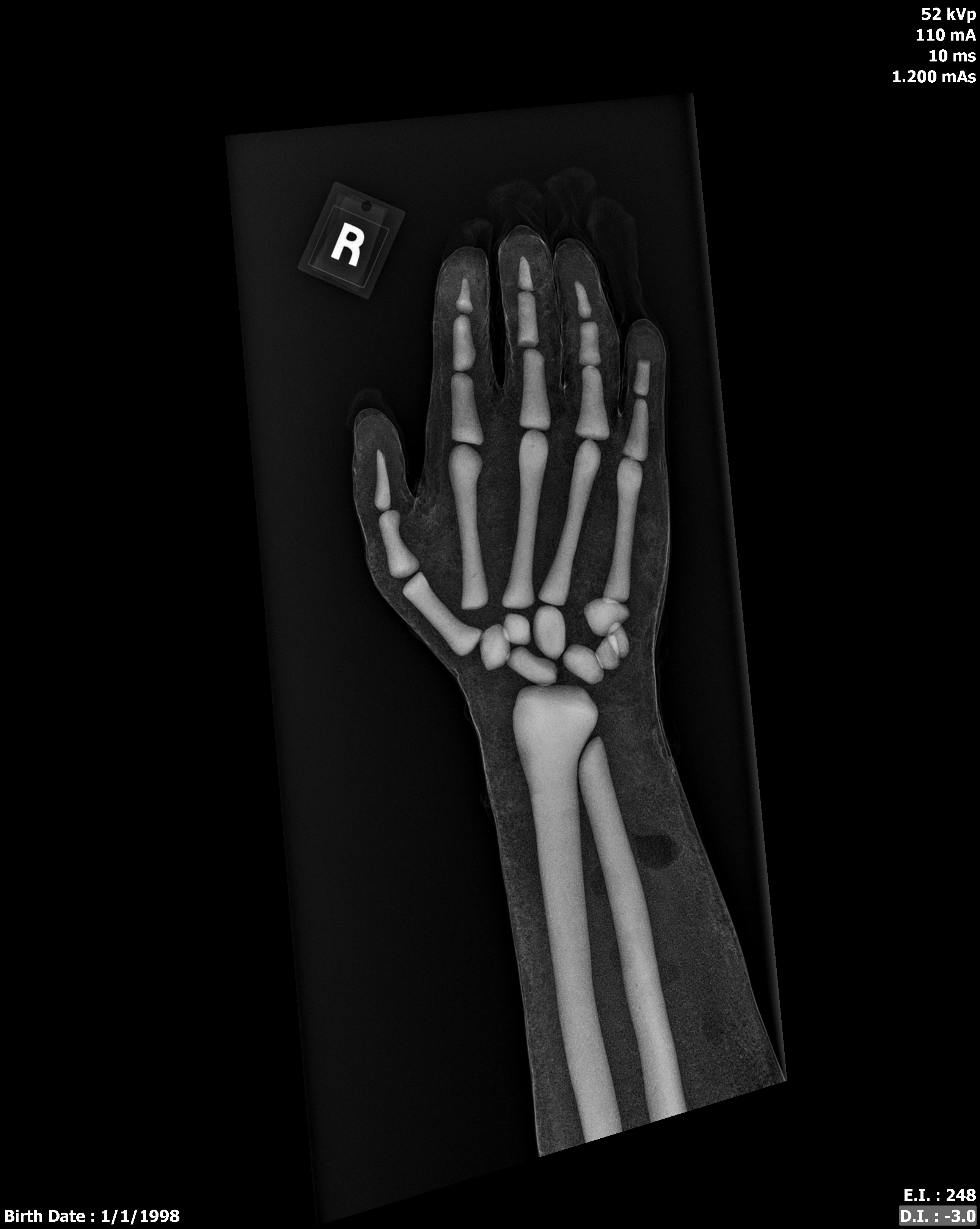

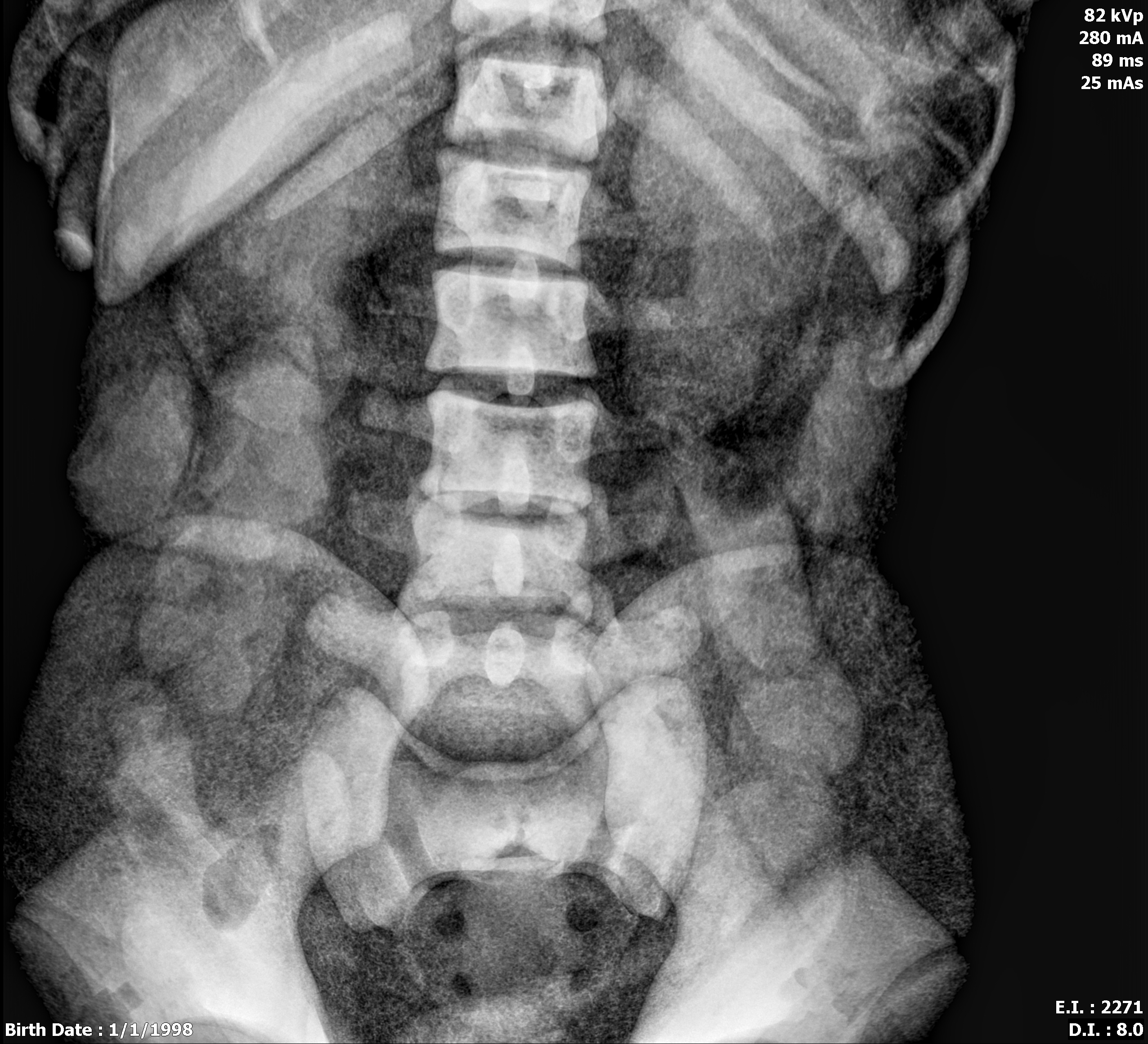

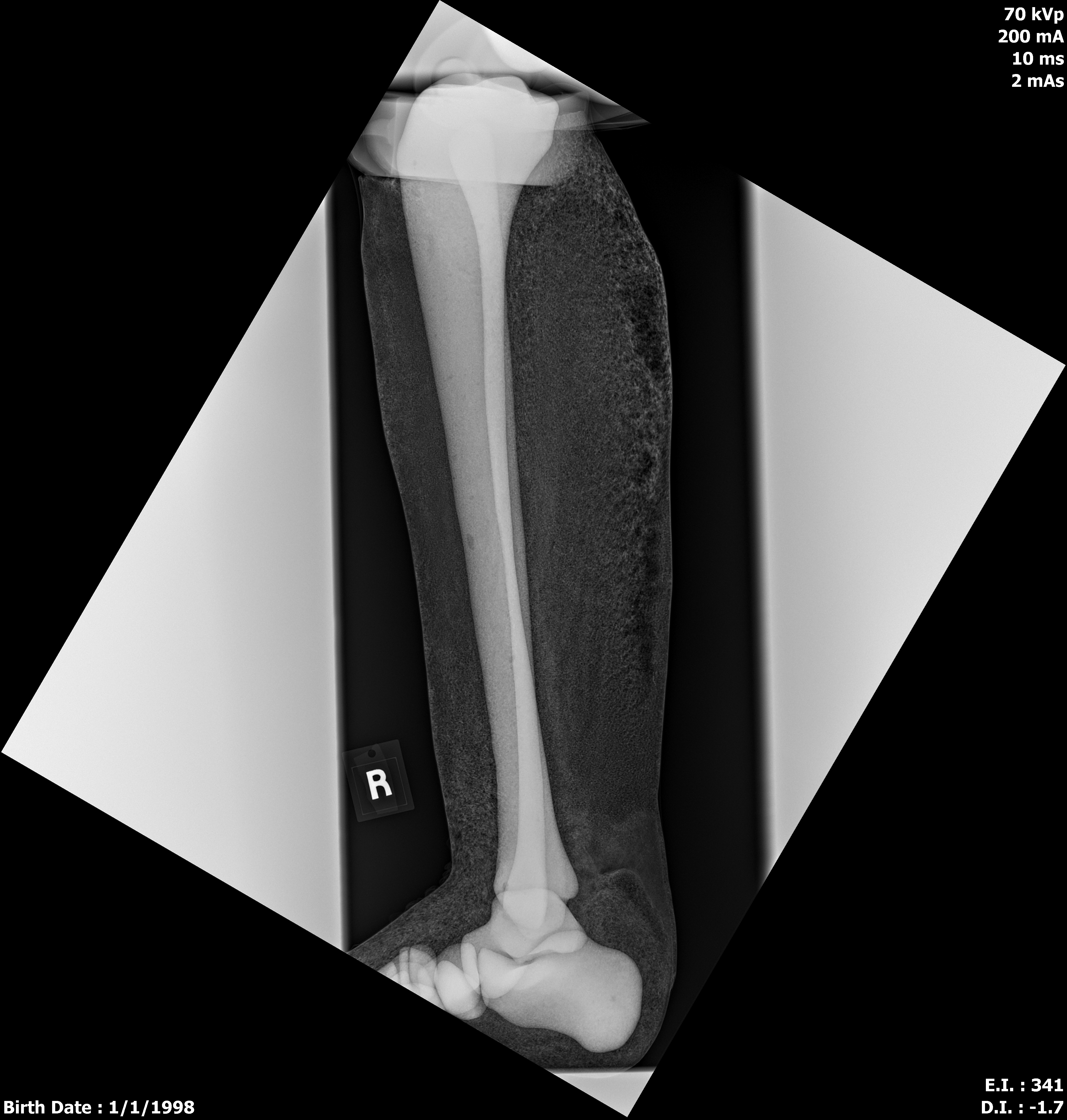

X-Ray Scans
- Pelvis
- Prostate
- Foam Body Tissue
- Trachea
- Movable Hip, Knee, and El-
- Heart
- Adult Arms
- Lungs
- Humerus
- bow Joints
- Diaphragm
- Elbow Joints
- Adult Head
- Liver
- Radius
- Gallbladder
- Ulna
- Skull
- Stomach
- Wrist
- Air Cavities
- Kidneys
- Fingers
- Frontal Sinus with Air Gaps
- Spleen
- Pancreas
- Adult Legs
- Adult Torso
- Large and Small Intestines
- Femur & Knee joints
- Spine
- Bladder
- Foot with toes
- Ribcage
- Tibia and Fibula
- Shoulders& Clavicles
| Phantom Size | 69 Inches |
| Phantom Weight | 44 Lbs (approx.) |
| Shipment Size | 63 x 34 x 42 Inches |
| Shipment Weight | 90 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Spleen | 110 |
| Tissue Type | HU Value (Average) |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Anatomy | Shoulder | Foot | L-spine | T-spine | Hand | Skull | Rib | Abdomen | Humerus | Knee | Tibia | Femur | Pelvis | |||||
| Projection | LAT | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | Supine | AP | AP | LAT | AP | LAT | AP | AP |
| kVp | 84 | 60 | 85 | 74 | 75/80 | 52 | 58 | 82 | 74/73 | 80 | 82 | 76 | 75 | 75 | 70 | 70 | 76 | 85 |
| mA | 250 | 160 | 250 | 320 | 320/280 | 110 | 200 | 200 | 200 | 280 | 280 | 280 | 200 | 200 | 200 | 200 | 280 | 250 |
| ms | 22 | 10 | 100 | 78 | 56/64 | 10 | 10 | 110 | 25 | 28 | 89 | 20 | 25 | 25 | 18 | 10 | 25 | 88 |
| mAs | 5.6 | 1.6 | 25 | 25 | 18 | 1.2 | 2 | 22 | 5 | 8 | 25 | 5.6 | 5 | 5 | 3.6 | 2 | 7.1 | 22 |
| Appearance | Translucent Amber, Skin |
