X-Ray, CT, US, MRI Phantoms
Adult Full Body for X-Ray CT, US
$36,200 USD

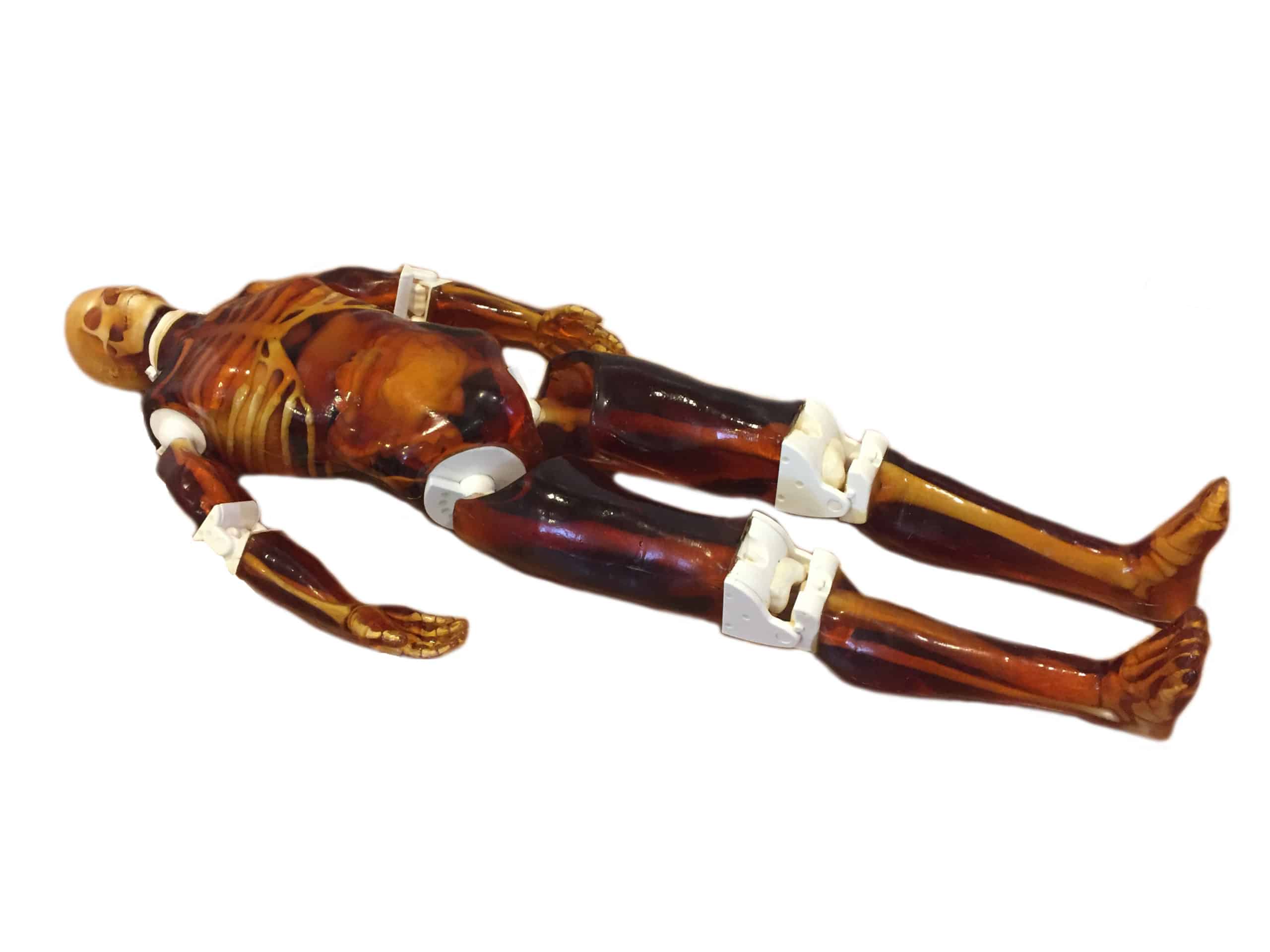

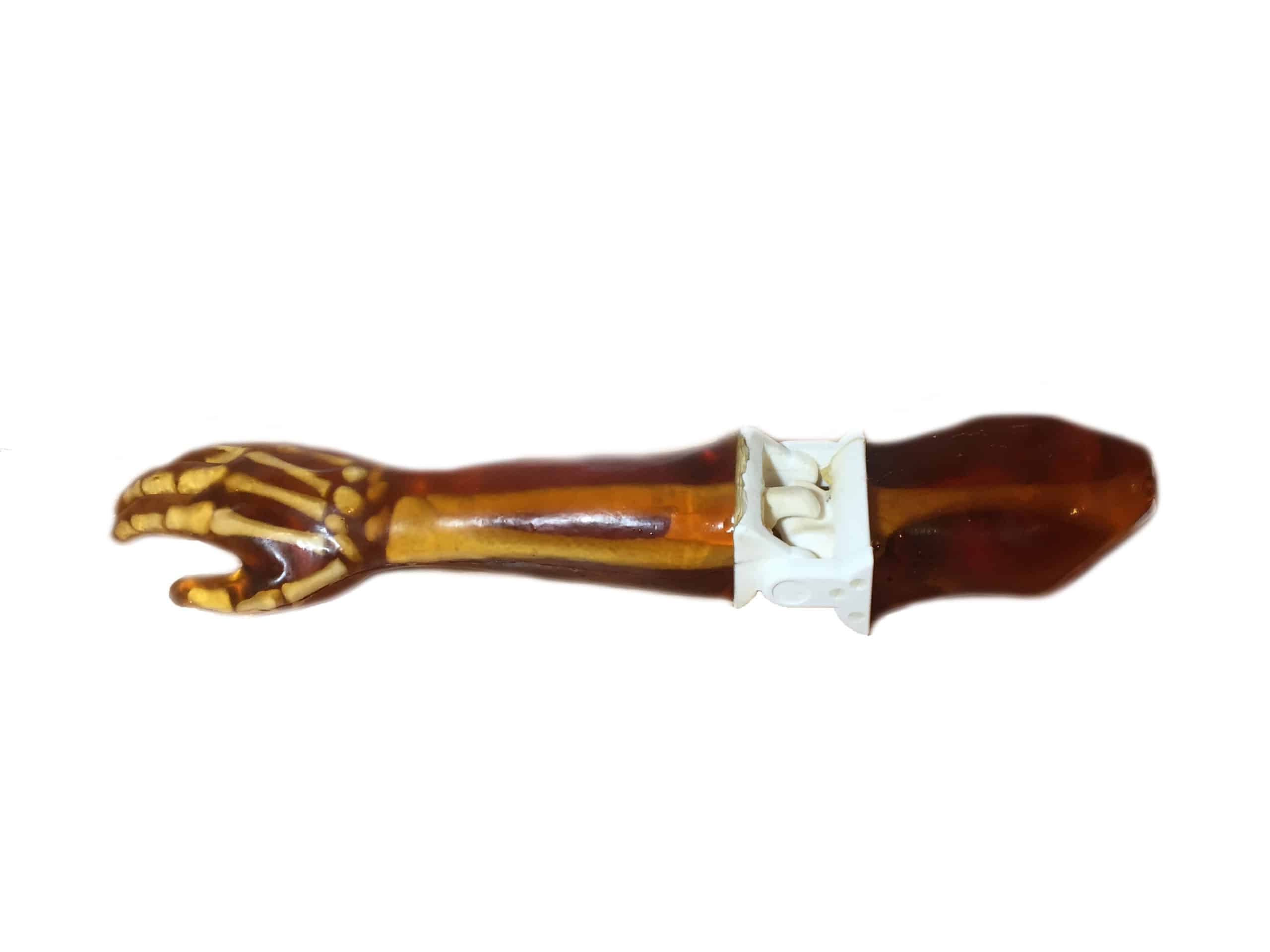

The Adult Full Body Phantom is a versatile training product compatible with X-Ray/CT and ultrasound. It is primarily used for hands-on experience with diagnostic imaging. The phantom is based on the average adult male body, weighing 70 kg (154 lb) and measuring 175 cm (69 in) in height. The bones have a realistic three-layered structure with adjustable inner porosity. It can be customized with various pathologies and is available in translucent or skin-colored versions. PLEASE NOTE: MUSCLES IN THE LEG AND ARMS ARE ONLY INCLUDED IN FB-A02.
Full Body Model: Standard (X-Ray·CT·US)
with Muscles (X-Ray·CT·MRI)
with Muscles (X-Ray·CT·US)
Standard (X-Ray)
Standard (X-Ray·CT·MRI)
Standard (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.
This Adult Full Body Phantom is an X-Ray/CT and US-compatible training product. The primary application of this phantom is to train and demonstrate various patient positioning techniques in radiology. Other uses include hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions. This phantom can be ordered in a translucent or skin-colored version.

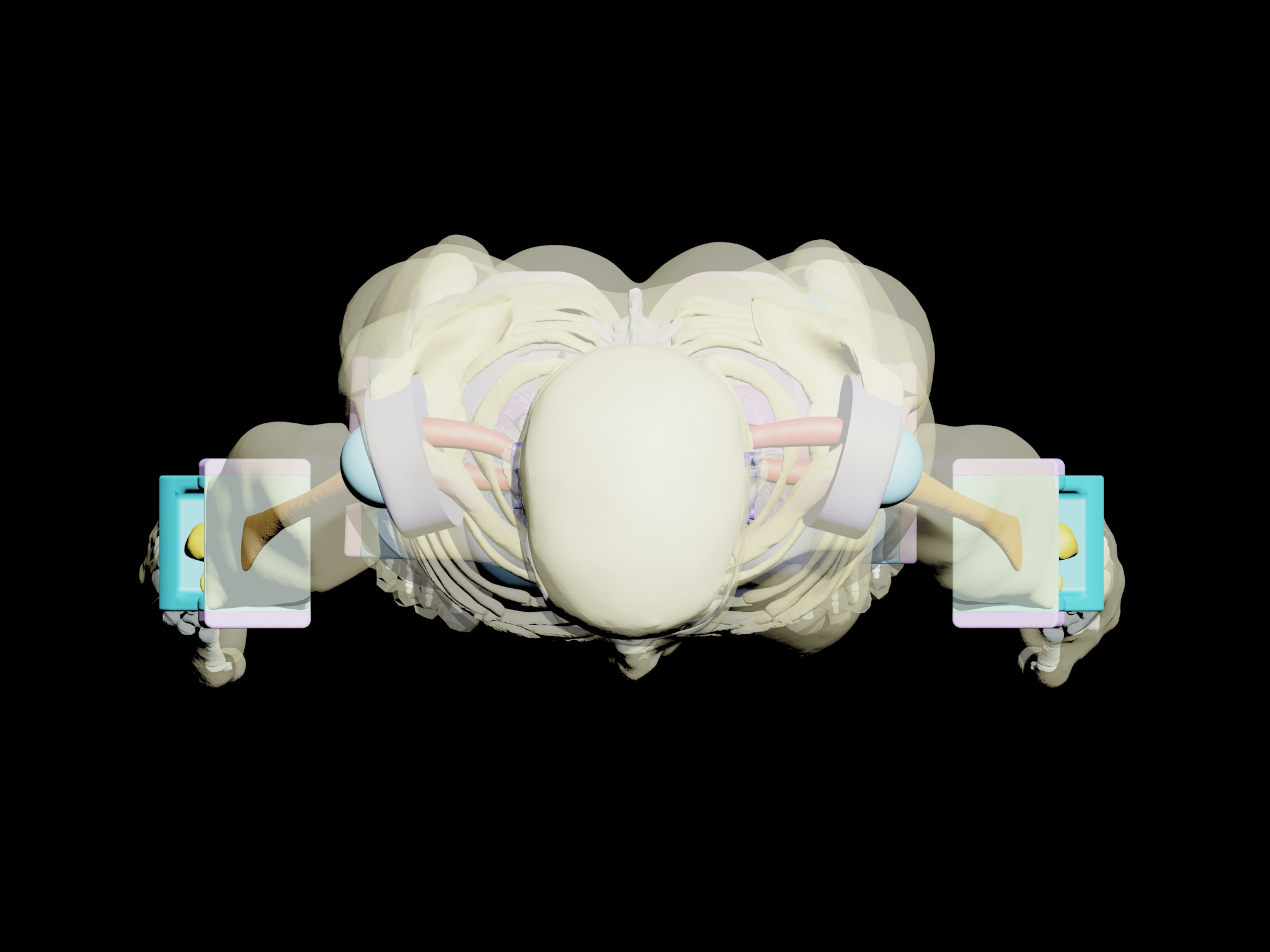

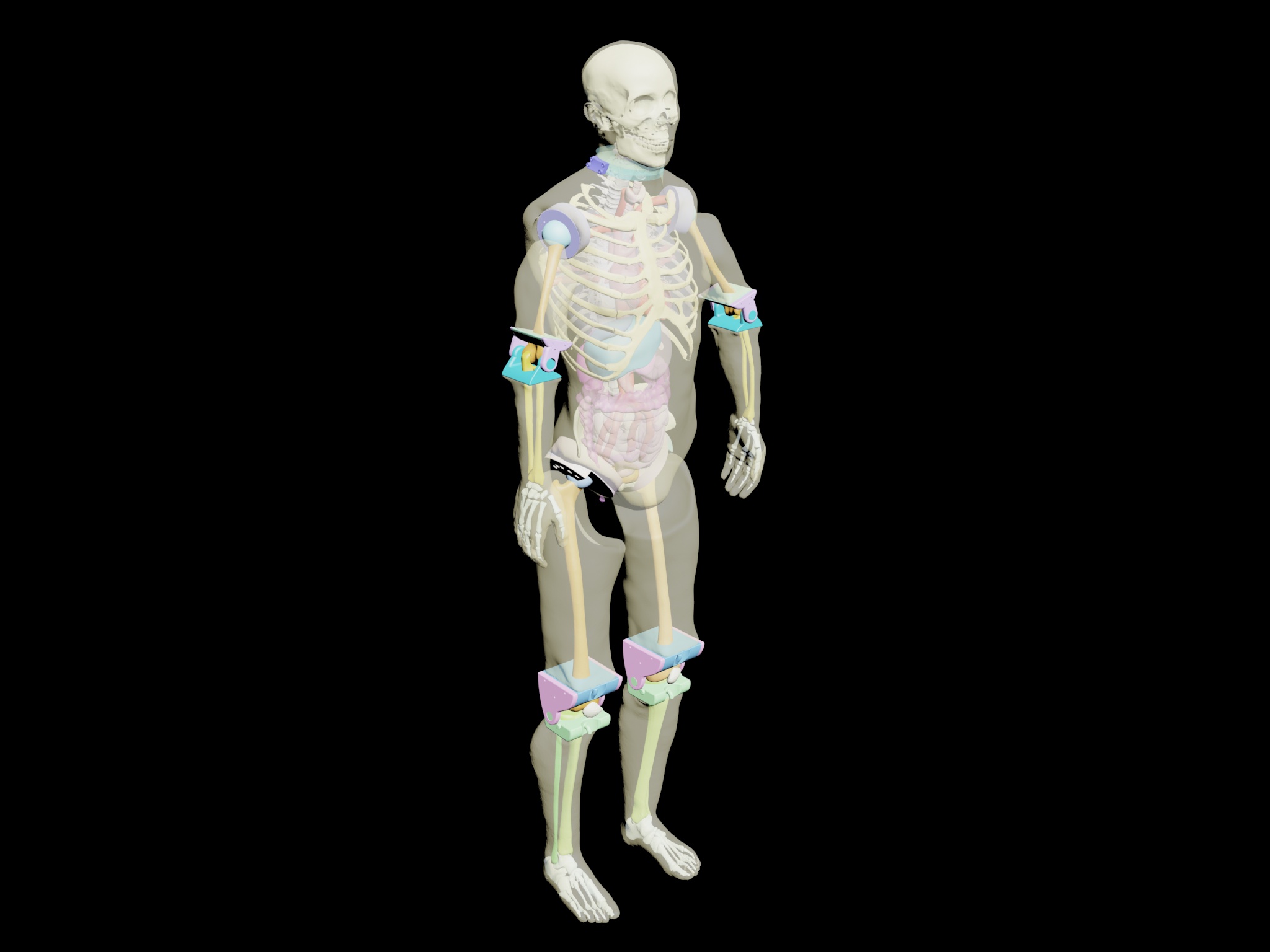

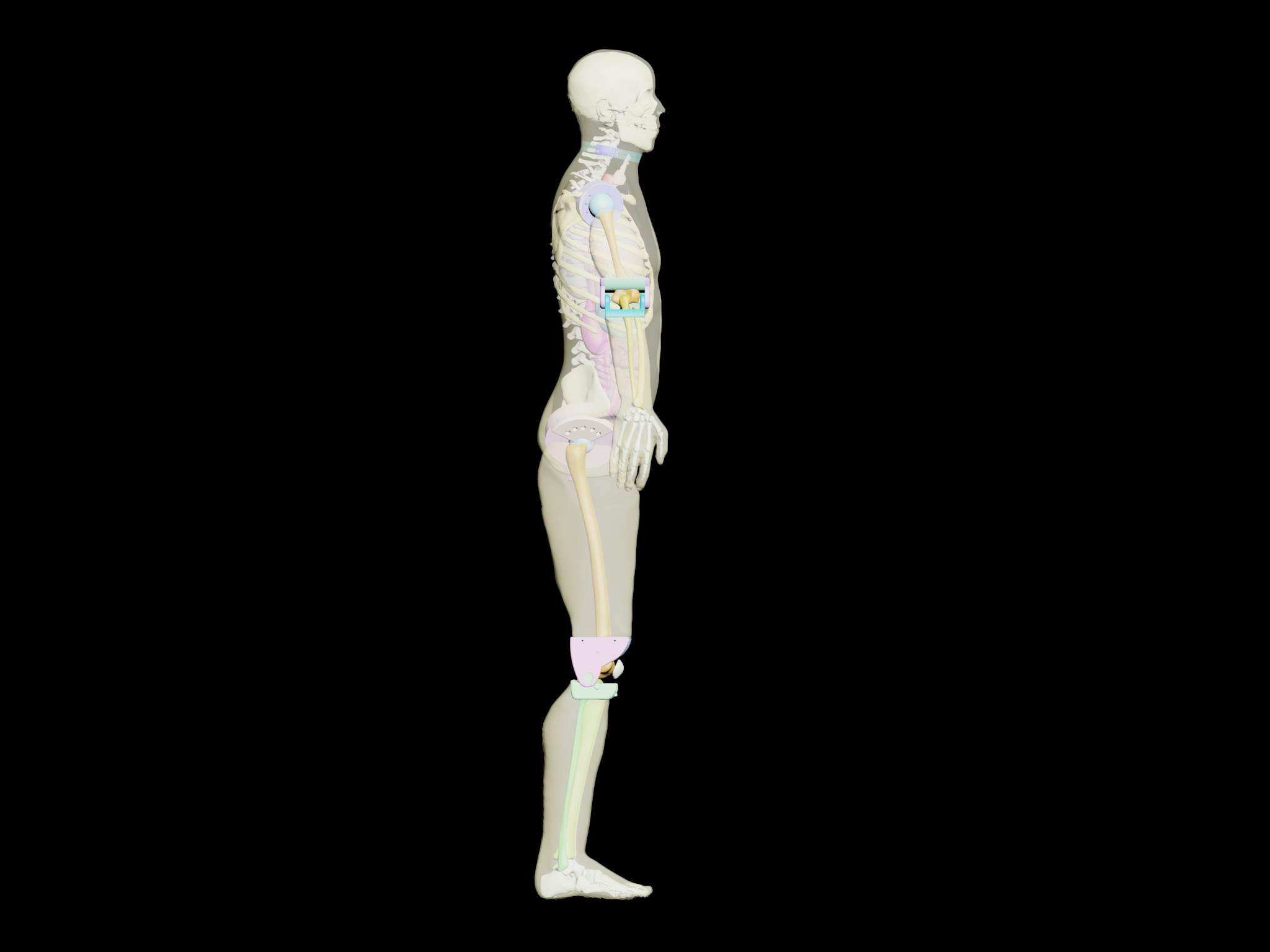

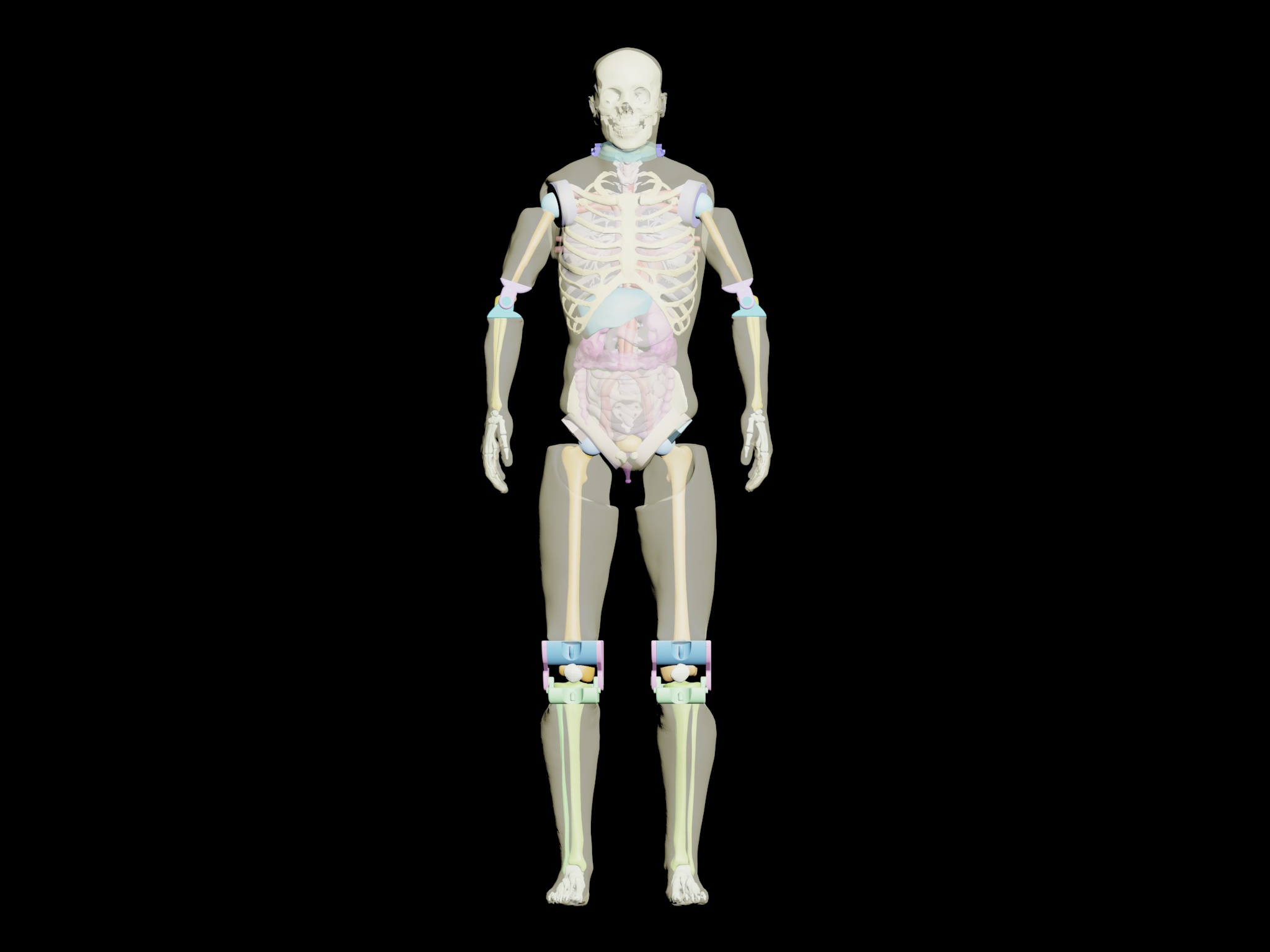

Design

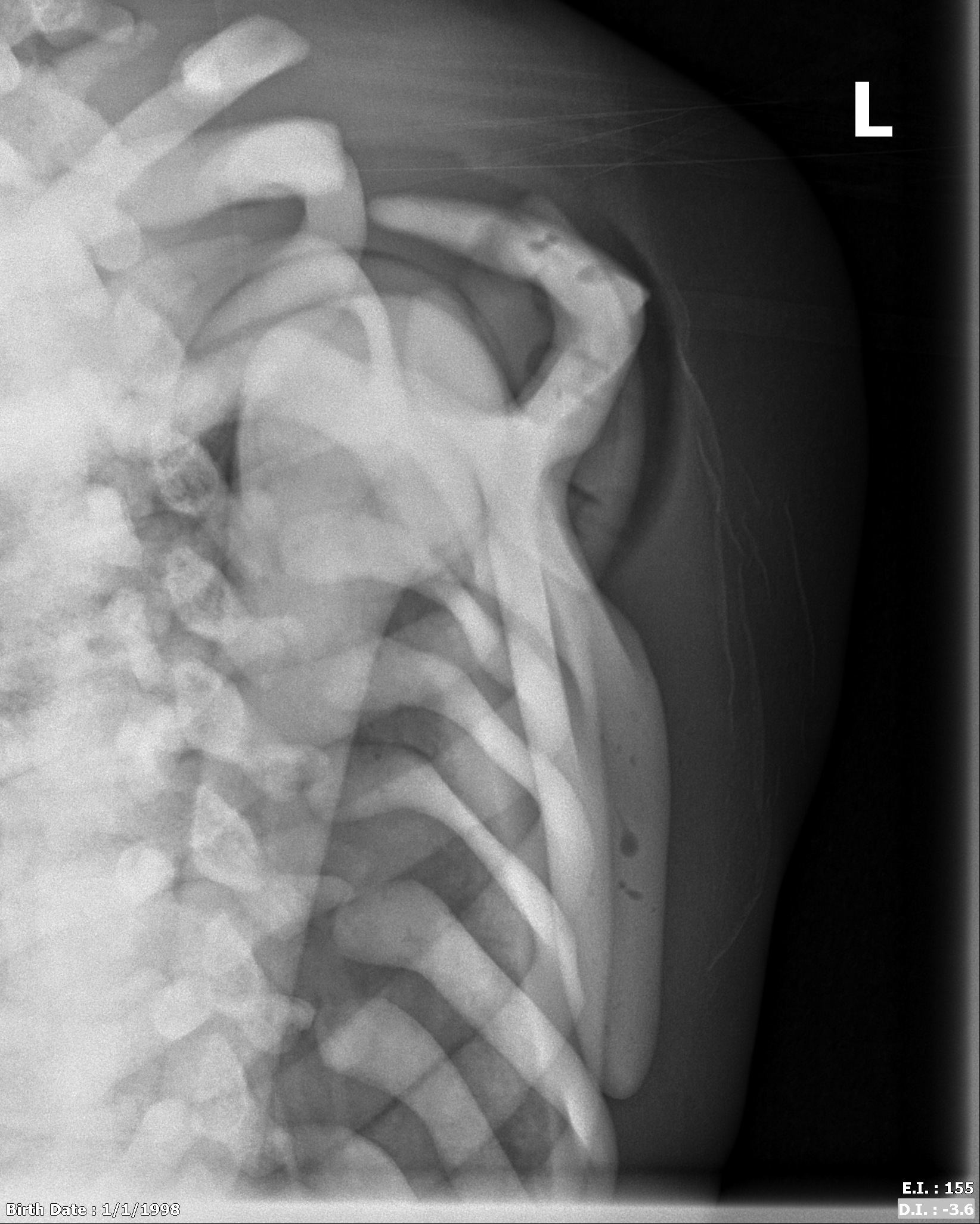

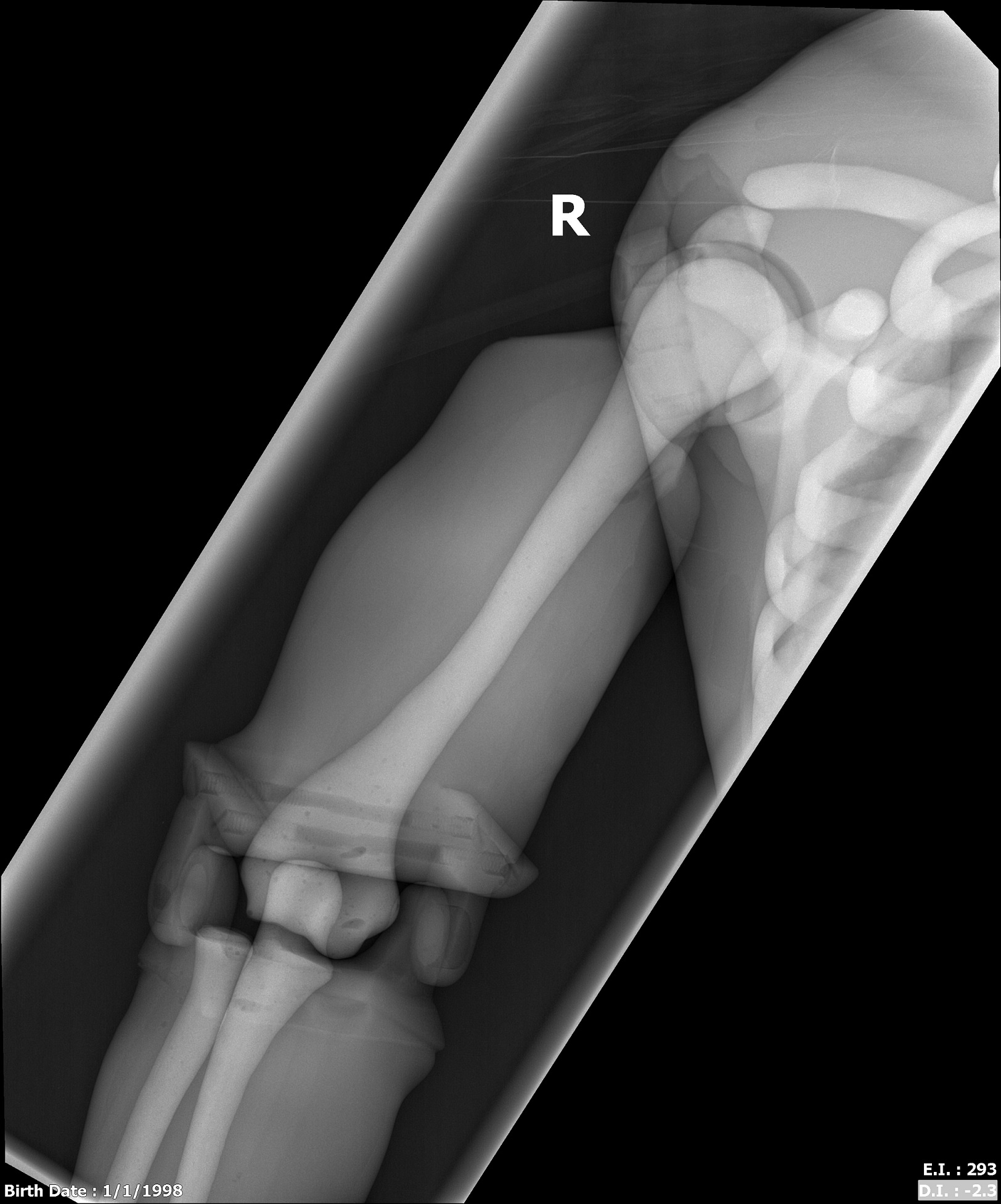

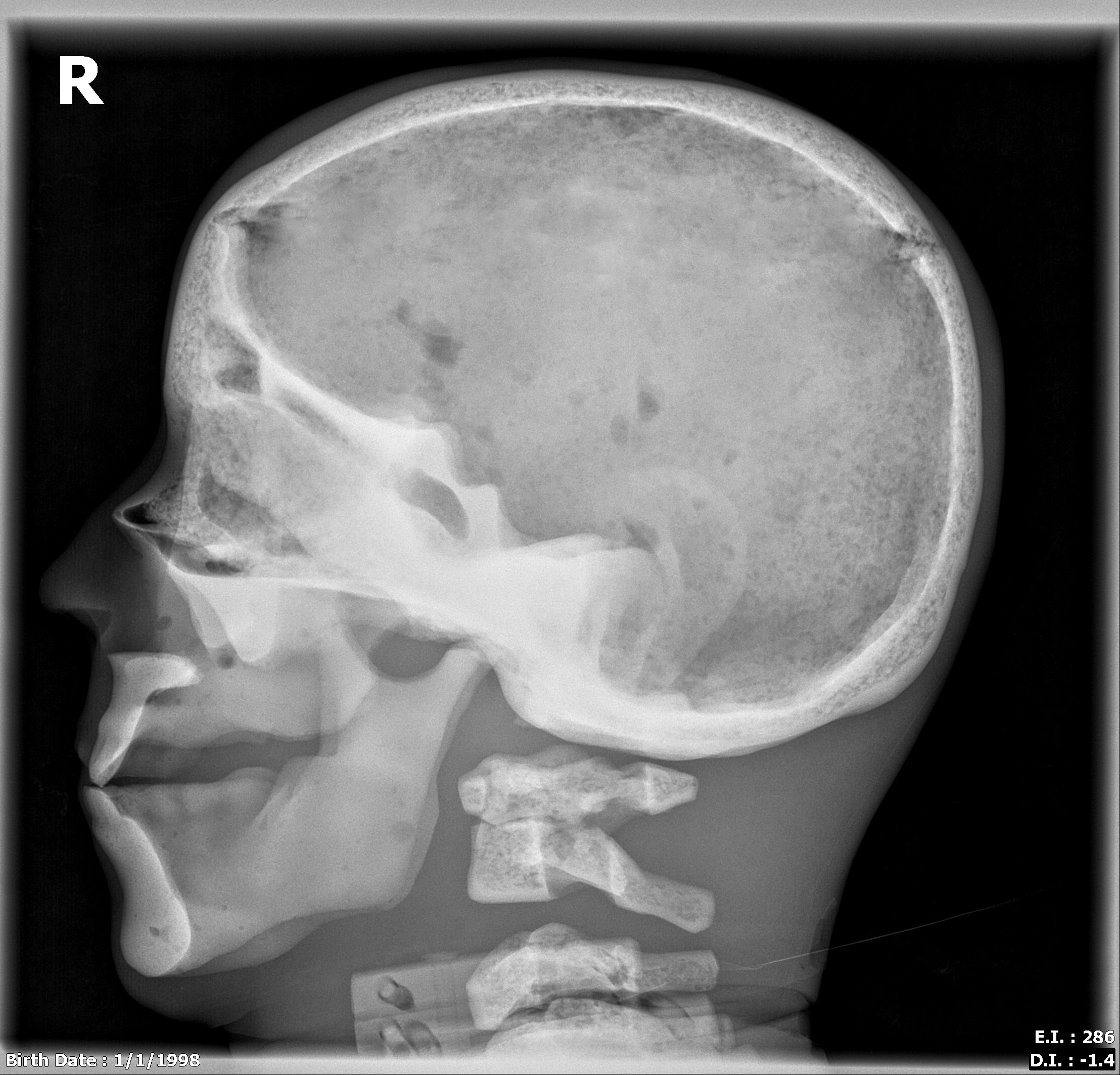

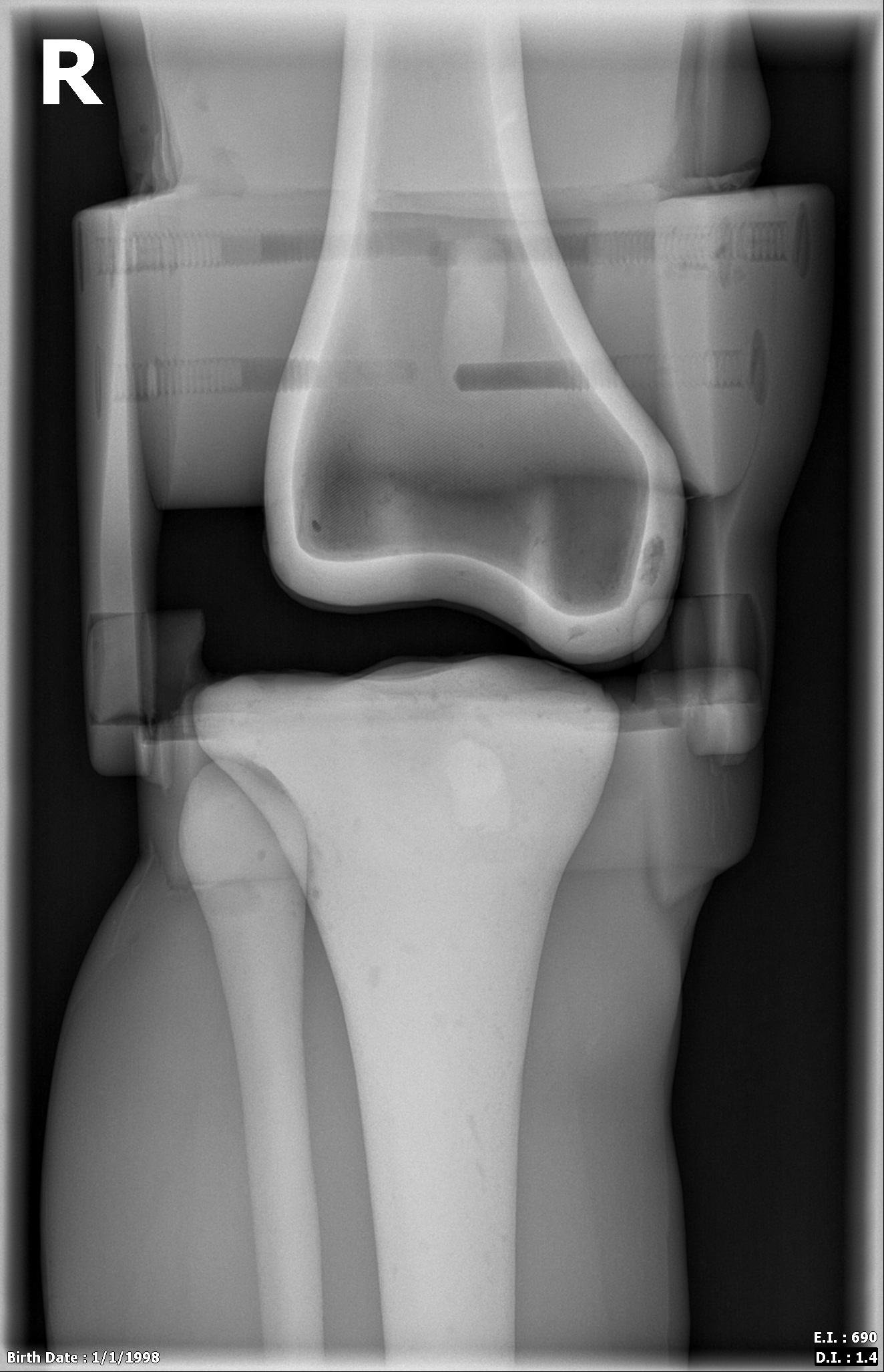

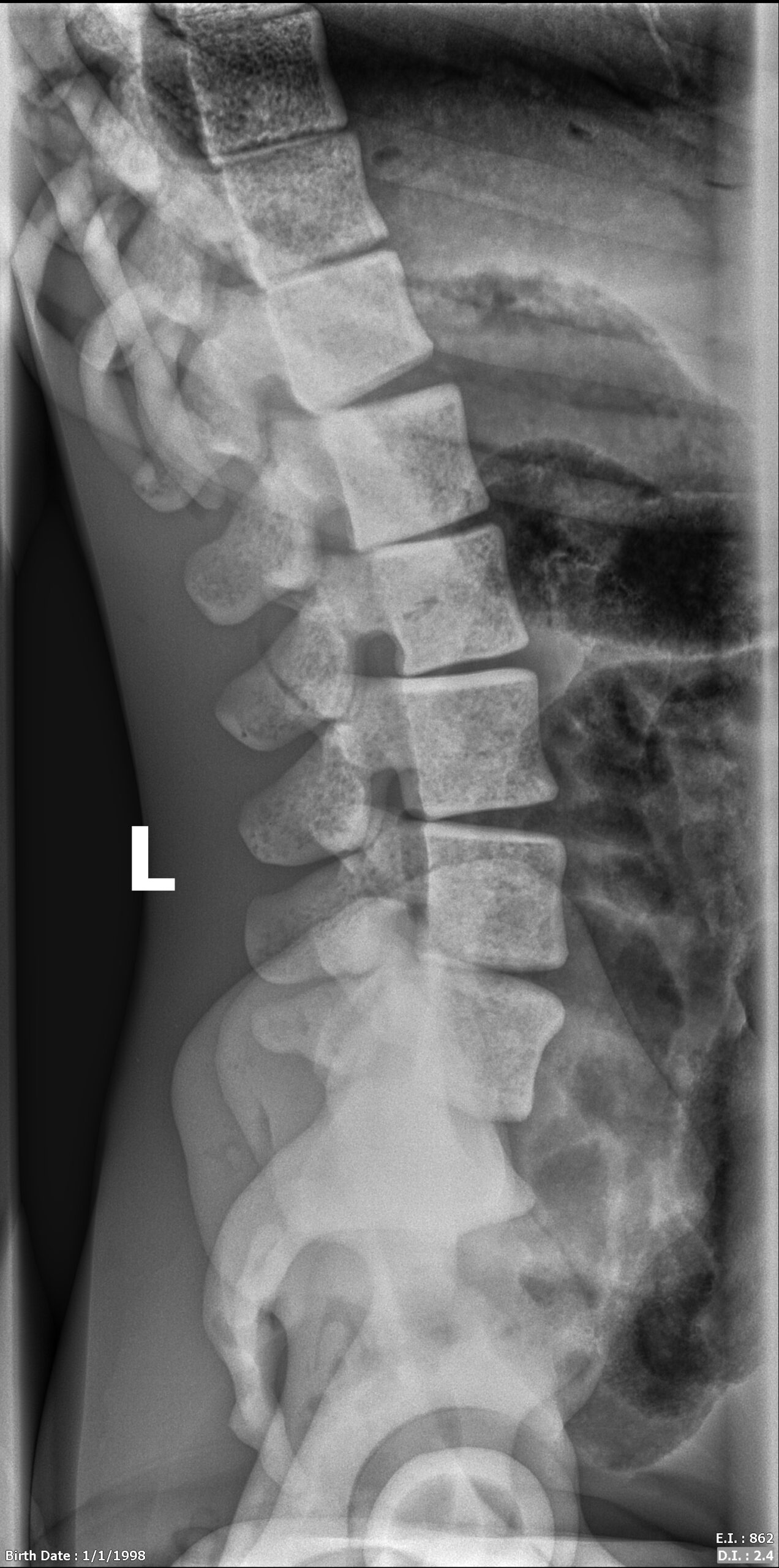

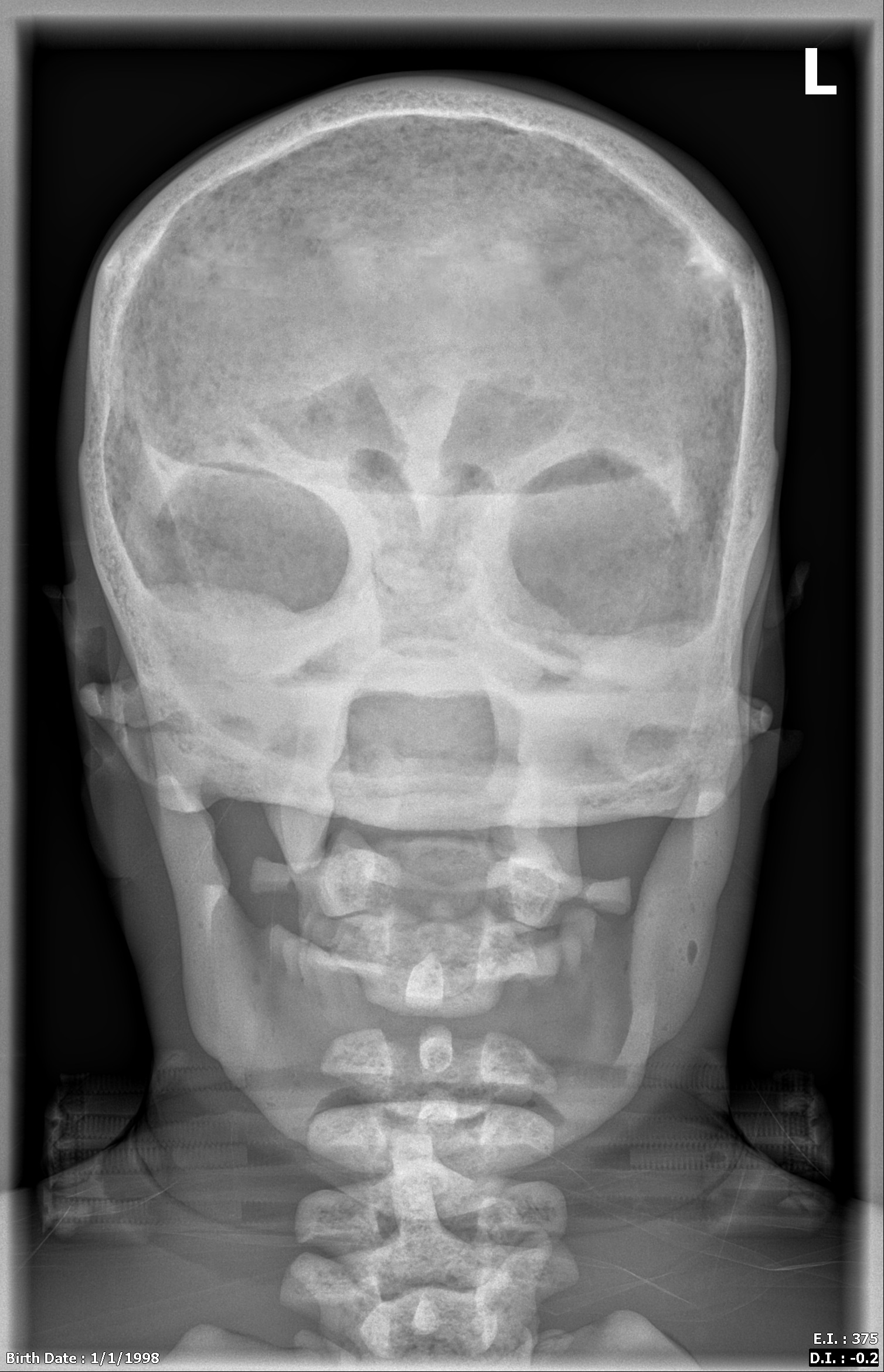

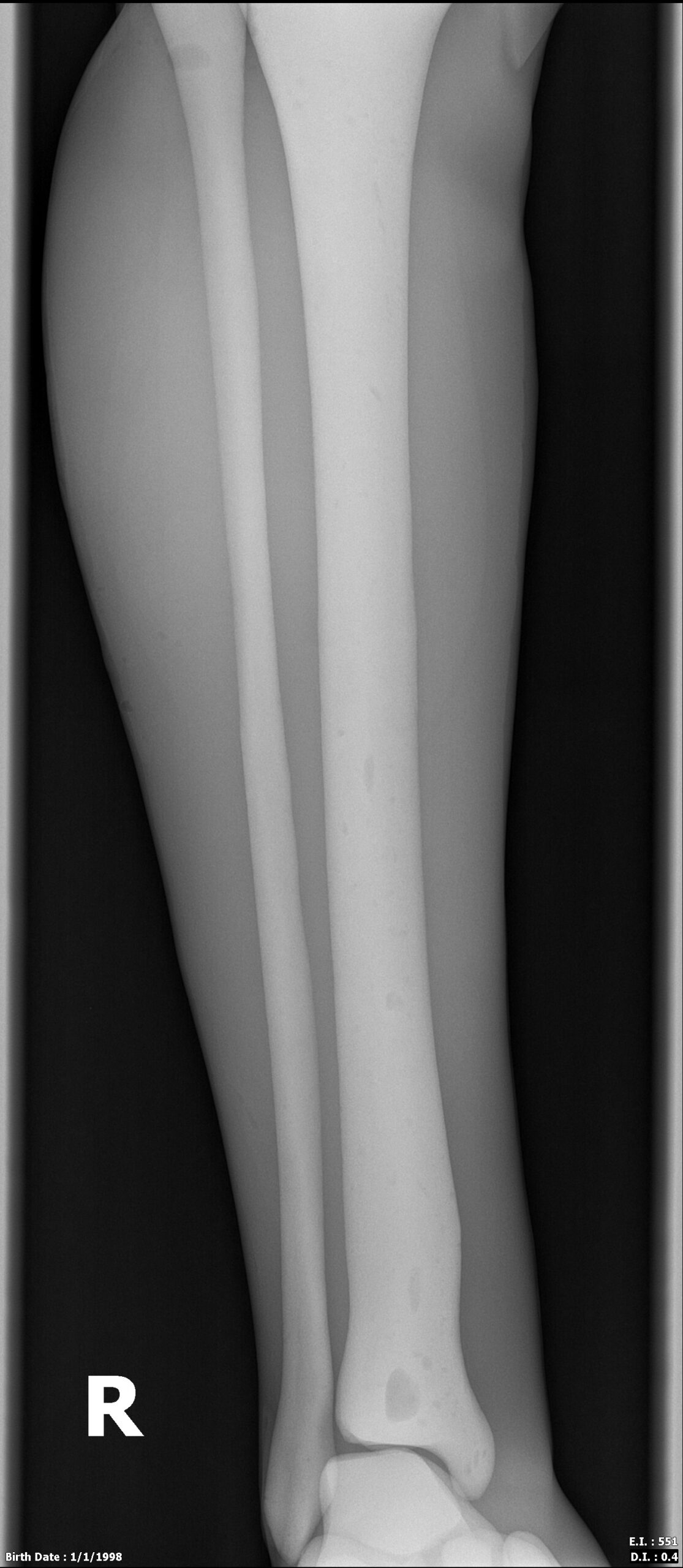

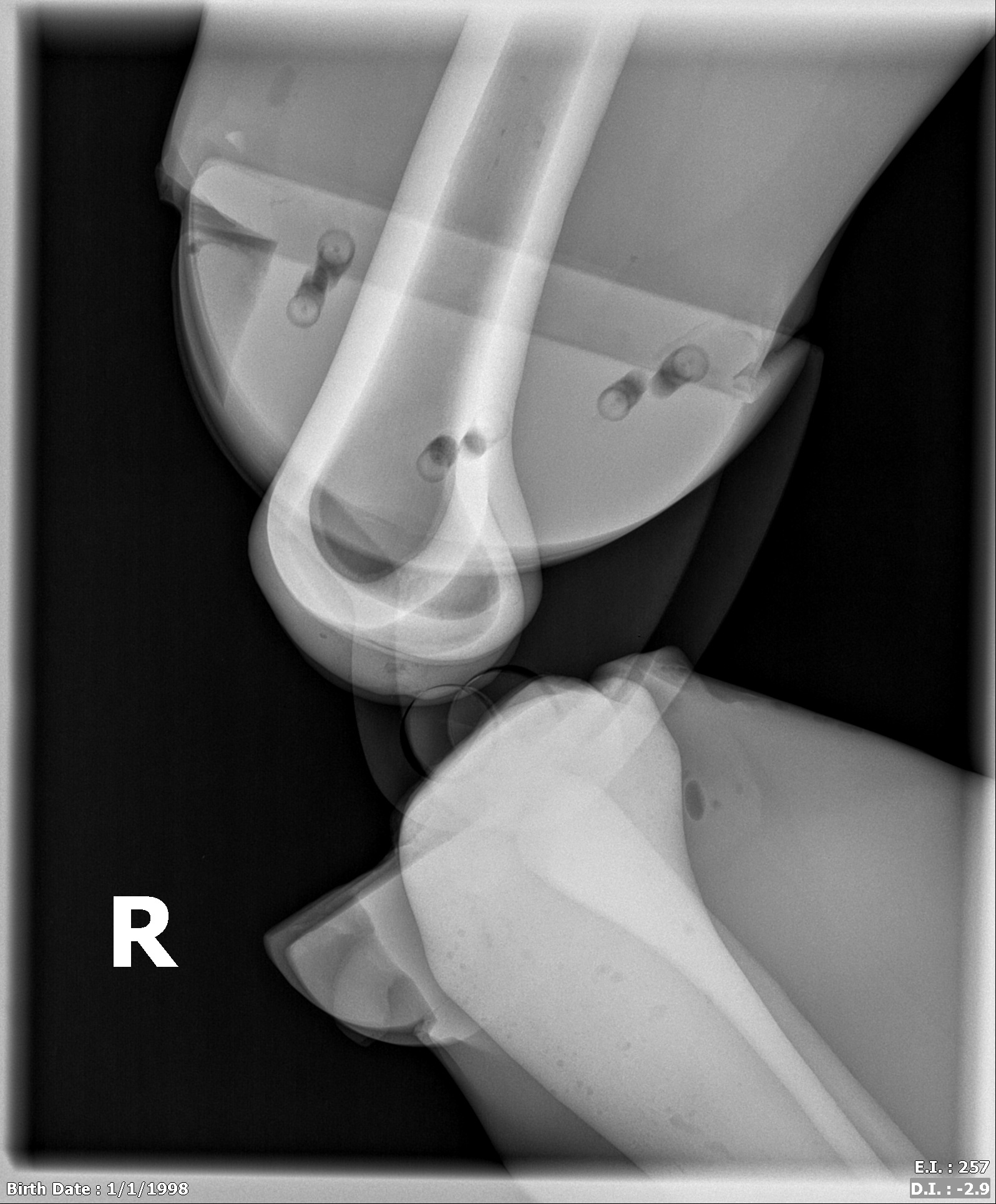

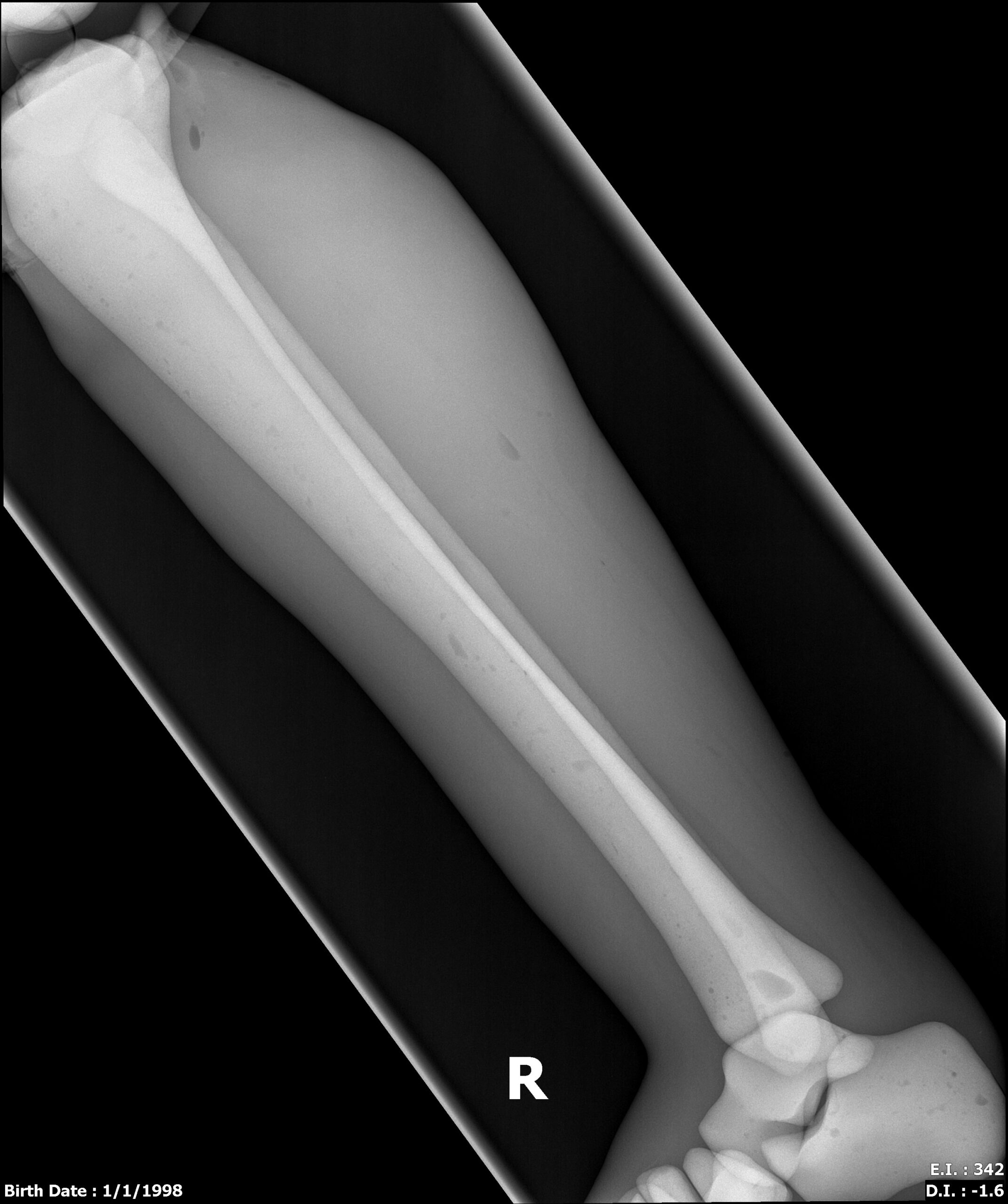

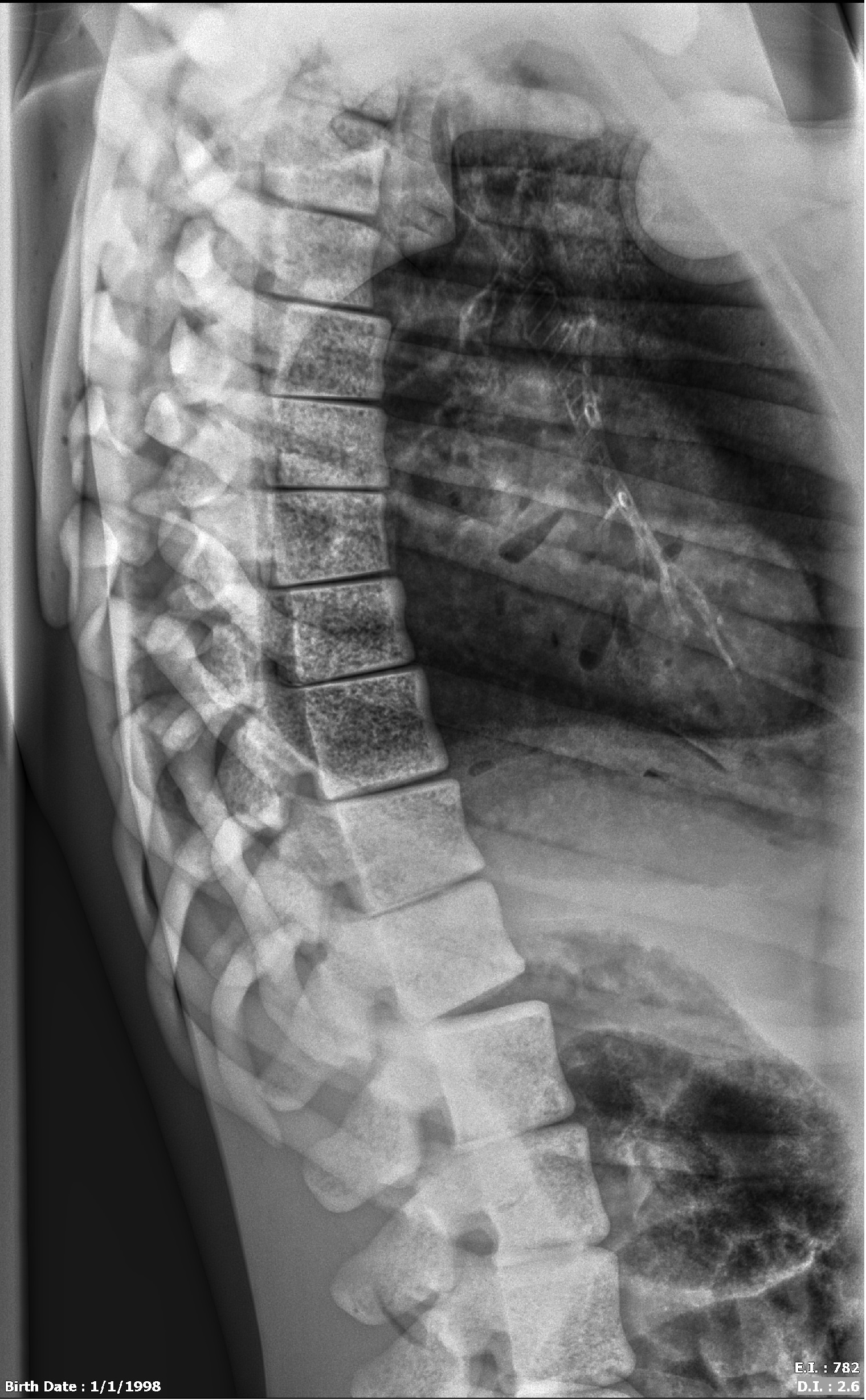

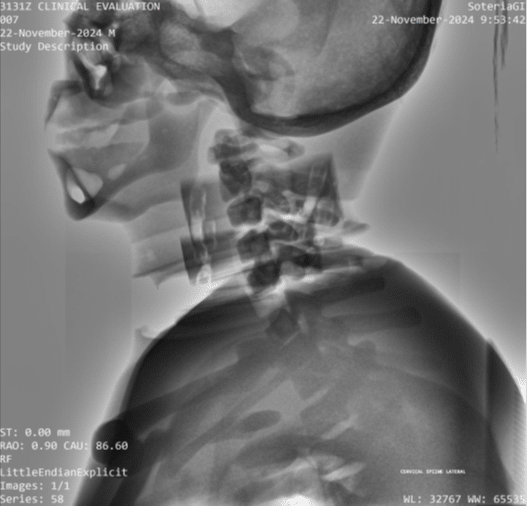

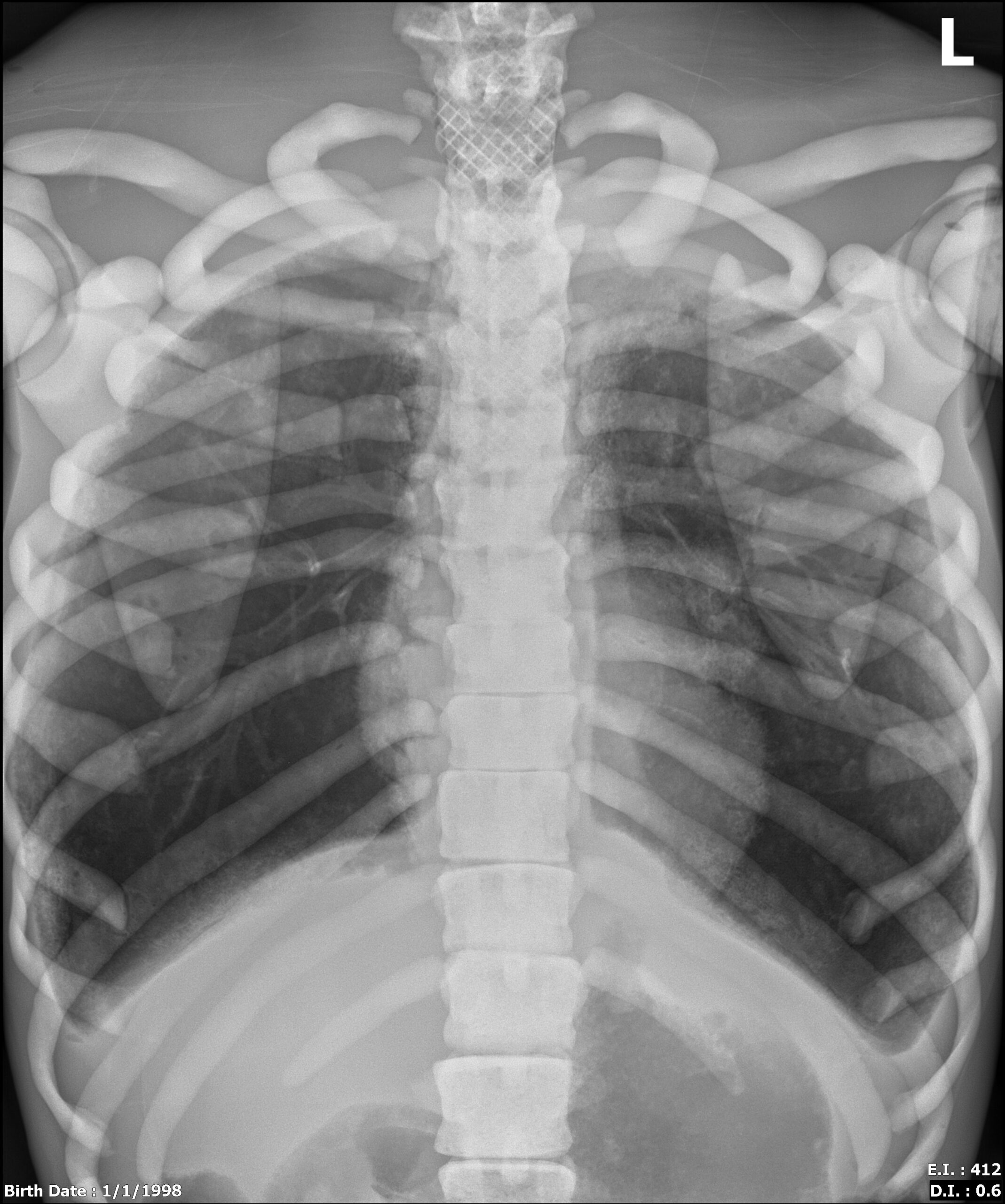

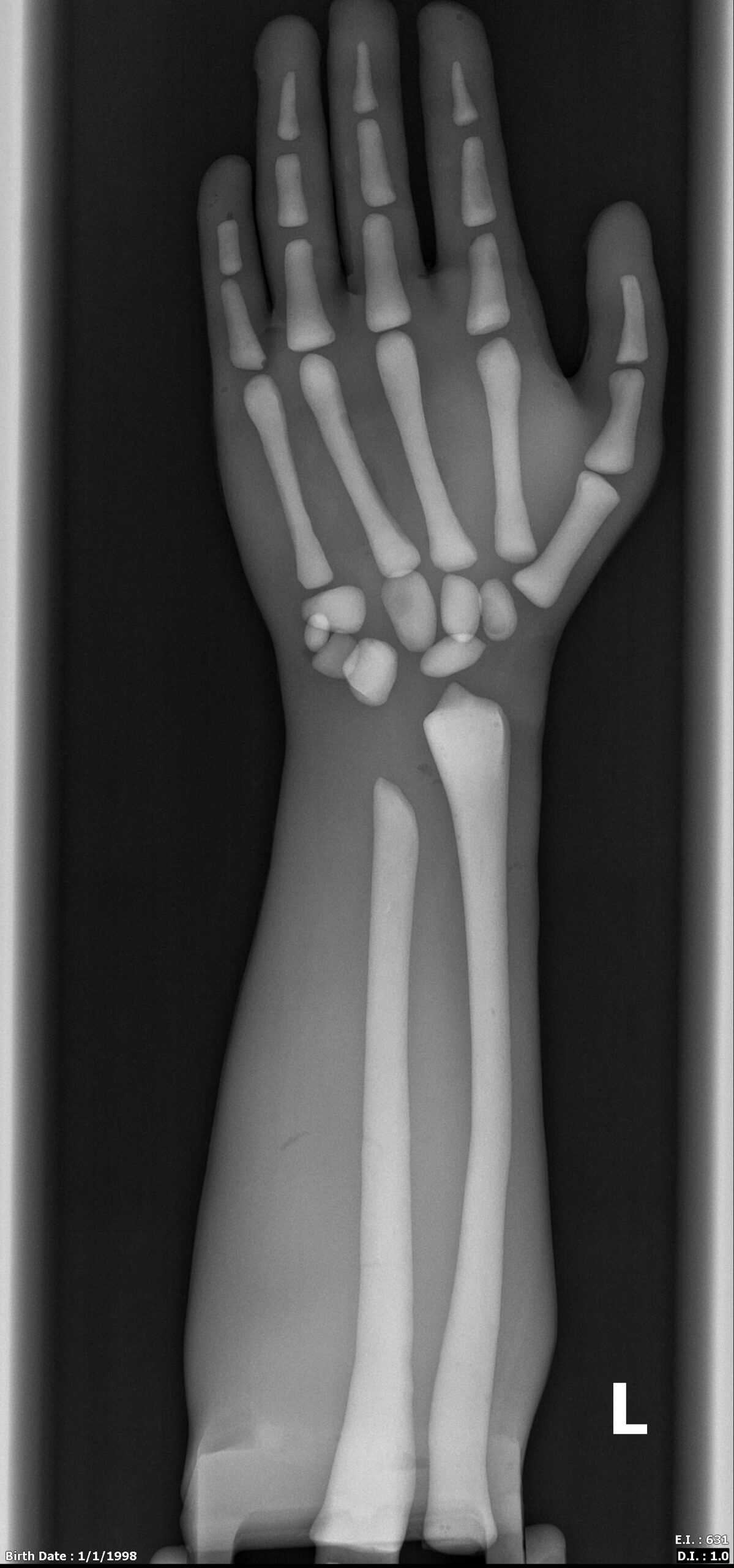

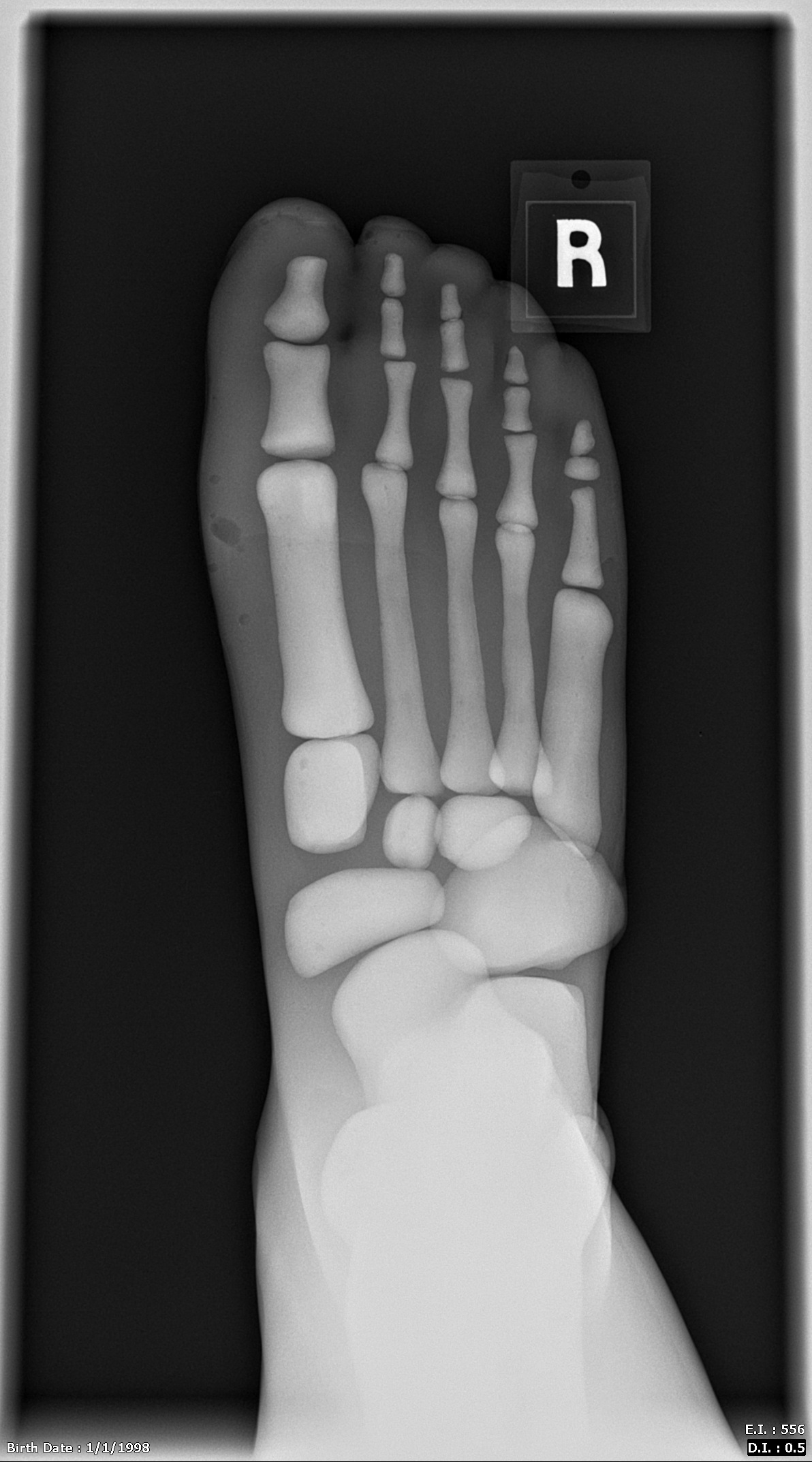

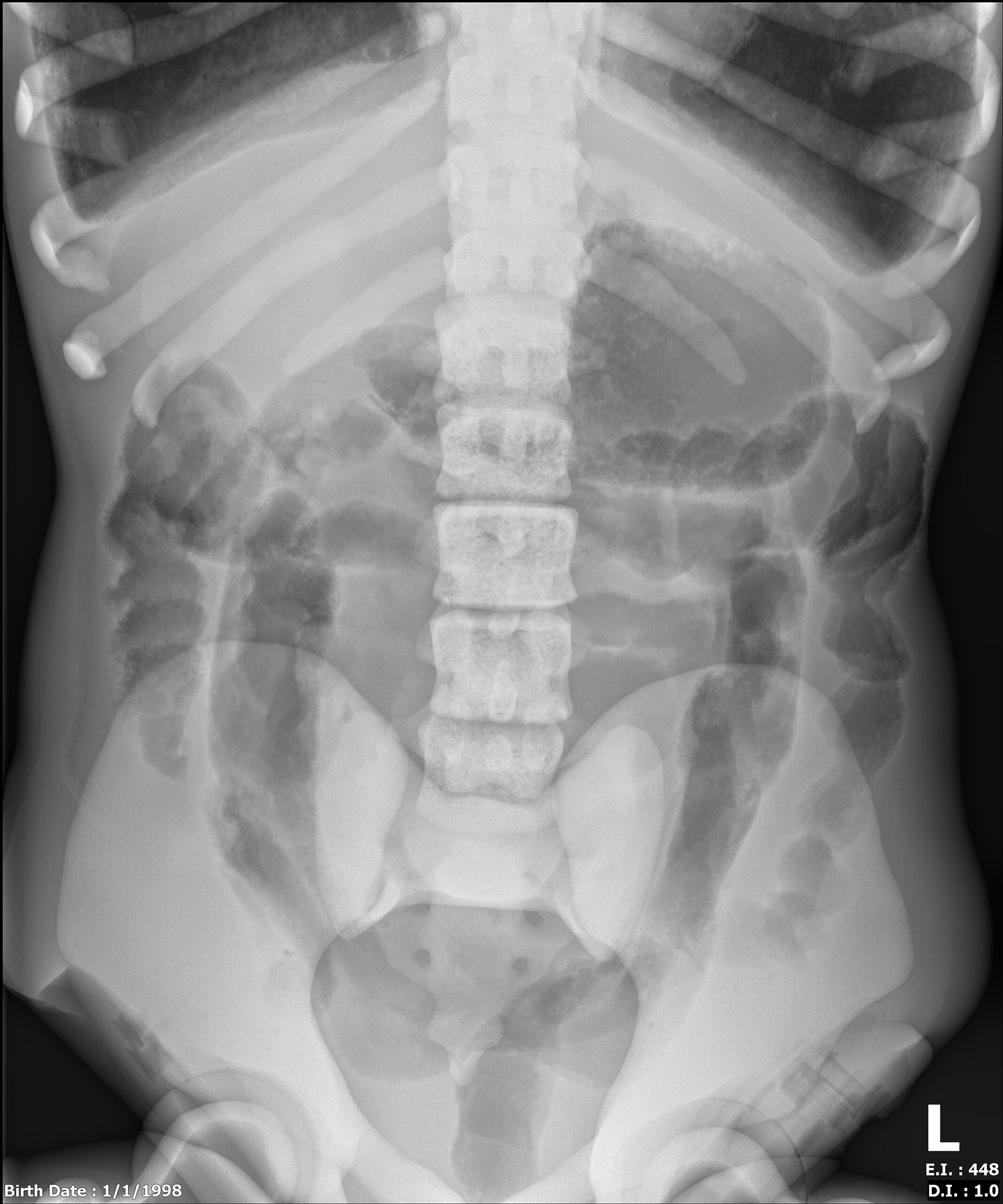

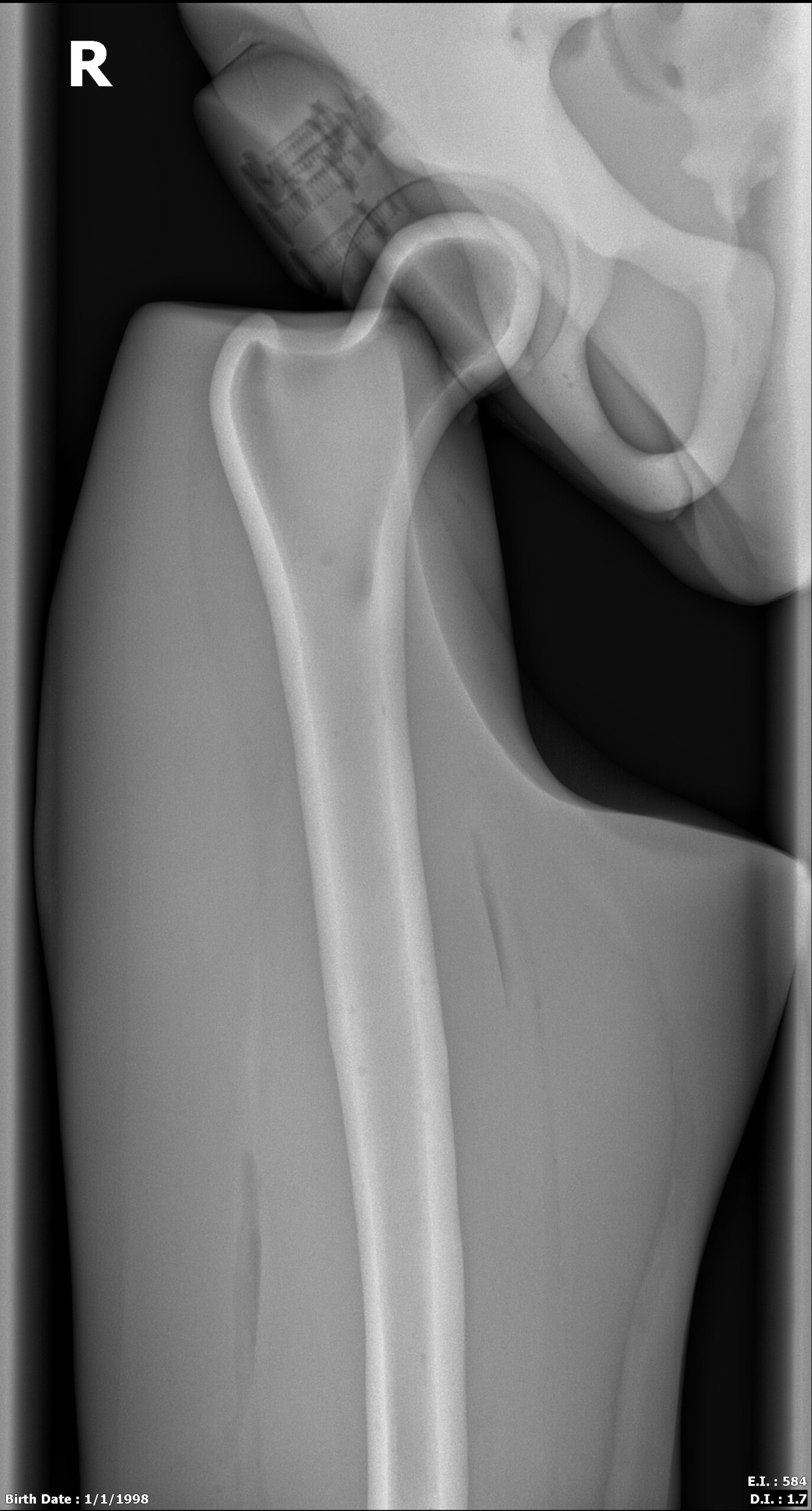

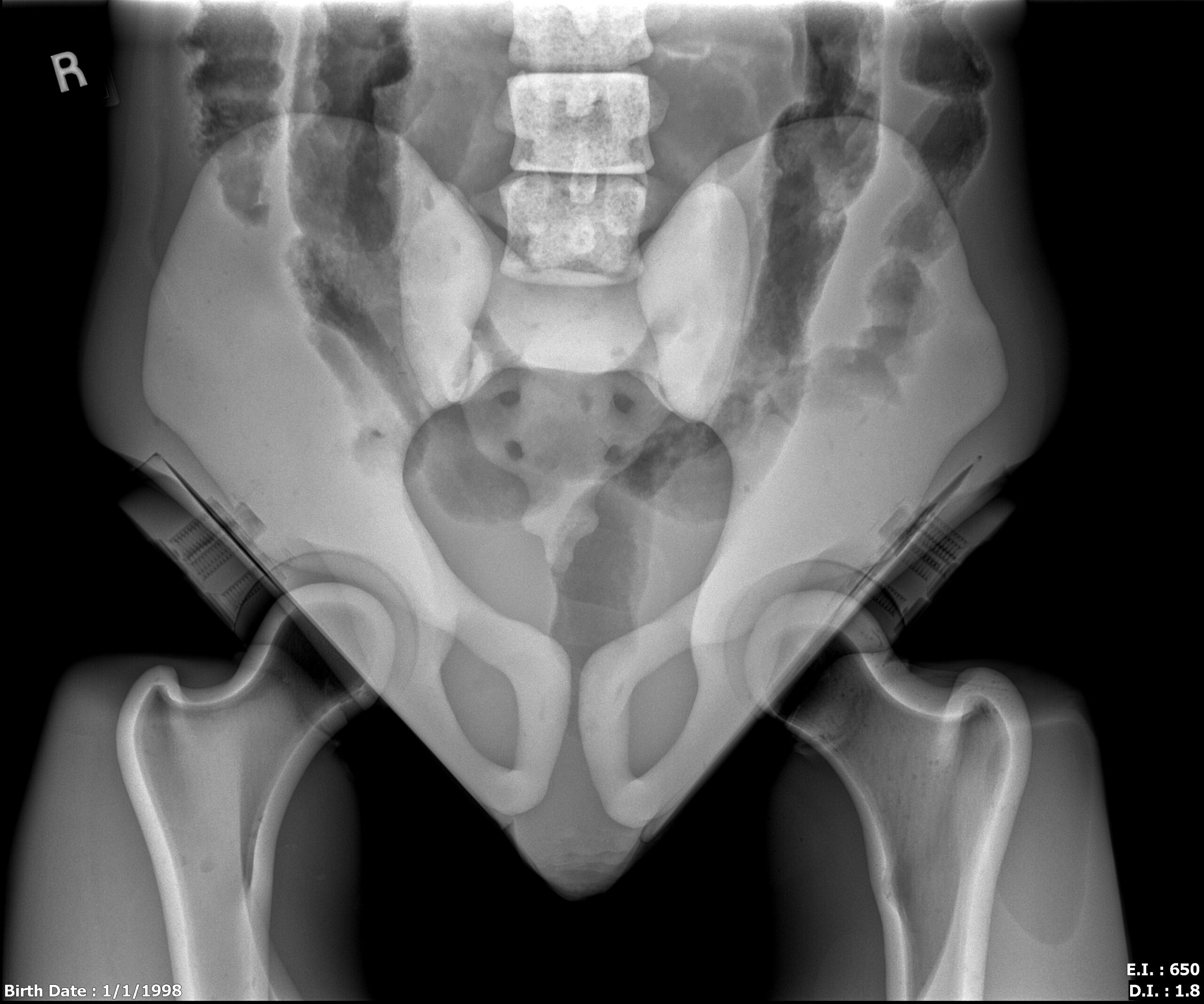

X-Ray Scans

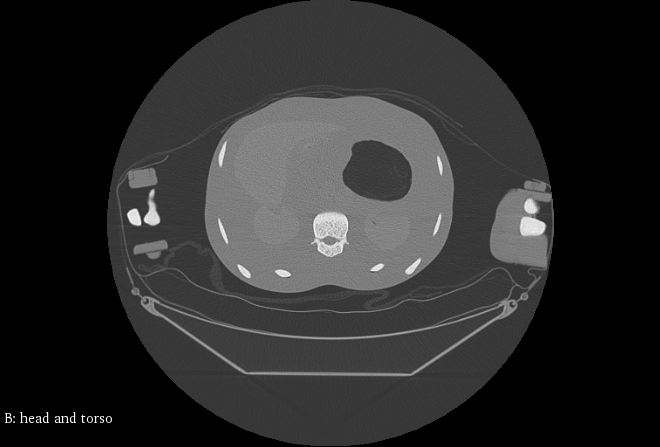

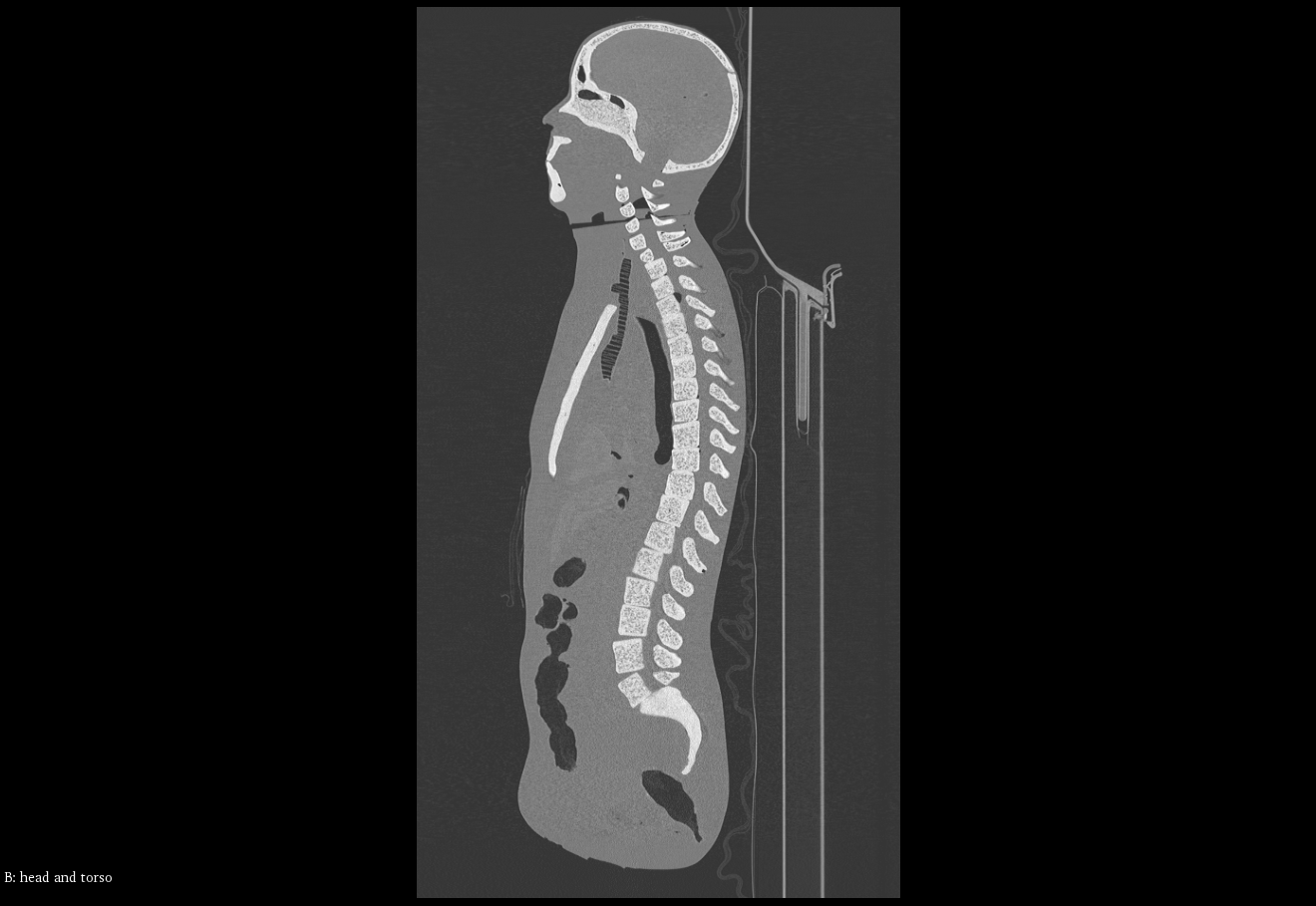

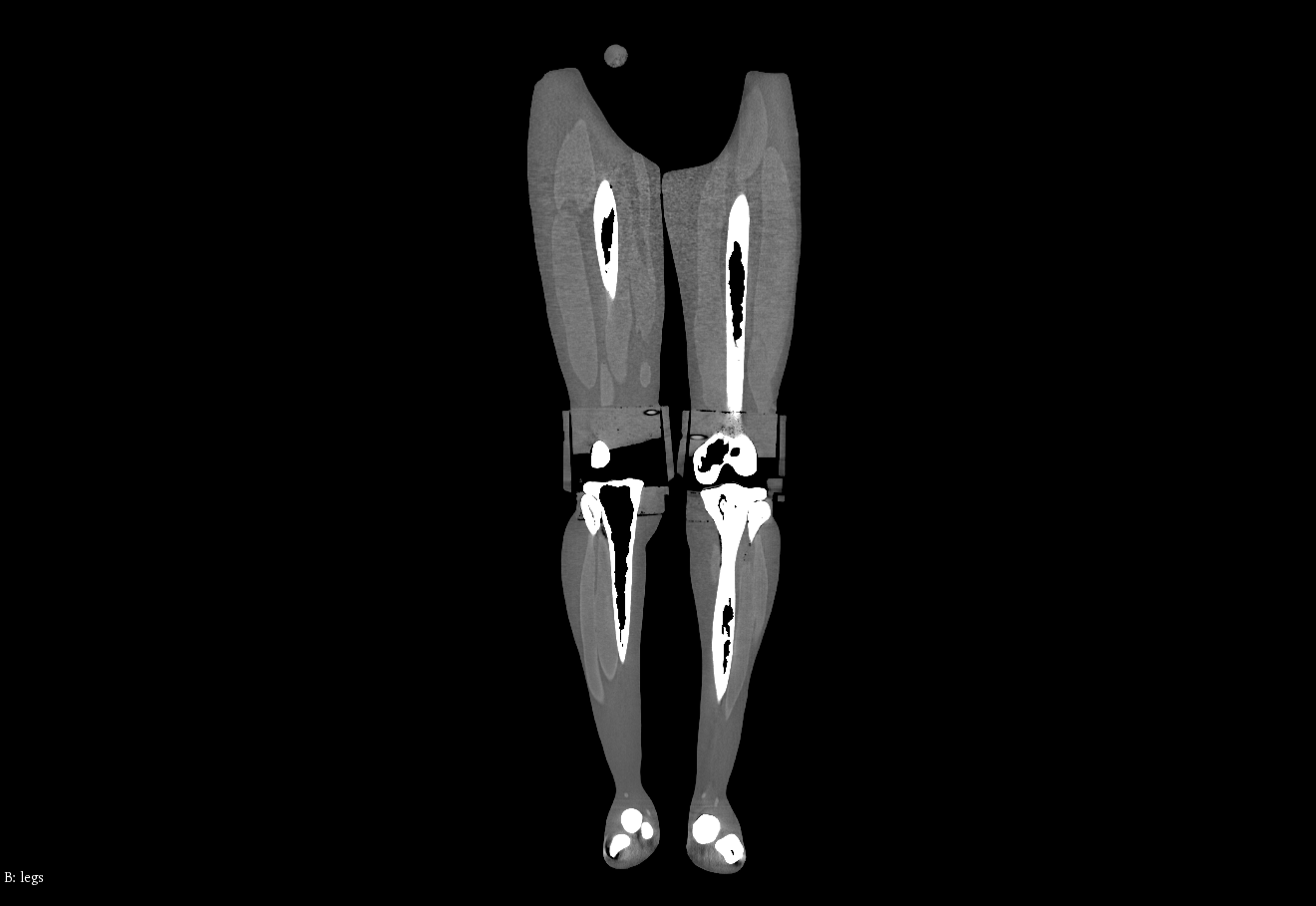

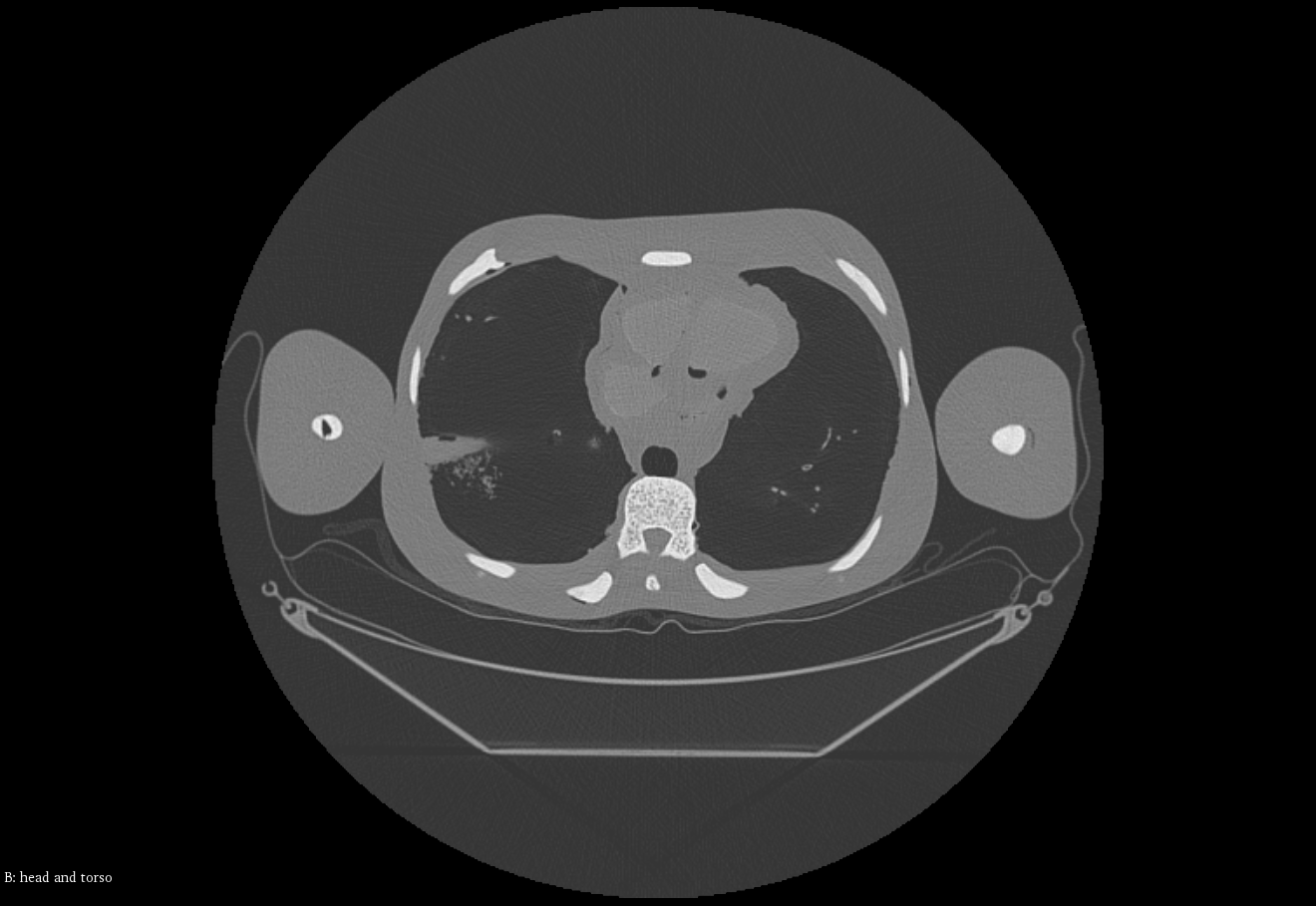

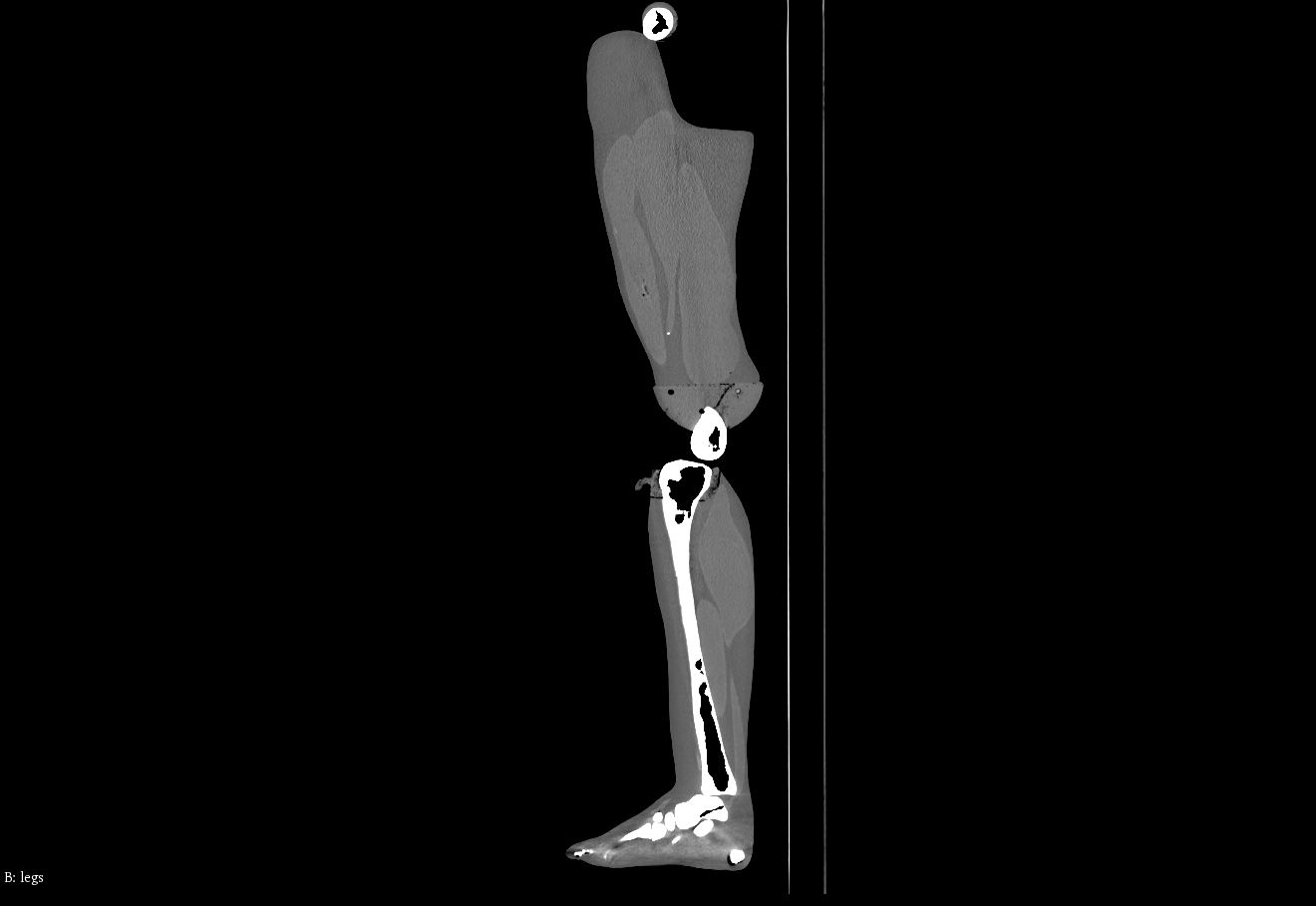

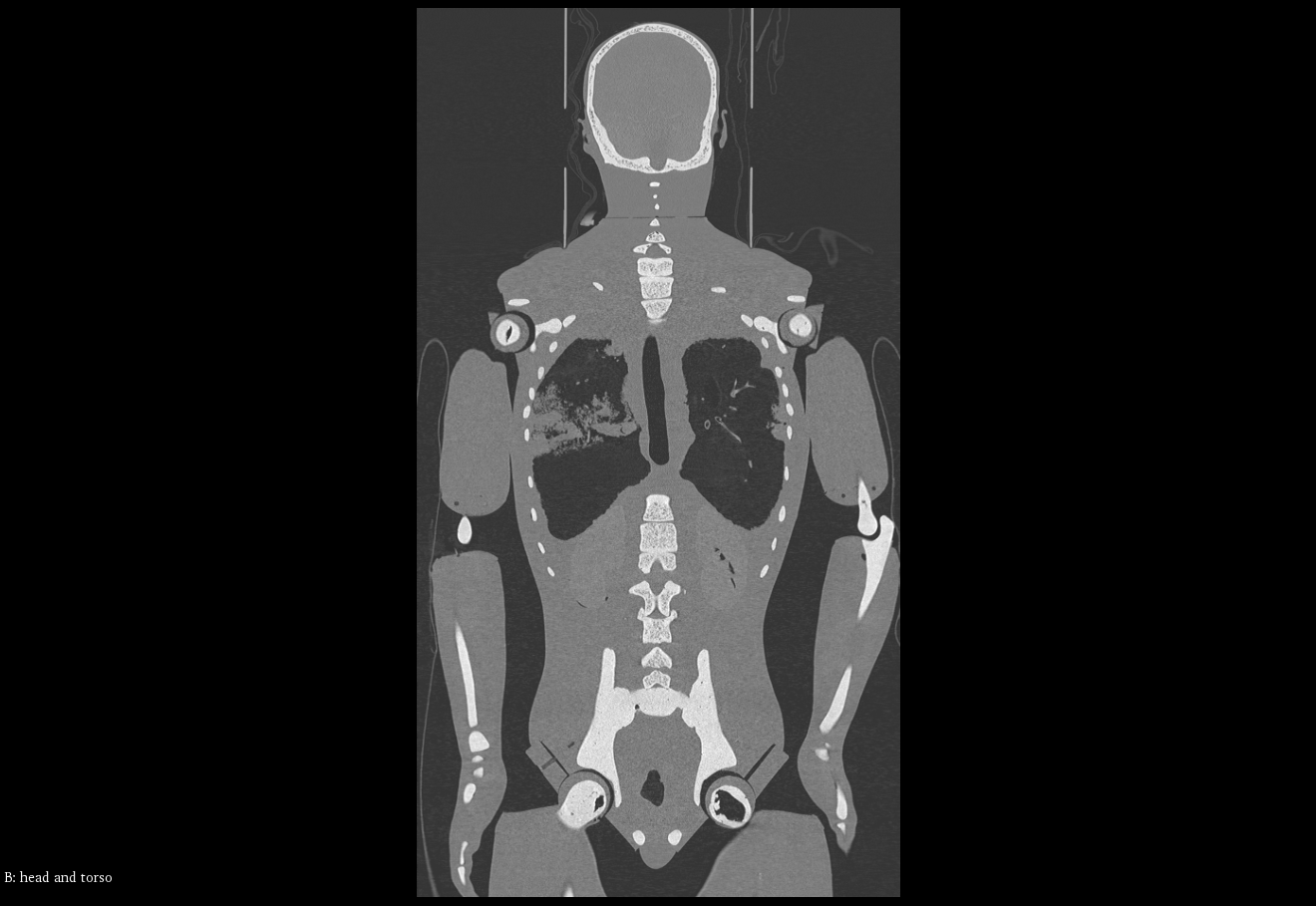

CT Scans

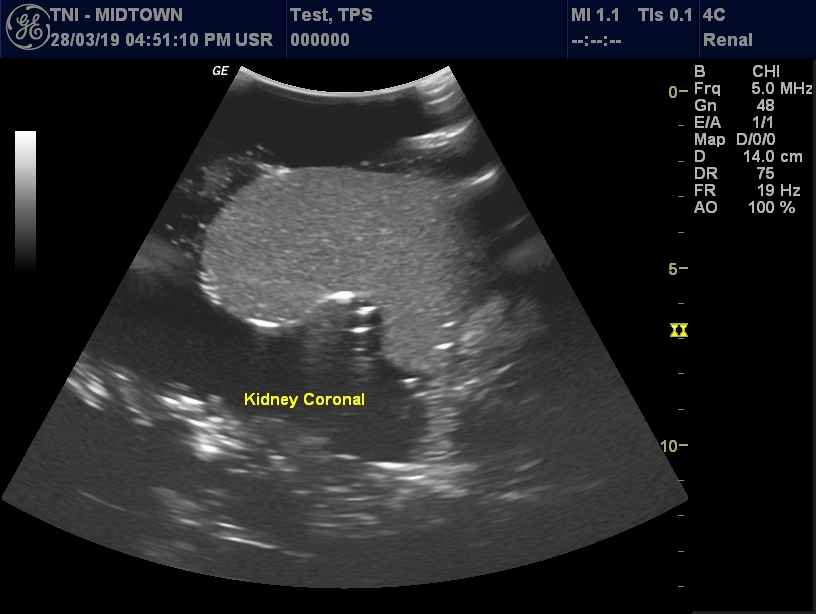

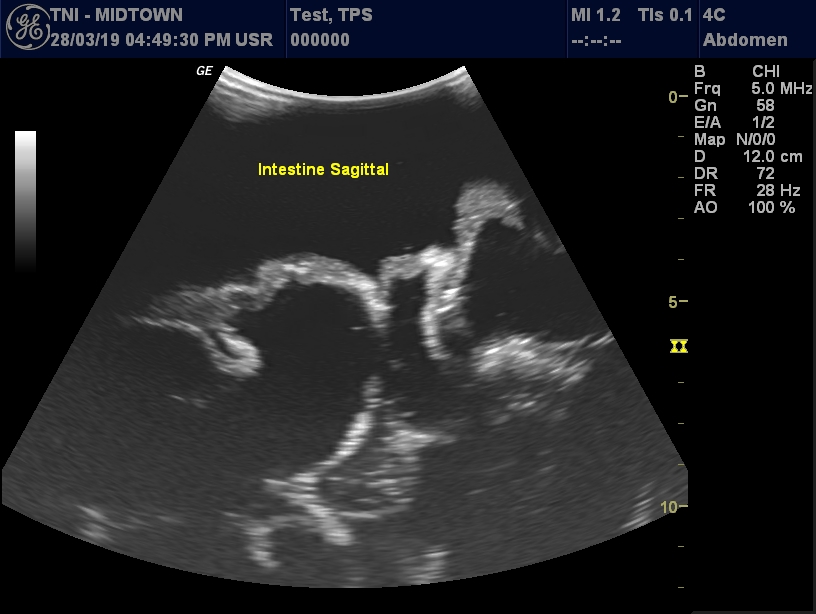

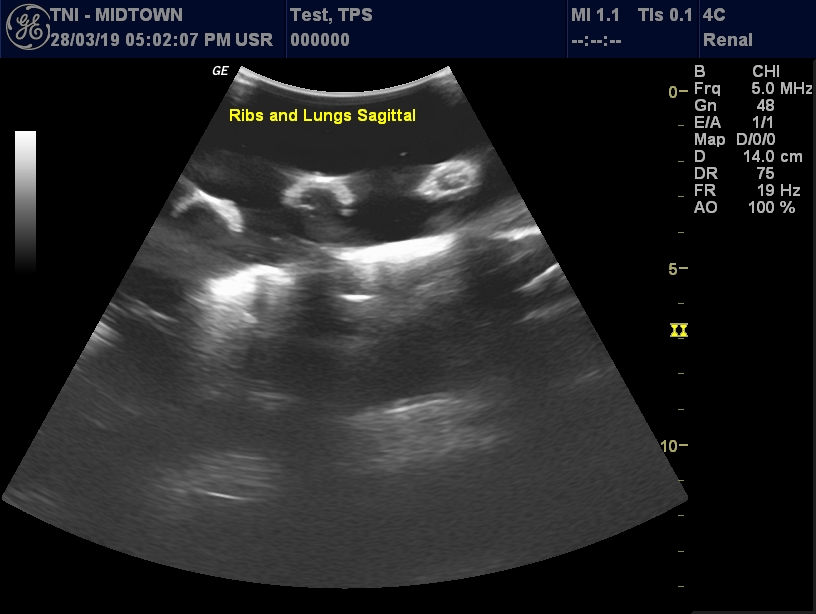

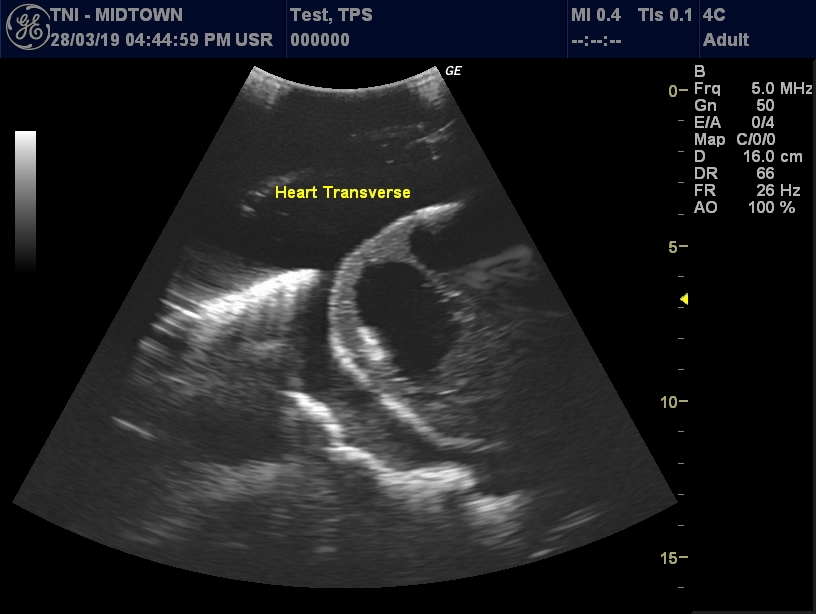

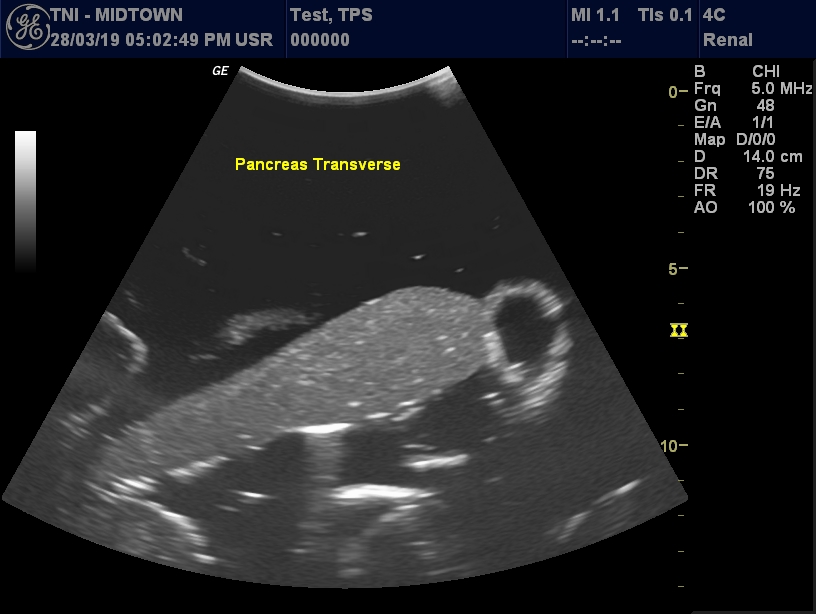

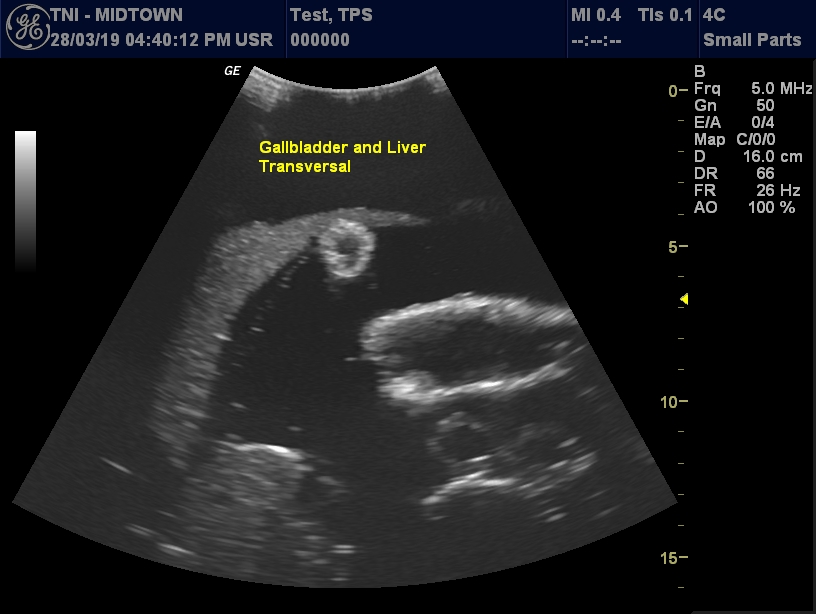

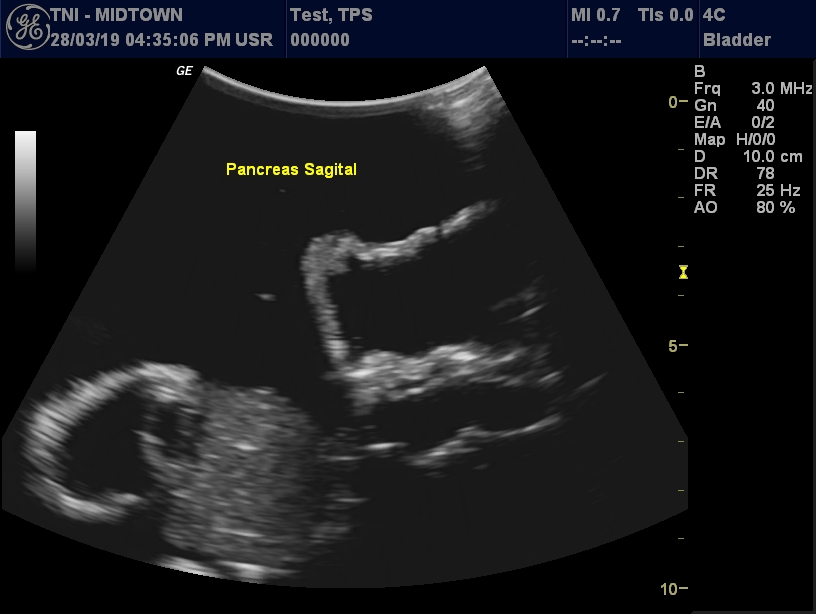

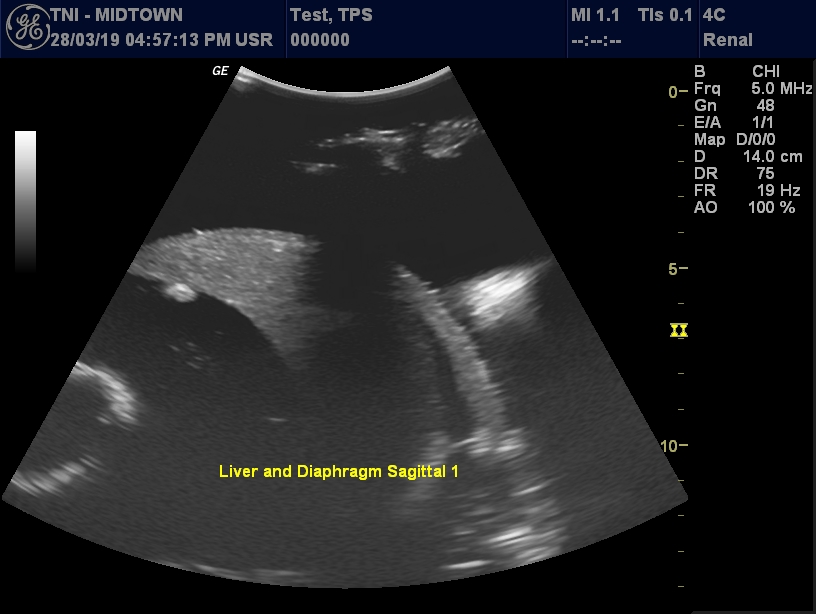

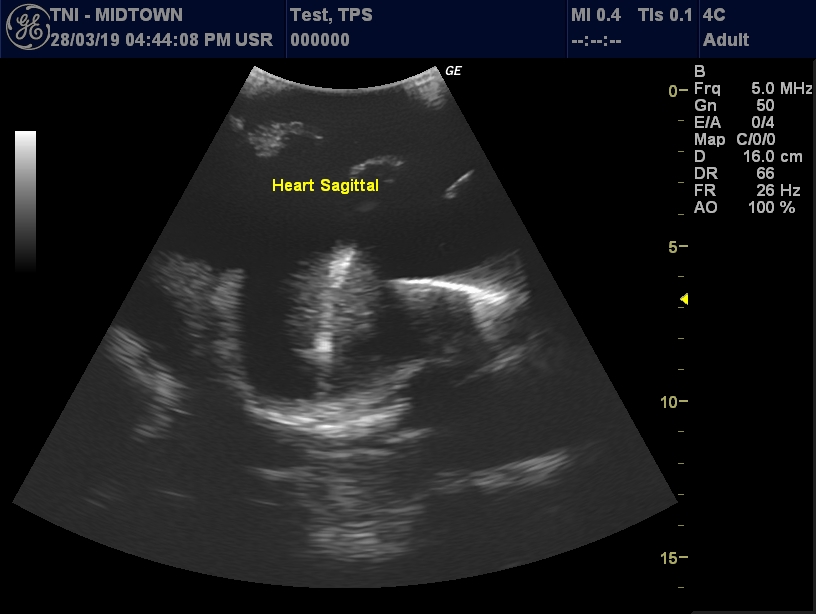

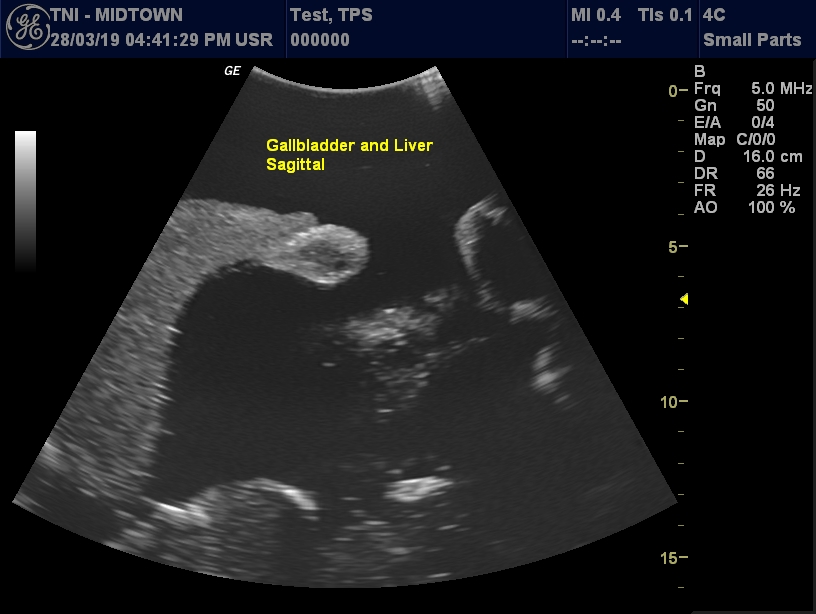

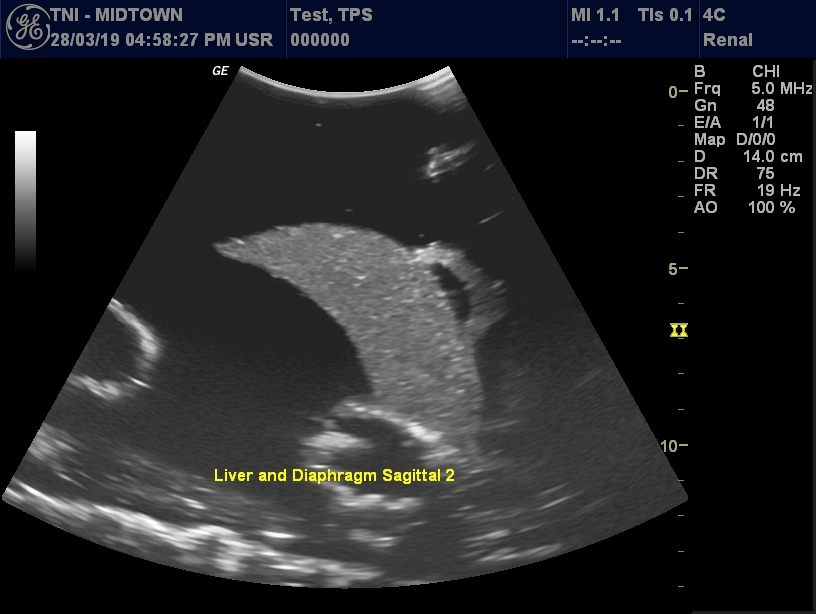

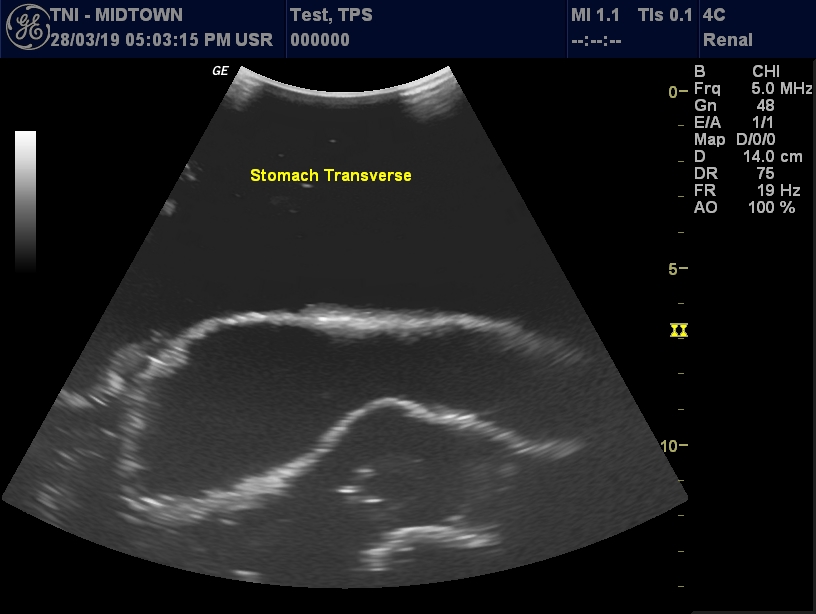

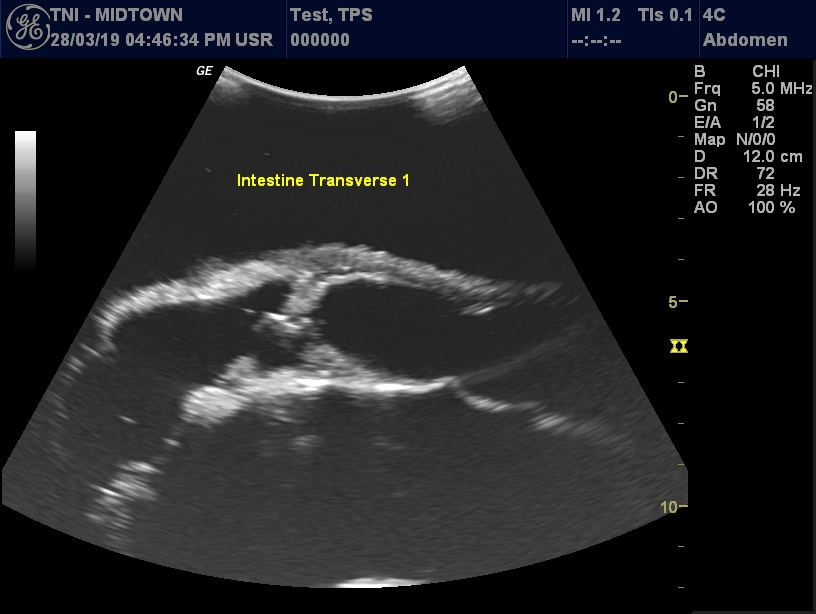

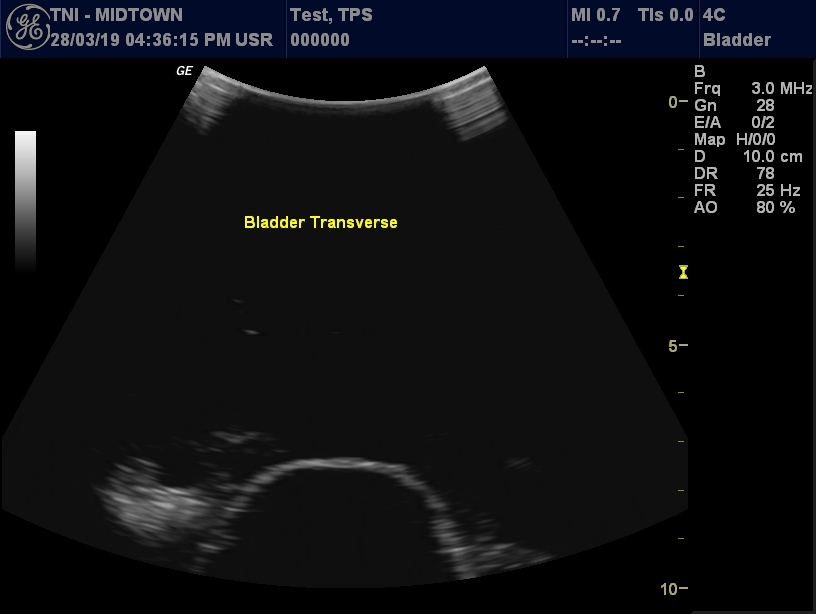

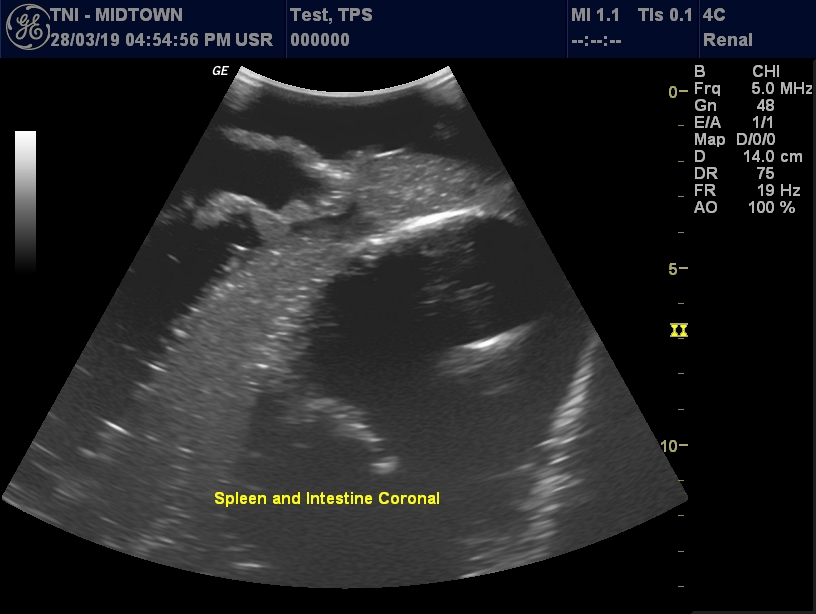

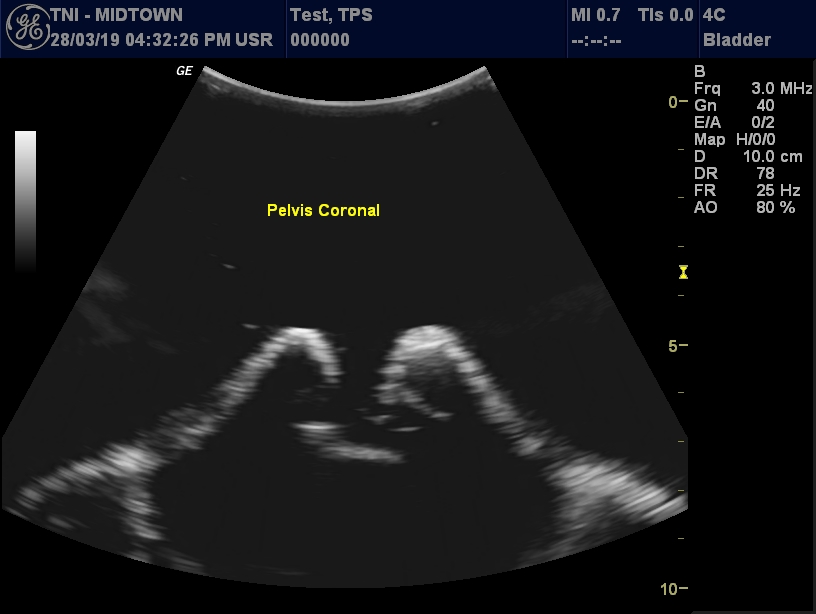

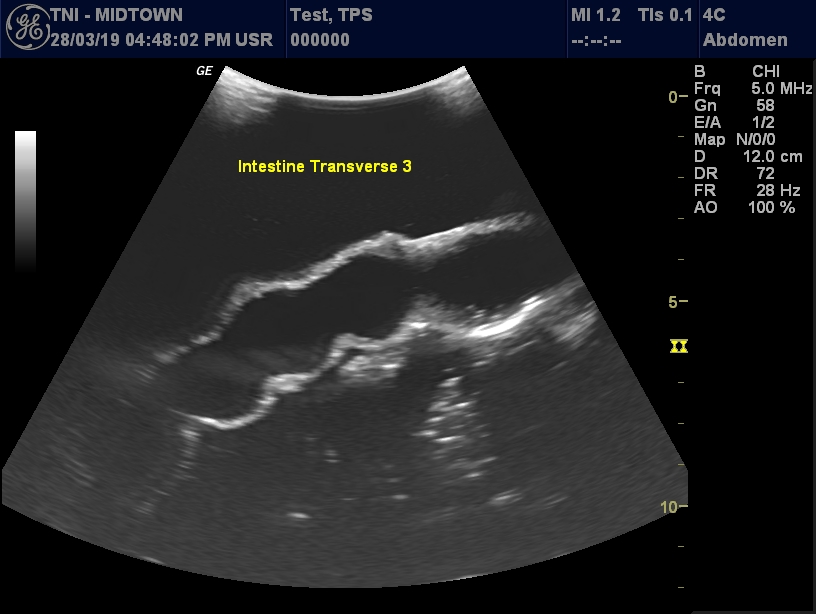

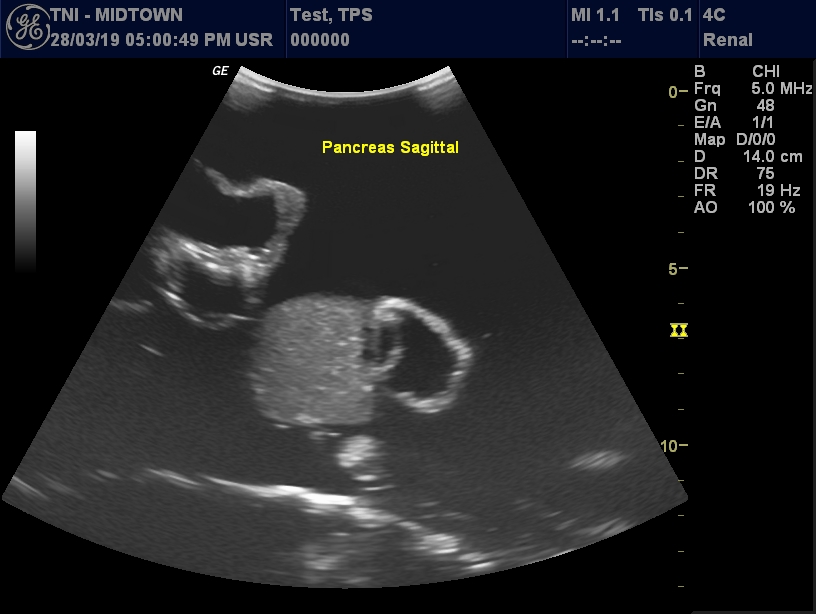

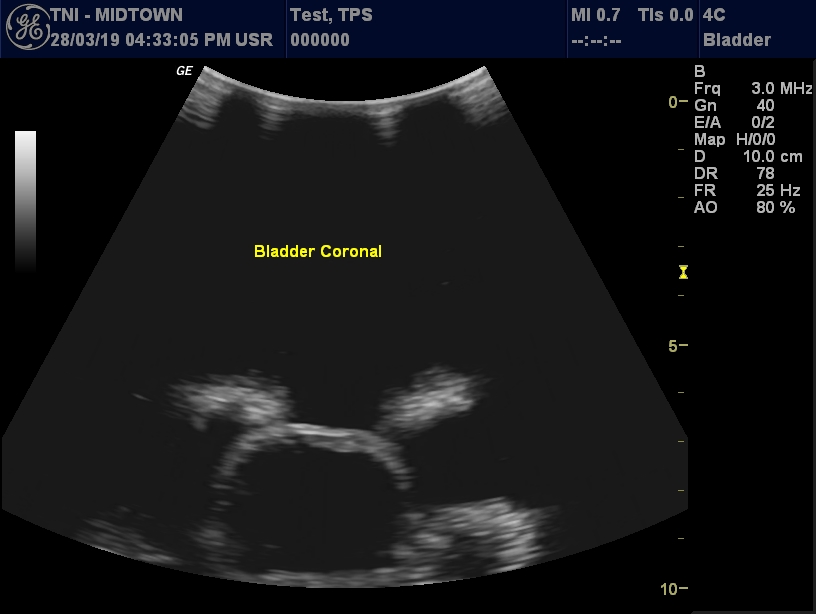

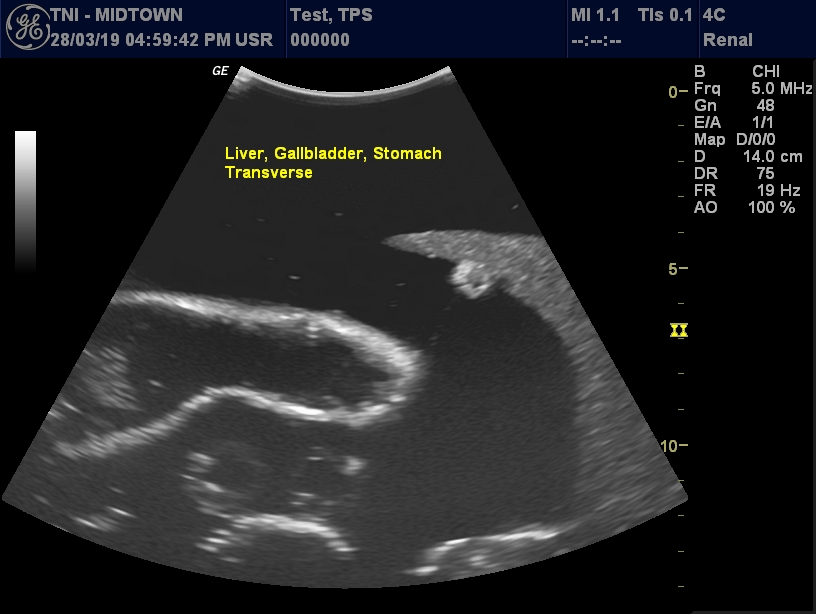

Ultrasound Scans
- Ribcage
- Pancreas
- Rotatable Shoulders
- Shoulders and Clavicles
- Large and Small Intestines
- Movable Hip, Knee, and El-
- Pelvis
- Bladder
- Trachea
- Prostate
- bow Joints
- Heart
- Humerus
- Adult Full Body (10 Parts)
- Lungs
- Elbow Joints
- Diaphragm
- Radius and Ulna
- Skull
- Liver
- Wrist with Fingers
- Brain (with tissue)
- Gallbladder
- Femur
- Grey and White Matter
- Stomach
- Knee Joints
- Air Cavities
- Kidneys
- Tibia
- Frontal Sinus with Air Gaps
- Spleen
- Fibula
- Spine
| Phantom Size | 69 Inches |
| Phantom Weight | 154 Lbs (approx.) |
| Shipment Size | 46 x 36 x 17 Inches |
| Shipment Weight | 199 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue (Optional) | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Anatomy | Skull | Ribs/ Chest | T Spine | C spine | L Spine | Abdomen | Pelvis | Femur | Tib/Fib | Knee | Foot | Scap Y | Humerus | Hand/ Wrist | ||||||
| Projection | AP | LAT | AP/ PA | AP | LAT | AP | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | AP | PA/ Oblique | LAT | AP/ Oblique | LAT |
| E.I. | 375 | 286 | 412 | 412 | 782 | 165 | 448 | 862 | 862 | 650 | 584 | 892 | 551 | 342 | 690 | 293 | 631 | 257 | 556 | 155 |
| D.I. | -0.2 | -1.4 | 0.6 | 0.6 | 2.6 | -3.8 | 1 | 2.4 | 2.4 | 1.8 | 1.7 | 3.6 | 0.4 | -1.6 | 1.4 | -2.3 | 1 | -2.9 | 0.5 | -3.6 |
| kVp | 85 | 75 | 80 | 80 | 85 | 75 | 88 | 90 | 85 | 85 | 80 | 80 | 74 | 74 | 75 | 80 | 58 | 80 | 64 | 84 |
| mAs | 20 | 8 | 5 | 20 | 56 | 6.3 | 45 | 63 | 25 | 25 | 16 | 14 | 2.5 | 2.5 | 5.6 | 8 | 2 | 5.6 | 2 | 10 |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Brain Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
