X-Ray, CT, US, MRI Phantoms
Adult Pelvis with Organs for X-Ray CT, US
$9,900 USD
The Adult Pelvis with Organs phantom is designed around the average adult male anatomy. It features soft tissue-mimicking materials and synthetic bones suitable for X-Ray/CT and US. It serves as a tool for medical imaging research, radiology training, testing, and calibration.
Pelvis with Organs Model: Standard (X-Ray·CT·US)
Standard (X-Ray·CT·MRI)
Standard (X-Ray·CT·US)
This product can be customized based on your requirements — contact us.
The Adult Pelvis with Organs phantom is designed around the average adult male anatomy. It features soft tissuemimicking materials and synthetic bones suitable for X-Ray/CT and US. It serves as a tool for medical imaging research, radiology training, testing, and calibration. The spine bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom can also be customized in size and shape (i.e., based on any individual's CT scan).

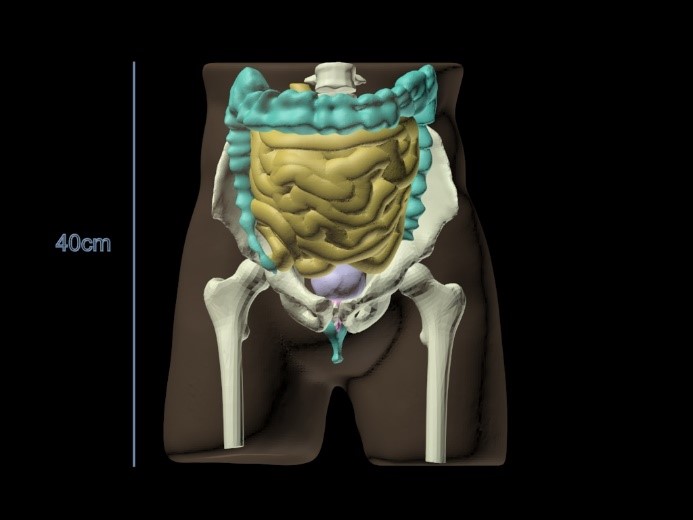

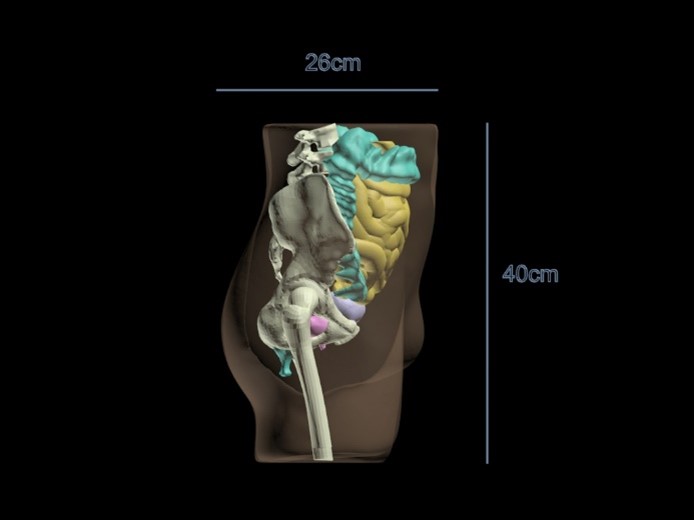

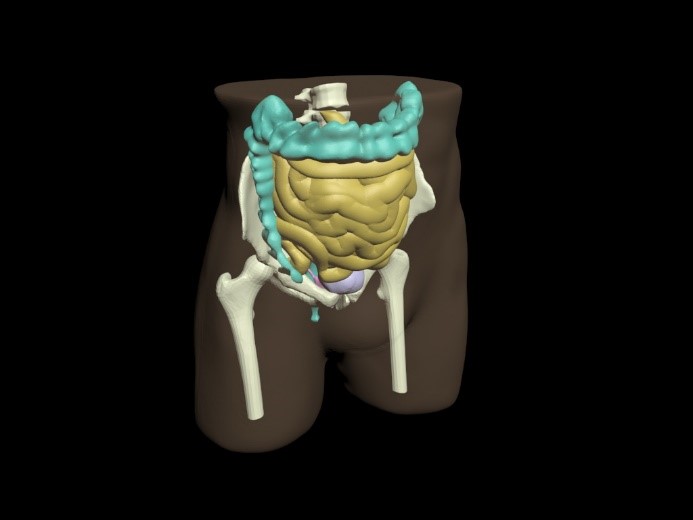

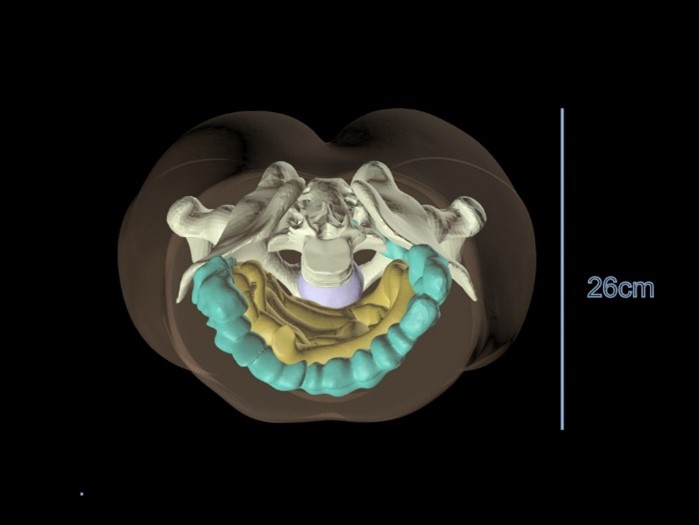

Design

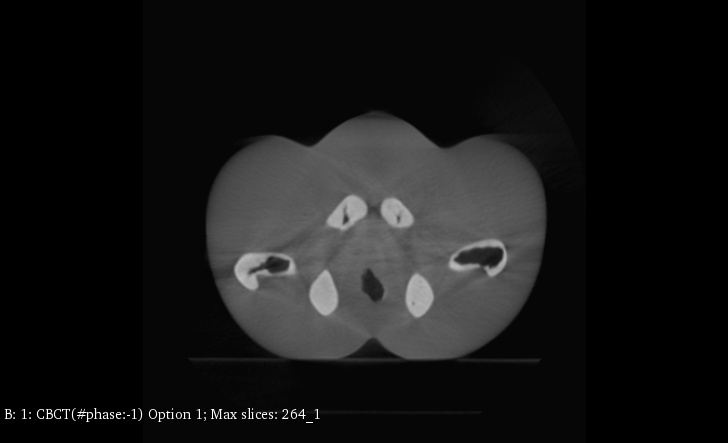

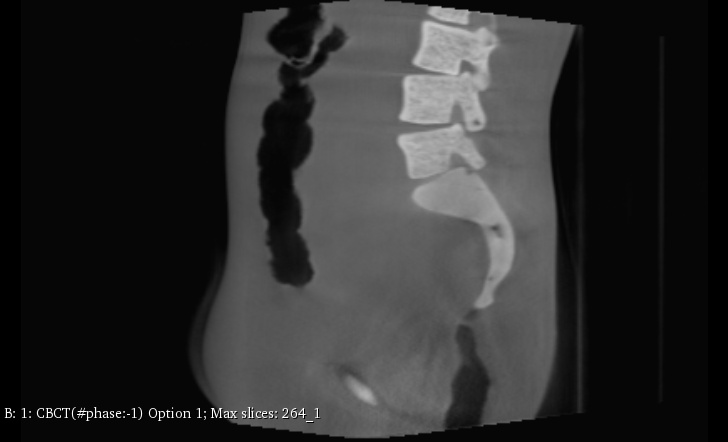

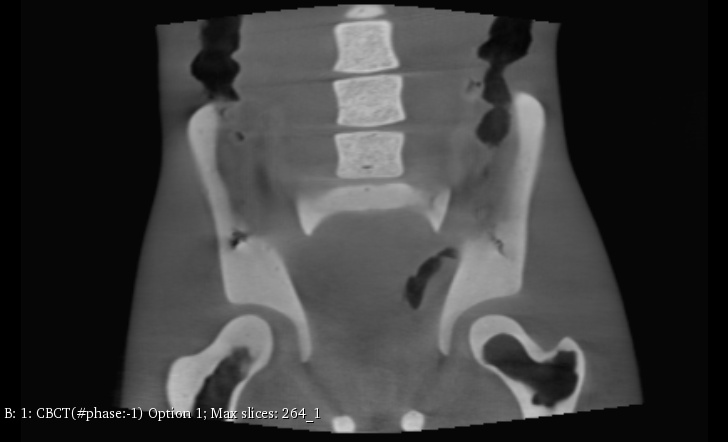

CT Scans

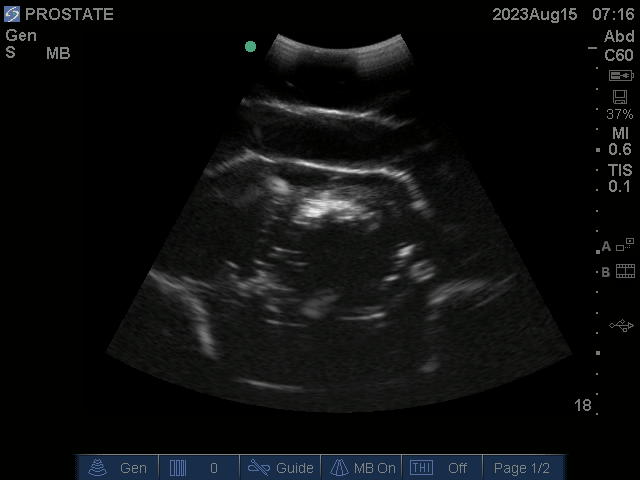

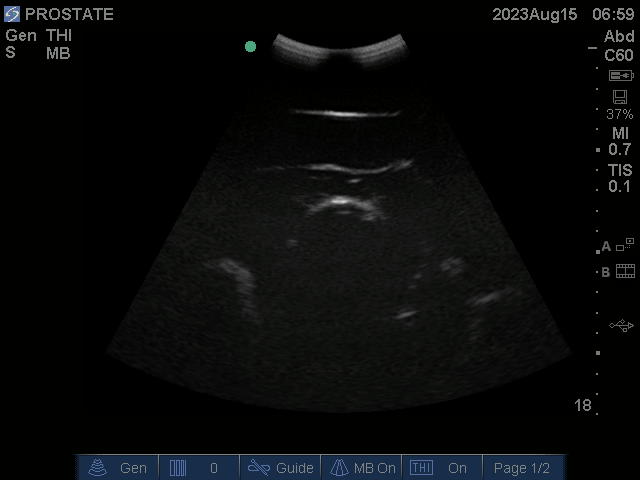

Ultrasound Scans
- Spine from L5 to L2
- Pelvis Bone
- Partial Left and Right Femoral Bones
- Large Intestine
- Rectum
| Phantom Size | 14 x 10 x 16 Inches |
| Phantom Weight | 48.5 Lbs (approx.) |
| Shipment Size | 36 x 24 x 12 Inches |
| Shipment Weight | 88.2 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Soft Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Bladder | 35 |
| 5 | Rectum Wall | 100 |
| 6 | Sigmoid Colon Wall | 100 |
