X-Ray, CT, US, MRI Phantoms
Adult Sectional Abdomen (Portable FAST Simulator) for X-Ray CT, US
$9,340 USD

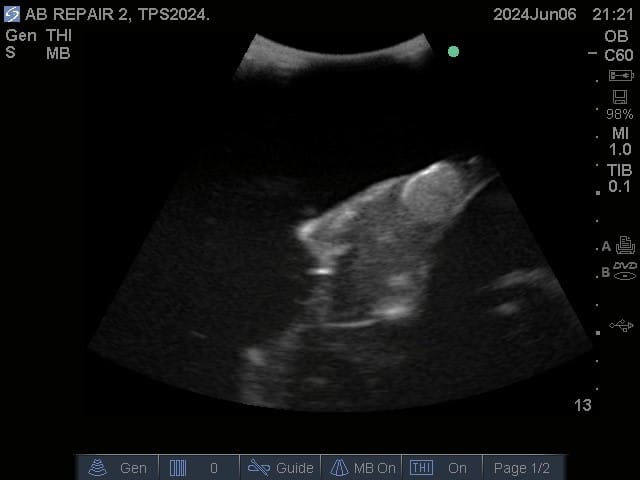

The Adult Sectional Abdomen is a versatile phantom for X-Ray/CT and Ultrasound training (FAST protocols). It includes abdominal anatomy with 13 lesions of size 1-2 cm at different depth and location near liver and kidney. The product can be further customized with various pathologies for specific training purposes. It is amber translucent in appearance by default, but a skin-colored version is also available. Ideal for ultrasound technicians and medical students.
This product can be customized based on your requirements — contact us.

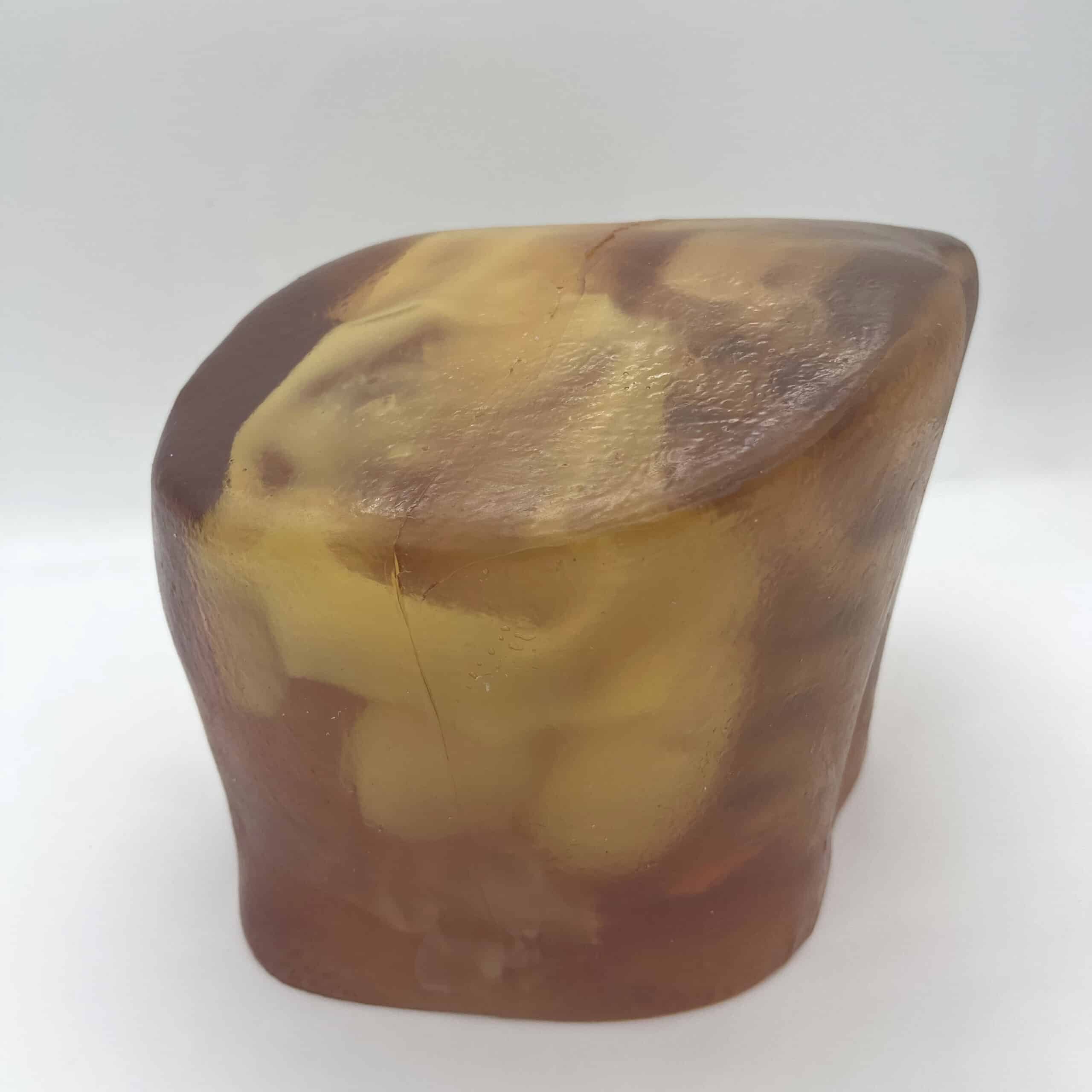

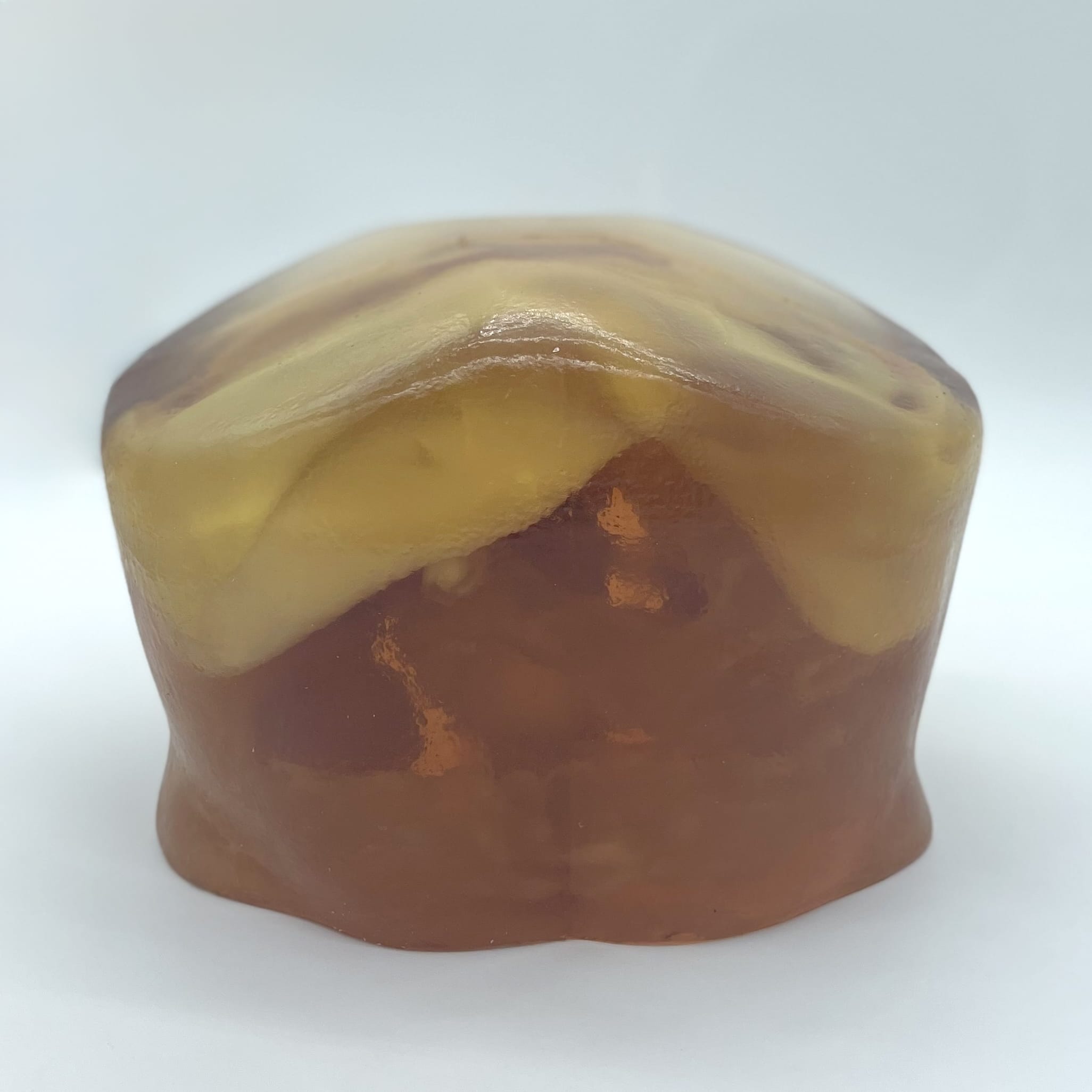

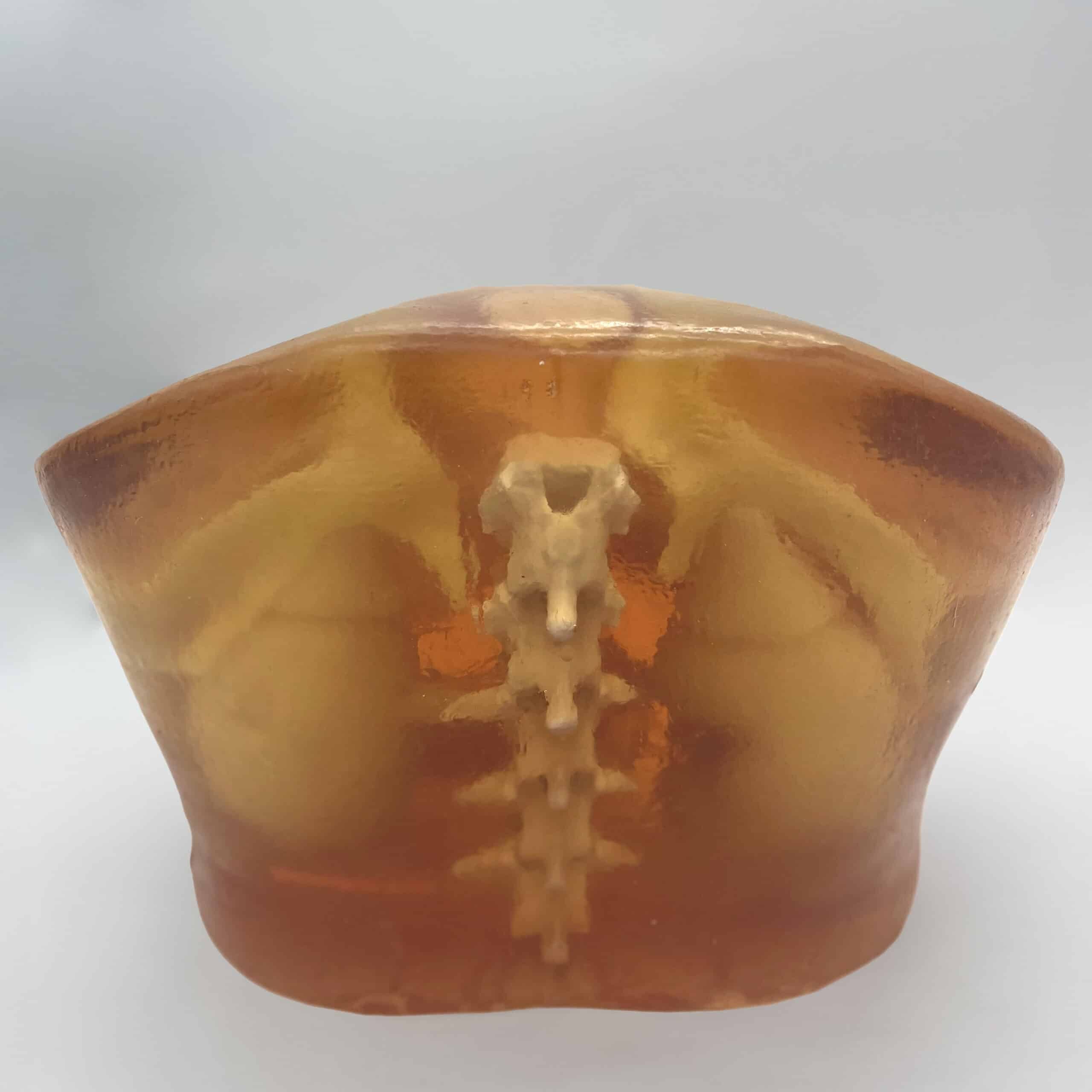

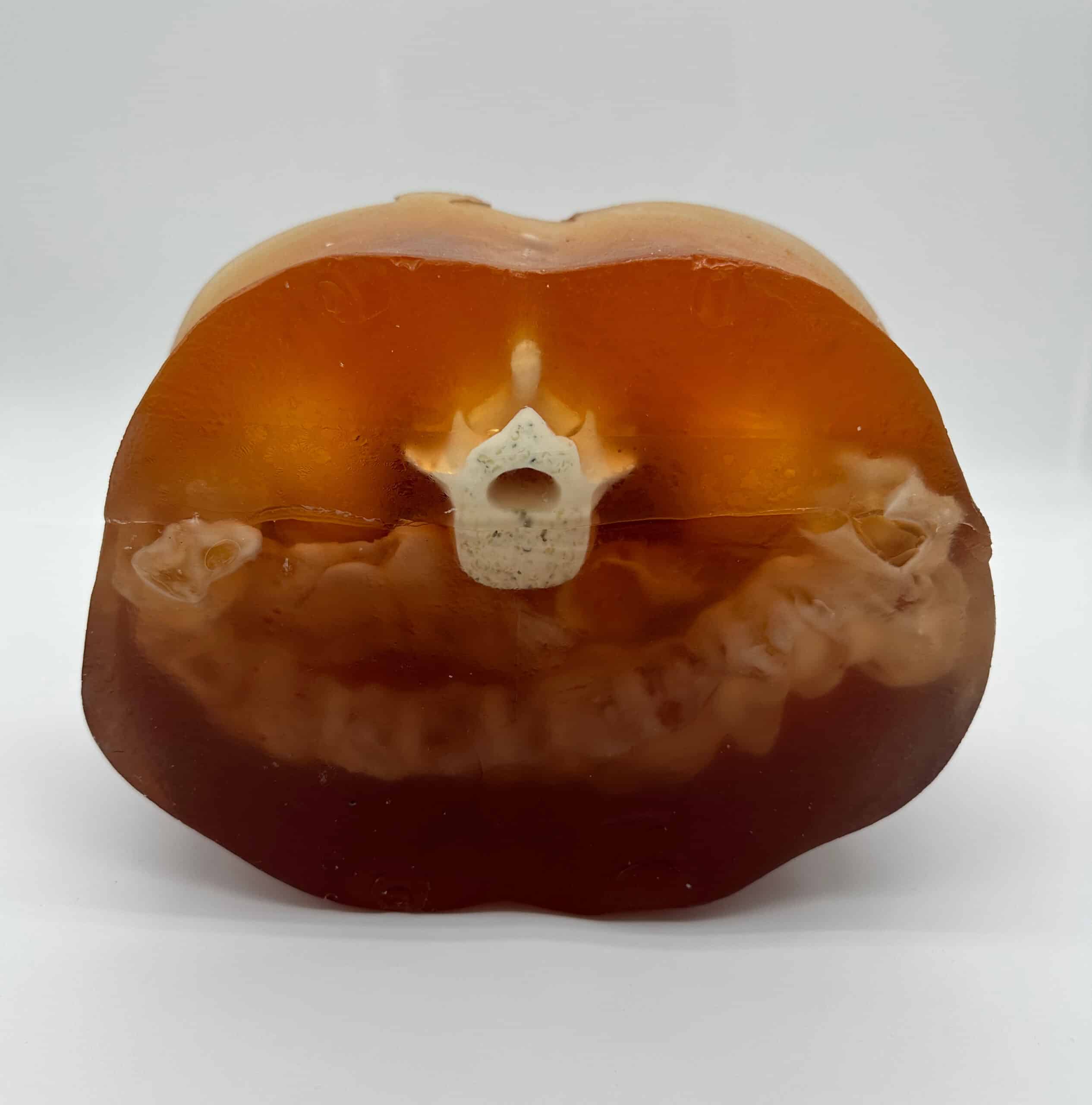

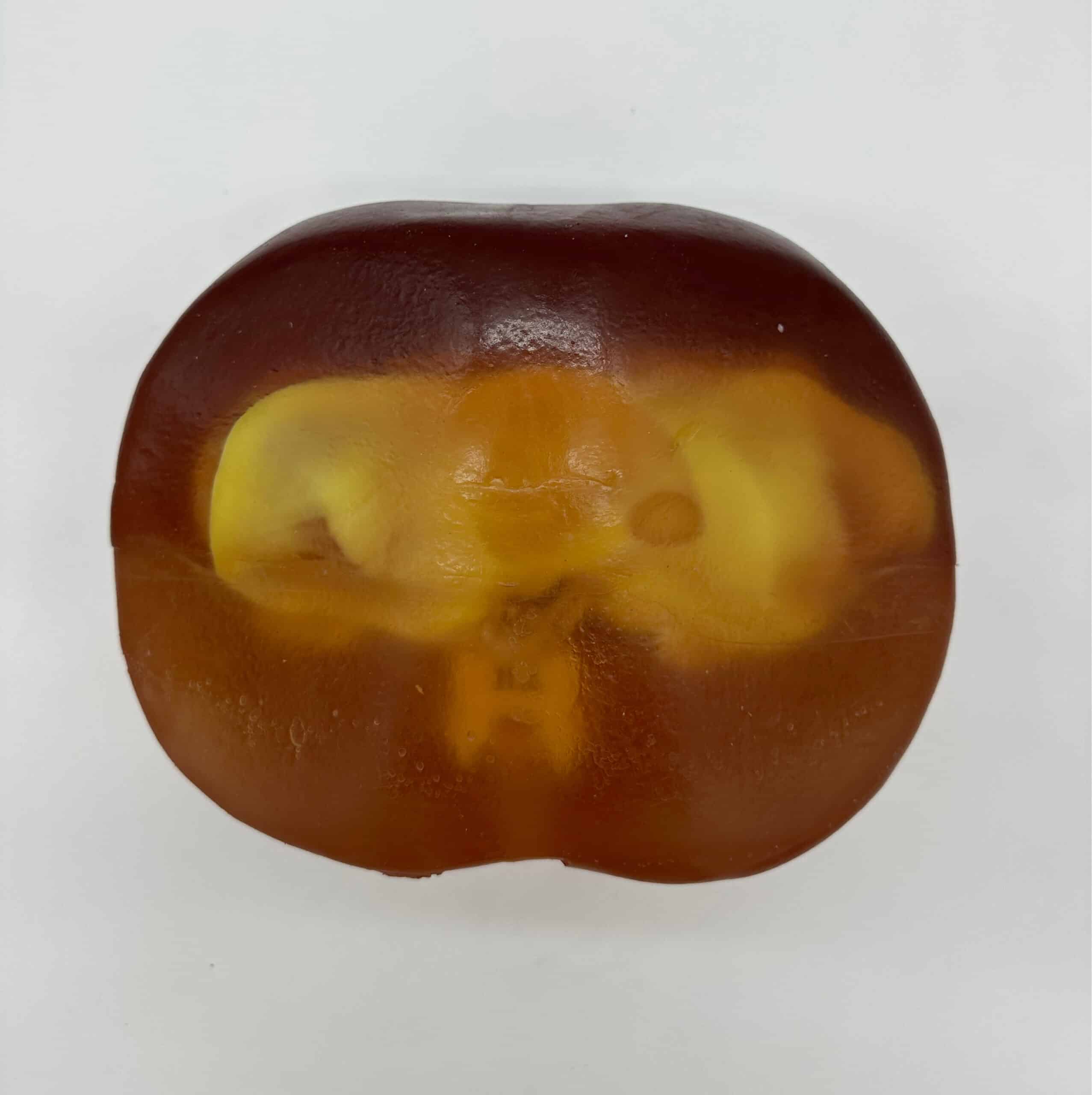

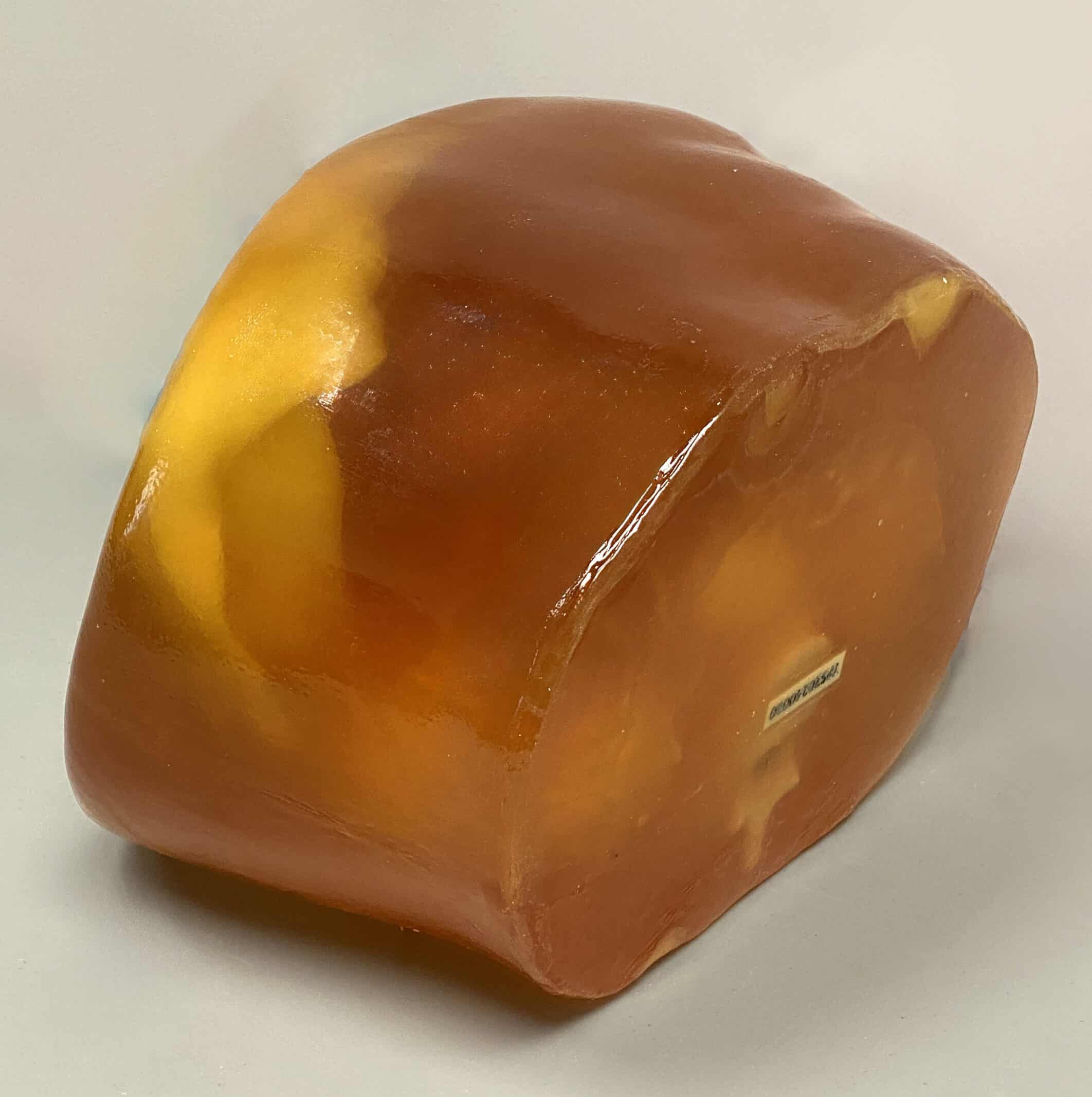

Adult Sectional Abdomen for X-Ray CT, US is designed based on an average anatomy of an adult healthy human male. It is compatible with X-Ray/CT and Ultrasound. The bones are made from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity. This product is a translucent amber version (opaque, skin-colored version available upon request). An ideal phantom for training ultrasound technicians and other medical students.

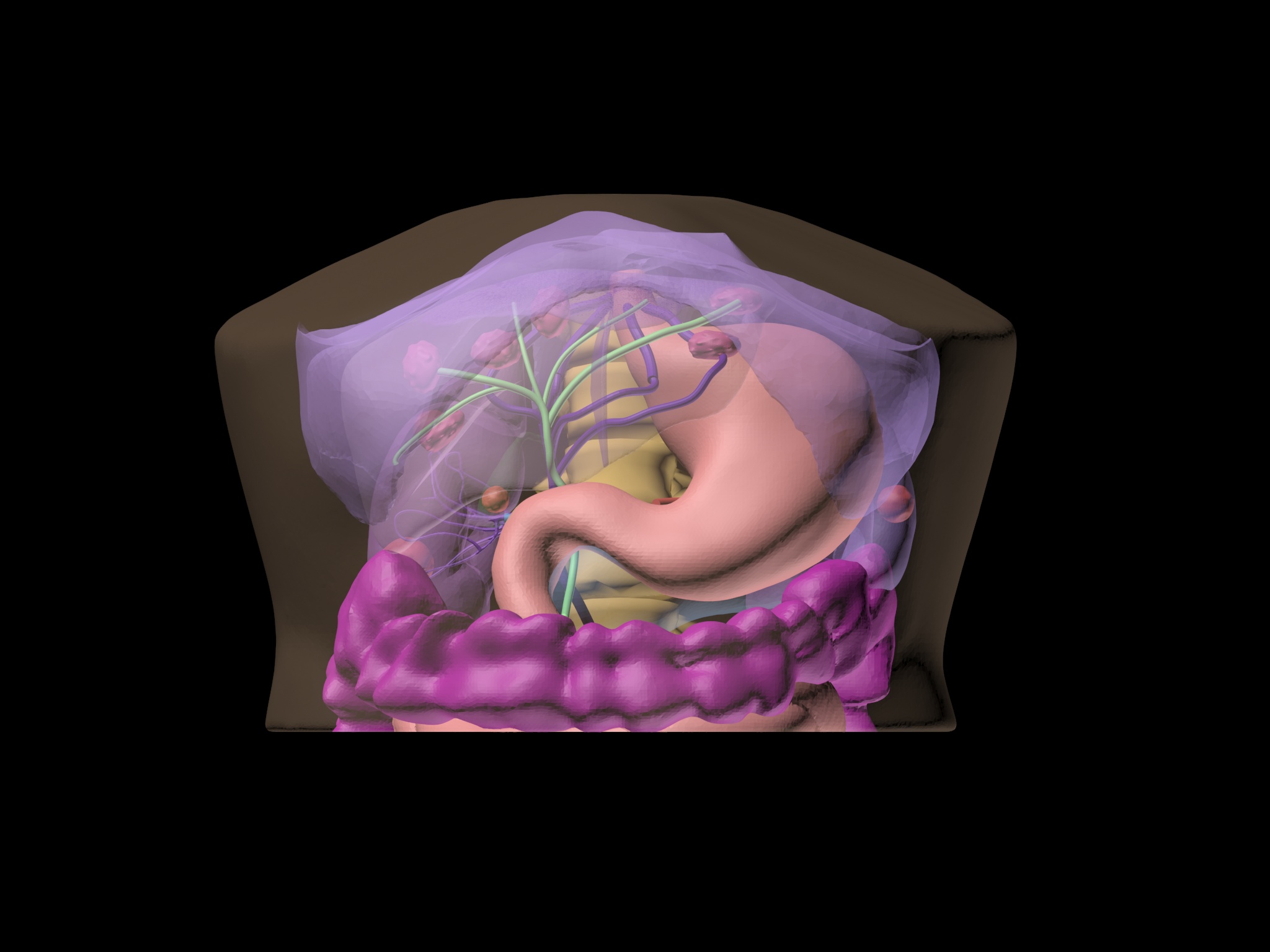

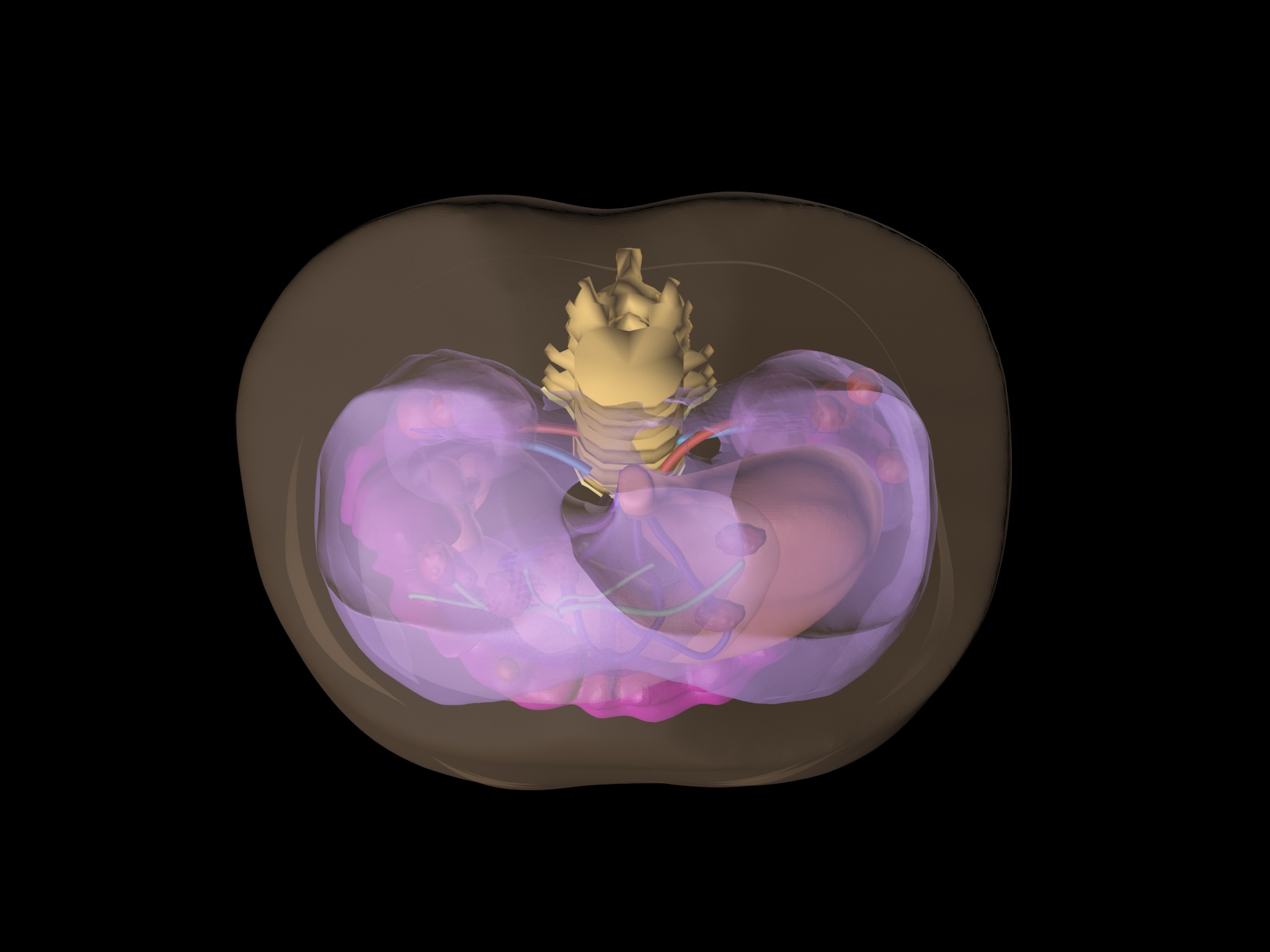

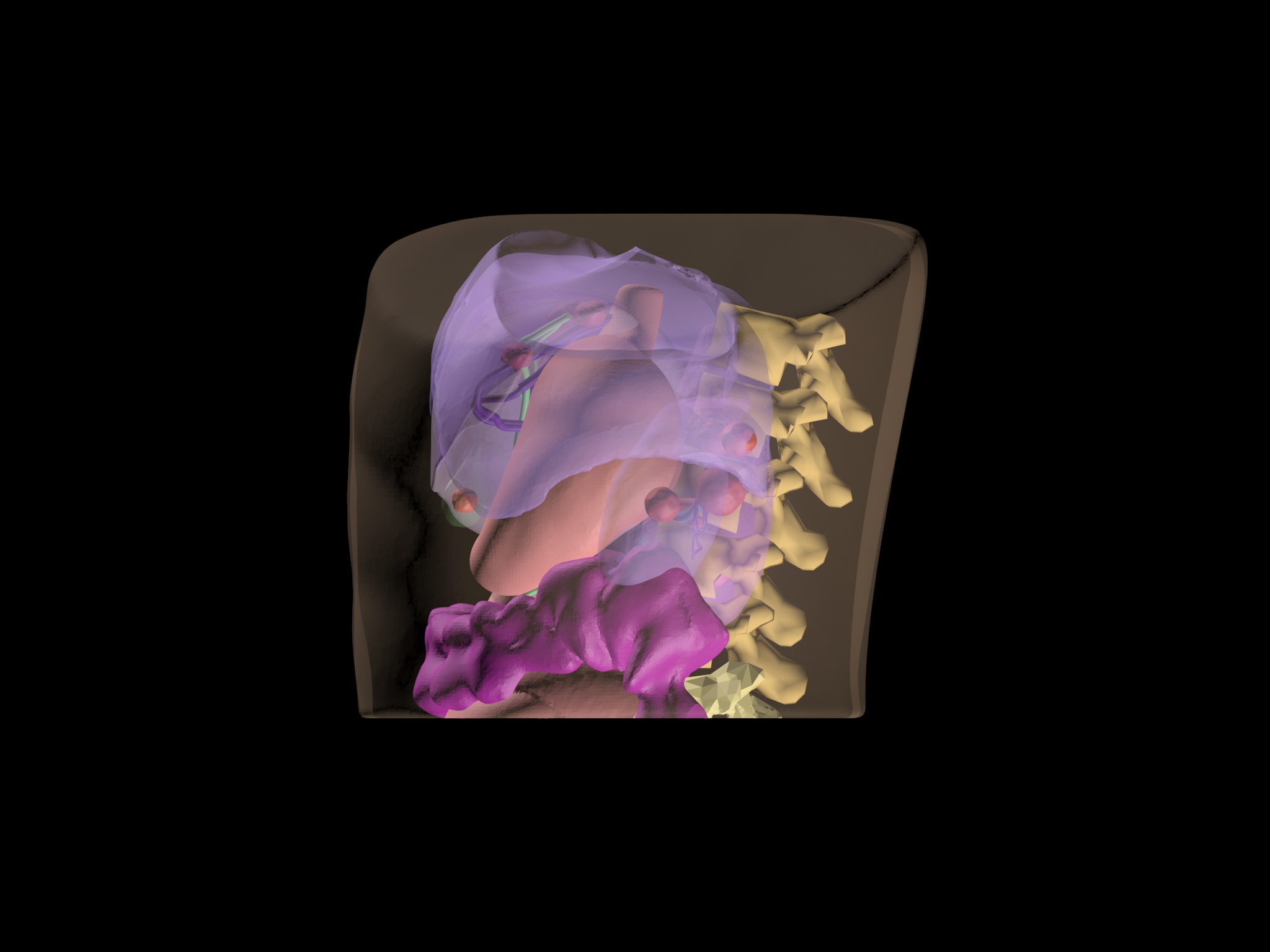

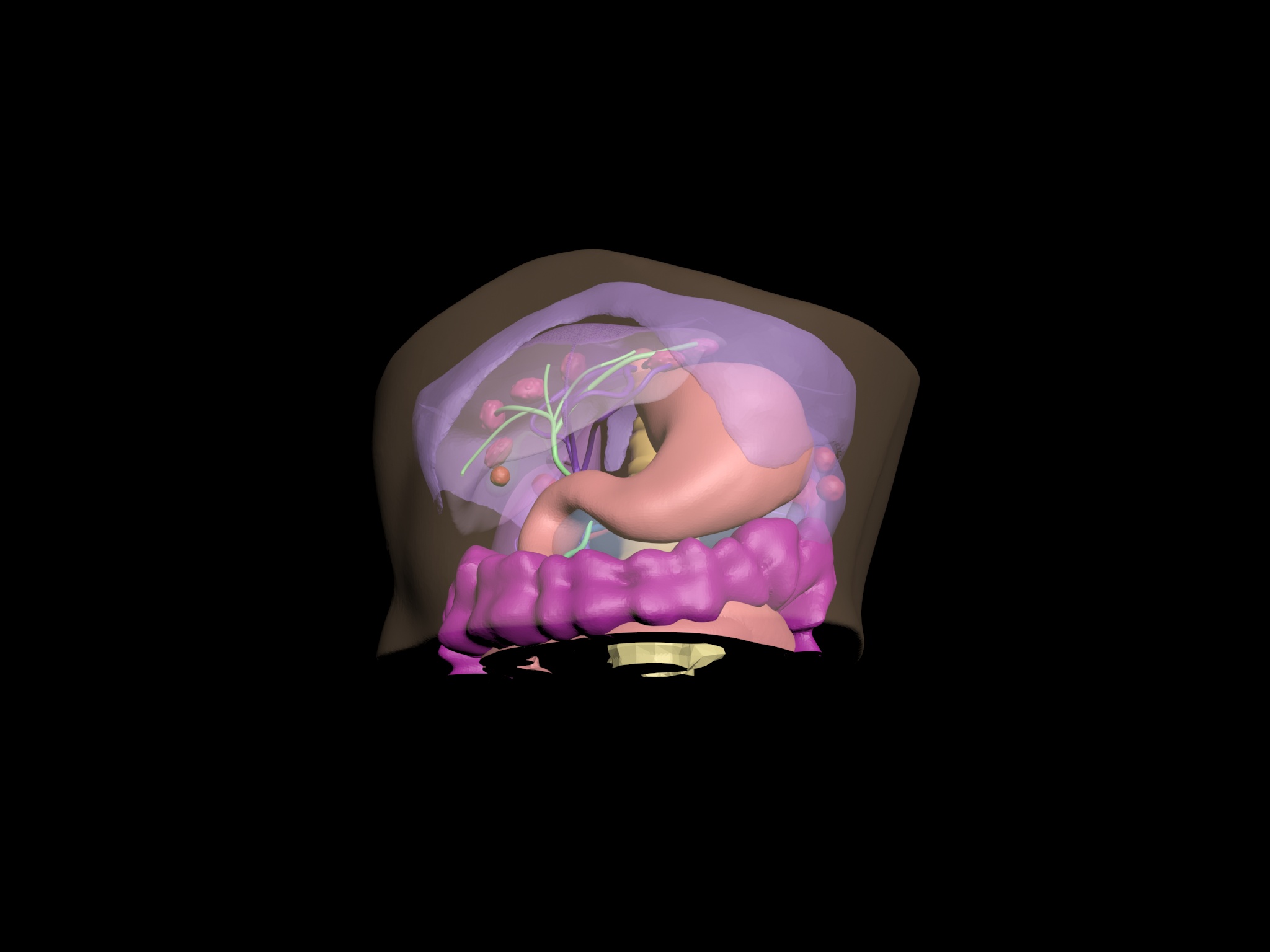

Design

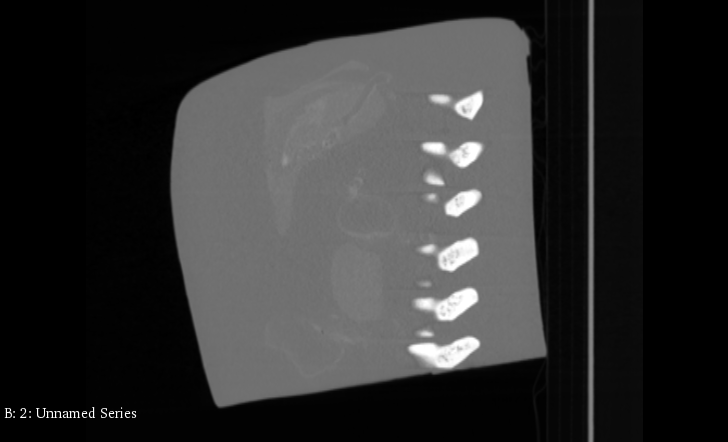

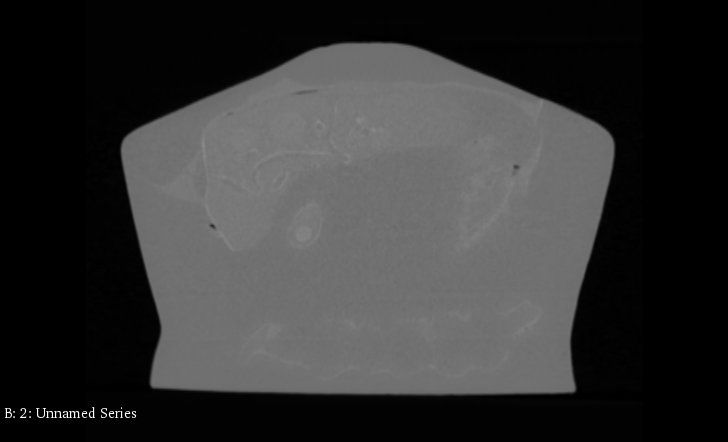

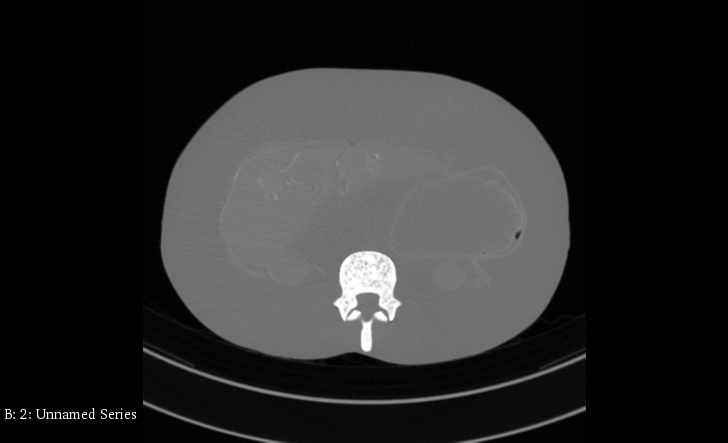

CT Scans
- 1-2 cm in diameter
- Partial Spine
- Spherical and non-spherical
- Diaphragm
- Located in kidney and liver
- Liver (with vessels and bile duct)
- Stomach
- Soft Body Tissue
- Kidneys (with vessels)
- Pancreas
- 9 Lesions
| Phantom Size | 11 x 9 x 8 Inches |
| Phantom Weight | 22 Lbs (approx.) |
| Shipment Size | 32 x 23 x 13 Inches |
| Shipment Weight | 30 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Lesion Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Pancreas | 110 |
| 5 | Spleen | 110 |
| 6 | Kidneys | 110 |
| 7 | Bladder | 35 |
| 8 | Liver | 110 |
| Lead Time | 6-12 weeks |
