X-Ray, CT, MRI Phantoms
Adult Torso (Dynamic) for X-Ray CT, MRI
$45,200 USD

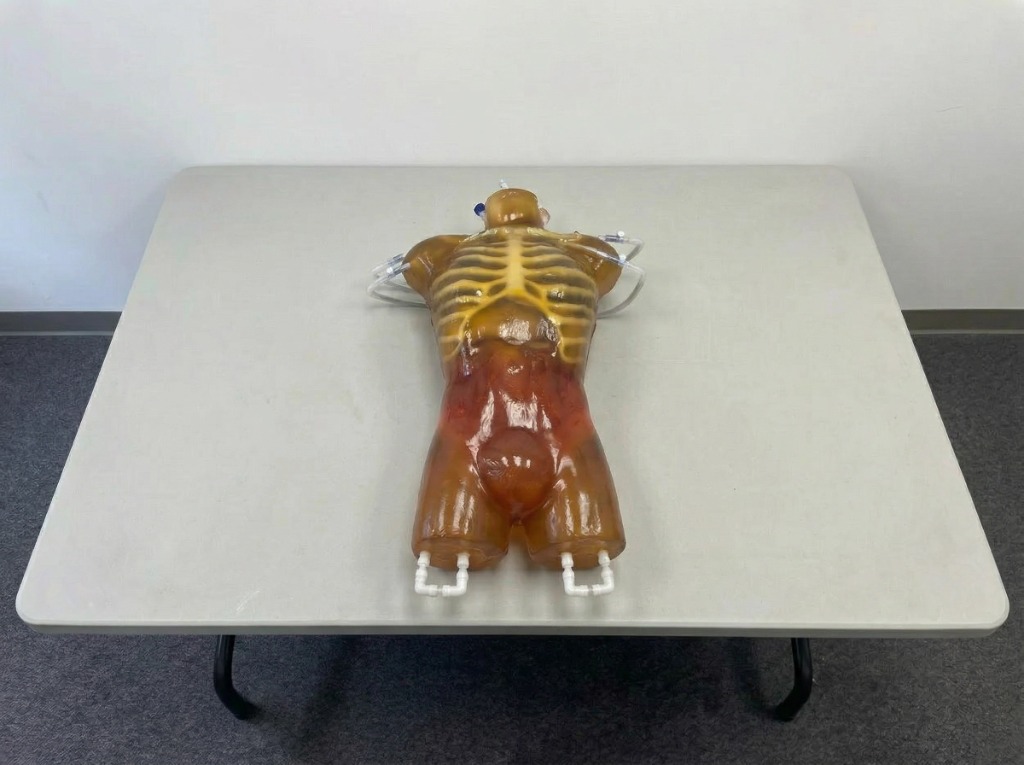

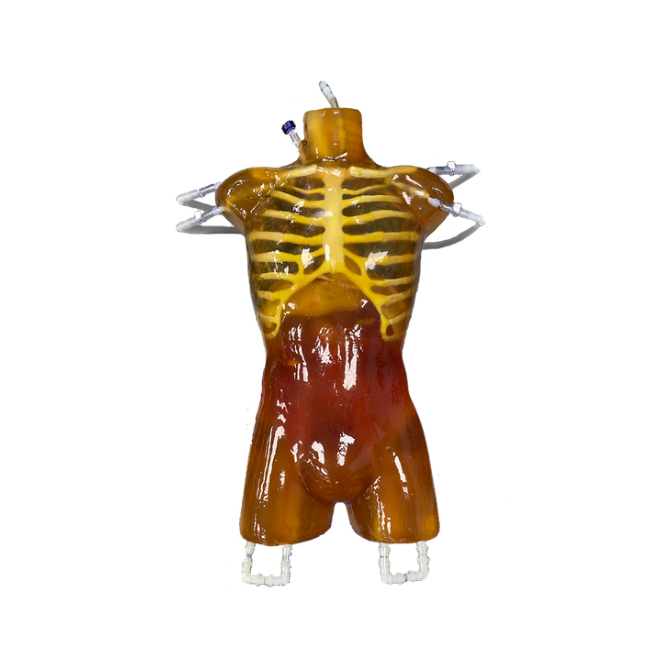

The Adult Torso (Dynamic) phantom is a lifelike simulator compatible with MRI and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with a TPS heart pump and breathable lungs with a TPS lung pump.
Torso Model: Dynamic (X-Ray·CT·MRI)
This product can be customized based on your requirements — contact us.
The Adult Human Torso (Dynamic) phantom is a lifelike simulator compatible with MRI and X-Ray/CT. The phantom includes a realistic heart with a TPS heart pump and breathable lungs with a TPS lung pump.

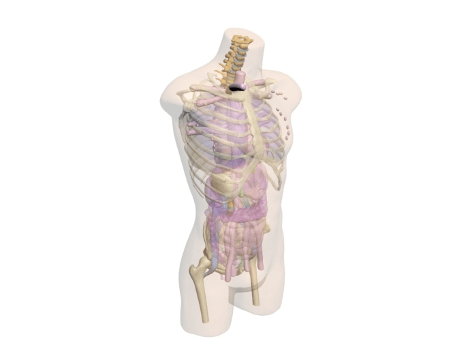

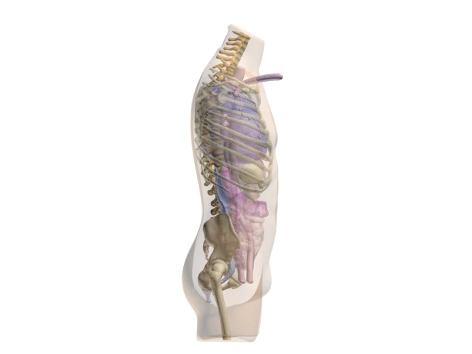

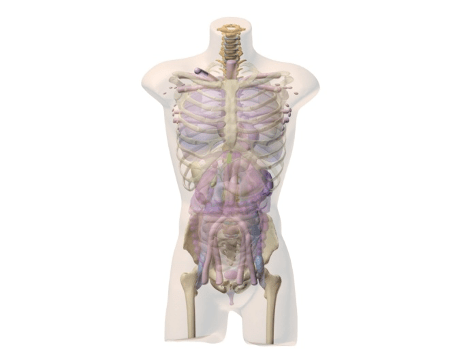

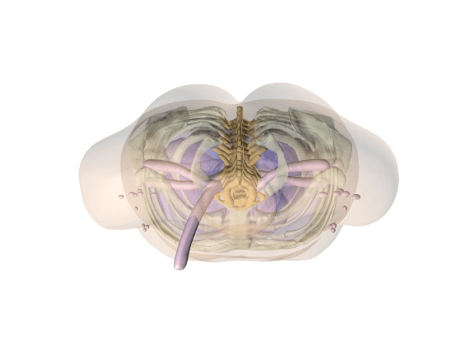

Design

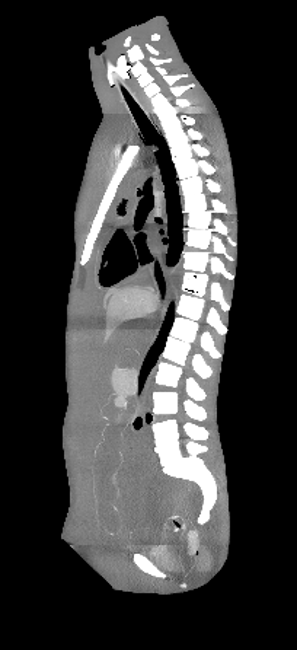

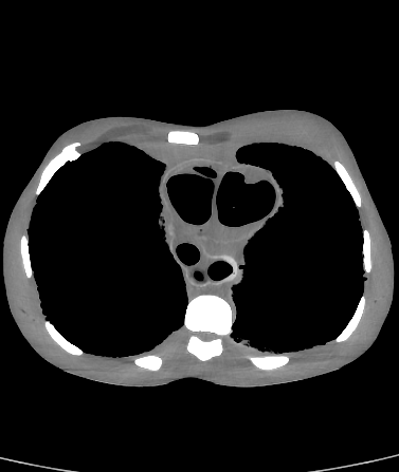

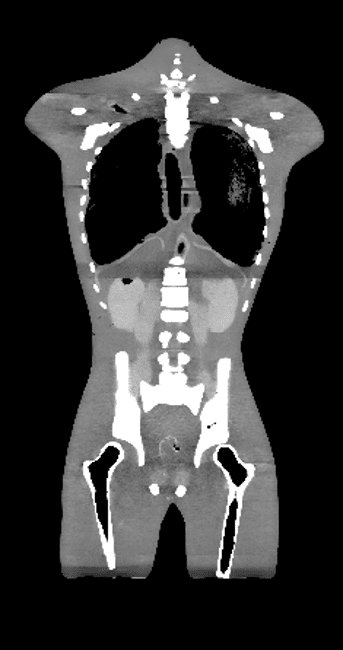

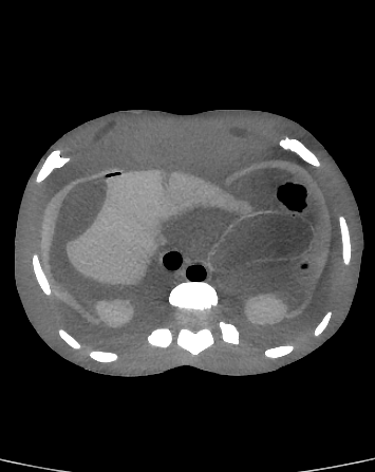

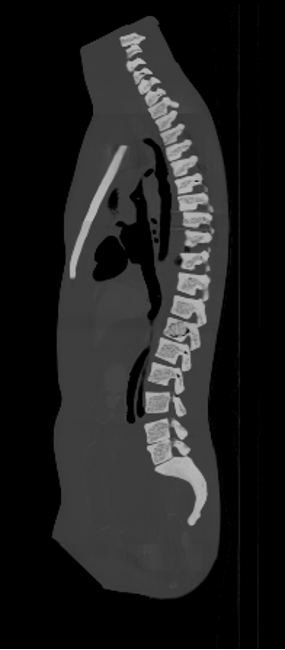

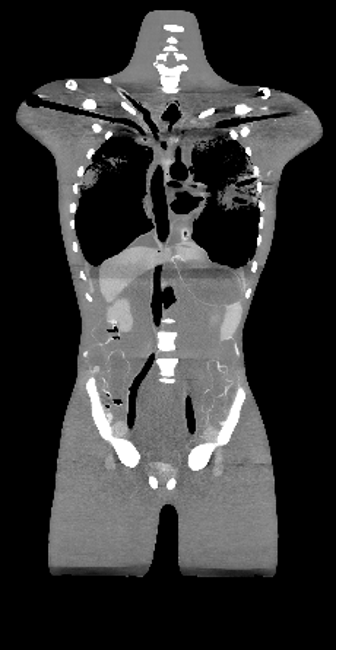

CT Scans

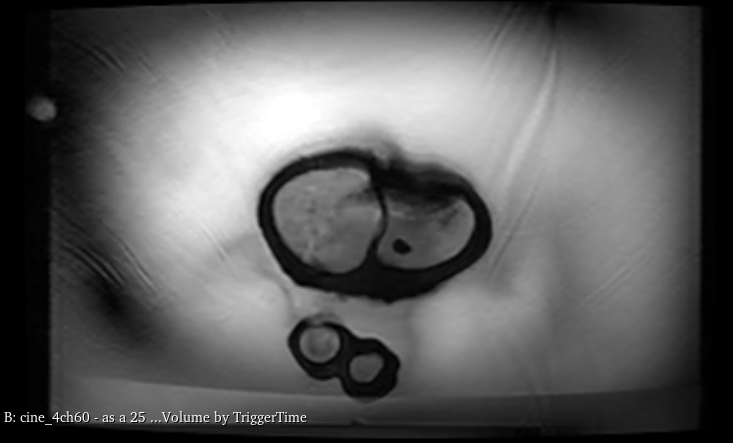

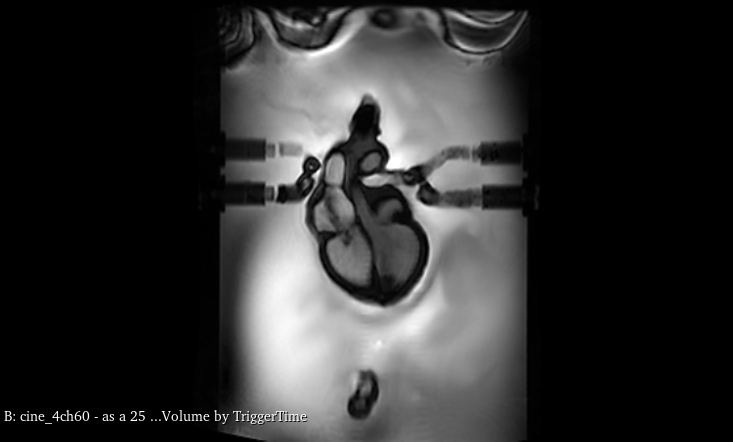

MRI Scans
- Left Atrium
- Gallbladder
- Complete Spine
- Appendage Feature
- Stomach
- Complete Ribcage
- Aorta
- Kidneys
- Shoulders and Clavicles
- Jugular vessels
- Spleen
- Pelvis
- Pulmonic and Pulmonary
- Pancreas
- Partial Femoral Bones
- Large and Small Intestines
- Trachea
- Veins Flexible Valvular Struc-
- Bladder
- Realistic Heart with:
- tures
- Prostate
- Beating Heart
- 2 Atria, 2 Ventricles:
- SVC
- Adjustable Heart Rate
- Right Ventricle
- IVC
- Left Ventricle
- Breathable Lungs
- Right Atrium
- Diaphragm
- Liver
| Phantom Size | 34 x 18 x 10 Inches |
| Phantom Weight | 88 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 35 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Pancreas | 110 |
| Spleen | 110 |
| Stomach | -850 |
| Tissue Type | HU Value (Average) |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Diaphragm | 80 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Torso Model | Male (Dynamic), Male (Standard), Male (Cardiac), Male (Cardiac/Fast), Male (Skin), Male (FAST) |
| Model | X-Ray CT, US, X-Ray CT, MRI, Ultrasound |
