Ultrasound Phantoms
Adult Torso for FAST Training
$12,900 USD

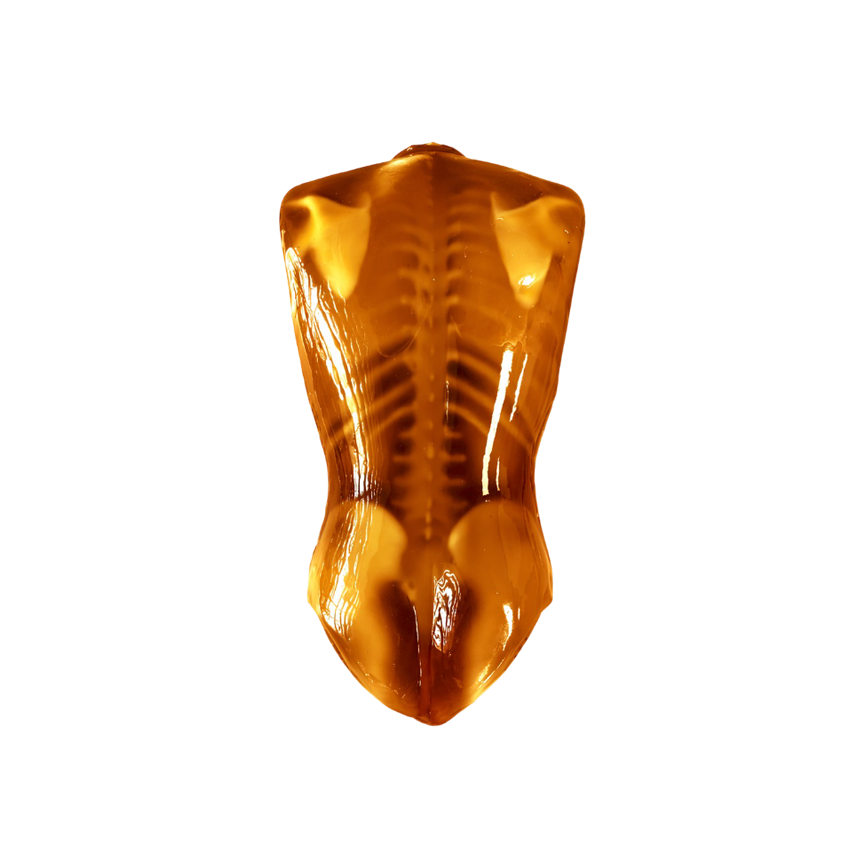

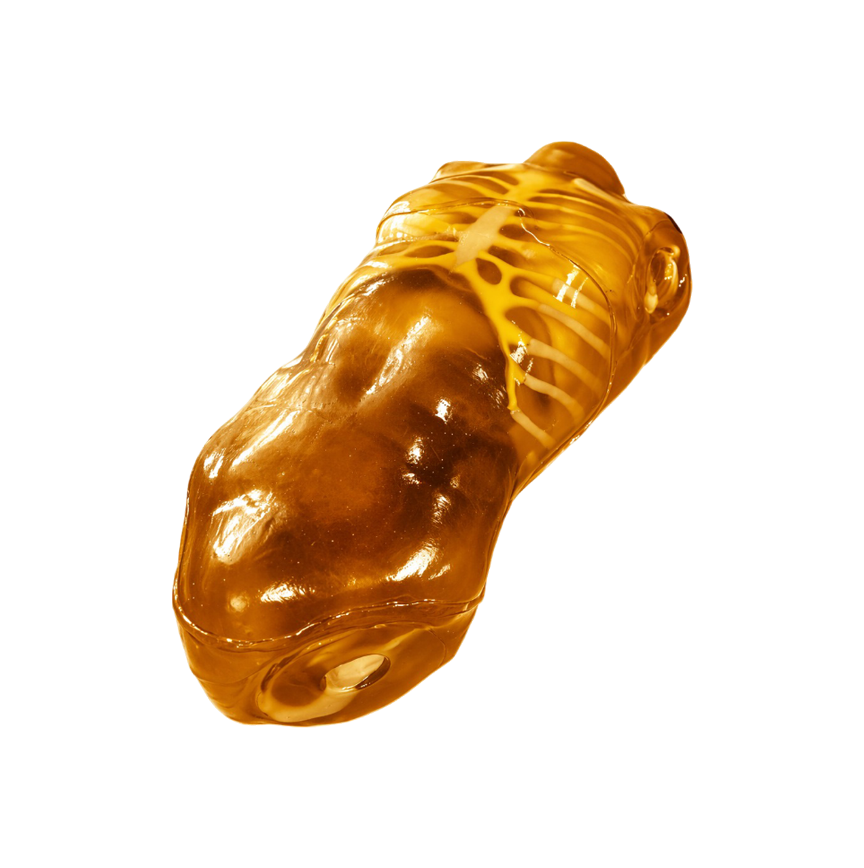

The Adult Male FAST Torso phantom is designed for ultrasound imaging, prioritizing the FAST (Focused Assessment with Sonography in Trauma) protocol. This lifelike model accurately mimics the complexities of the adult torso, offering practitioners a valuable resource to hone their diagnostic abilities.
Torso Model: Standard (FAST)
This product can be customized based on your requirements — contact us.
The Adult FAST Torso phantom, is for ultrasound imaging, with a primary focus on the FAST (Focused Assessment with Sonography in Trauma) protocol.

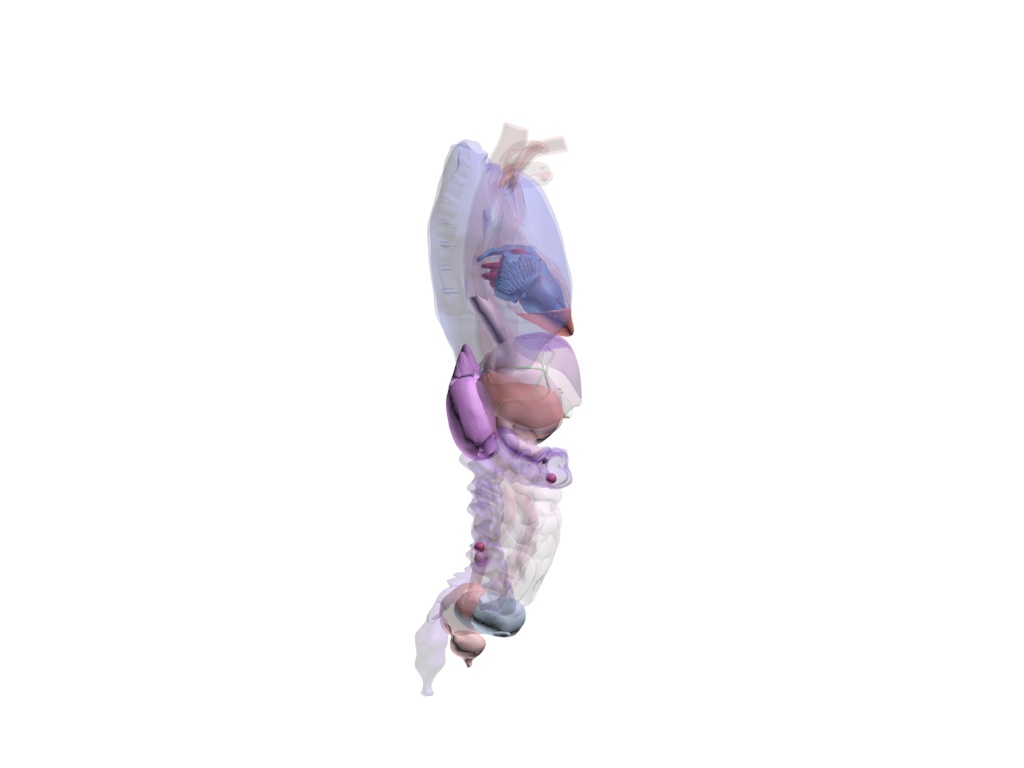

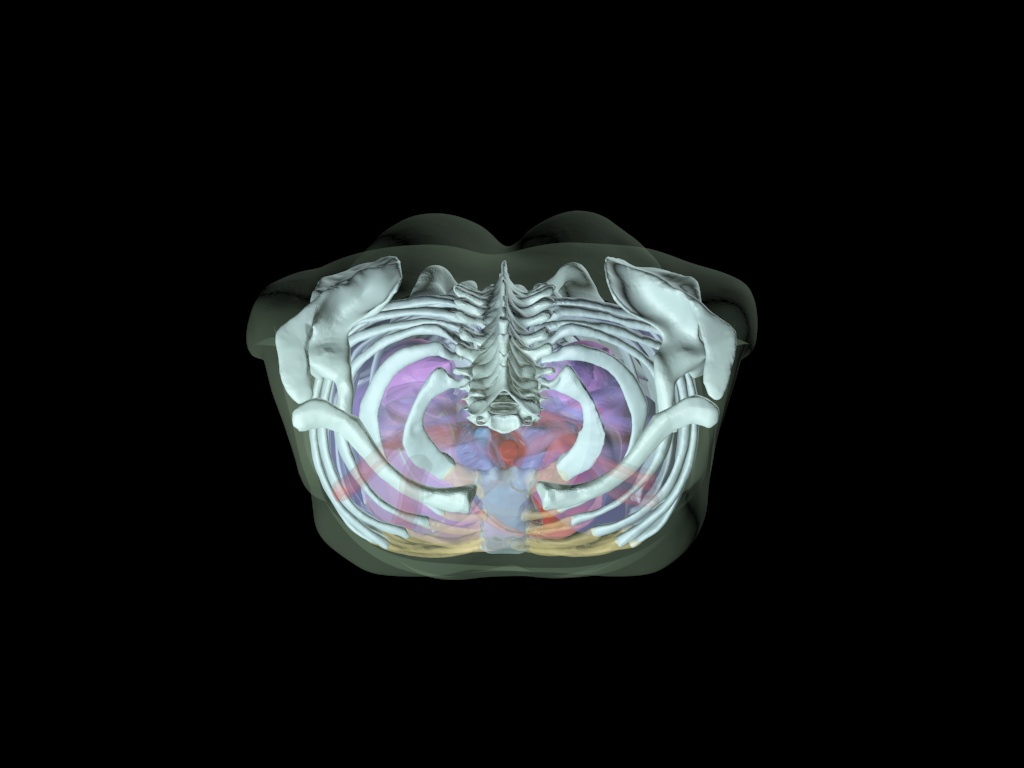

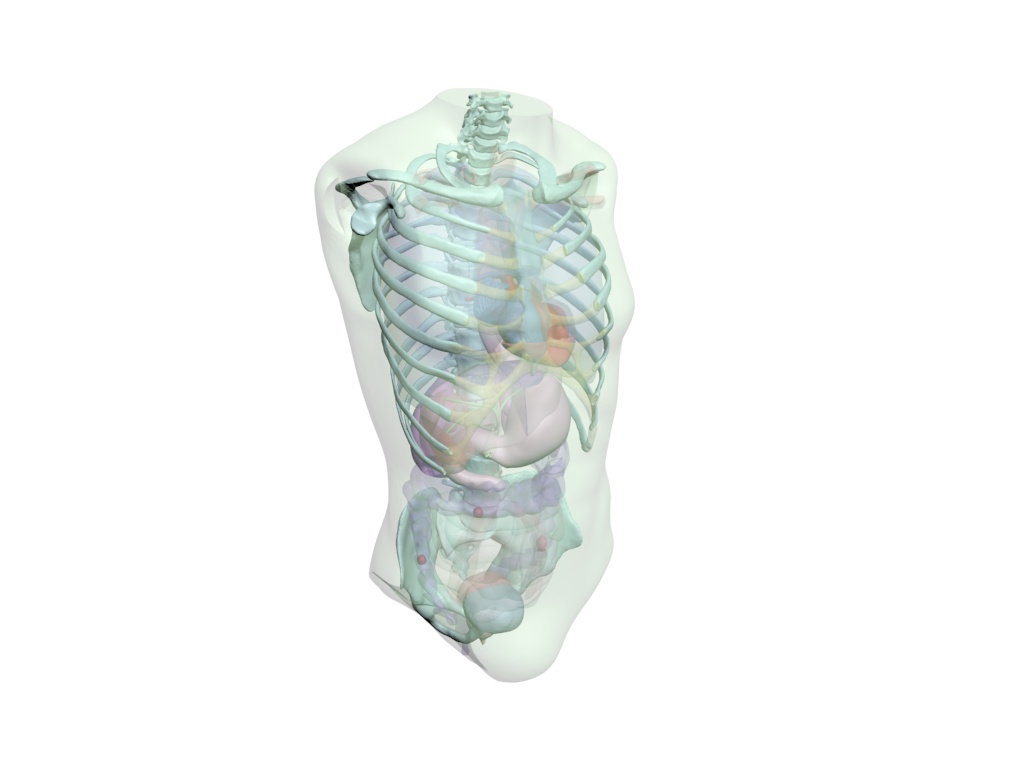

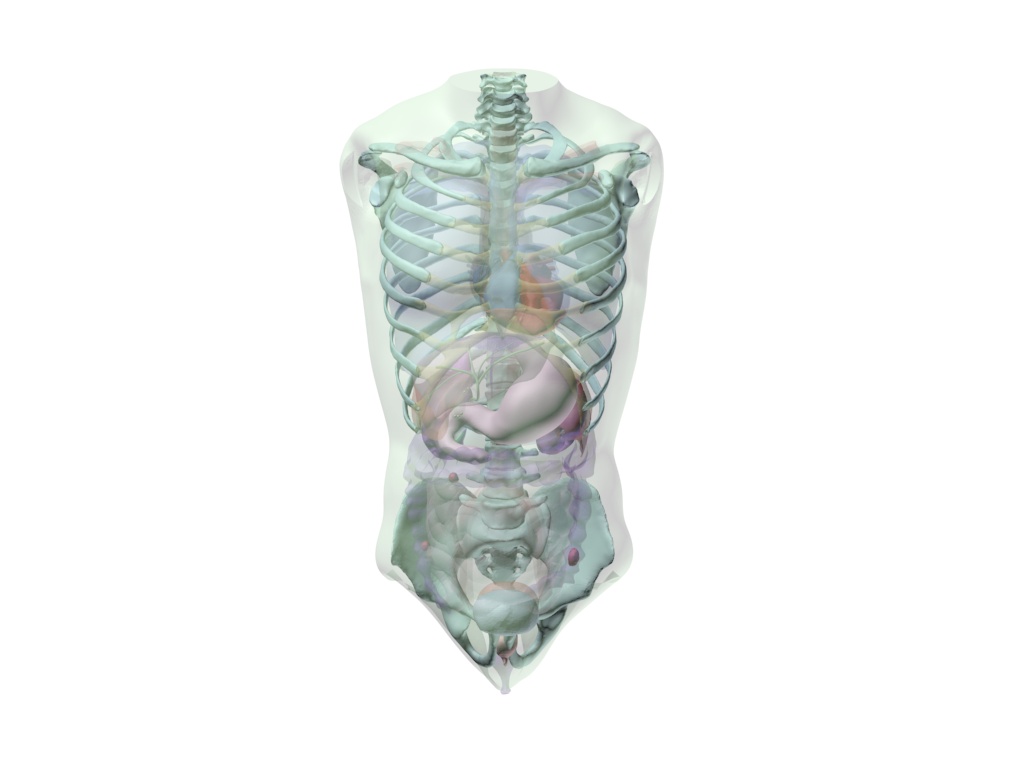

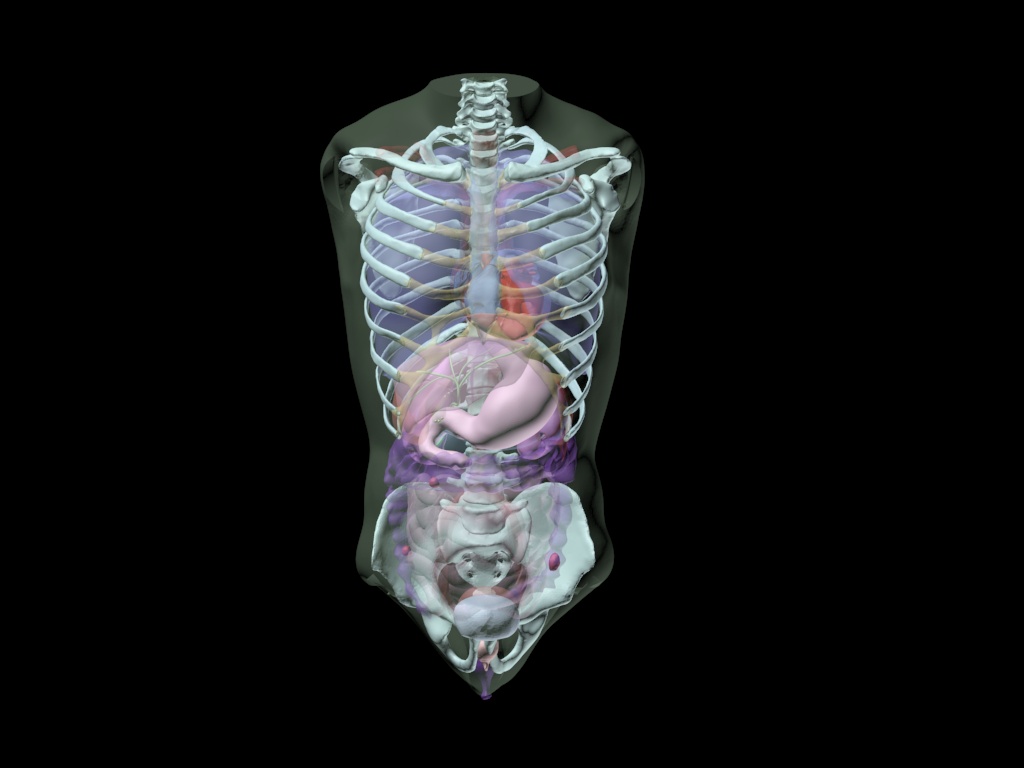

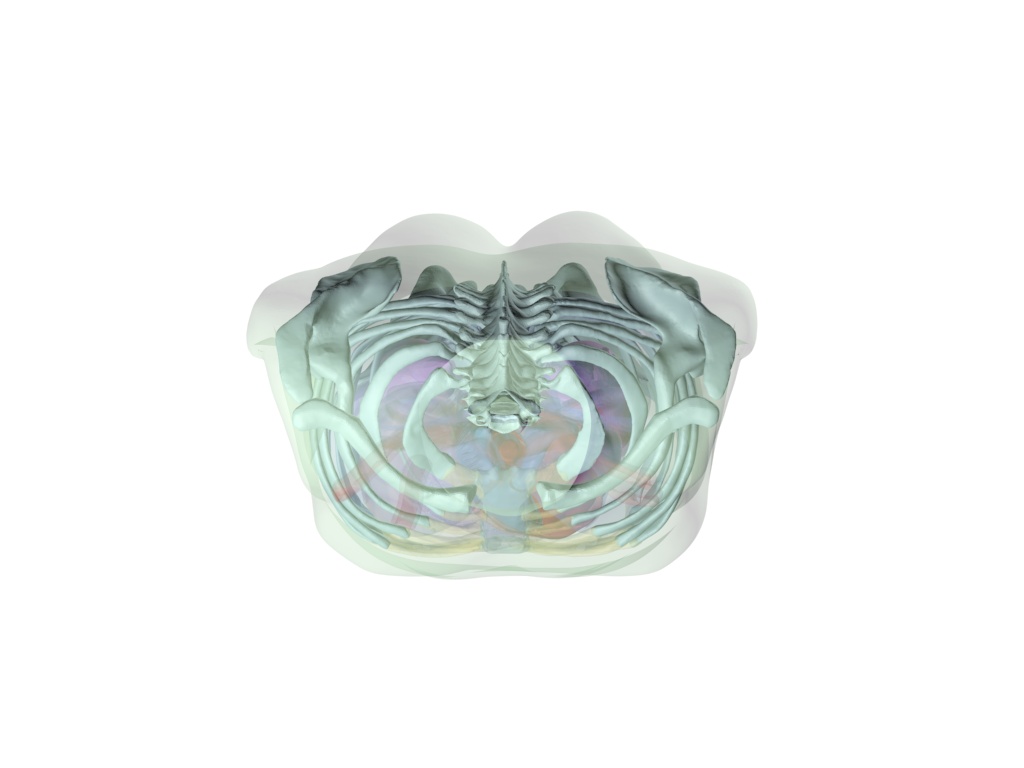

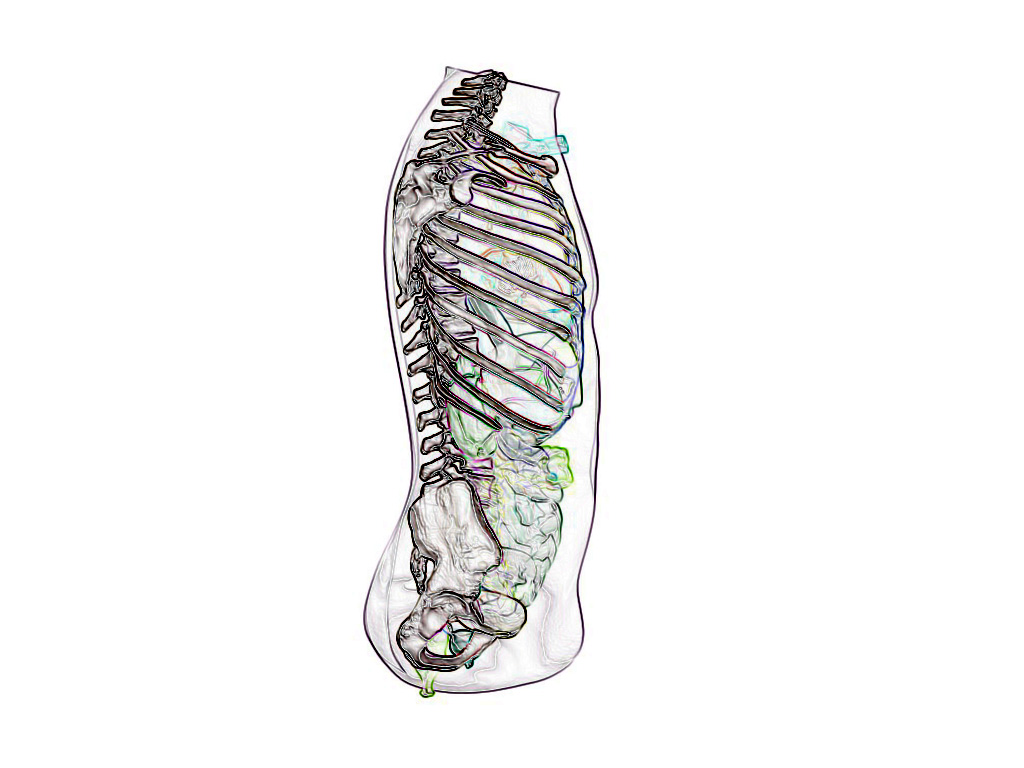

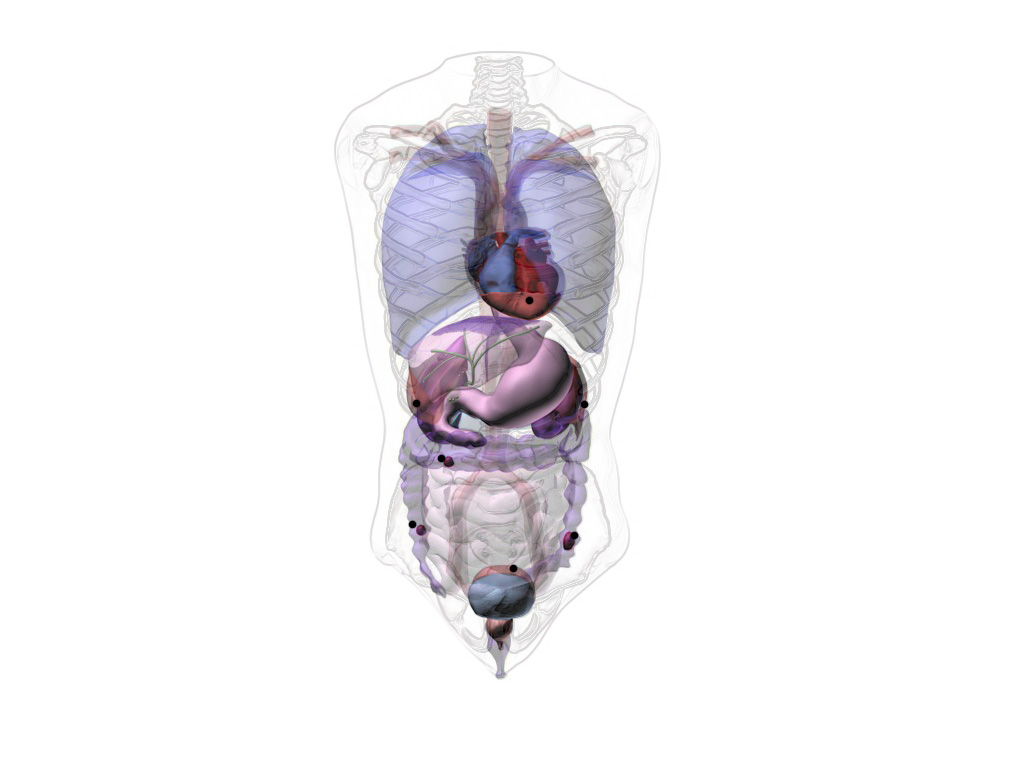

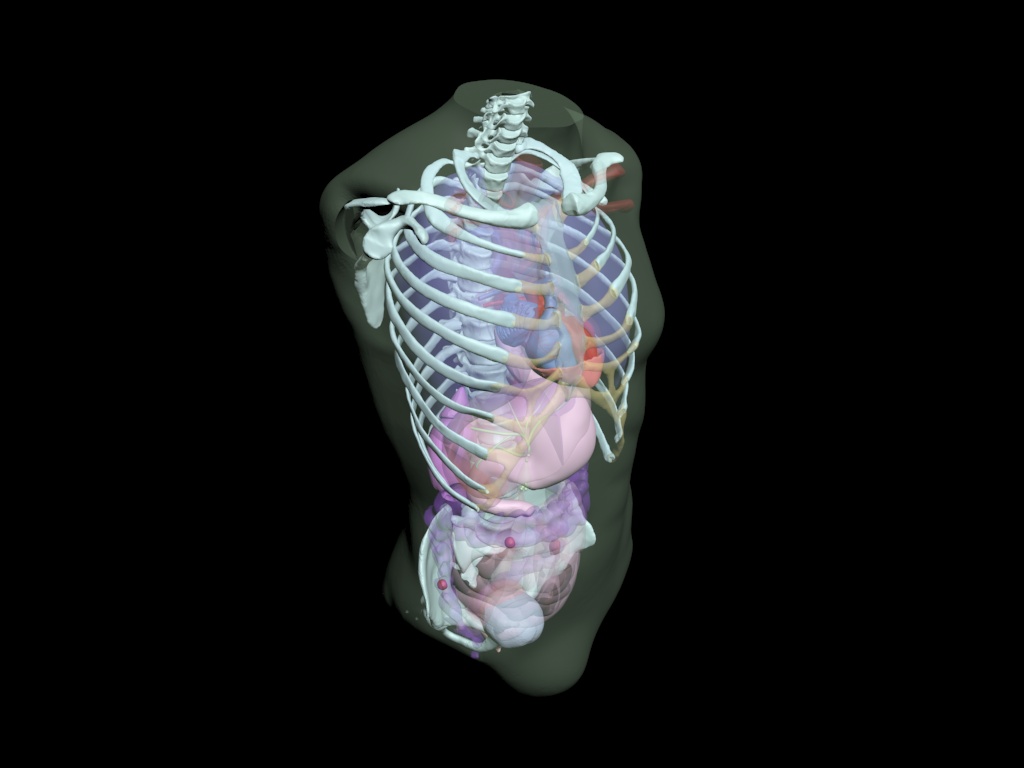

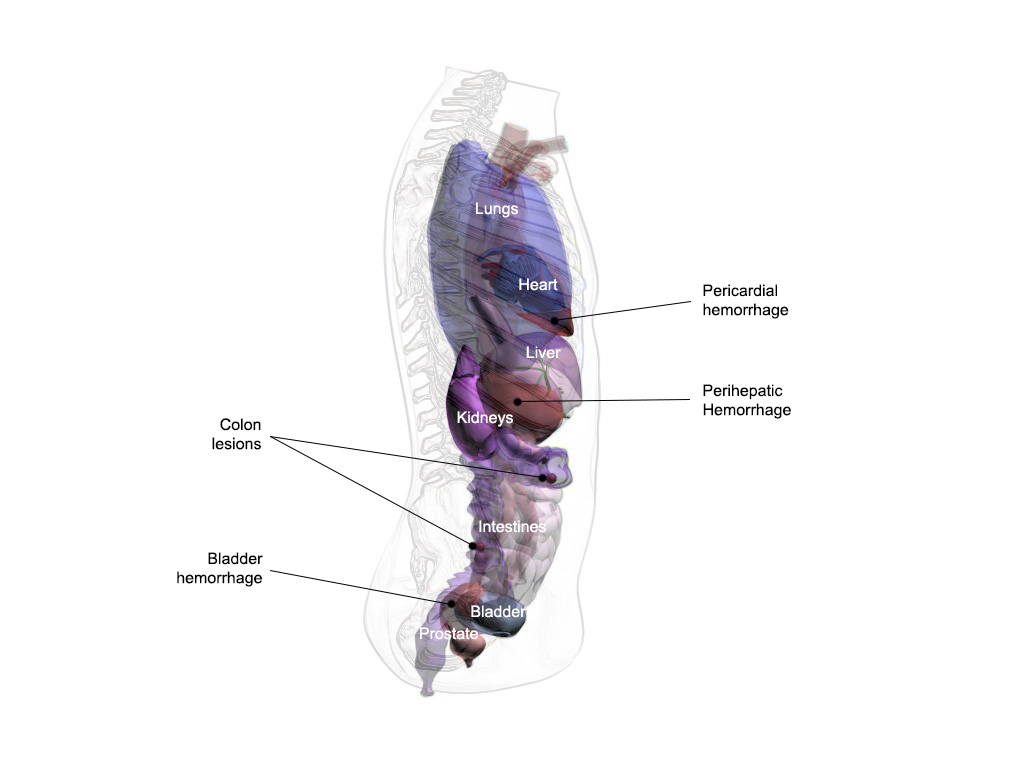

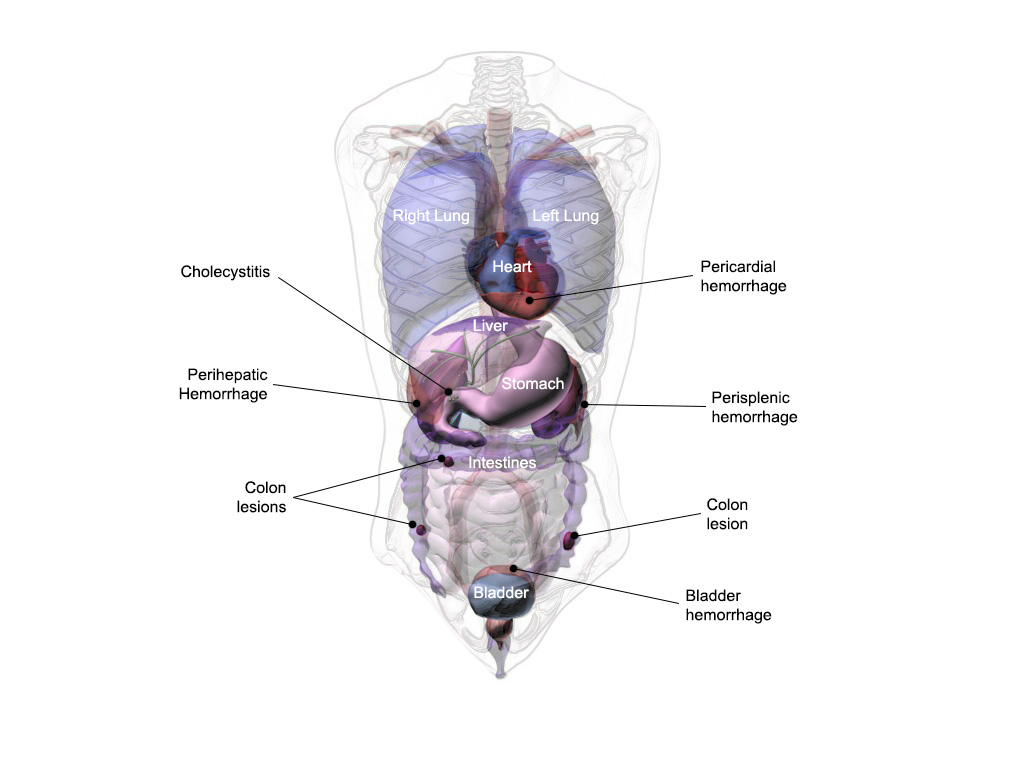

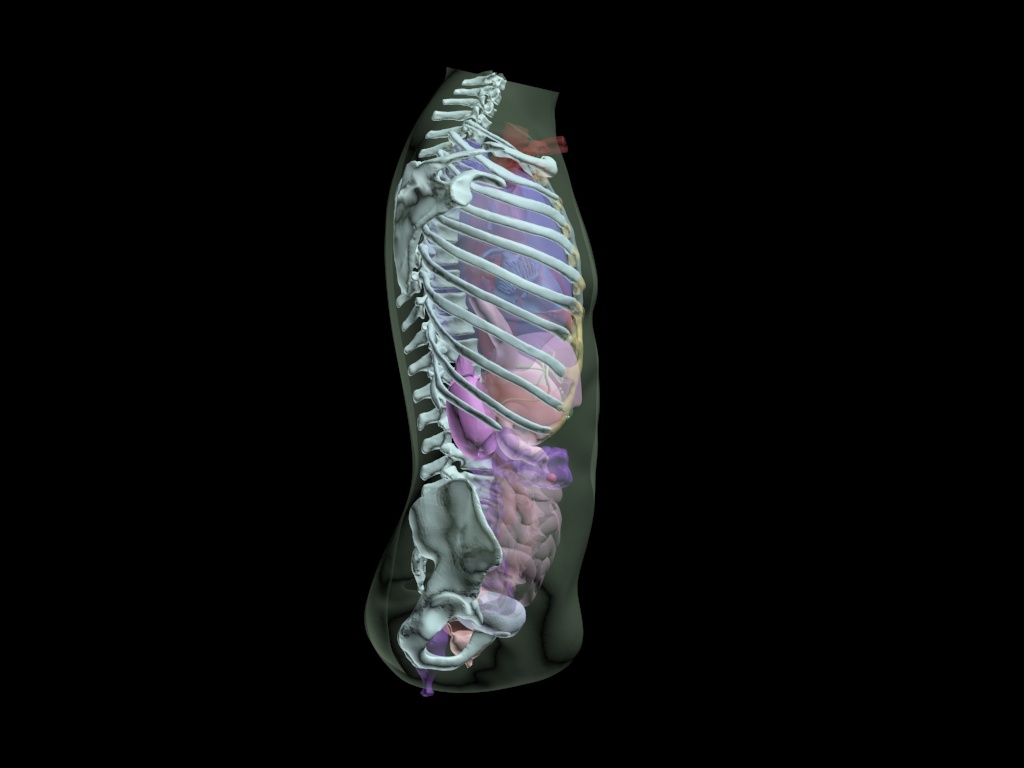

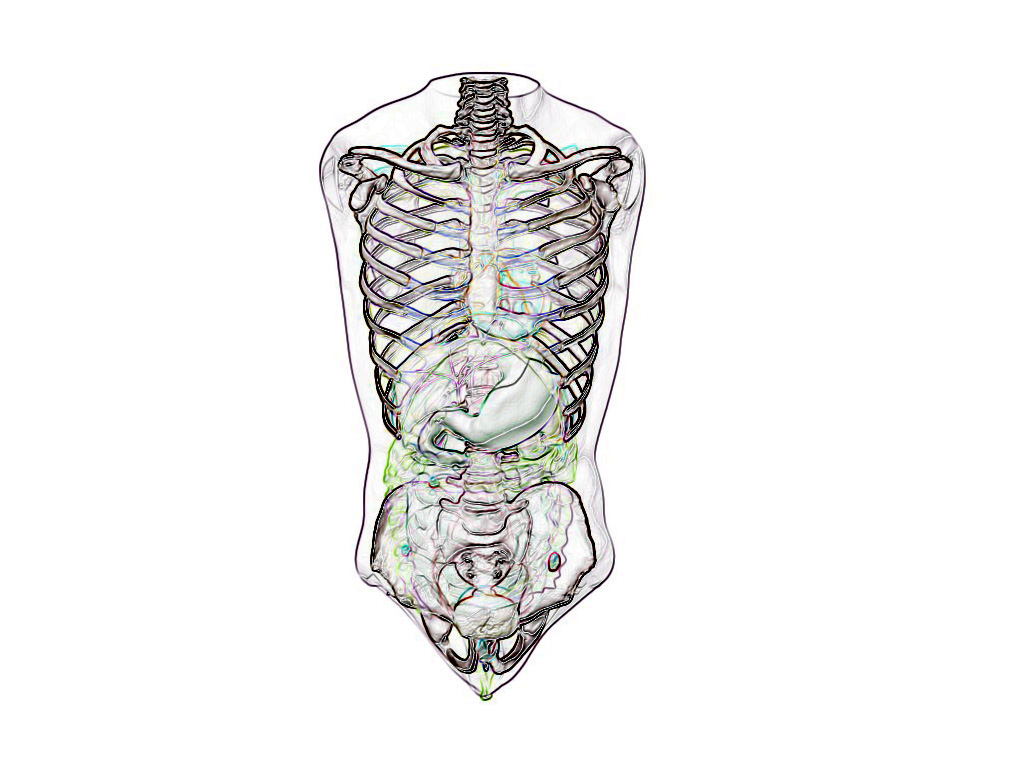

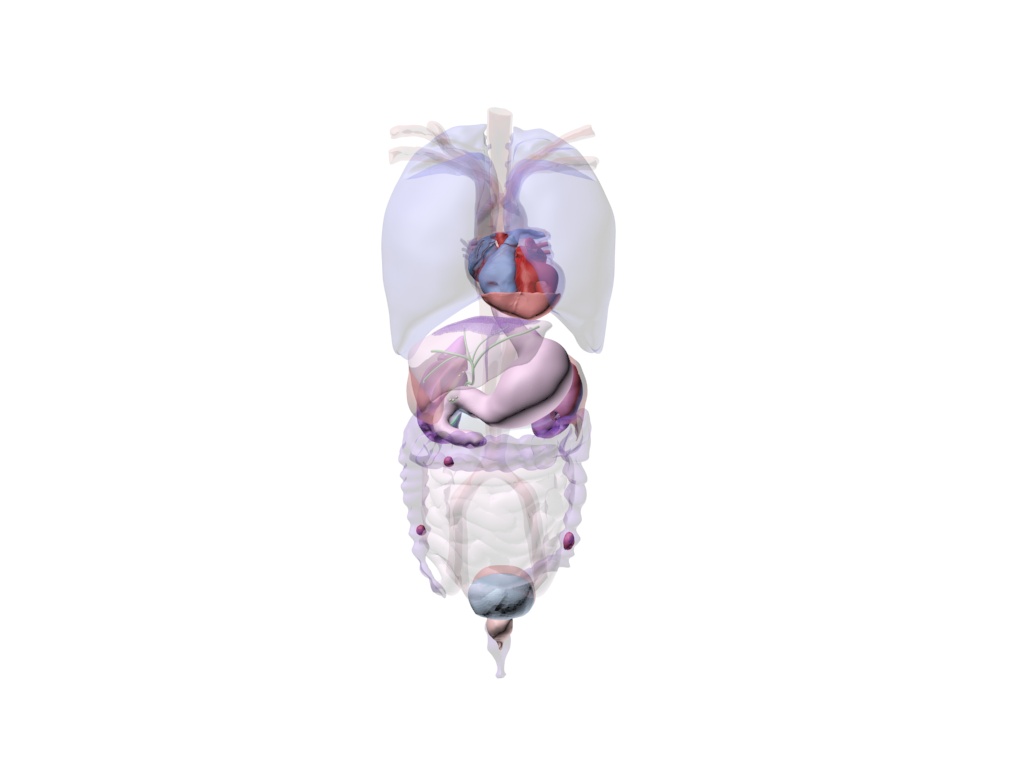

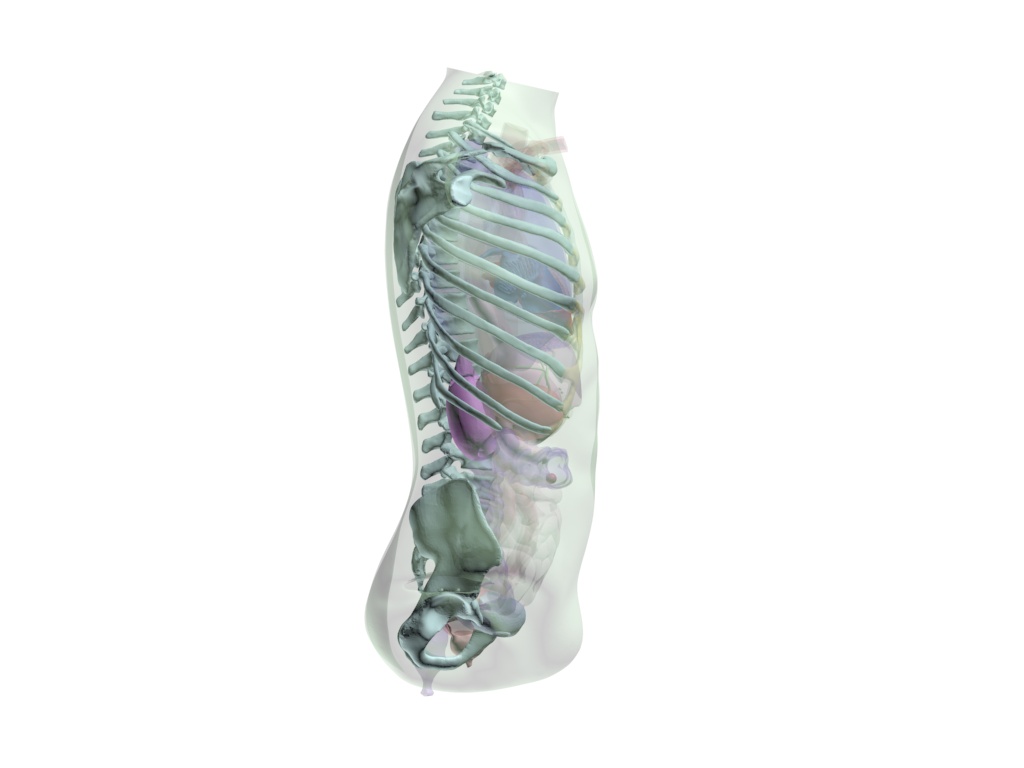

Design

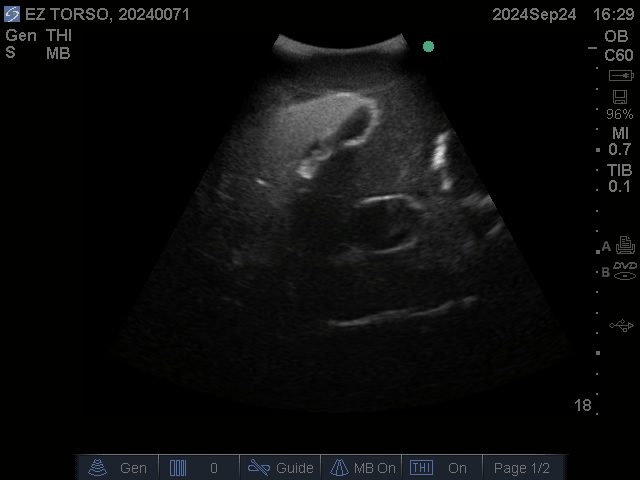

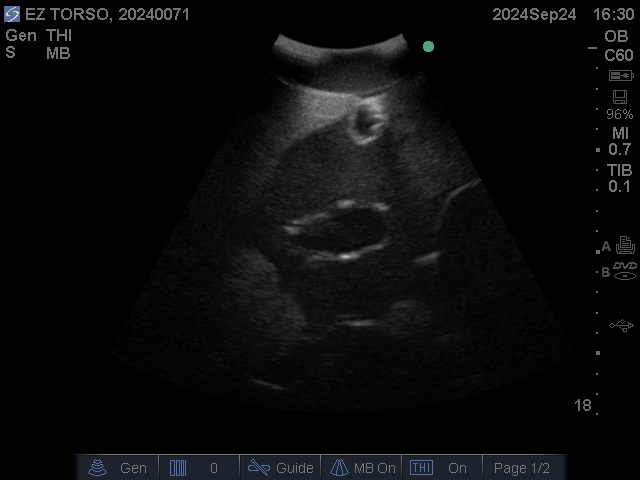

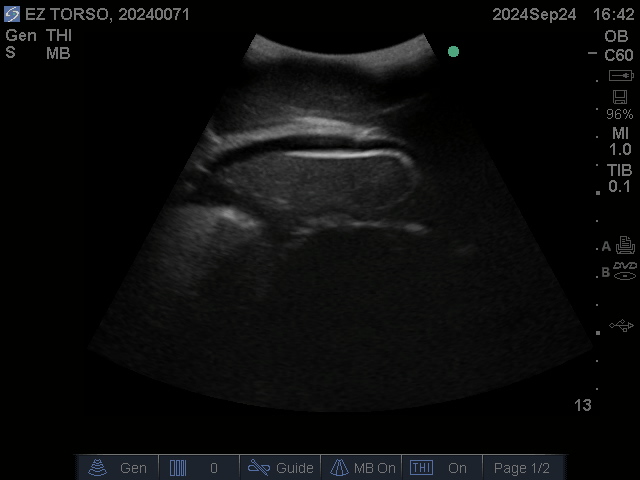

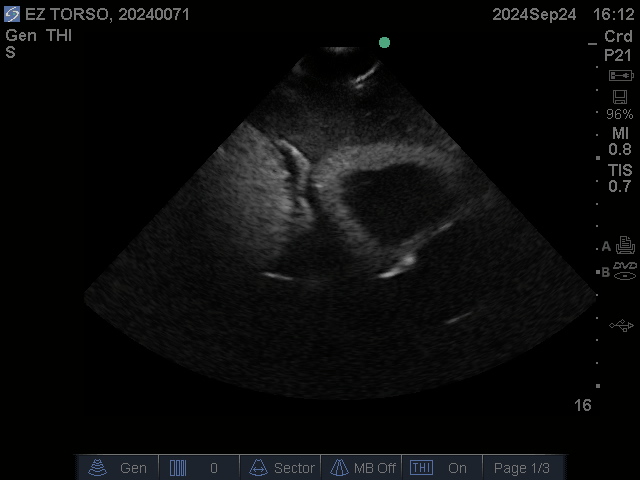

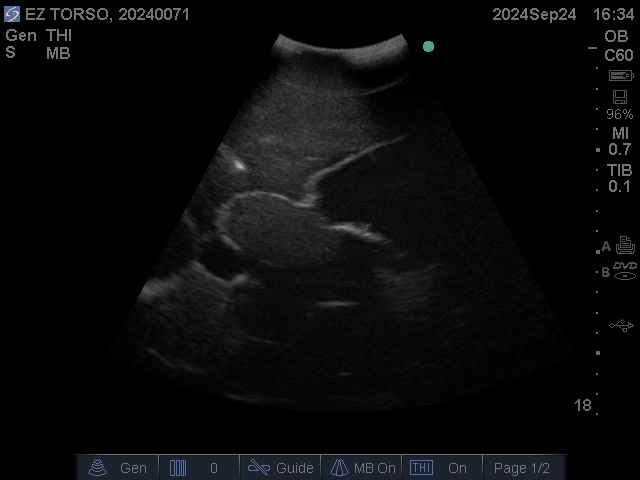

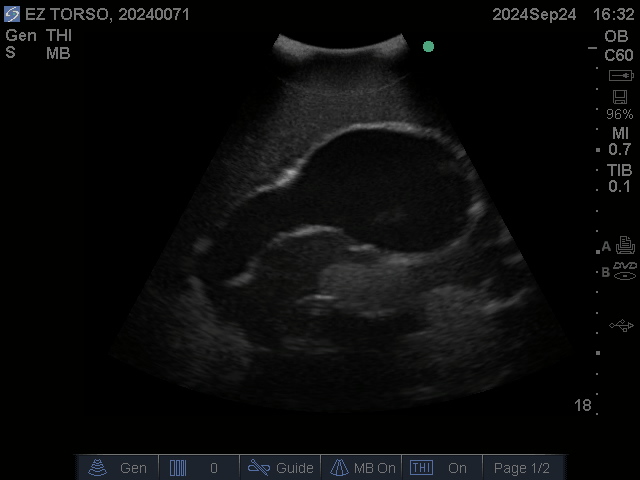

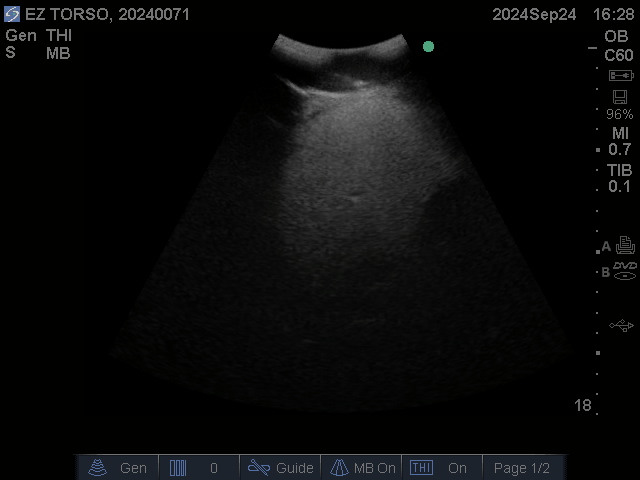

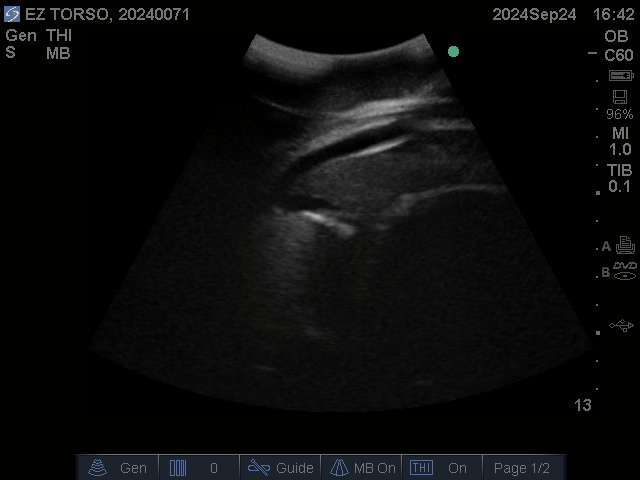

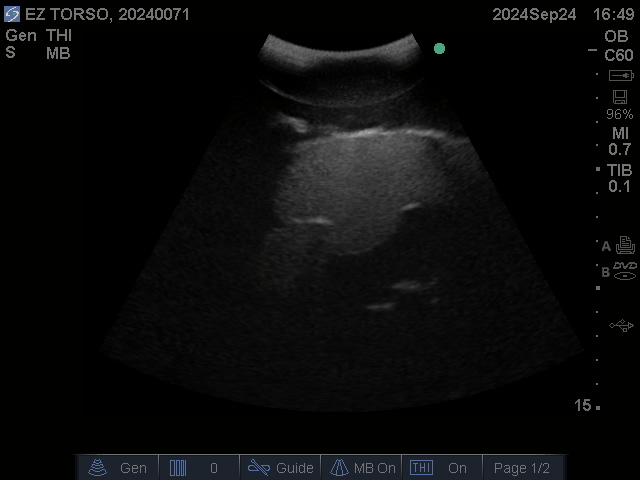

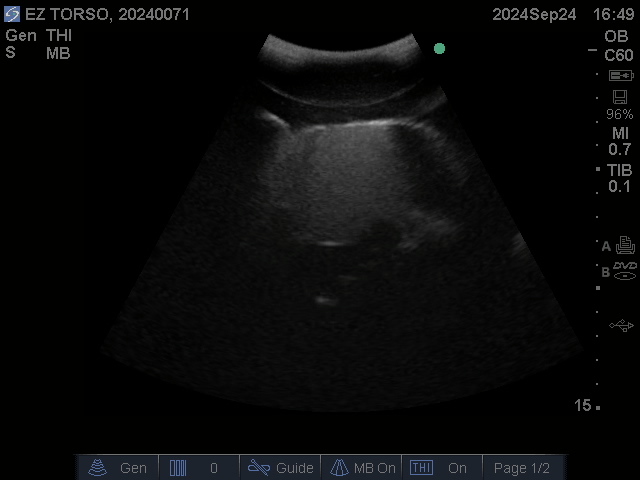

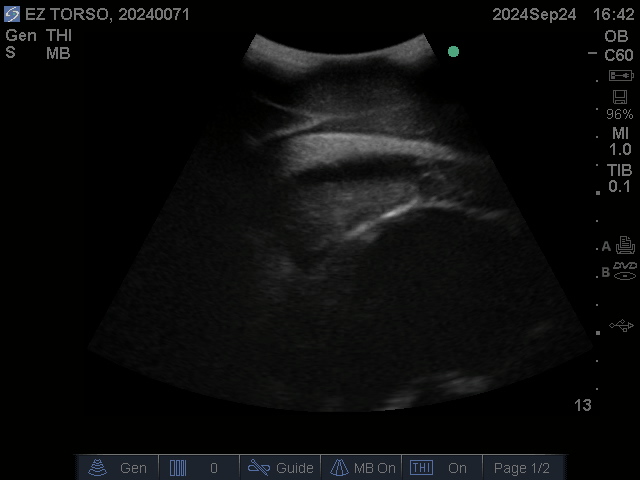

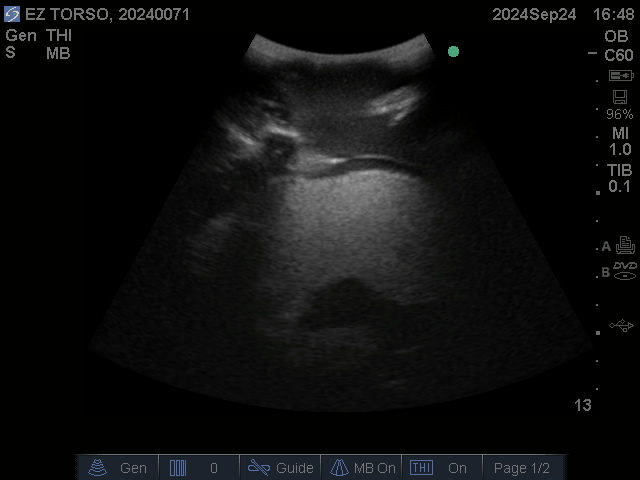

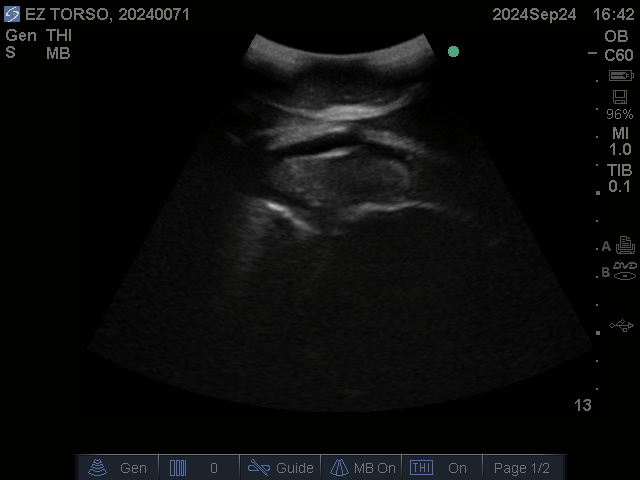

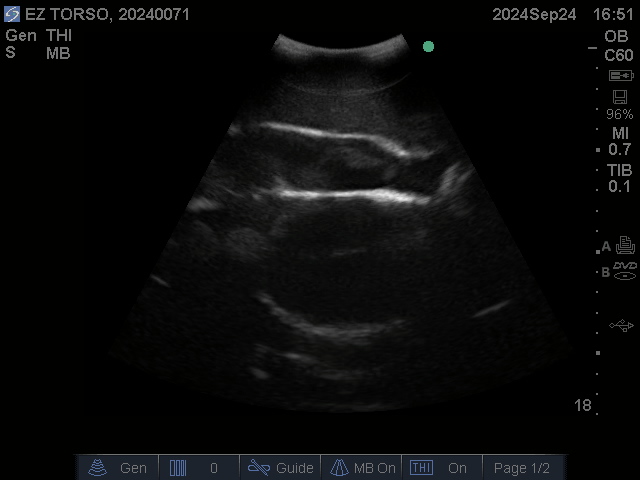

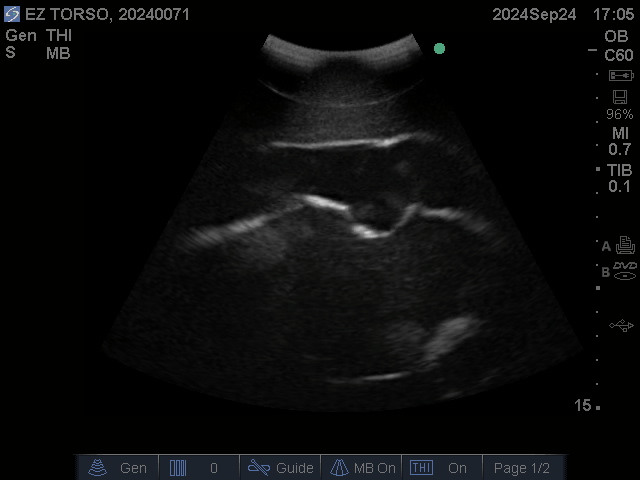

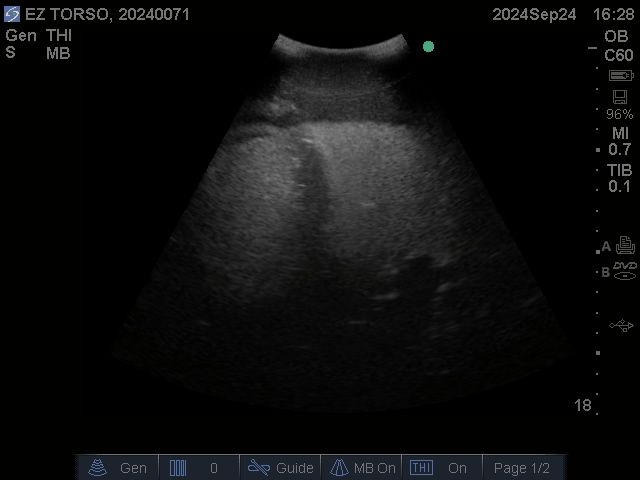

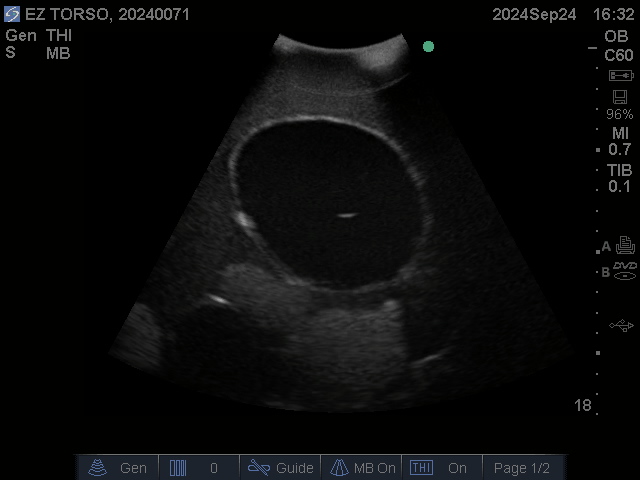

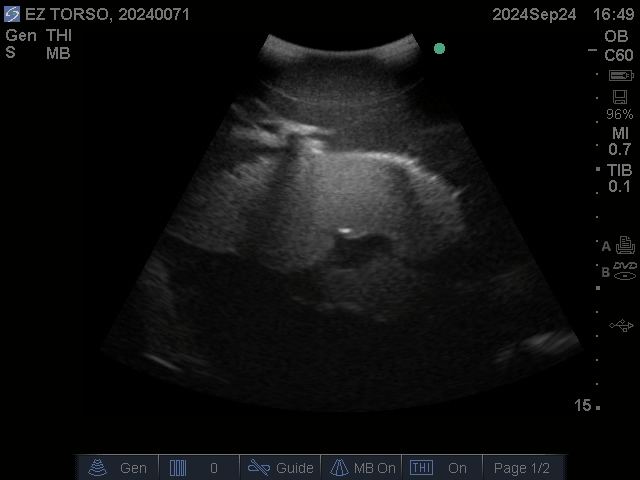

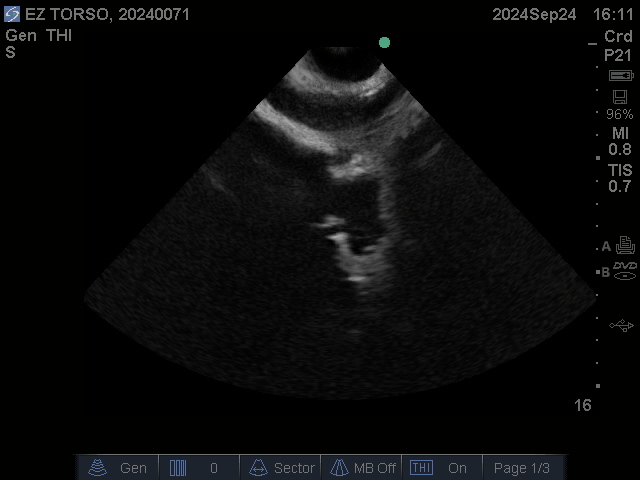

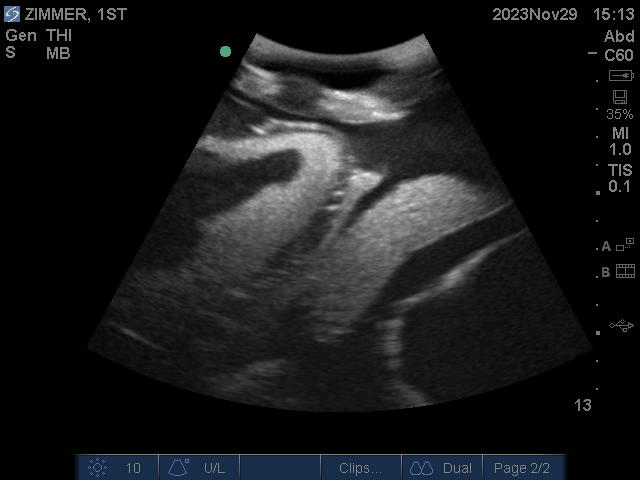

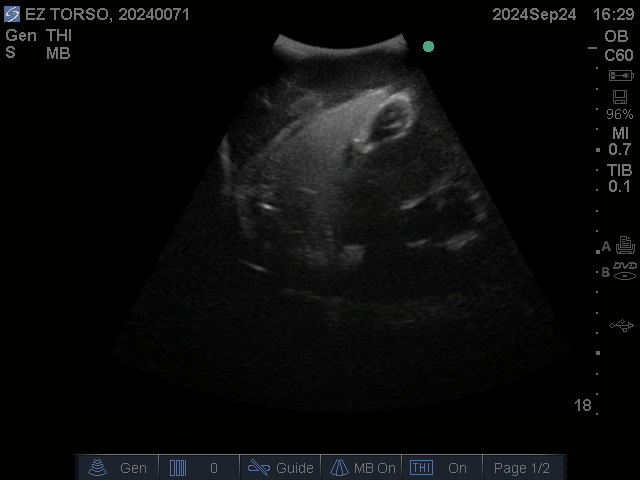

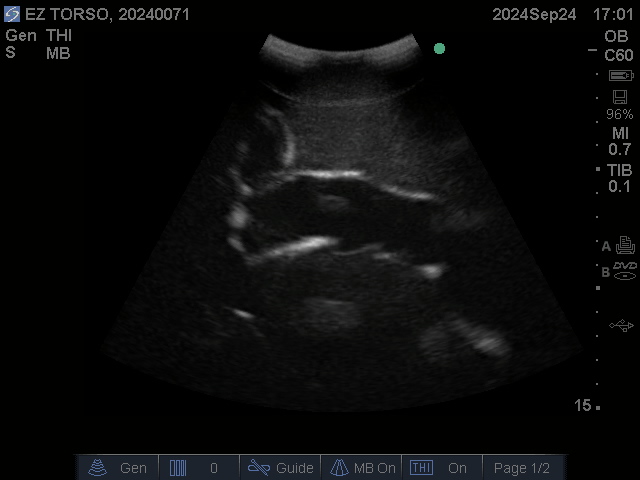

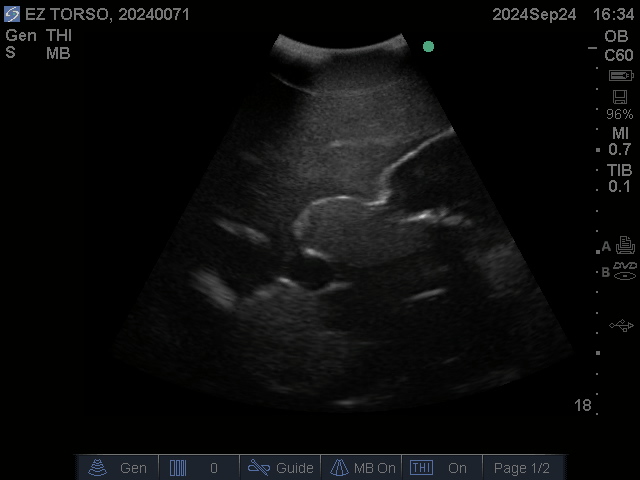

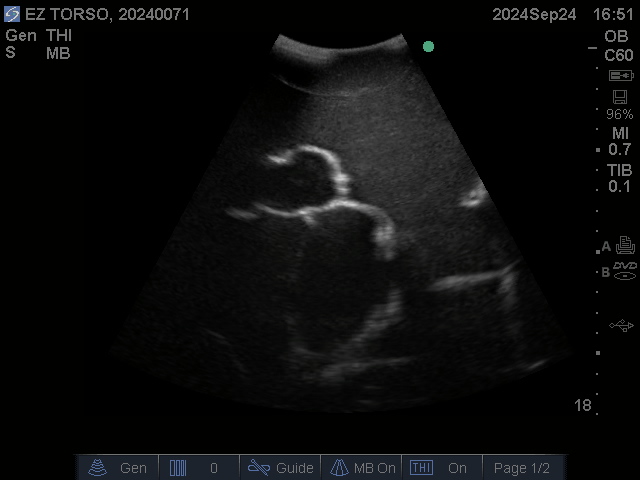

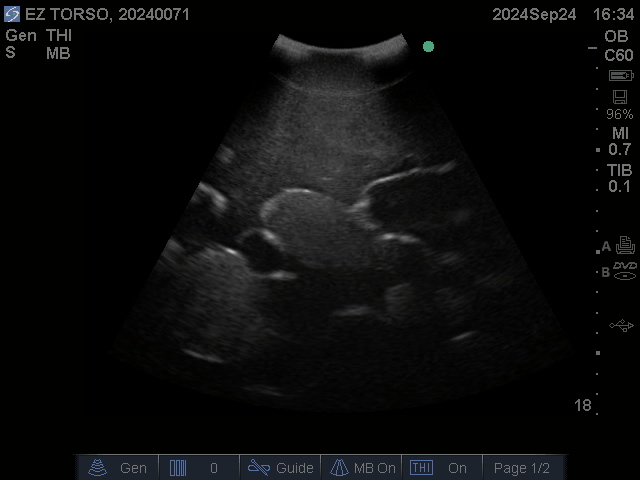

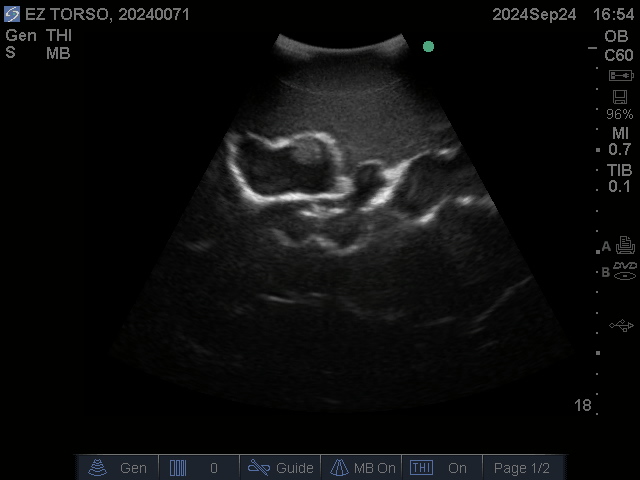

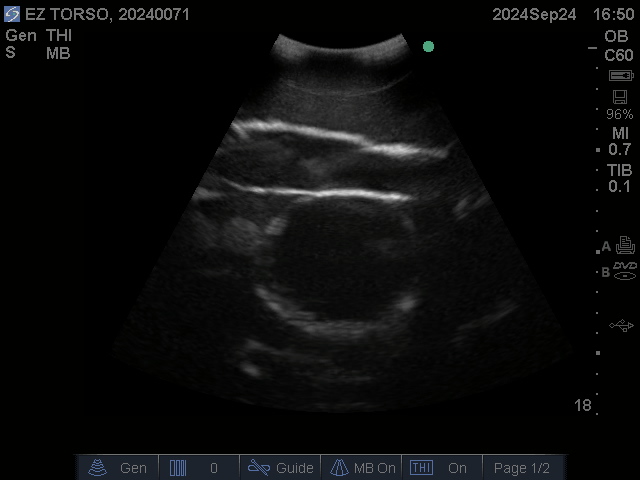

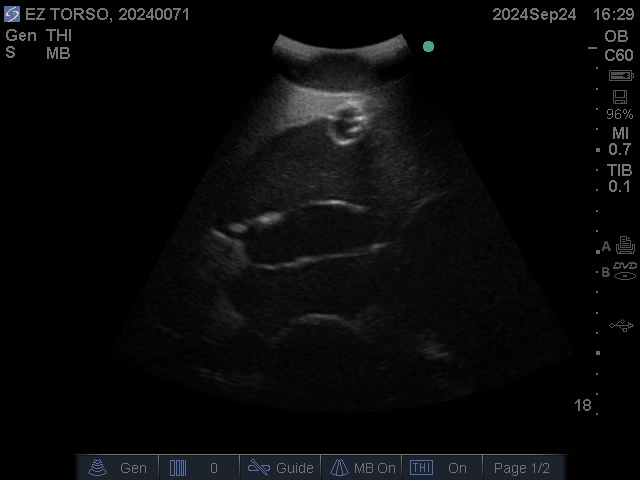

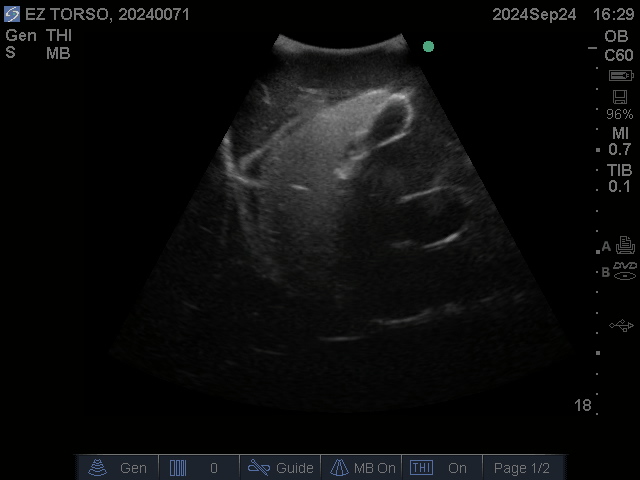

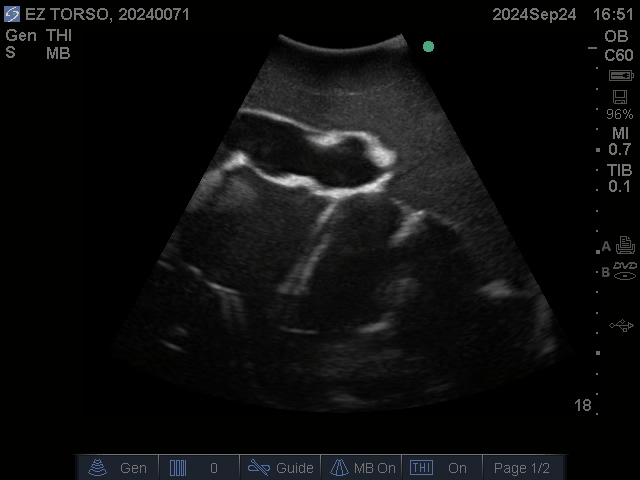

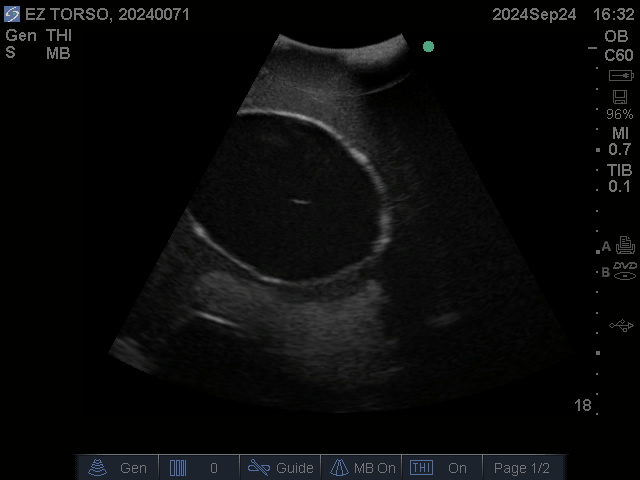

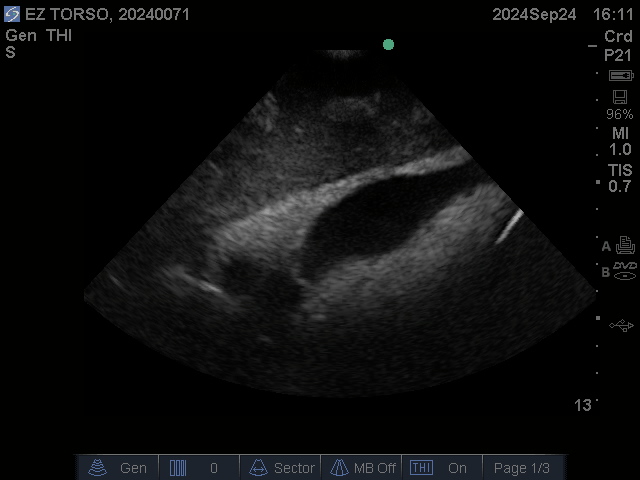

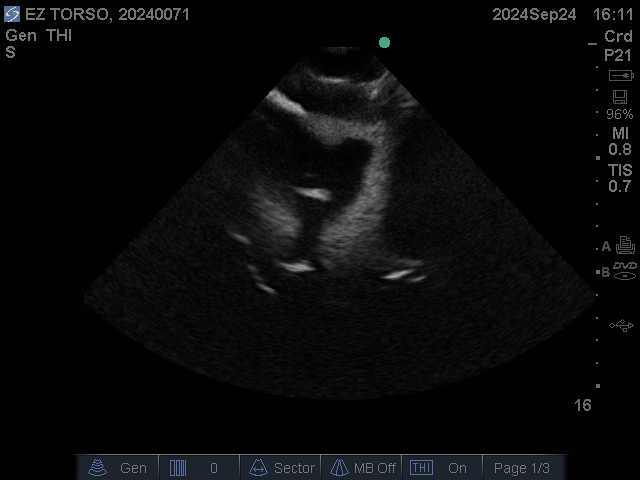

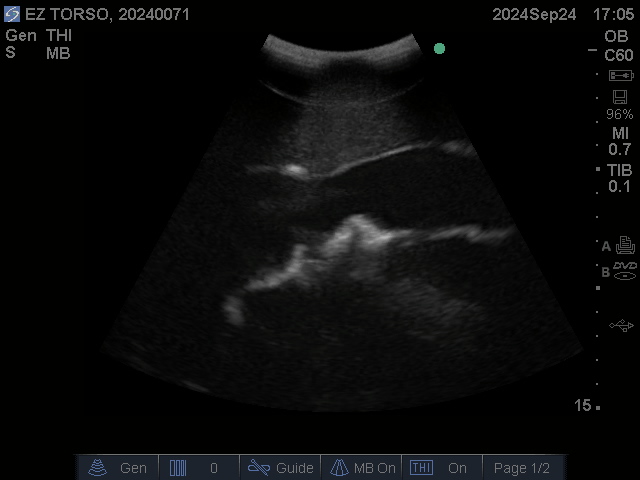

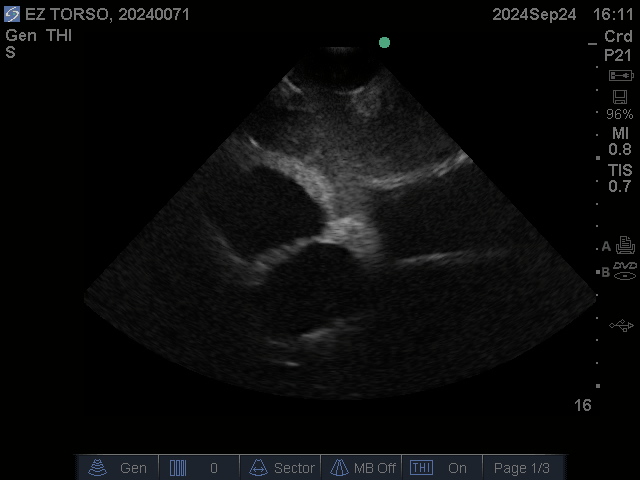

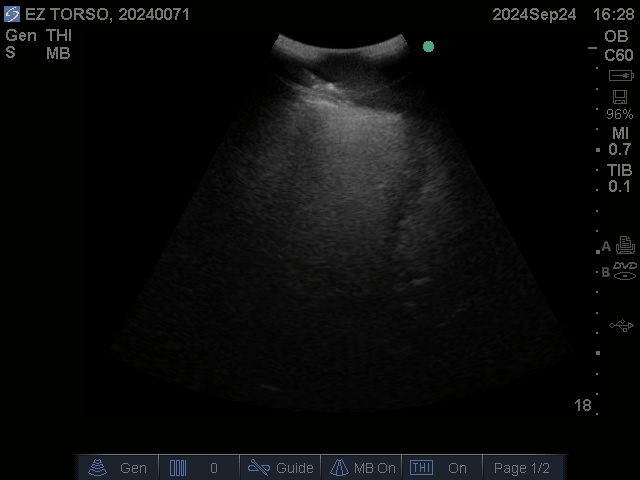

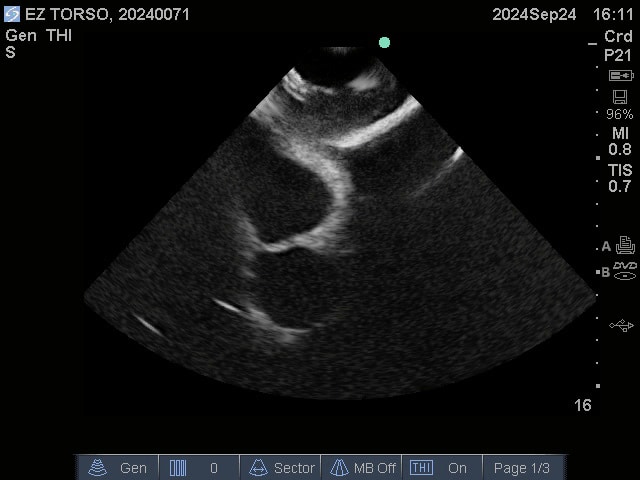

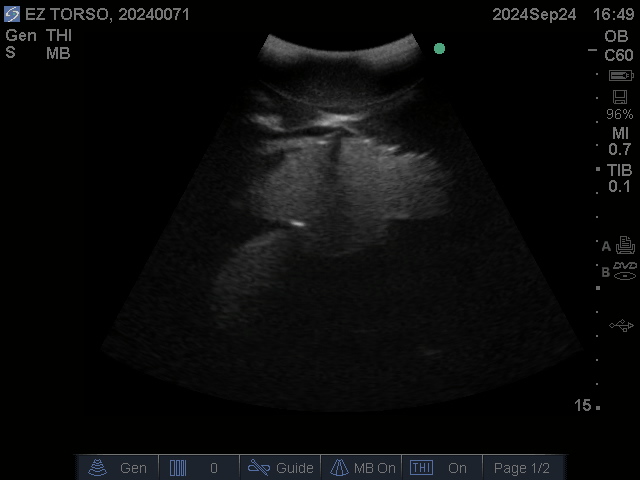

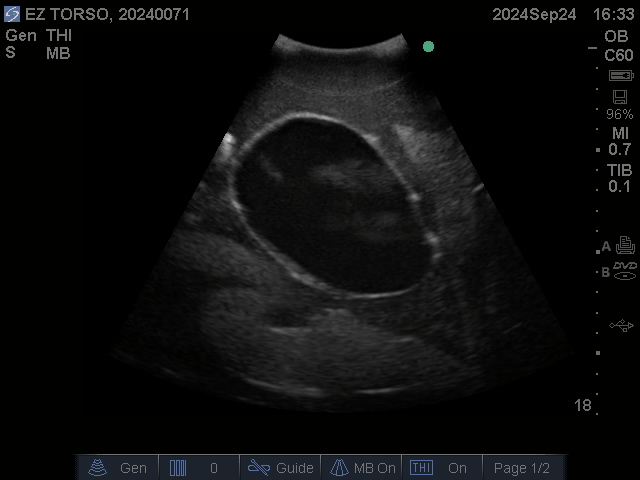

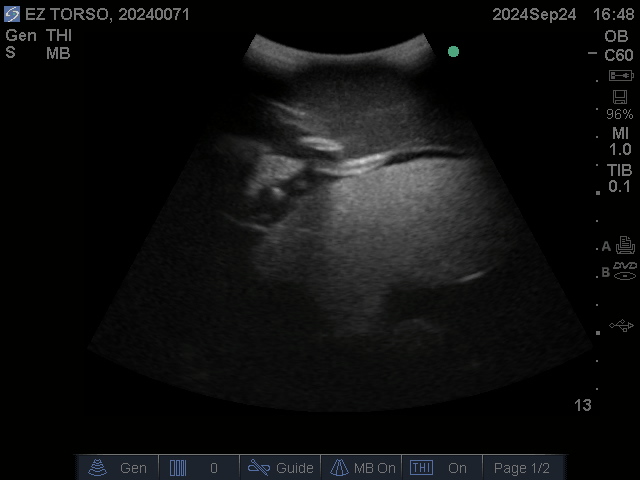

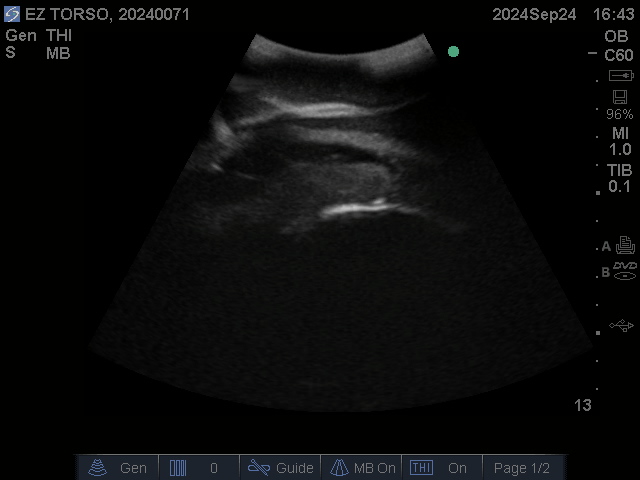

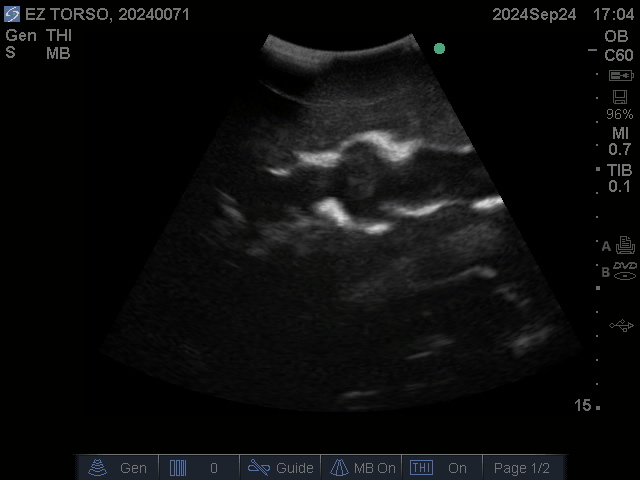

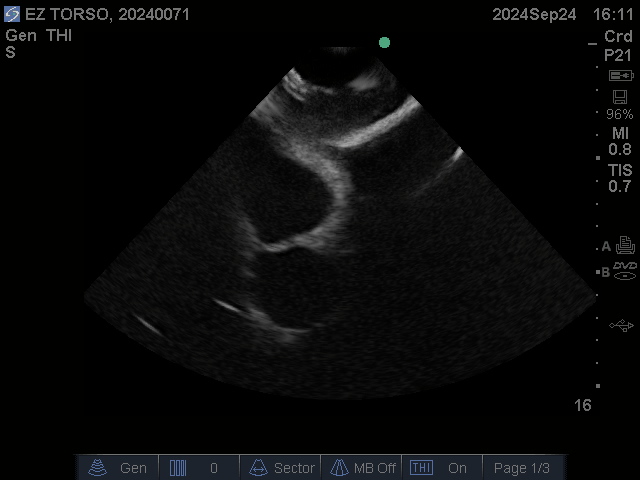

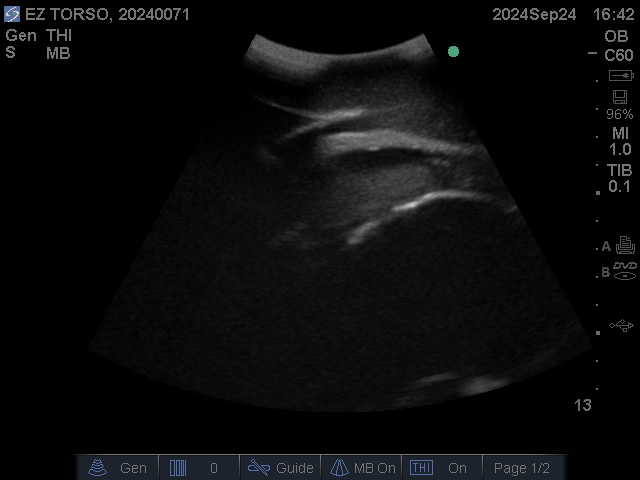

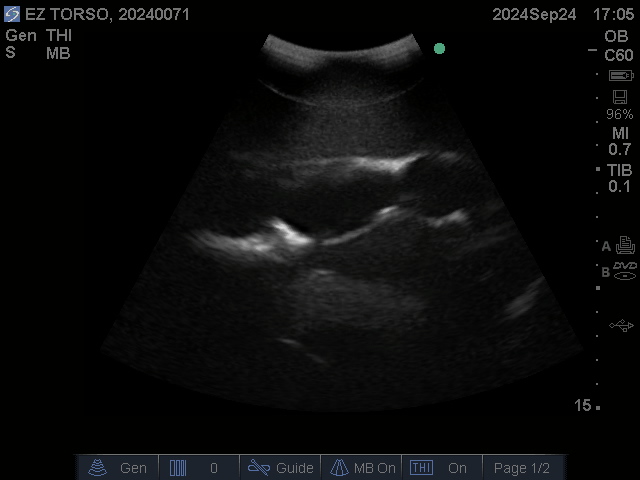

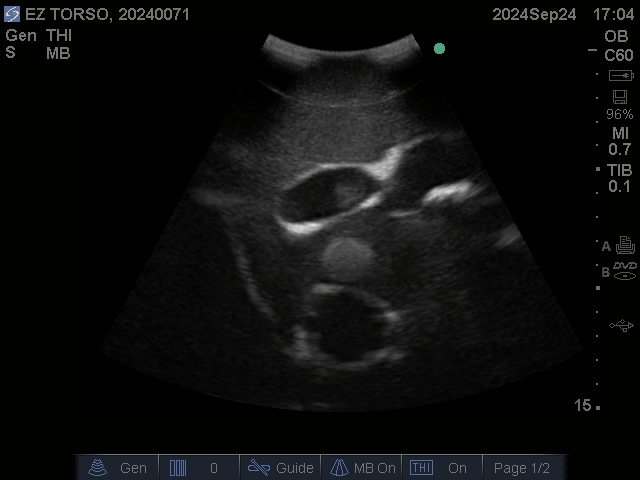

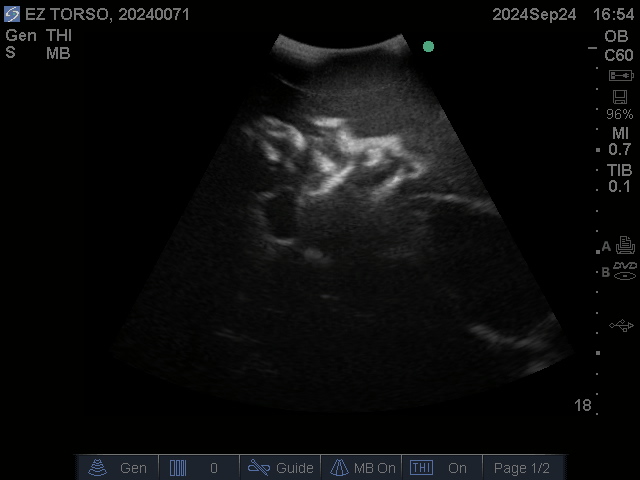

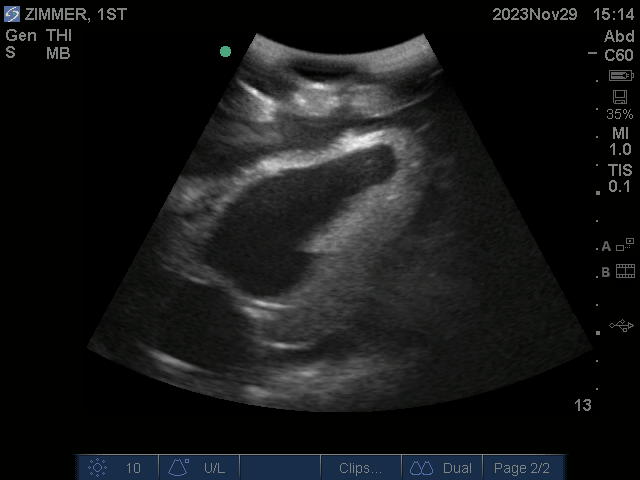

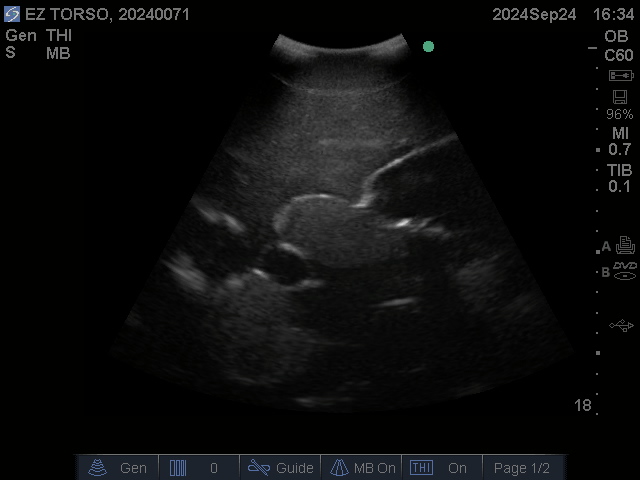

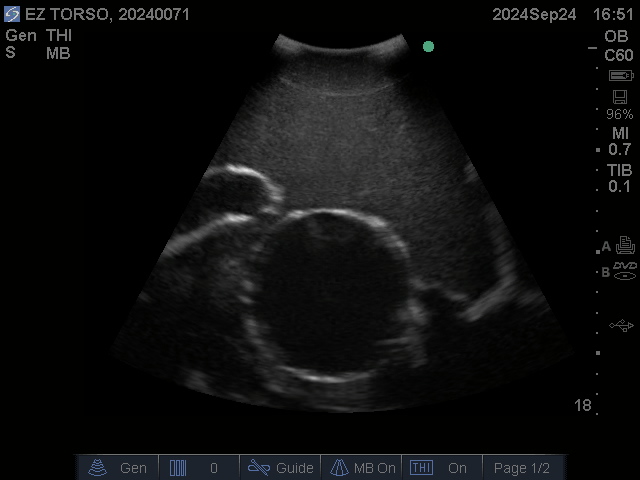

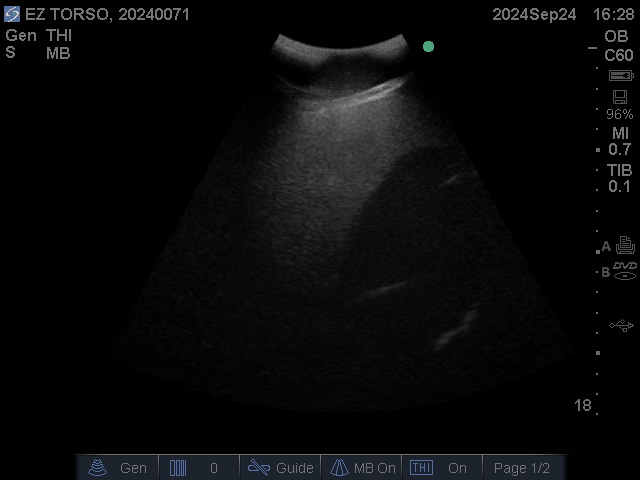

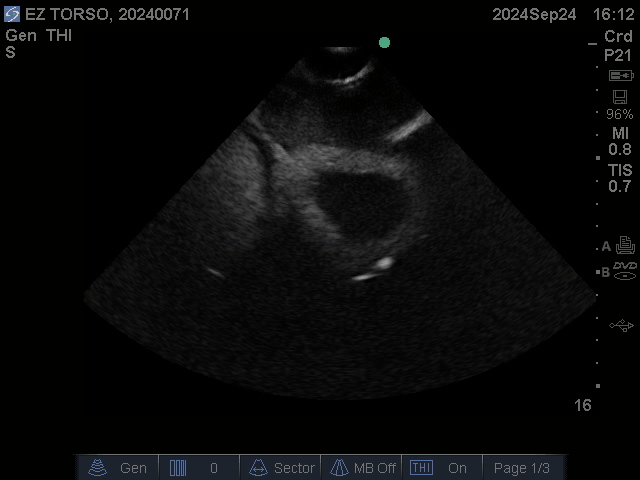

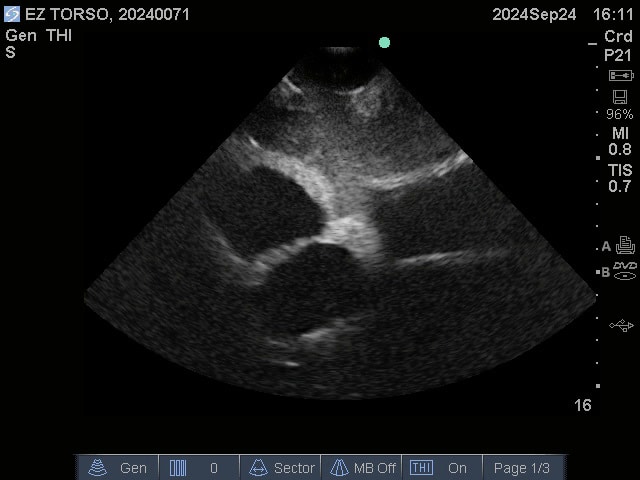

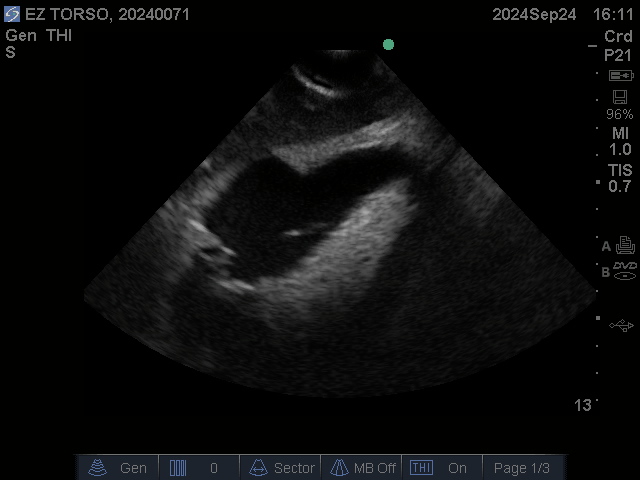

Ultrasound Scans
- Gallbladder
- Pericardial: 21ml
- 3D Printed Bones:
- Stomach
- Around the bladder: 61 ml
- Kidneys
- Cholecystitis
- Complete Spine
- Spleen
- Aortic Aneurysm
- Complete Ribcage
- Pancreas
- Lesion in the colon
- Shoulders and Clavicles
- Large and Small Intestines
- Pelvis Structure
- Bladder
- Prostate
- Thoracic Organs:
- Trachea
- Pathologies:
- Heart with Four Chambers
- Internal Hemorrhages:
- Lungs
- Perihepatic: 88ml
- Perisplenic: 76ml
- Abdominal Organs:
- Diaphragm
- Liver
| Phantom Size | 27 x 10 x 14 Inches |
| Phantom Weight | 65 Lbs (approx.) |
| Shipment Size | 32 x 23 x 13 Inches |
| Shipment Weight | 110 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Torso Model | Male (Dynamic), Male (Standard), Male (Cardiac), Male (Cardiac/Fast), Male (Skin), Male (FAST) |
| Model | X-Ray CT, US, X-Ray CT, MRI, Ultrasound |
