Adult Female Heart for X-Ray CT, US, MRI
$7,990 USD

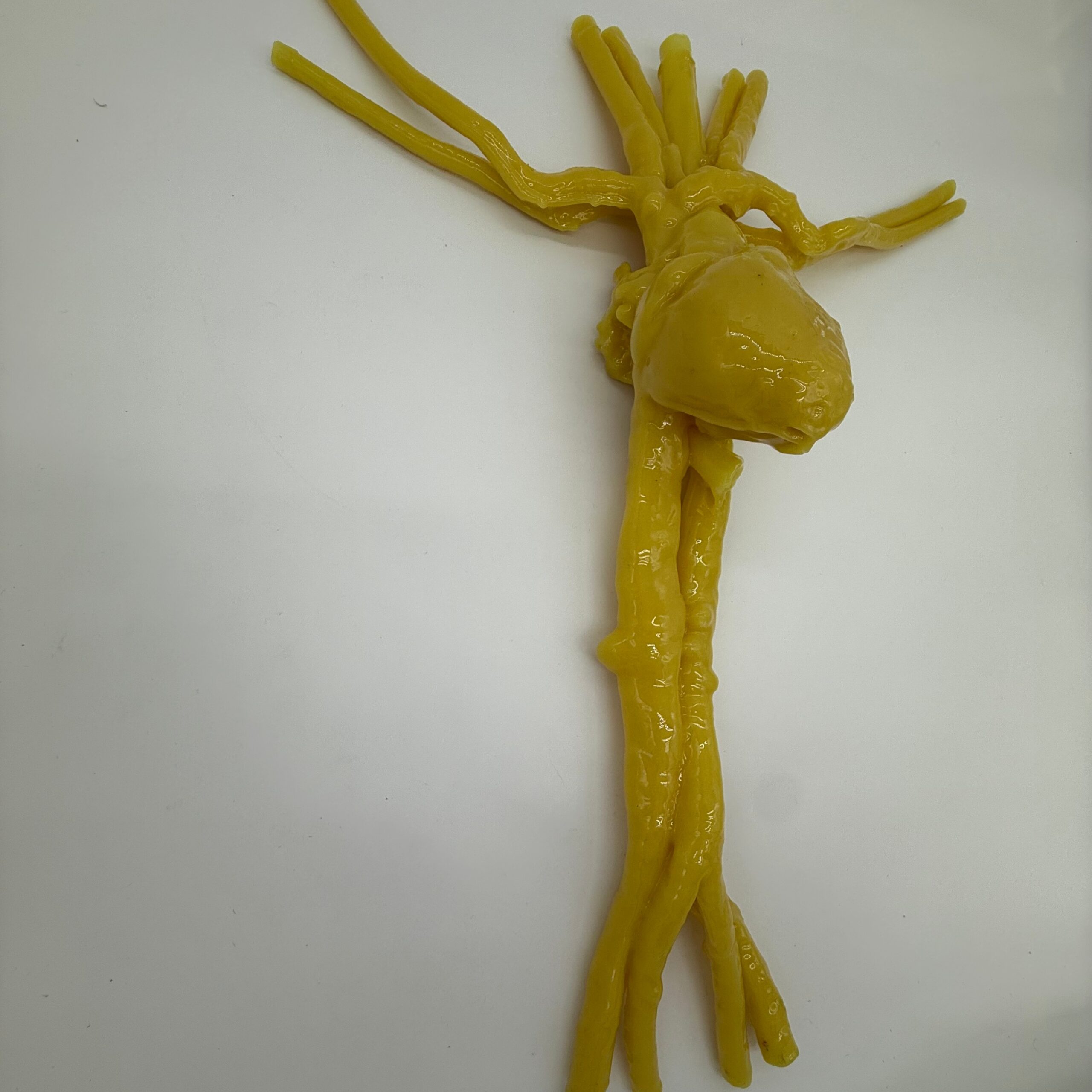

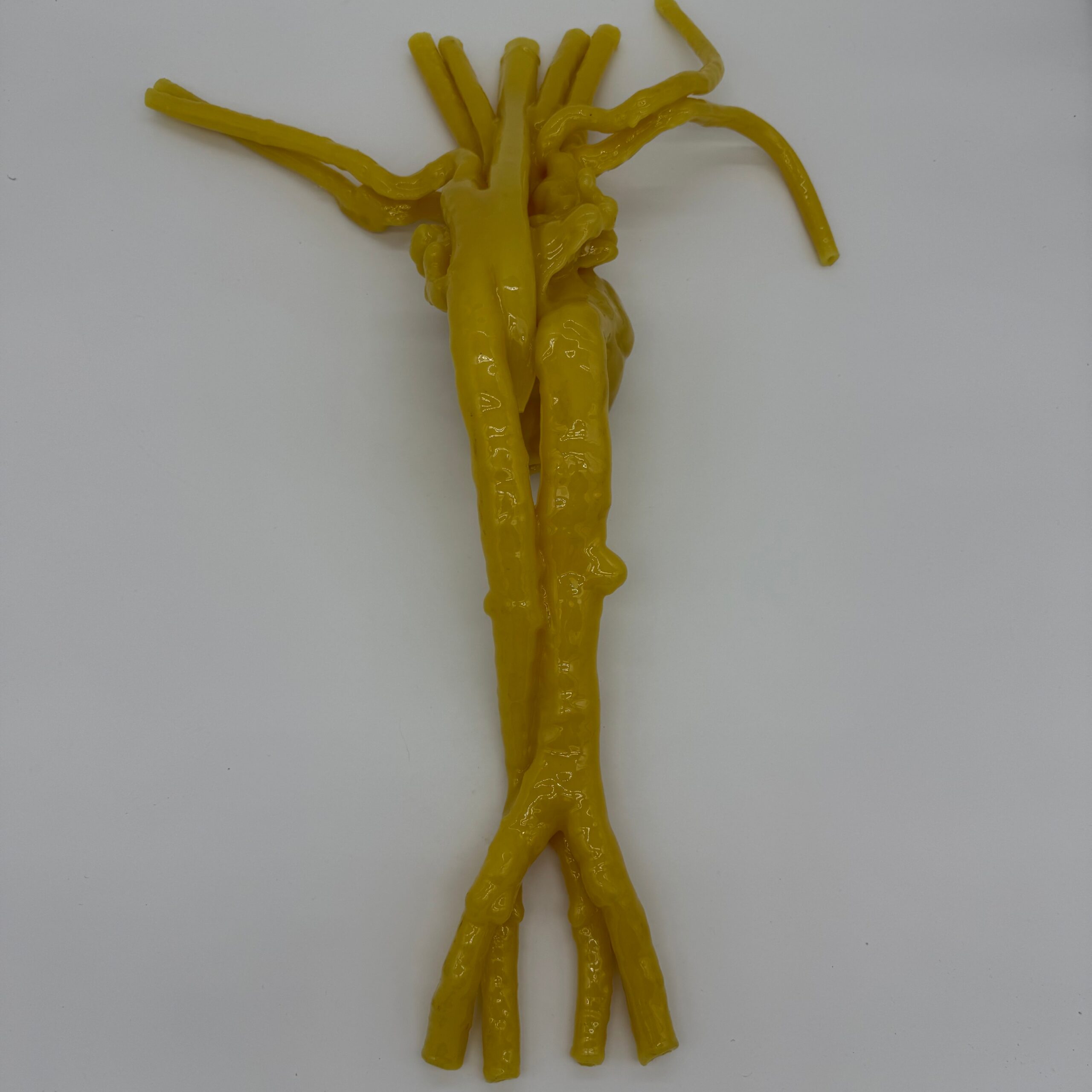

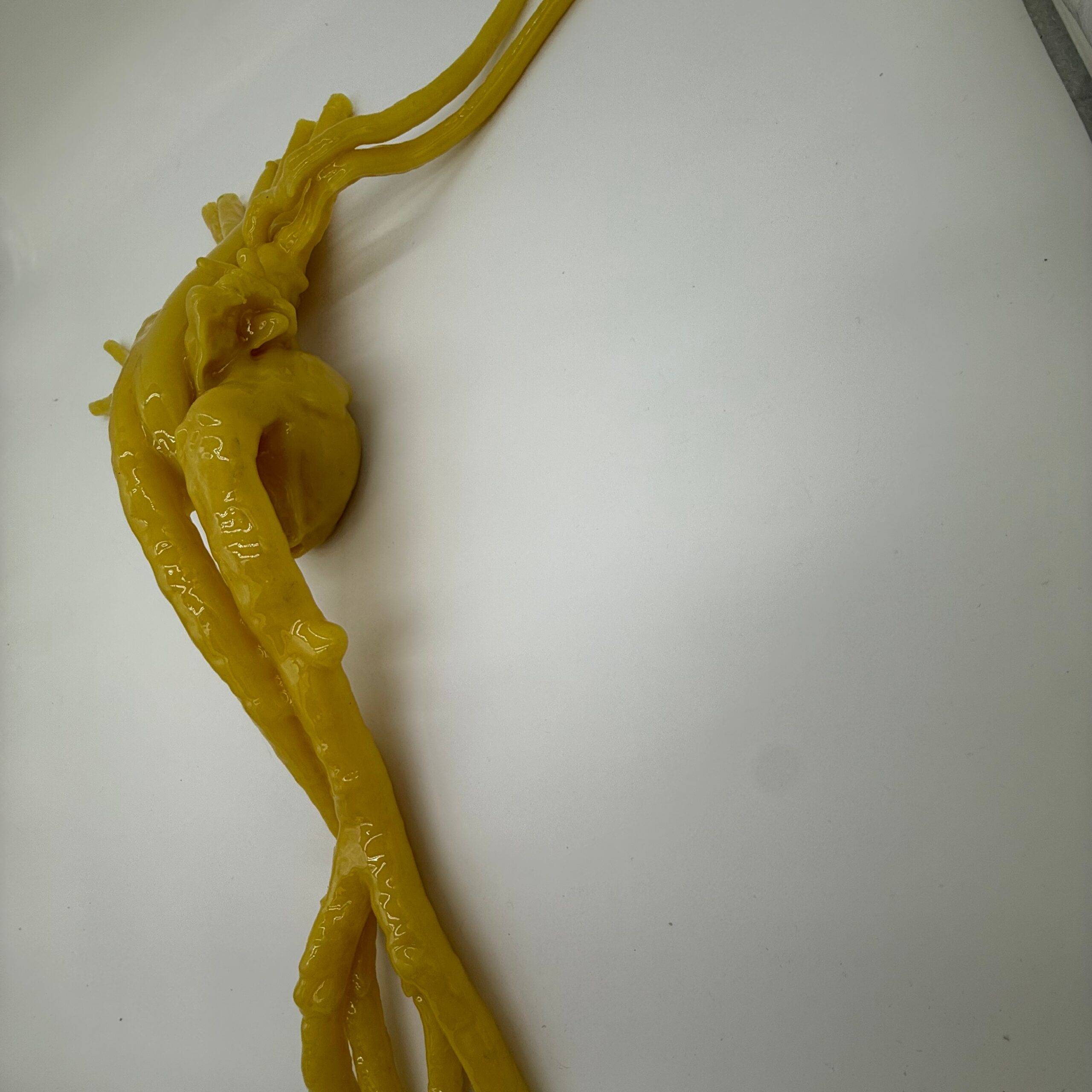

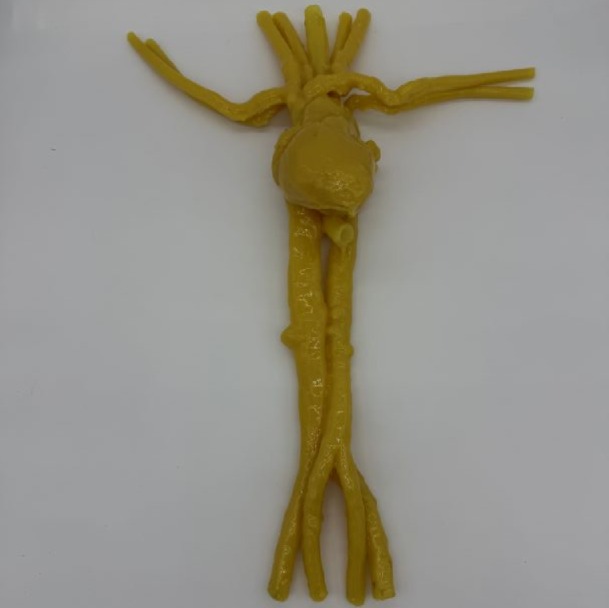

The female Heart phantom is a realistic simulator of a healthy human heart. The anatomical details of this phantom were designed by utilising AI to extract the CT data of a healthy 35-year old female patient. The phantom is compatible to be imaged under X-Ray, CT, Ultrasound, and MRI. It can be connected with a heart pump to simulate lifelike cardiac motions making it useful to train and research for echocardiograms, endoscopies, catheter insertion, and cardiovascular research.
This product can be customized based on your requirements — contact us.

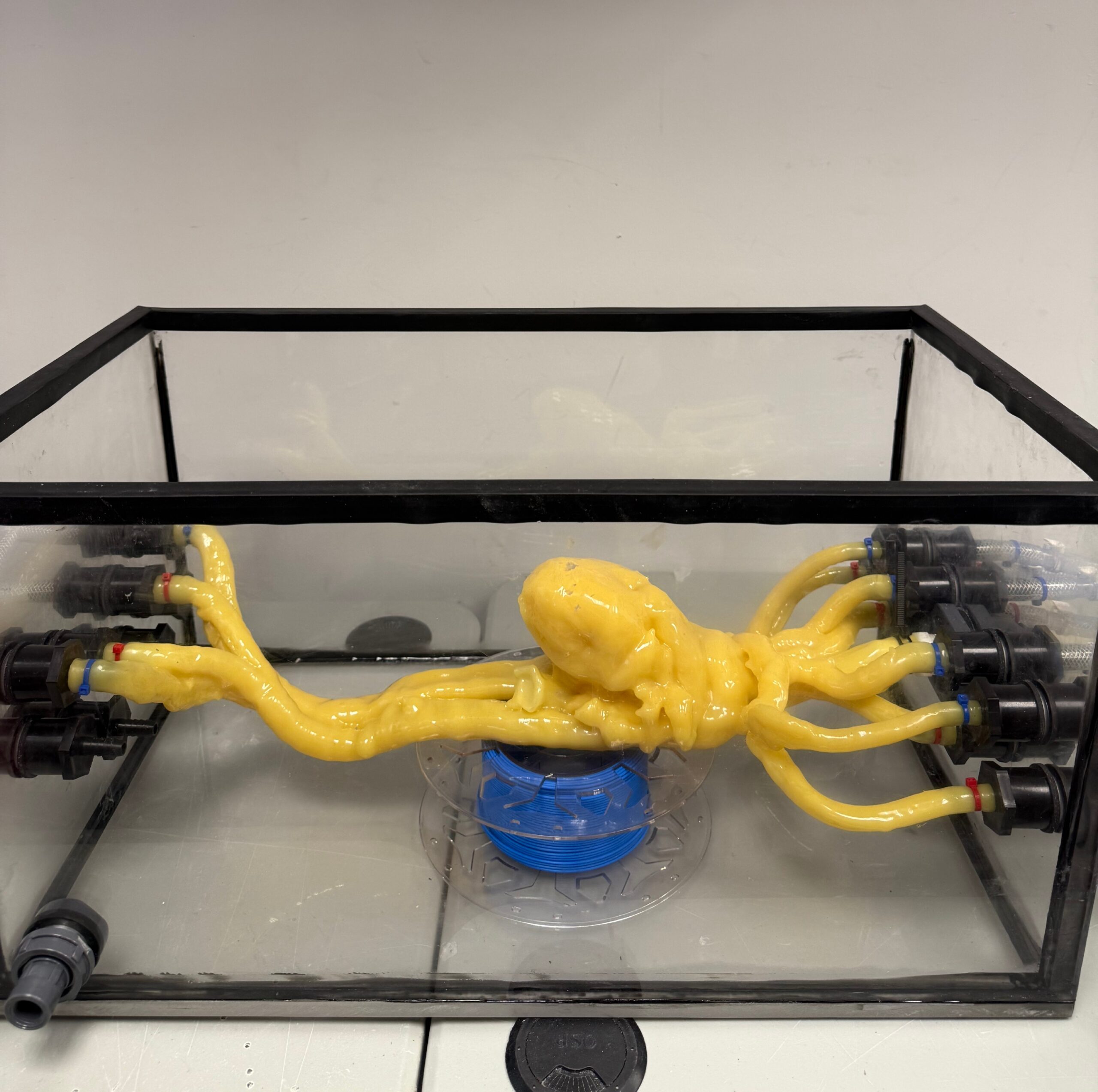

The Adult Female Heart Phantom is a realistic simulator of a healthy female heart, compatible with X-Ray/CT, Ultrasound, and MRI. It supports beating functionality and lifelike motions, making it useful for echocardiograms, endoscopies, catheter insertion, and cardiovascular research. Made from synthetic material with accurate anatomical structures, the phantom is fully customizable for various biomedical projects. A water tank is included to ensure proper mounting and performance for viewing internal structures and heart motion.

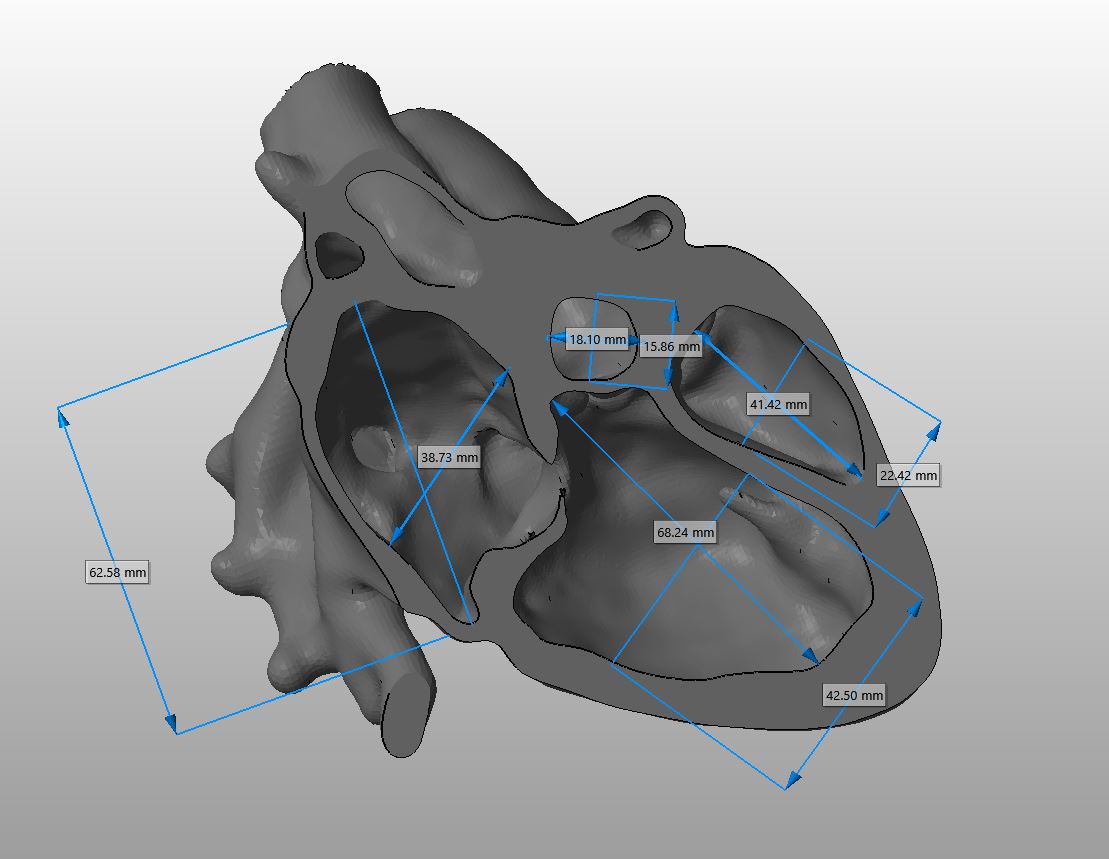

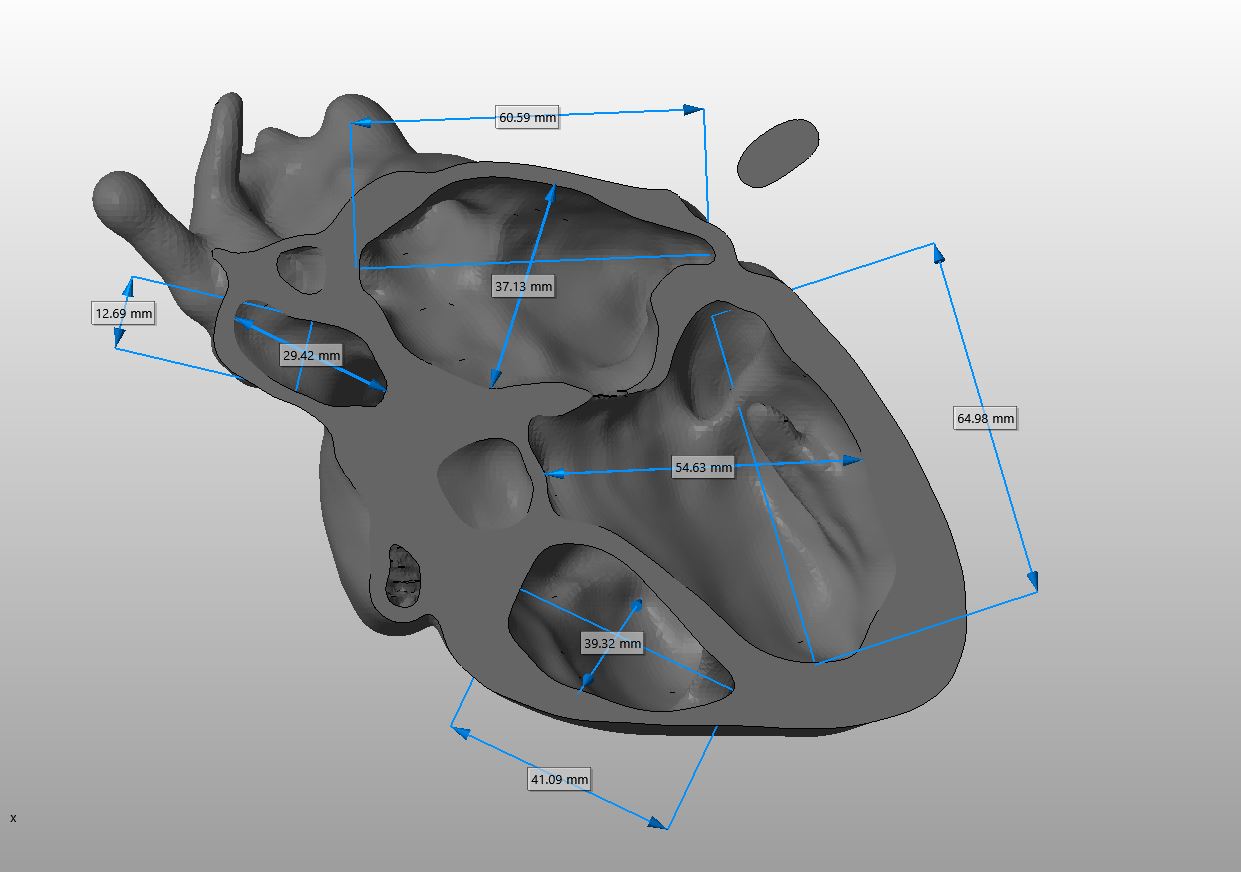

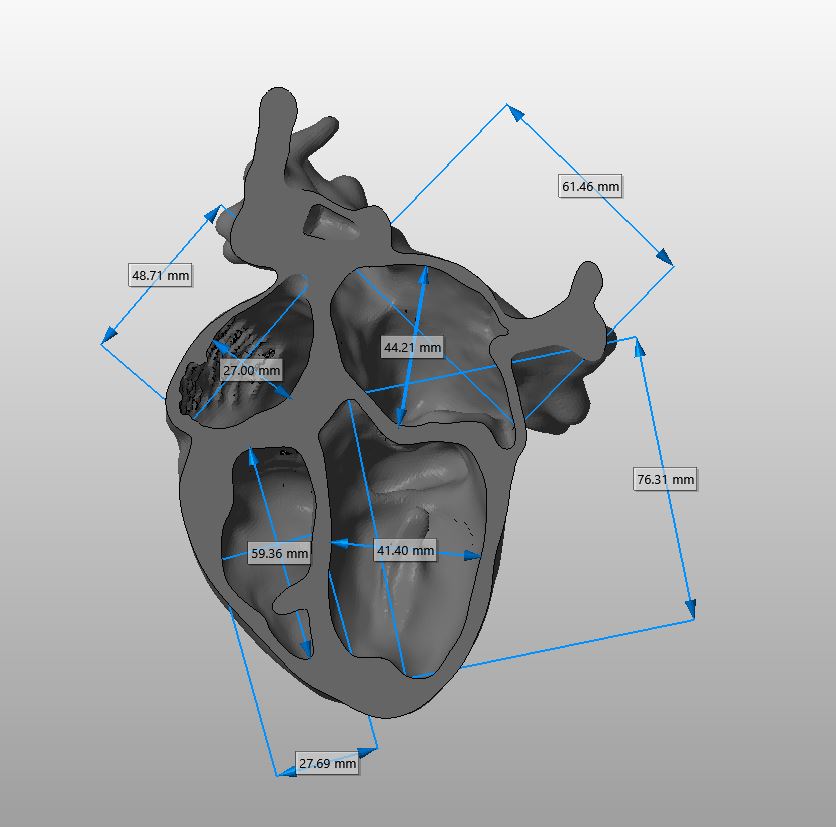

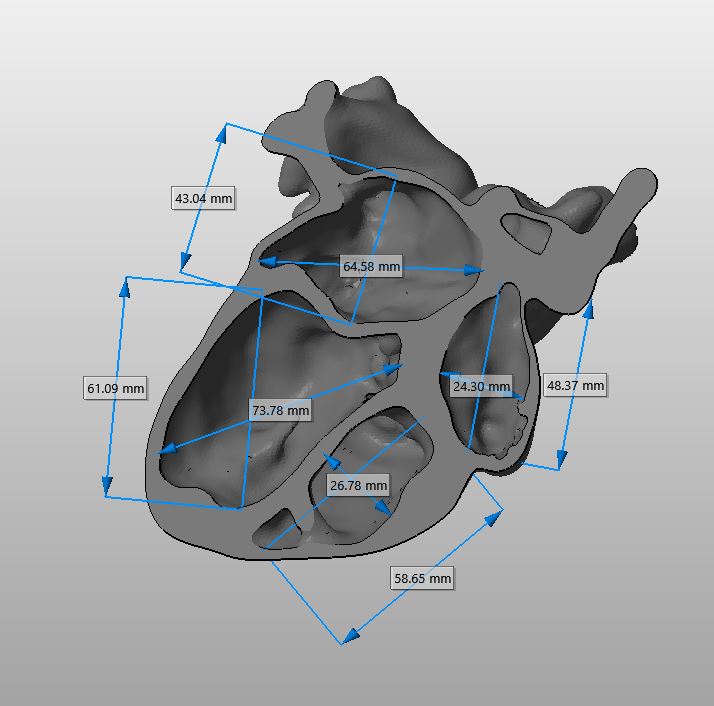

Design

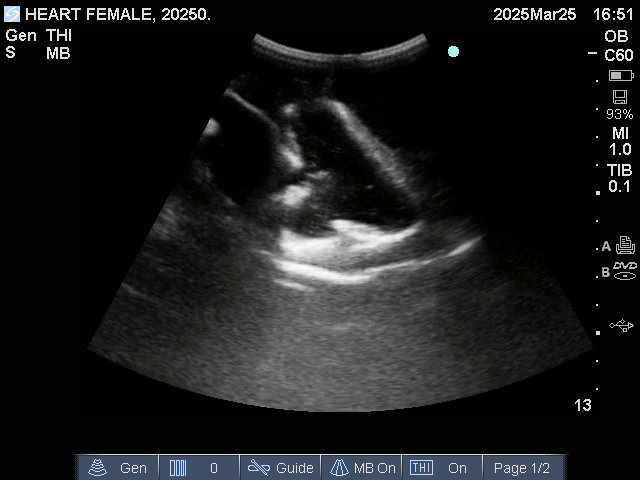

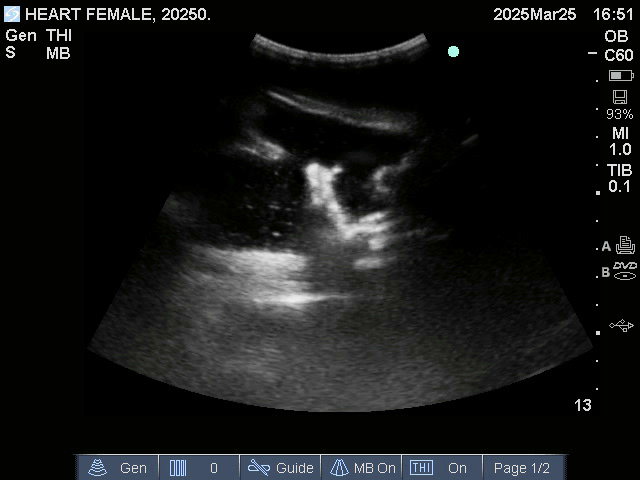

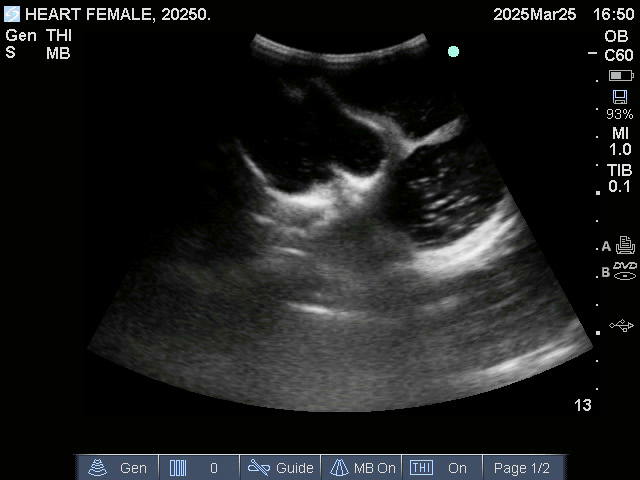

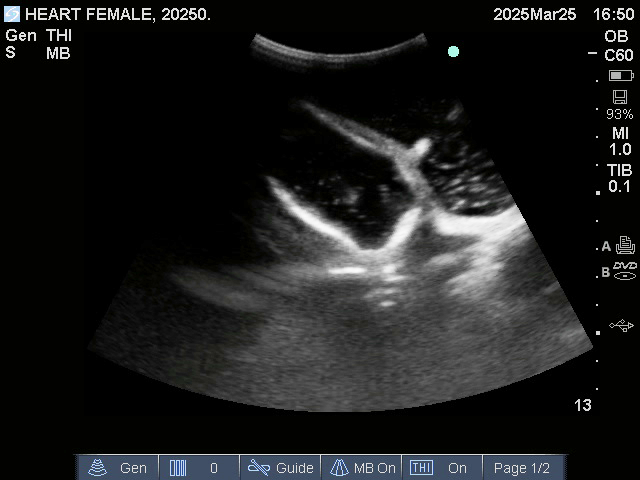

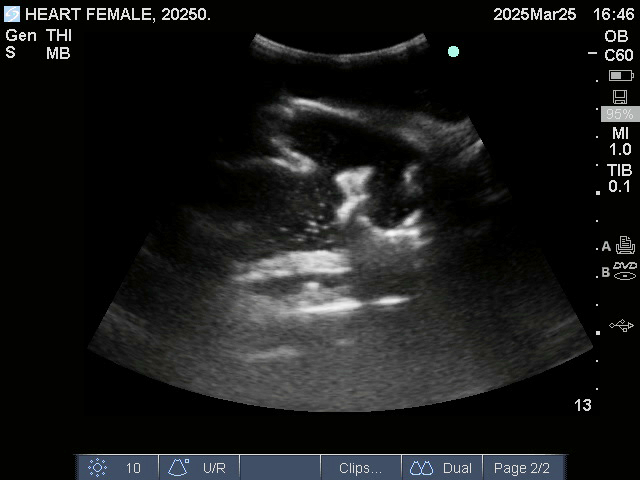

Ultrasound Scans
- Right atrial appendage with
- Arteries
- distinct muscle structure
- Right and Left Carotid Arteries
- 2 Atria, 2 Ventricles:
- Left Atrium: 64 ml
- Right and Left Femoral Arteries
- Right Ventricle: 48 ml
- Unique muscle structure to the
- Moderator Band that runs from
- appendage of the left atrium
- Veins:
- the
- Right and Left Subclavian Veins
- anterior wall to the septum
- 4 Valves
- Right and Left Jugular Veins
- bridge
- SVC
- Right and Left Femoral Veins
- Left Ventricle: 74 ml
- IVC
- Papillary muscles to the anterior
- Aorta
- Appendage Feature
- and posterior walls
- Arteries:
- Flexible Valvular Structures
- Right Atrium: 52 ml
- Right and Left Subclavian
- Esophagus
| Phantom Size | 23 x 7 x 12 Inches |
| Phantom Weight | 3 Lbs (approx.) |
| Shipment Size | 36 x 24 x 12 Inches |
| Shipment Weight | 22 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
| Coronary Arteries | Default (Not Included), Included |
| Gender | Male, Female |
