X-Ray, CT, MRI Phantoms

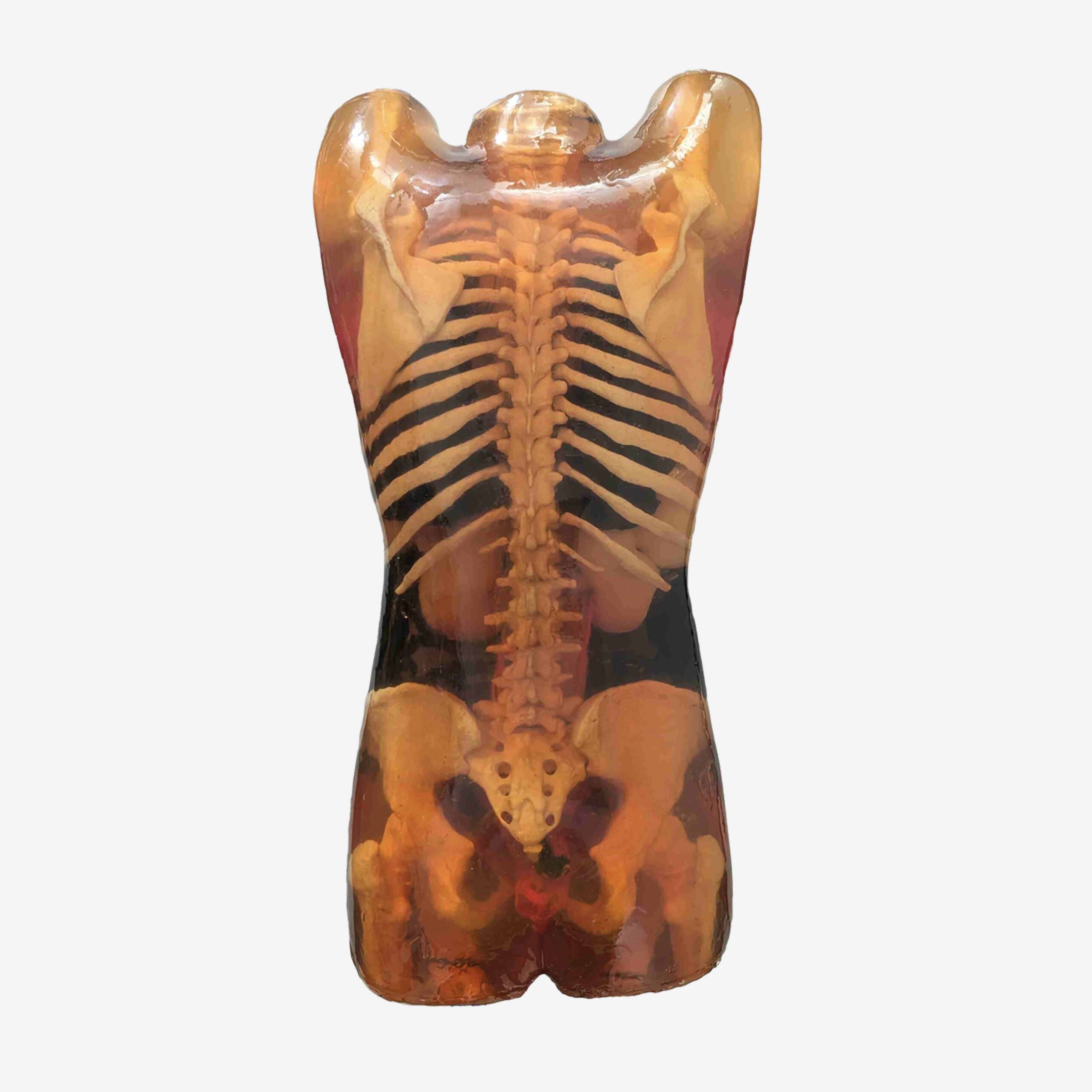

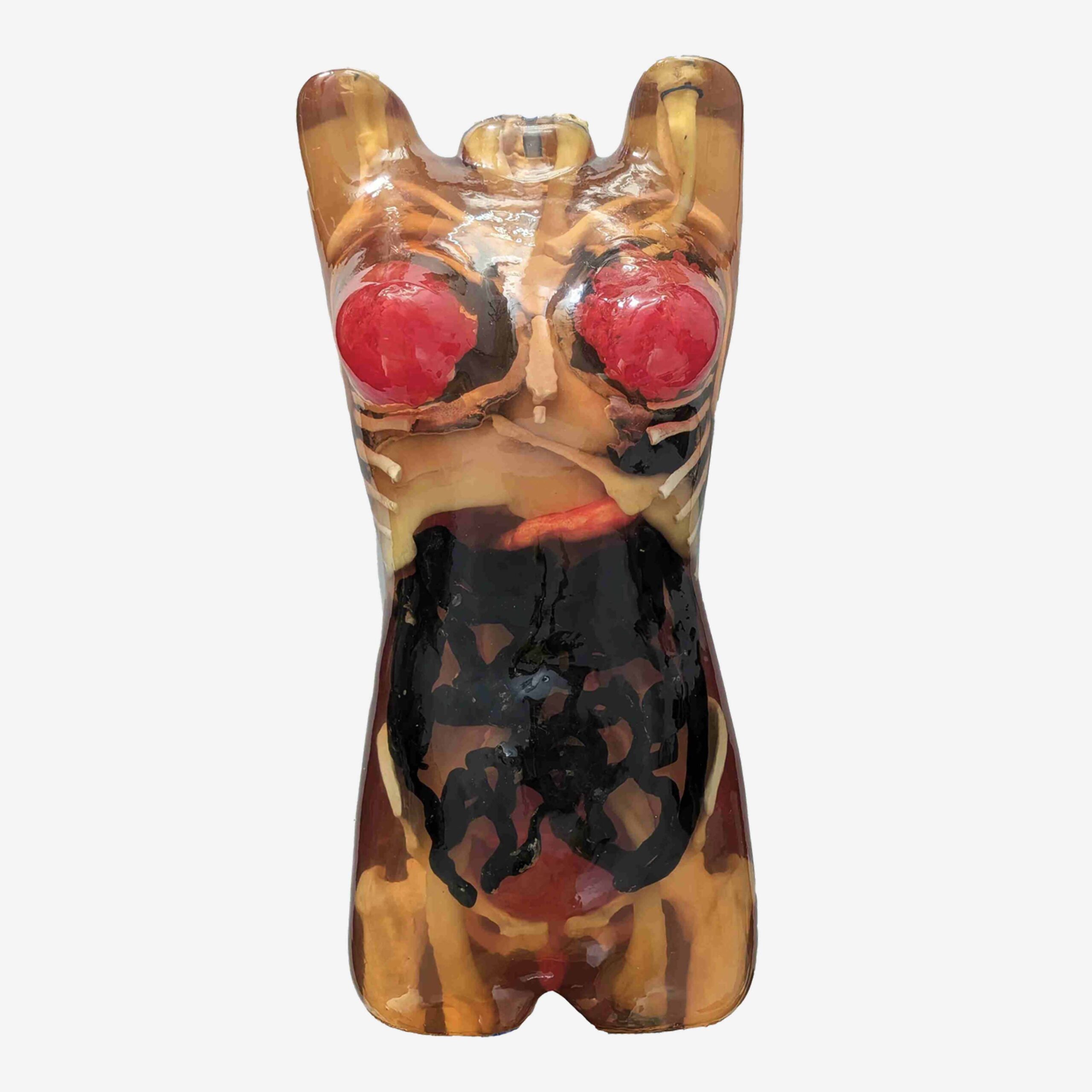

Adult Female Torso for X-Ray CT, MRI
$19,700 USD
This phantom was designed using a CT dataset from a healthy 35-year-old female patient, standing 168 cm (5’5″) tall with a BMI adjusted to 22. The model was developed using advanced artificial intelligence (AI) software, incorporating a leading-edge algorithm to extract anatomical structures, ensuring exceptional precision and anatomical accuracy within the phantom.
Female Torso Model: Standard (X-Ray·CT·MRI)
This product can be customized based on your requirements — contact us.
This phantom was designed using a CT dataset from a healthy 35-year-old female patient, standing 168 cm (5'5) tall with a BMI adjusted to 22. The model was developed using advanced artificial intelligence (AI) software, incorporating a leading-edge algorithm to extract anatomical structures, ensuring exceptional precision and anatomical accuracy within the phantom.

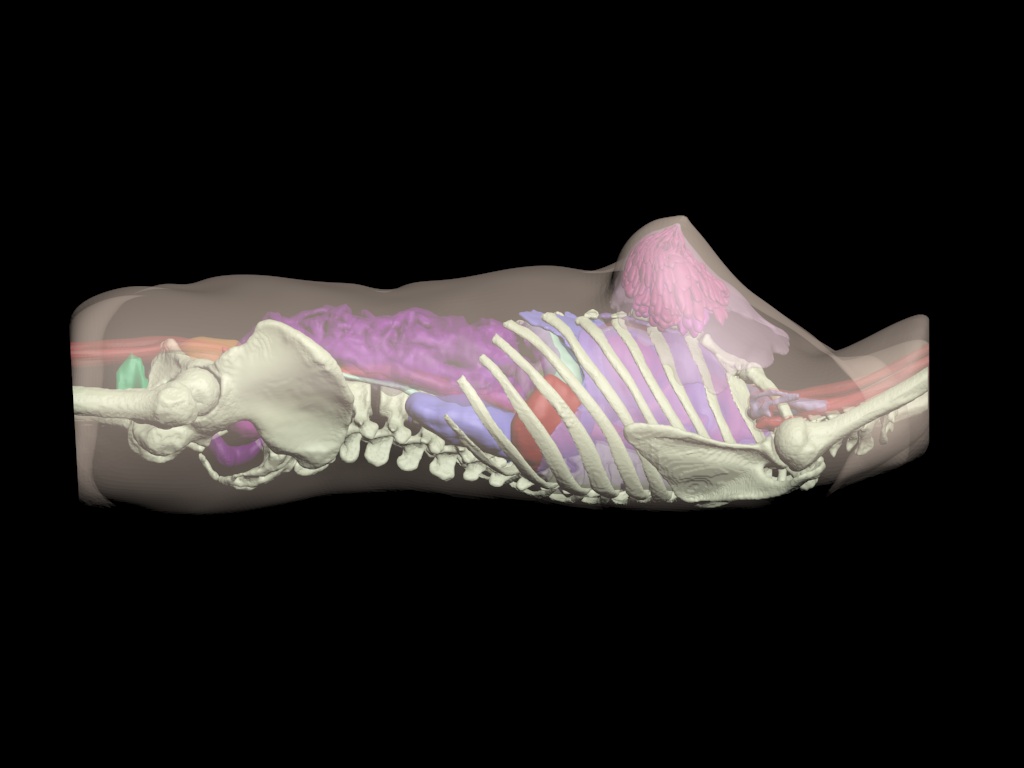

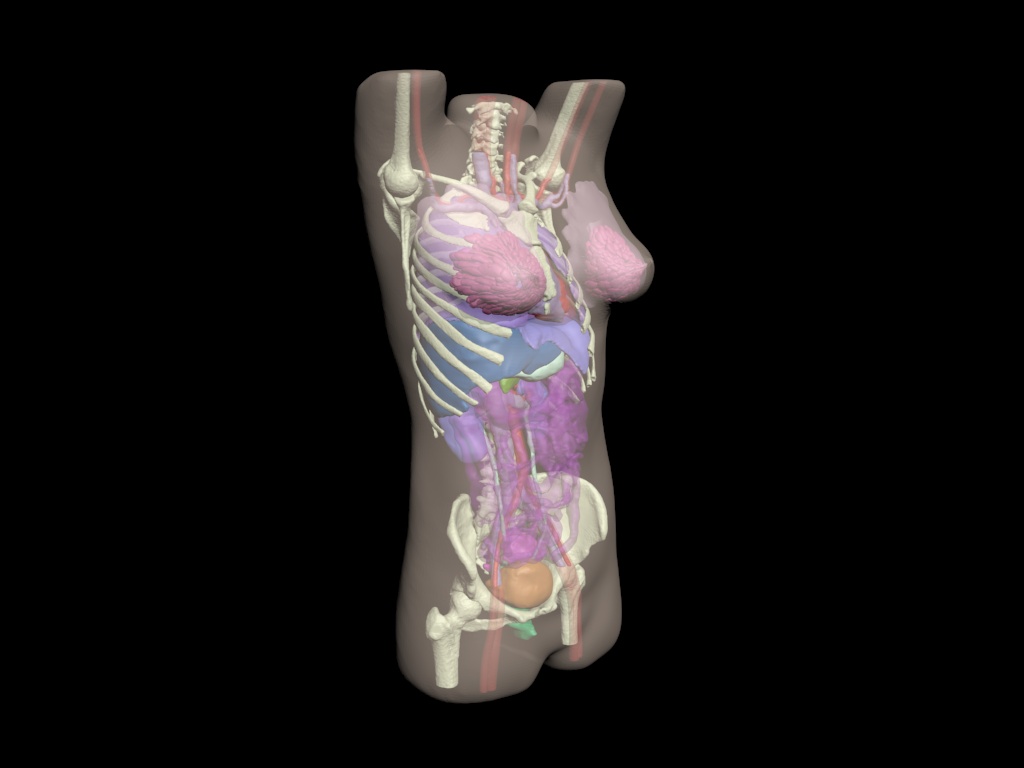

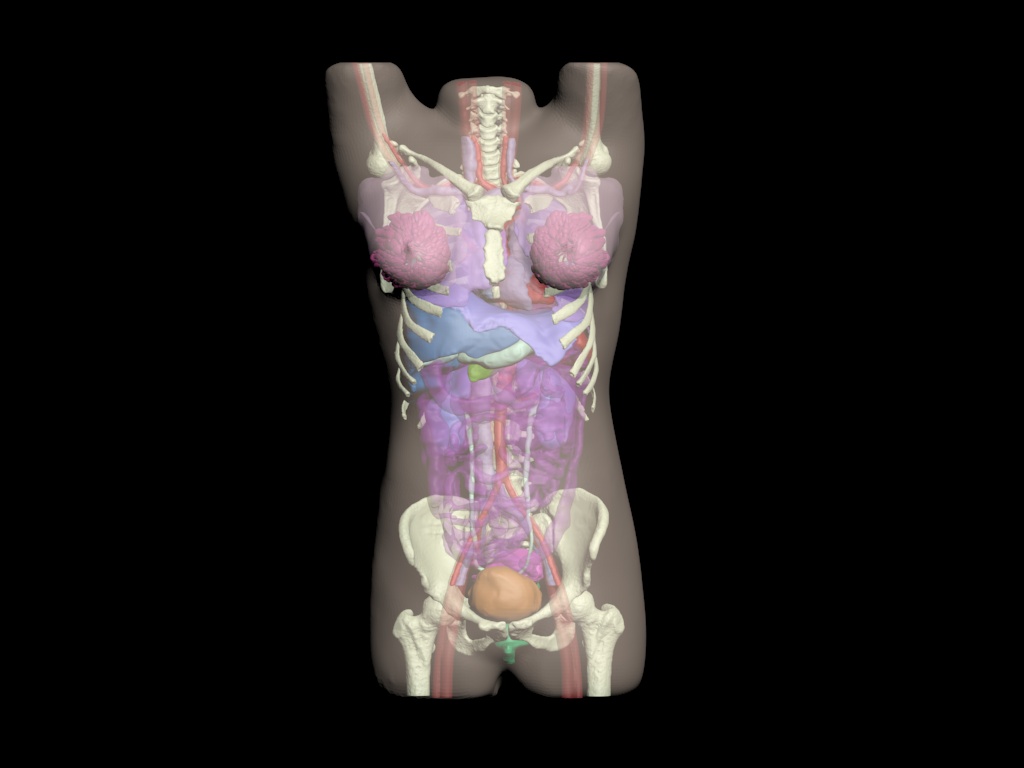

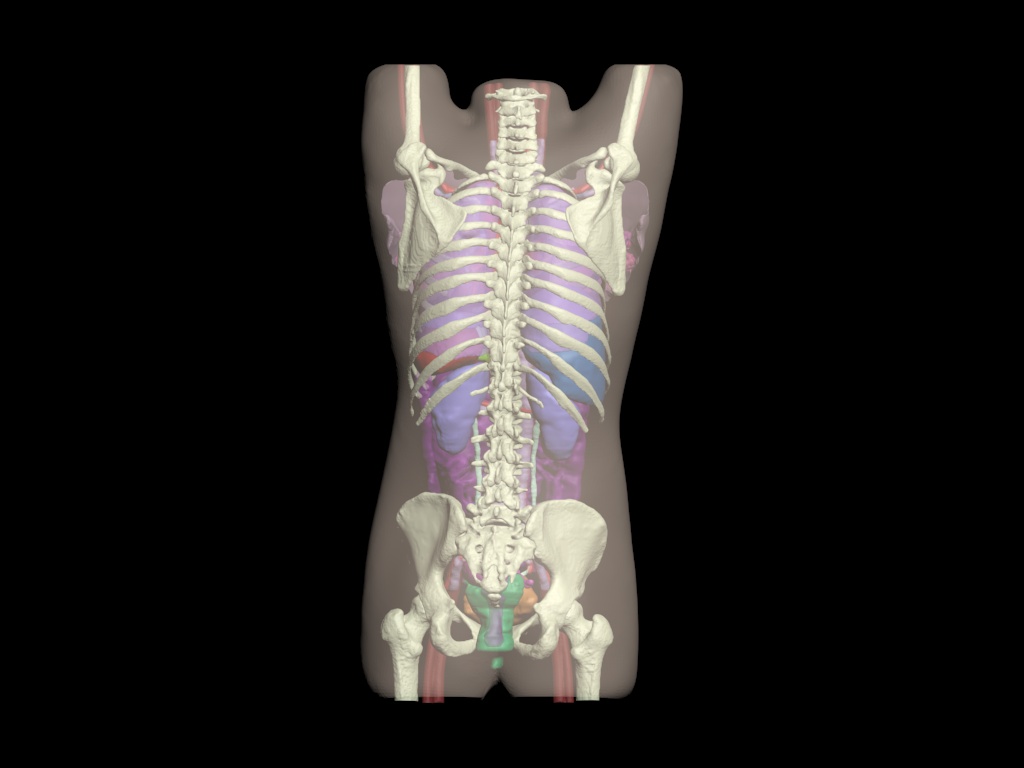

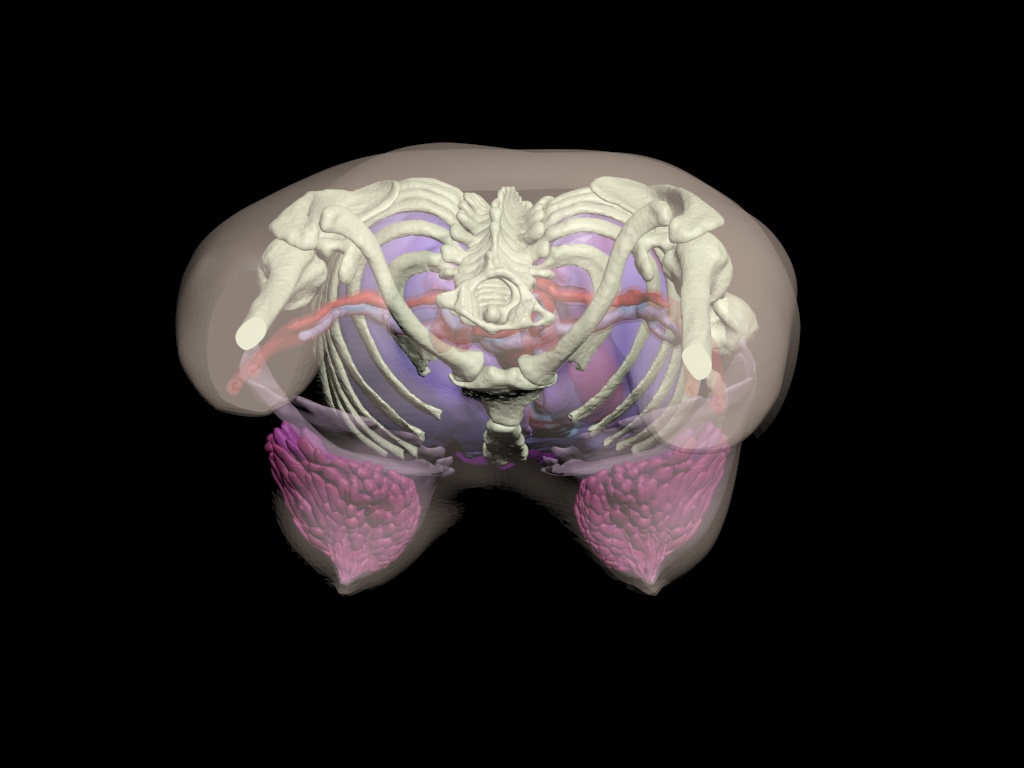

Design

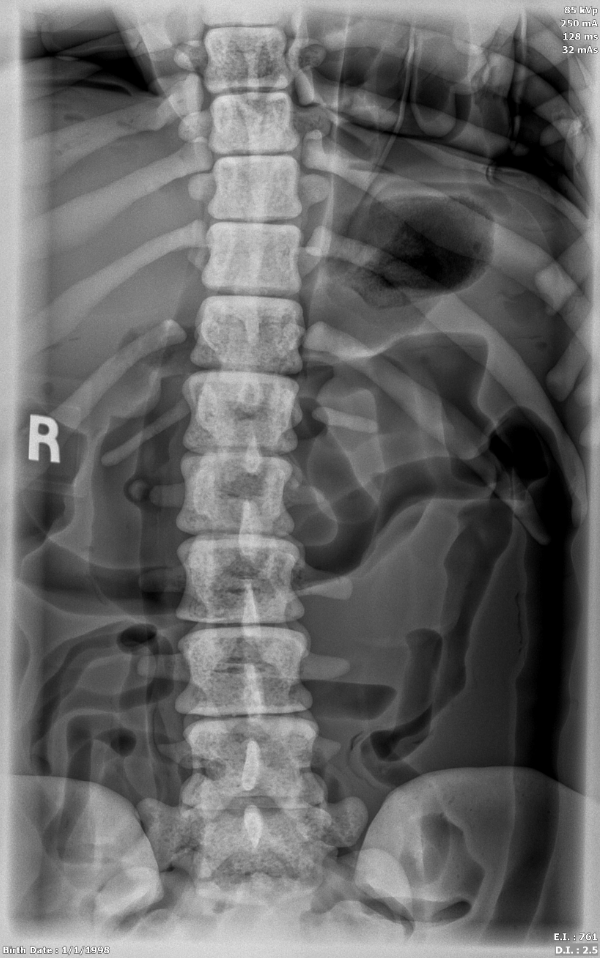

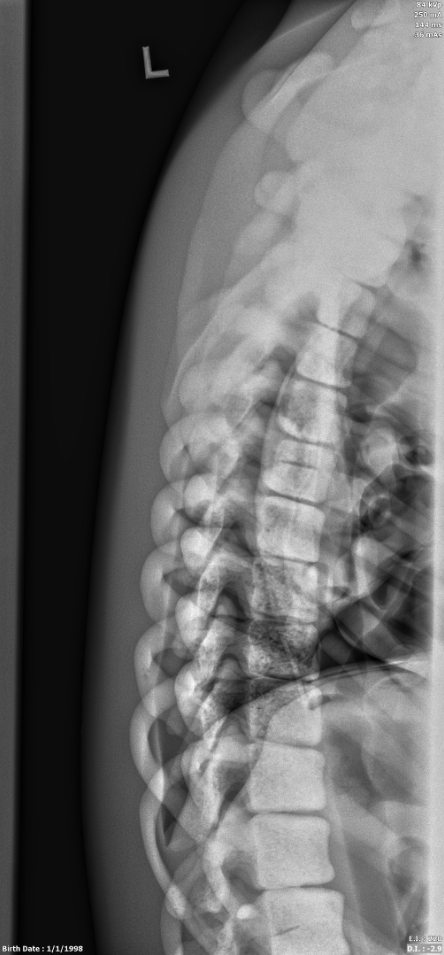

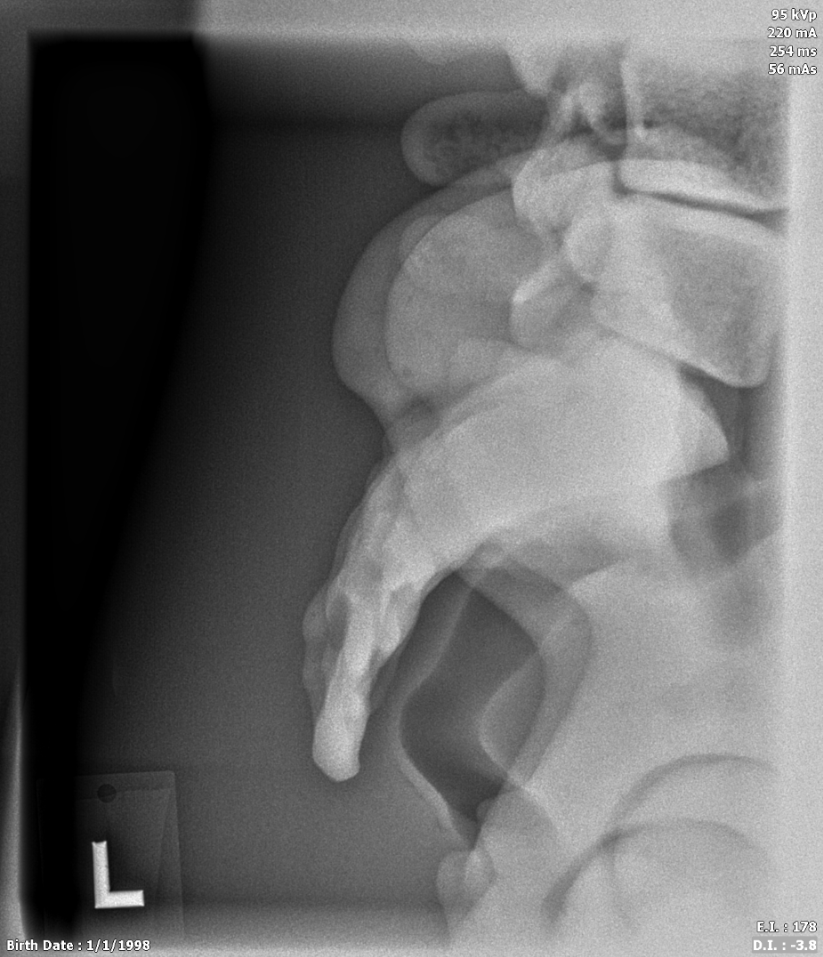

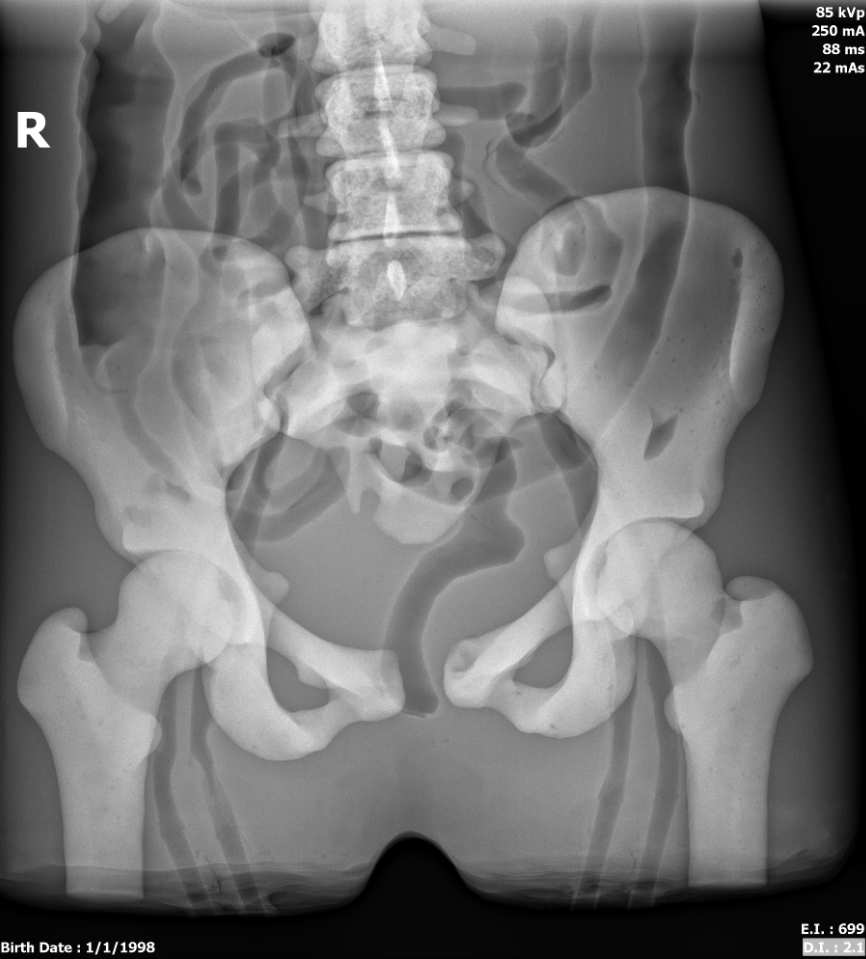

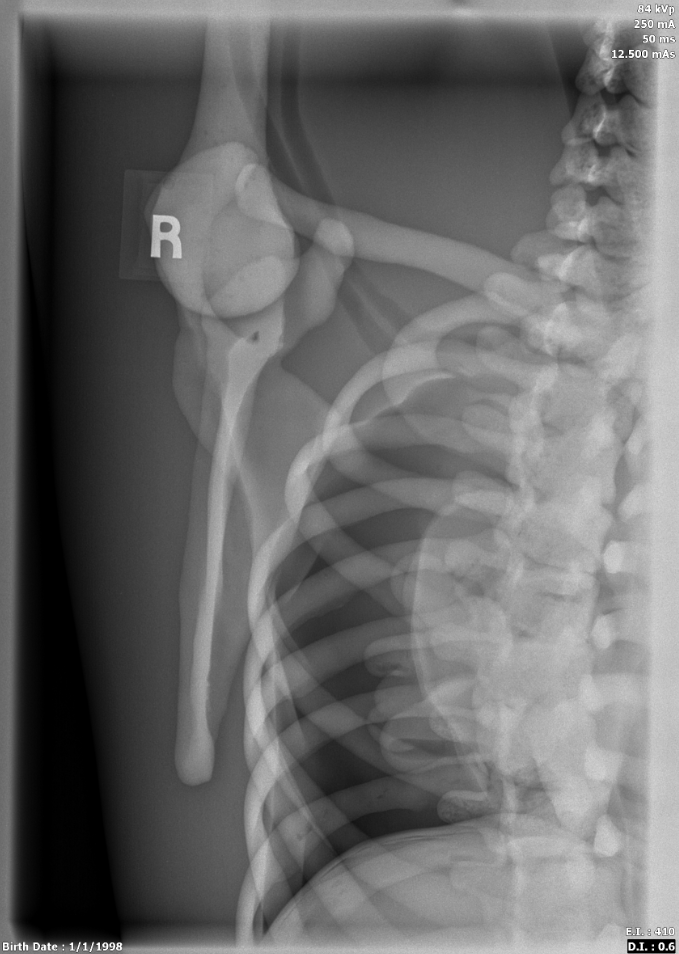

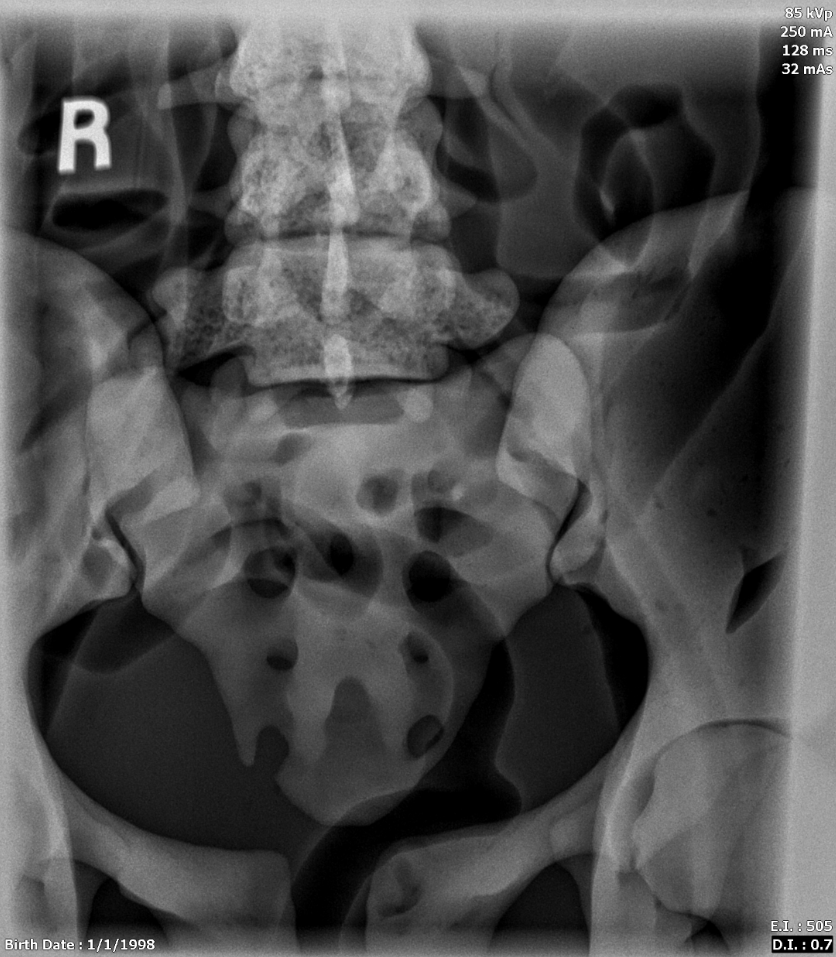

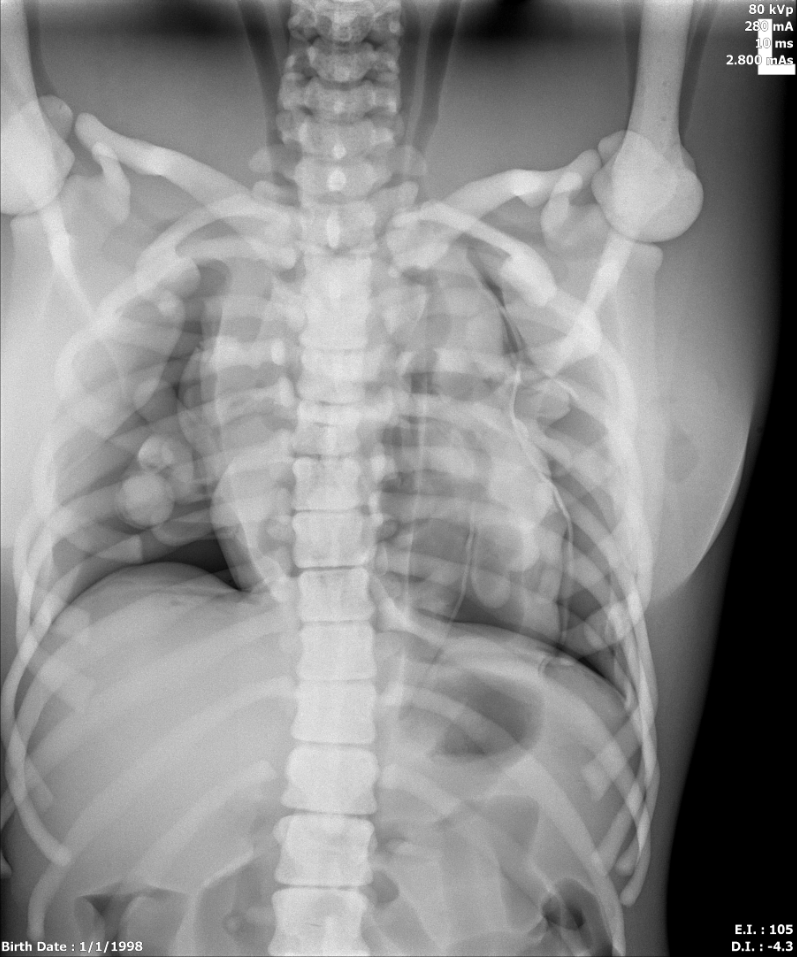

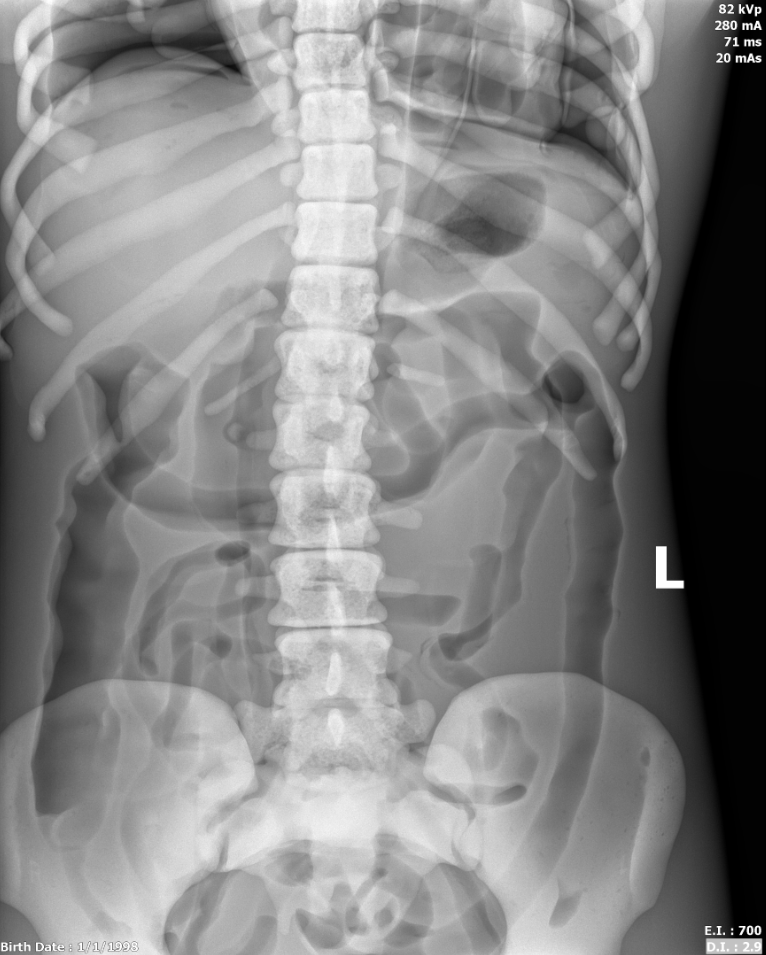

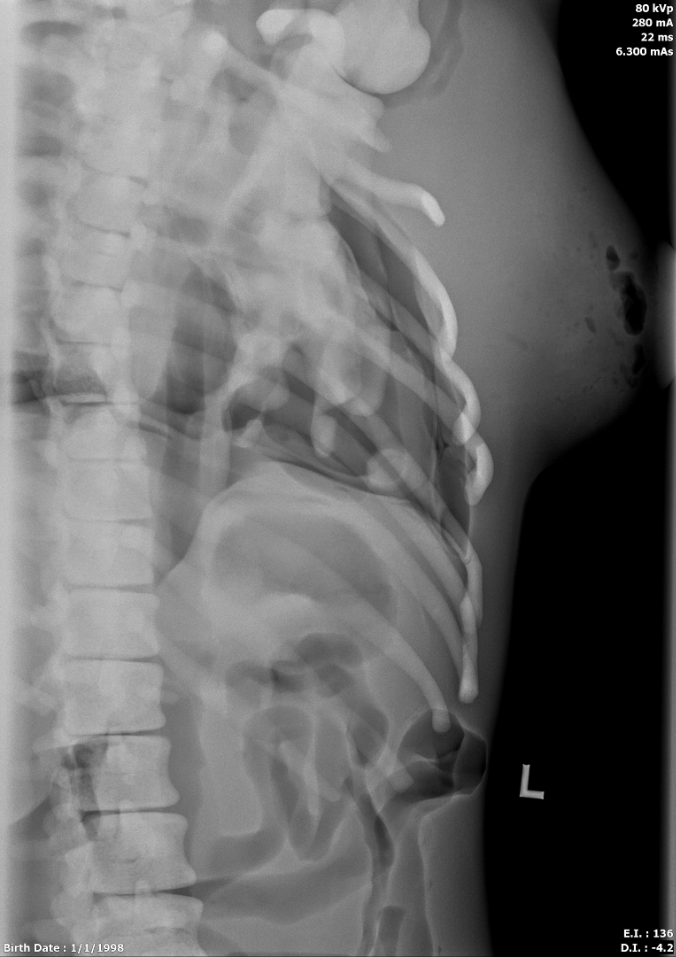

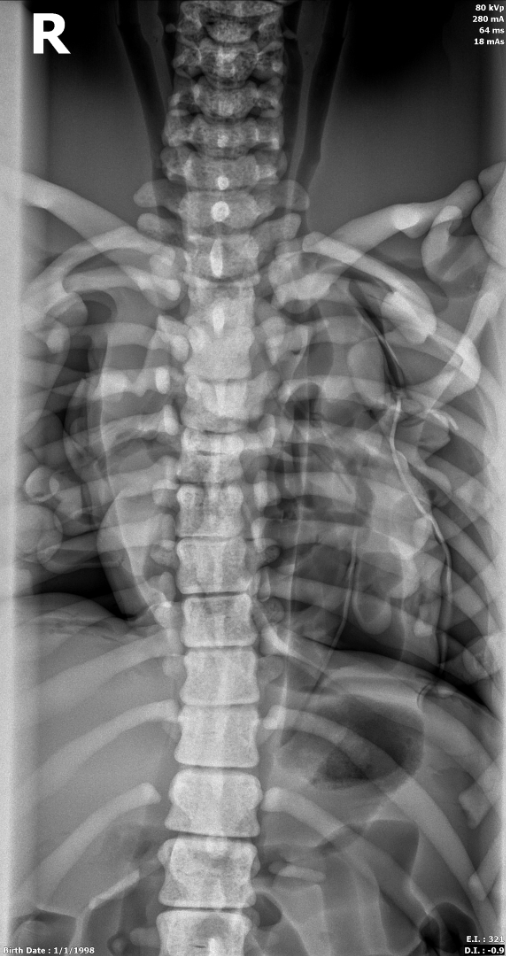

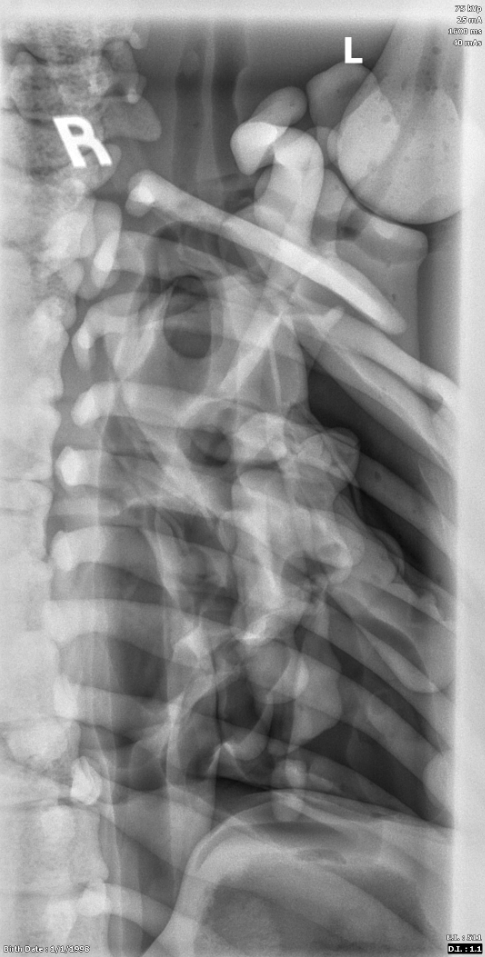

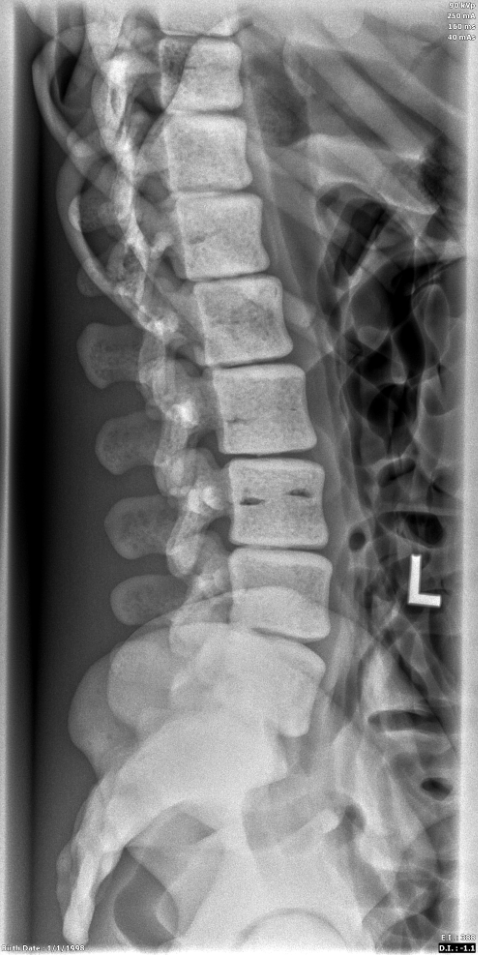

X-Ray Scans

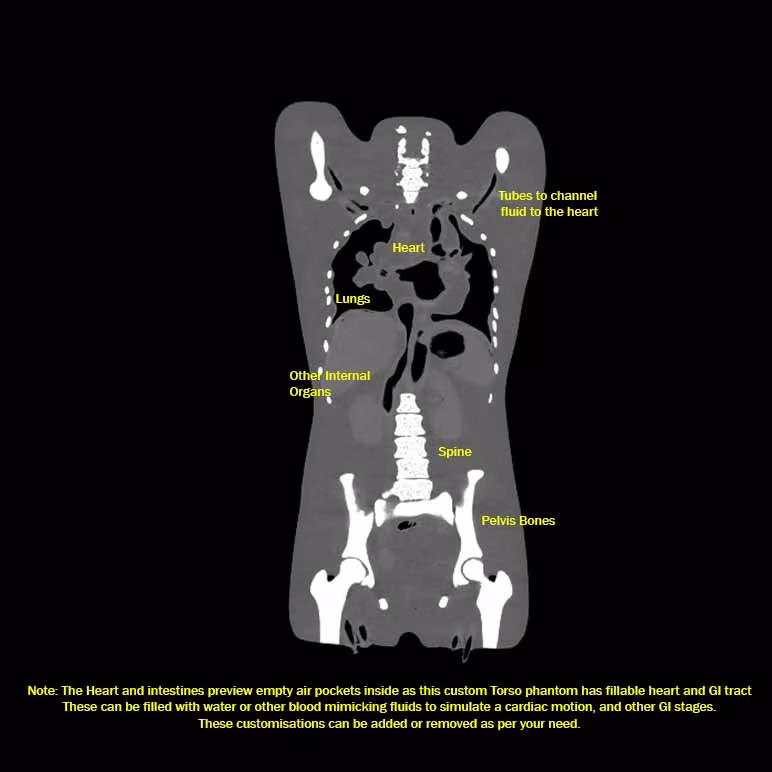

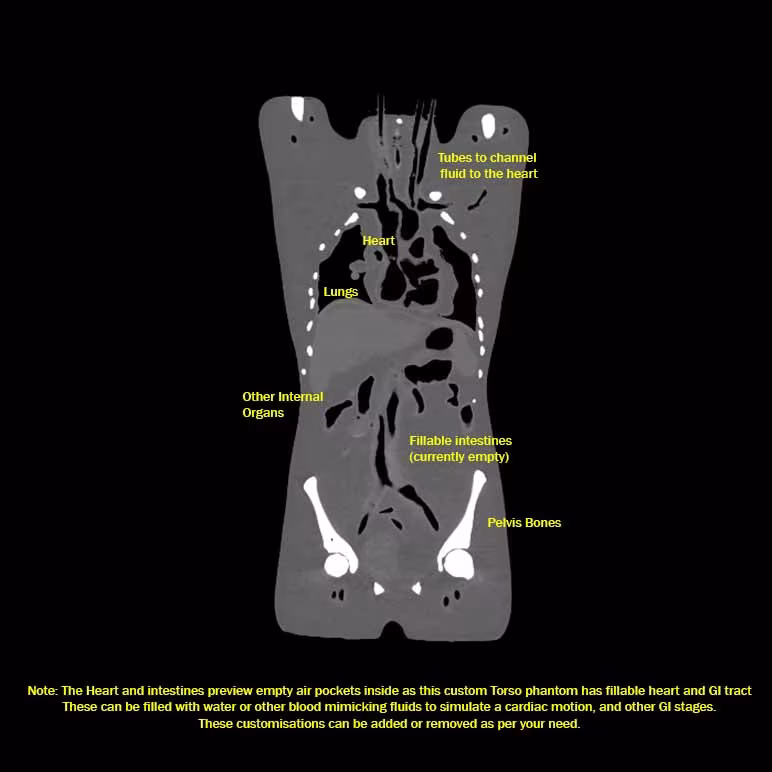

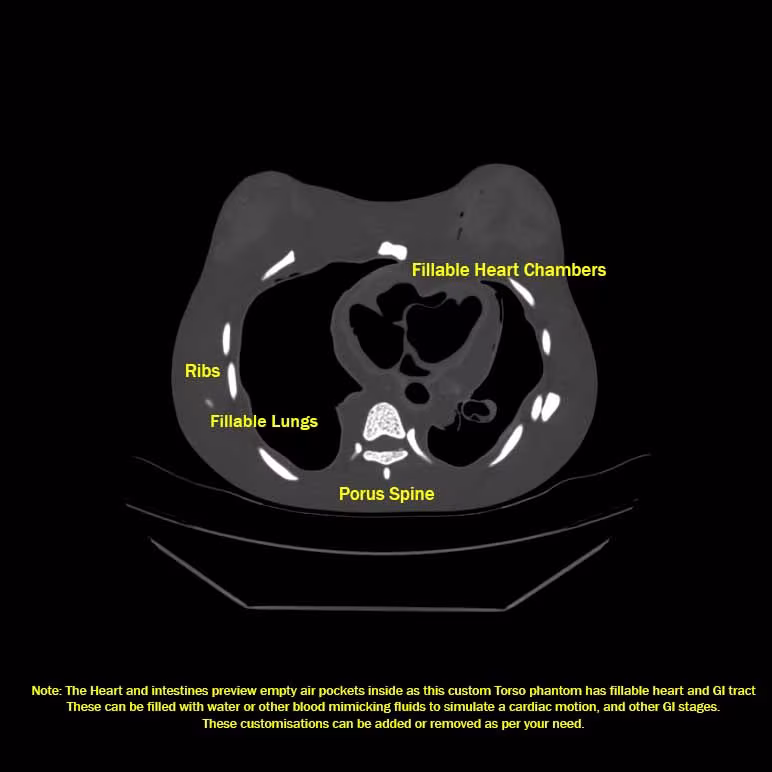

CT Scans

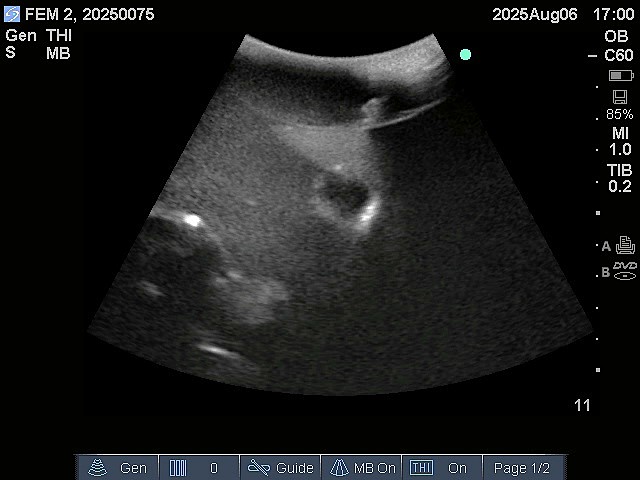

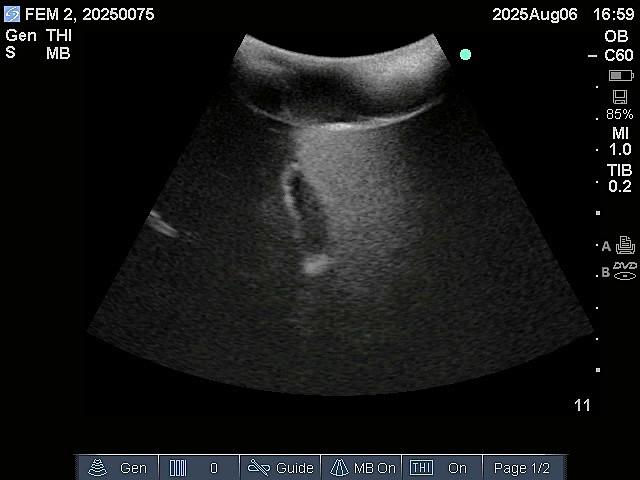

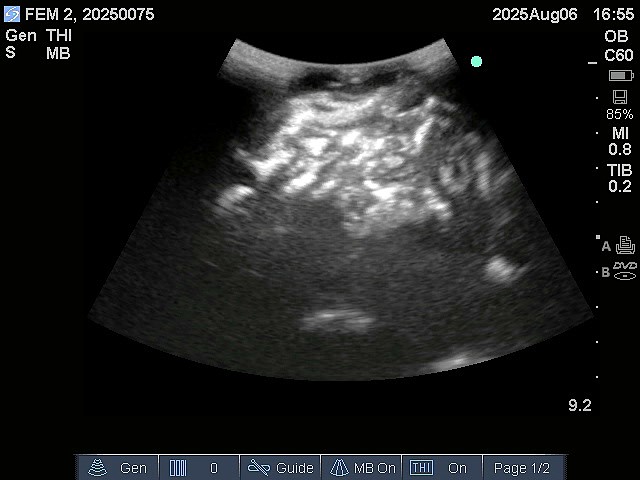

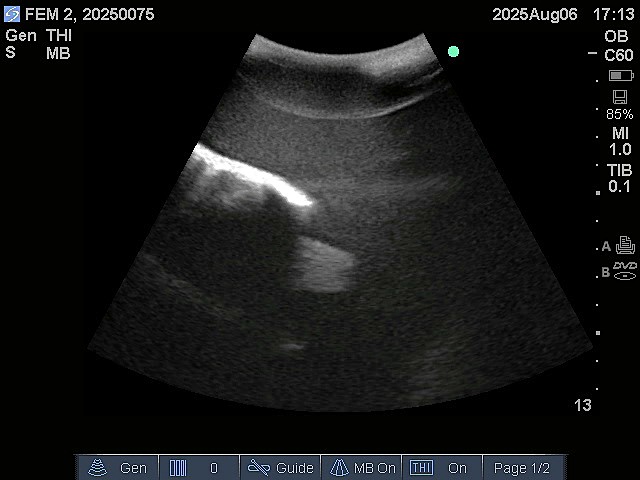

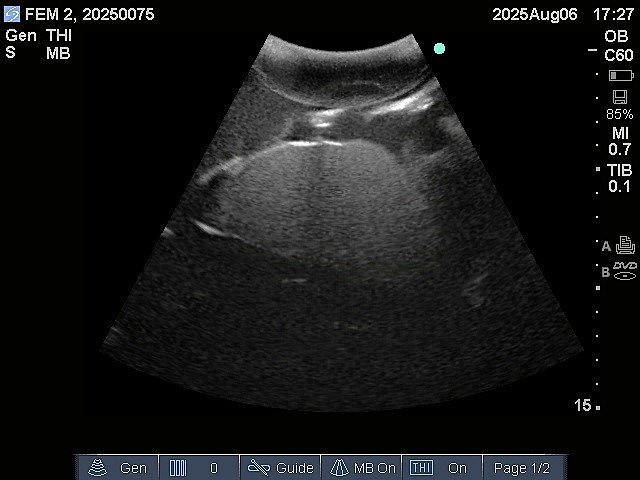

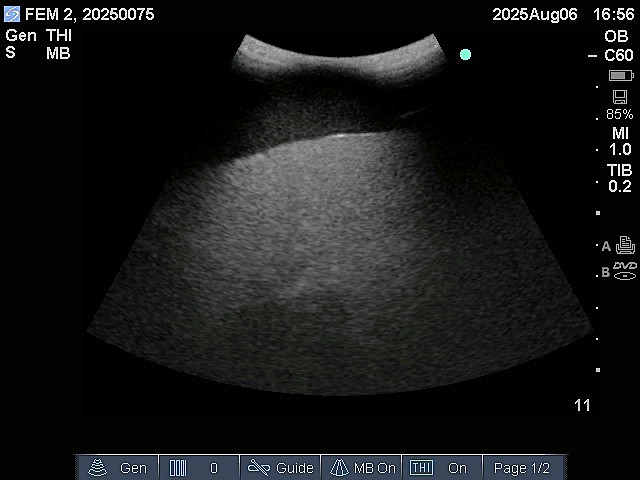

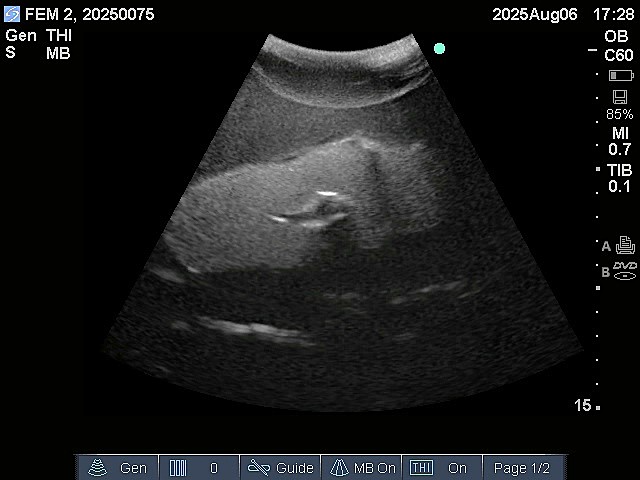

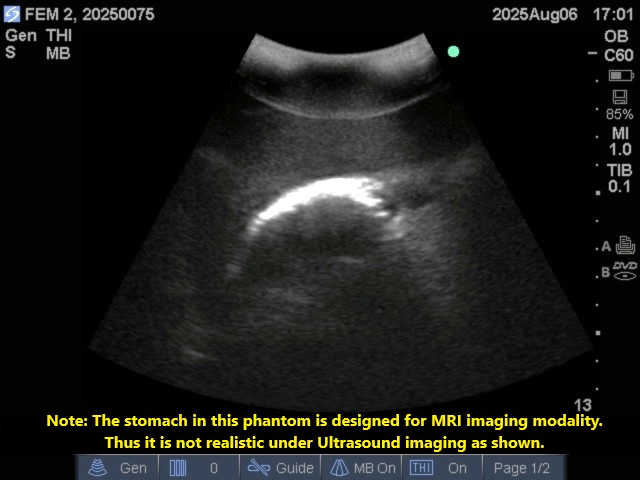

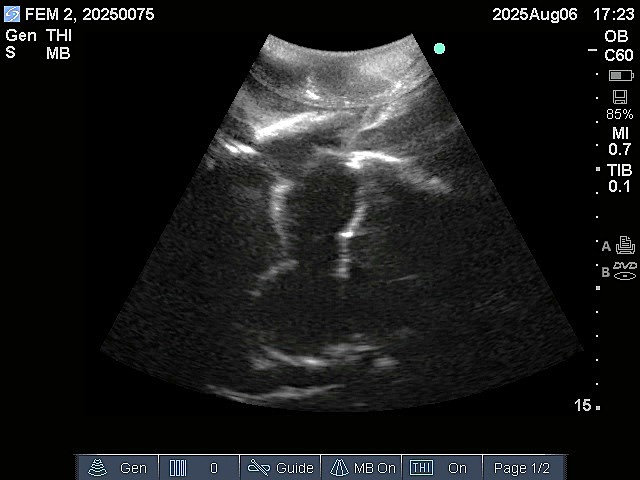

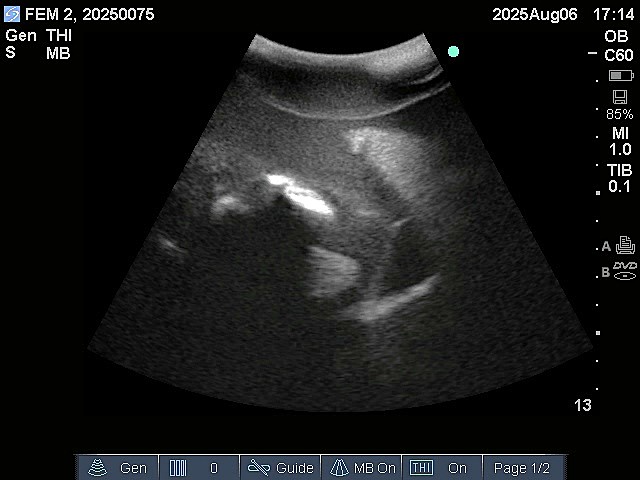

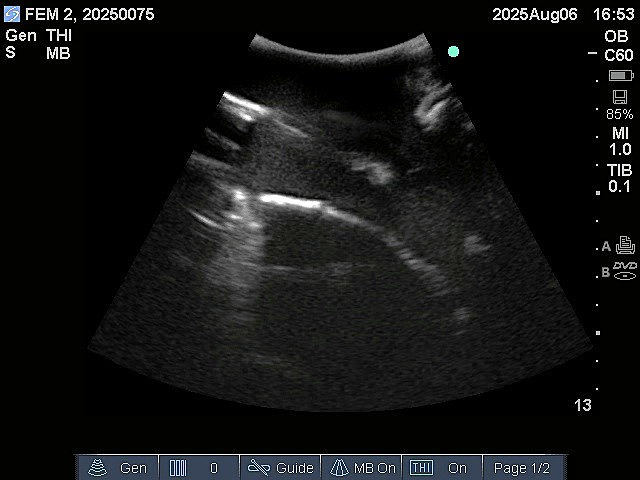

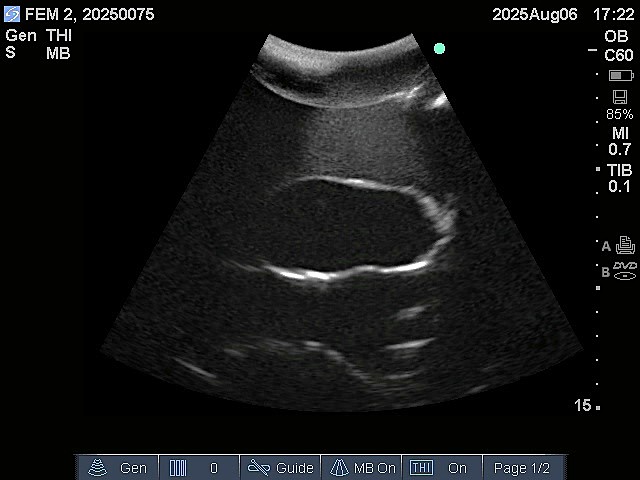

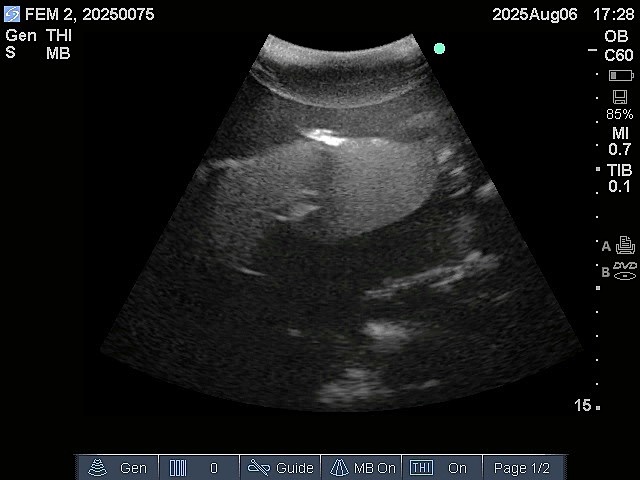

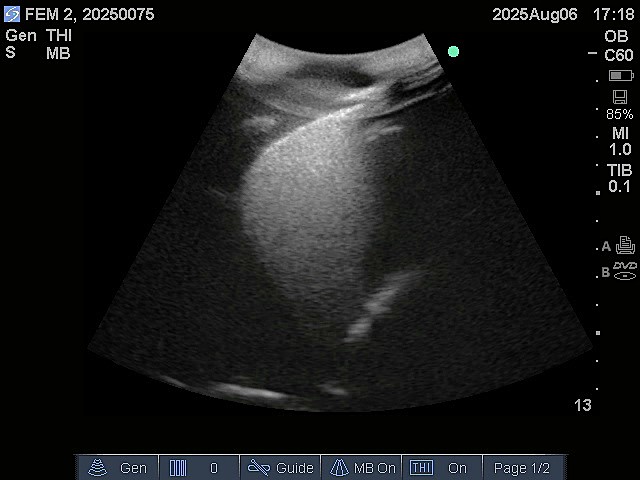

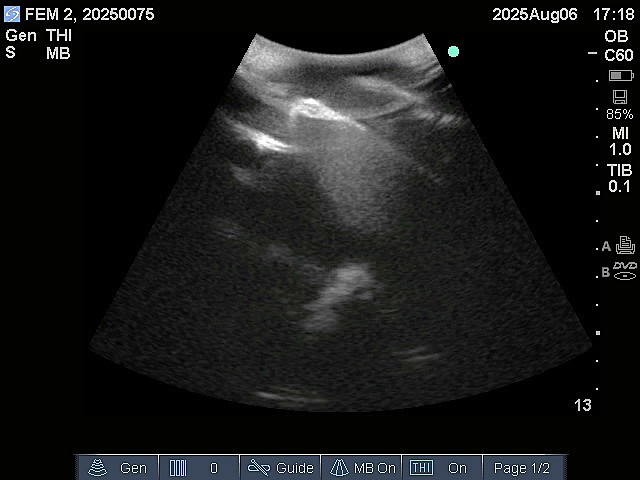

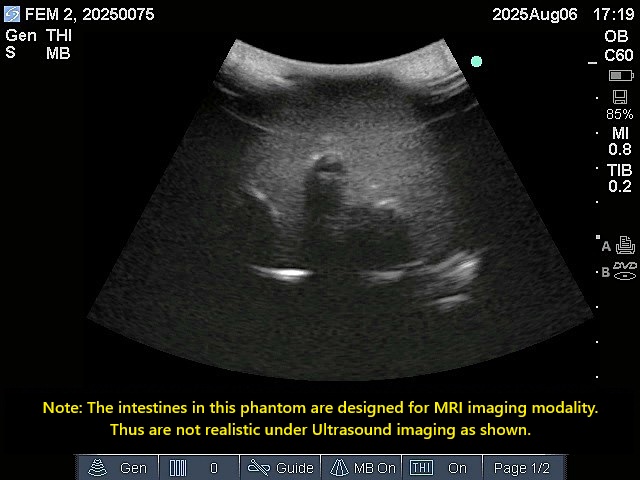

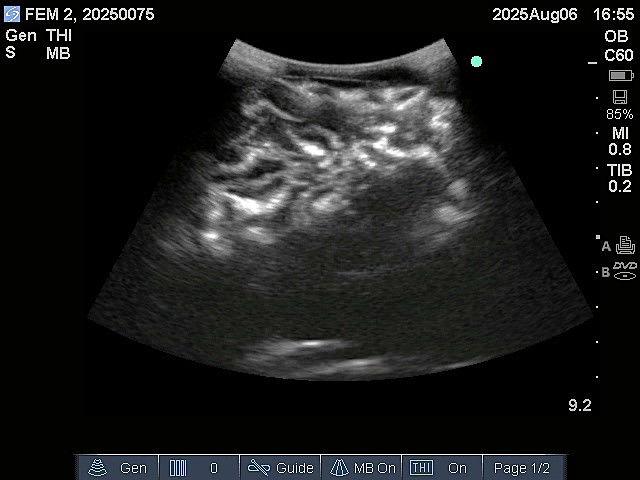

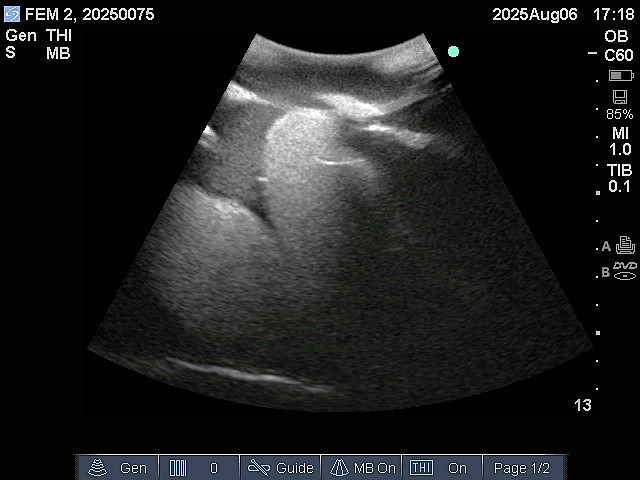

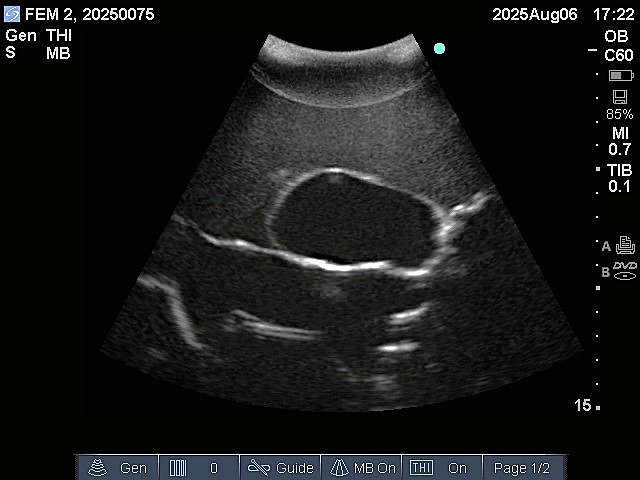

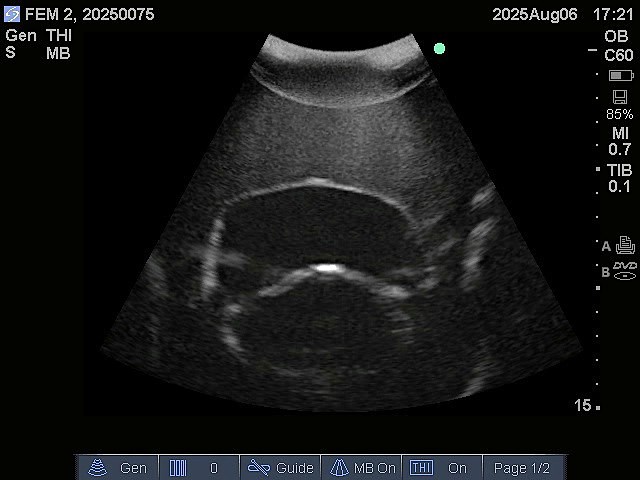

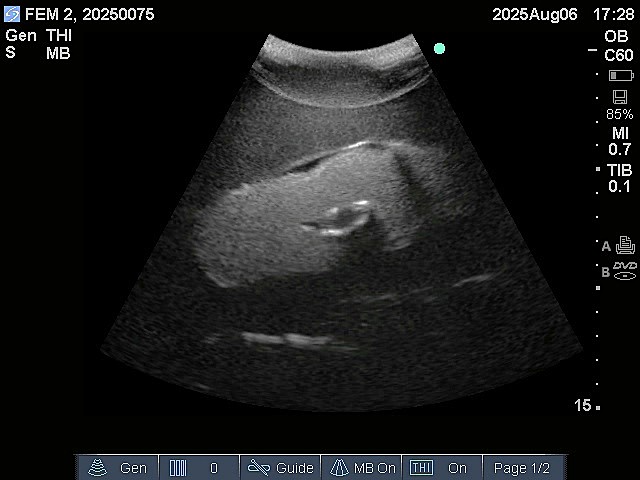

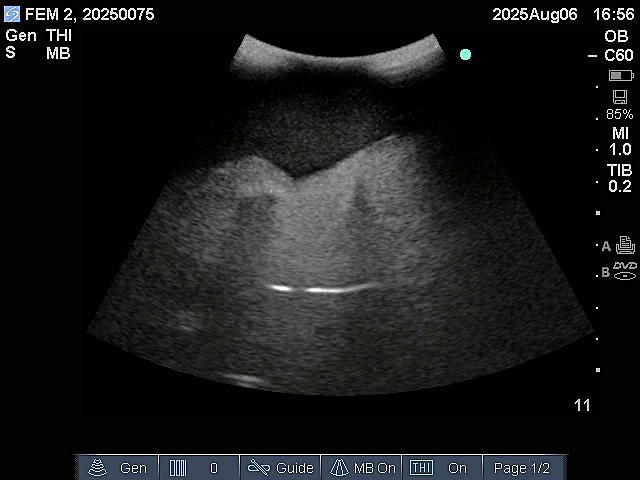

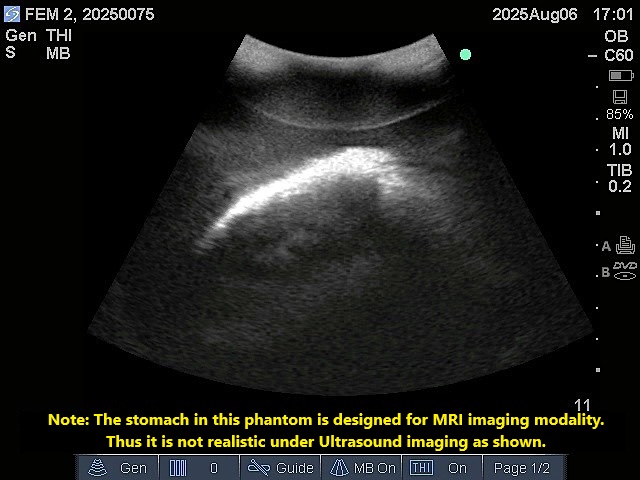

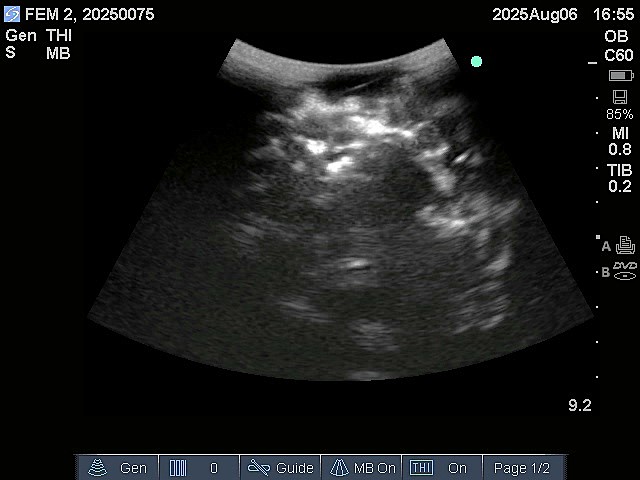

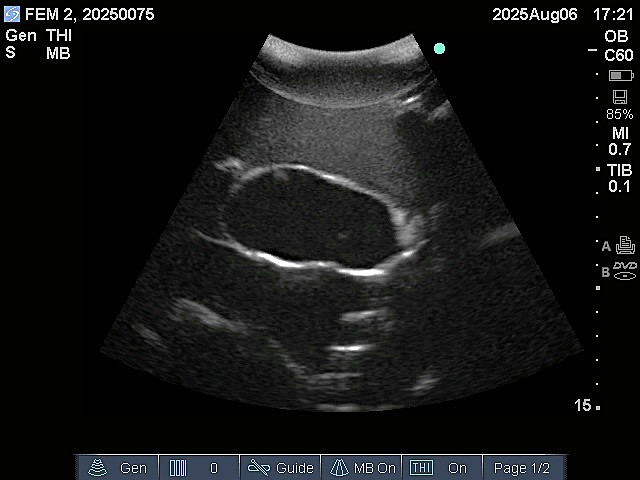

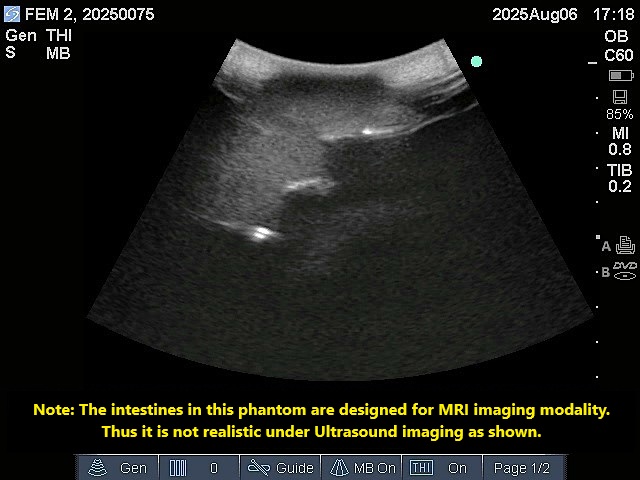

Ultrasound Scans
- Mammary Fat Tissues
- Complete Spine
- Mammary Gland Tissues
- Complete Ribcage
- Shoulders and Clavicles
- Liver
- Pelvis
- Gallbladder
- Partial Femoral Bones
- Stomach
- Trachea
- Kidneys
- Heart
- Spleen
- Lungs
- Pancreas
- Diaphragm
- Large and Small Intestines
- Breasts:
- Bladder
- Cervix
- Body Tissue Making
- Vaginal Canal
| Phantom Size | 29 x 14 x 11 Inches |
| Phantom Weight | 80 Lbs (approx.) |
| Shipment Size | 46 x 36 x 17 Inches |
| Shipment Weight | 136 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Pancreas | 110 |
| Diaphragm | 80 |
| Mammary Fat Tissues | -25 |
| Mammary Gland Tissues | 35 |
| Cervix | 50 |
| Vaginal Canal | 50 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Ovaries | 50 |
| Uterus | 50 |
| Torso Model | Female (Dynamic), Female (Standard) |
| Model | X-Ray CT, US, X-Ray CT, MRI |
