X-Ray, CT, MRI Phantoms

Adult Full Body with Muscles for X-Ray CT, MRI

Name: Adult Full Body with Muscles for X-Ray CT, MRI
Brand: SimEd Group
SKU: FB-A02
Price: 39400 CAD
Availability: InStock

Model FB-A02

X-RayCTMRI

$39,200 USD

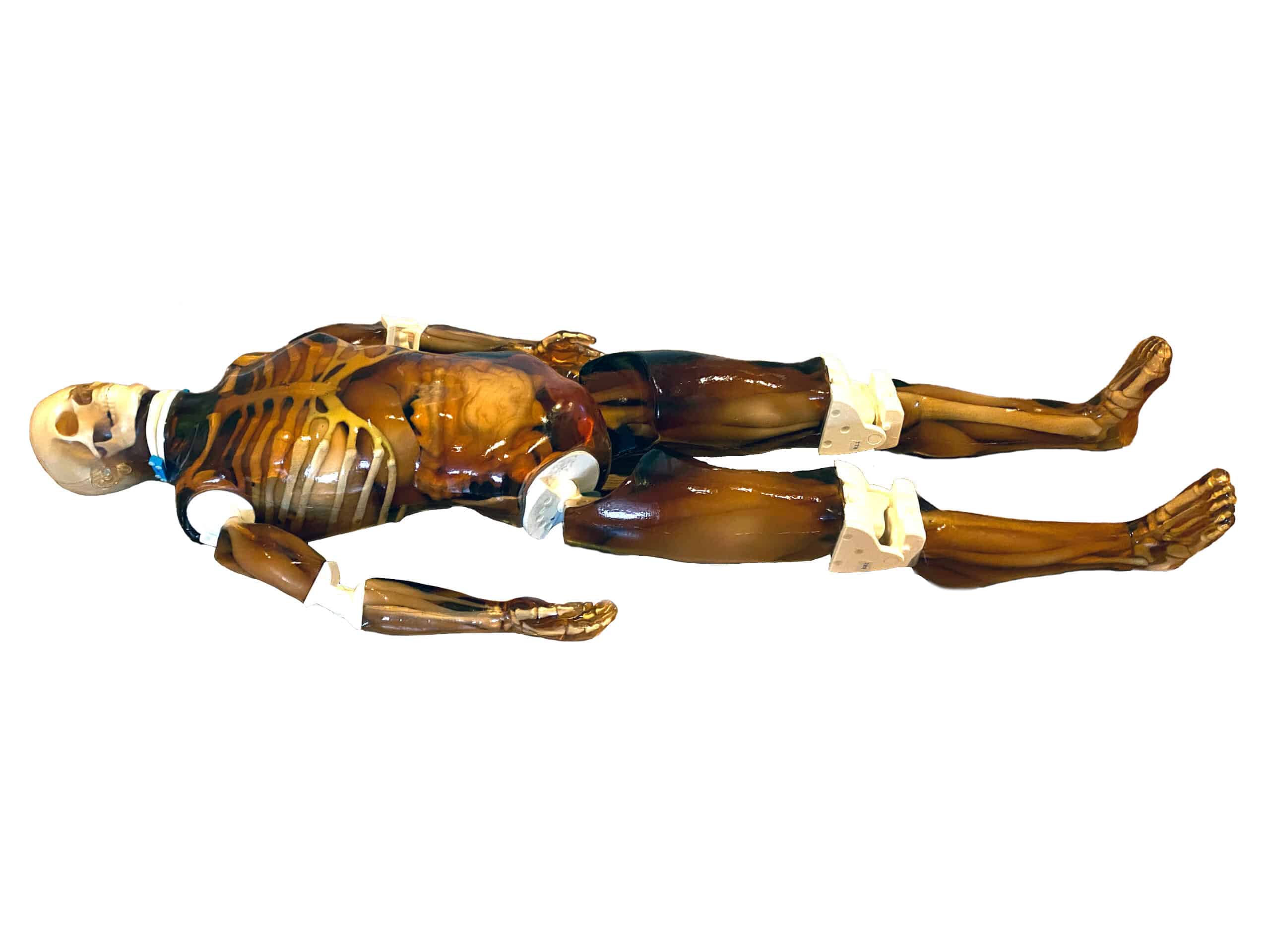

The Adult Full Body Phantom (with Muscles) is a versatile training product compatible with X-Ray CT and MRI. It is primarily used for providing hands-on experience with diagnostic imaging techniques. The skeleton is made of individually cast bones with adjustable properties, and the phantom can be customized with various pathologies. It is available in translucent or skin-colored versions.

Full Body Model: with Muscles (X-Ray·CT·MRI)

with Muscles (X-Ray·CT·MRI) with Muscles (X-Ray·CT·US) Standard (X-Ray) Standard (X-Ray·CT·MRI) Standard (X-Ray·CT·US)

Appearance: Translucent Amber

This product can be customized based on your requirements — contact us.

SKU: FB-A02

Category: X-Ray, CT, MRI Phantoms

Adult Full Body Phantom with Muscles is an X-Ray/CT and MRI-compatible training product. The primary application of this phantom is to train and demonstrate various patient positioning techniques in radiology. . This phantom can be ordered in a translucent or skin-colored version.

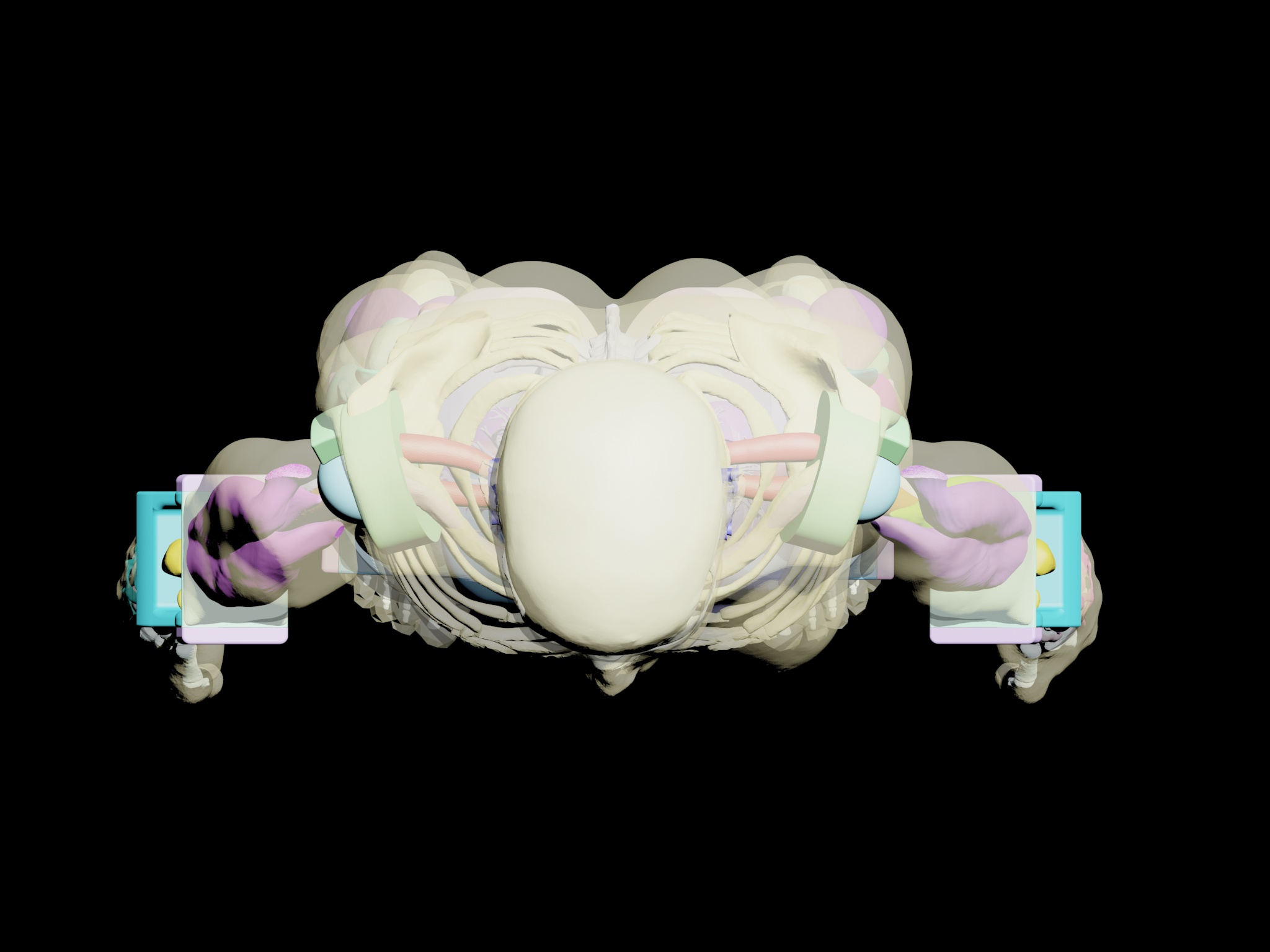

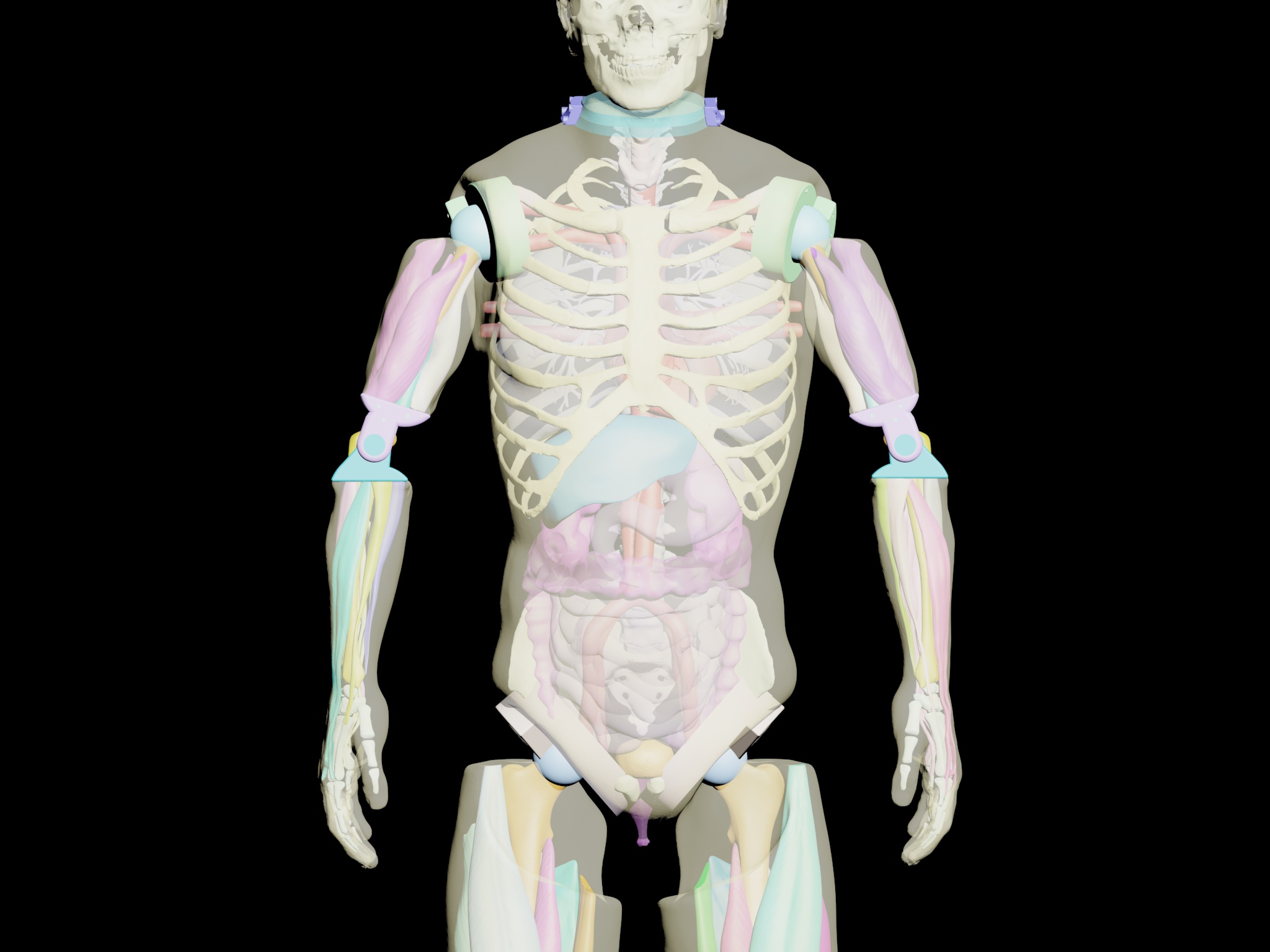

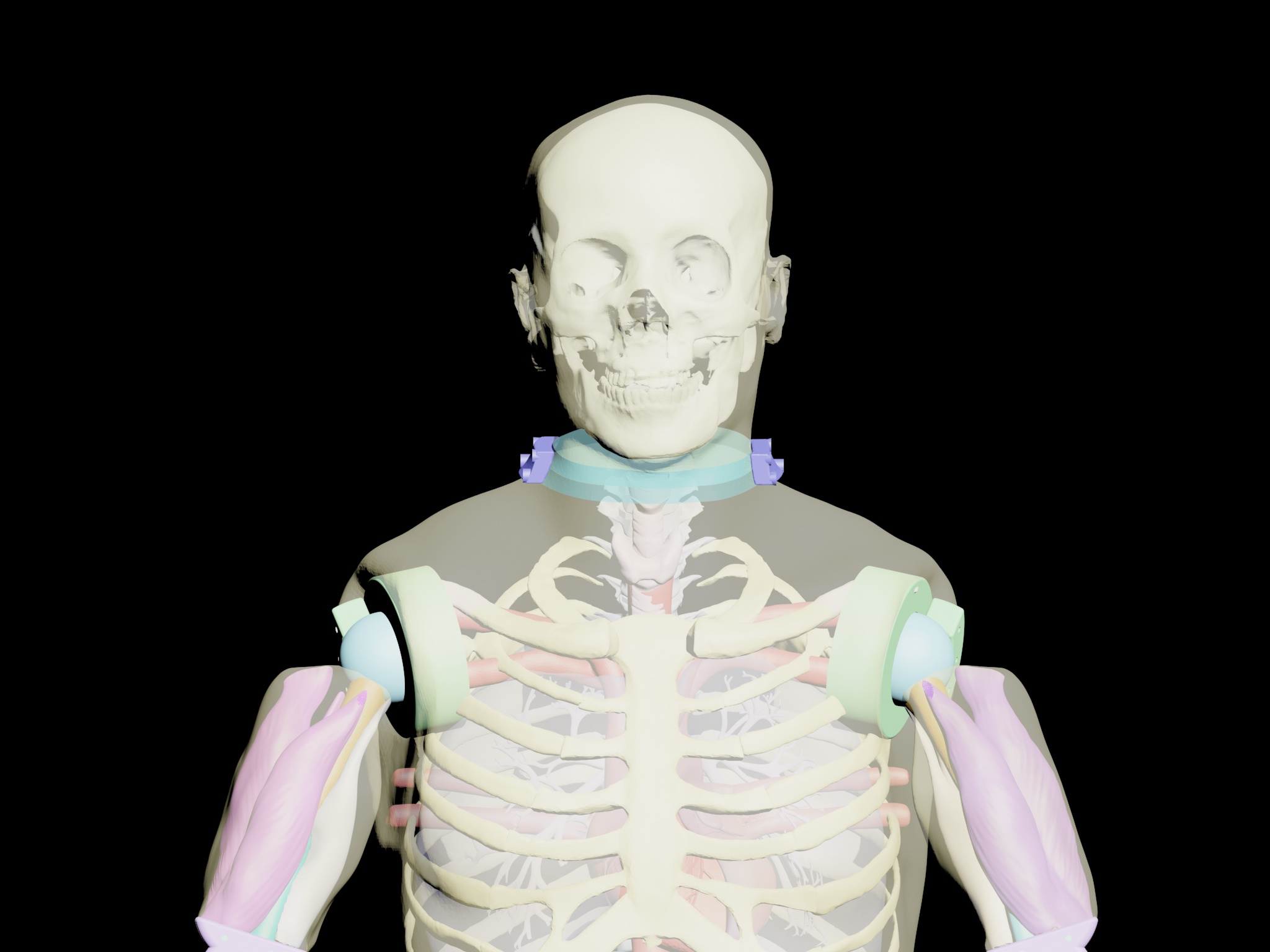

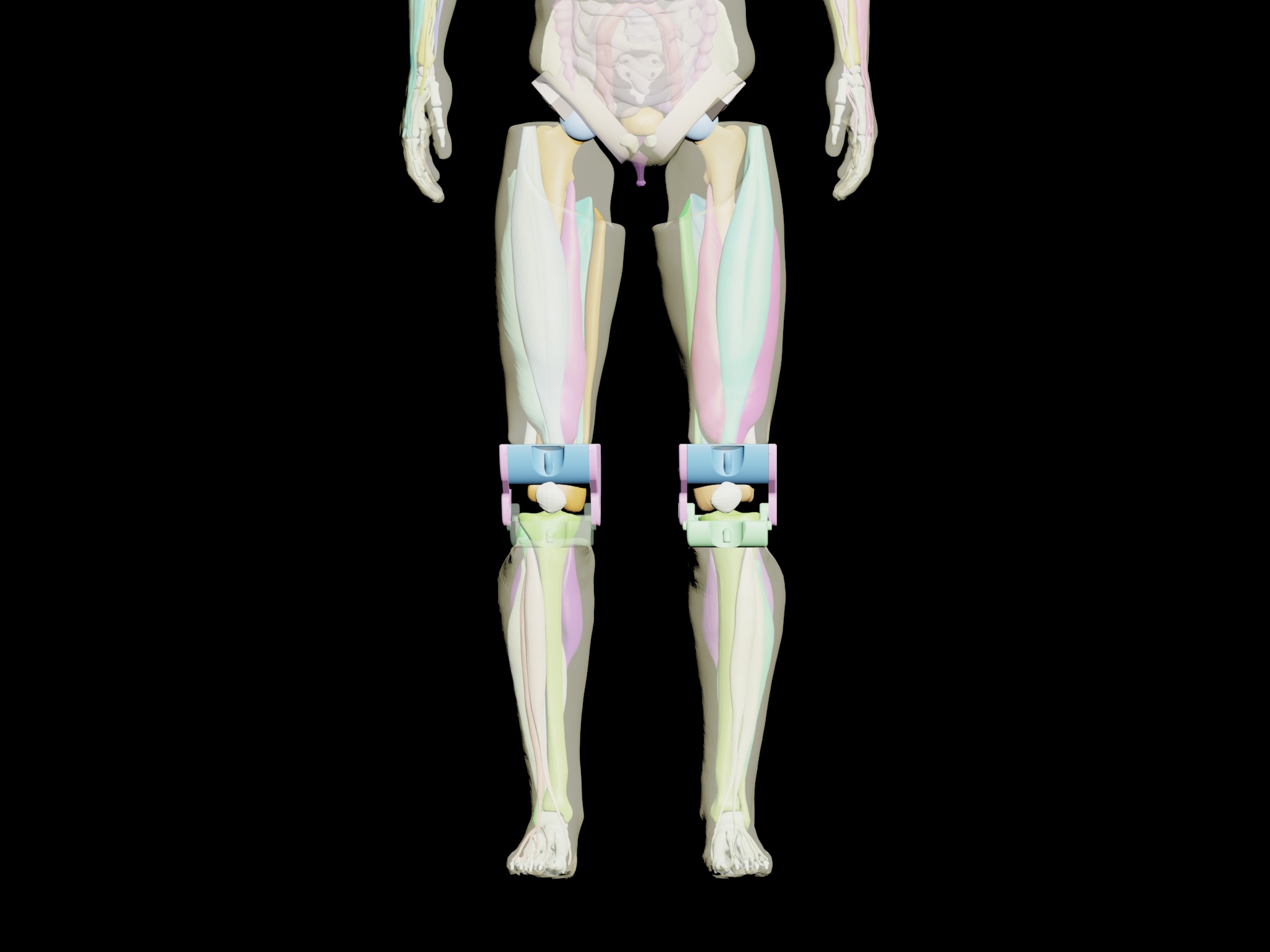

Design

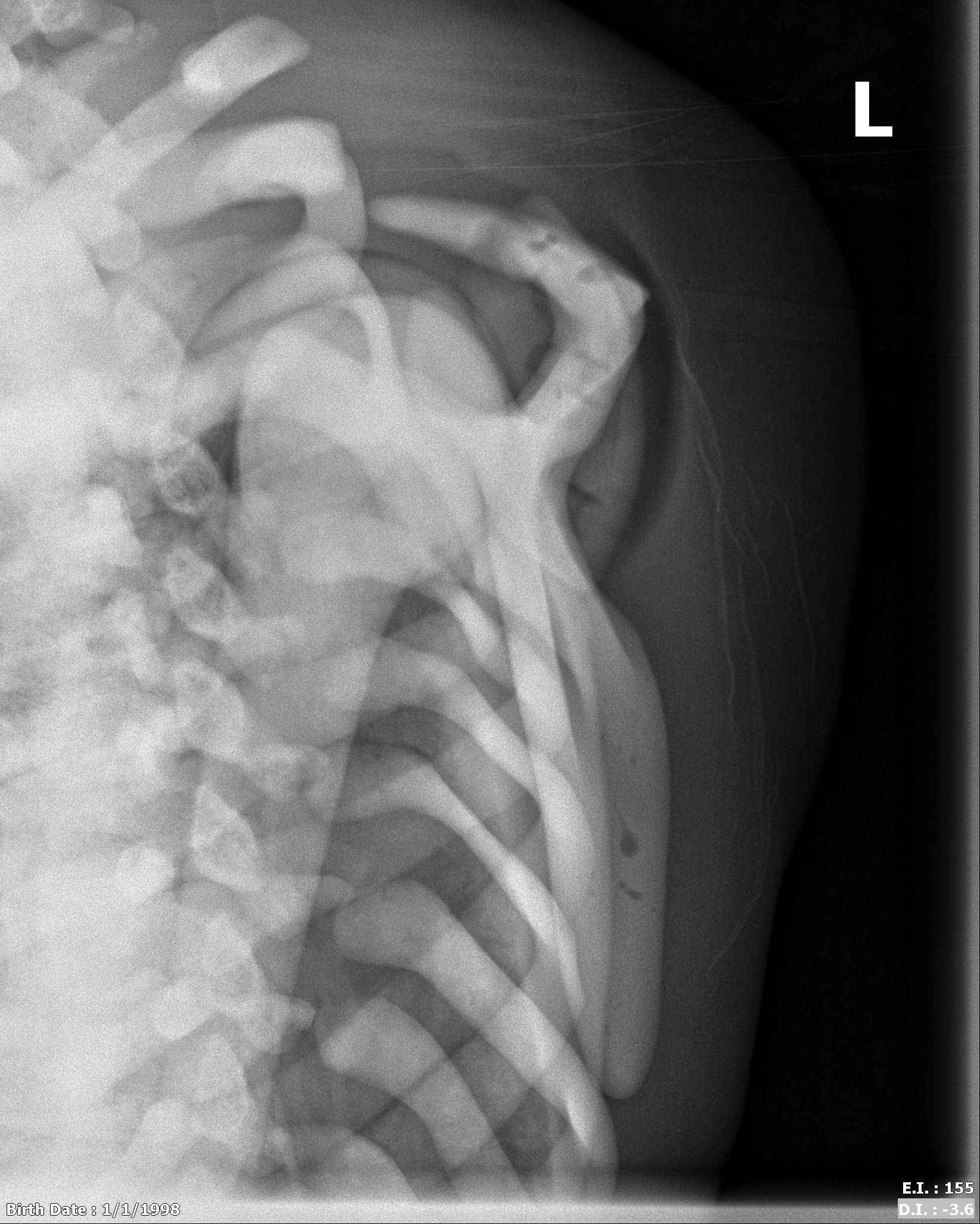

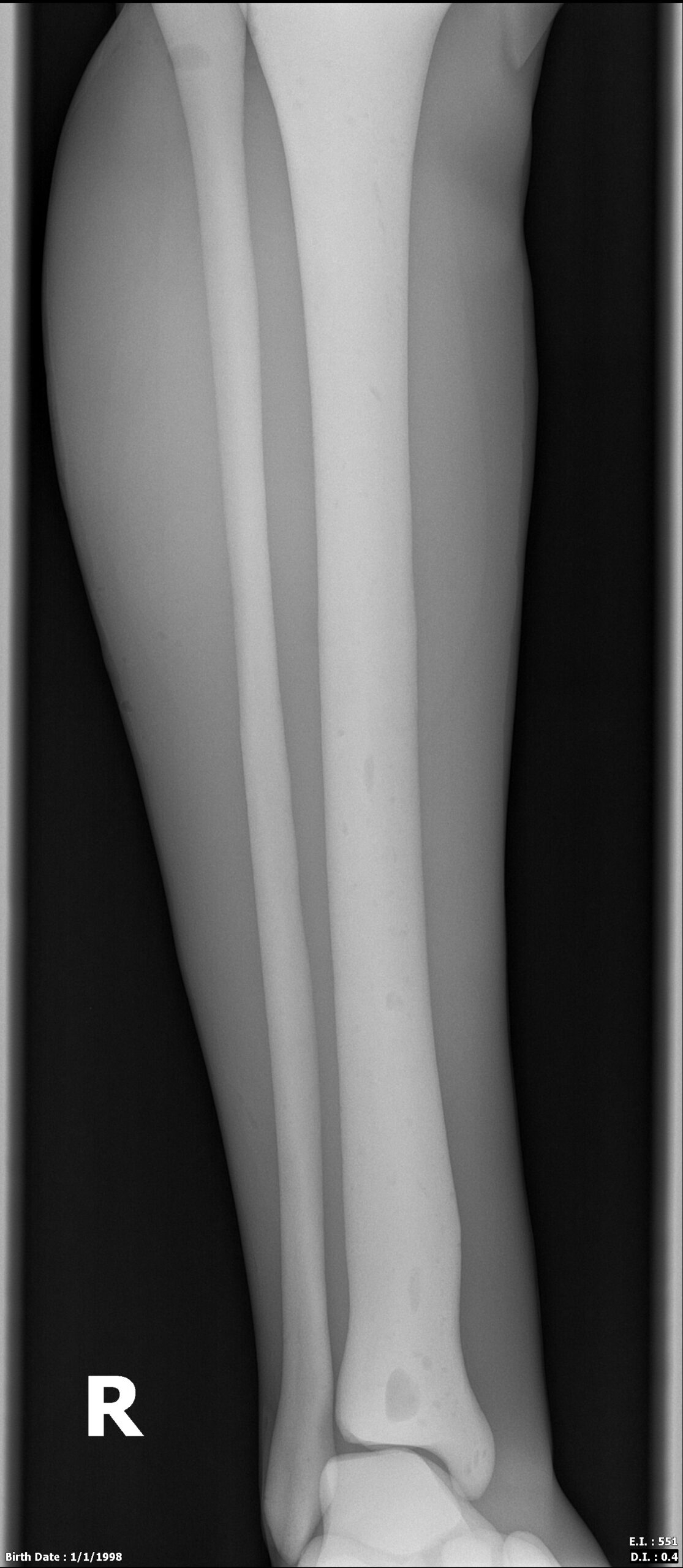

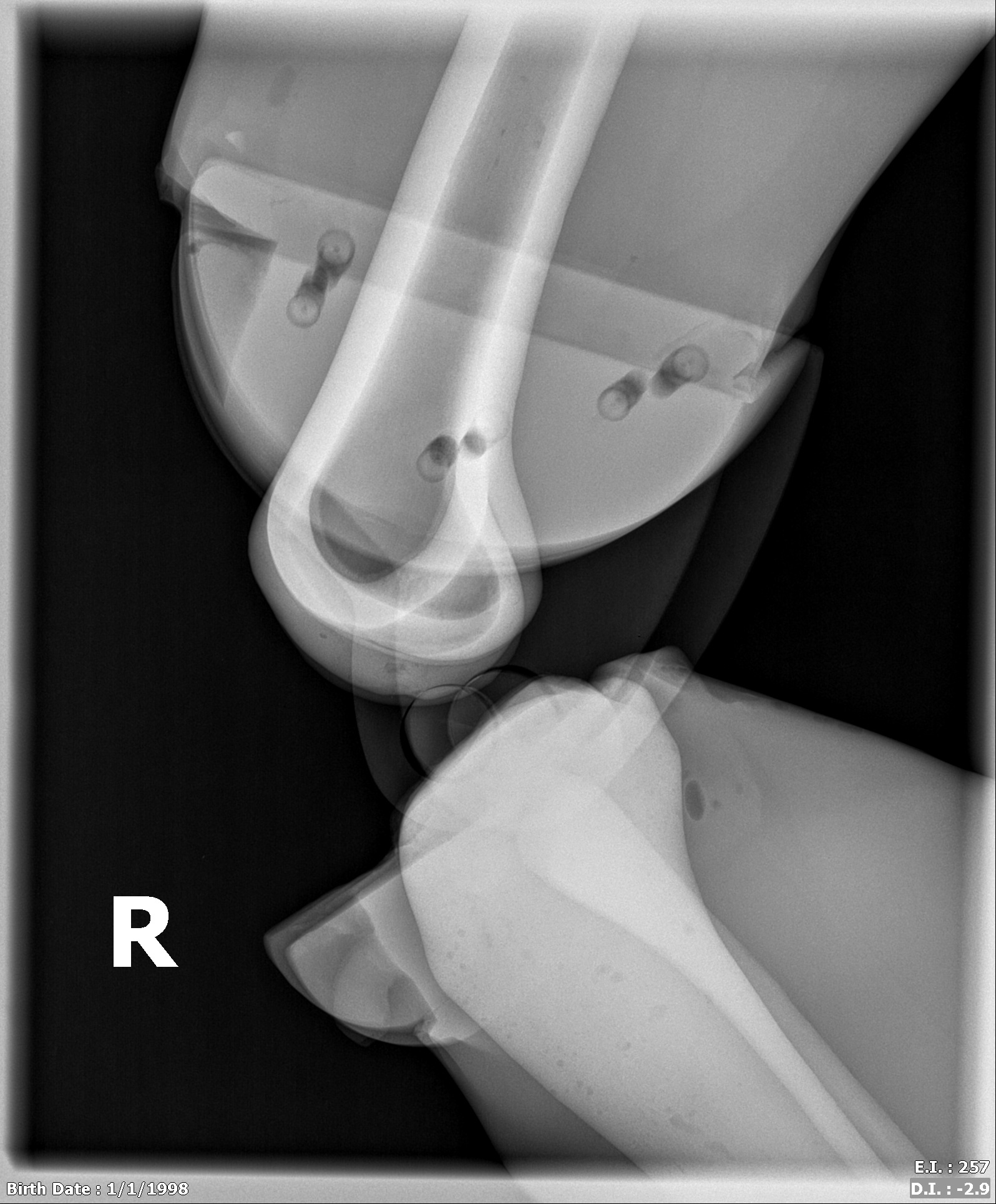

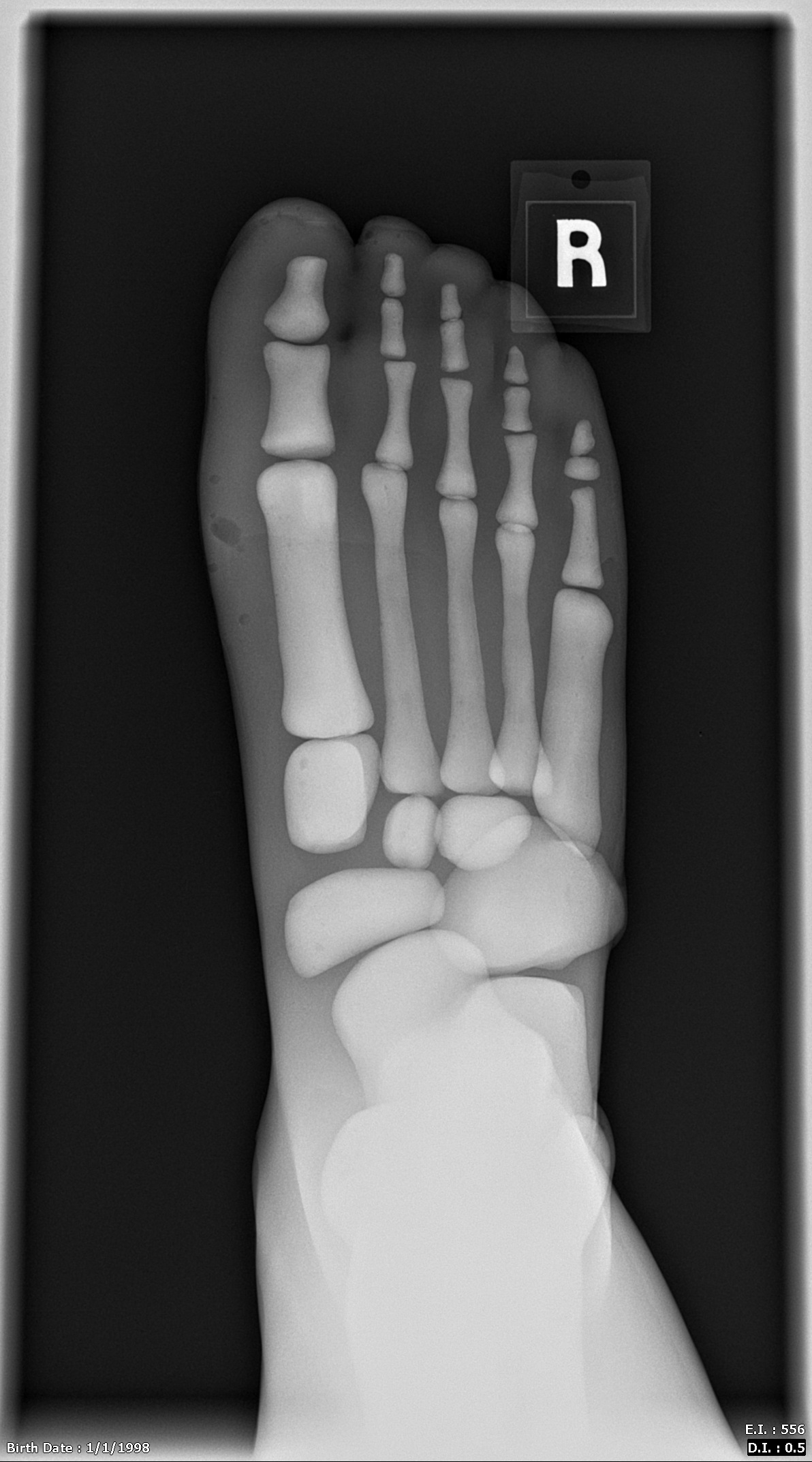

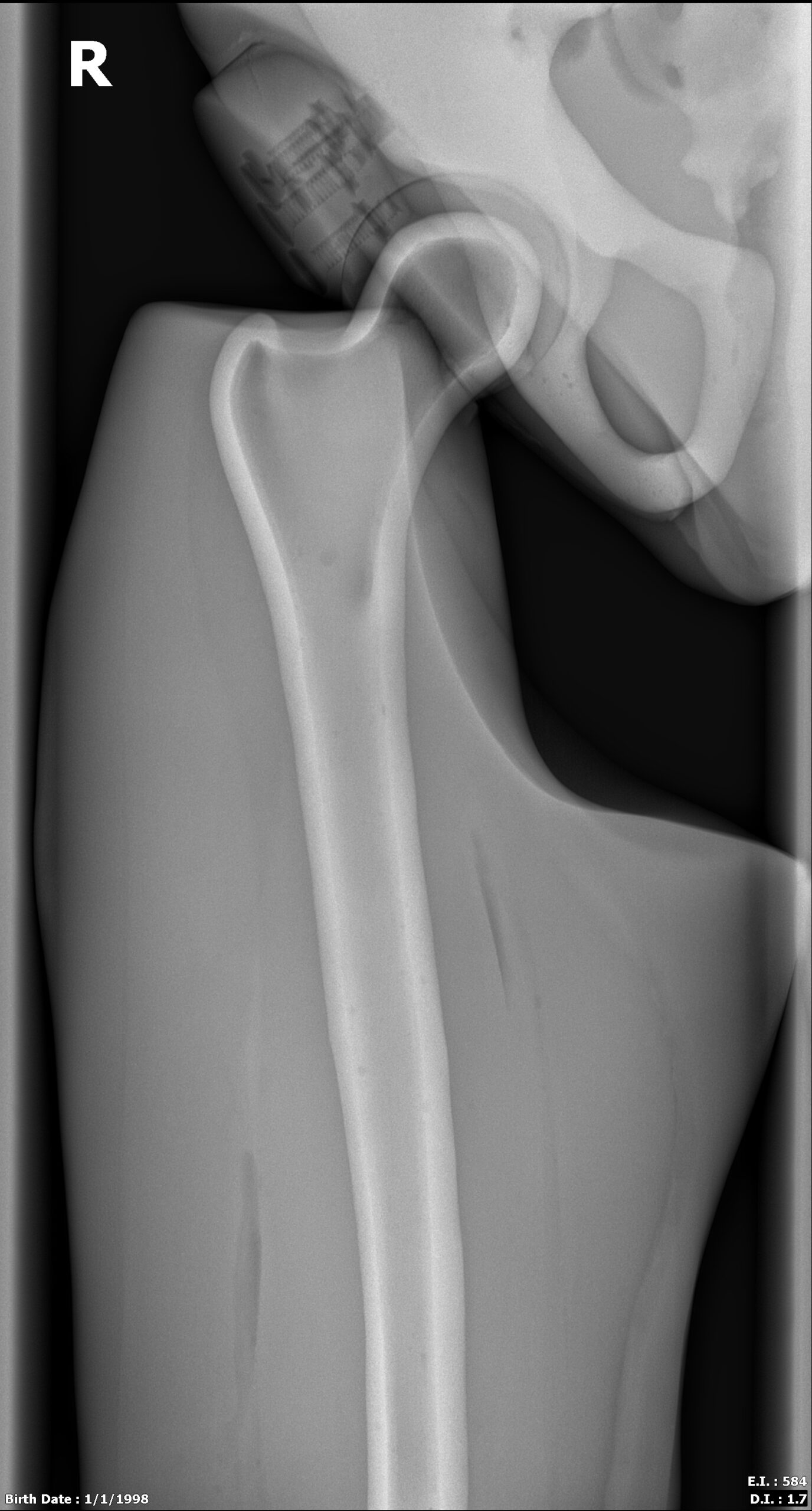

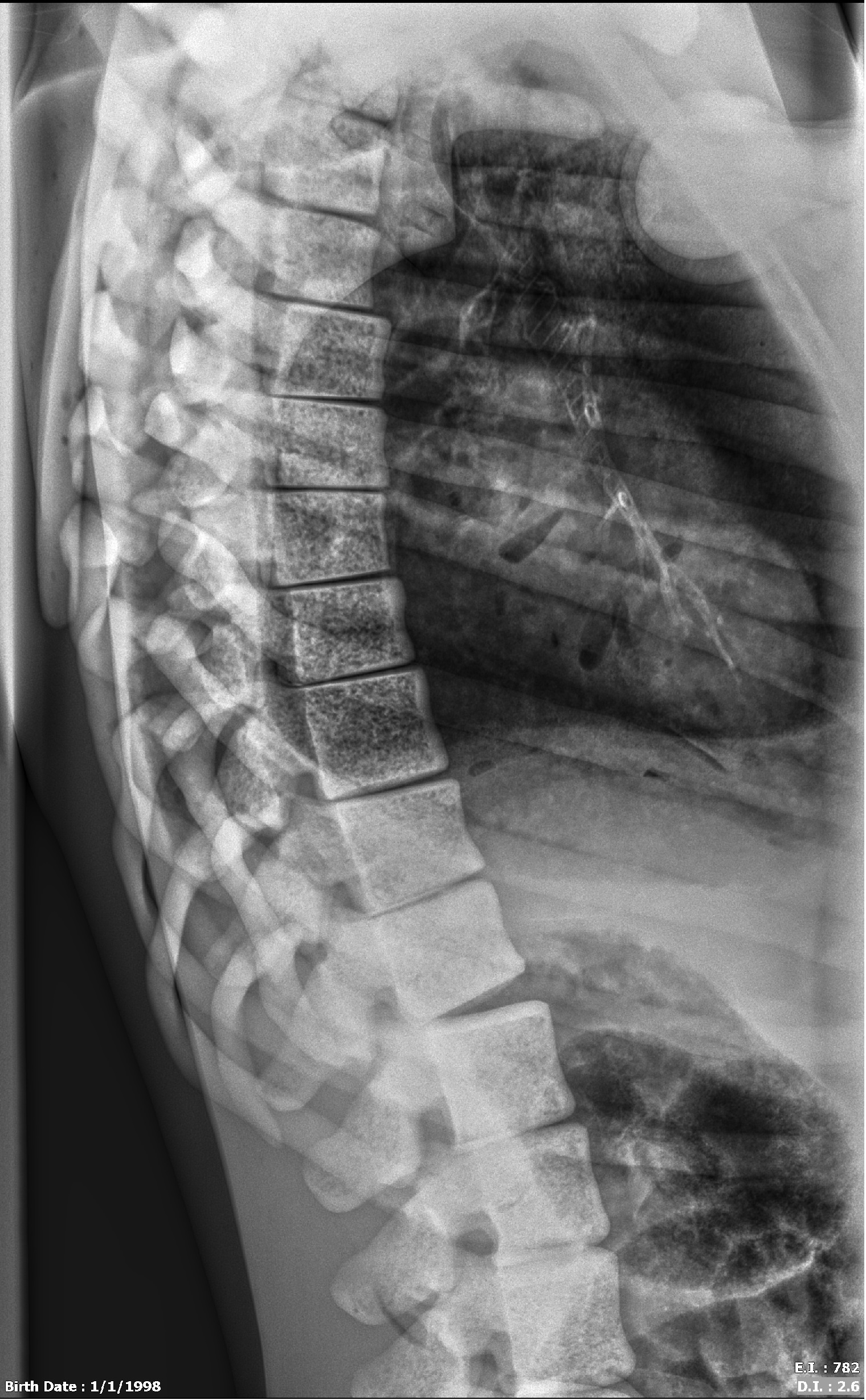

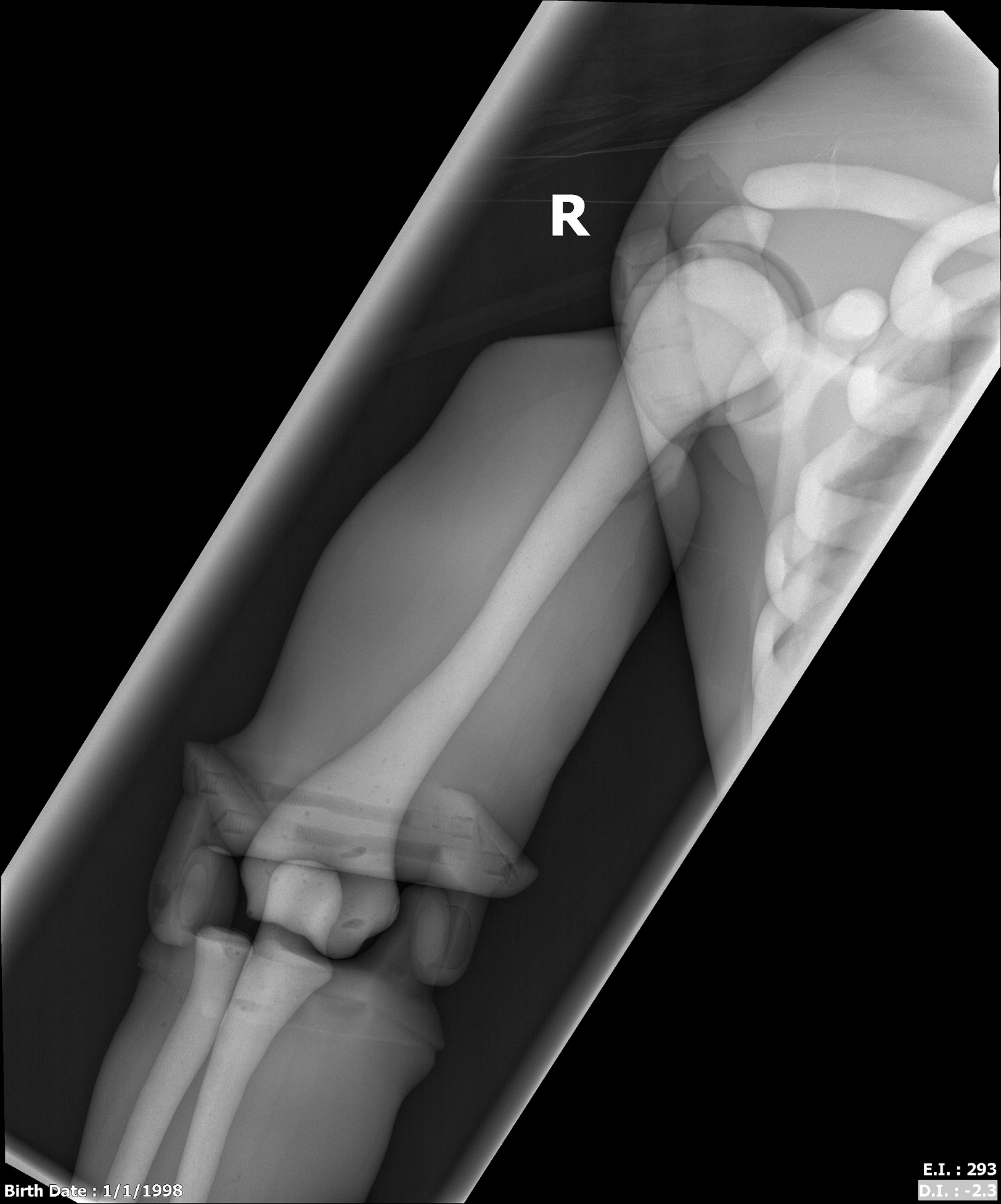

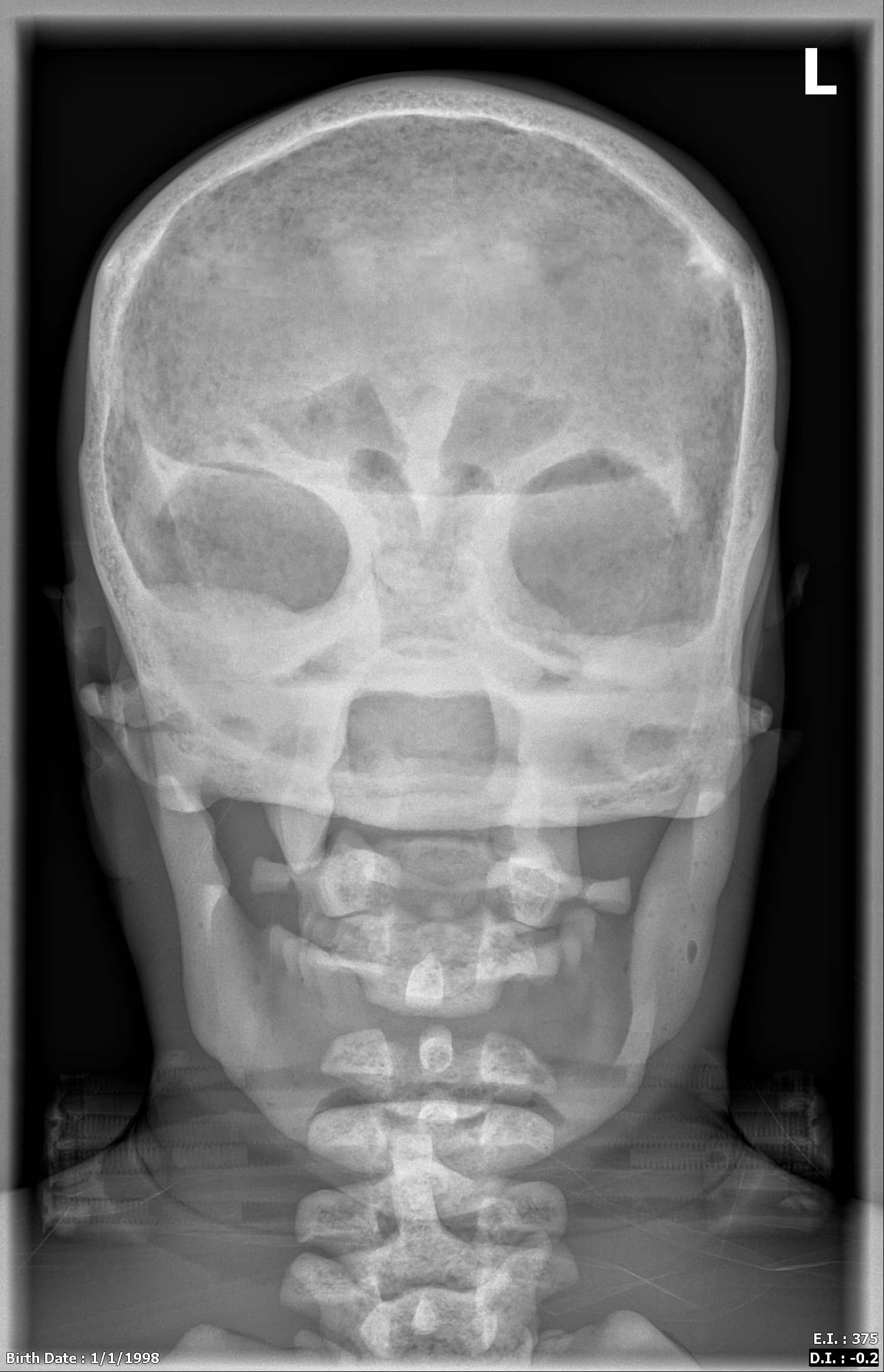

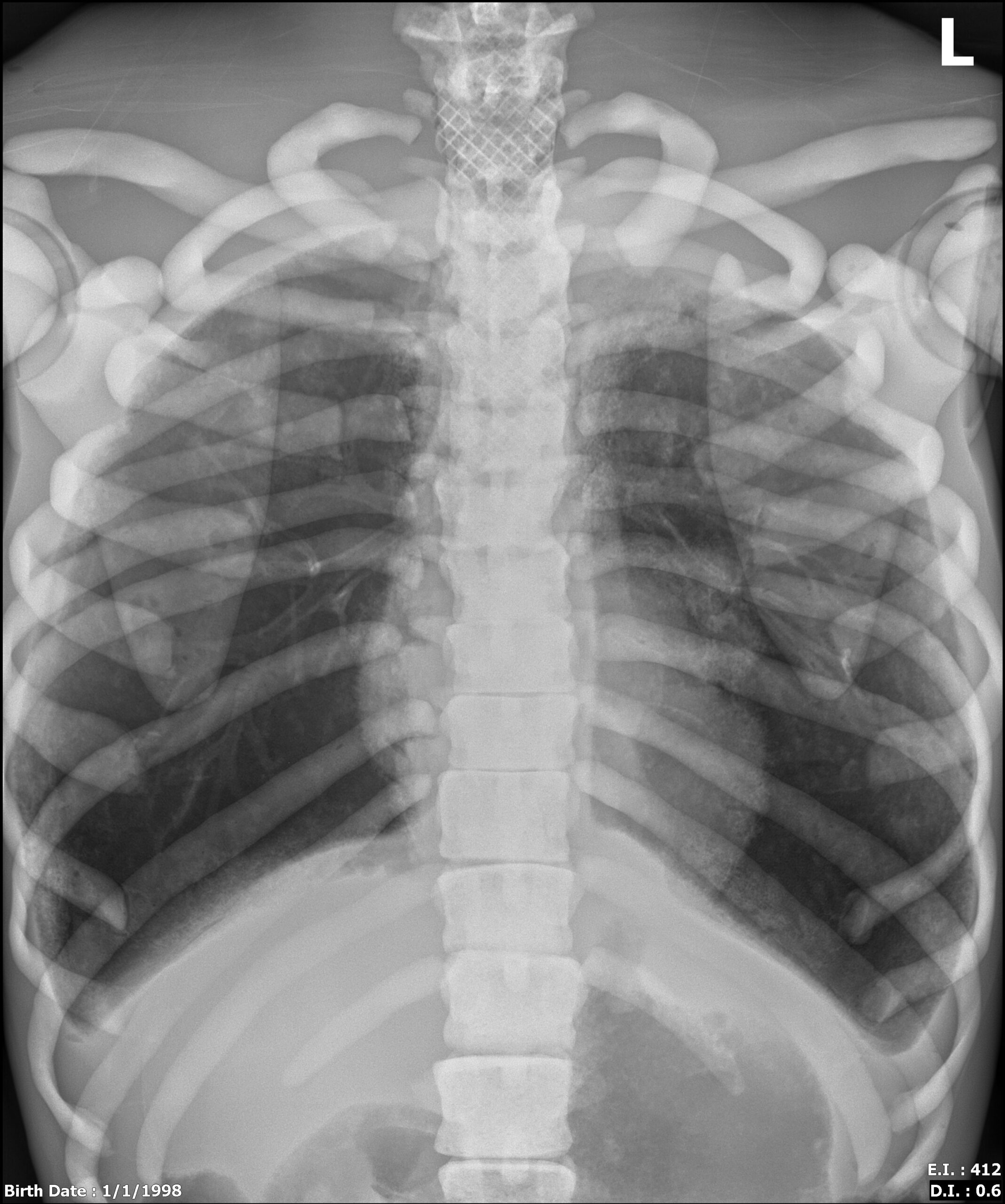

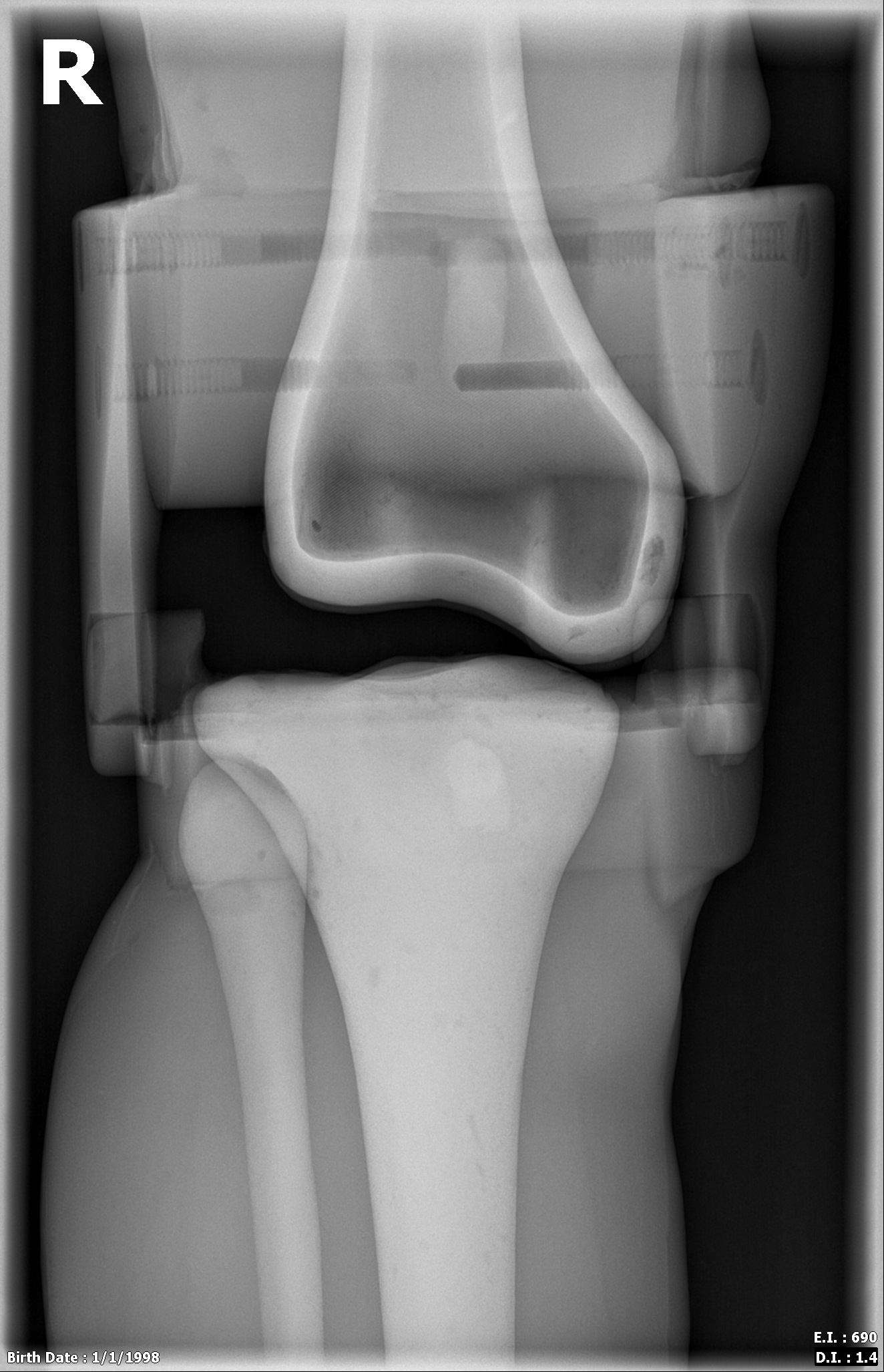

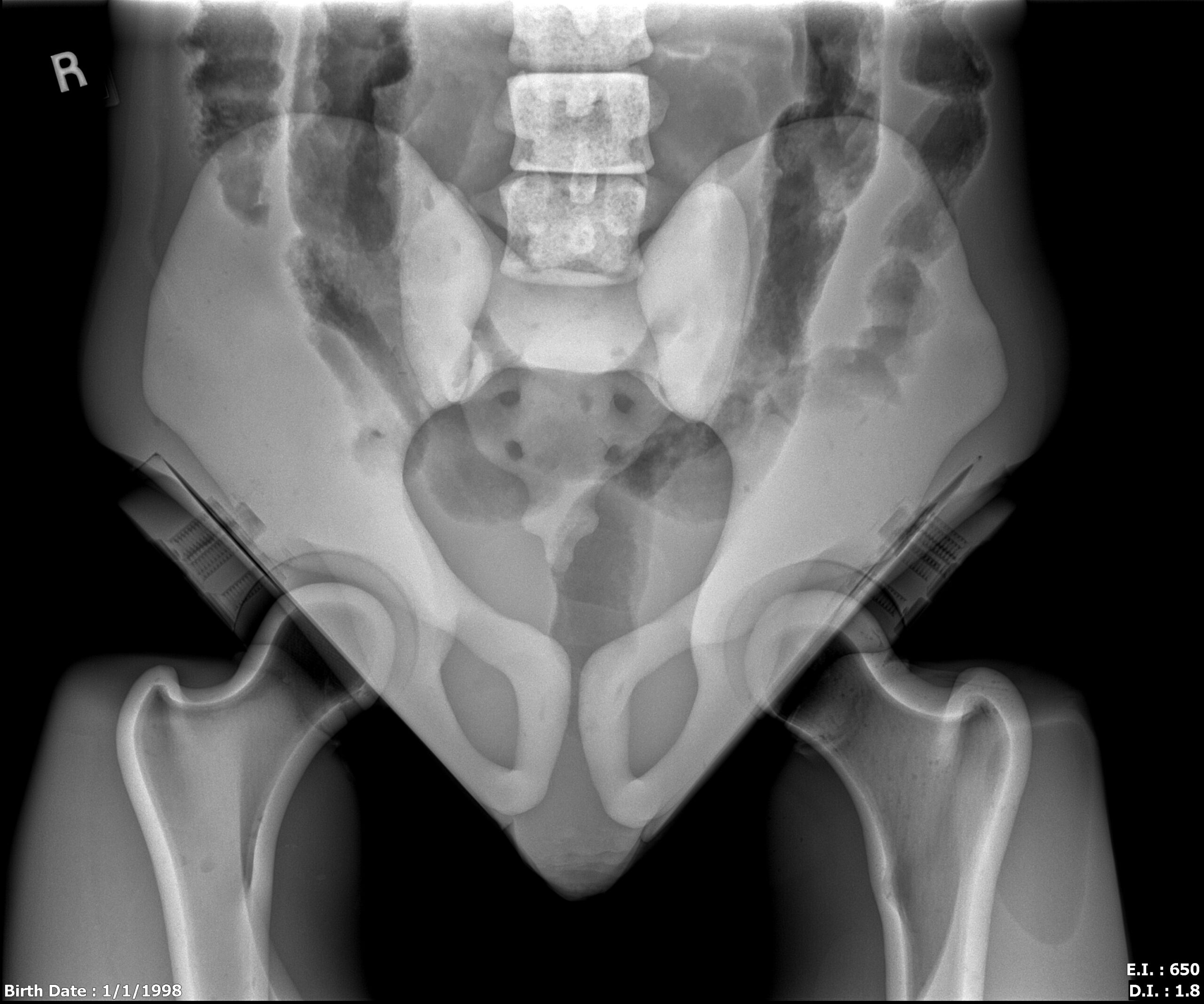

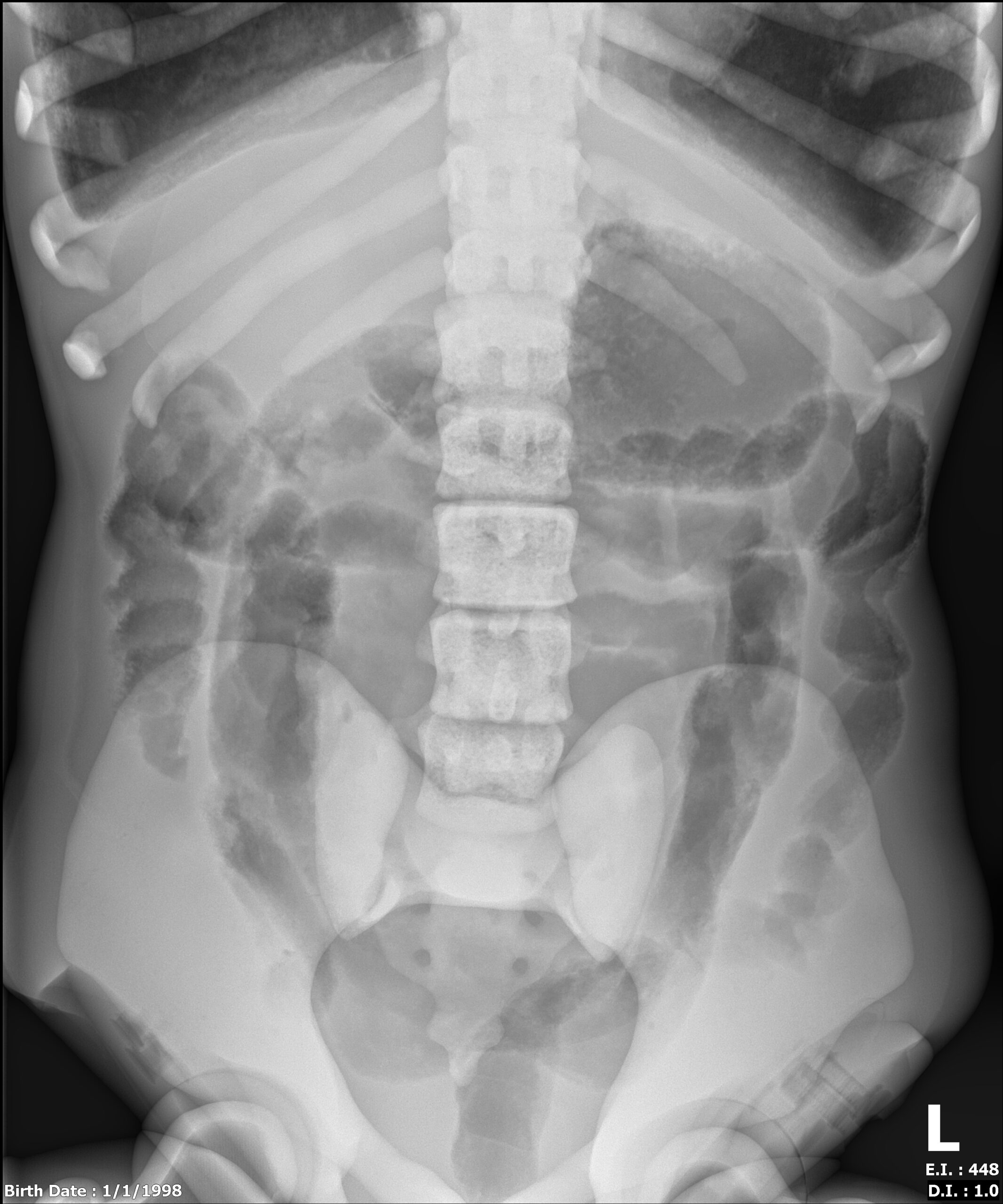

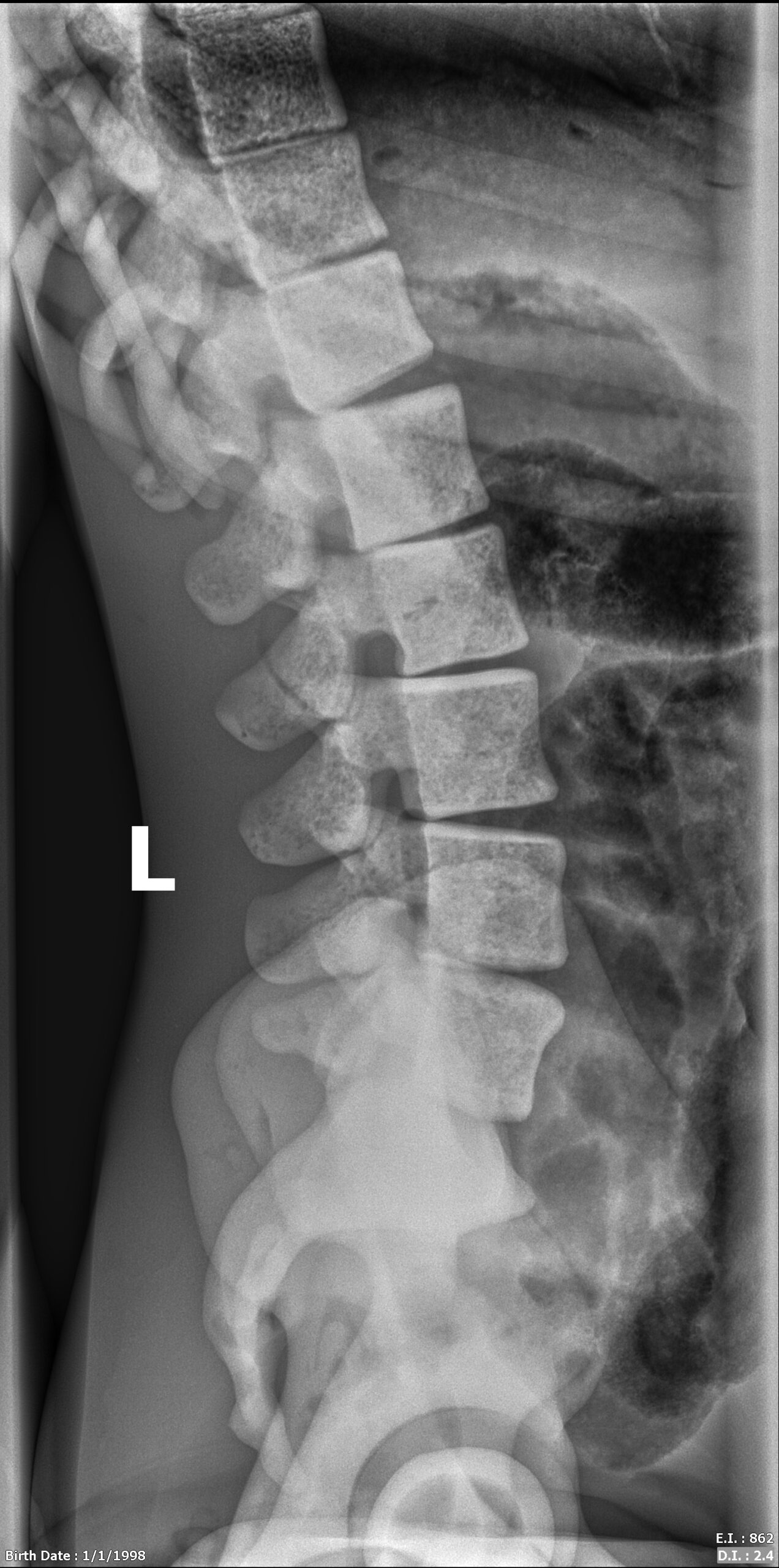

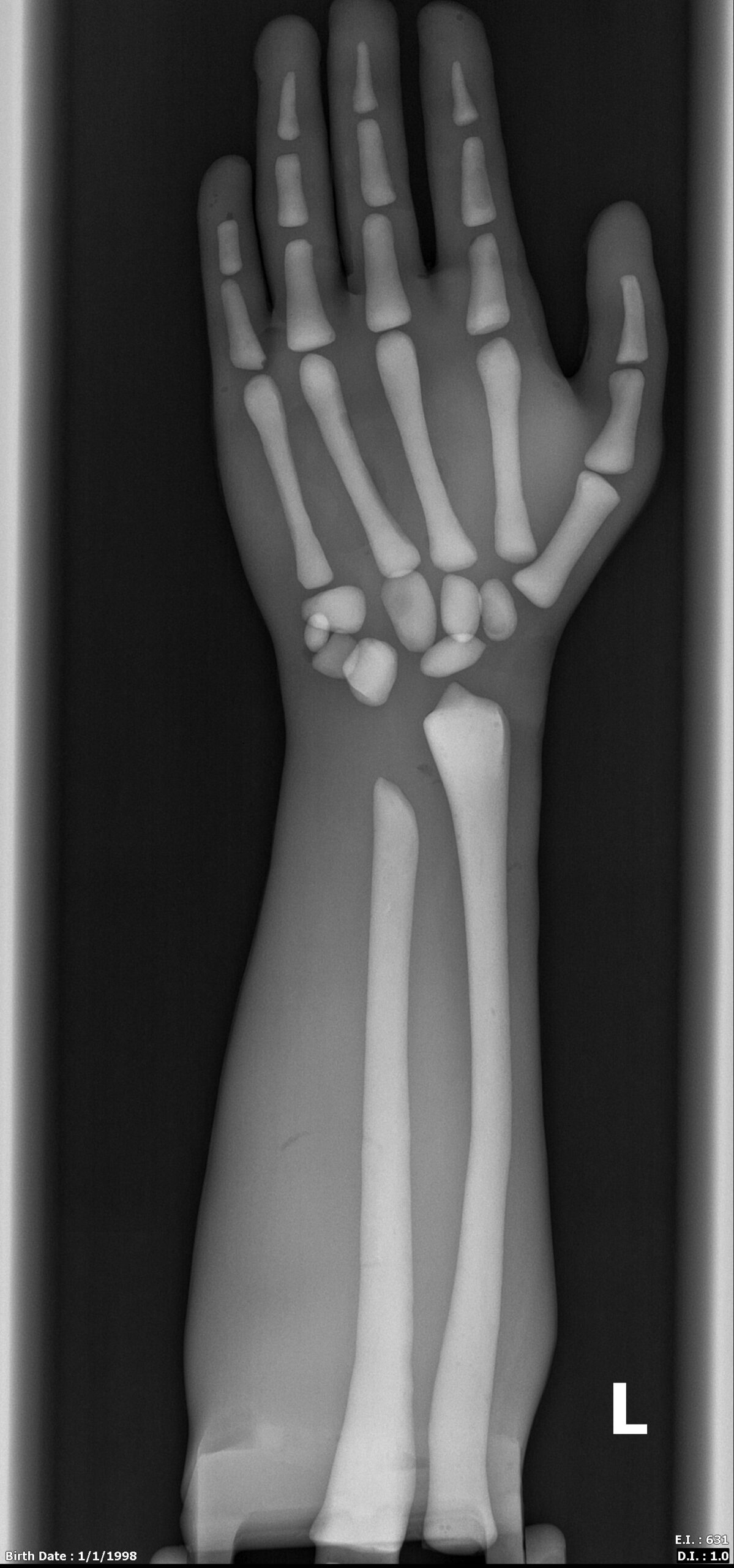

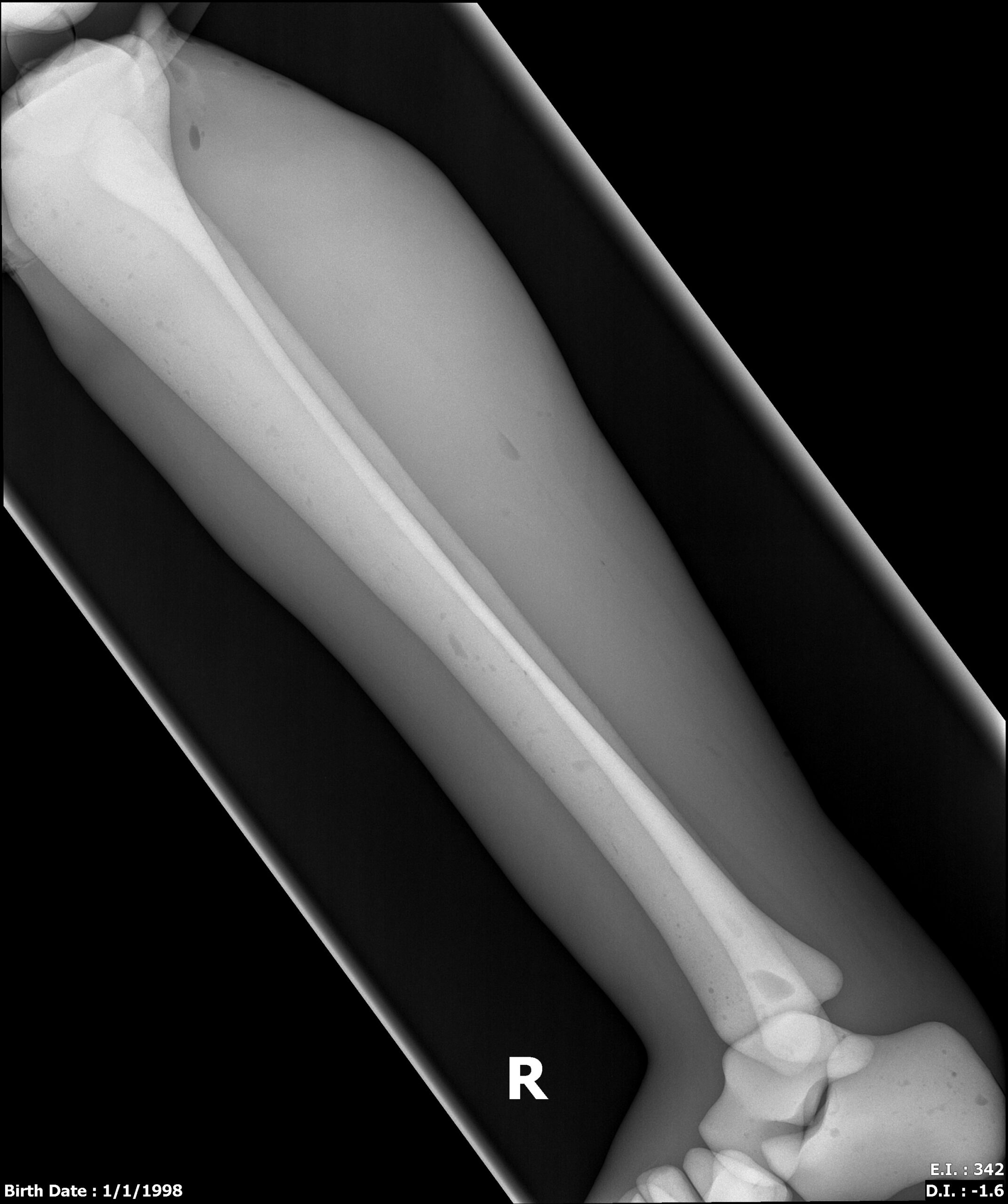

X-Ray Scans

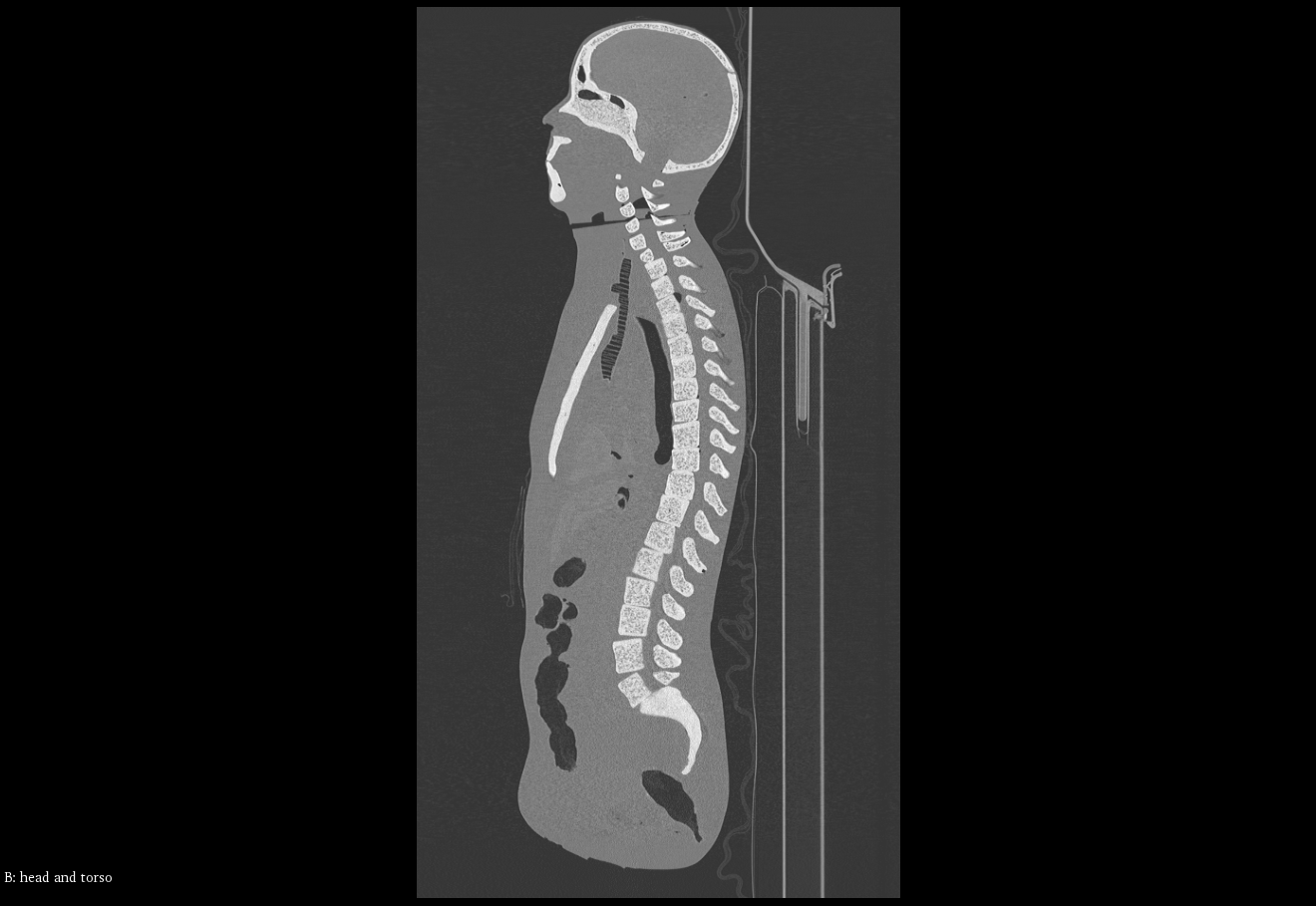

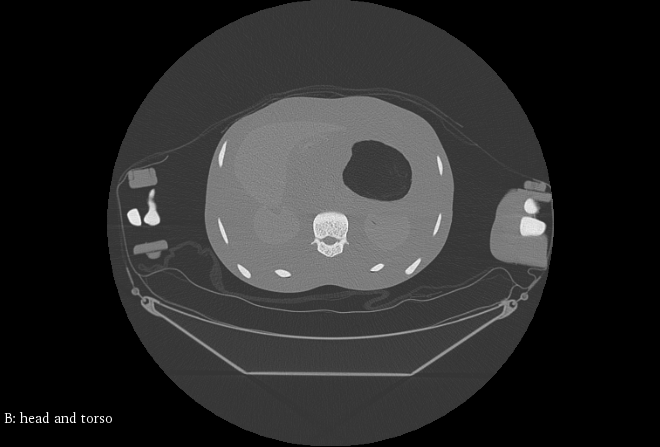

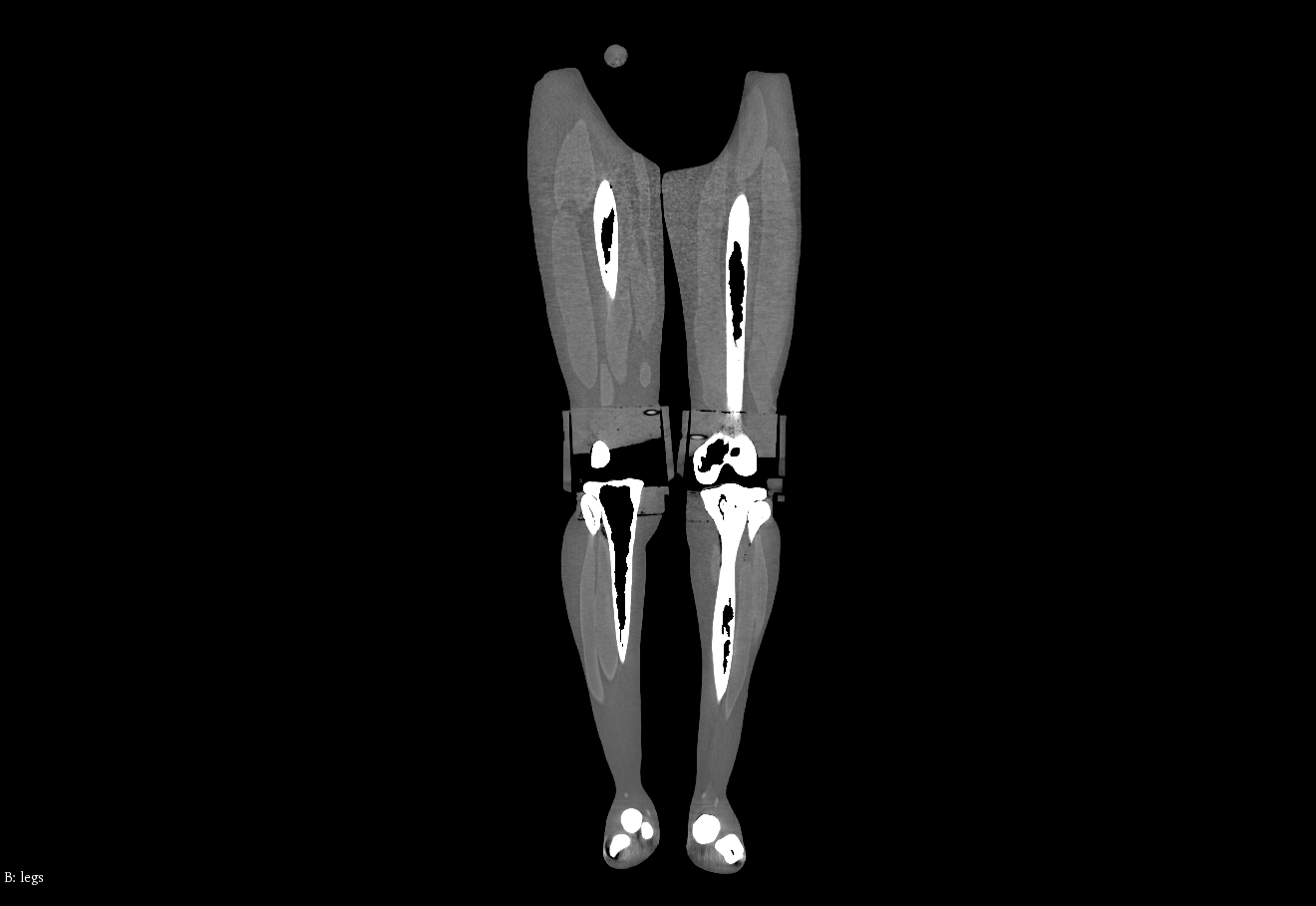

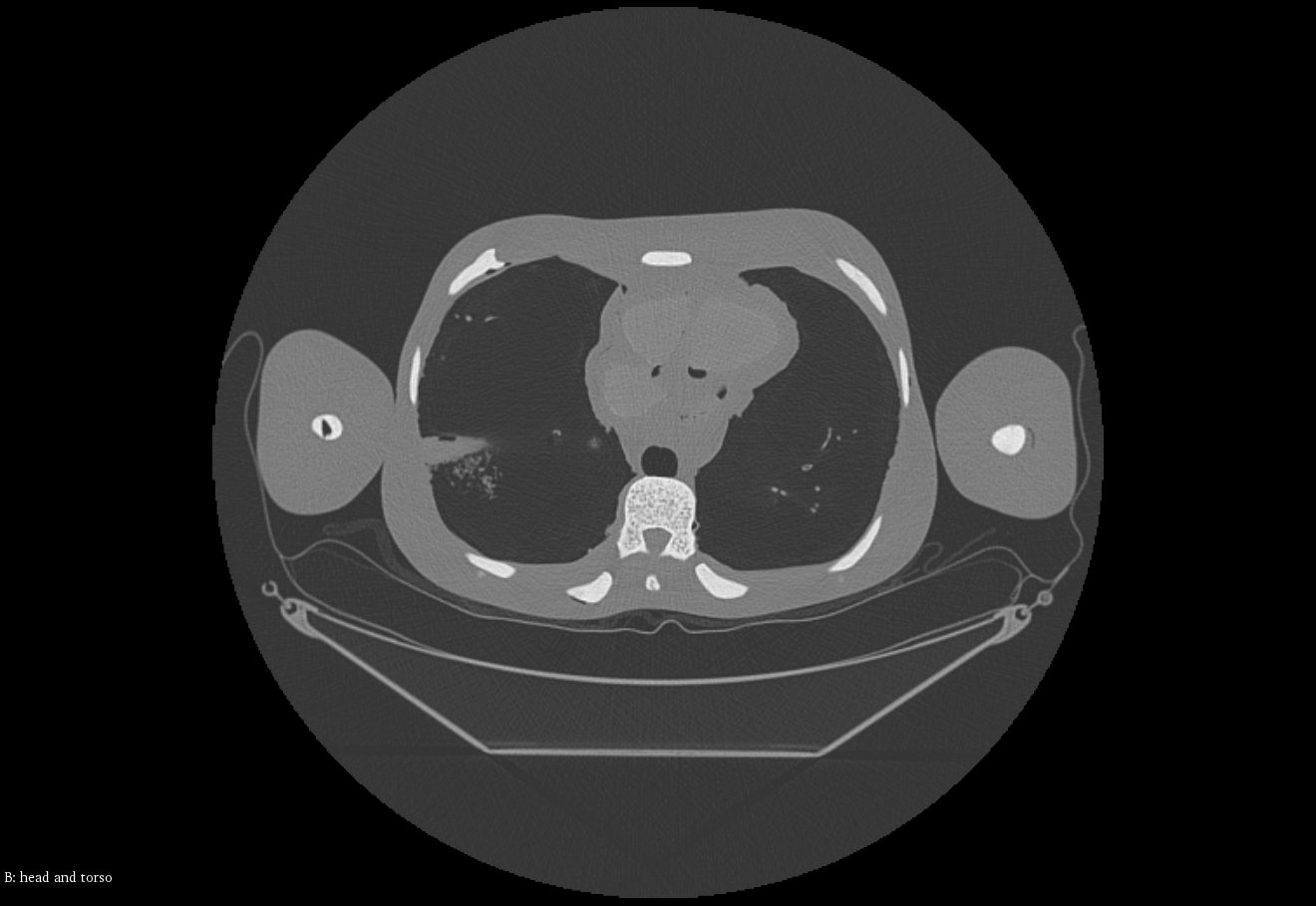

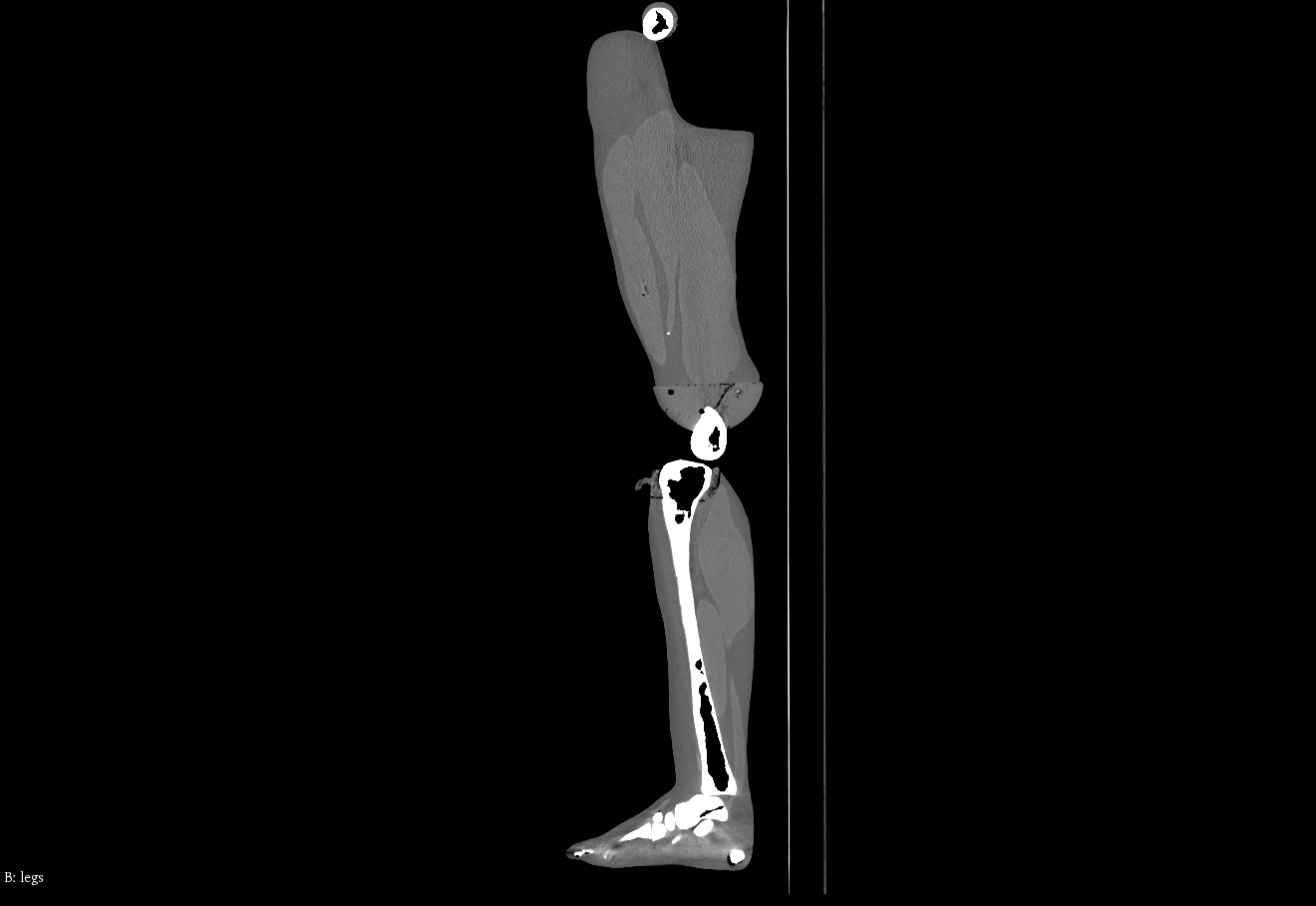

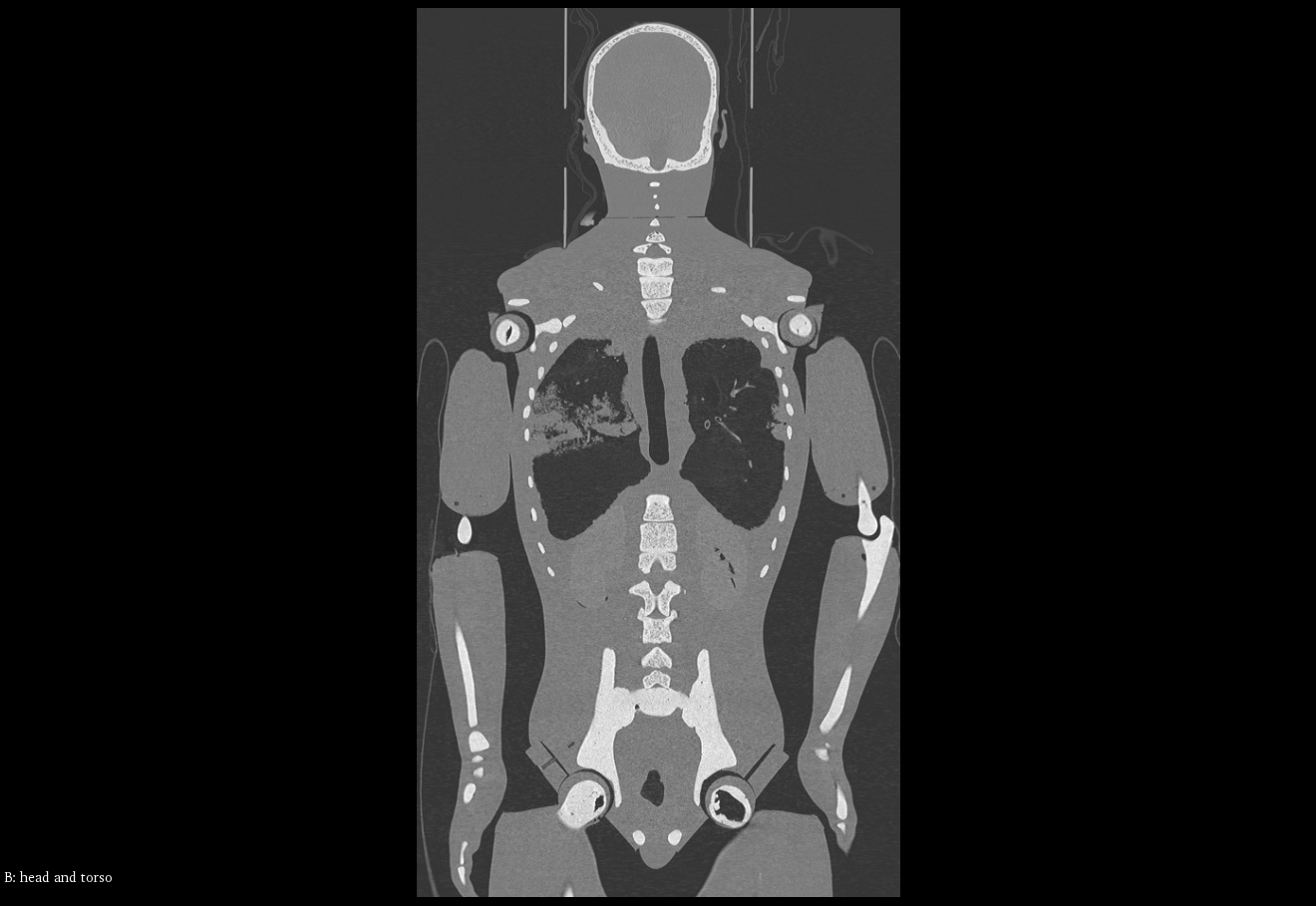

CT Scans

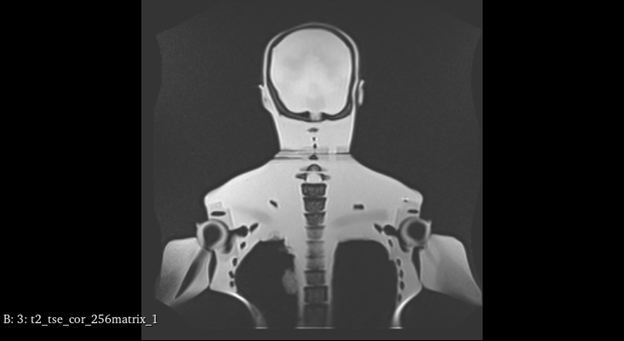

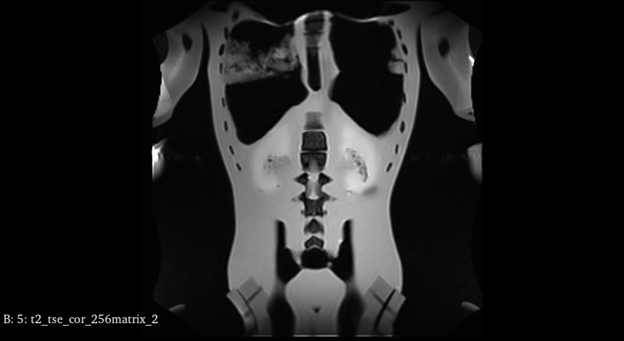

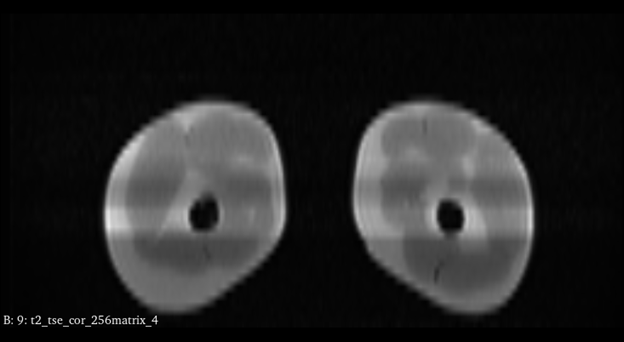

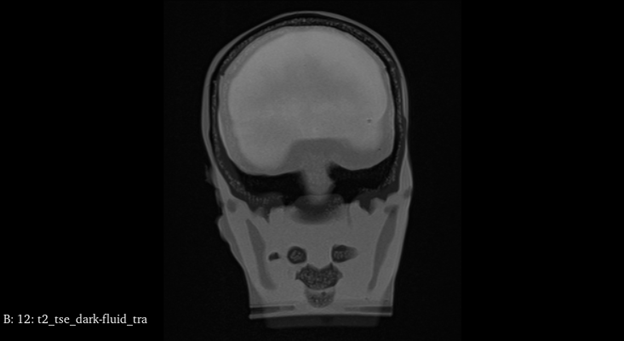

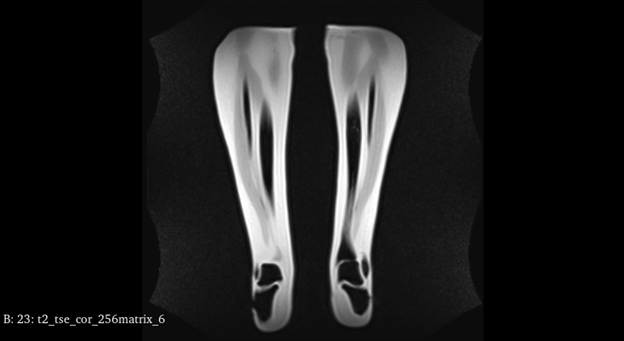

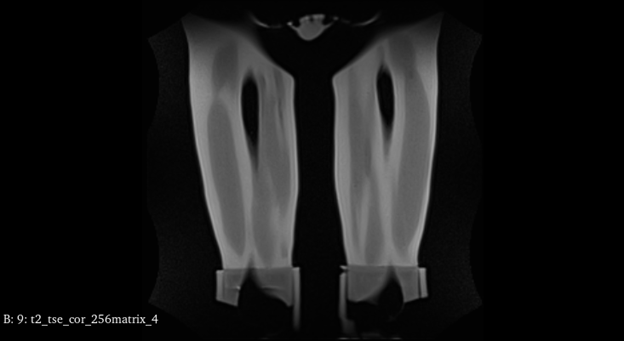

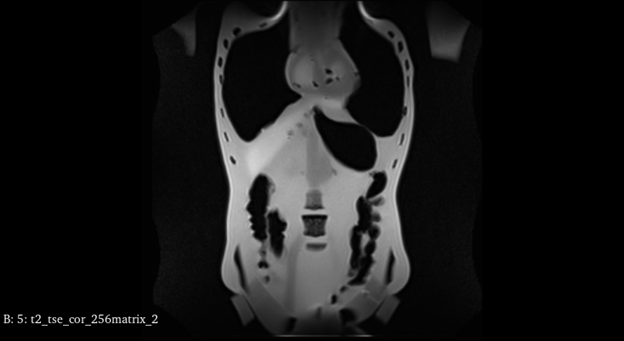

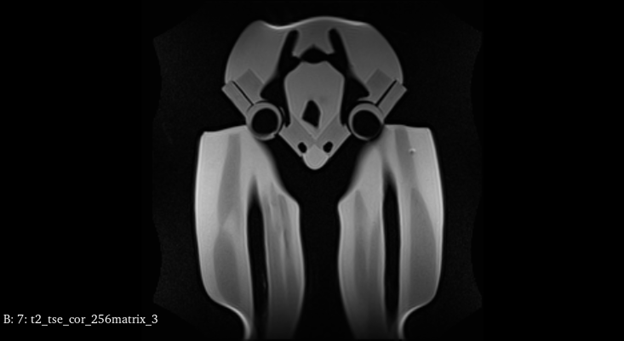

MRI Scans

Pelvis
Prostate
Rotatable Shoulders
Trachea
Major Arm Muscles
Movable Hip, Knee, and El-
Heart
Humerus
Lungs
Elbow Joints
bow Joints
Diaphragm
Radius and Ulna
Adult Full Body (10 Parts)
Liver

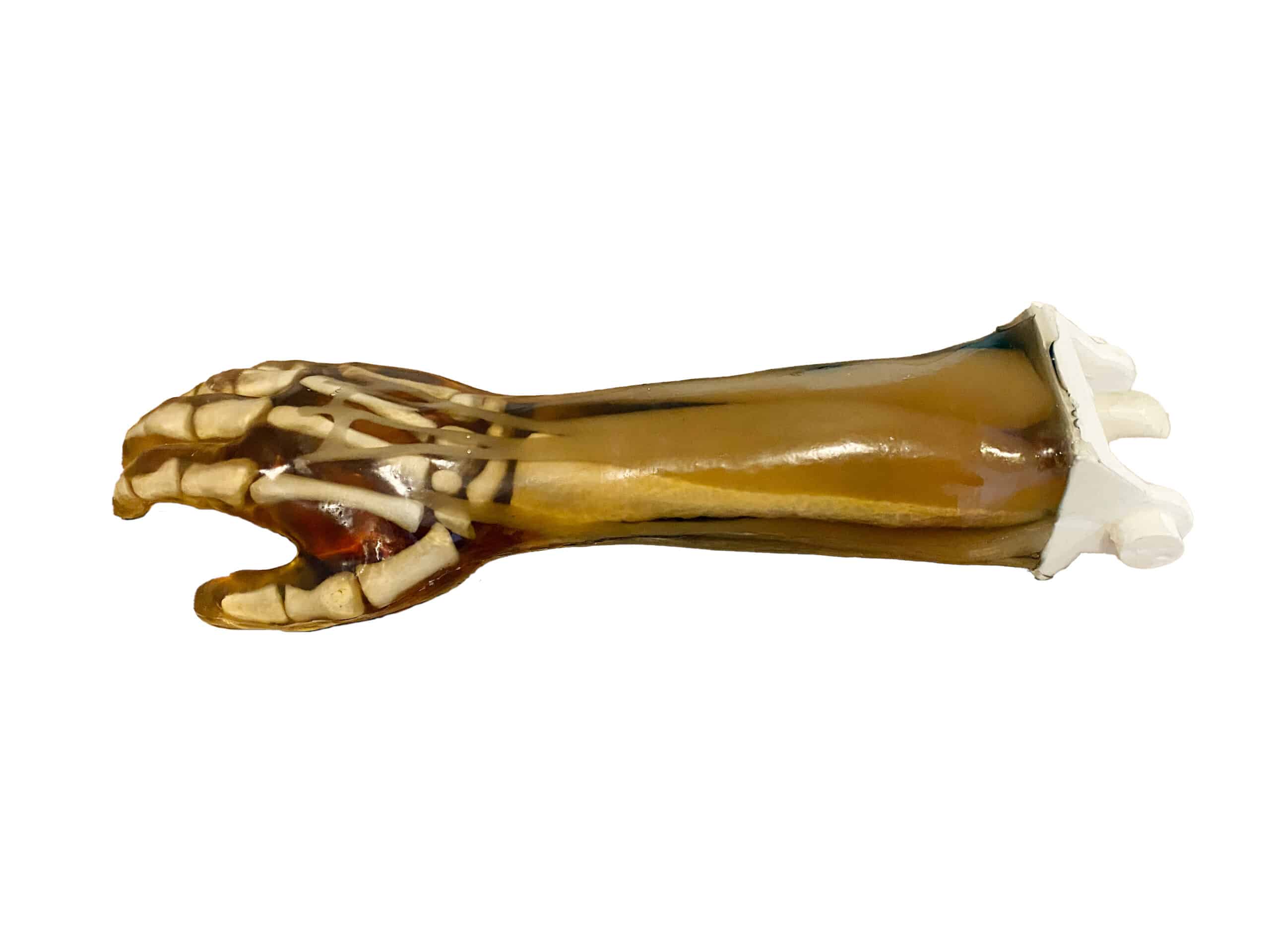

Wrist with Fingers
Gallbladder

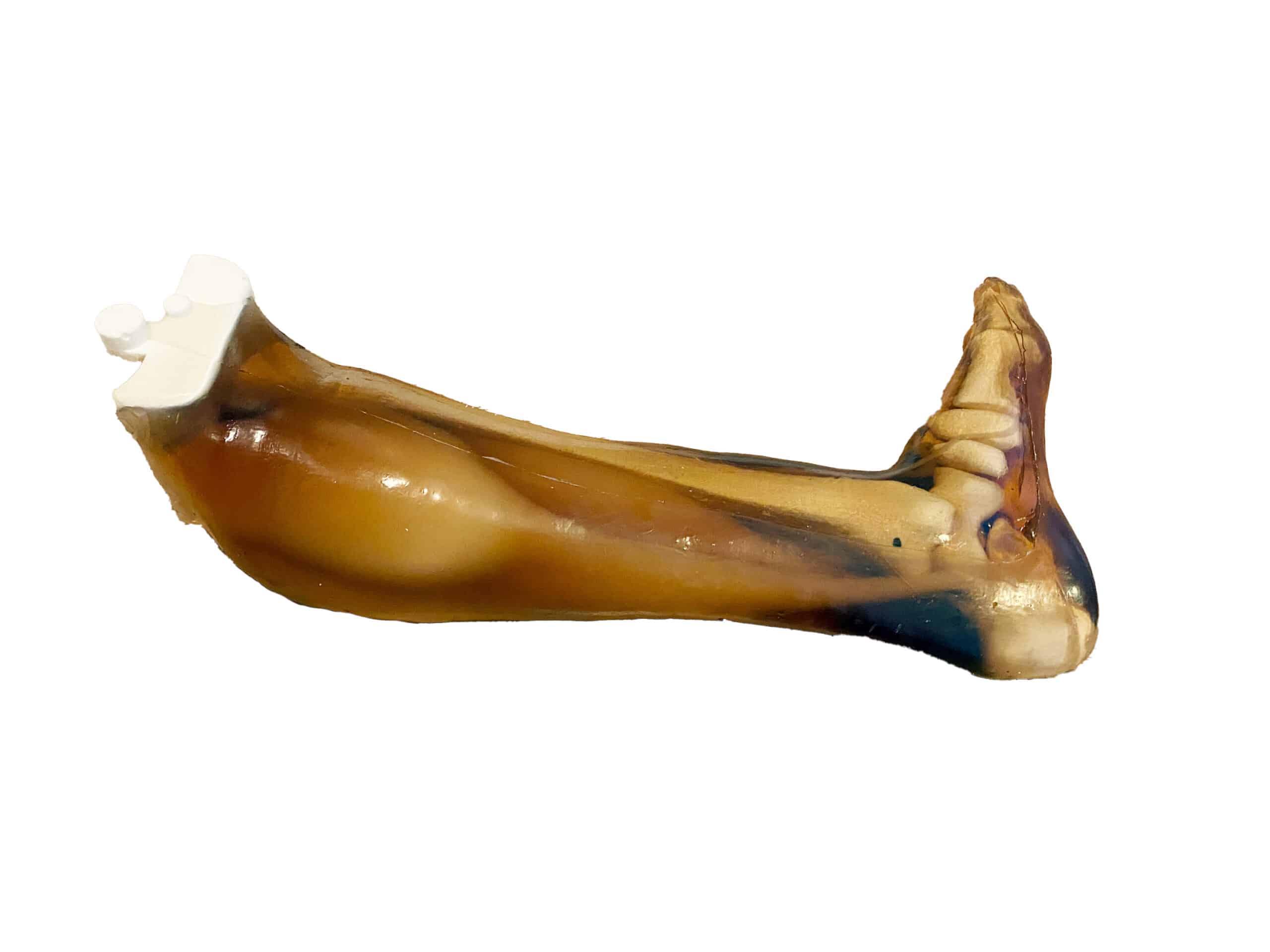

Major Leg Muscles

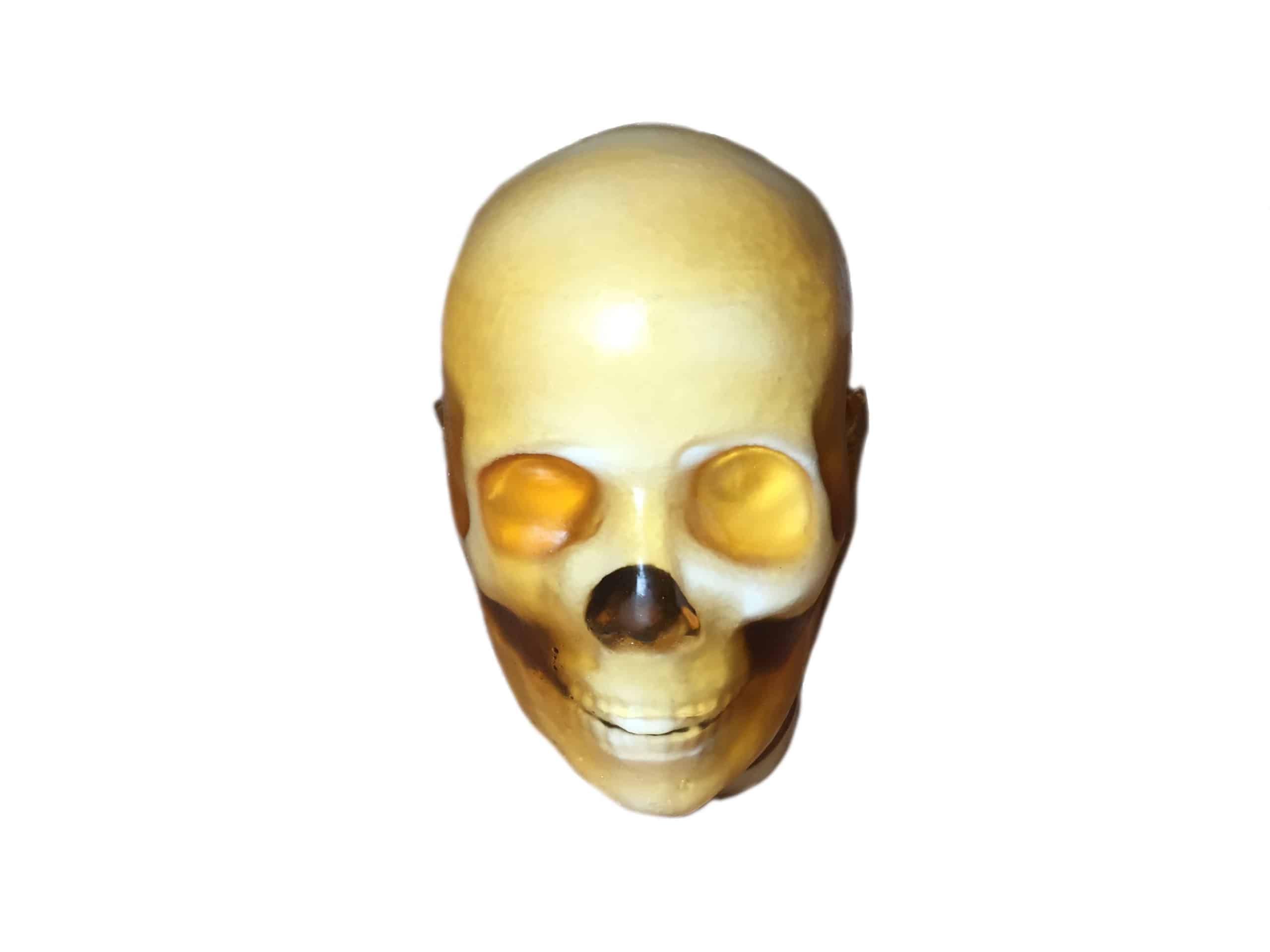

Skull
Stomach
Femur
Brain (with tissue)
Kidneys
Knee Joints
Grey and White Matter
Spleen
Tibia
Air Cavities
Pancreas
Fibula
Frontal Sinus with Air Gaps
Large and Small Intestines
Foot with Toes
Spine
Bladder
Ribcage
Shoulders and Clavicles

Phantom Size	69 Inches
Phantom Weight	154 Lbs (approx.)
Shipment Size	46 x 36 x 17 Inches
Shipment Weight	199 Lbs (approx.)

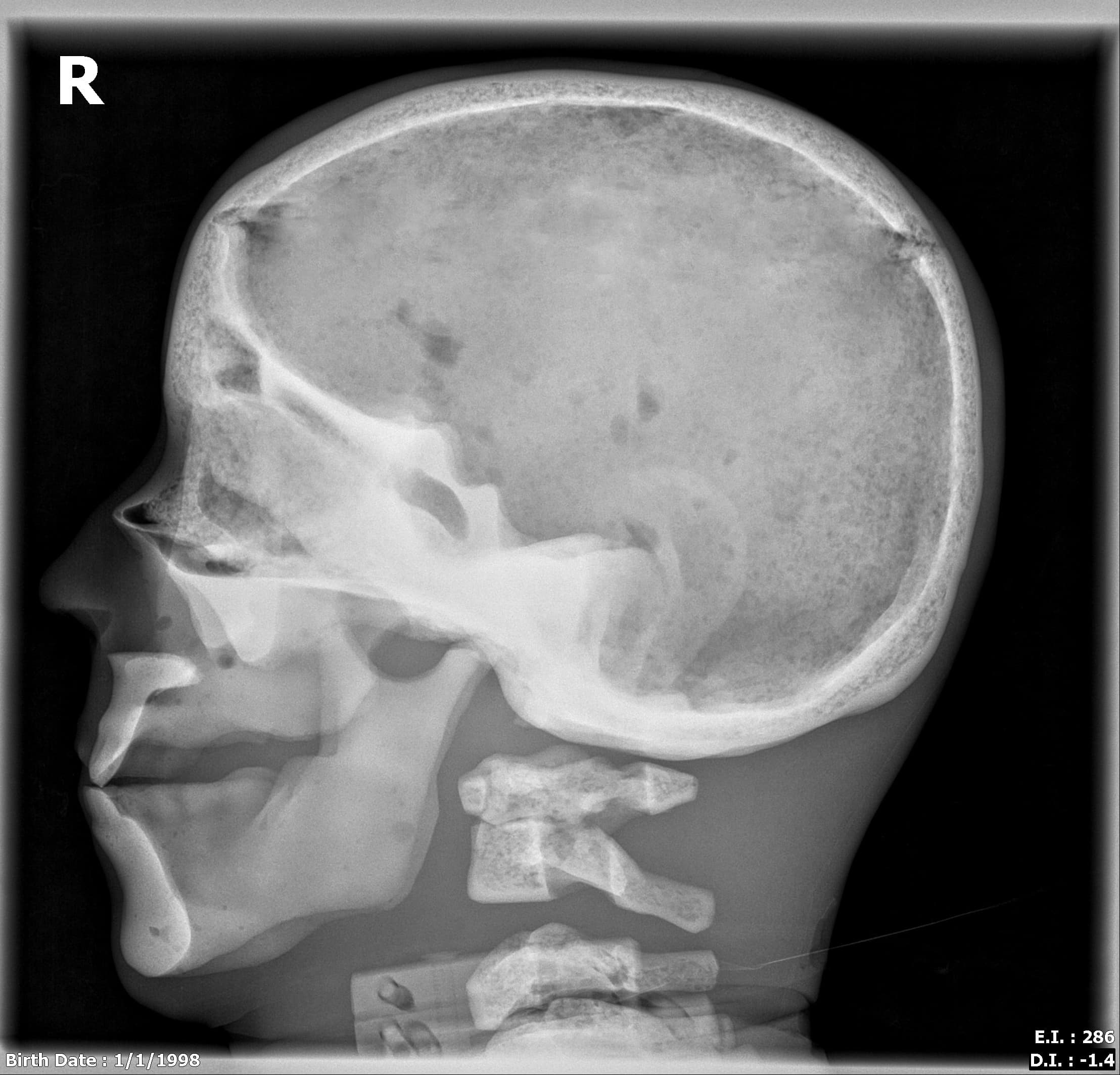

Anatomy	Skull		Ribs/ Chest	T Spine		C spine	L Spine		Abdomen	Pelvis	Femur		Tib/Fib		Knee		Foot	Scap Y	Humerus	Hand/ Wrist
Projection	AP	LAT	AP/ PA	AP	LAT	AP	AP	LAT	LAT	AP	AP	LAT	AP	LAT	AP	AP	PA/ Oblique	LAT	AP/ Oblique	LAT
E.I.	375	286	412	412	782	165	448	862	862	650	584	892	551	342	690	293	631	257	556	155
D.I.	-0.2	-1.4	0.6	0.6	2.6	-3.8	1	2.4	2.4	1.8	1.7	3.6	0.4	-1.6	1.4	-2.3	1	-2.9	0.5	-3.6
kVp	85	75	80	80	85	75	88	90	85	85	80	80	74	74	75	80	58	80	64	84
mAs	20	8	5	20	56	6.3	45	63	25	25	16	14	2.5	2.5	5.6	8	2	5.6	2	10

Type of Tissue	Sound Velocity[m/s]	Density [g/cm³]	Attenuation Measured at 2.25 MHz [dB/cm]	Hardness [Shore OO]	T2 [ms]	Speckles
Organs with Speckles (liver, kidneys, etc.)	1435 ± 10	0.99	1.0 ± 0.2	20	70	VARIABLE
Organs without Speckles (stomach, intestines, etc.)	1400 ± 10	0.99	1.0 ± 0.2	20	70	NO
Body Tissue	1410 ± 10	1.00	1.5 ± 0.2	35	55	NO/LOW
Tumor Feature (Optional)	1400 ± 10	1.01	1.2 ± 0.2	30	65	YES
Cortical Bone	3000 ± 30	2.31	6.4 ± 0.3	N/A	N/A	N/A
Trabecular Bone	2800 ± 50	2.03	21 ± 2	N/A	N/A	N/A
Brain Matter	1400 ± 10	0.99	1.0 ± 0.2	20	70	YES
Brain White Matter	1400 ± 10	1.01	1.3 ± 0.2	35	60	YES
Muscle Tissue	1400 ± 10	1.01	1.3 ± 0.2	35	60	YES

Thermal Properties of our Bone-Mimicking Material
Thermal Conductivity	Volumetric Specific Heat Capacity	Thermal Diffusivity	Thermal Resistivity	Specific Heat	Speed of Sound
0.776 W/ m K	1.040 MJ/ m^3 K	0.746 mm^2/ s	1.289 m K/ W	0.978 J/ g Deg Celsius	3070 m/s

Tissue Type	HU Value (Average)
Body Tissue	-25
Brain Tissue	-25
Trabecular Bone	800
Cortical Bone	1300
Aorta	40
Vena Cava	40
Trachea	80 (Tissue Part), -1000 (Air Filled Part)
Lungs	-850
Diaphragm	80
Pancreas	110

Tissue Type	HU Value (Average)
Spleen	110
Kidneys	110
Bladder	35
Rectum Wall	100
Sigmoid Colon Wall	100
Heart	40
Liver	110
Gallbladder	35
Stomach	-850
Large and Small Intestines	80 (Tissue Part), -1000 (Air Filled Part)

Options
Appearance	Translucent Amber, Skin
