Adult Breast (Complex) for X-Ray CT, US, MRI
$9,245 USD

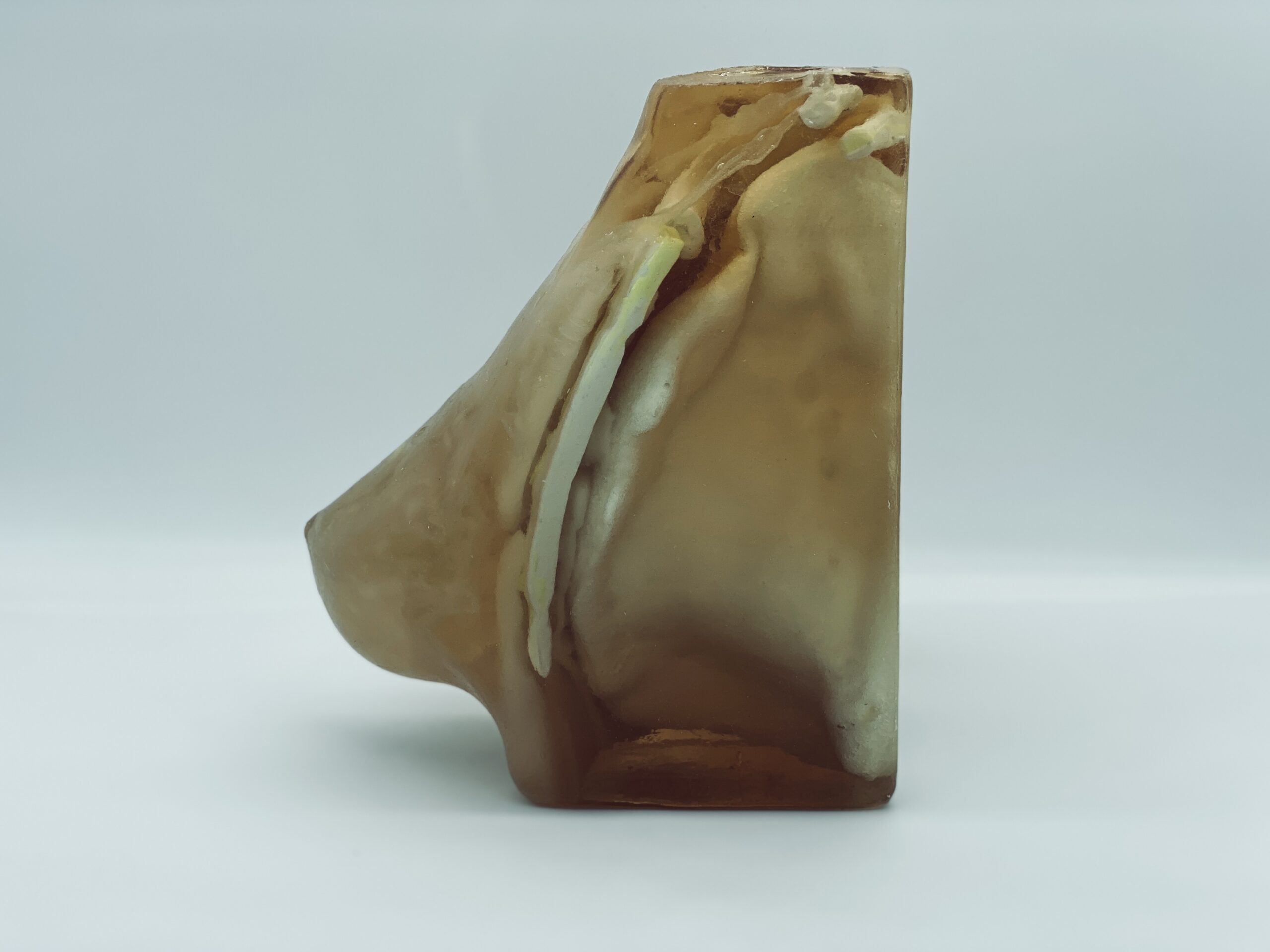

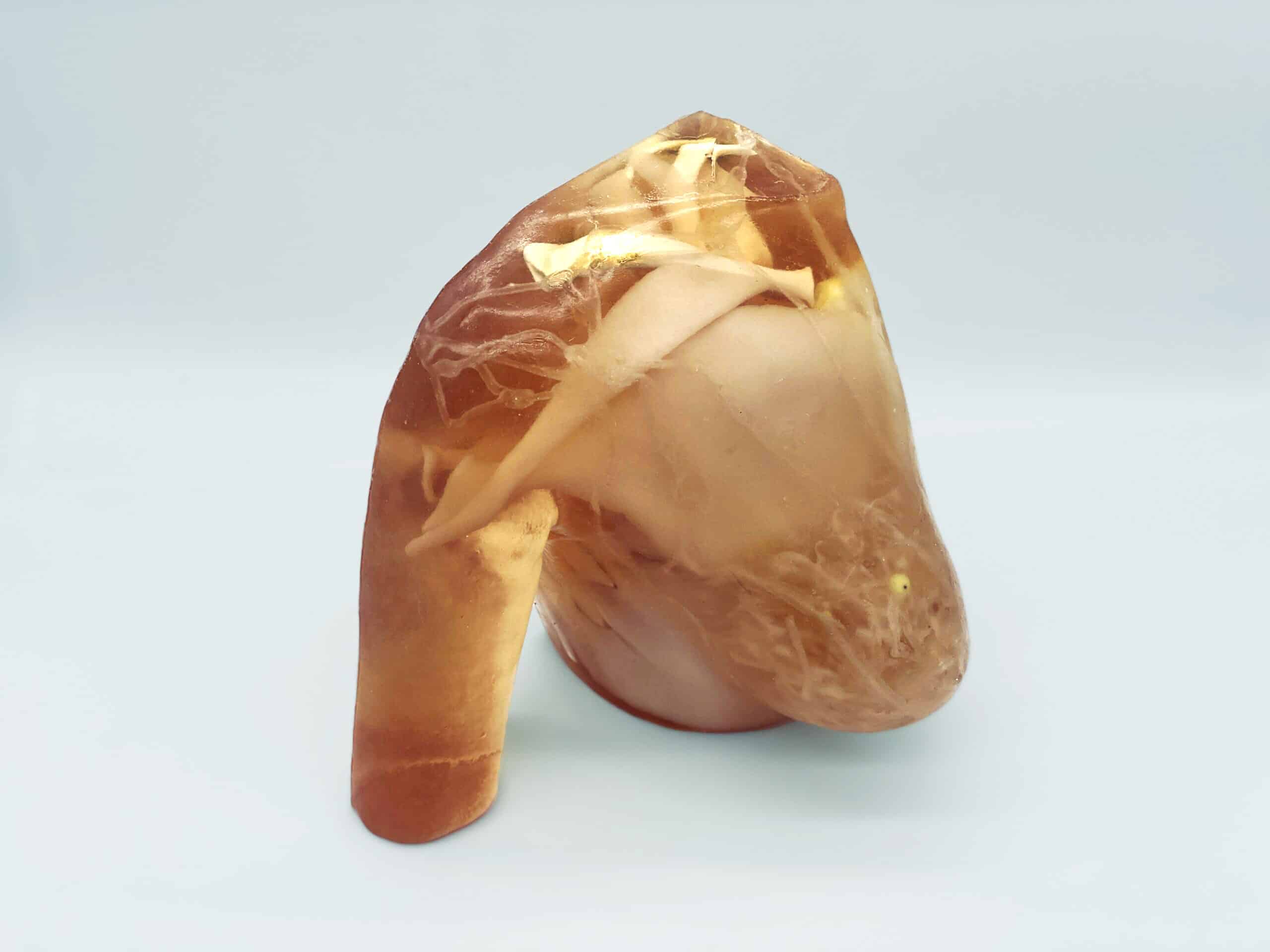

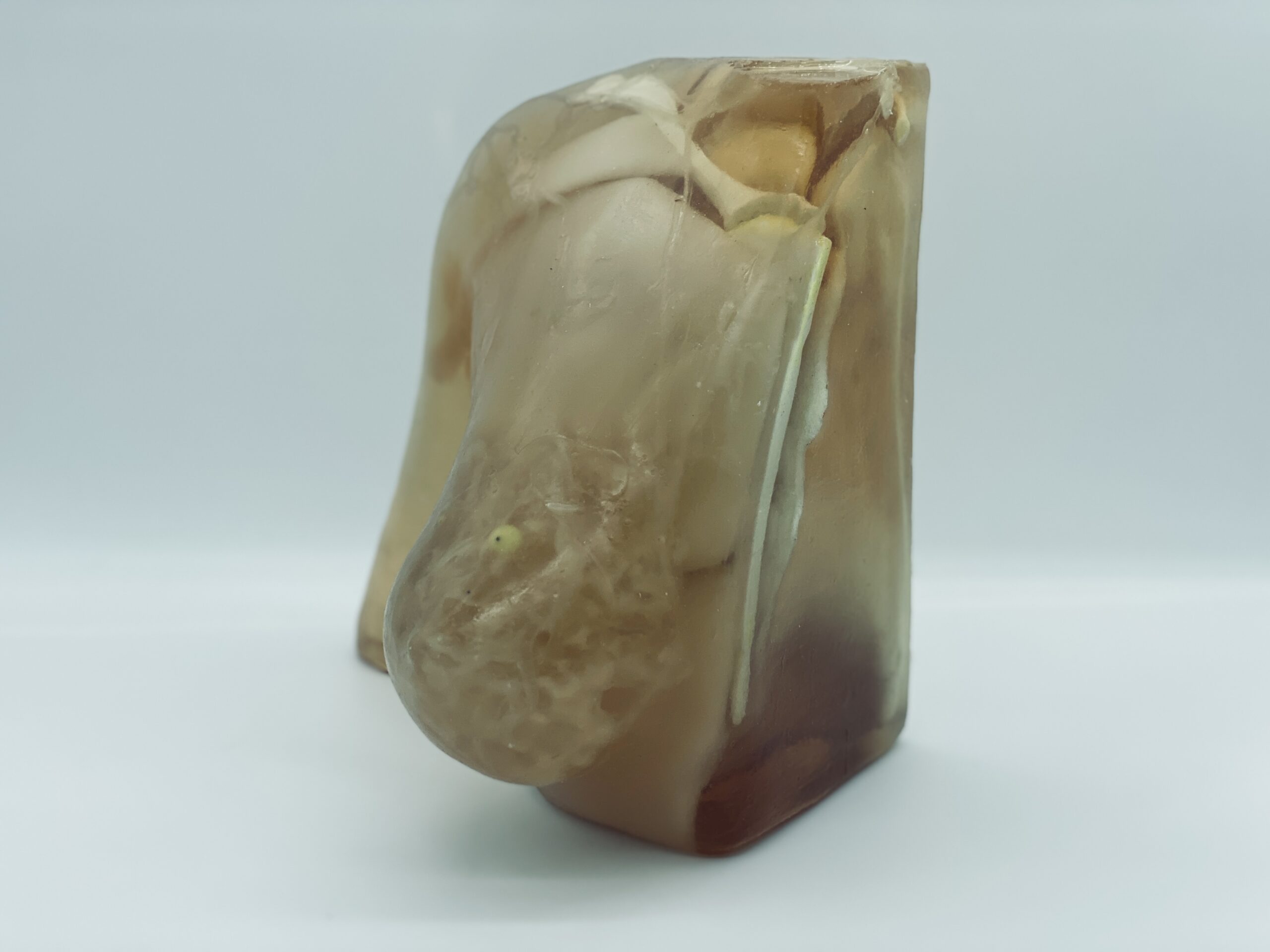

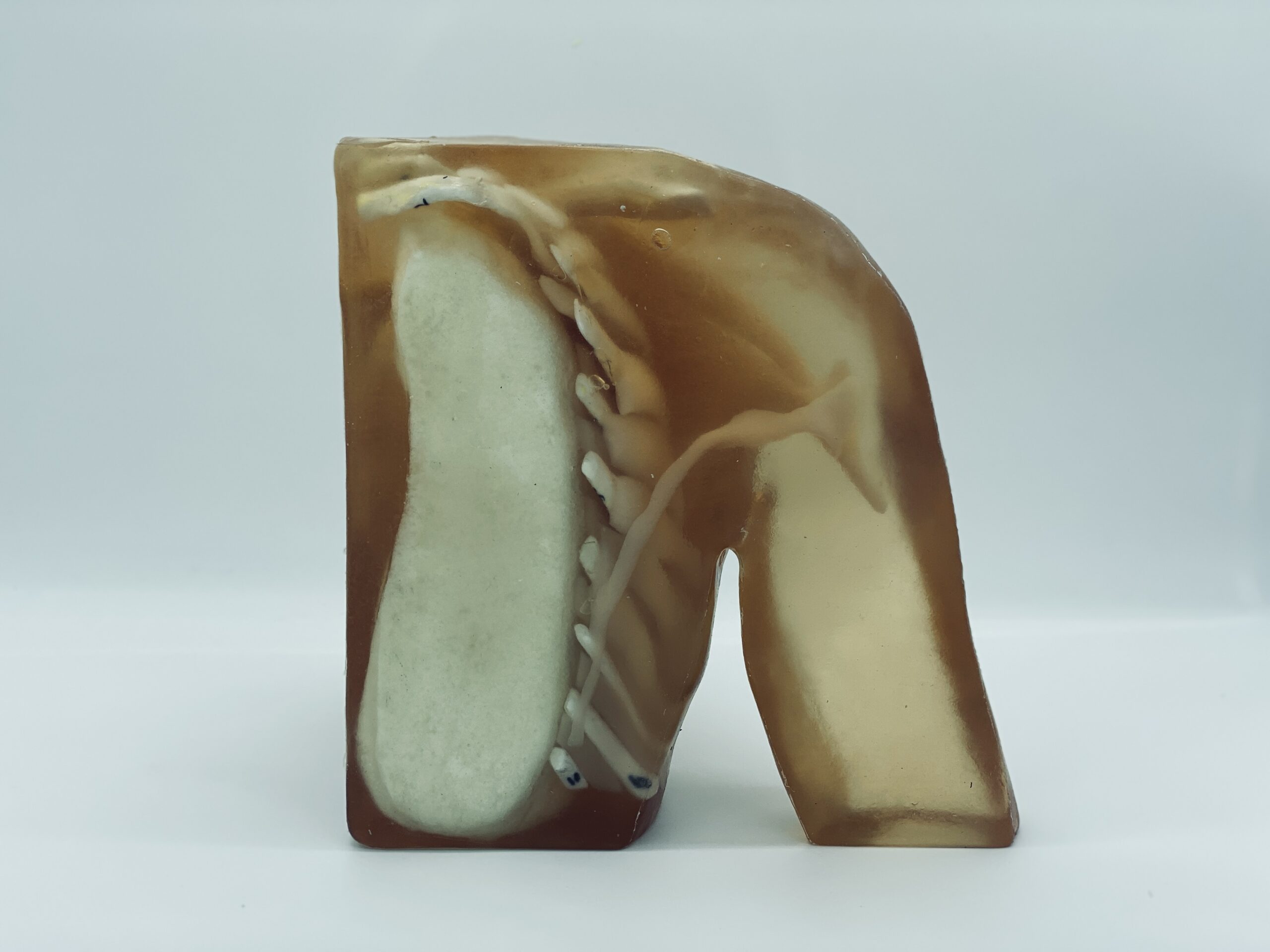

The Adult Breast (Complex) for X-Ray CT, US, MRI is a life-sized representation of a female breast, meticulously crafted to reflect typical anatomical features. This phantom is particularly useful for medical professionals and students who are seeking to develop their skills in breast examinations, especially in the detection and diagnosis of tumors. By using the phantom, they can practice various imaging techniques, learn to identify different types of breast abnormalities, and gain experience in interpreting mammograms and MRI scans.
Breast Model: Complex
Simple
Complex
This product can be customized based on your requirements — contact us.
The Adult Breast (Complex) for X-Ray CT, US, MRI is a life-sized representation of a female breast, meticulously crafted to reflect typical anatomical features. This phantom is particularly useful for medical professionals and students who are seeking to develop their skills in breast examinations, especially in the detection and diagnosis of tumors. By using the phantom, they can practice various imaging techniques, learn to identify different types of breast abnormalities, and gain experience in interpreting mammograms and MRI scans.

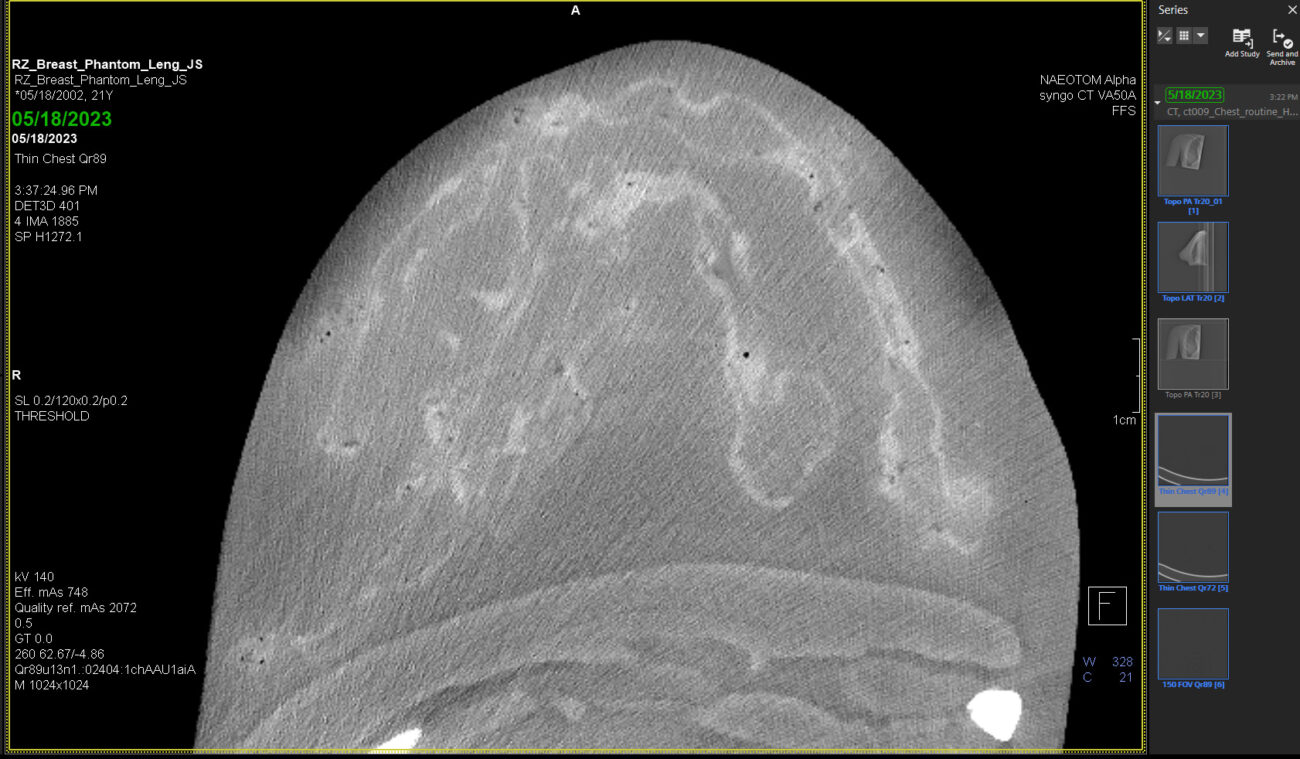

X-Ray Scans

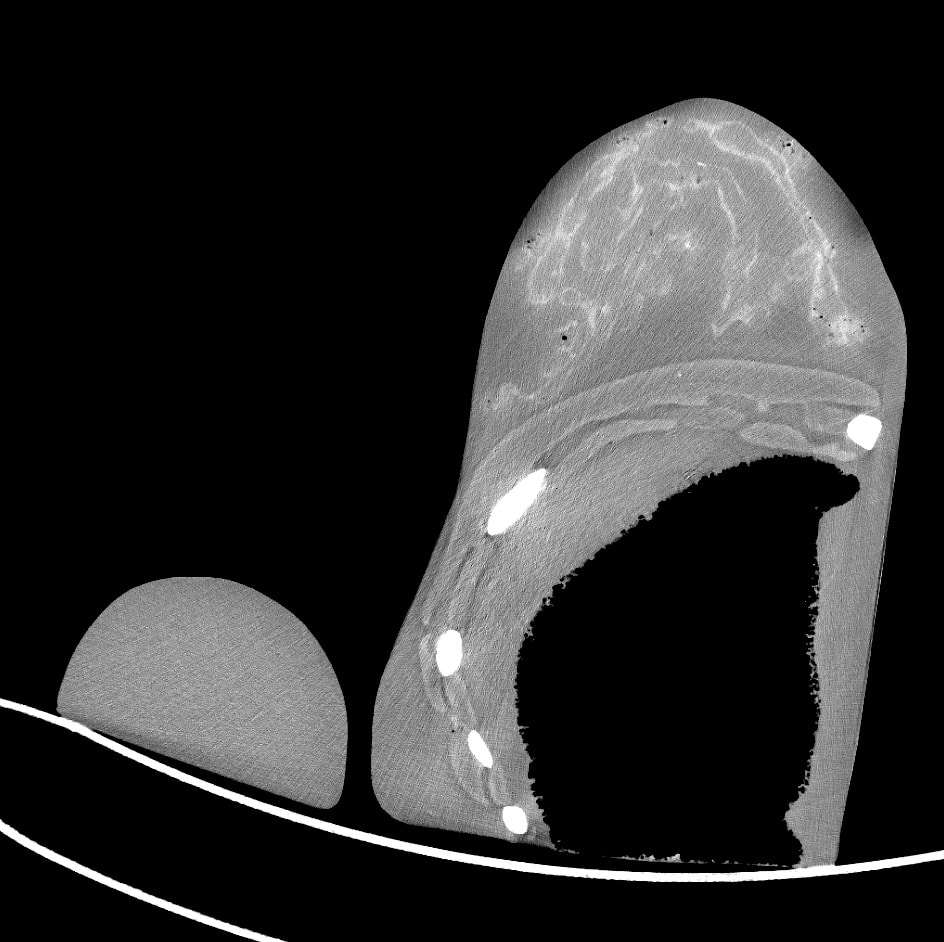

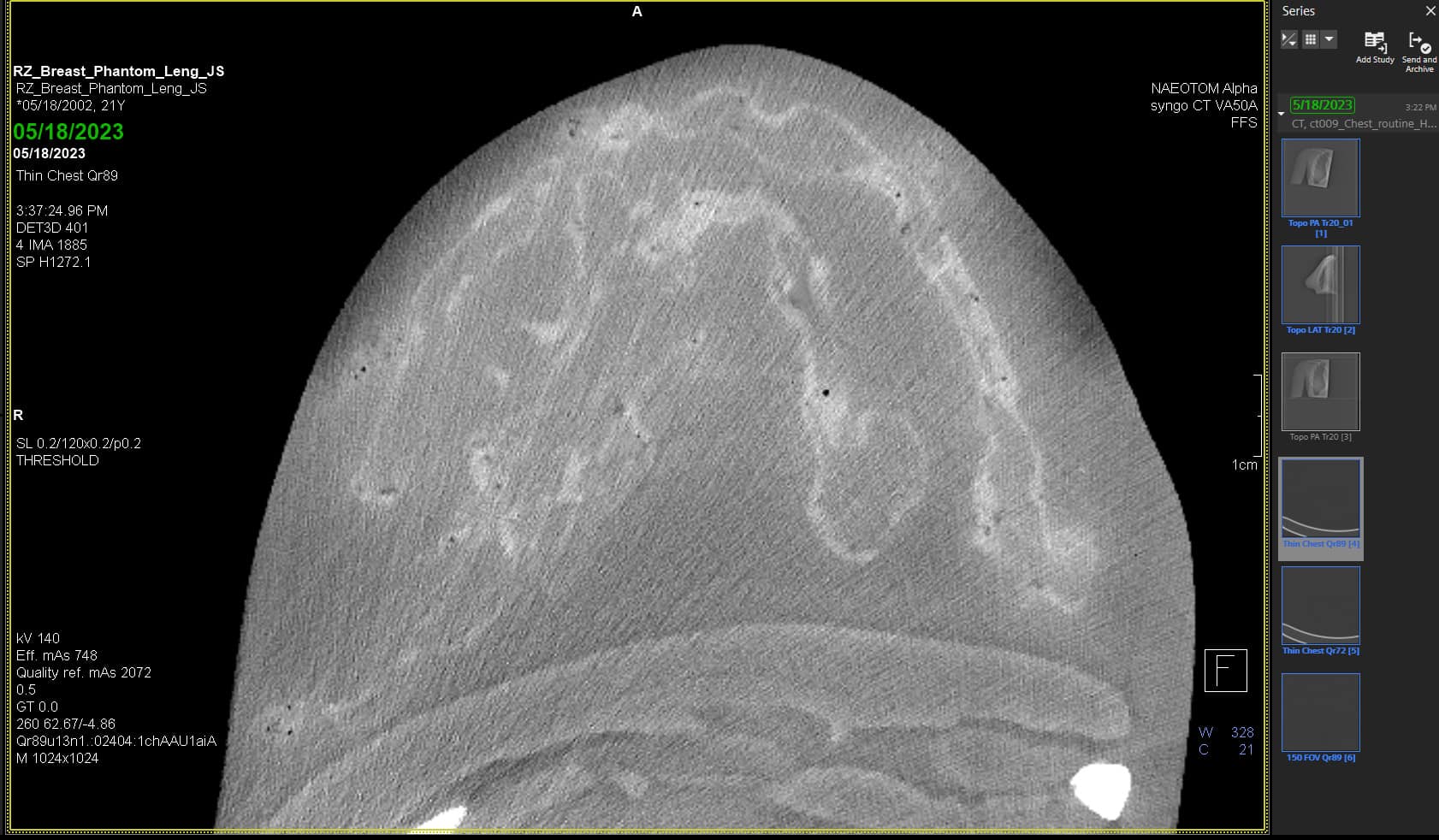

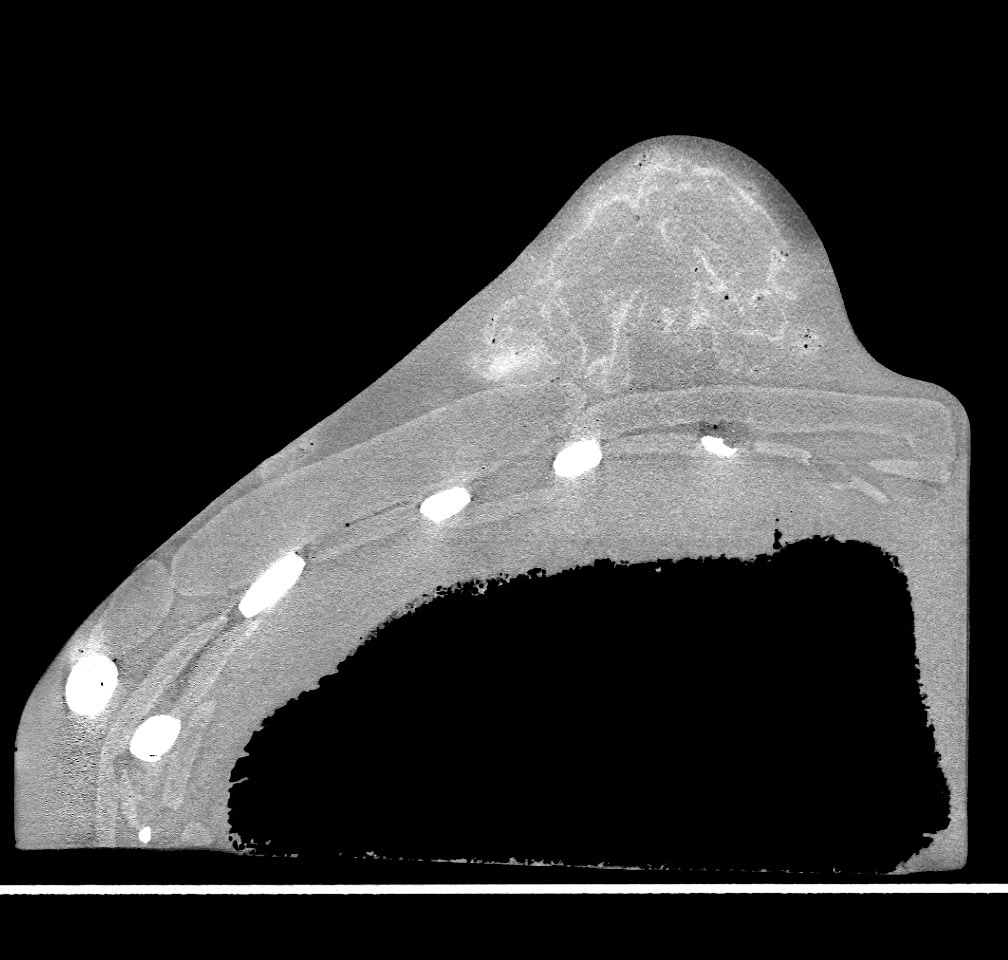

CT Scans
- Subcutaneous Adipose
- Partial Ribs and Cartilage
- Retromammary Adipose
- One Lung
- Mammary Glands
- Major Fat Tissues
- Two Spherical Tumors
- Major Muscles
- Axillary Lymph Nodes
| Phantom Size | 10 x 9 x 10 Inches |
| Phantom Weight | 11 Lbs (approx.) |
| Shipment Size | 36 x 24 x 12 Inches |
| Shipment Weight | 45 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 35 | 55 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| Breast Model | Breast (Complex), Breast (Simple) |
