Adult Spine for X-Ray CT, MRI
$5,120 USD

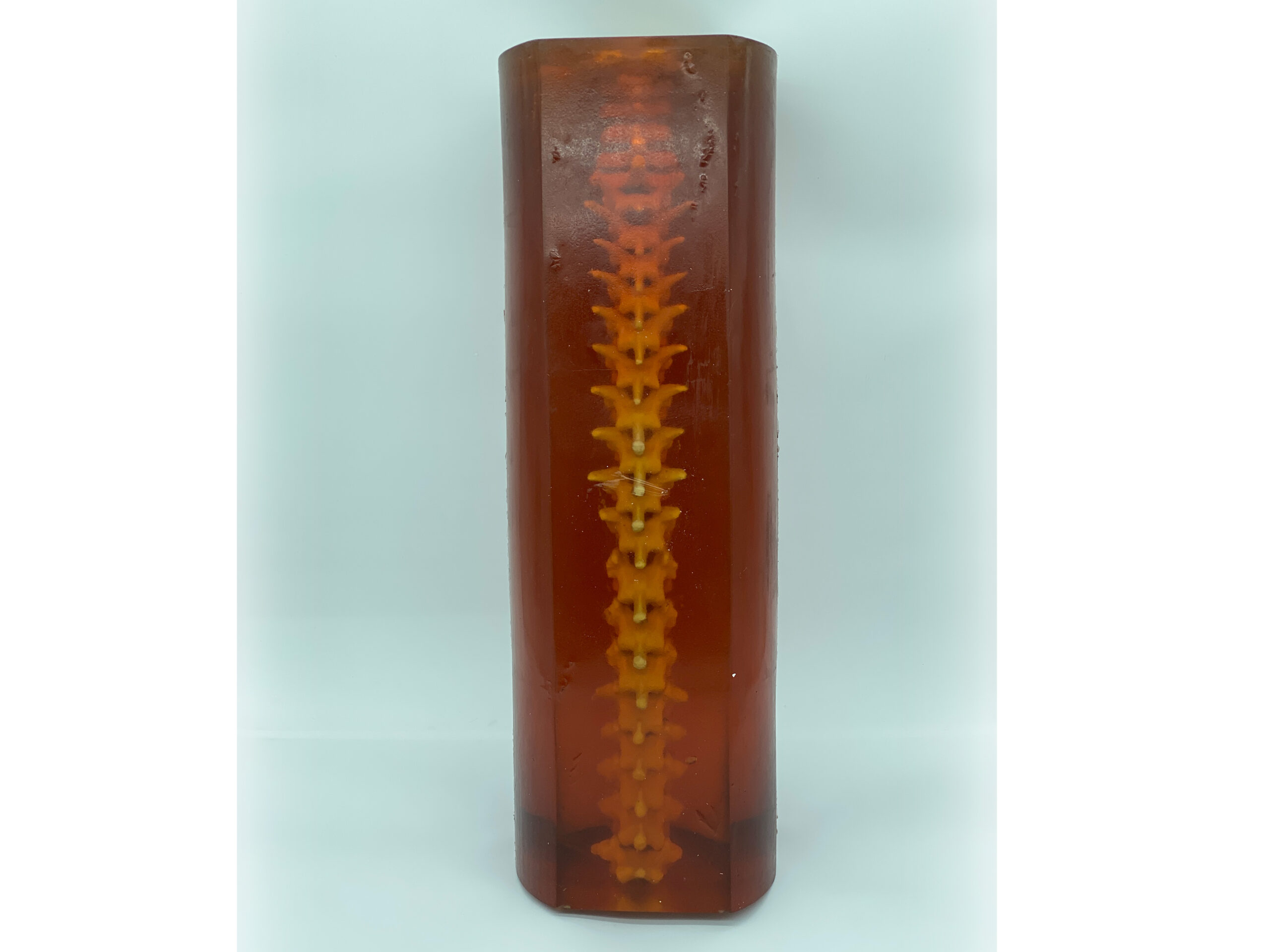

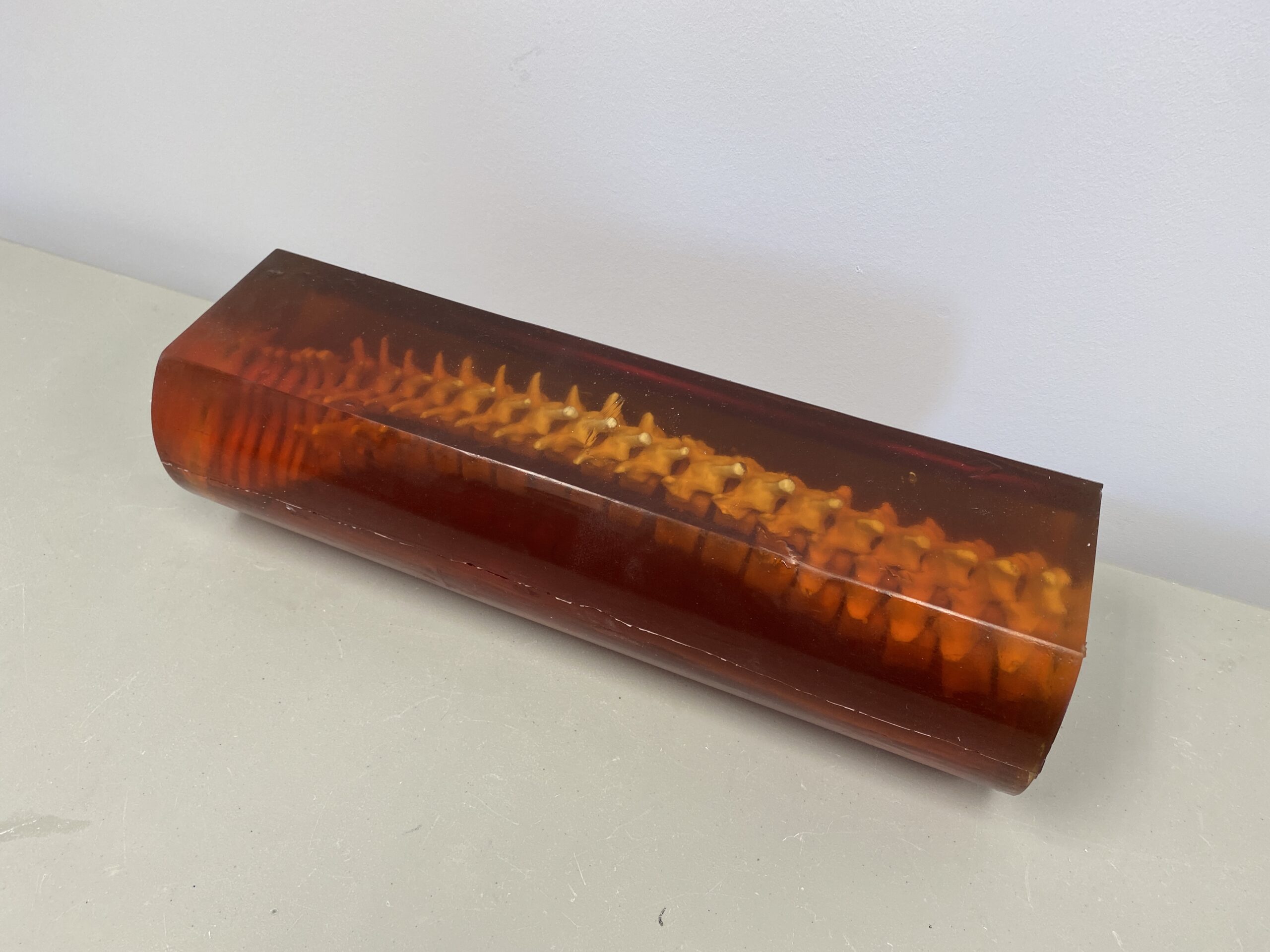

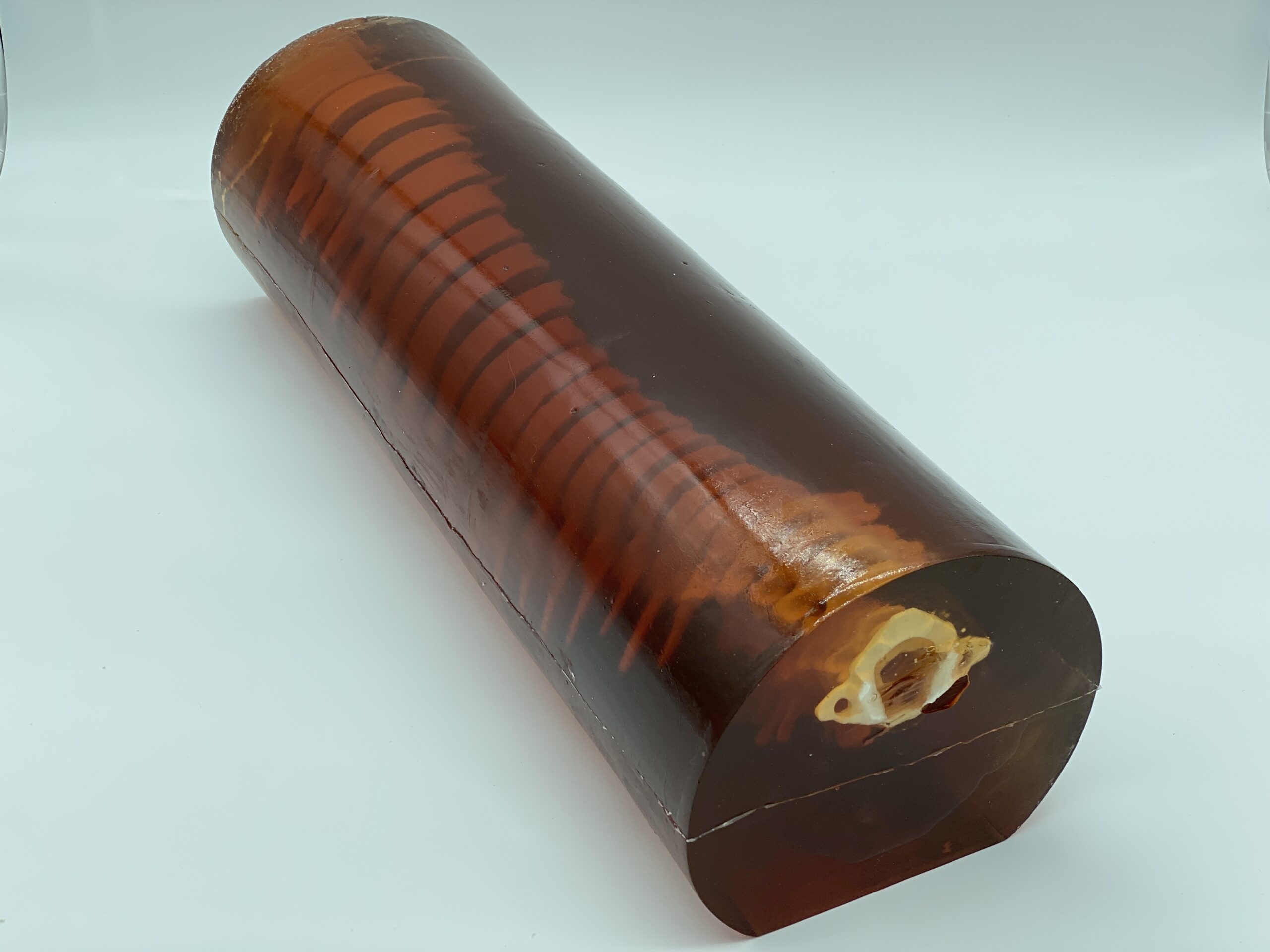

Our Adult Spine phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. It is majorly composed of the following components.
Spine Model: Standard (X-Ray·CT·US·MRI)
Standard (X-Ray·CT·US·MRI)
Standard (X-Ray·CT)
This product can be customized based on your requirements — contact us.

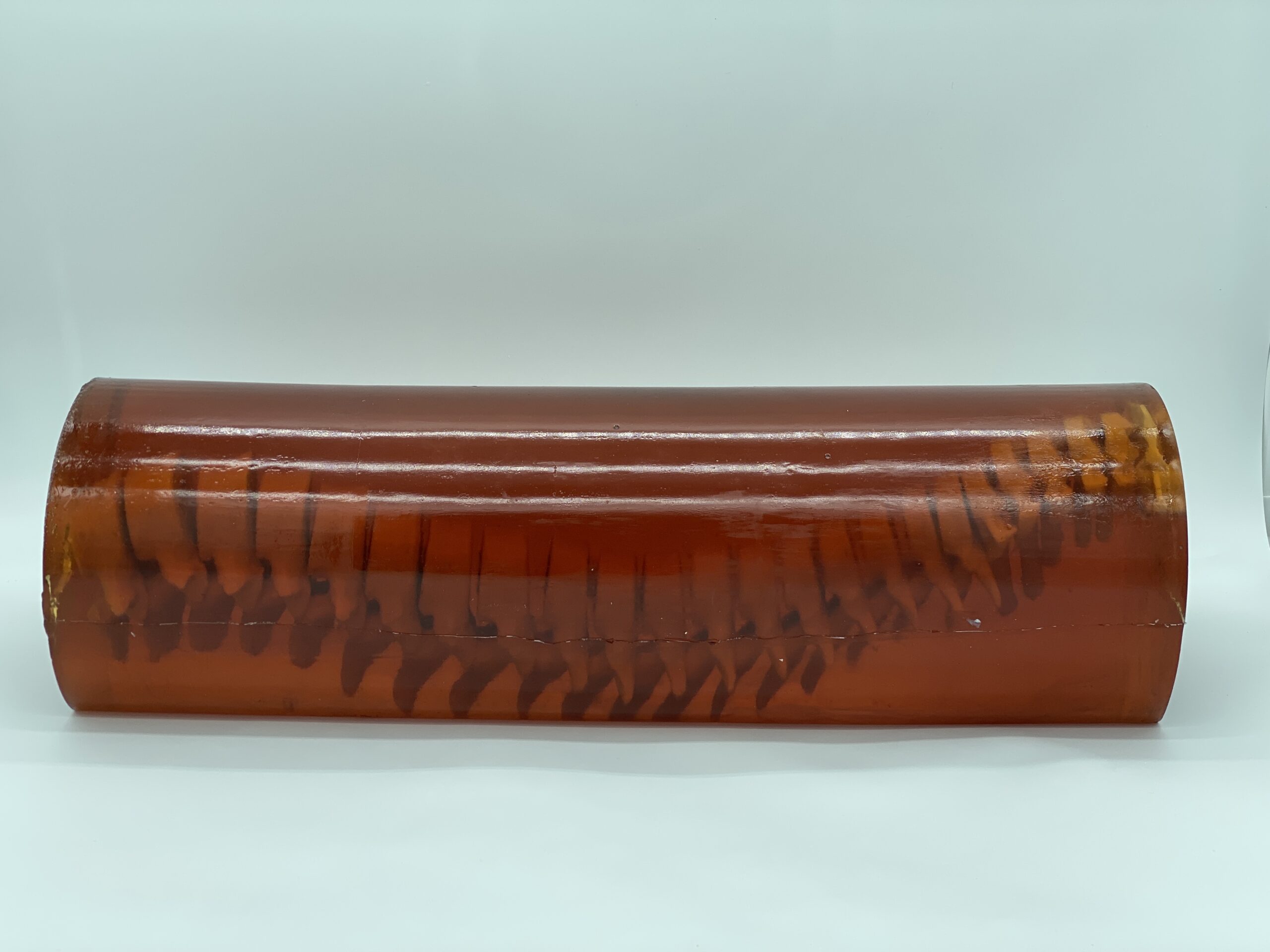

Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semicylindrical-shaped body-mimicking tissue. The vertebrae have a realistic three-layered structure, and their inner porosity can be adjusted according to the requirement of the particular project. The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for X-Ray/CT, US and MRI. It can be used for medical imaging research and treatment planning of various medical procedures (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it).

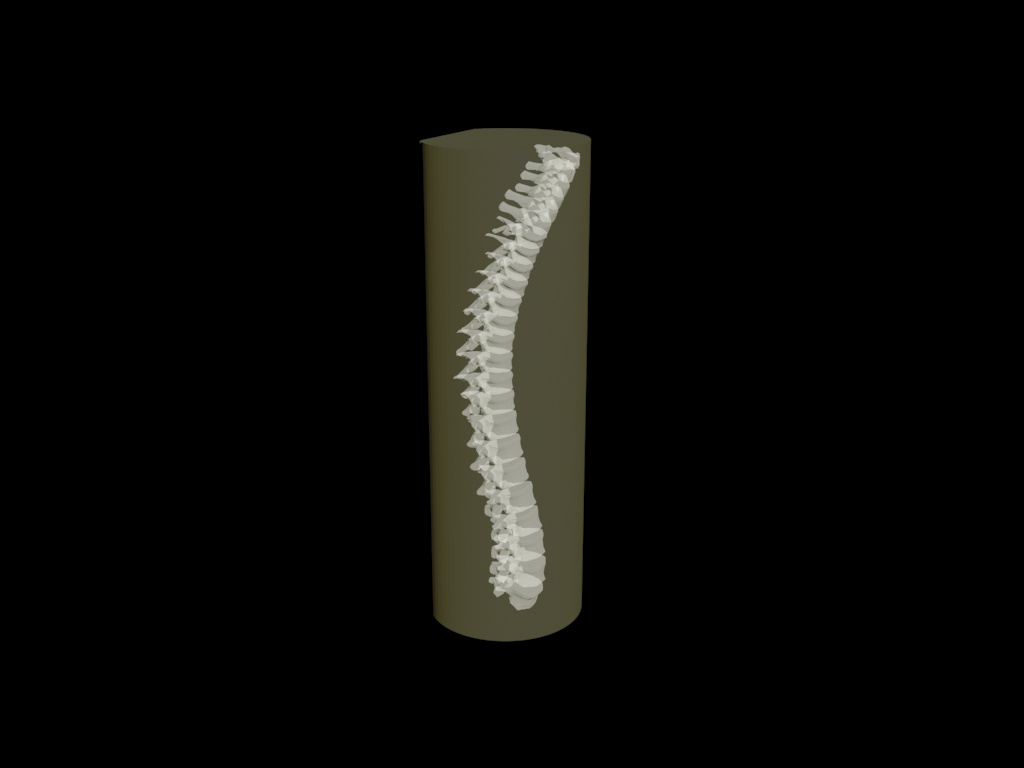

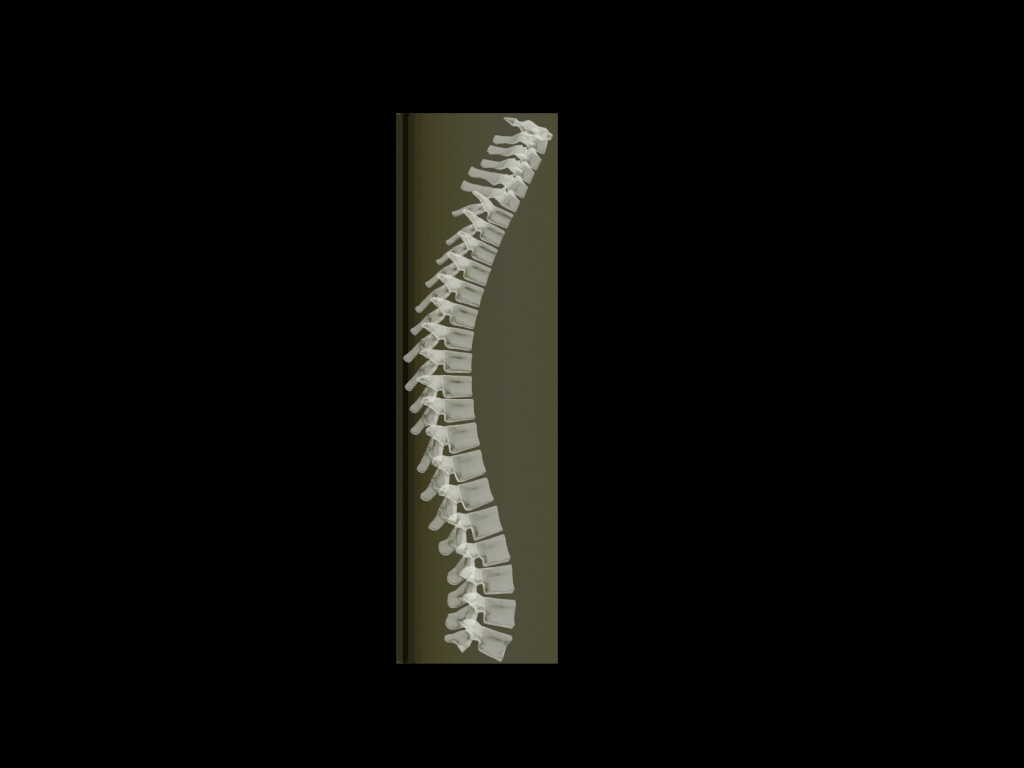

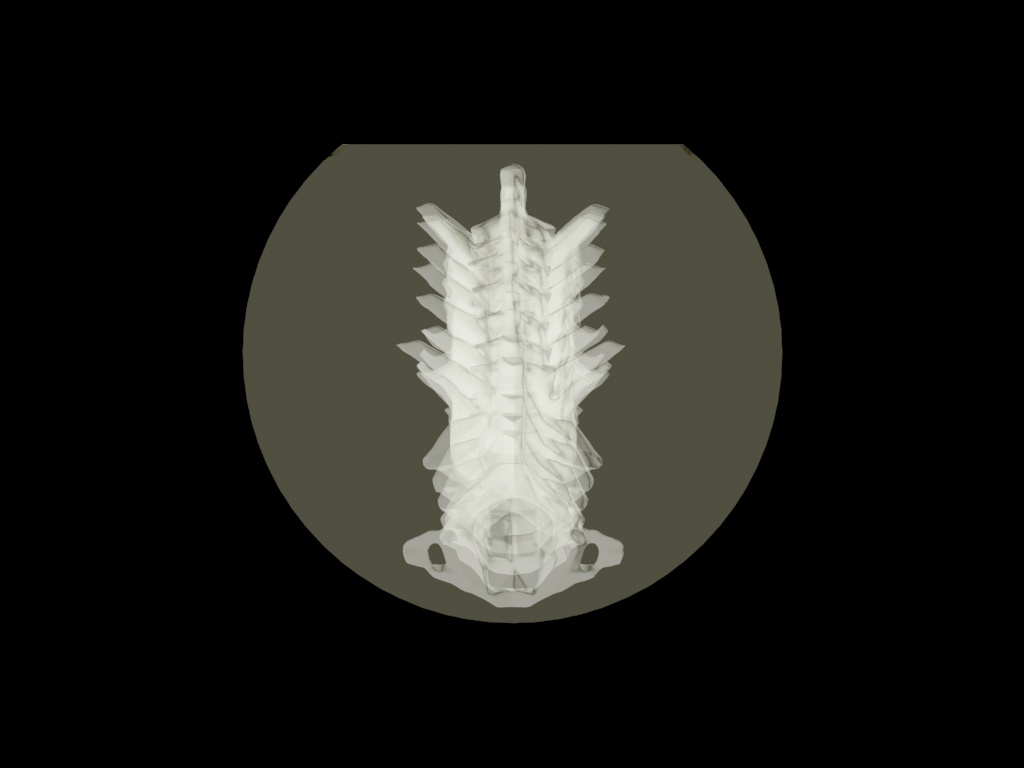

Design

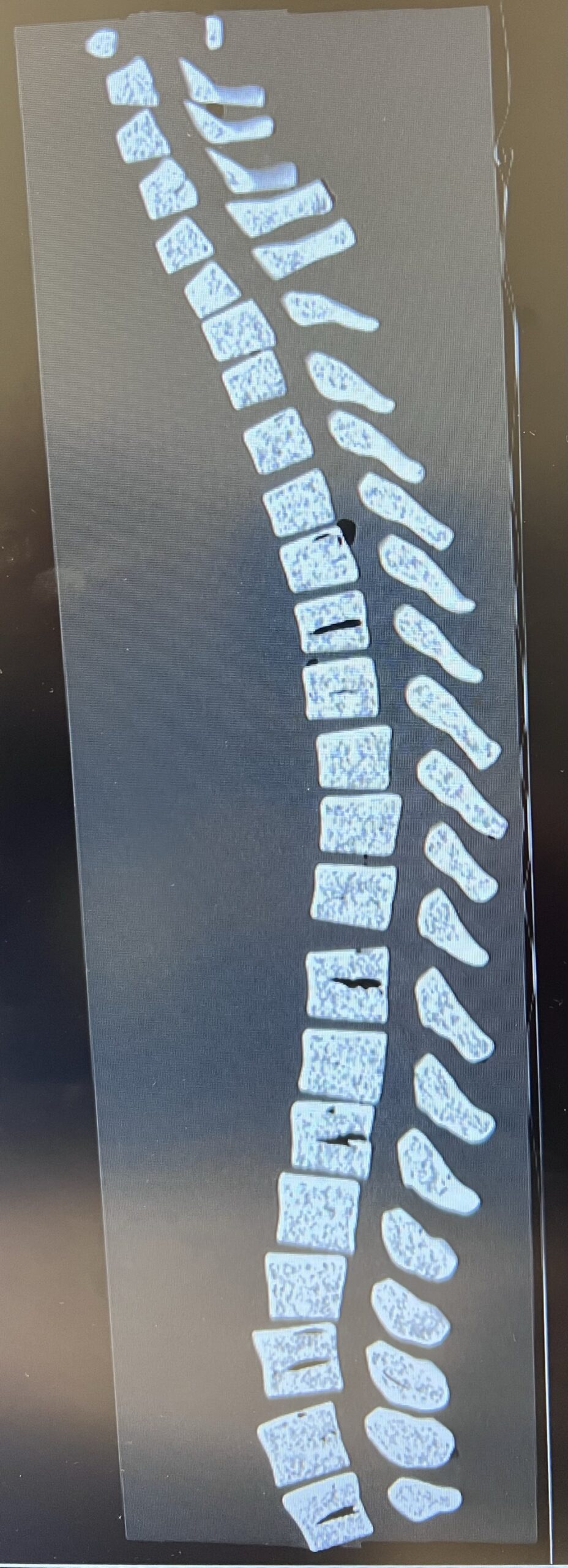

X-Ray Scans
- Cervical Vertebrae (C1
- C7)
- Thoracic Vertebrae (T1
- T12)
- Lumbar Vertebrae (L1
- L5)
| Phantom Size | 22 x 7 x 7 Inches |
| Phantom Weight | 30 Lbs (approx.) |
| Shipment Size | 23 x 14 x 10 Inches |
| Shipment Weight | 34 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
