X-Ray, CT, US, MRI Phantoms
Adult Thorax for X-Ray CT, US, MRI
$12,900 USD

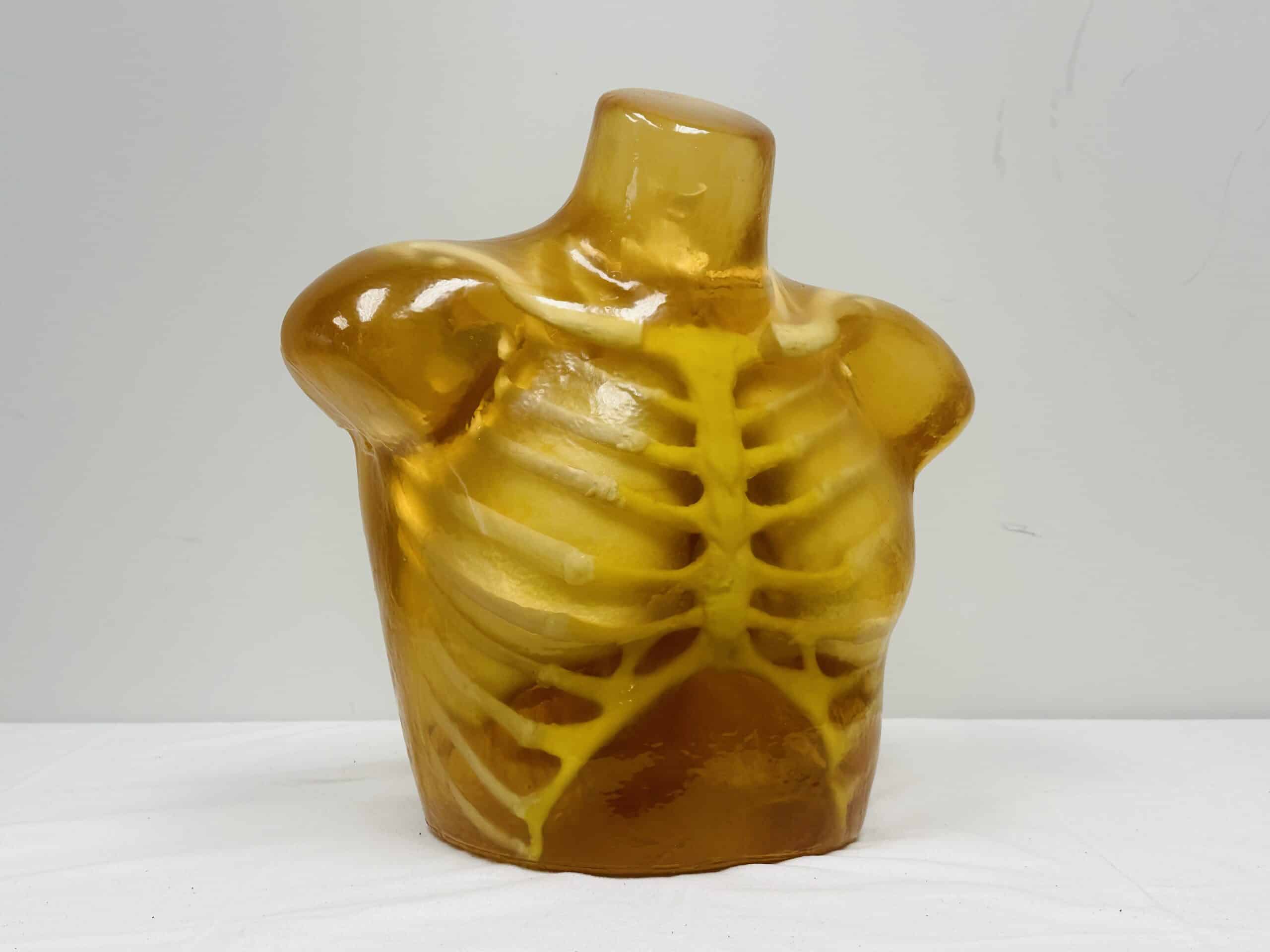

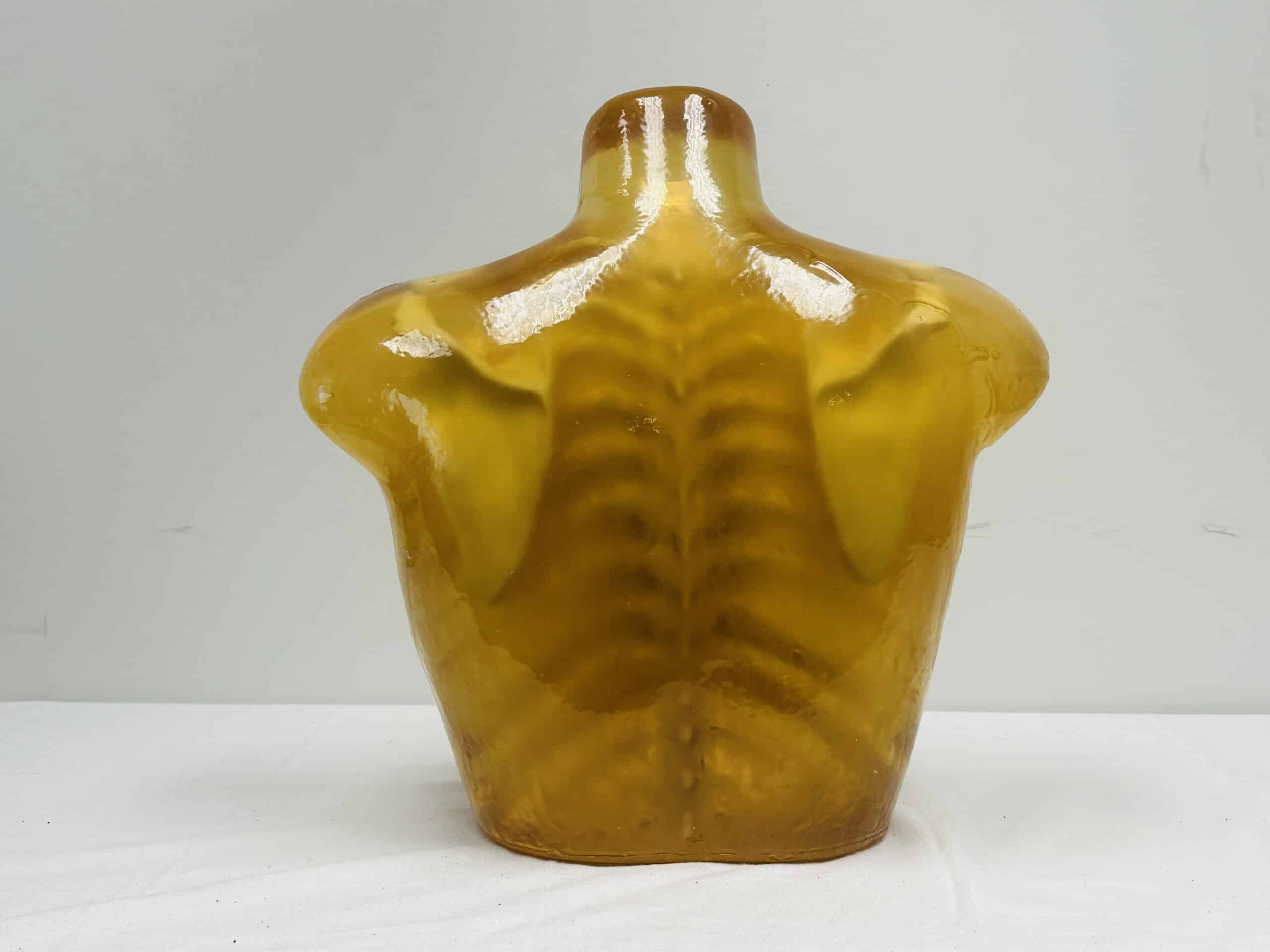

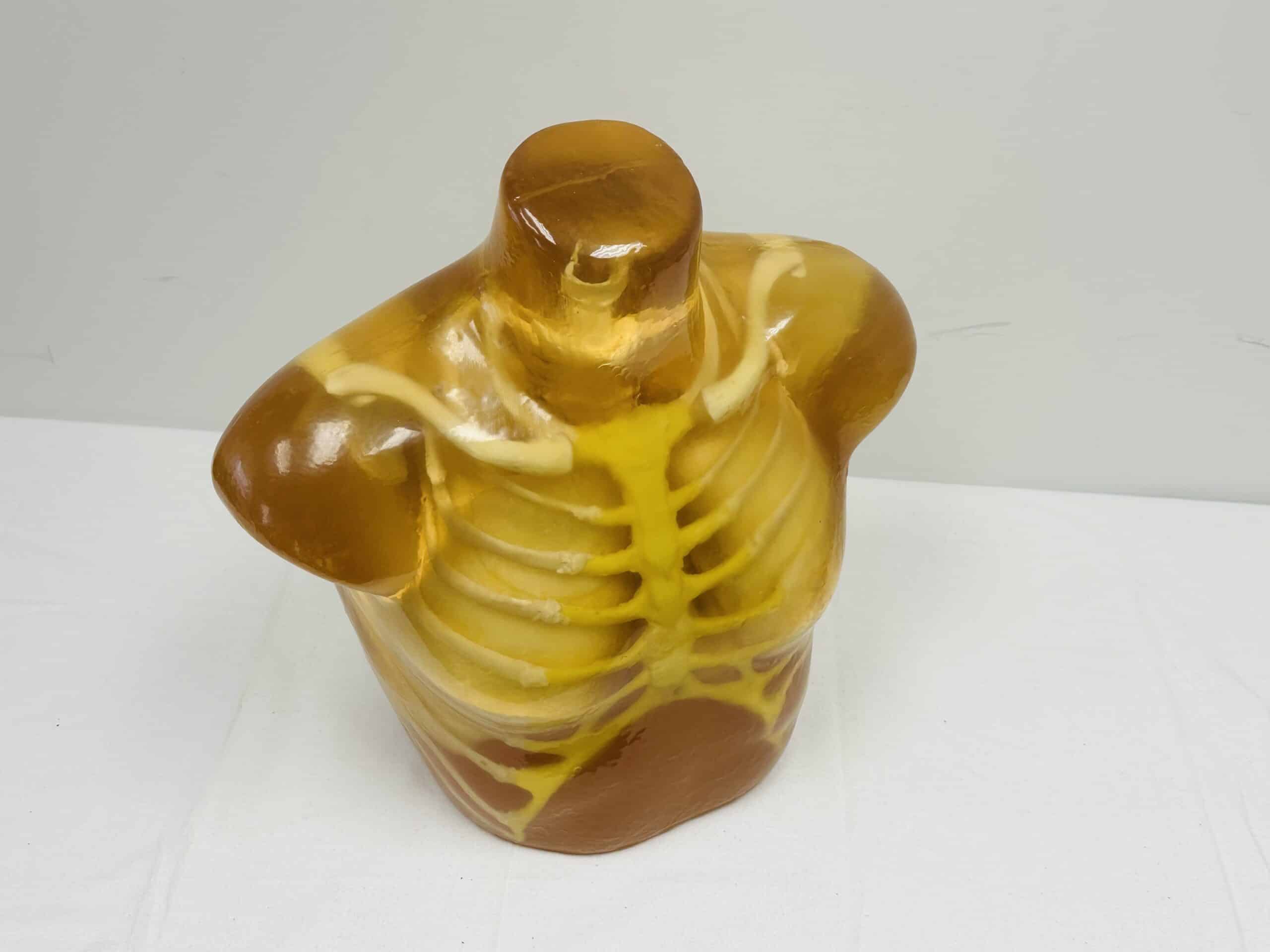

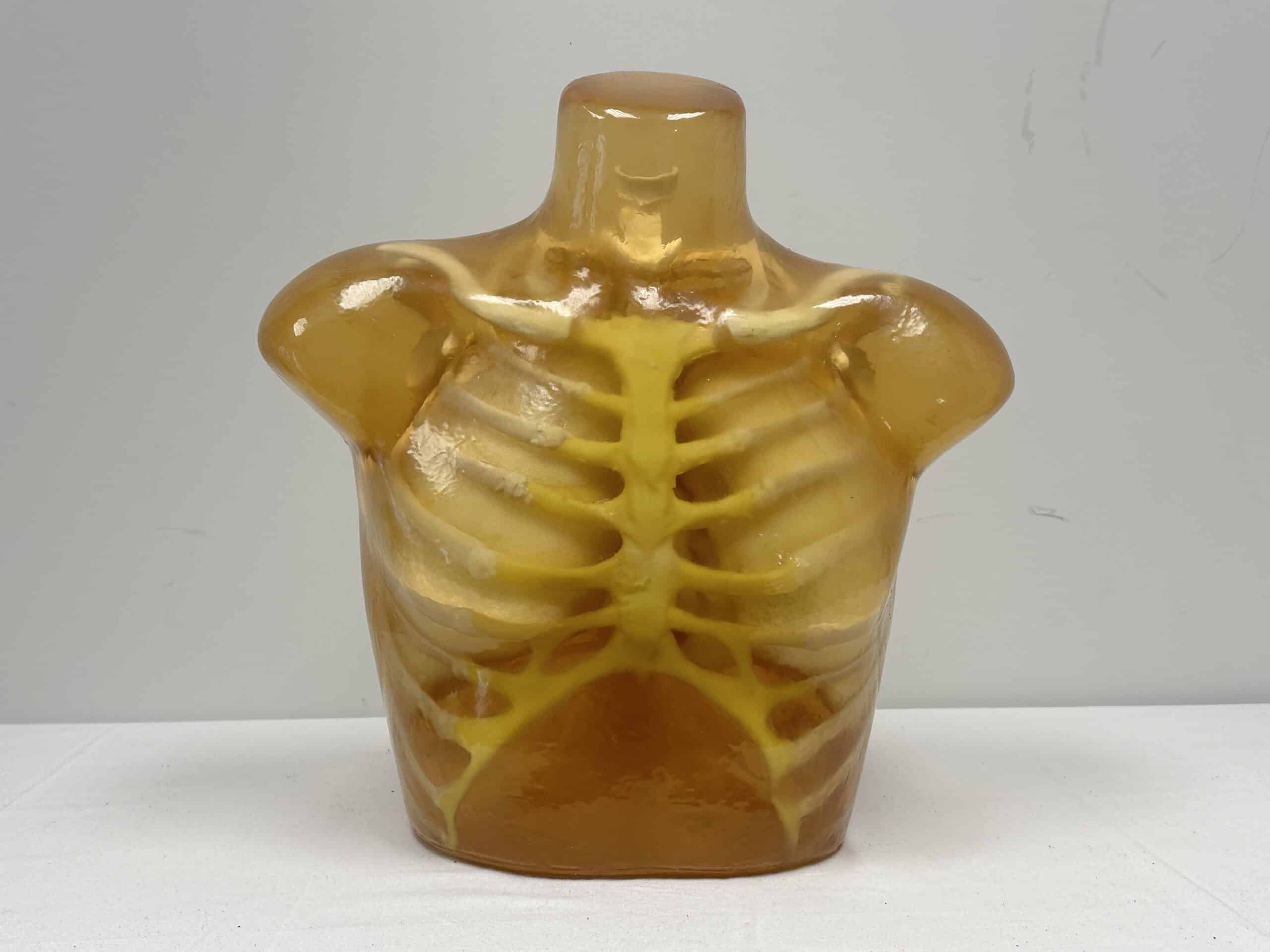

Adult Thorax phantom features a thoracic skeleton made of realistic patented bone material for X-Ray/CT, US, and MRI applications. It serves medical imaging research and radiology training while also offering customization for equipment testing. The vertebrae have adjustable porosity, and lungs are customizable that can help mimic different pathologies.
This product can be customized based on your requirements — contact us.
Adult Thorax phantom features a thoracic skeleton made of realistic patented bone material for X-Ray/CT, US, and MRI applications. It serves medical imaging research and radiology training while also offering customization for equipment testing. The vertebrae have adjustable porosity, and lungs are customizable that can help mimic different pathologies.

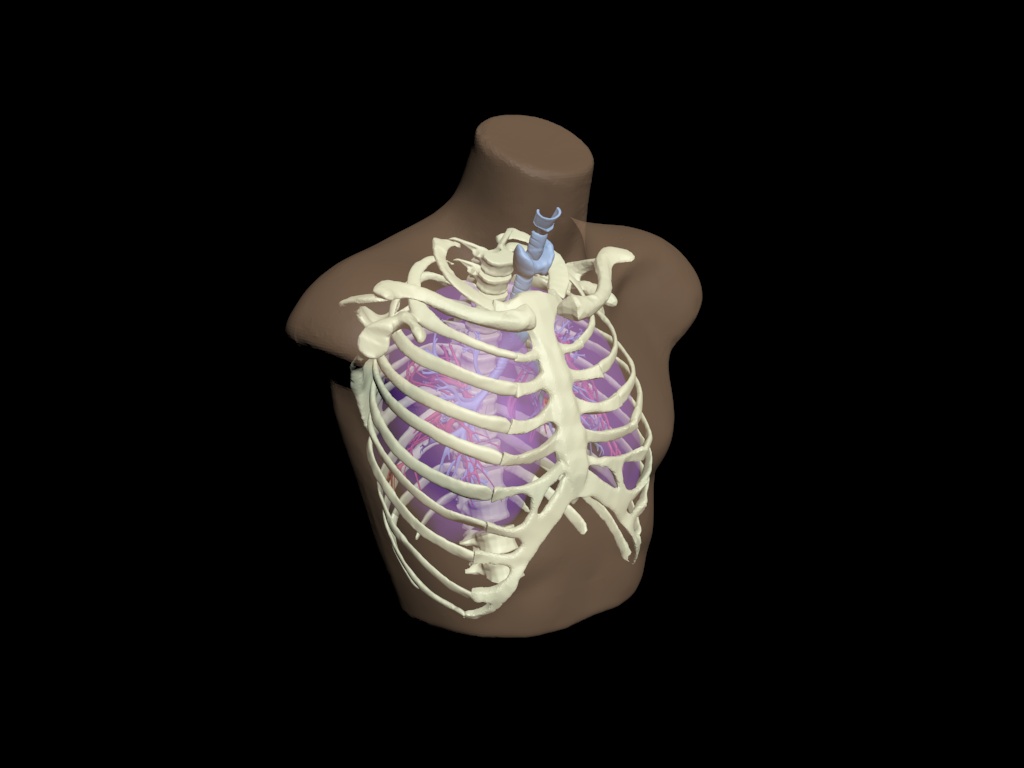

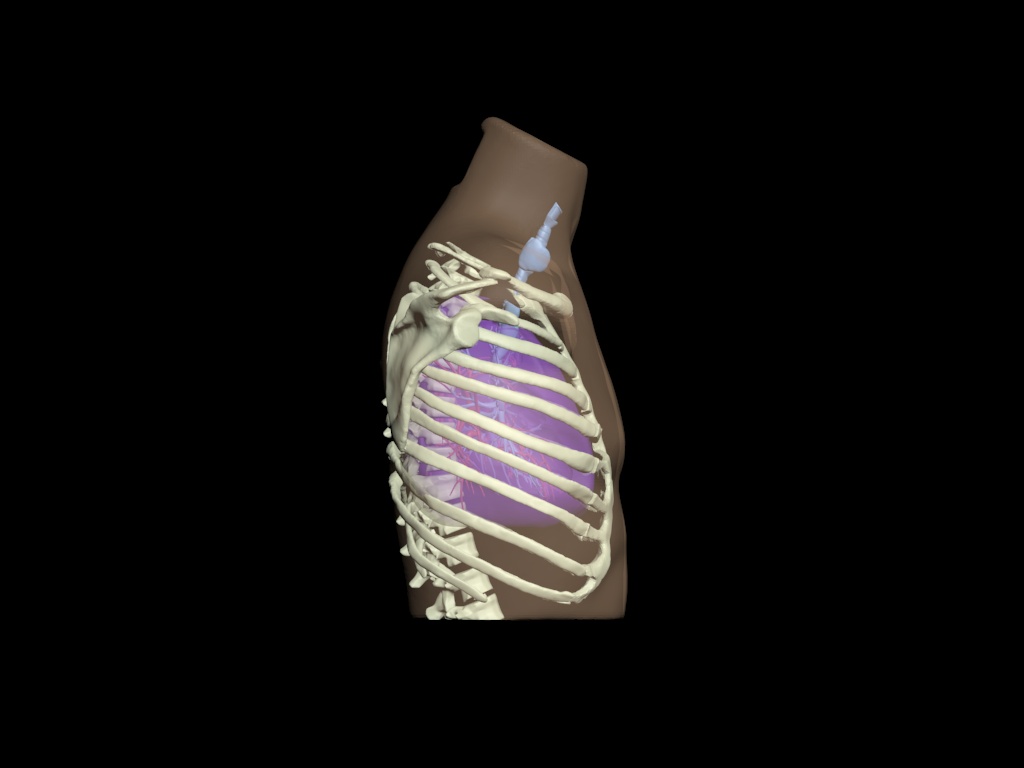

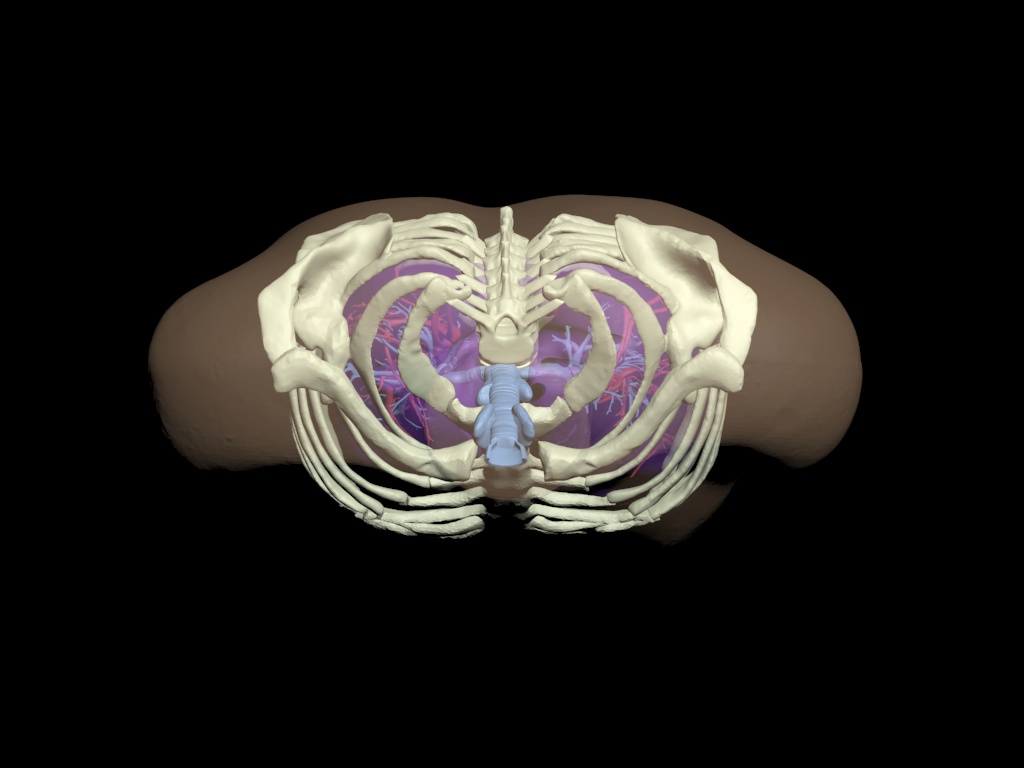

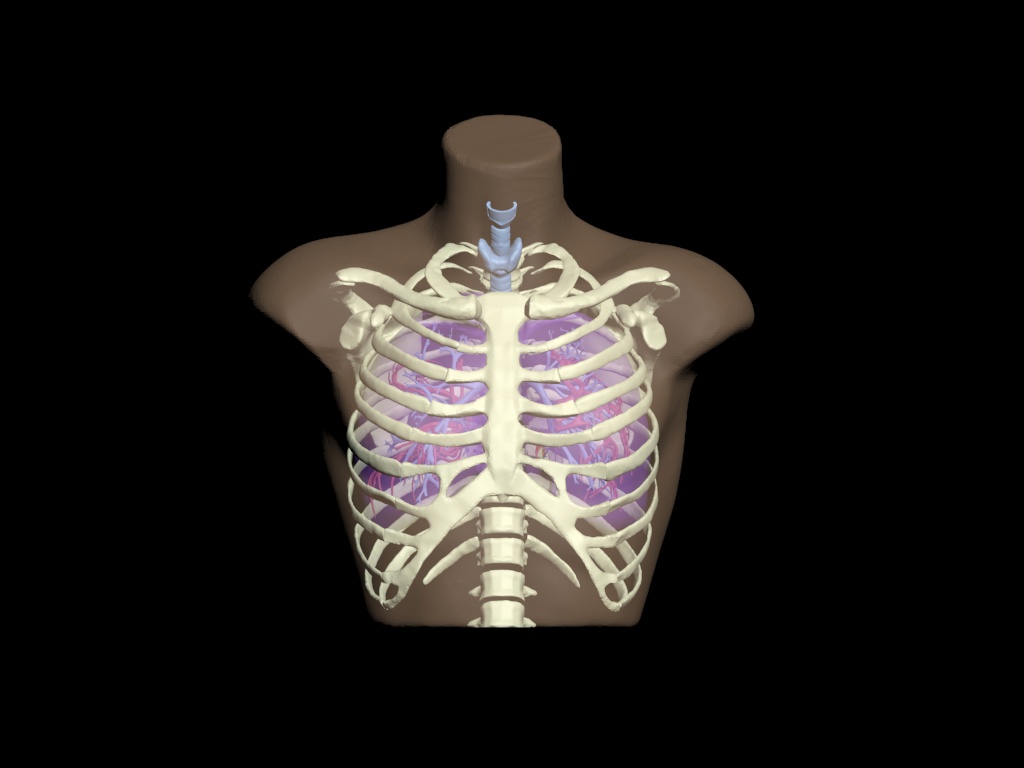

Design
- Spine with Porous Inner Structure
- Complete Ribcage
- Shoulders and Clavicles
- Trachea
- Heart
| Phantom Size | 18 x 10 x 18 Inches |
| Phantom Weight | 58 Lbs (approx.) |
| Shipment Size | 32 x 23 x 13 Inches |
| Shipment Weight | 90 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
