Adult Male Heart for X-Ray CT, US, MRI
$7,990 USD

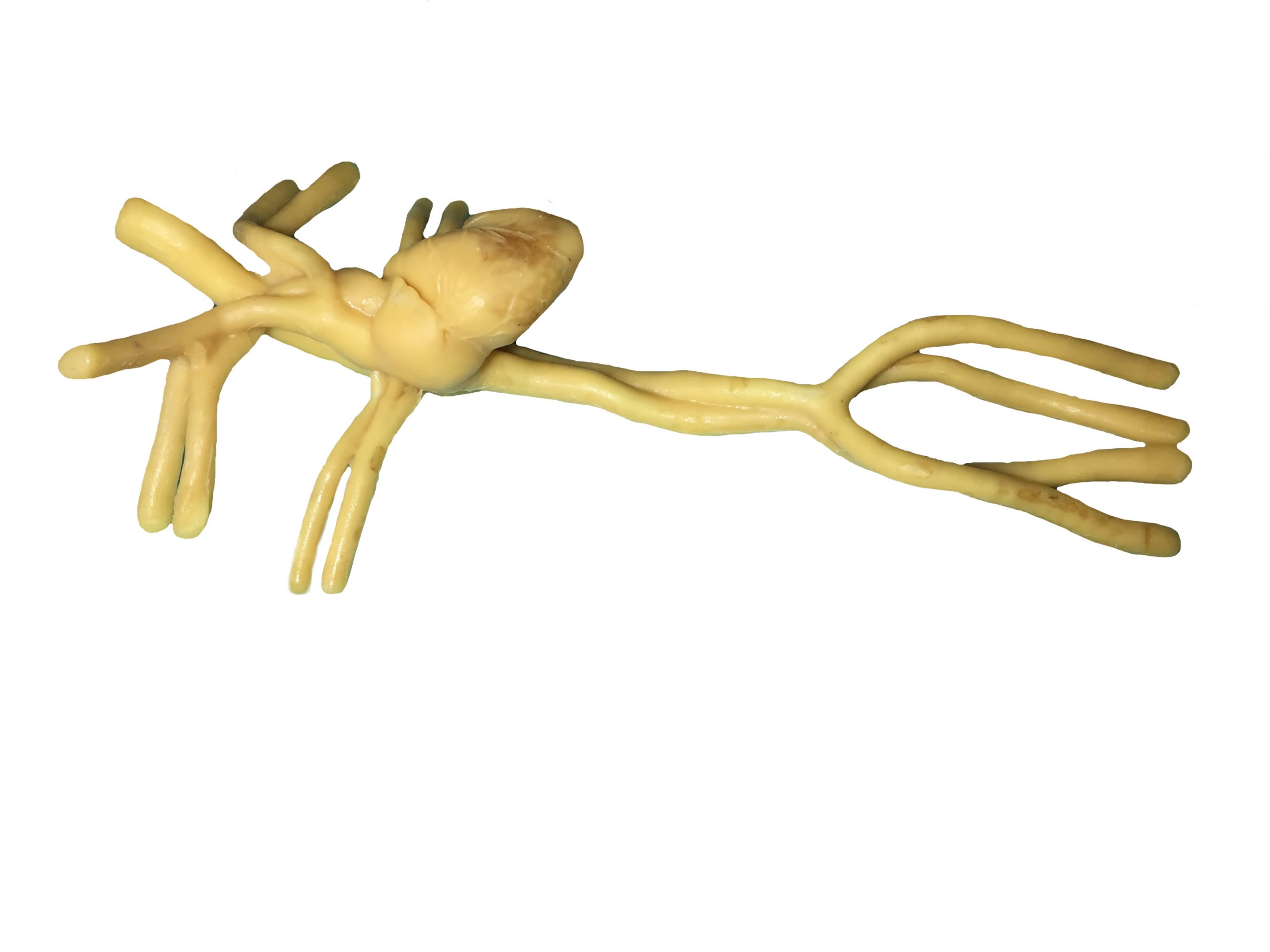

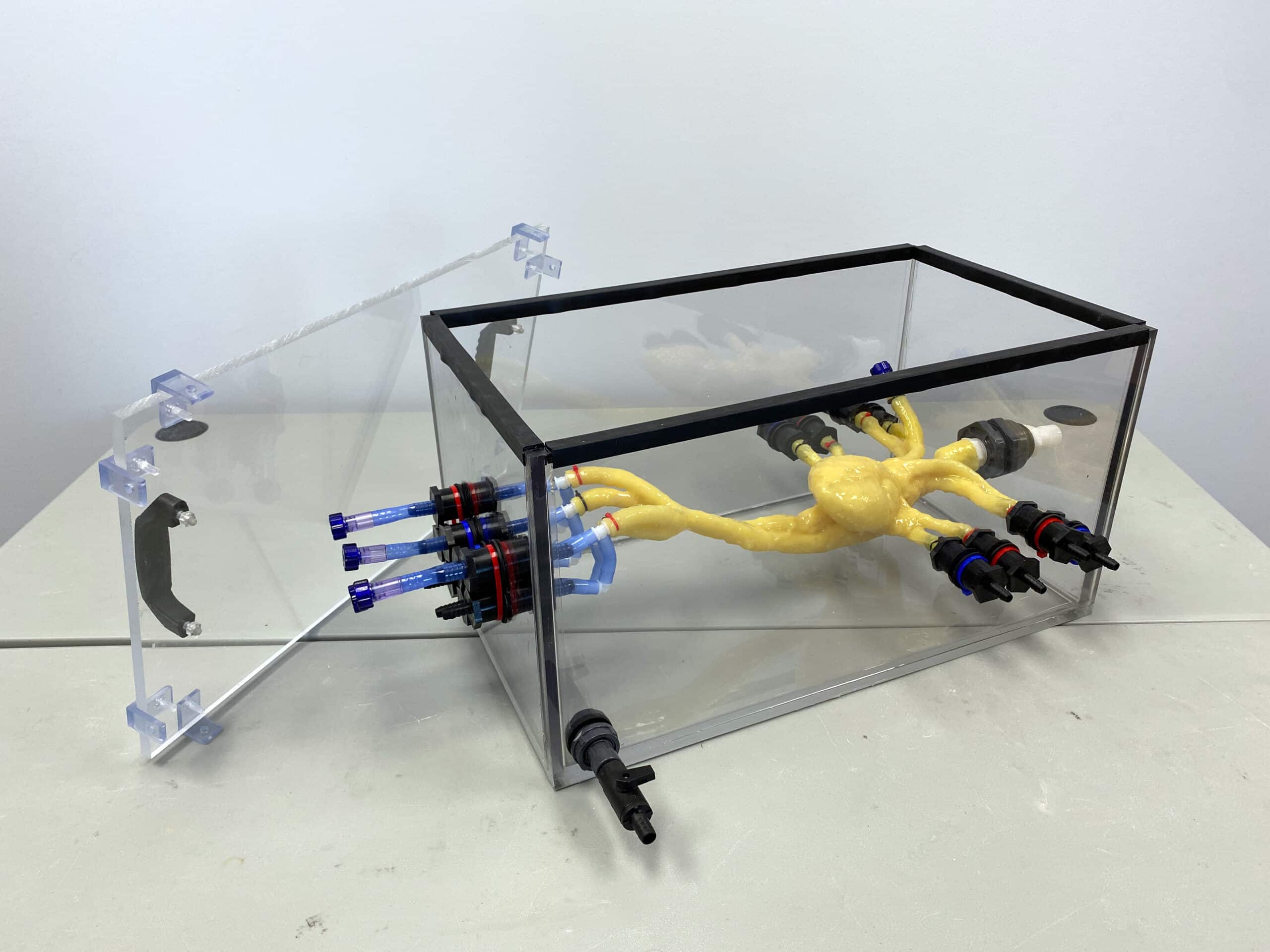

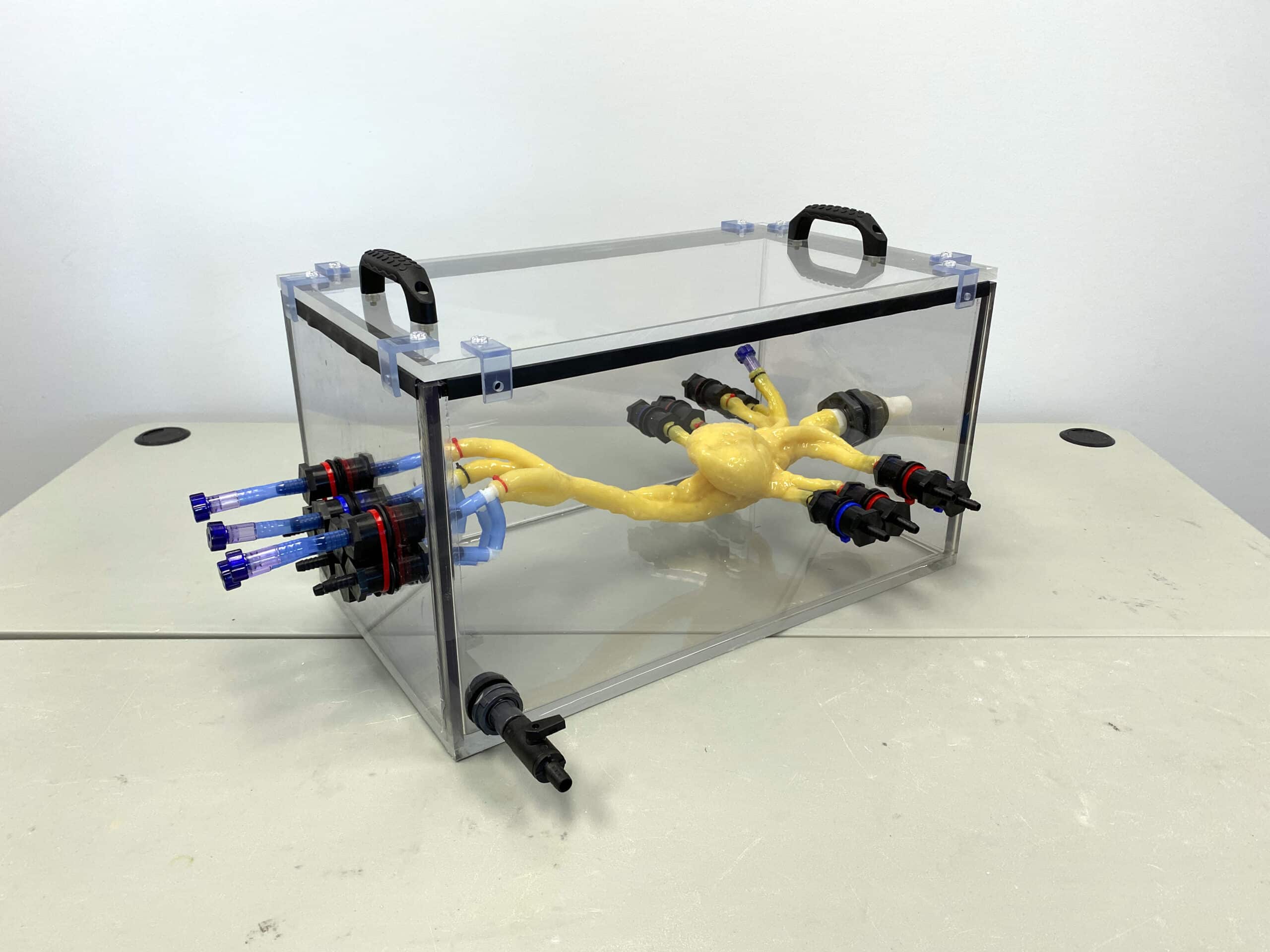

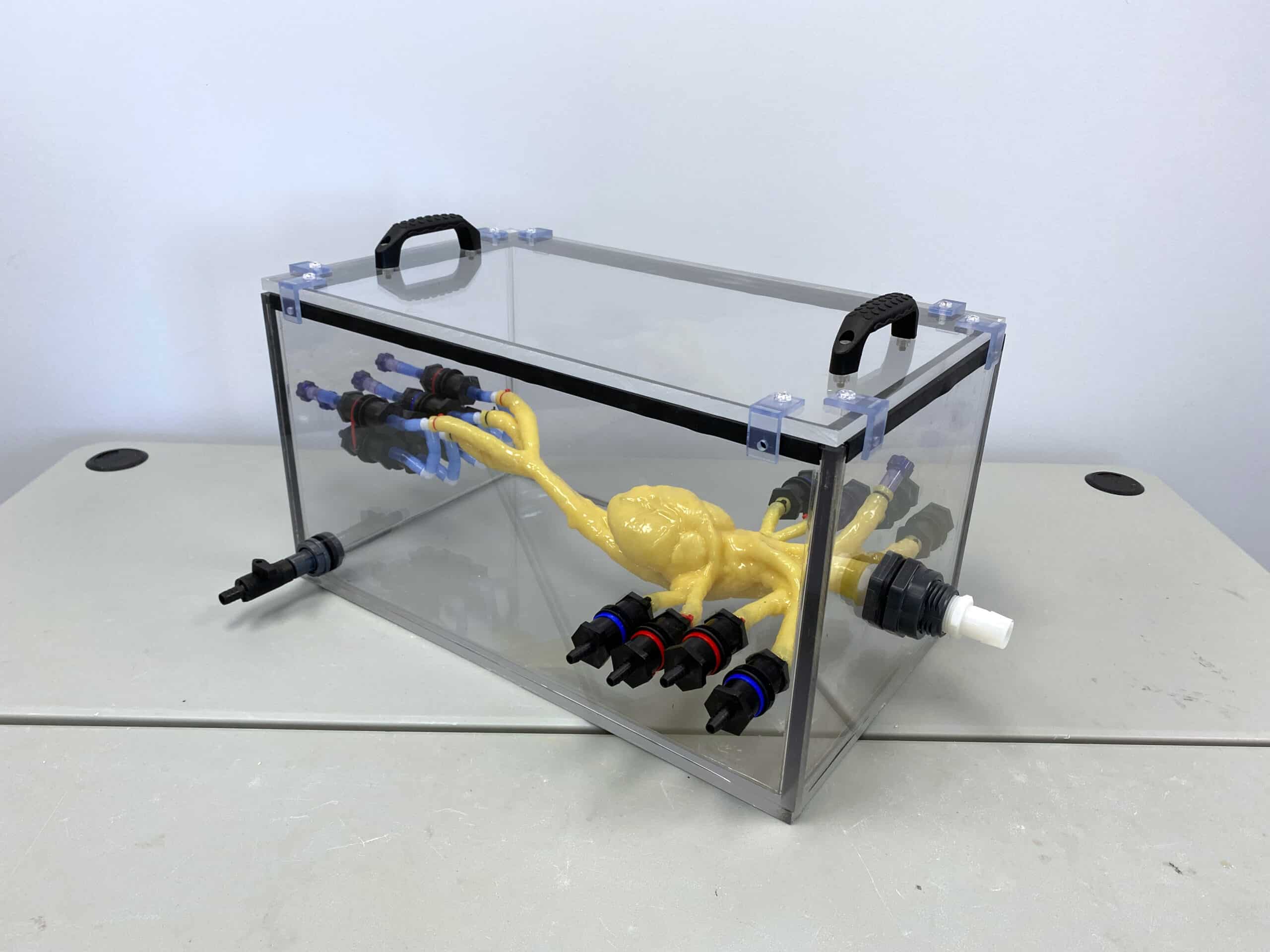

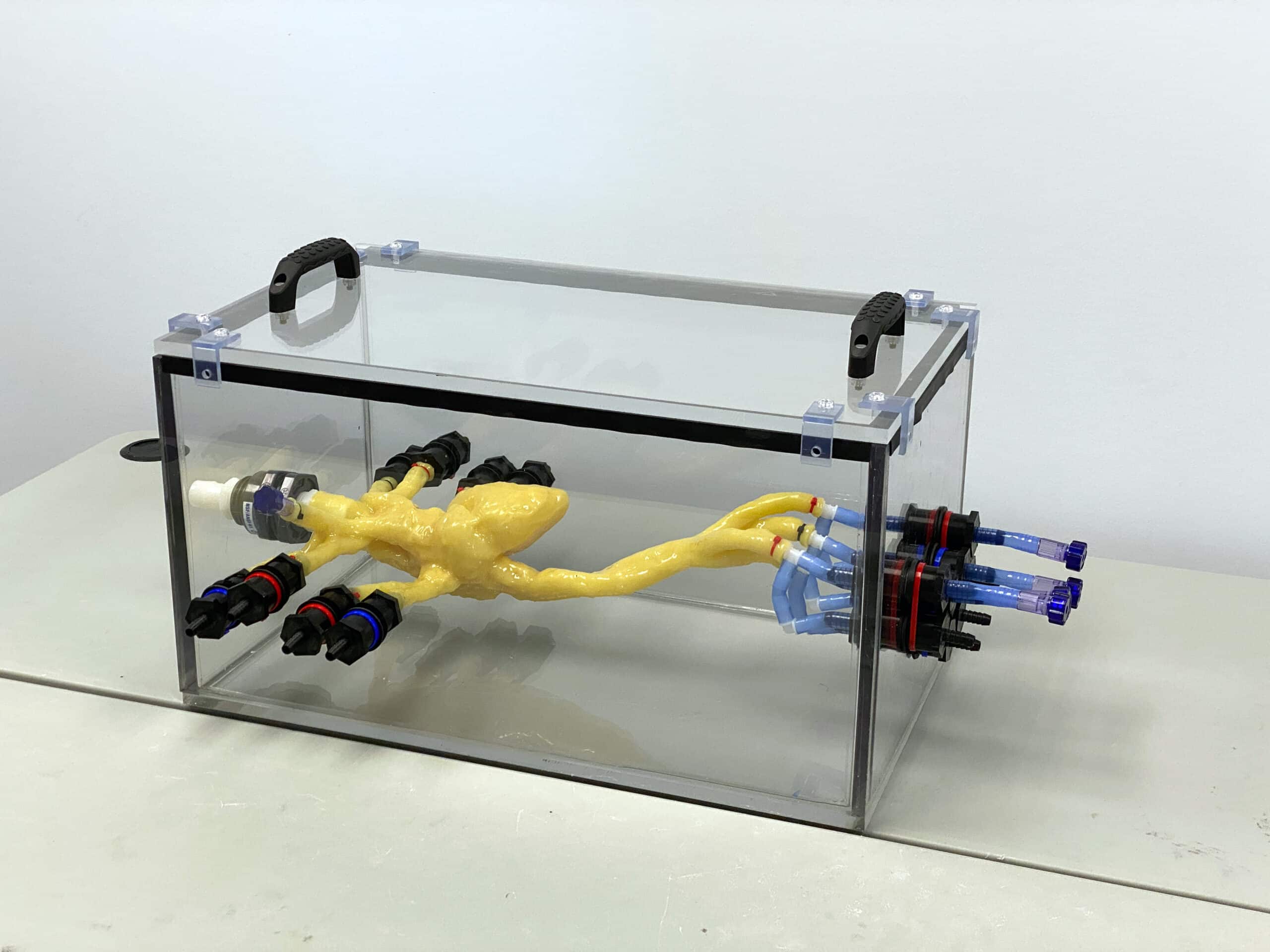

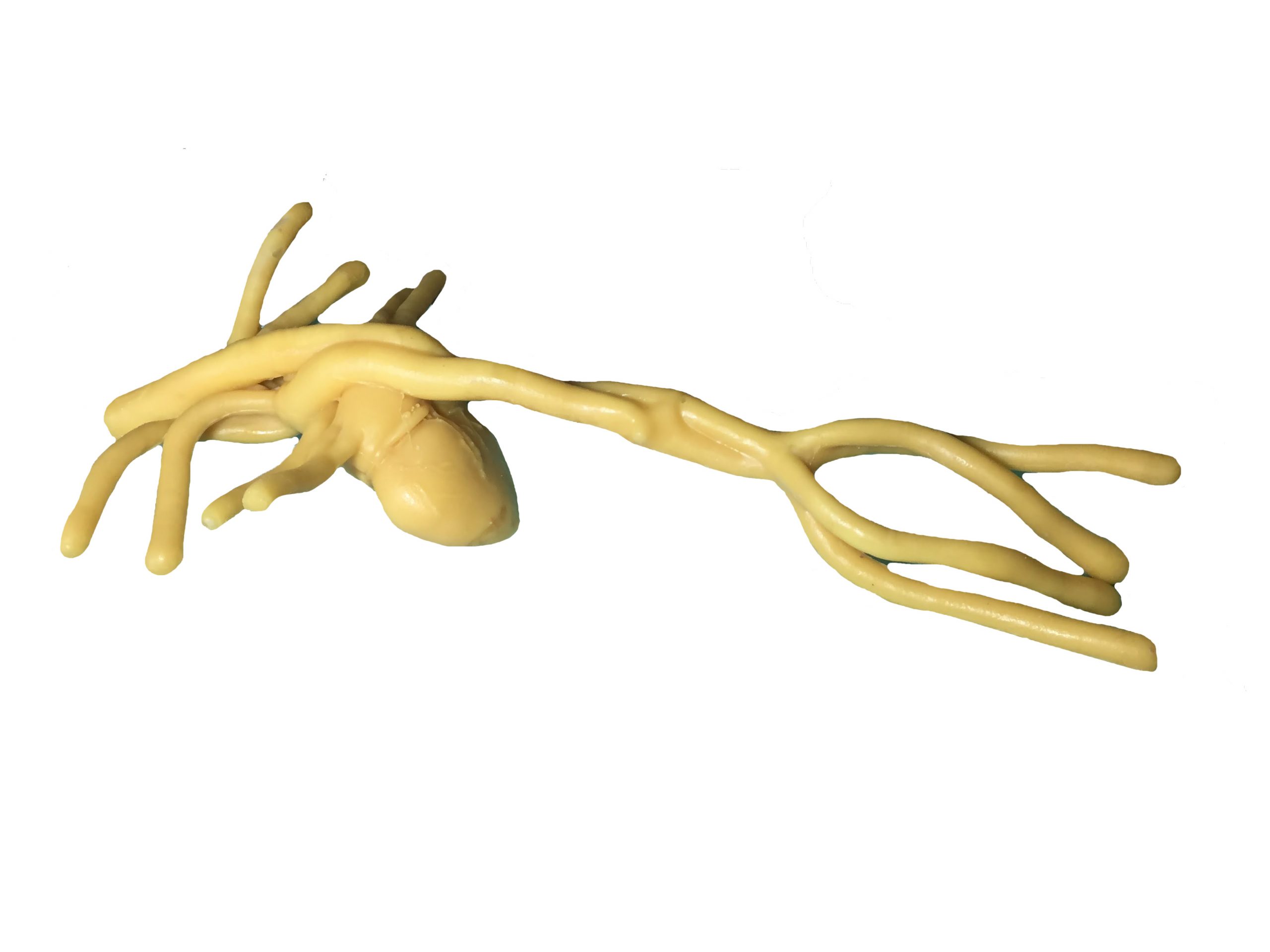

The Adult Male Heart Phantom is a realistic simulator of a healthy human heart, compatible with X-Ray/CT, Ultrasound, and MRI. It supports beating functionality and lifelike motions, making it useful for echocardiograms, endoscopies, catheter insertion, and cardiovascular research. Made from synthetic material with accurate anatomical structures, the phantom is fully customizable for various biomedical projects. A water tank is included to ensure proper mounting and performance for viewing internal structures and heart motion.
This product can be customized based on your requirements — contact us.
The Lung Pump's adaptability makes it an ideal tool for simulating diverse patient conditions and respiratory challenges. The adjustable cyclic respiratory motion, ranging from 0 to 45 breaths per minute, ensures an accurate representation of various respiratory scenarios. Users can also fine-tune the breath volume with options from 250ml, 300ml all the way to 1200ml in 100ml increments, accommodating a wide range of training requirements

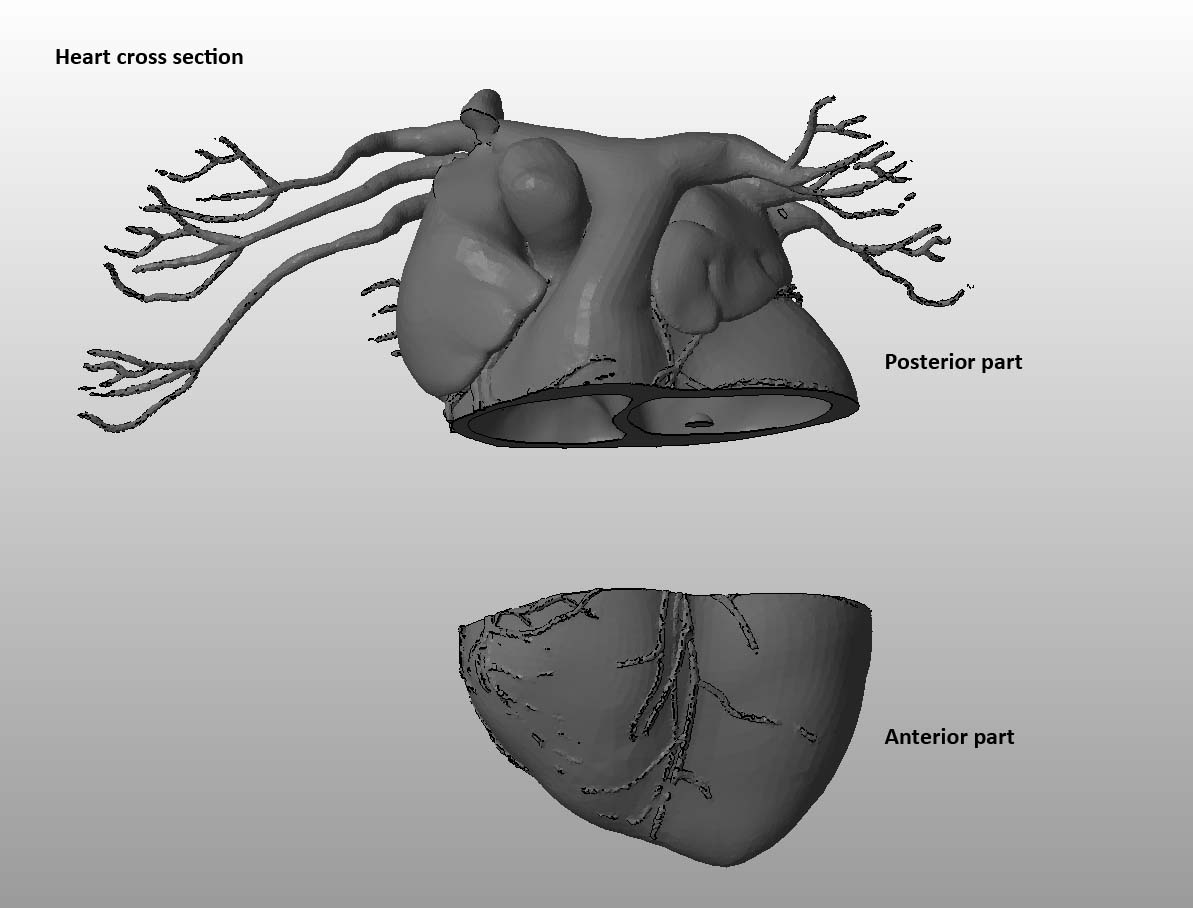

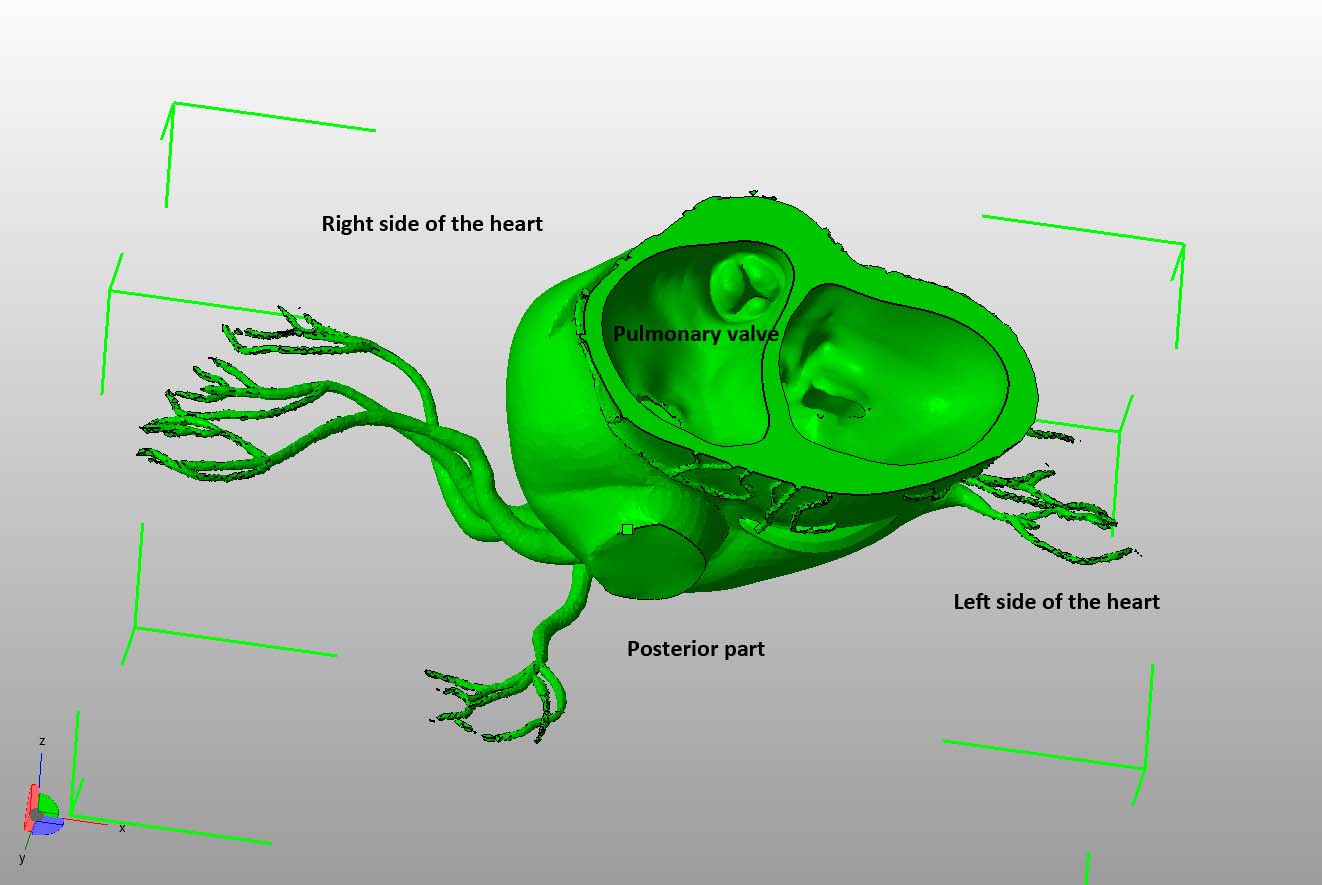

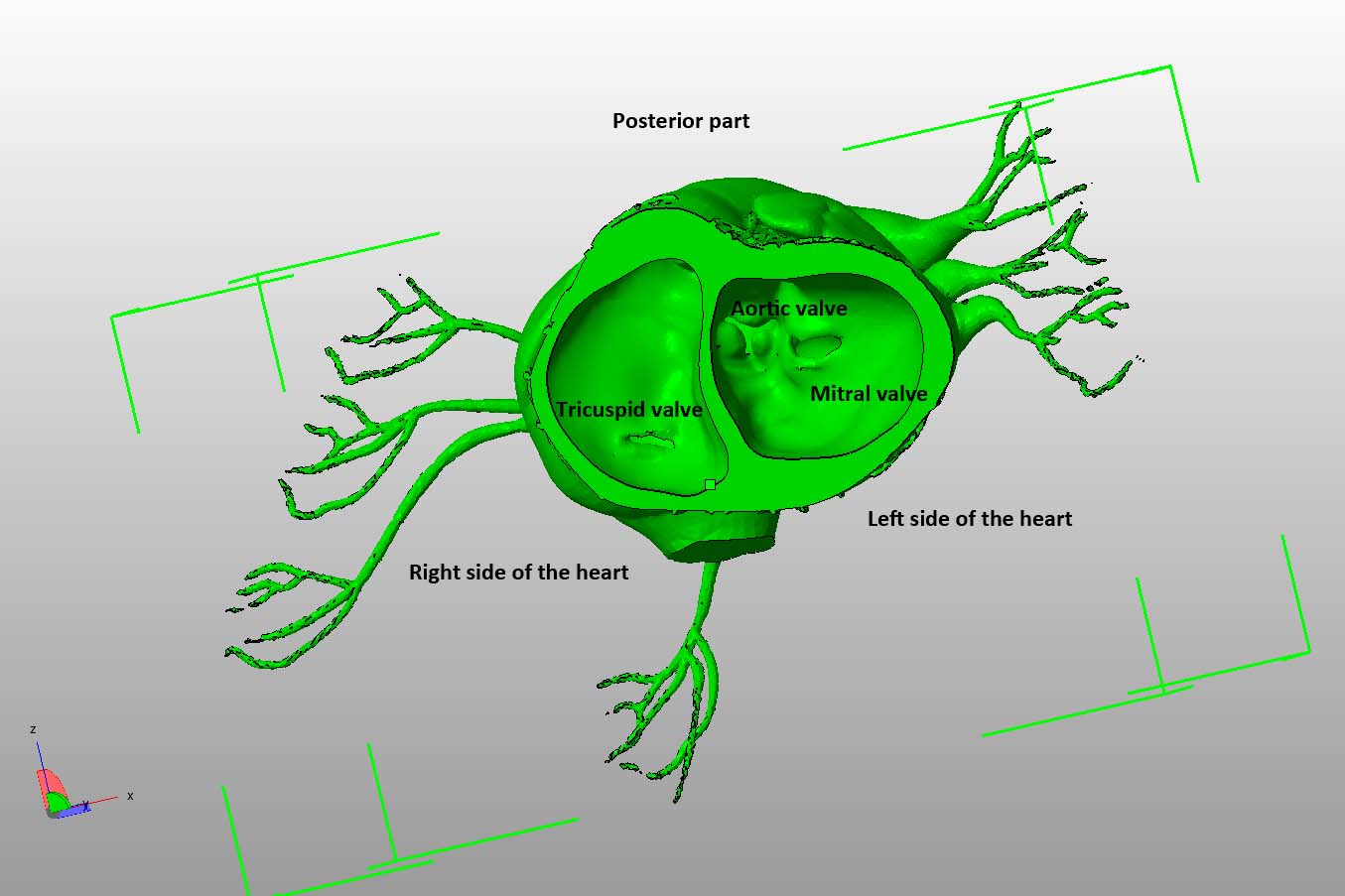

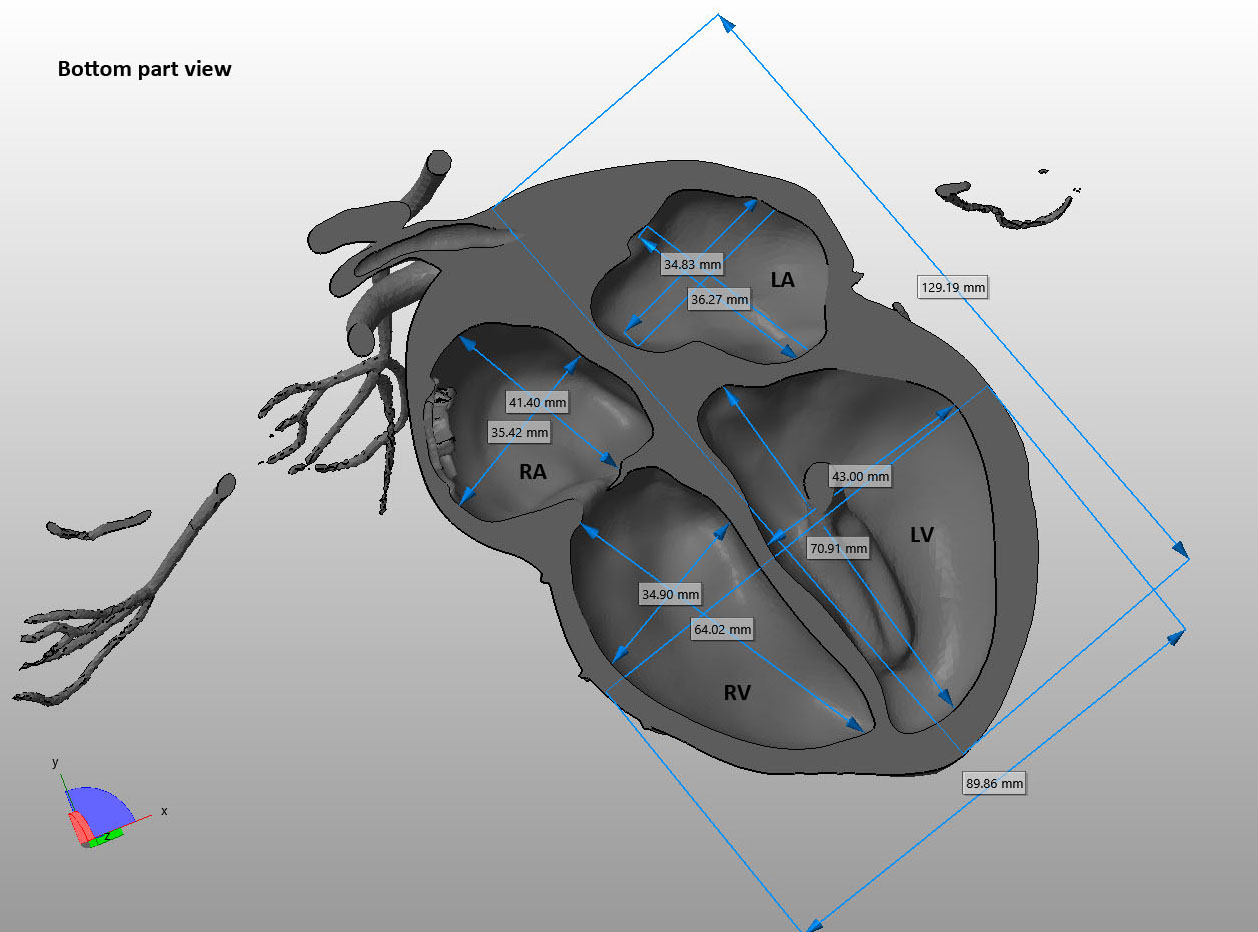

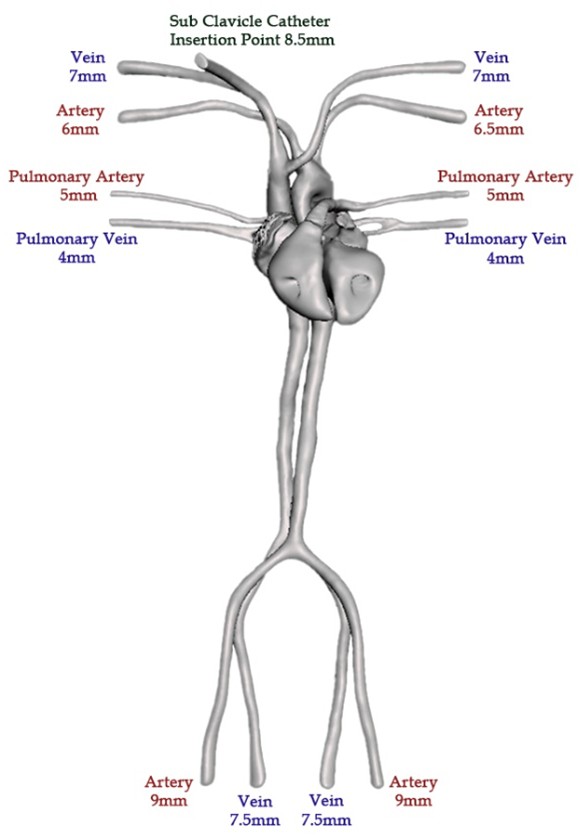

Design

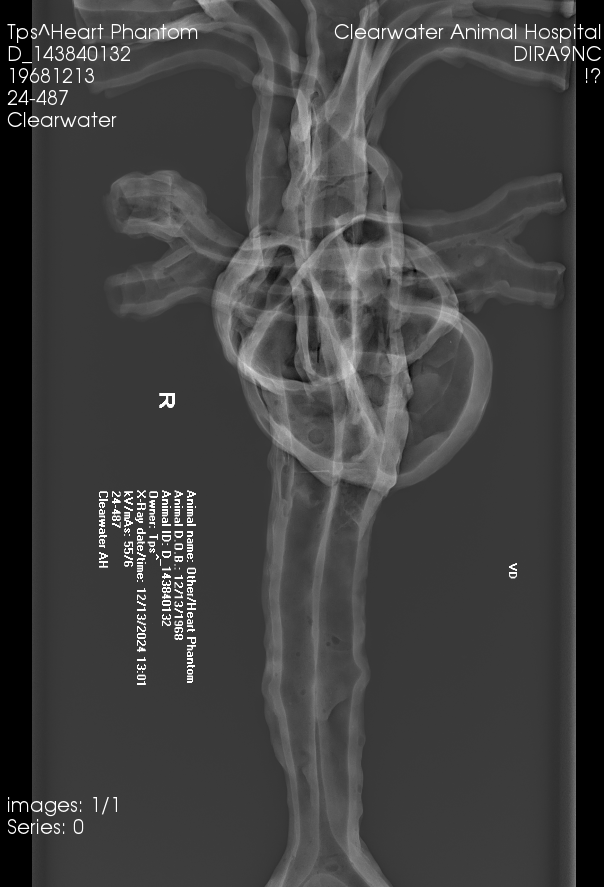

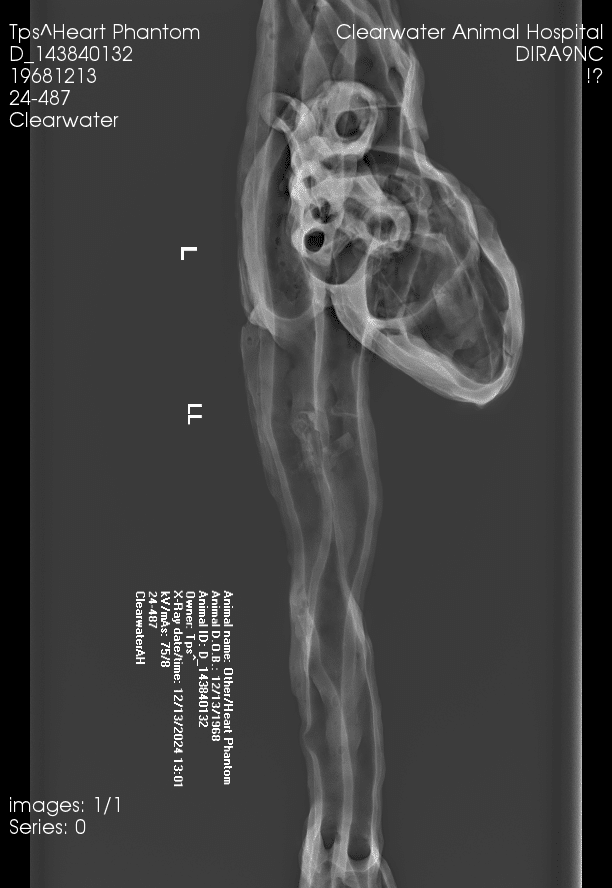

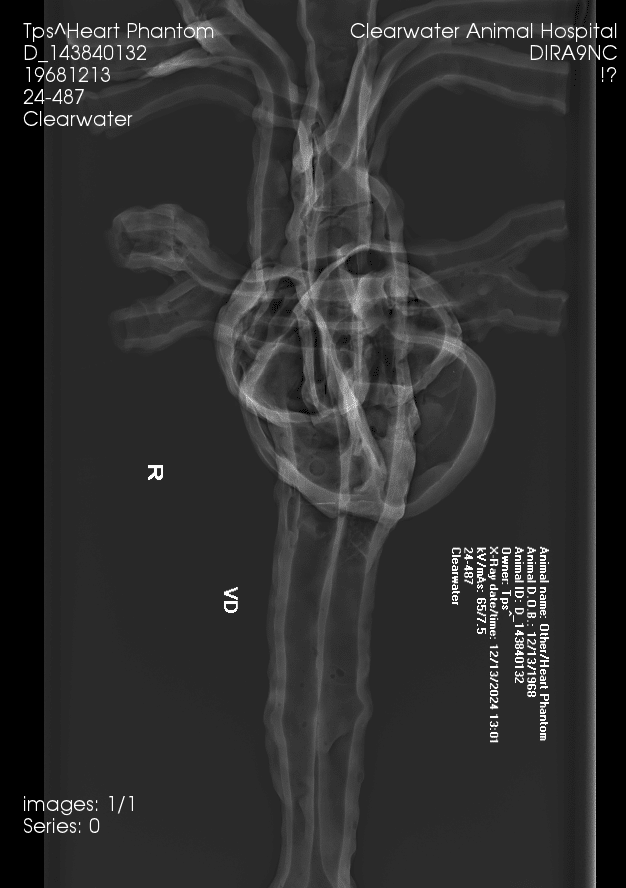

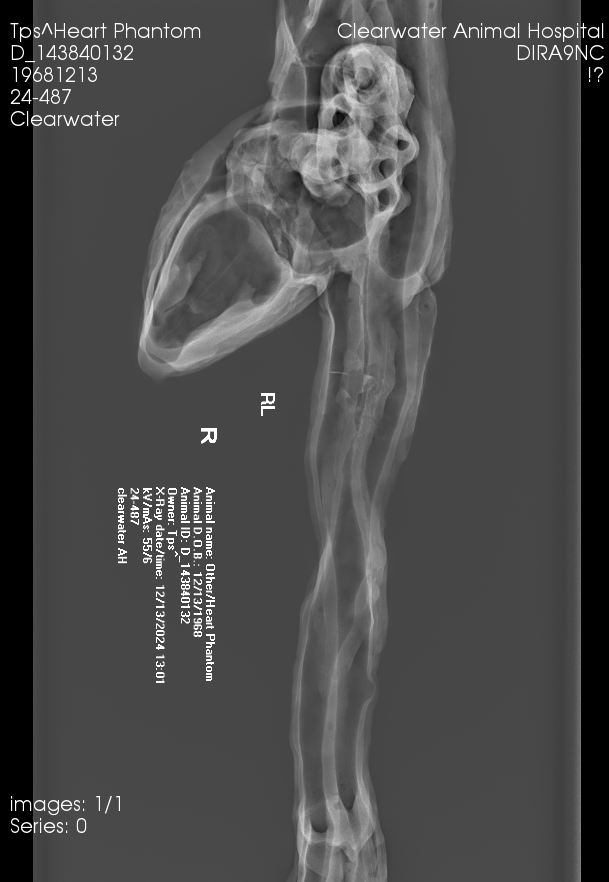

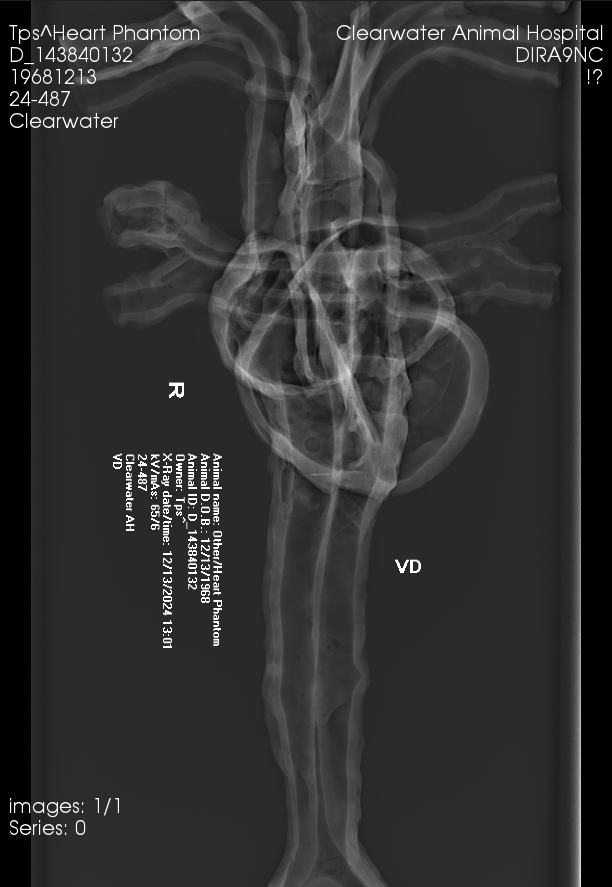

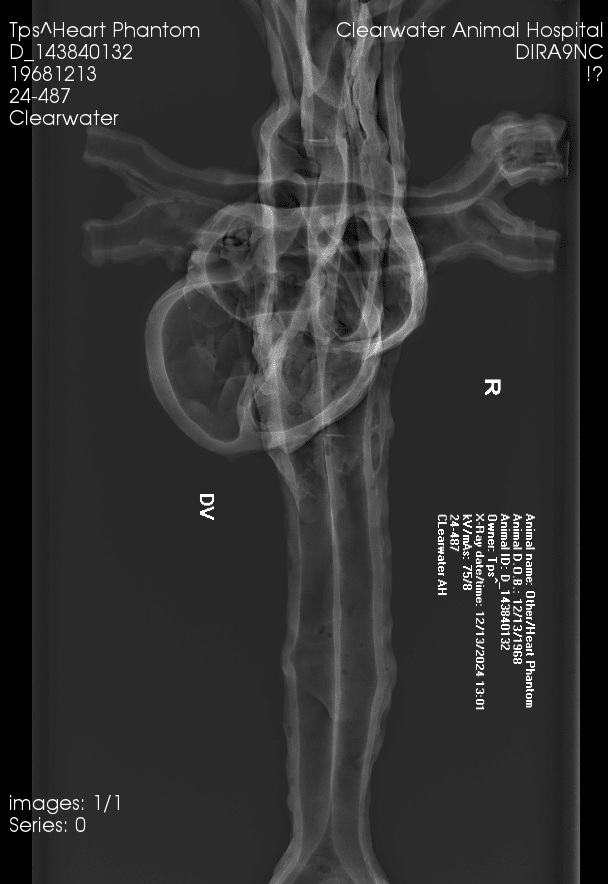

X-Ray Scans

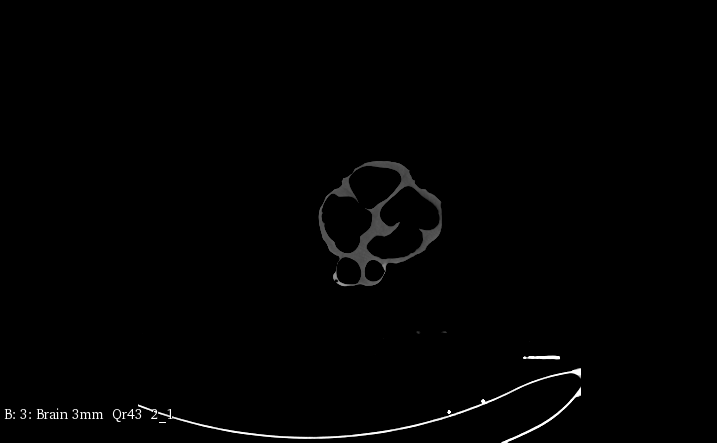

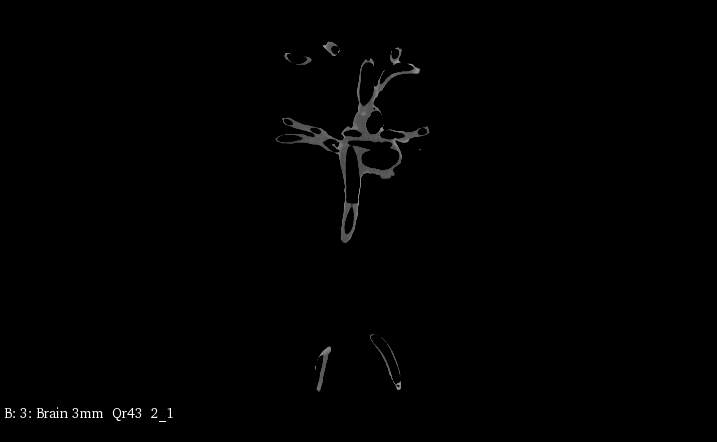

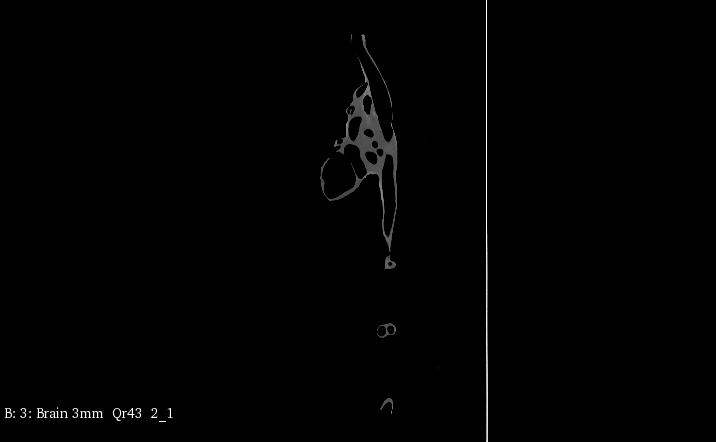

CT Scans

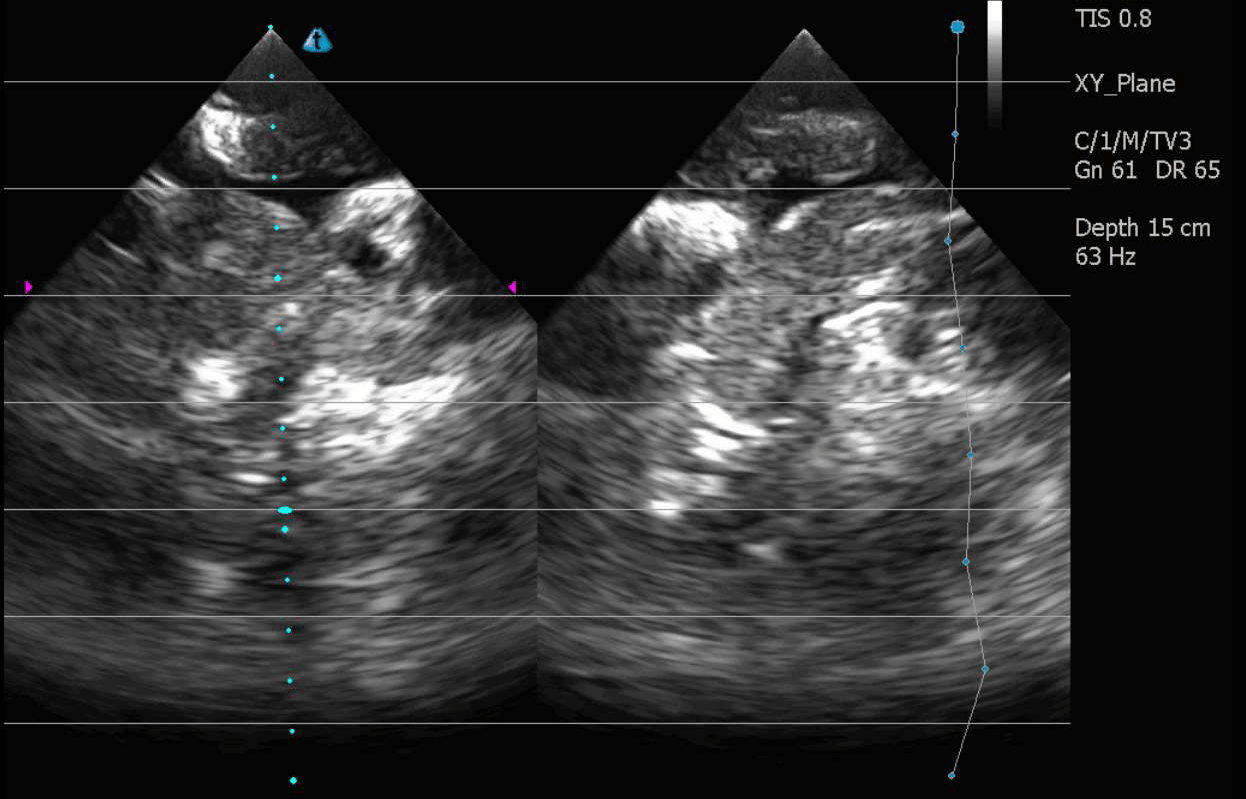

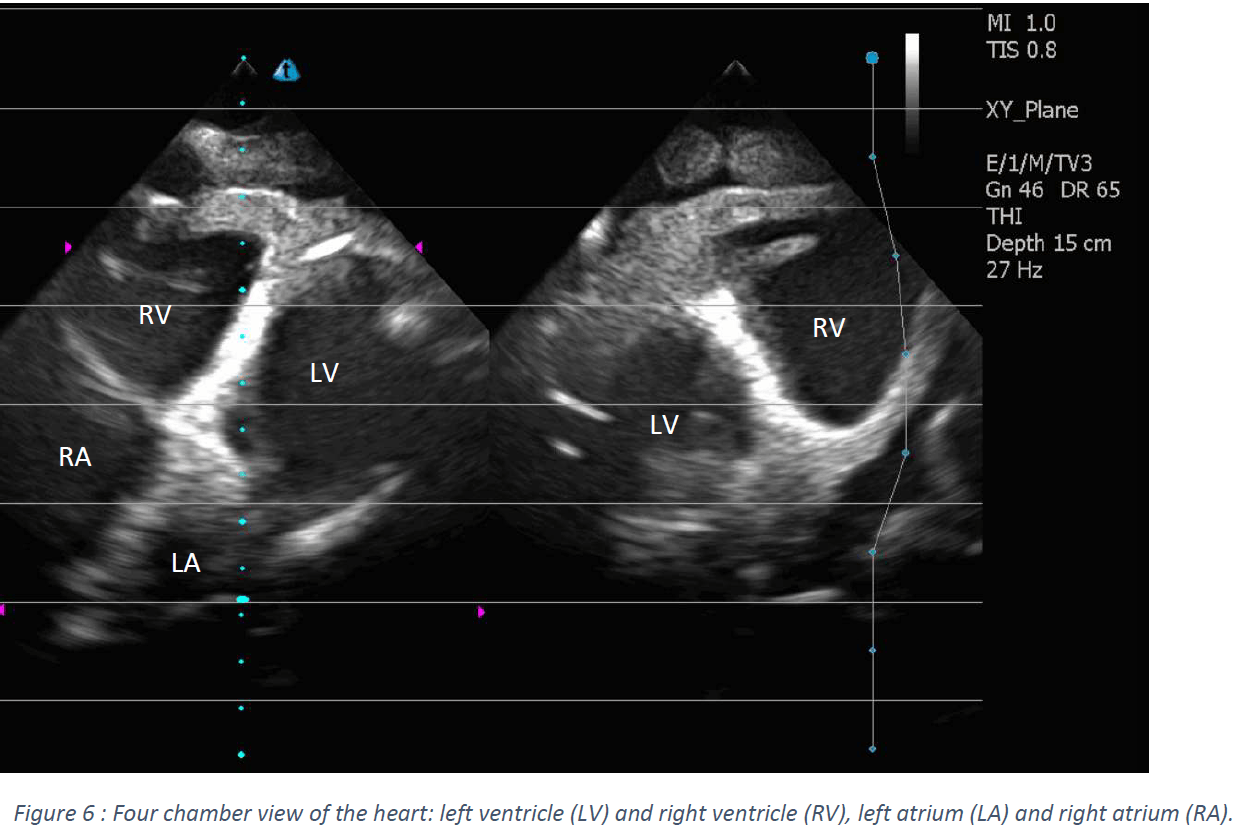

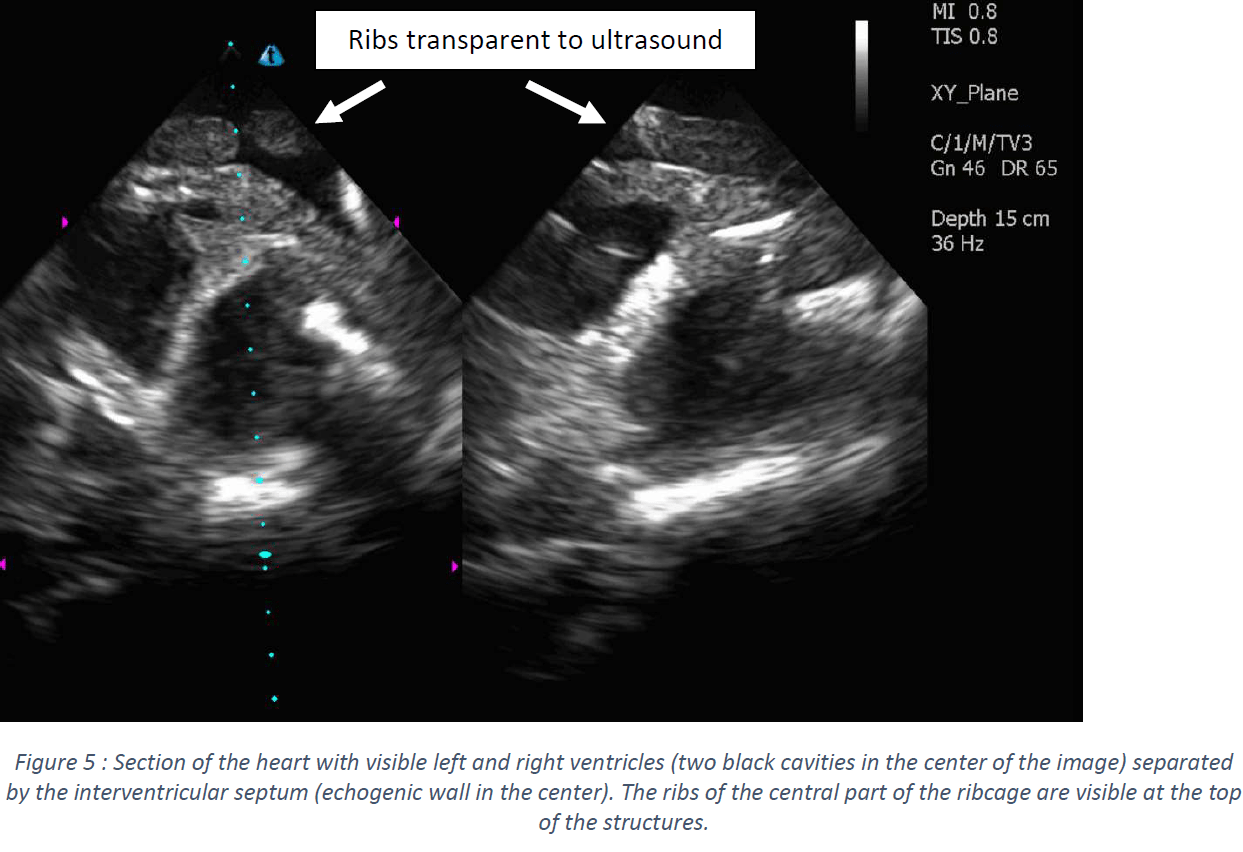

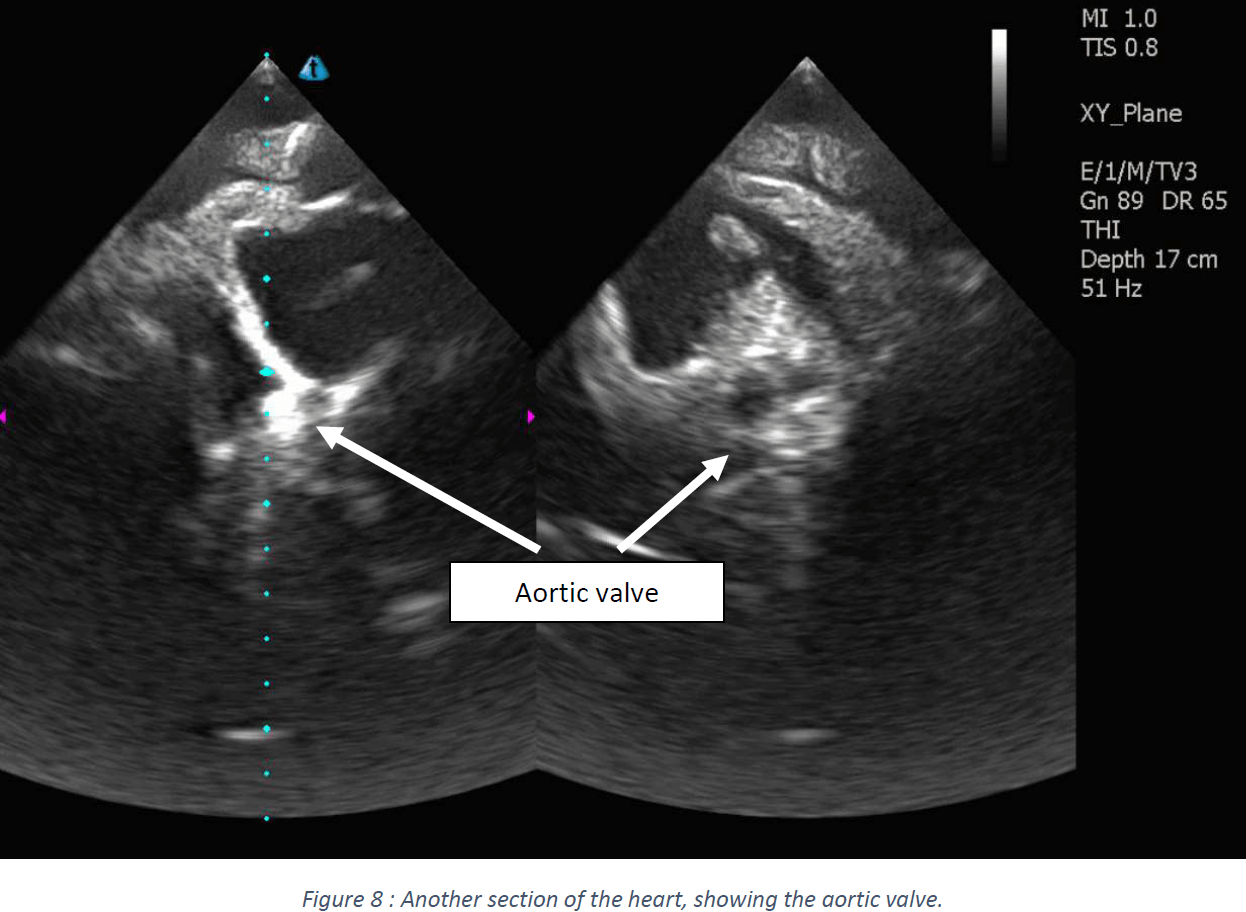

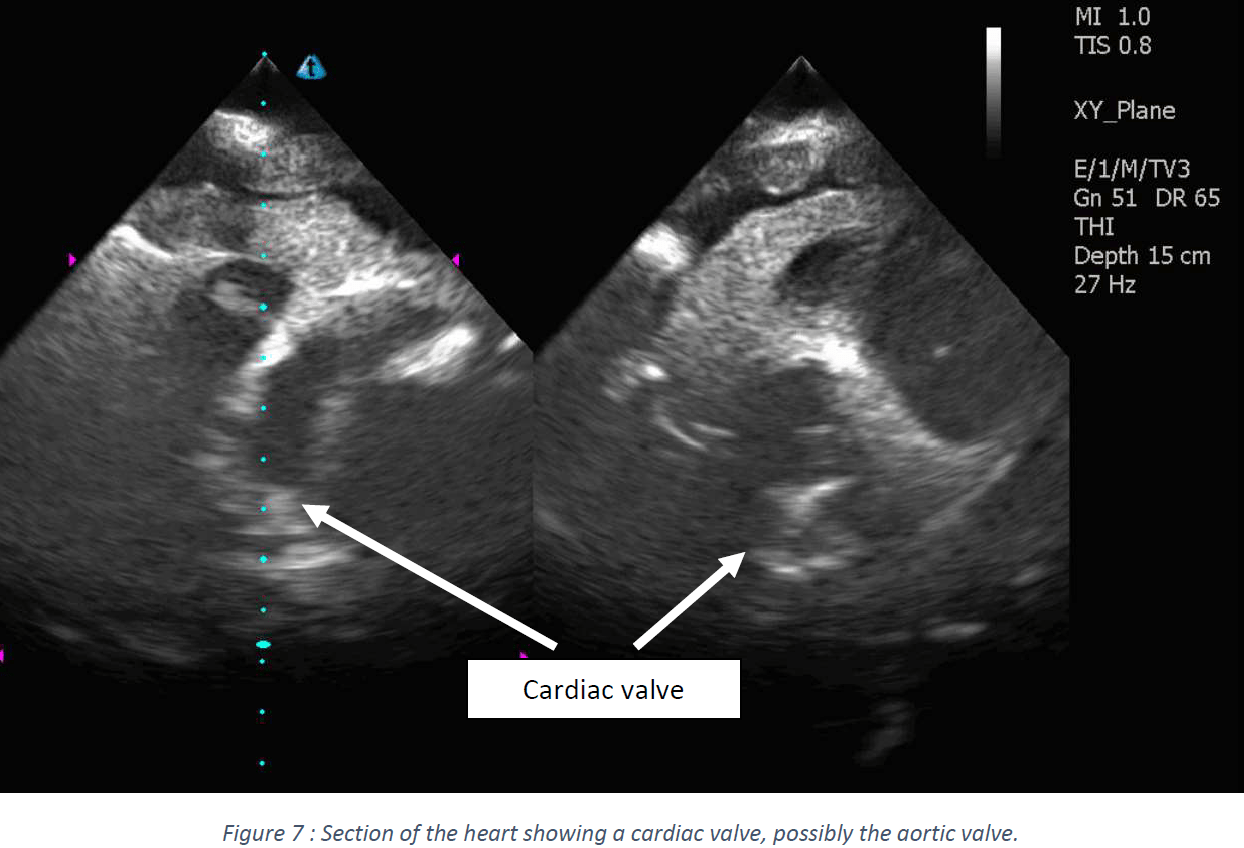

Ultrasound Scans

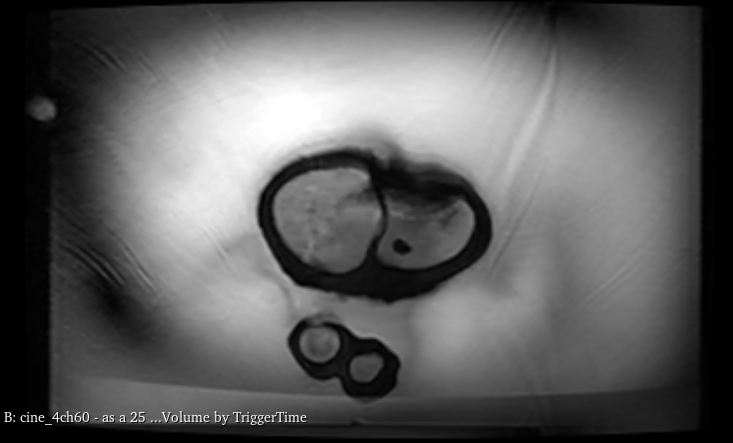

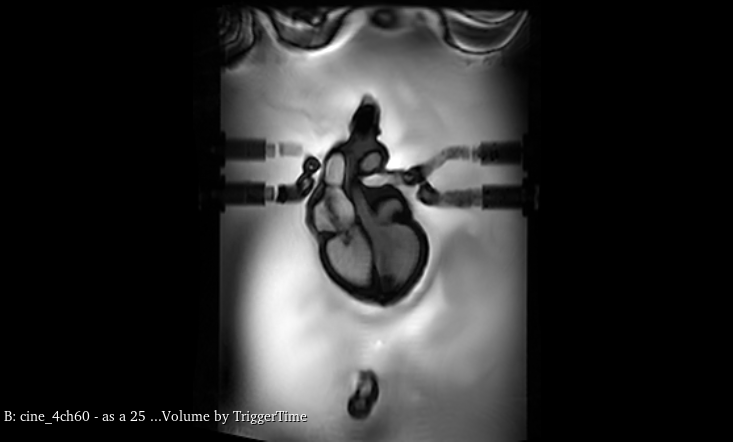

MRI Scans
- Left Atrium: 29ml
- Right and Left Femoral Arteries
- Veins:
- 2 Atria, 2 Ventricles:
- Unique muscle structure to the
- Right Ventricle: 60ml
- appendage of the left atrium
- Right and Left Subclavian Veins
- Right and Left Jugular Veins
- Moderator Band that runs from
- 4 Valves
- Right and Left Femoral Veins
- the
- SVC
- Appendage Feature
- Flexible Valvular Structures
- anterior wall to the septum bridge IVC
- Esophagus

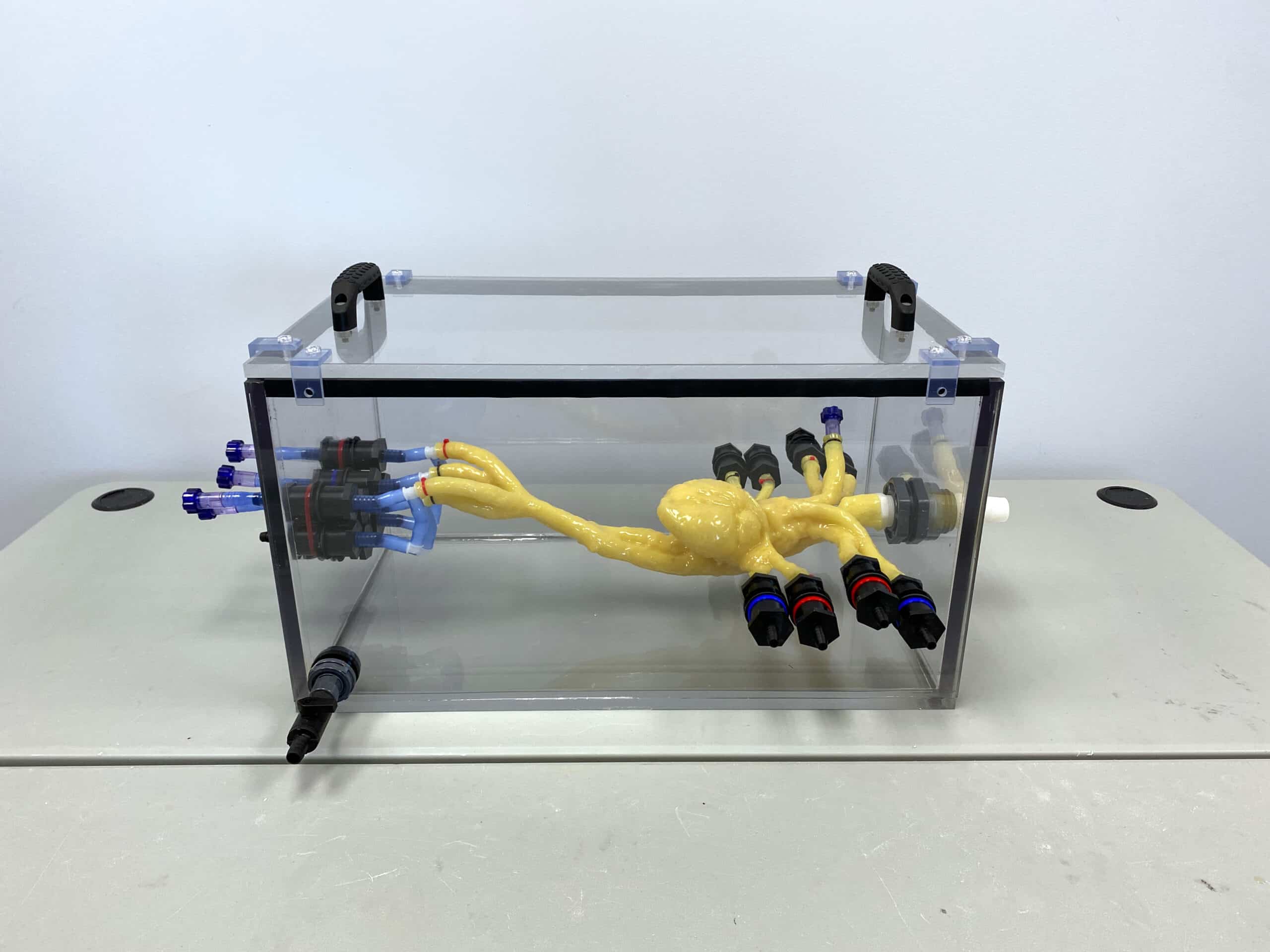

- Placed inside a transparent
- Left Ventricle: 63ml
- Aorta
- water tank with access points
- Papillary muscles to the anterior
- and posterior walls
- Arteries:
- Right Atrium: 45ml
- Right and Left Subclavian
- Right atrial appendage with
- Arteries
- distinct muscle structure
- Right and Left Pulmonary Arter-
- ies
| Phantom Size | 23 x 7 x 12 Inches |
| Phantom Weight | 3 Lbs (approx.) |
| Shipment Size | 36 x 24 x 12 Inches |
| Shipment Weight | 22 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
| Coronary Arteries | Default (Not Included), Included |
| Gender | Male, Female |
