X-Ray, CT, US, MRI Phantoms
Cylindrical Head for X-Ray CT, US, MRI
$5,900 USD
This Cylindrical Head Phantom is an ideal tool for medical imaging research. Main applications of this phantom is computed tomography and ultrasound tomography. Our patented bone-mimicking tissue allows it to accurately replicate the properties of real human bone and our realistic brain tissue replicates real human brain. It is compatible with X-Ray CT, US, and MRI applications.
This product can be customized based on your requirements — contact us.
This Cylindrical Head Phantom is an ideal tool for medical imaging research. Main applications of this phantom is computed tomography and ultrasound tomography. Our patented bone-mimicking tissue allows it to accurately replicate the properties of real human bone and our realistic brain tissue replicates real human brain. It is compatible with X-Ray CT, US, and MRI applications

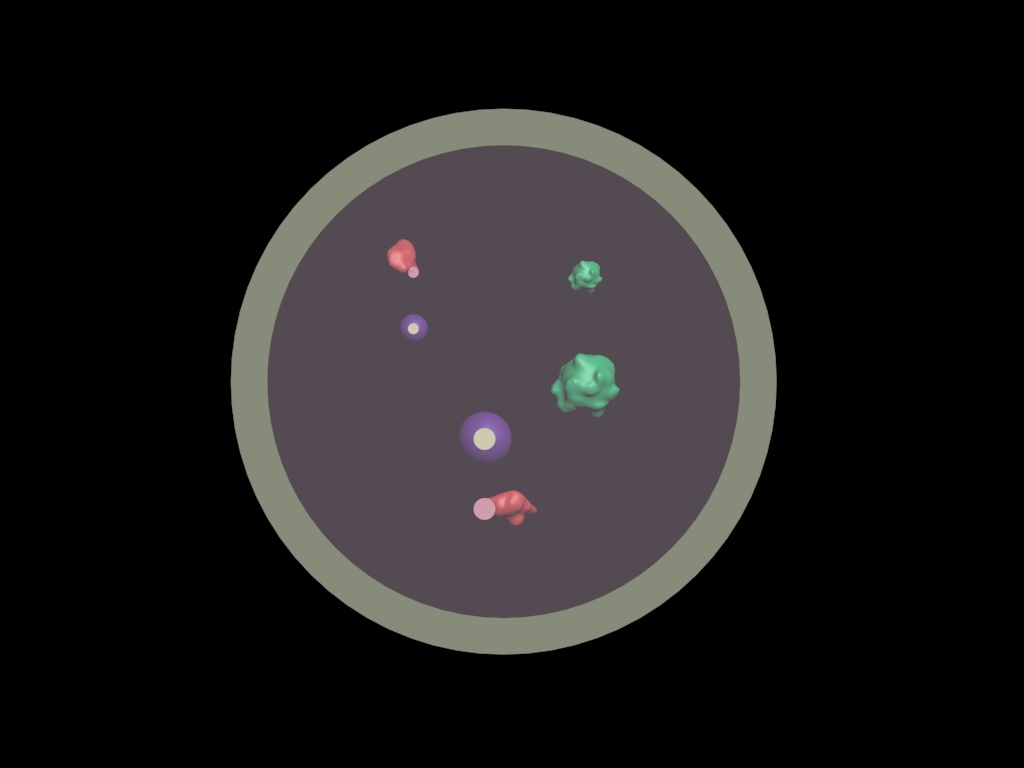

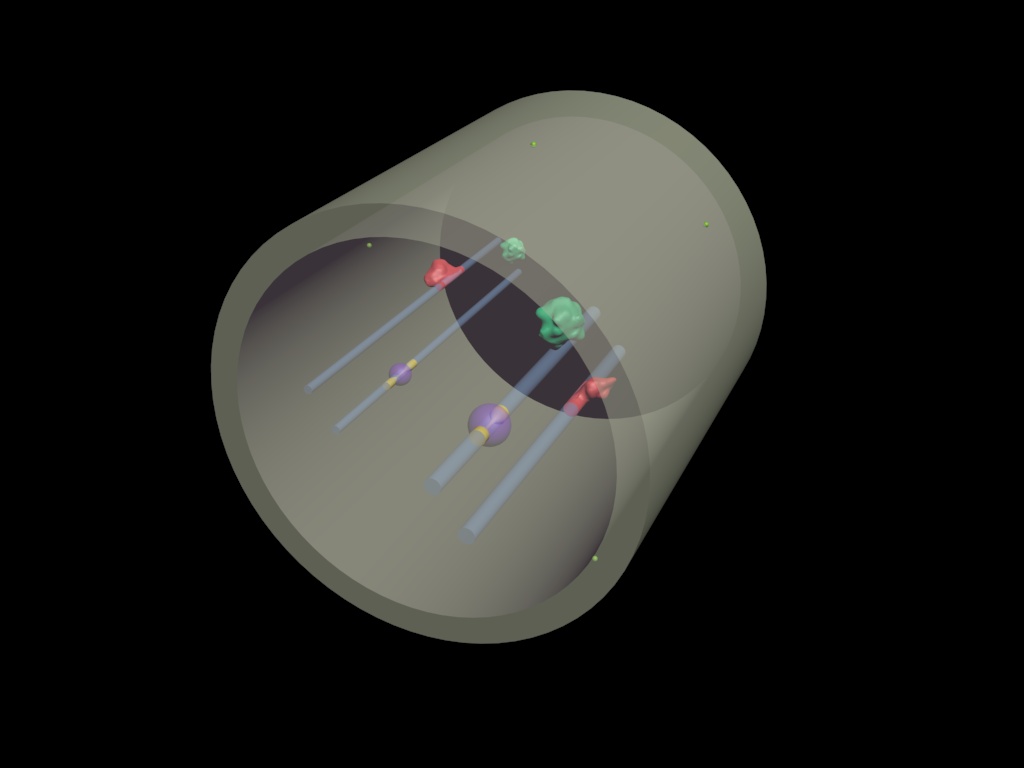

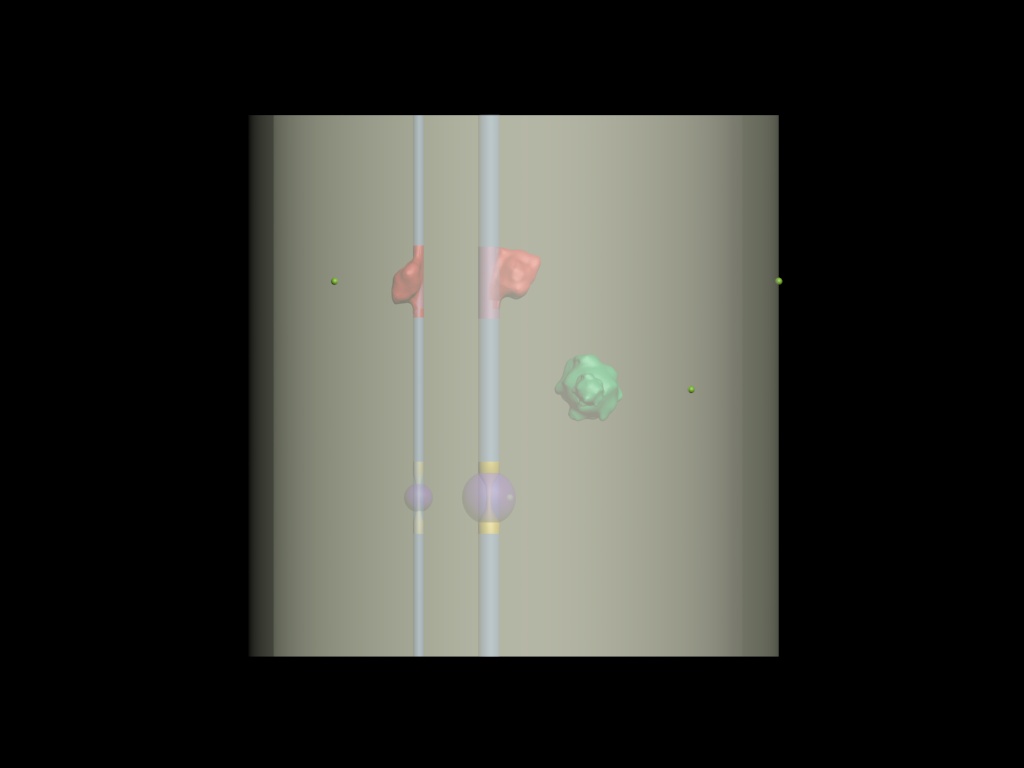

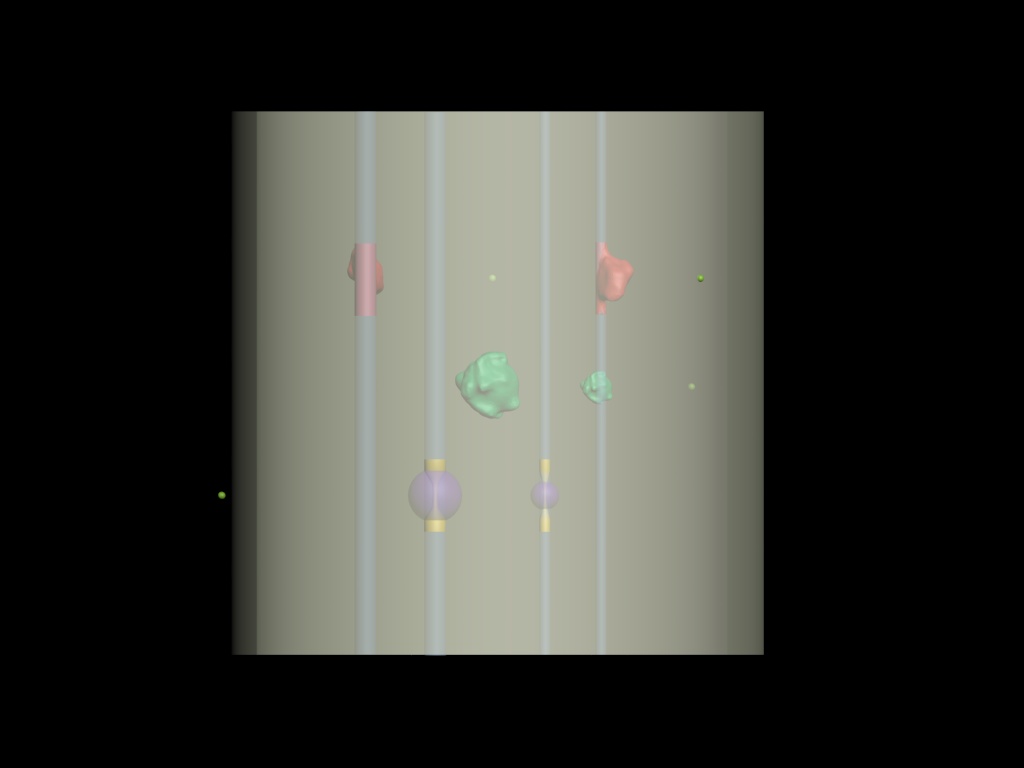

Design
- Tumors
- Cylindrical 3-layered Skull Phantom
- Alignment Markings
- Realistic Brain Tissue
- 15 cm Diameter
- Blood Vessels with Contrast Agent
- Blood Vessels without Contrast Agent
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Tumor | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
