Cylindrical Skull for X-Ray CT, US, MRI
$2,900 USD

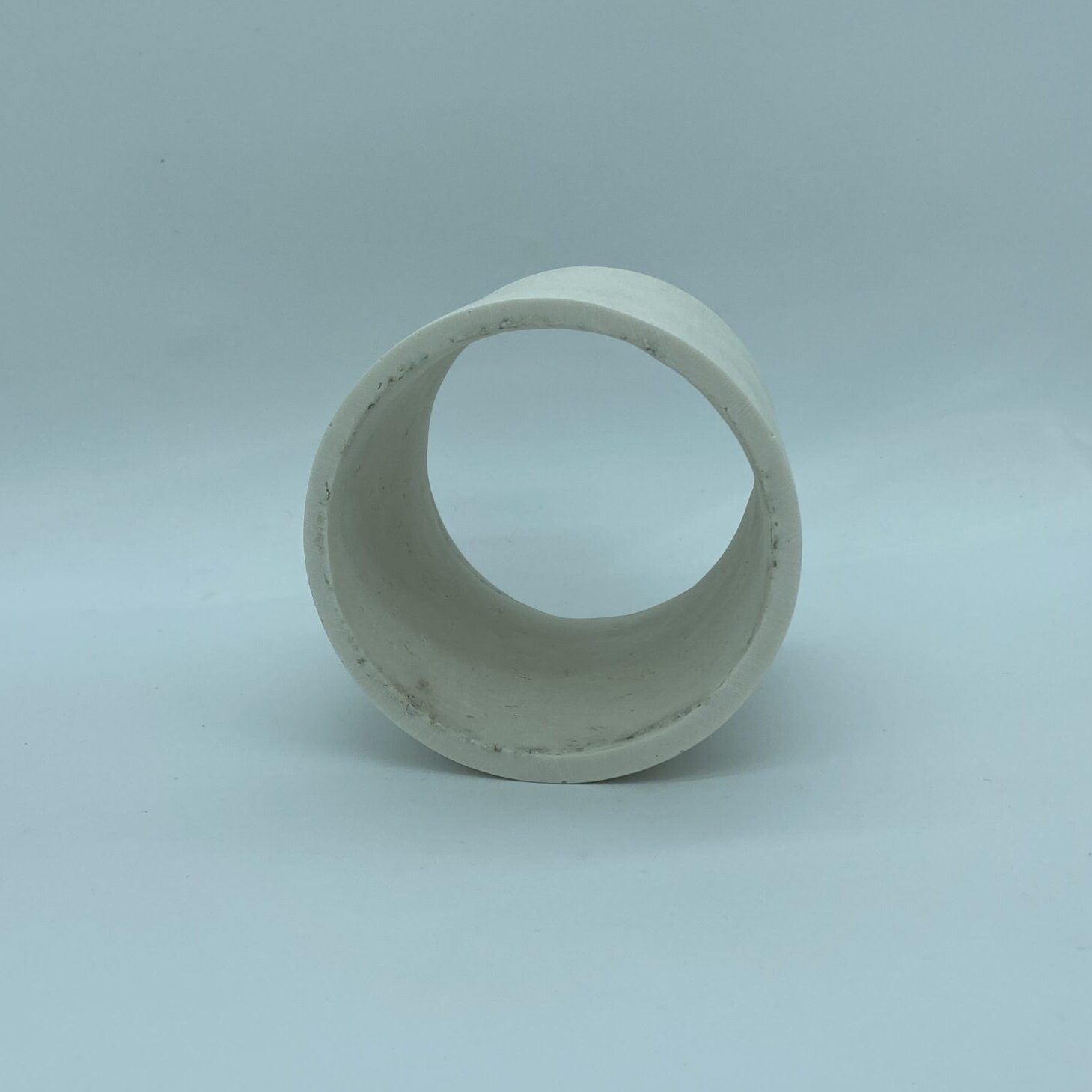

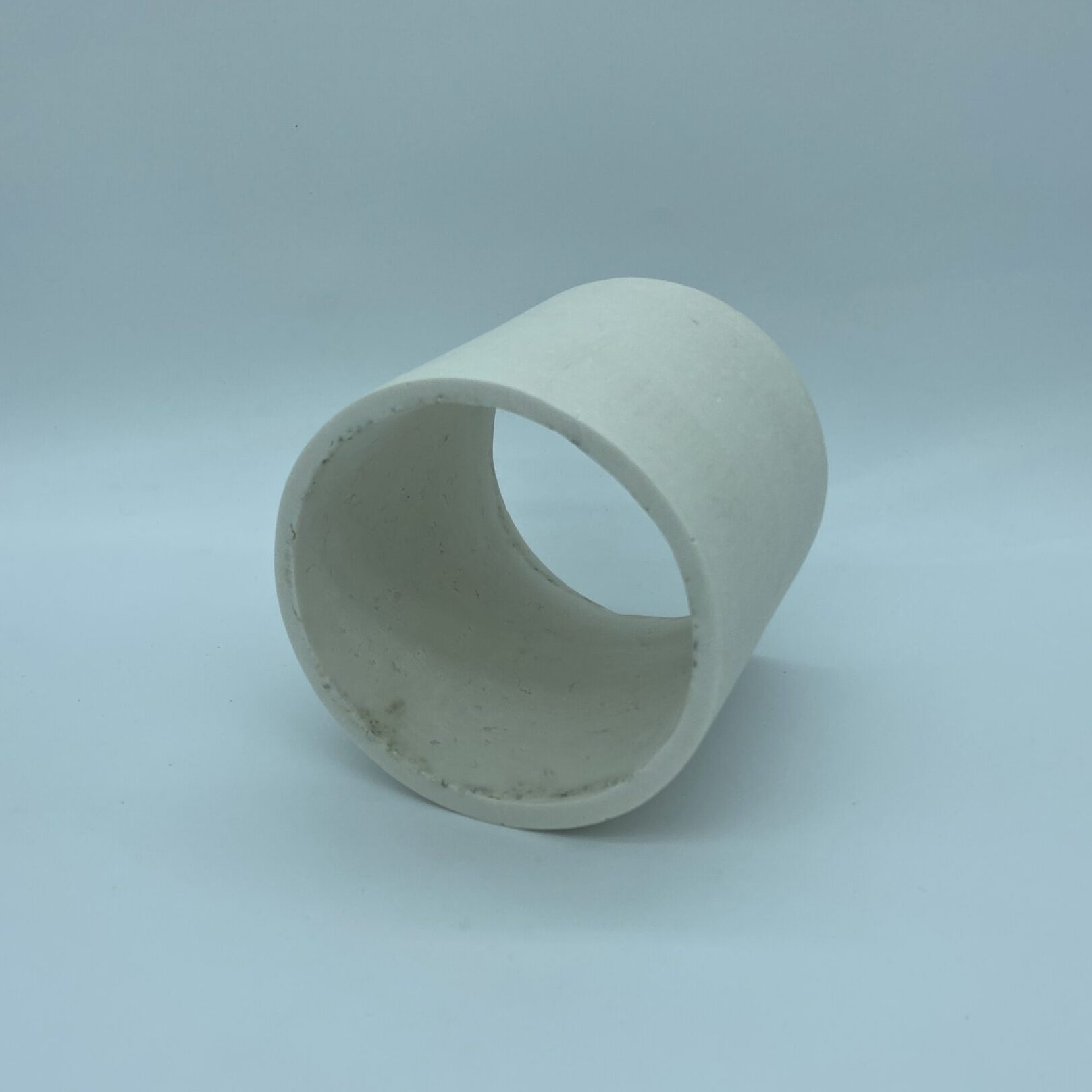

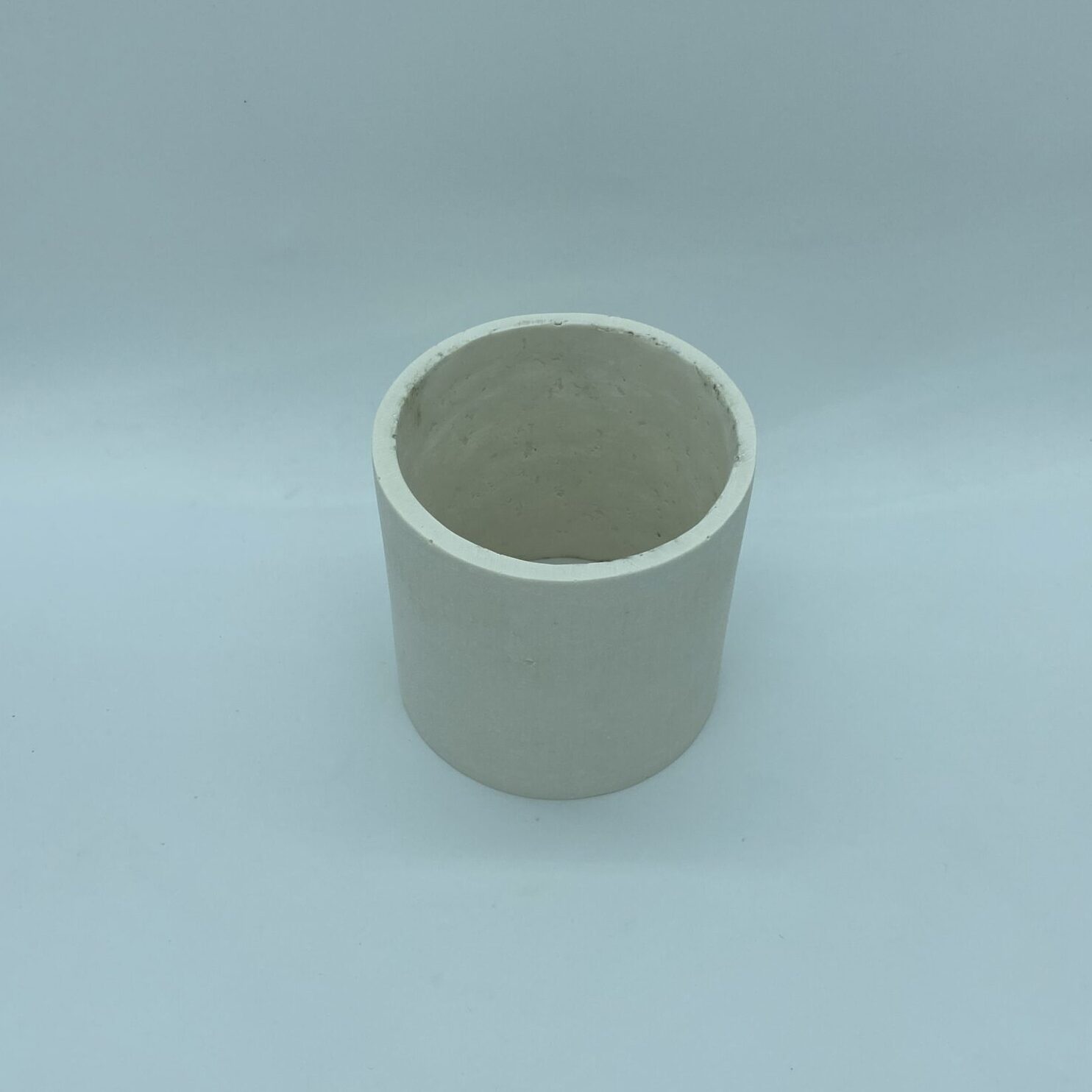

The Cylindrical Skull phantom is designed for imaging research and development. Our patented bone-mimicking tissue allows it to accurately replicate the properties of real human bone. It is compatible with X-Ray CT, US, and MRI applications.
This product can be customized based on your requirements — contact us.
neer in developing these phantoms and holds the strength to customize them. The Skull is cast out of our realistic patented epoxy-based bone material that is suitable for Ultrasound, MRI, and X-Ray/CT applications. The phantom has a realistic three-layered structure with an inner porosity (diploe) that can be adjusted according to the project's requirements.
Design

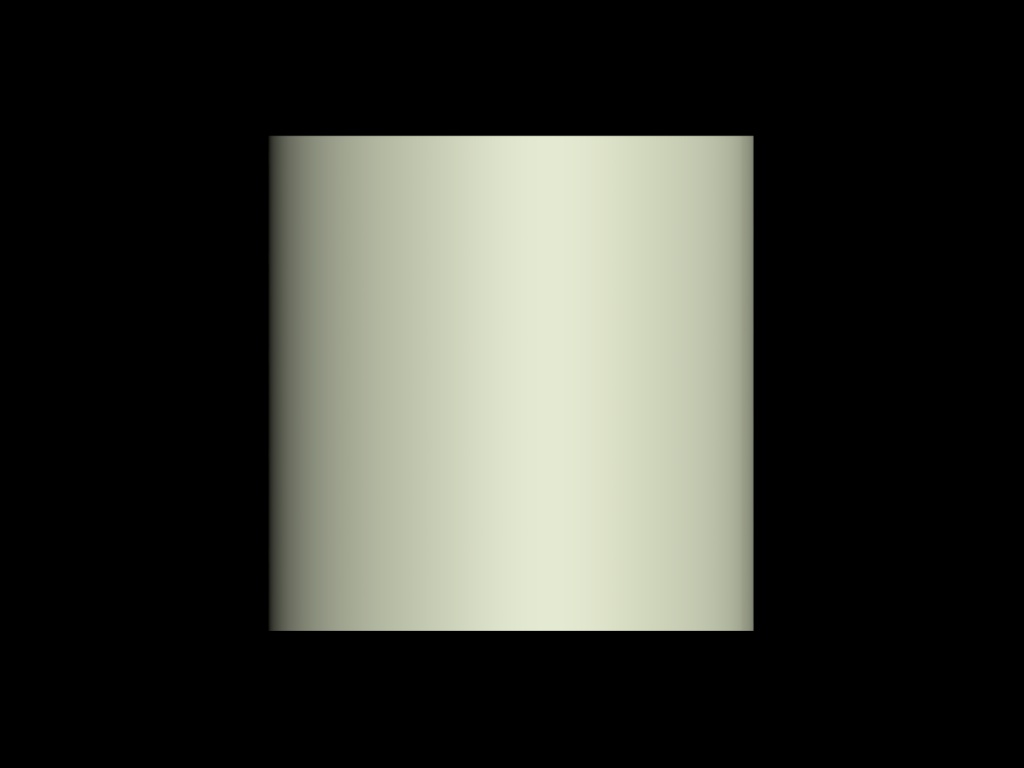

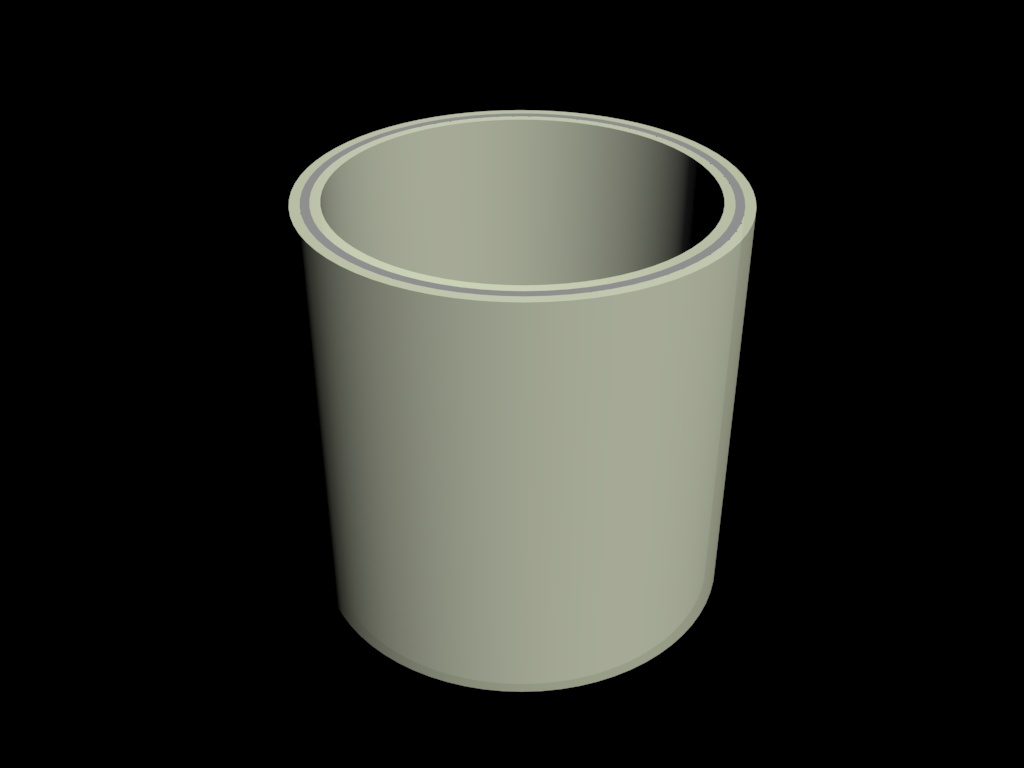

- Cylindrical Skull Phantom

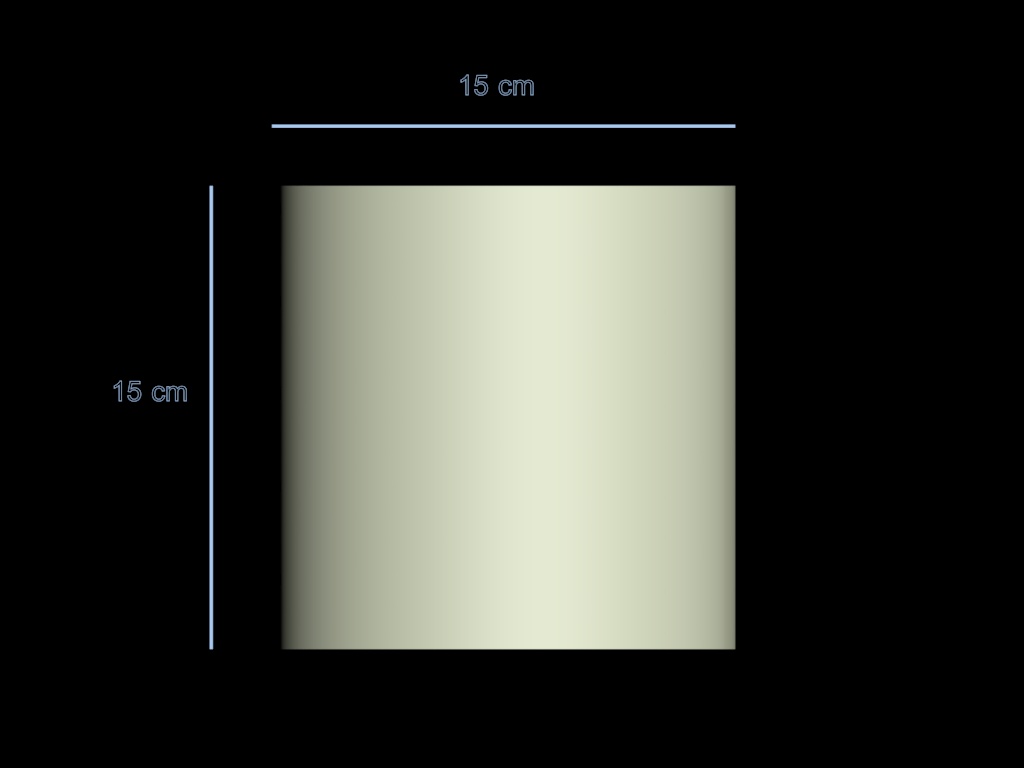

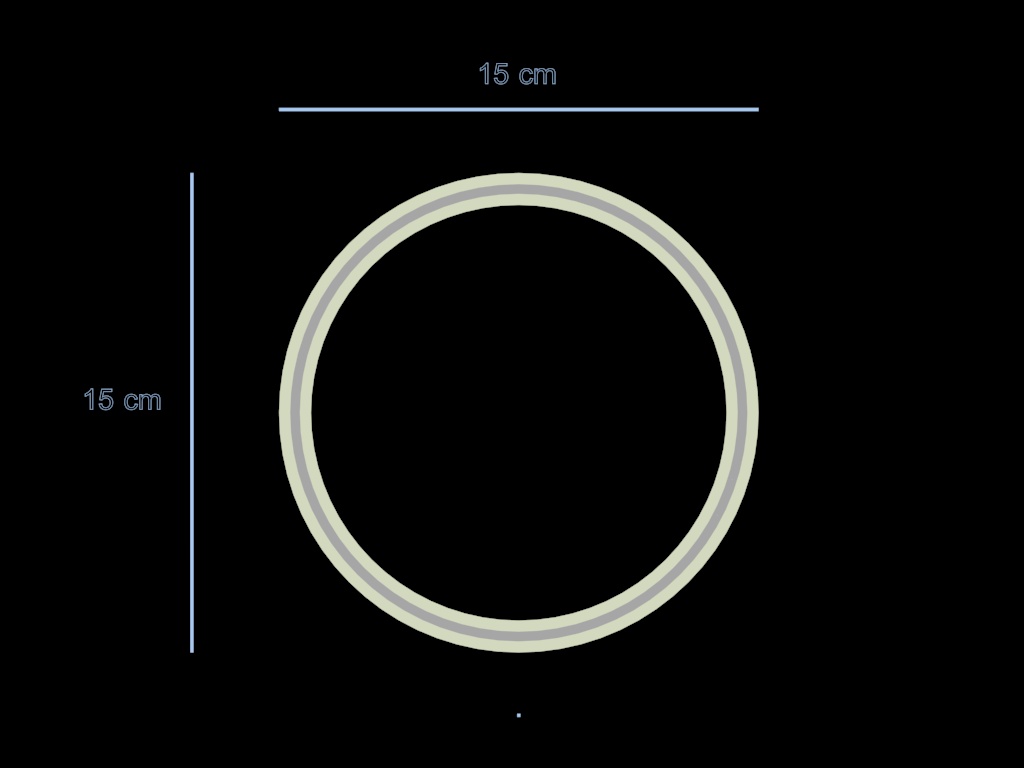

- 15 cm x 15 cm, 10mm thickness
- Cortical Bone
- Trabecular Bone
| Shipment Size | 10 x 8 x 6 Inches |
| Shipment Weight | 6 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
