Planar Skull Bone Phantoms for X-Ray CT, US, MRI
$4,290 USD
The Planar Skull Bone Phantoms are an excellent tool for medical imaging research. The skull bones are made from a realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications.
This product can be customized based on your requirements — contact us.
Planar Skull Bone Phantoms are an ideal tool that can be used for medical imaging research. Each bone plate veloping these phantoms and hold strength in customizing them. The Skull Bones are cast out of our realistic patented epoxy-based bone material that is suitable for Ultrasound, MRI, and X-Ray/CT applications.

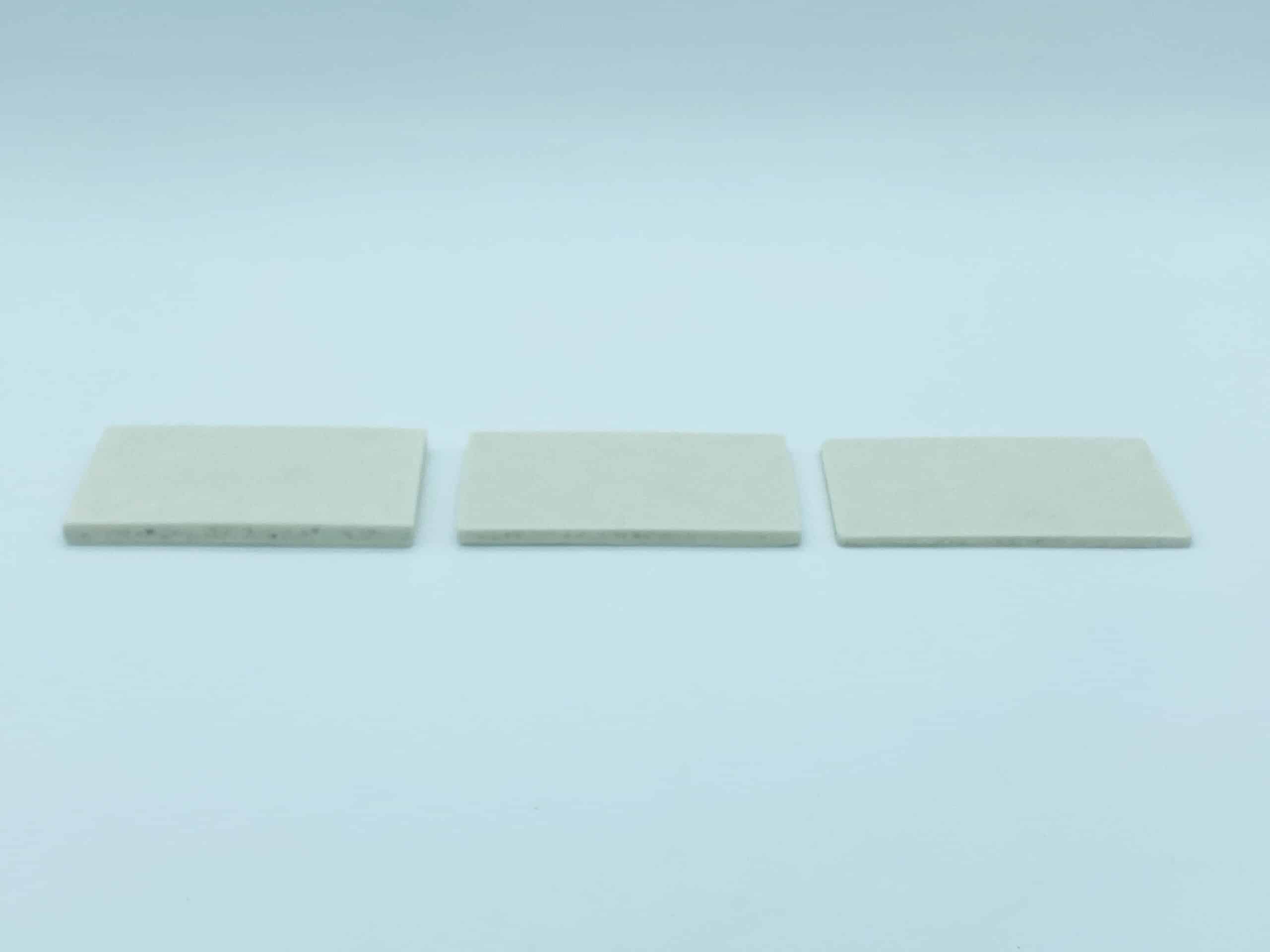

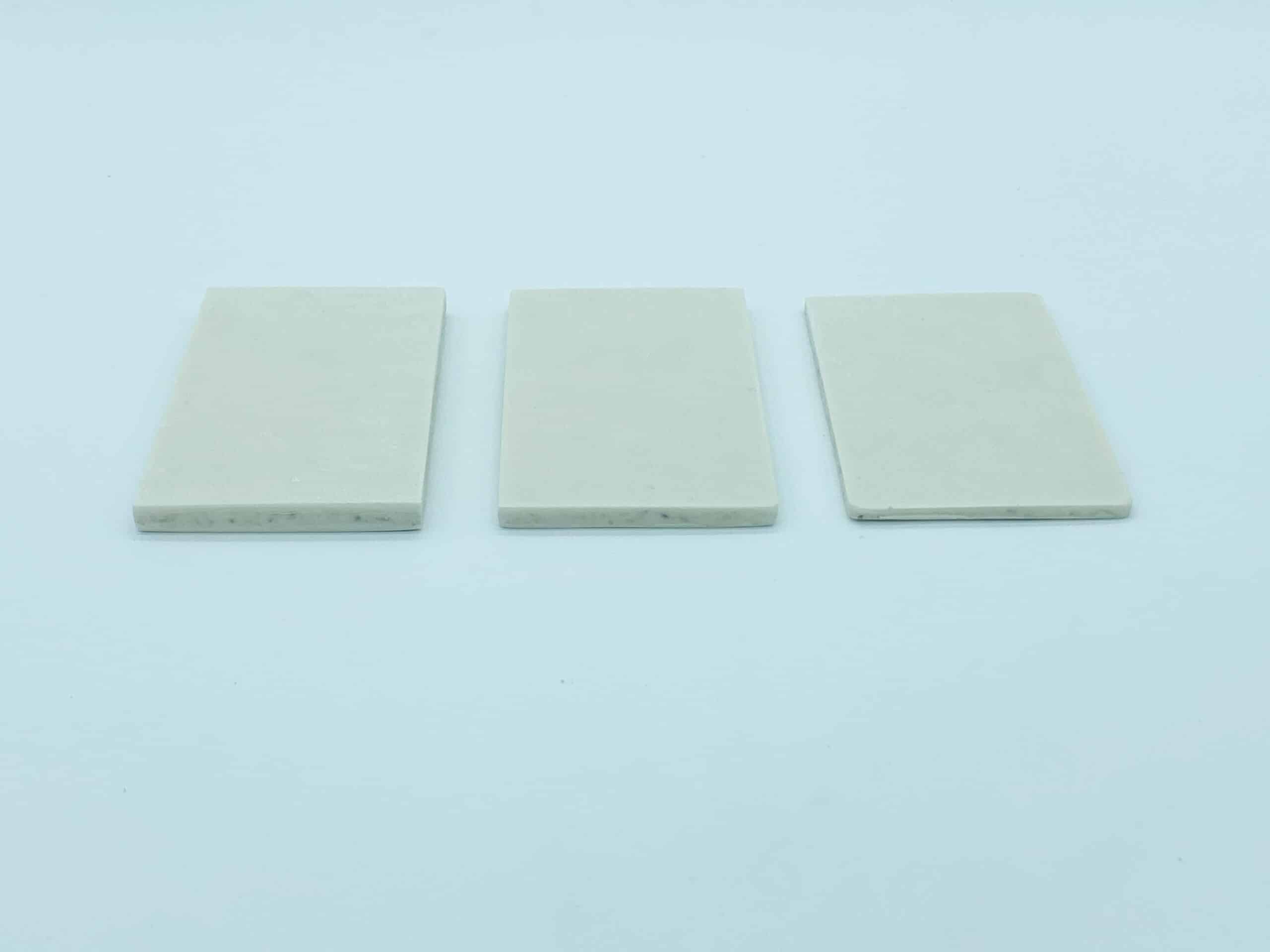

- Planar Skull Bones (3):
- 1) 3/8 x 3 x 5 inch (10 x 7.6 x 12.7 cm)
- 2) 5/16 x 3 x 5 inch (7.5 x 7.6 x 12.7 cm)
- 3) 3/16 x 3 x 5 inch (5 x 7.6 x 12.7 cm)
- Cortical Bone
- Trabecular Bone
| Shipment Size | 12 x 10 x 10 Inches |
| Shipment Weight | 6 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 900 |
| 2 | Cortical Bone | 1300 |
