X-Ray, CT, US, MRI Phantoms
Temporal Bone Phantoms for X-Ray CT, US, MRI
$2,850 USD

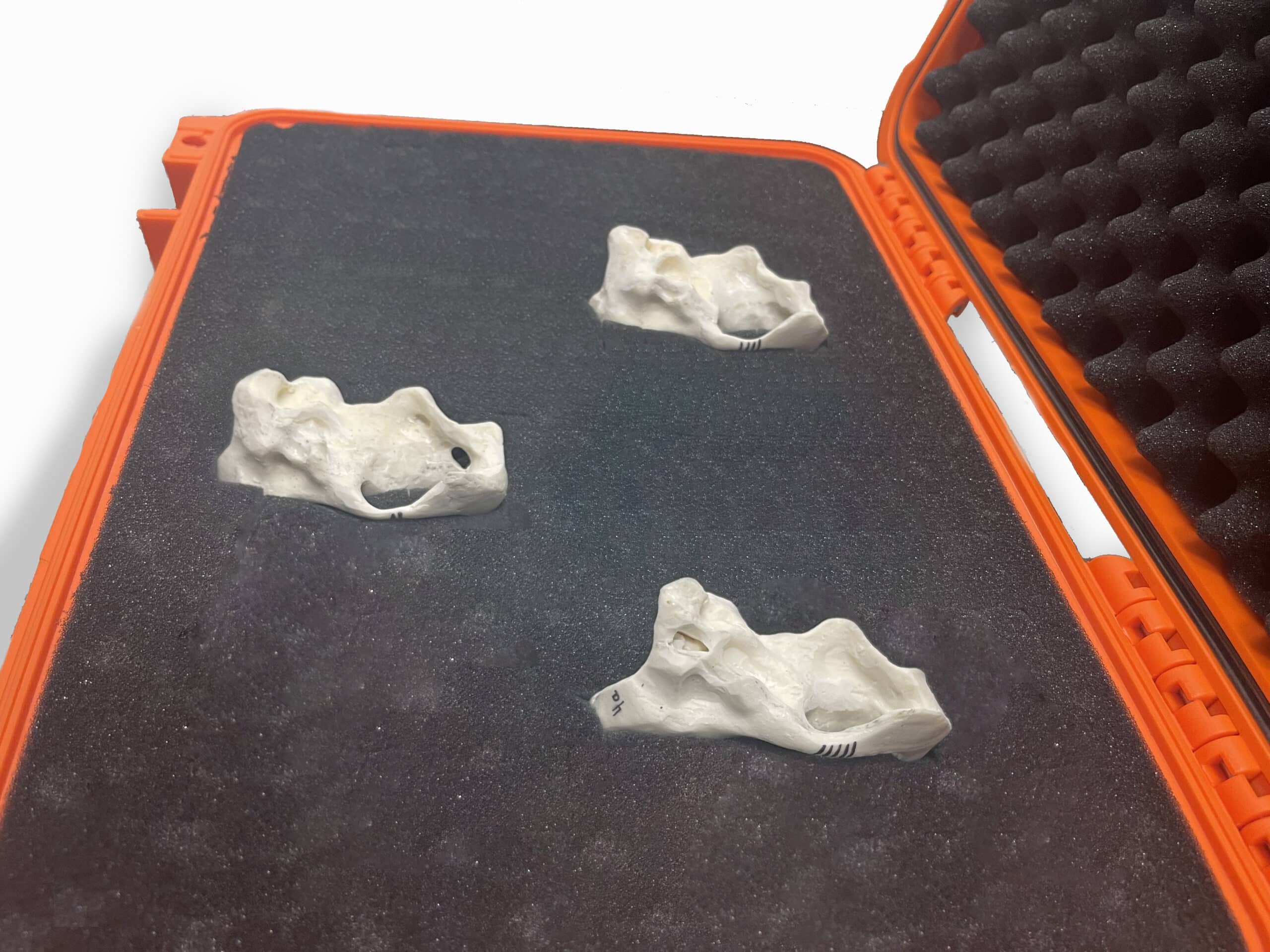

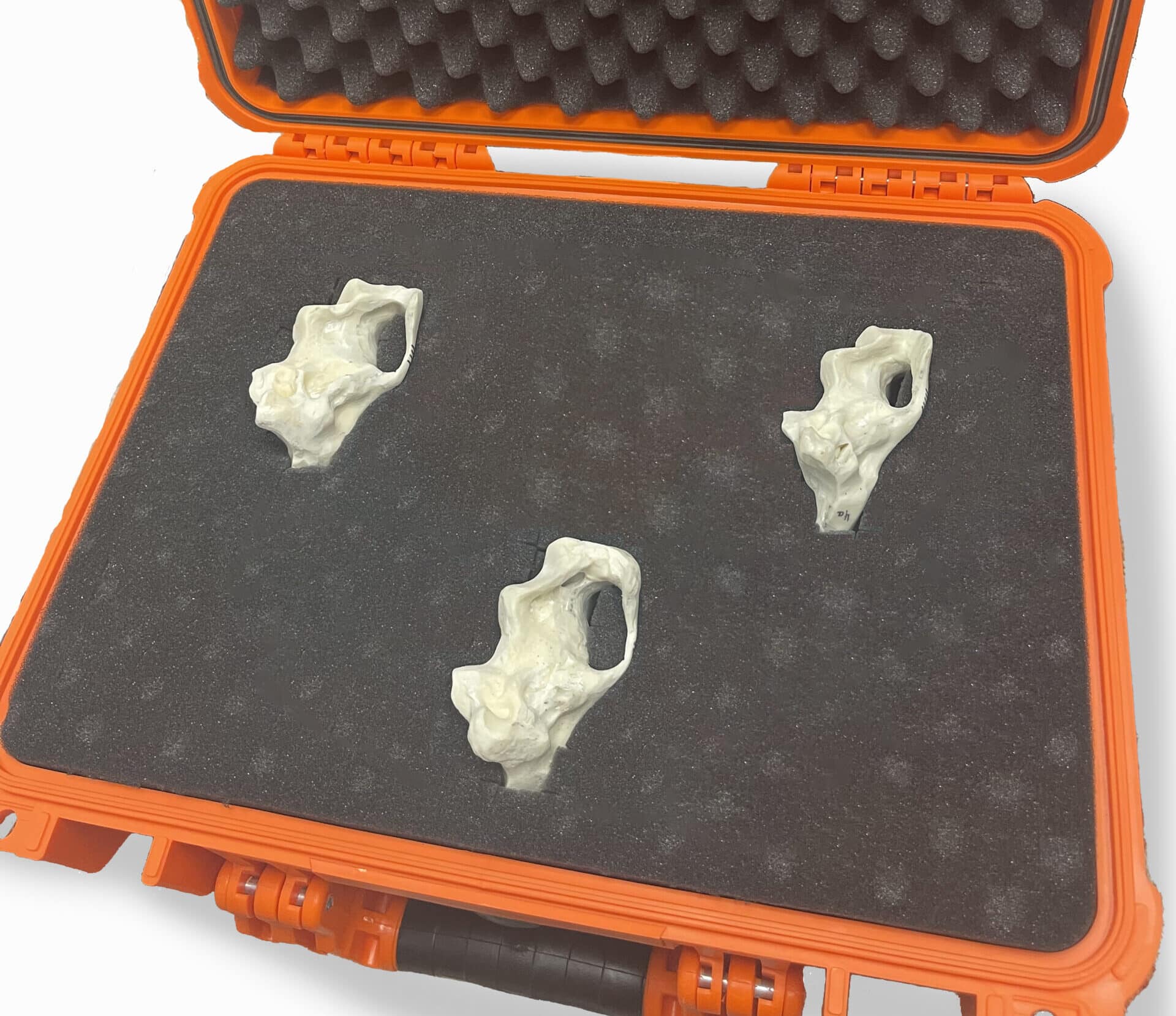

The Temporal Bone Phantoms are an excellent tool for medical imaging research. The skull bones are made from a realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications. This product comes with three differently sized temporal bones.
This product can be customized based on your requirements — contact us.
Temporal Bone Phantoms are an ideal tool that can be used for medical imaging research. Each bone has a rethese phantoms and hold strength in customizing them. The Skull Bones are cast out of our realistic patented epoxy-based bone material that is suitable for Ultrasound, MRI, and X-Ray/CT applications.

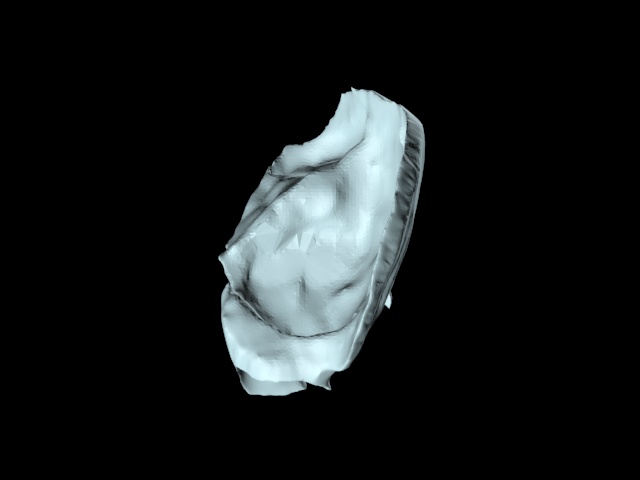

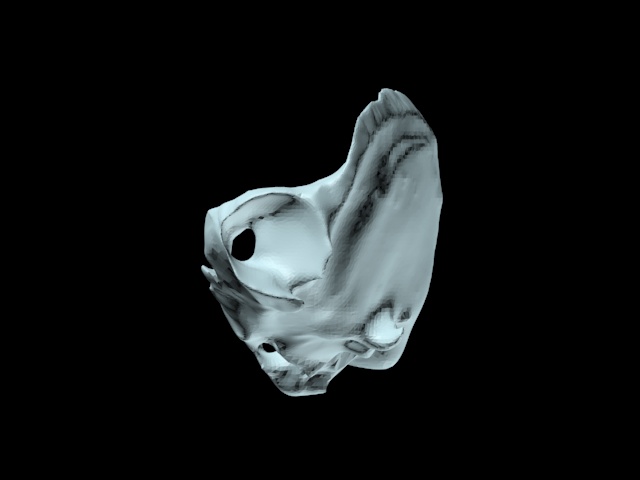

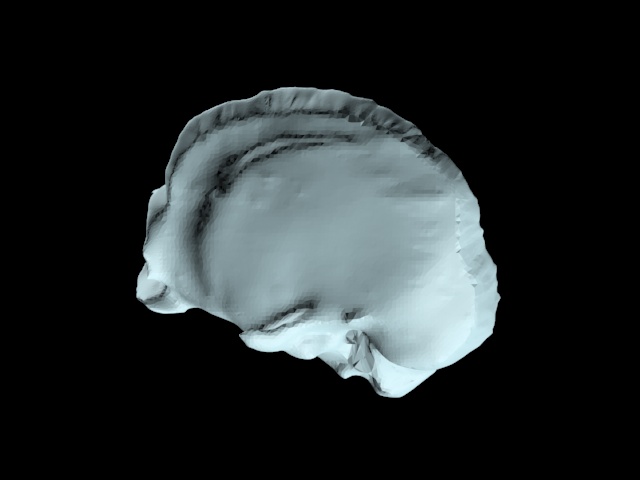

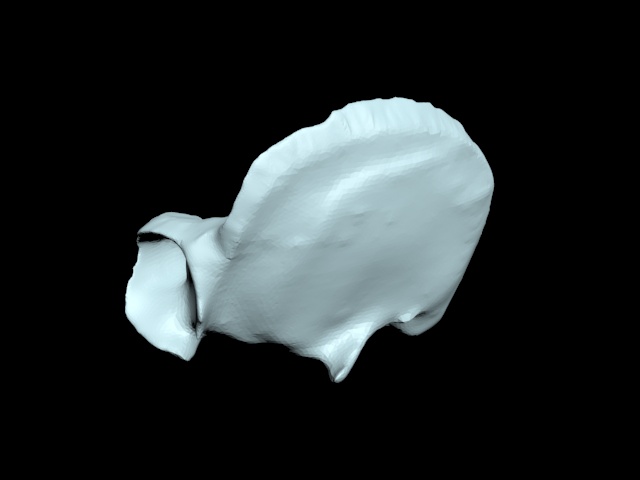

Design
- Cortical Bone
- Temporal Skull Bones (3):
- Trabecular Bone
- A) 2.2 mm thickness
- B) 4.0 mm thickness
- C) 7.0 mm thickness
| Phantom Size | 2.2 mm, 4.0 mm, 7.0 mm |
| Phantom Weight | 0.7 Lbs (approx.) |
| Shipment Size | 12 x 10 x 10 Inches |
| Shipment Weight | 6 Lbs (approx.) |
| Type of Phantom | Averaged Thickness | Averaged Sound Velocity [m/s] | Averaged Attenuation at 2.25 MHz [dB/cm] |
| Temporal Bone A | 2.2mm | 2820 ± 30 | 45 ± 5 |
| Temporal Bone B | 4.0mm | 2820 ± 30 | 45 ± 5 |
| Temporal Bone C | 7.0mm | 2820 ± 30 | 45 ± 5 |
| Cortical bone material used to fabricate all temporal bone phantom | N/A | 3000 ± 10 | 7.8 ± 0.4 |
