Canine Phantom for Ultrasound
$17,700 USD

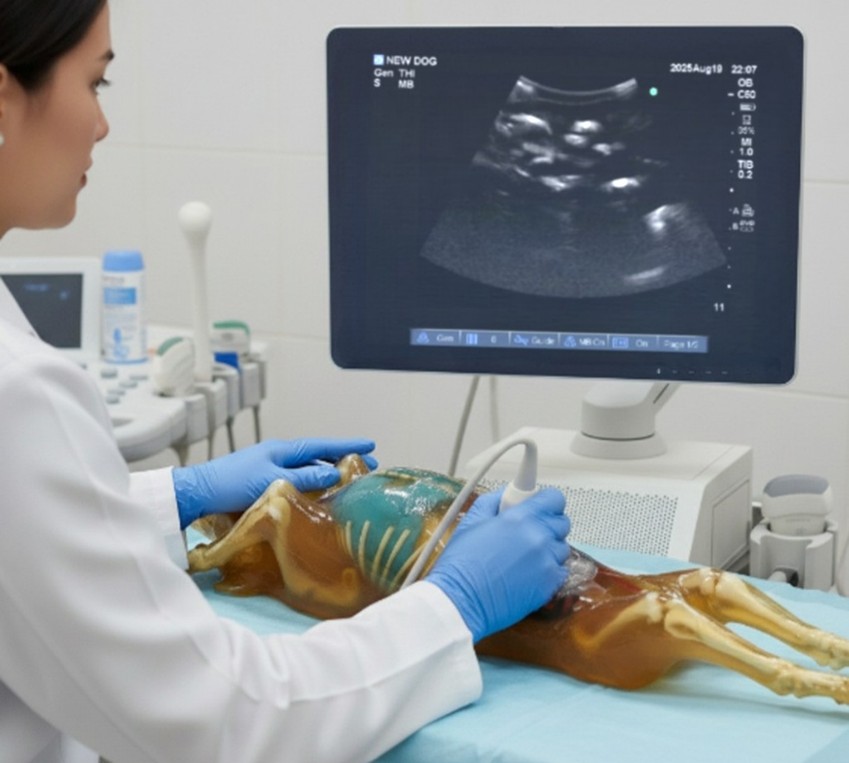

The Canine Phantom was thoughtfully designed to meet the real-world needs of veterinary education and hands-on clinical training. It is a major step forward from the previous model, featuring ultrasoft abdominal tissue that provides highly realistic scanning feedback. Its anatomical design is based on a CT dataset of a male Bull Mastiff–Rhodesian Ridgeback cross, ensuring anatomical authenticity. With the help of cutting-edge AI, the model was refined using advanced algorithms that precisely extracted and replicated intricate anatomical structures with exceptional accuracy.
Canine Phantom Model: Standard (US)
Standard (X-Ray·CT·US·MRI)
Standard (US)

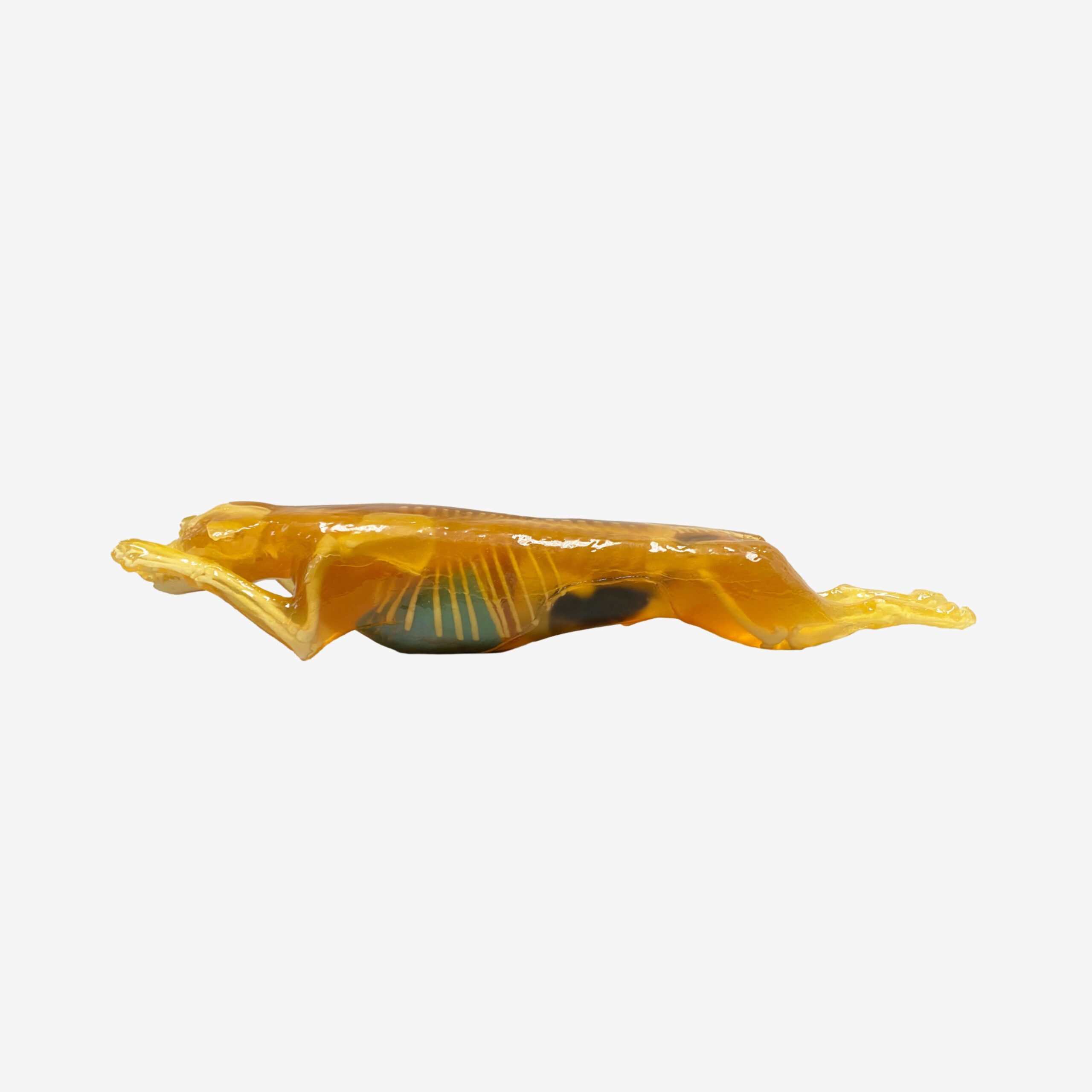

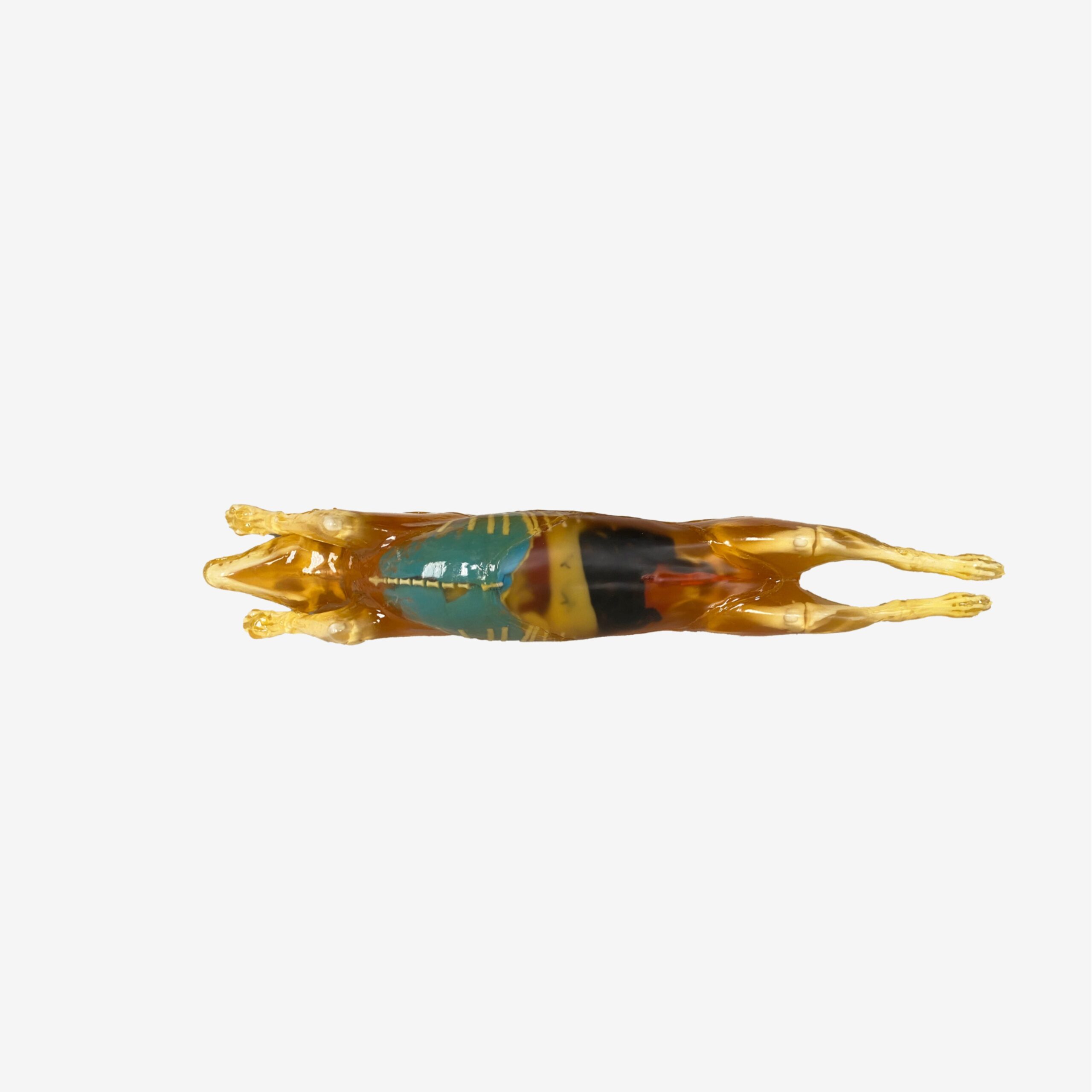

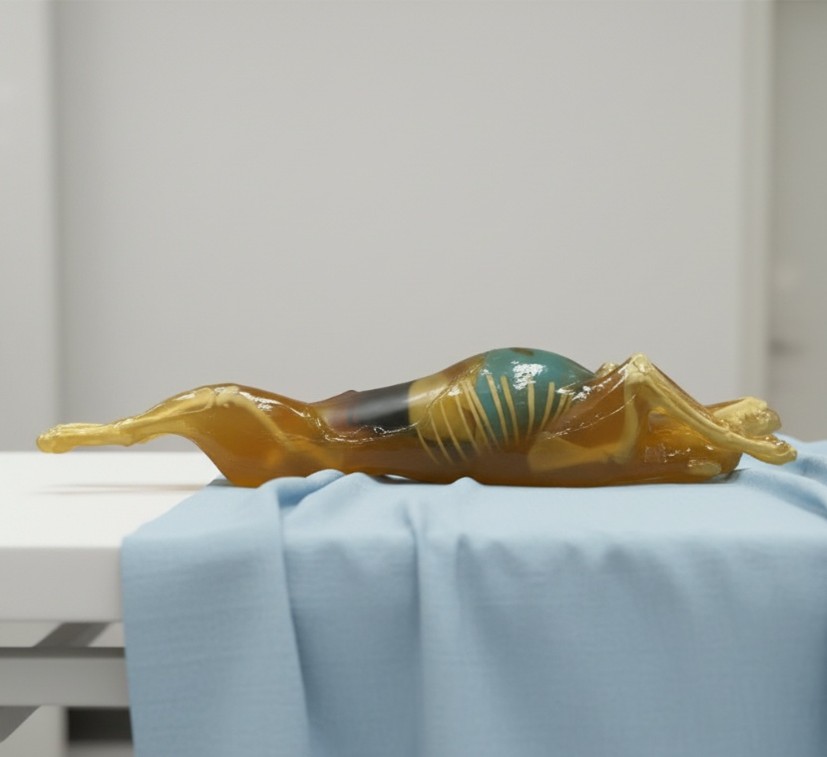

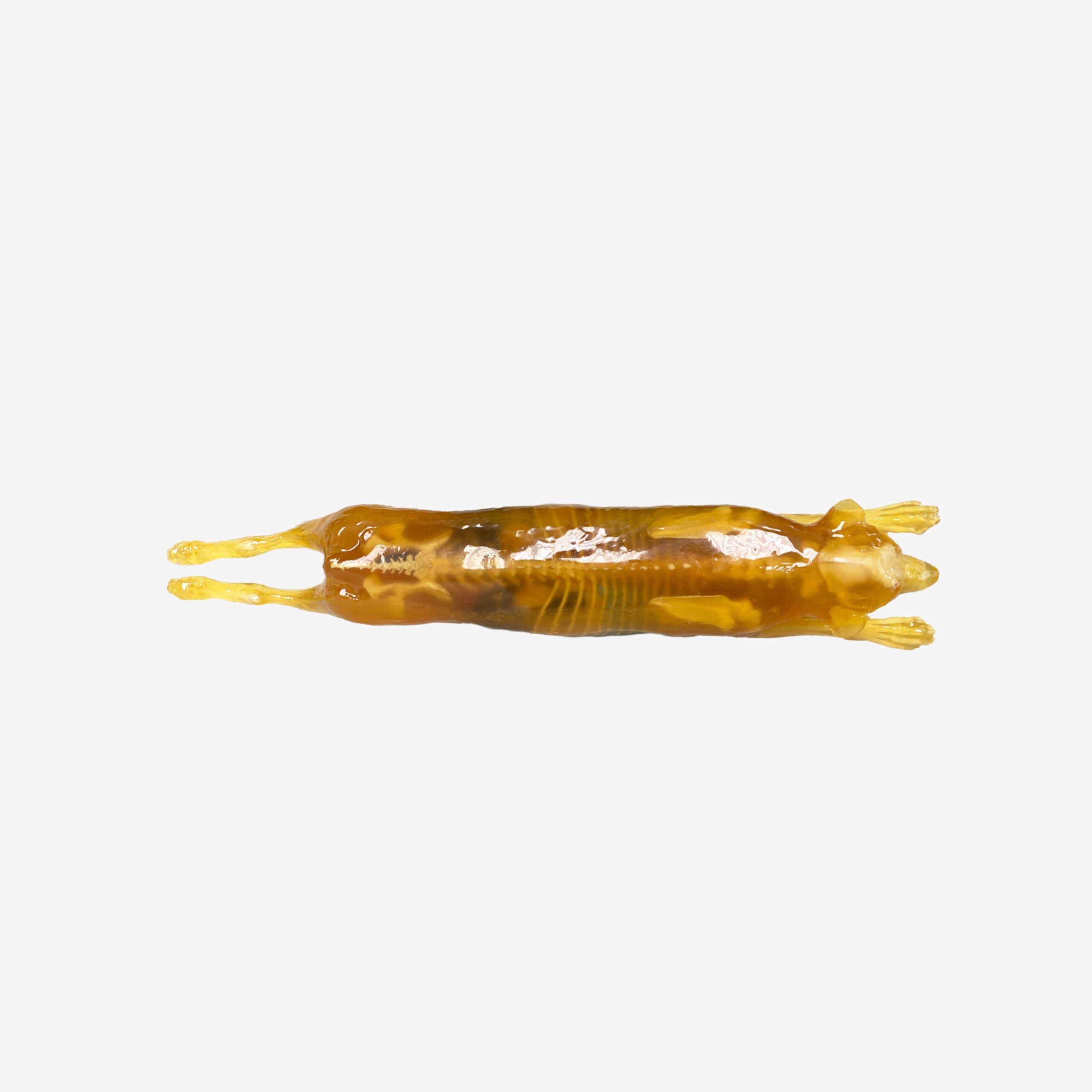

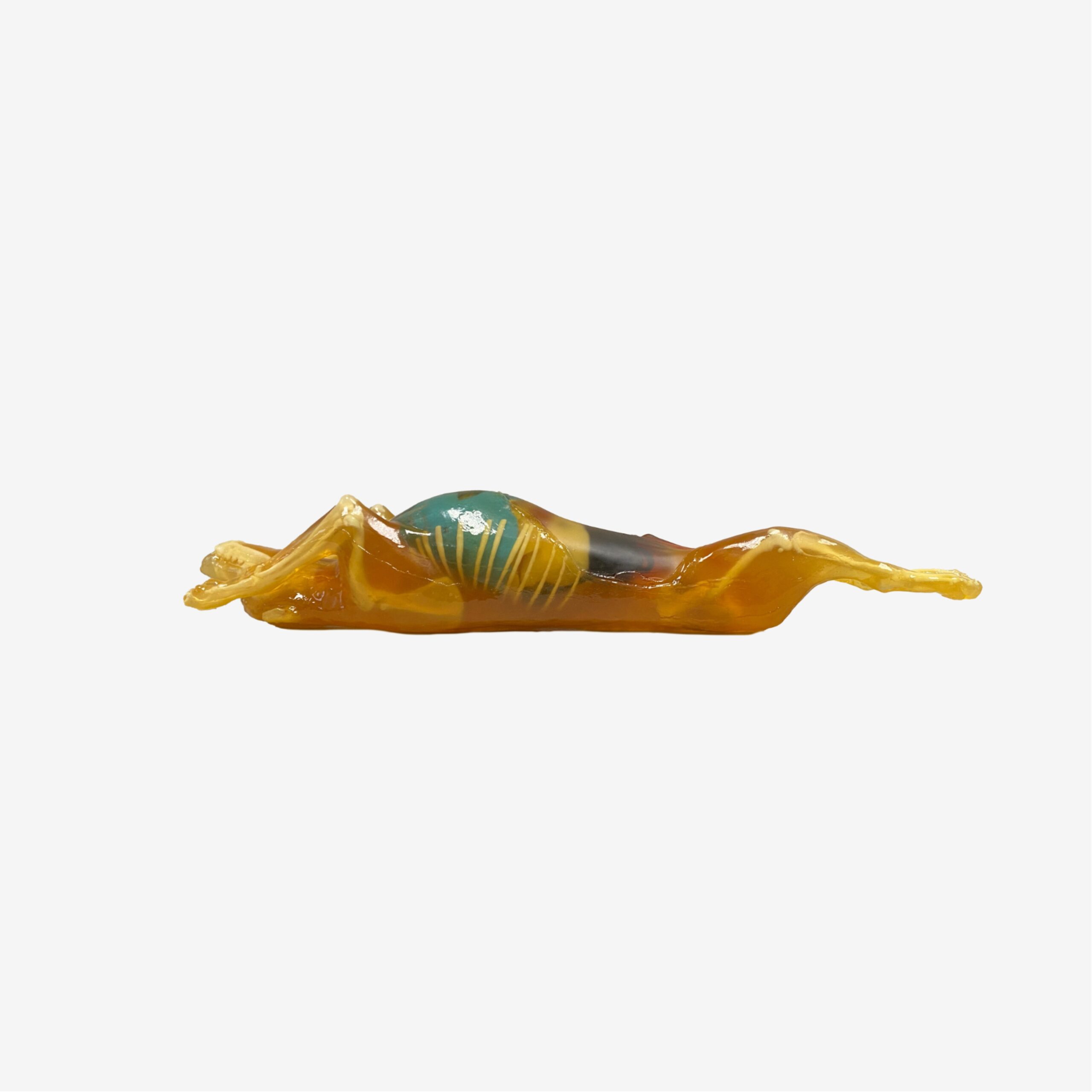

Appearance: Amber Translucent
This product can be customized based on your requirements — contact us.
The newly launched Canine Phantom was thoughtfully designed to meet the real-world needs of veterinary education and hands-on clinical training. Its anatomical design is based on a CT dataset of a male Bull Mastiff� Rhodesian Ridgeback cross, ensuring anatomical authenticity .

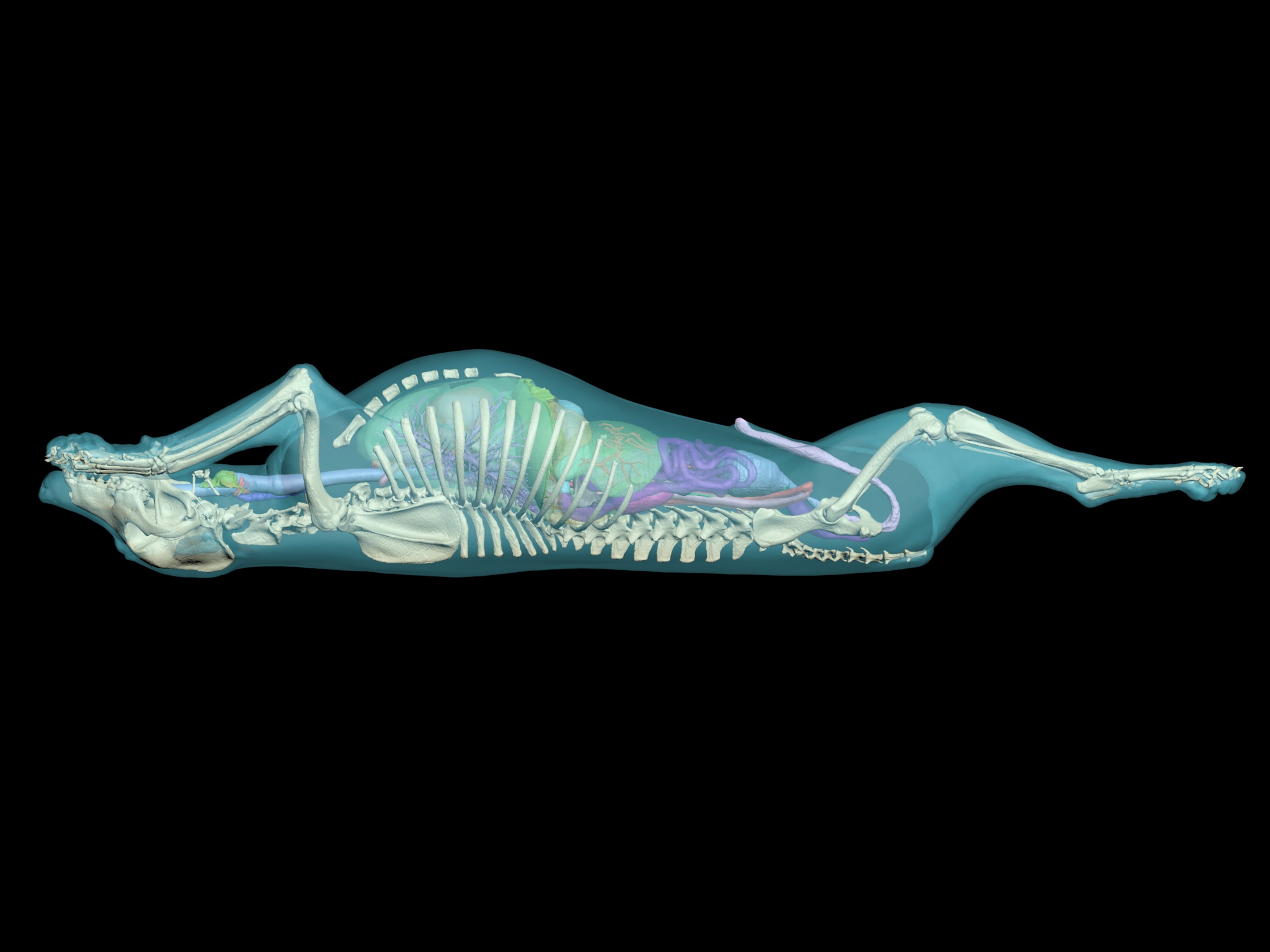

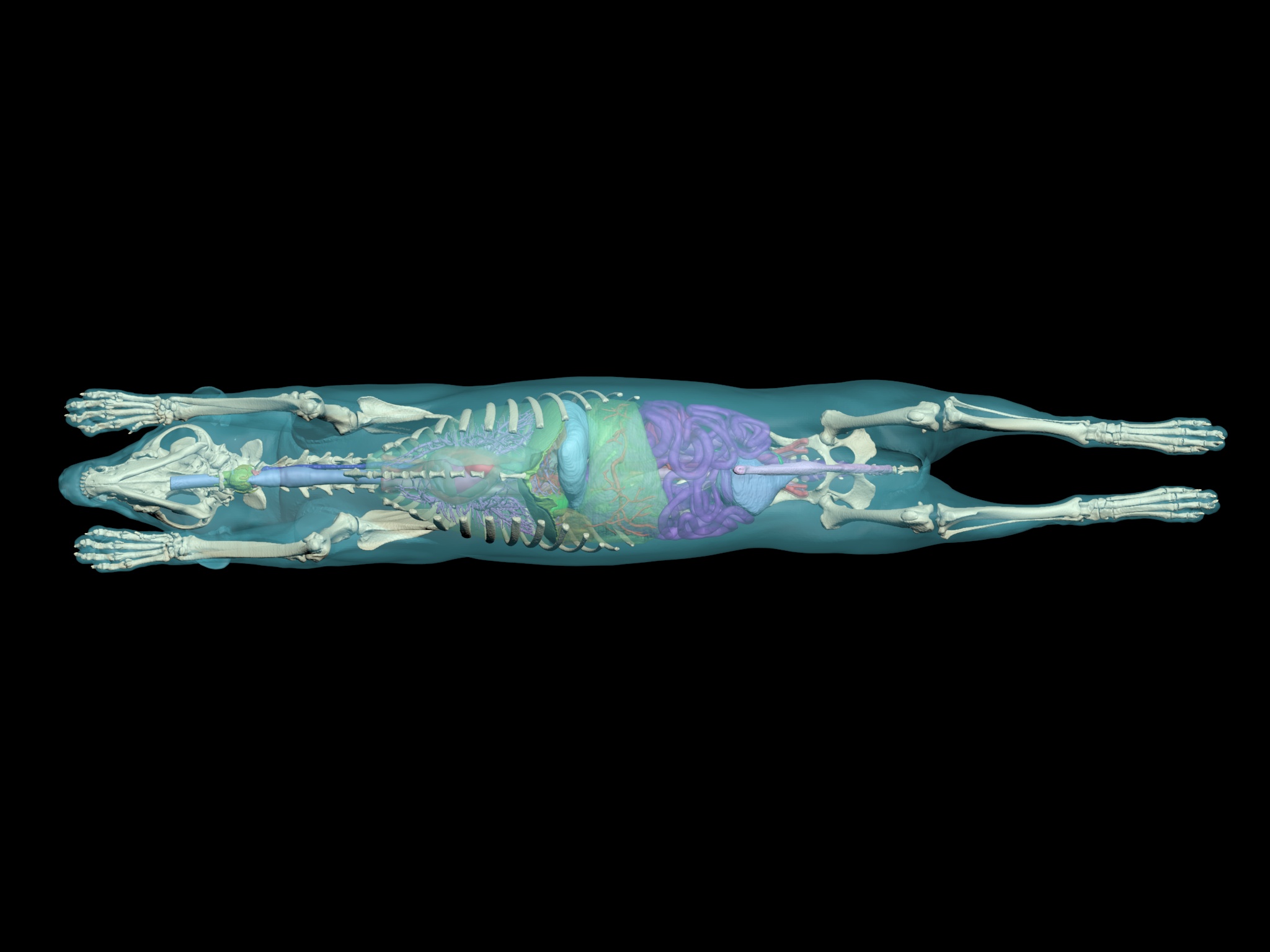

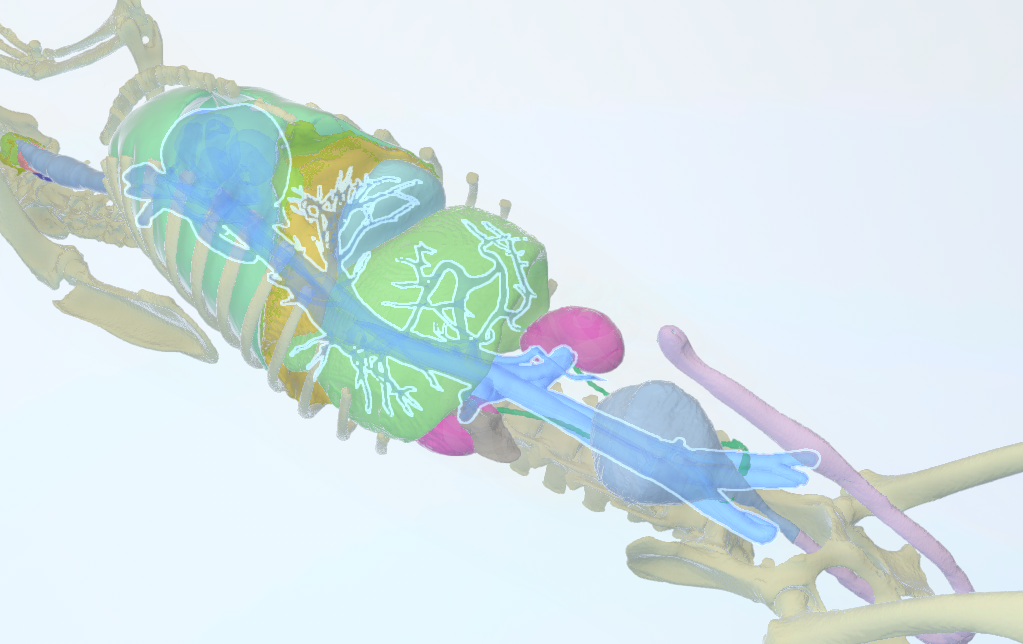

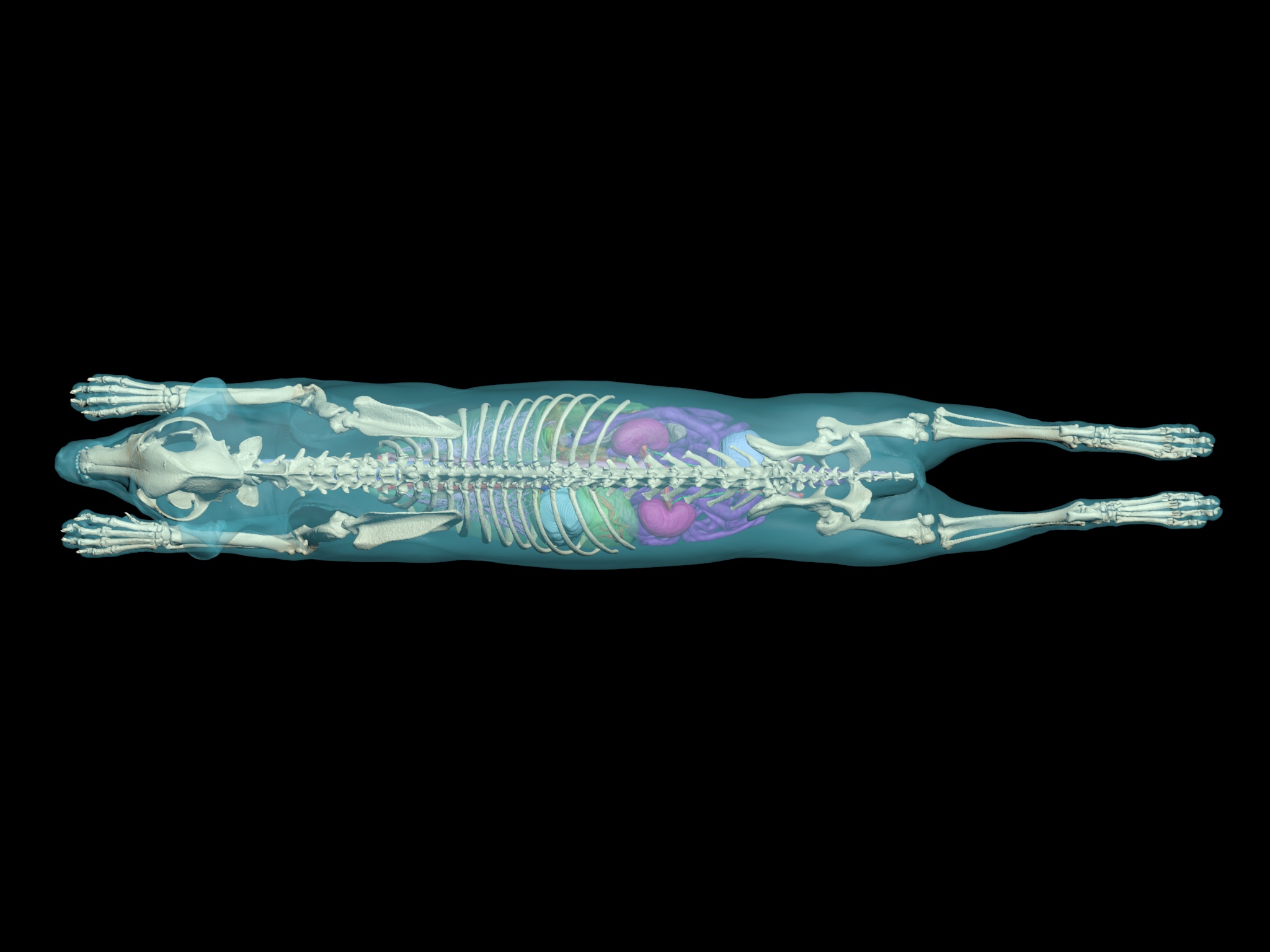

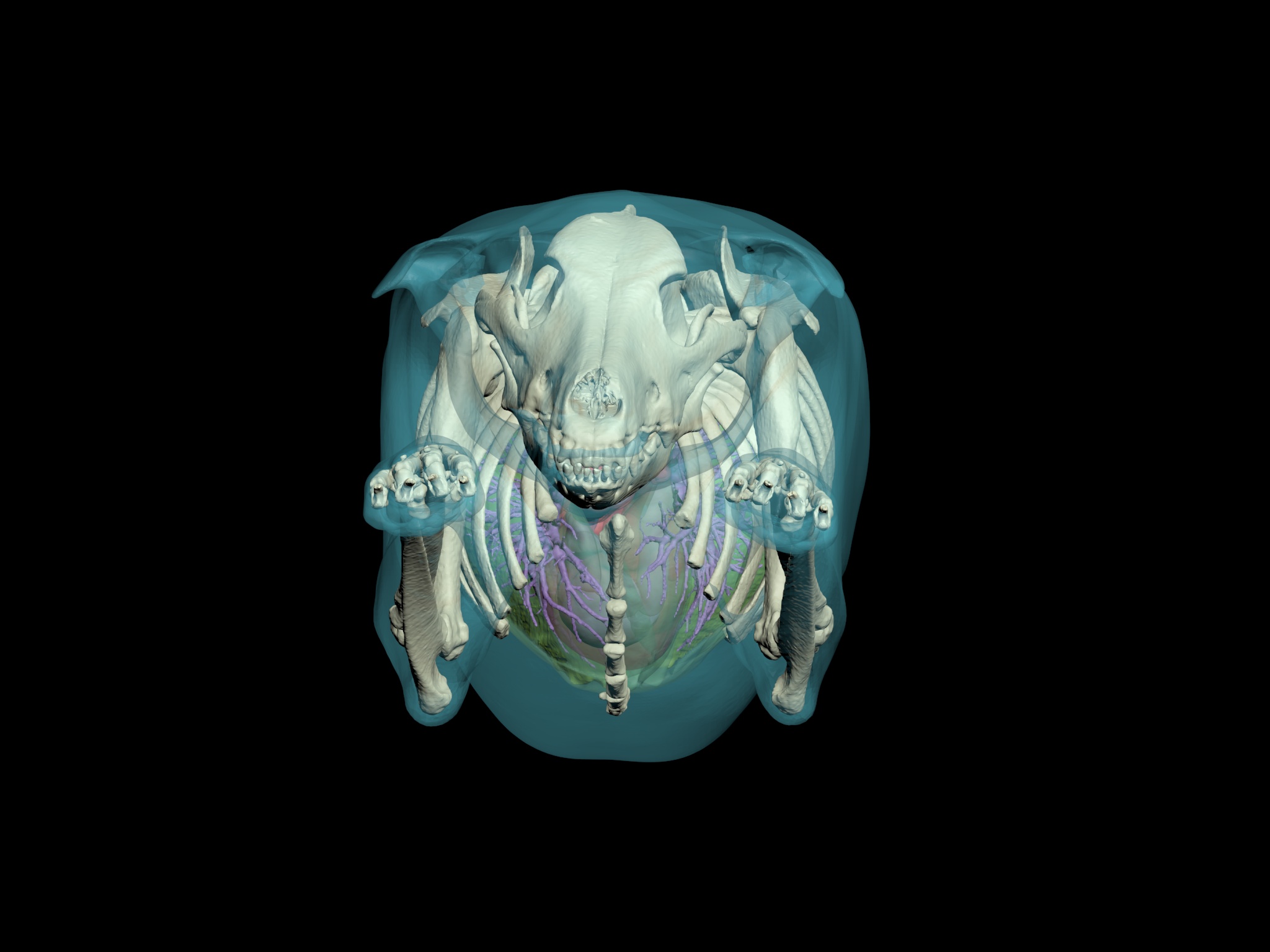

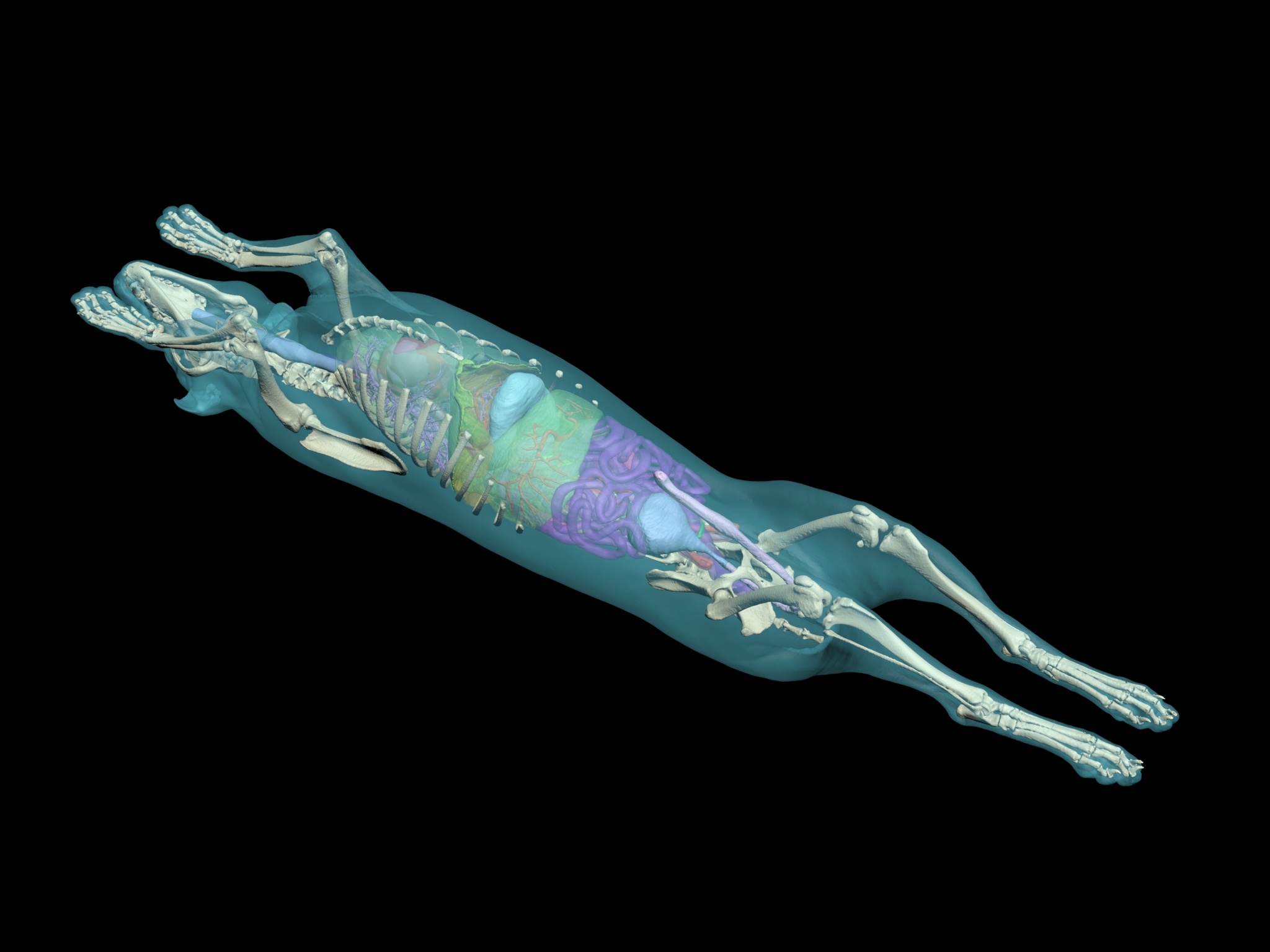

Design

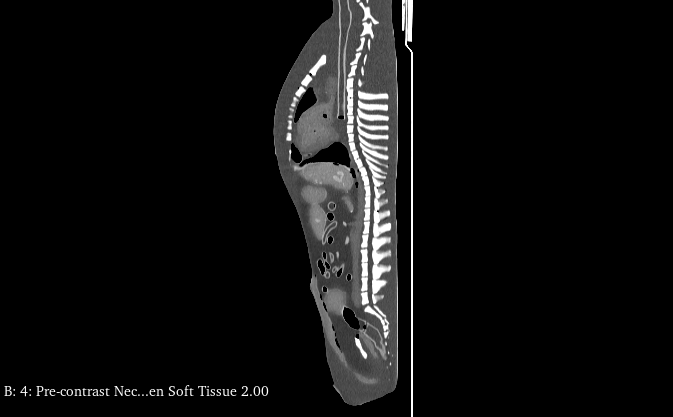

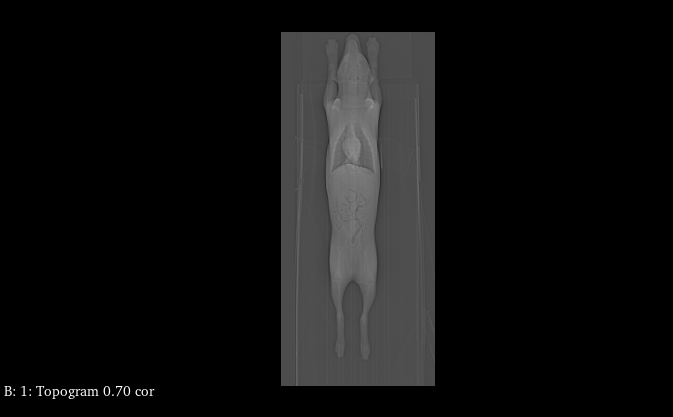

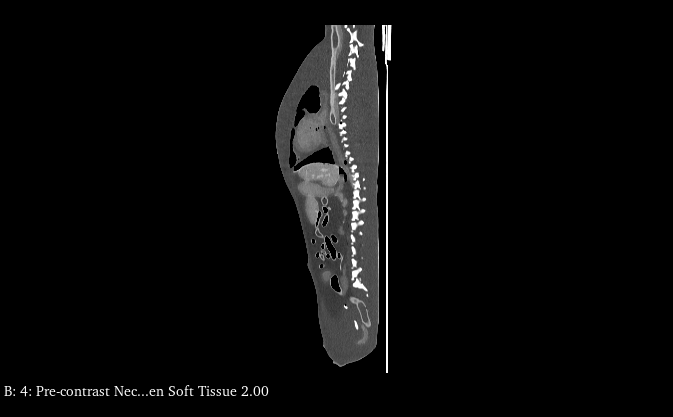

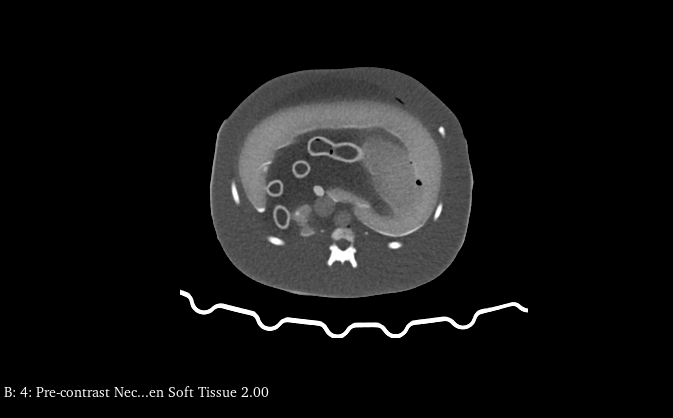

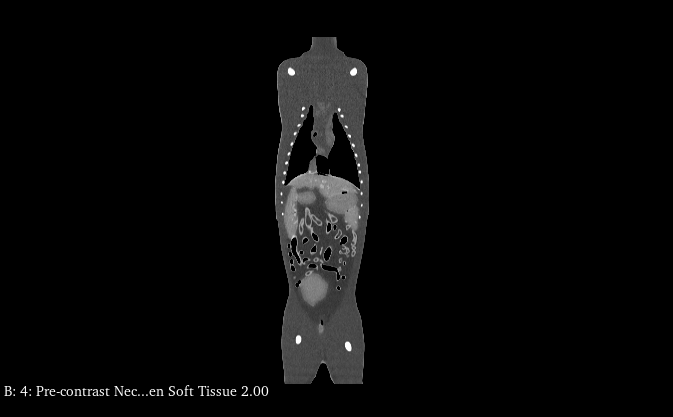

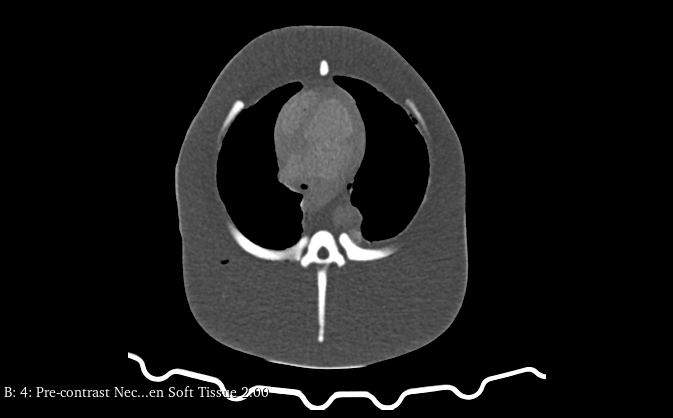

CT Scans

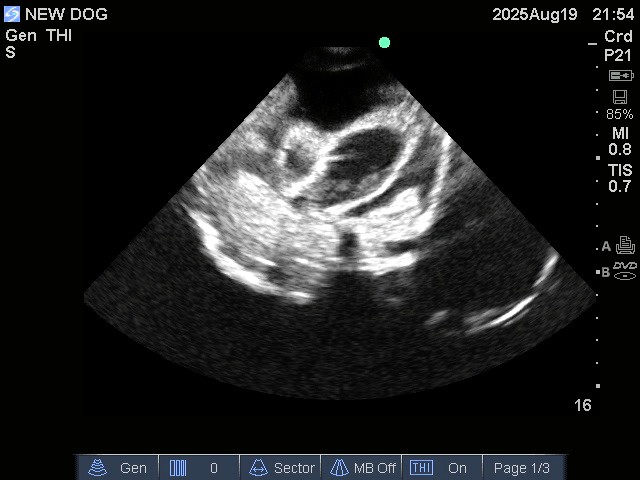

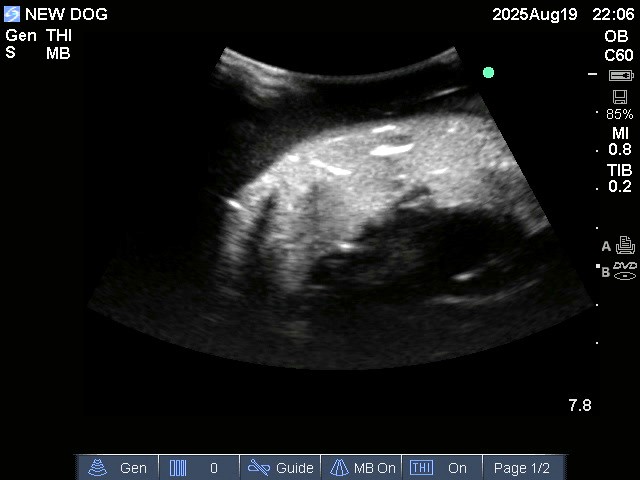

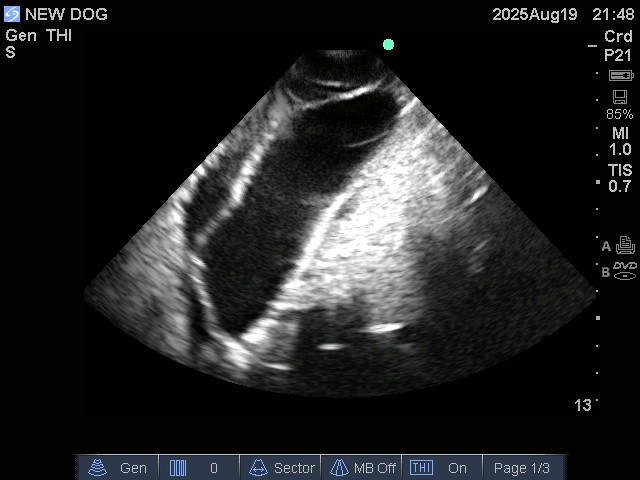

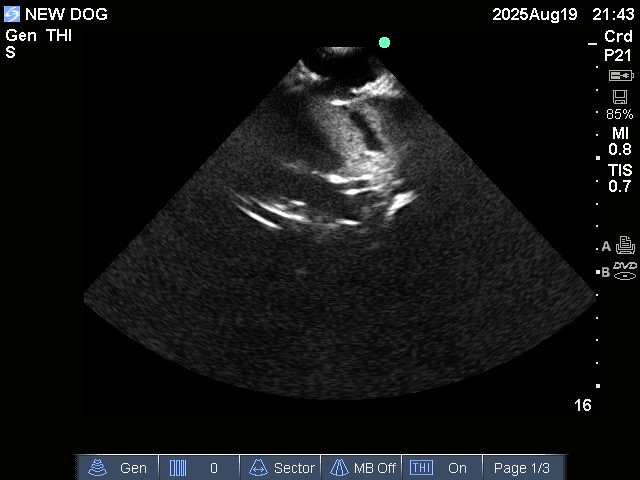

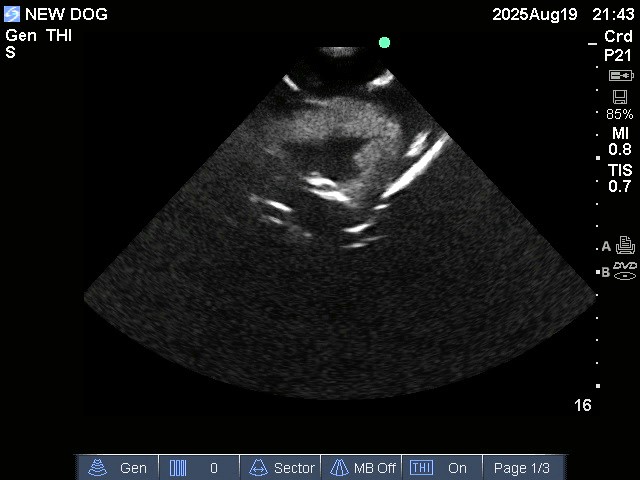

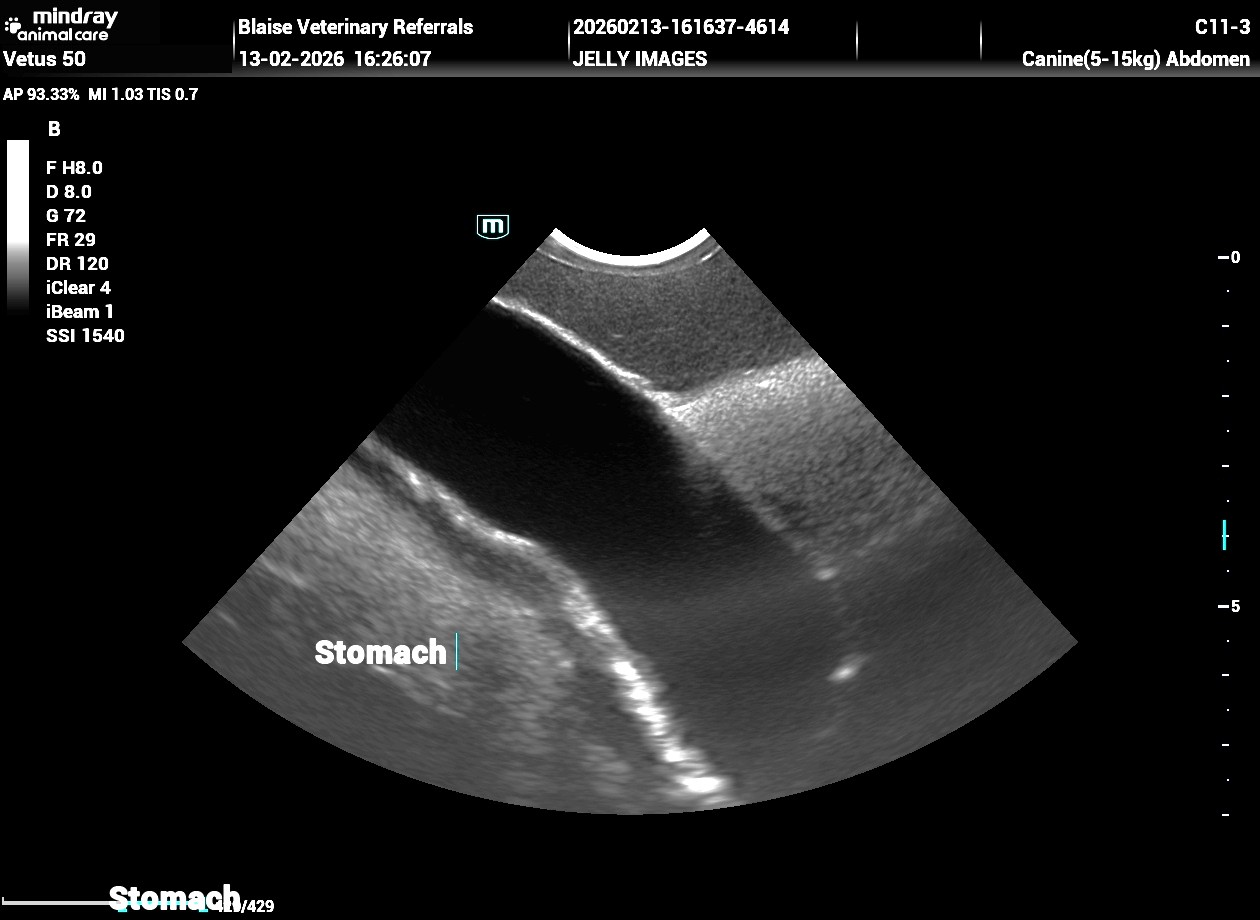

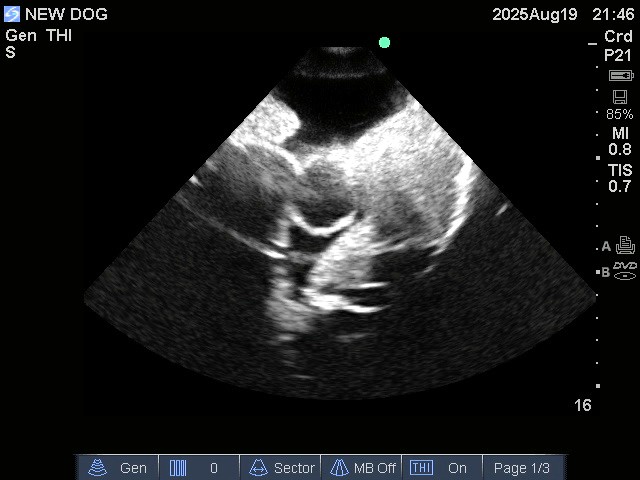

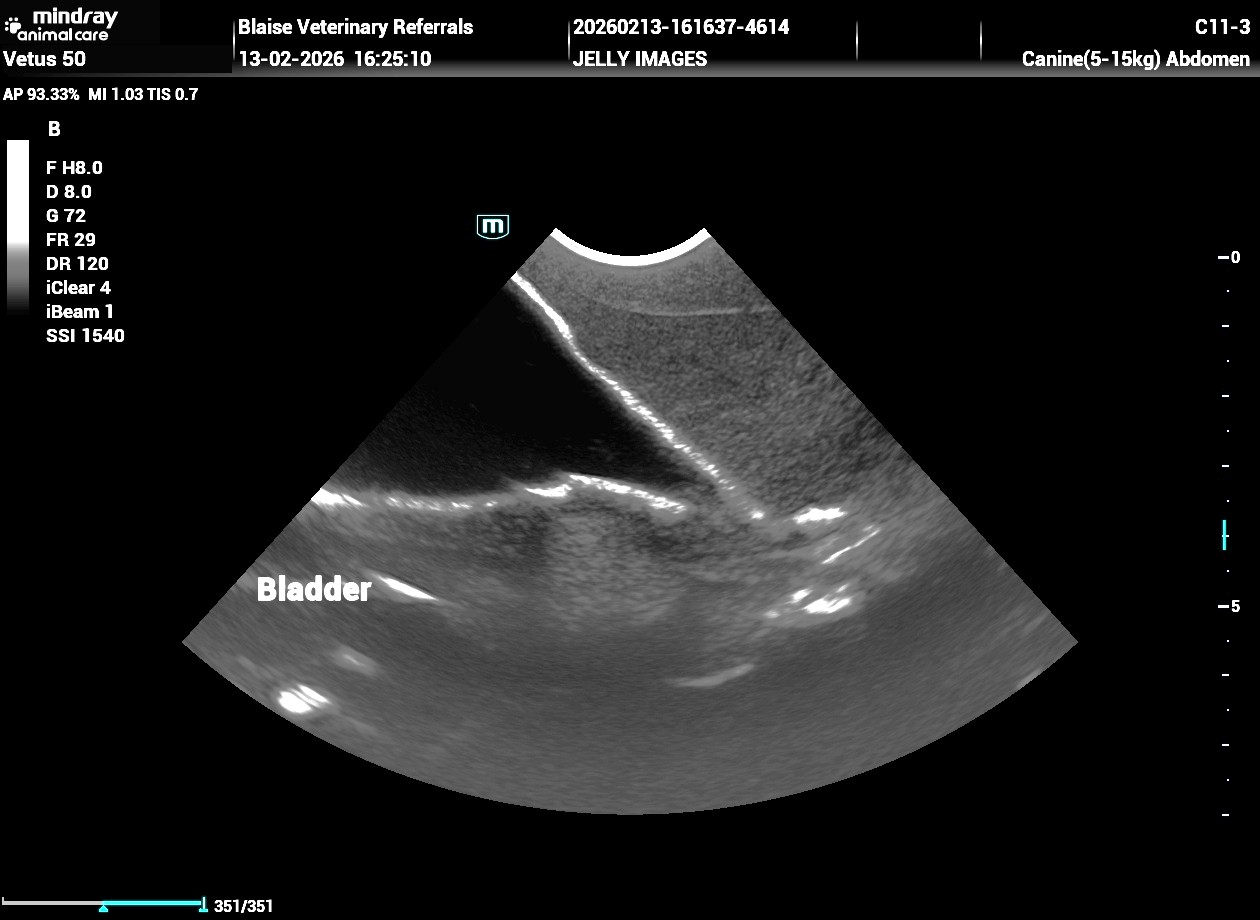

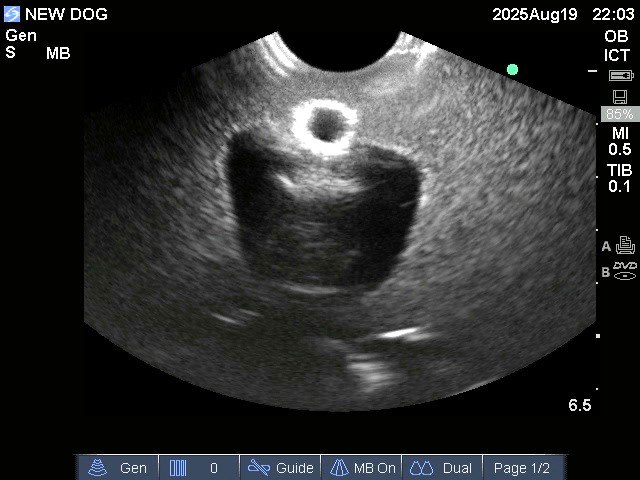

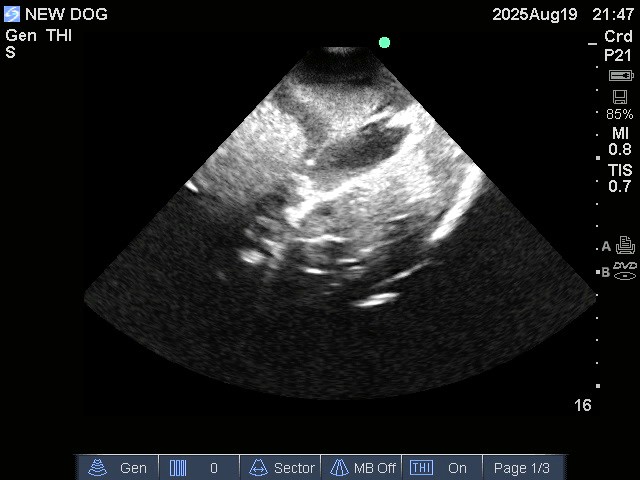

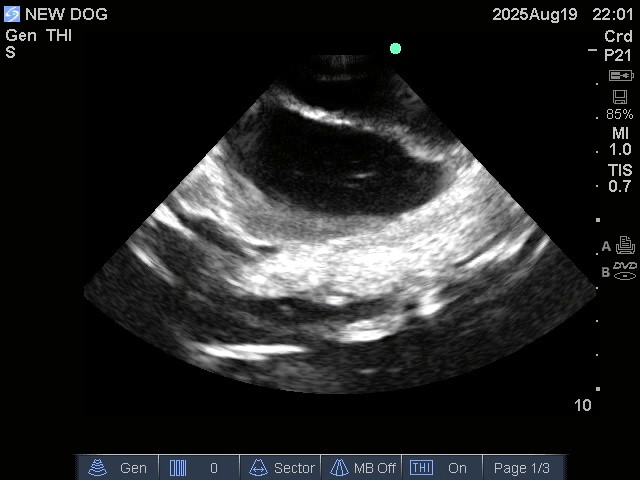

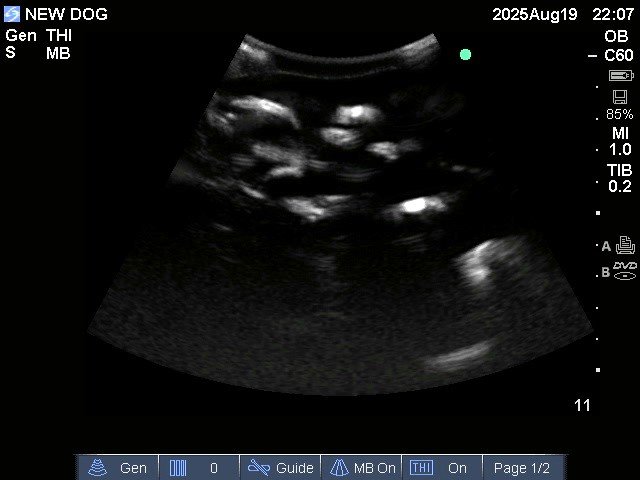

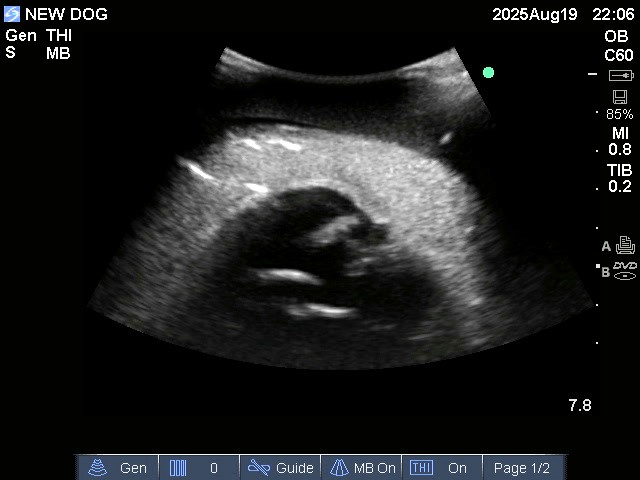

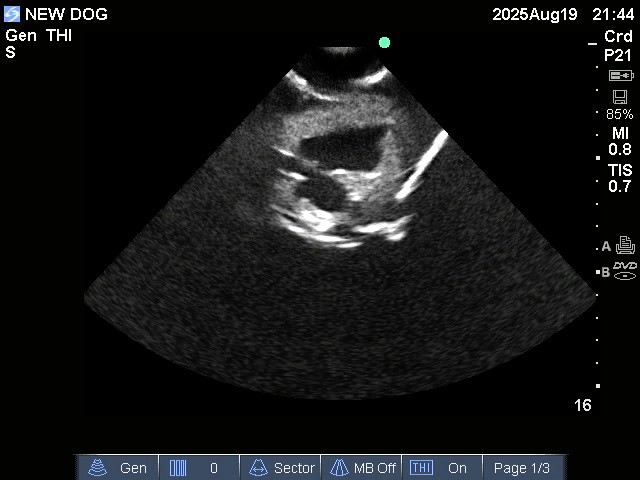

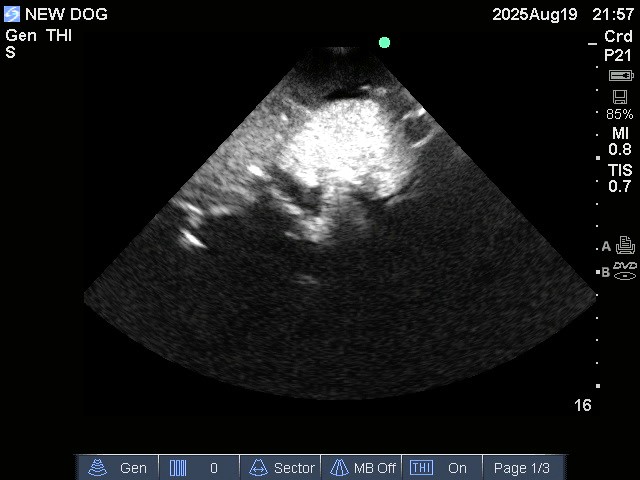

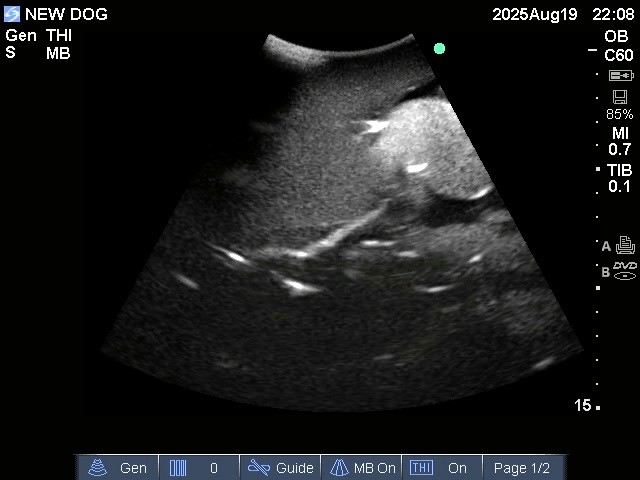

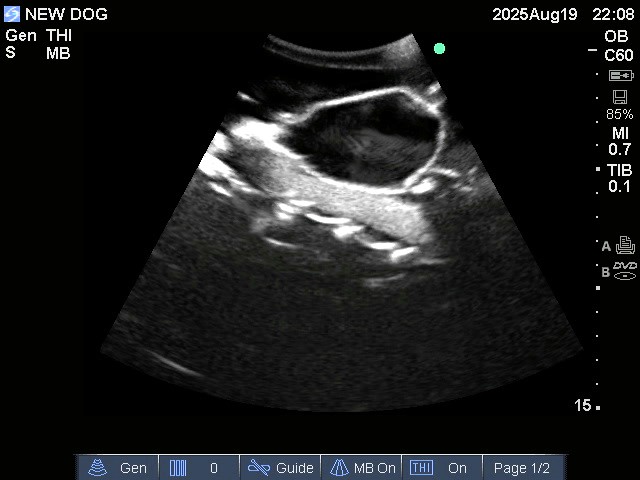

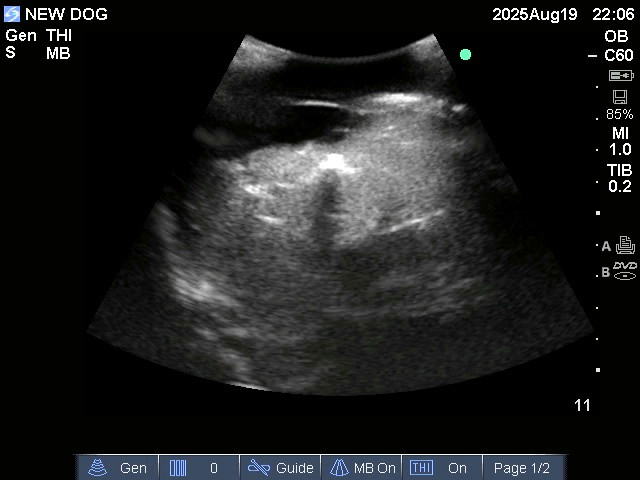

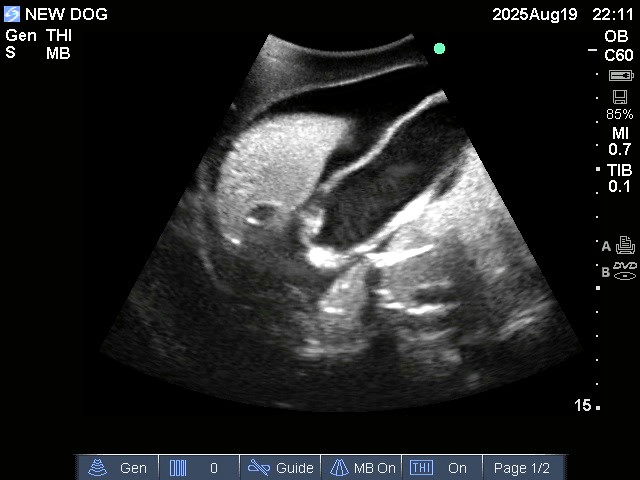

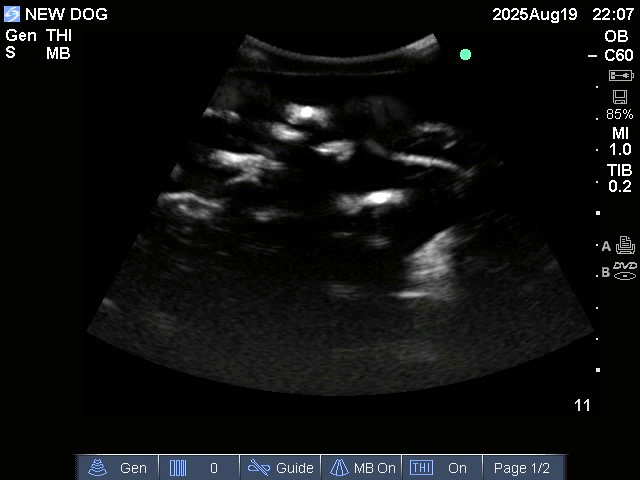

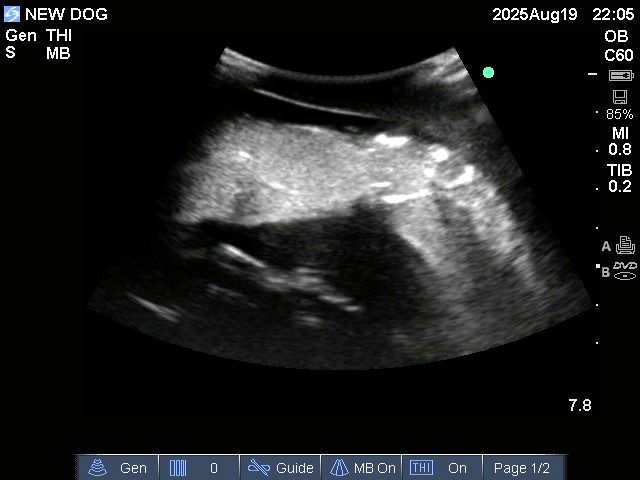

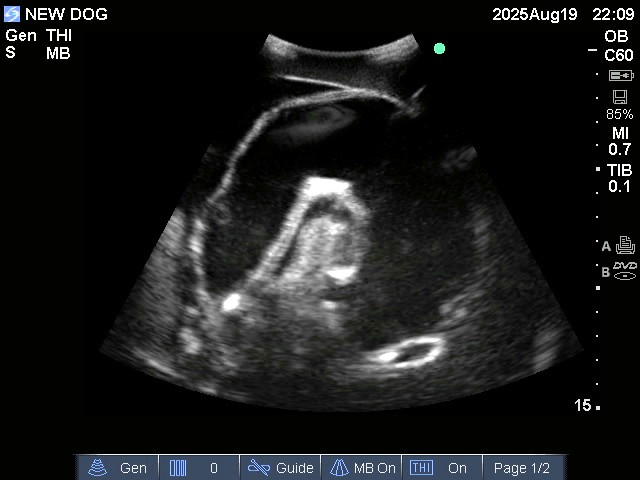

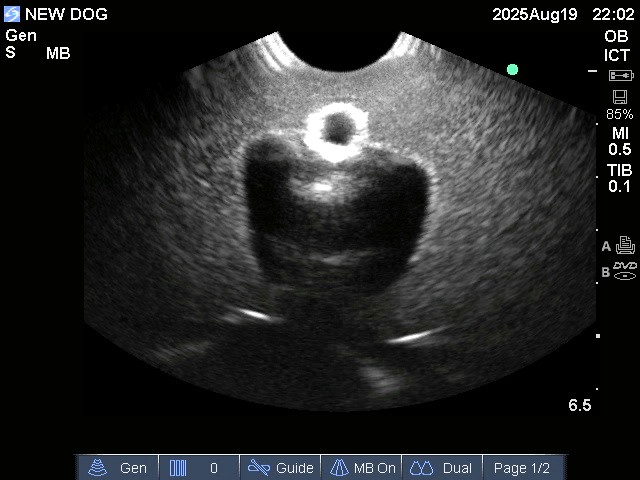

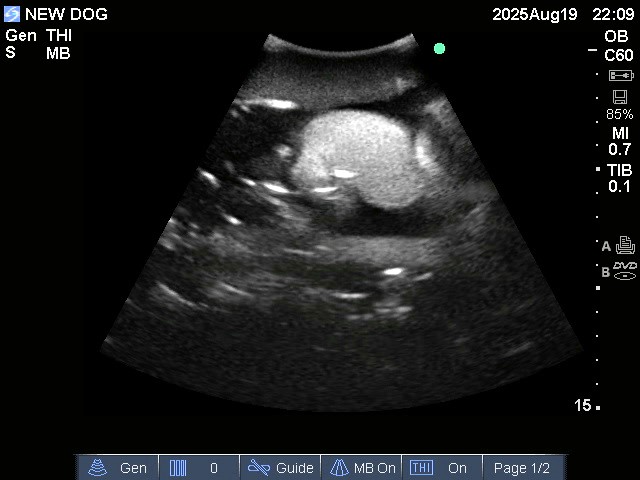

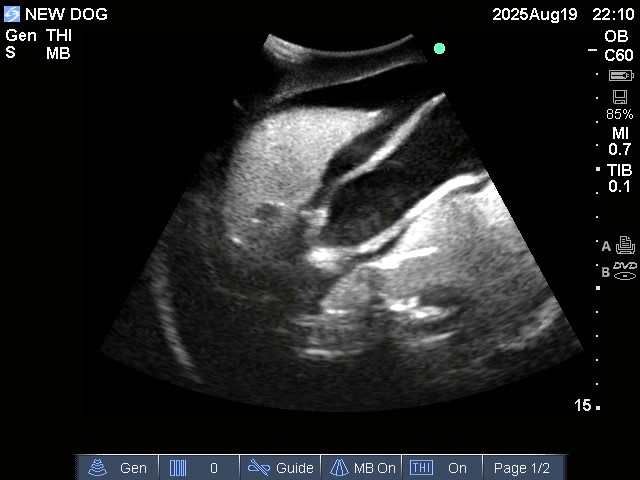

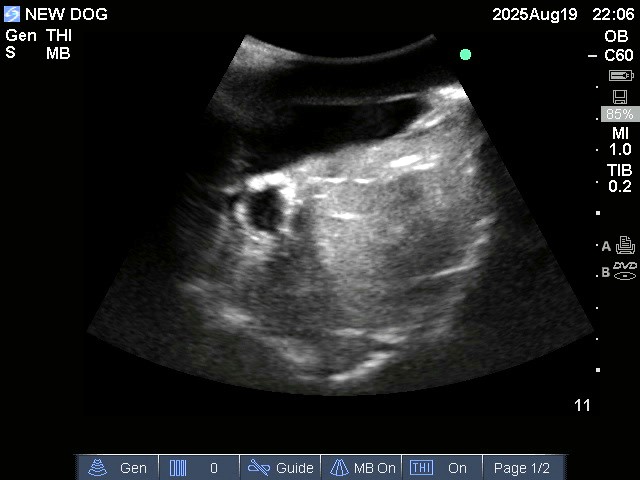

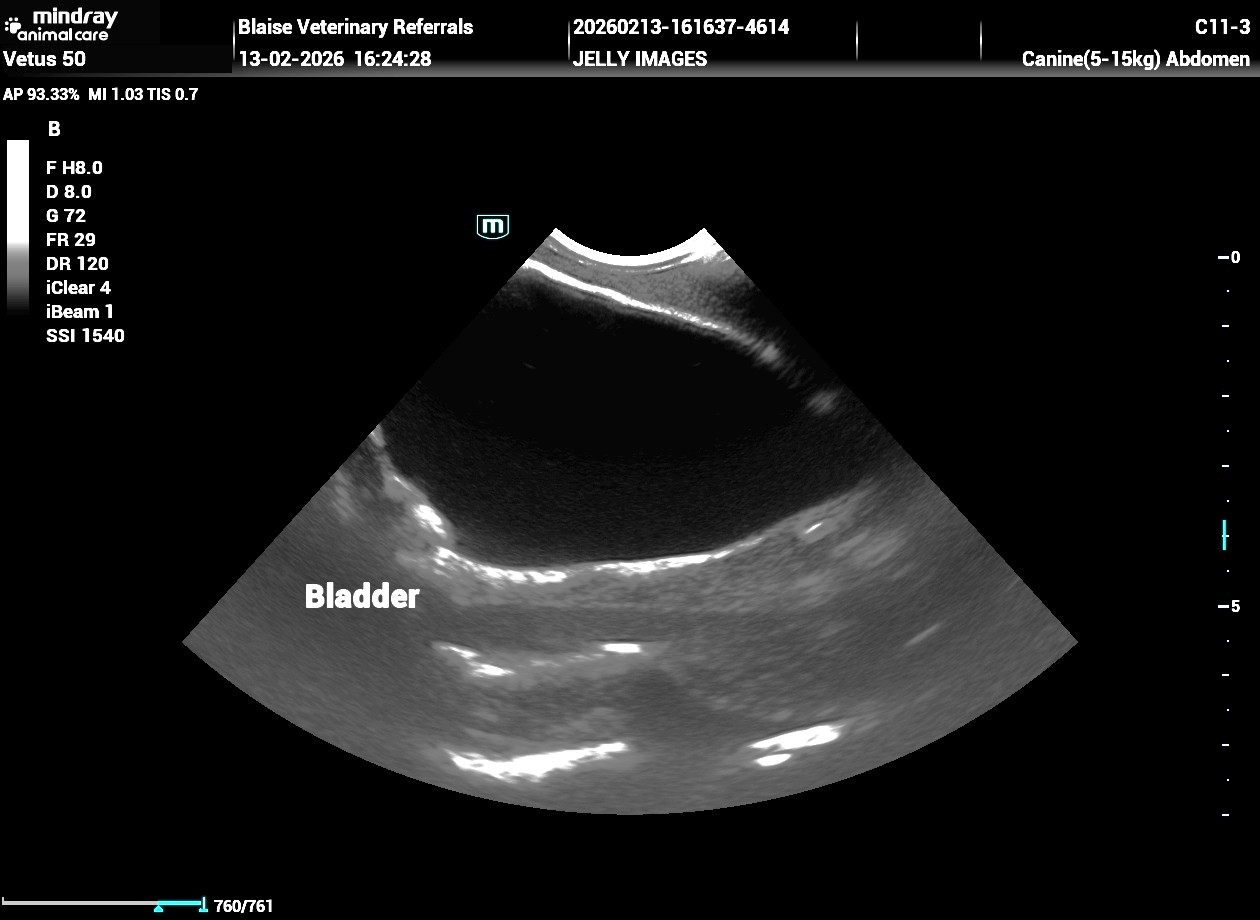

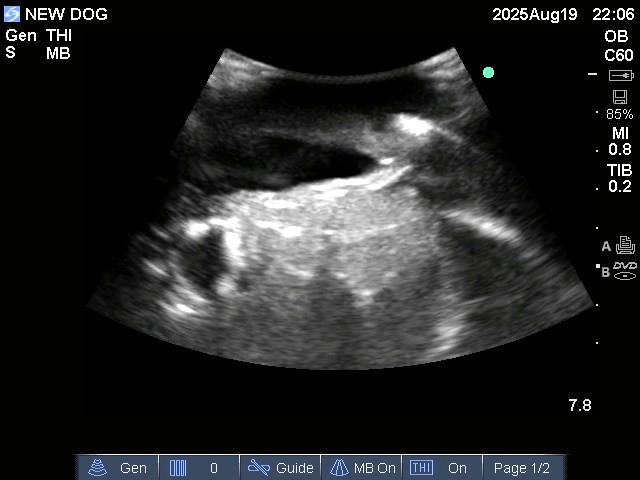

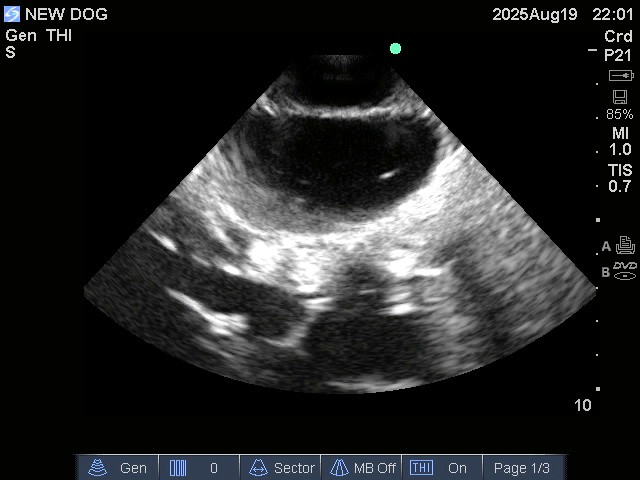

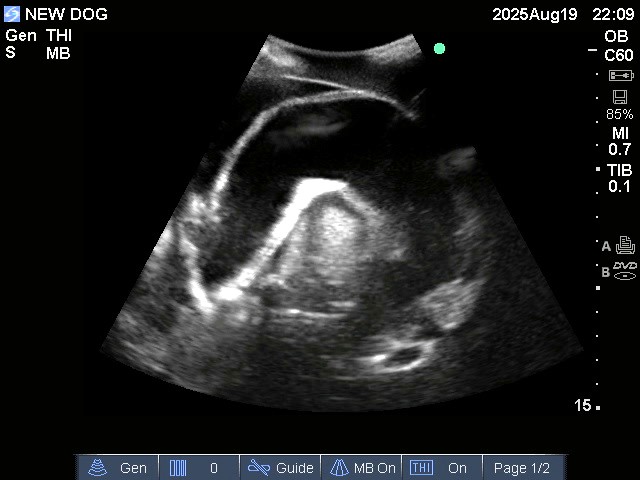

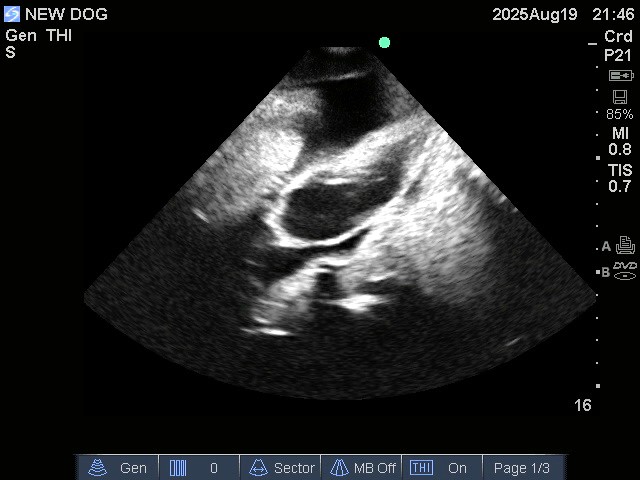

Ultrasound Scans
- Valves
- Large Intestine
- Small Intestine
- Adult Canine Head
- Chambers
- Caecum
- Rectum
- 3D-Printed Skull
- Major Heart Vessels-
- Pancreas with Vessels
- 3D-Printed Jaw Bone
- IVC,SVC, Aorta
- Bladder
- Ureter
- 3D-Printed Tailbone
- Lungs
- Penis
- Urethra
- Skin Mimicking Material
- Diaphragm
- Adult Canine Front Arms and
- Rear legs
- 3D-Printed Complete Spine
- Stomach
- 3D-Printed Complete Ribcage Liver with vessels
- 3D-Printed Shoulder (Scapula Gallbladder
- bones)
- Kidney with Vessels and Ar-
- Realistic Heart with Internal
- teries
- structures
- Spleen with Vessels
| Phantom Size | 110cm x 20cm x 20cm |
| Phantom Weight | 35 Lbs (approx.) |
| Shipment Size | 120cm x 42cm x 24cm |
| Shipment Weight | 65 Lbs (approx.) |
| View | Thickness (cm) | kV | mAs | Time (s) |
|---|---|---|---|---|
| Lateral | 15 | 82 | 300 | 1/30 |
| VD | 19 | 86 | 300 | 1/30 |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Vena Cava | 40 |
| 4 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 5 | Pancreas | 110 |
| 6 | Spleen | 110 |
| 7 | Kidneys | 110 |
| 8 | Bladder | 35 |
| 9 | Rectum Wall | 100 |
| 10 | Sigmoid Colon Wall | 100 |
| 11 | Heart | 40 |
| 12 | Liver | 110 |
| 13 | Gallbladder | 35 |
| Appearance | Amber Translucent, Skin |
| Model | X-Ray CT, US, MRI, US |
