Canine Phantom for X-Ray CT, US, MRI
$27,700 USD

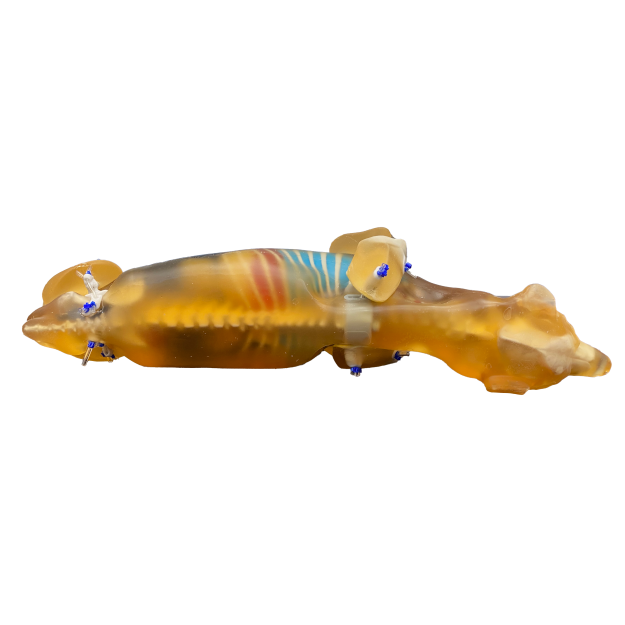

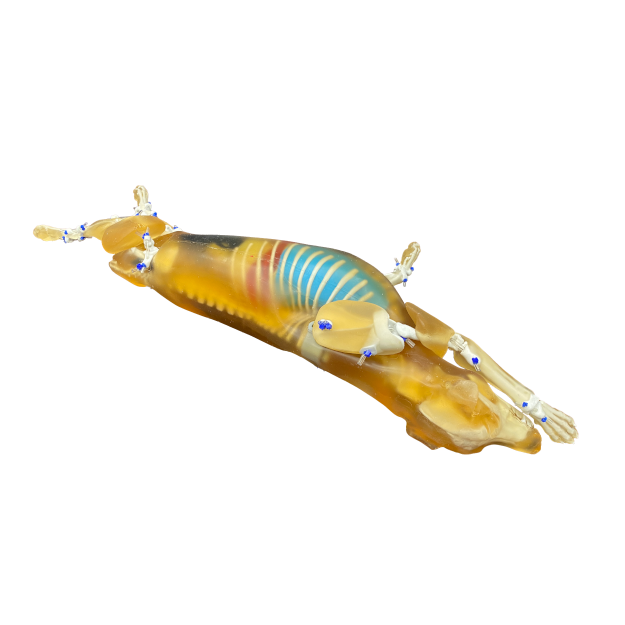

The Canine Phantom was thoughtfully designed to meet the real-world needs of veterinary education and hands-on clinical training. It is a major step forward from the previous model, featuring improved articulating joints for x-ray positioning practice. Its anatomical design is based on a CT dataset of a male Bull Mastiff–Rhodesian Ridgeback cross, ensuring anatomical authenticity. With the help of cutting-edge AI, the model was refined using advanced algorithms that precisely extracted and replicated intricate anatomical structures with exceptional accuracy.
Canine Phantom Model: Standard (X-Ray·CT·US·MRI)
Standard (X-Ray·CT·US·MRI)
Standard (US)

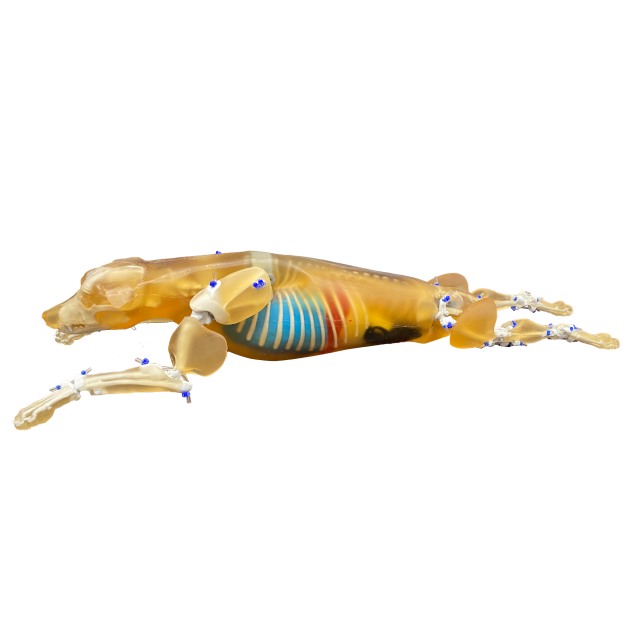

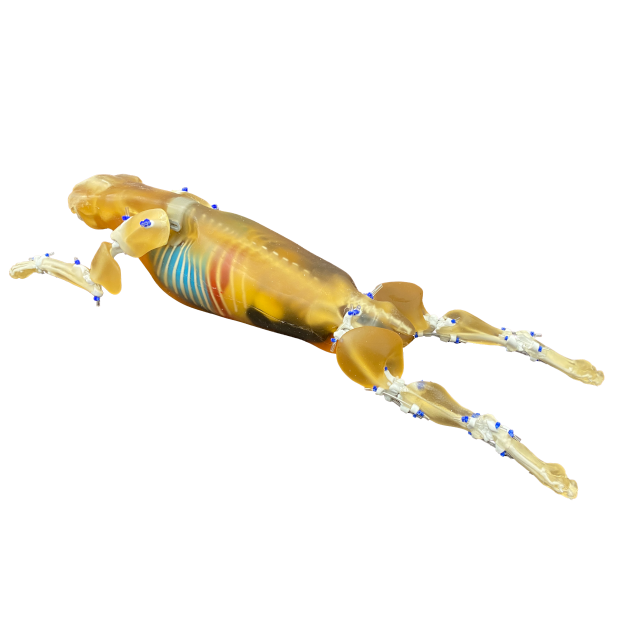

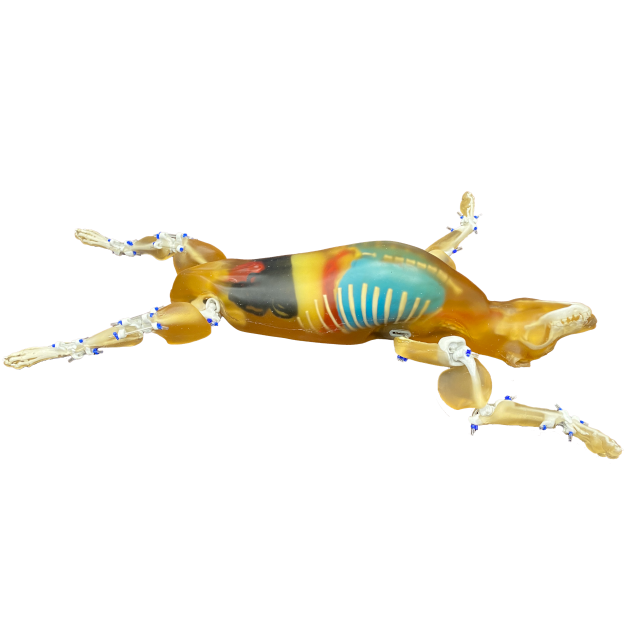

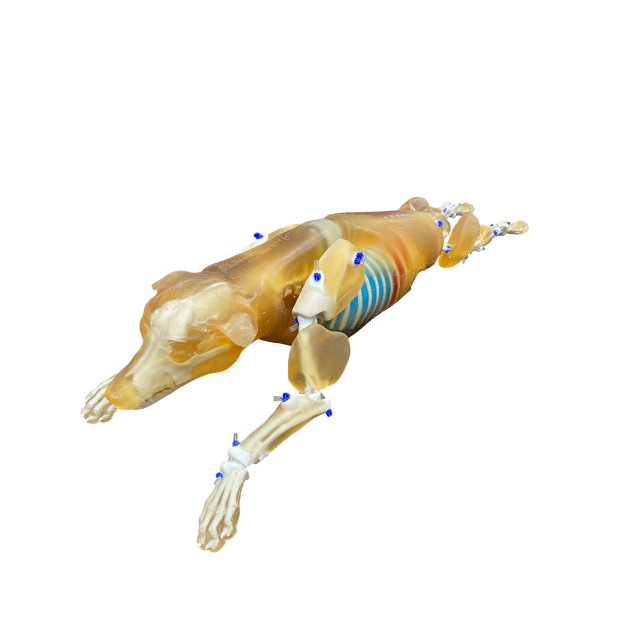

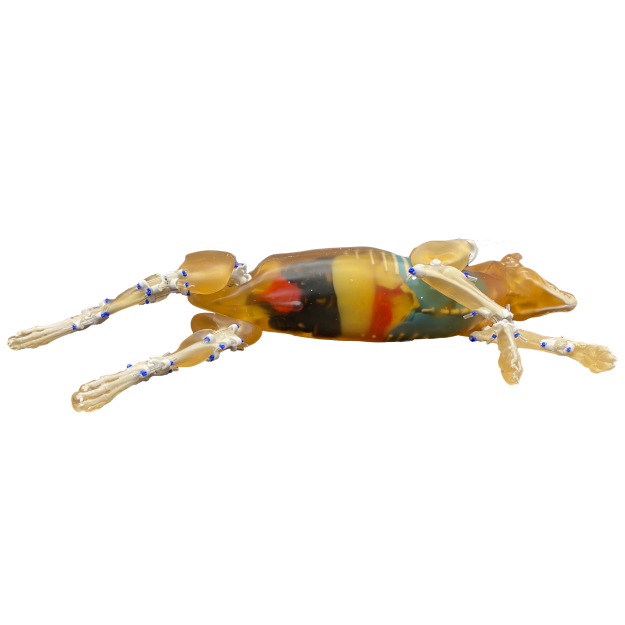

Appearance: Amber Translucent
This product can be customized based on your requirements — contact us.
The Canine Phantom was thoughtfully designed to meet the real-world needs of veterinary education and hands-on clinical training. It is a major step forward from the previous model, featuring improved articulating joints for x-ray positioning practice. Its anatomical design is based on a CT dataset of a male Bull Mastiff�Rhodesian Ridgeback cross, ensuring anatomical authenticity. .

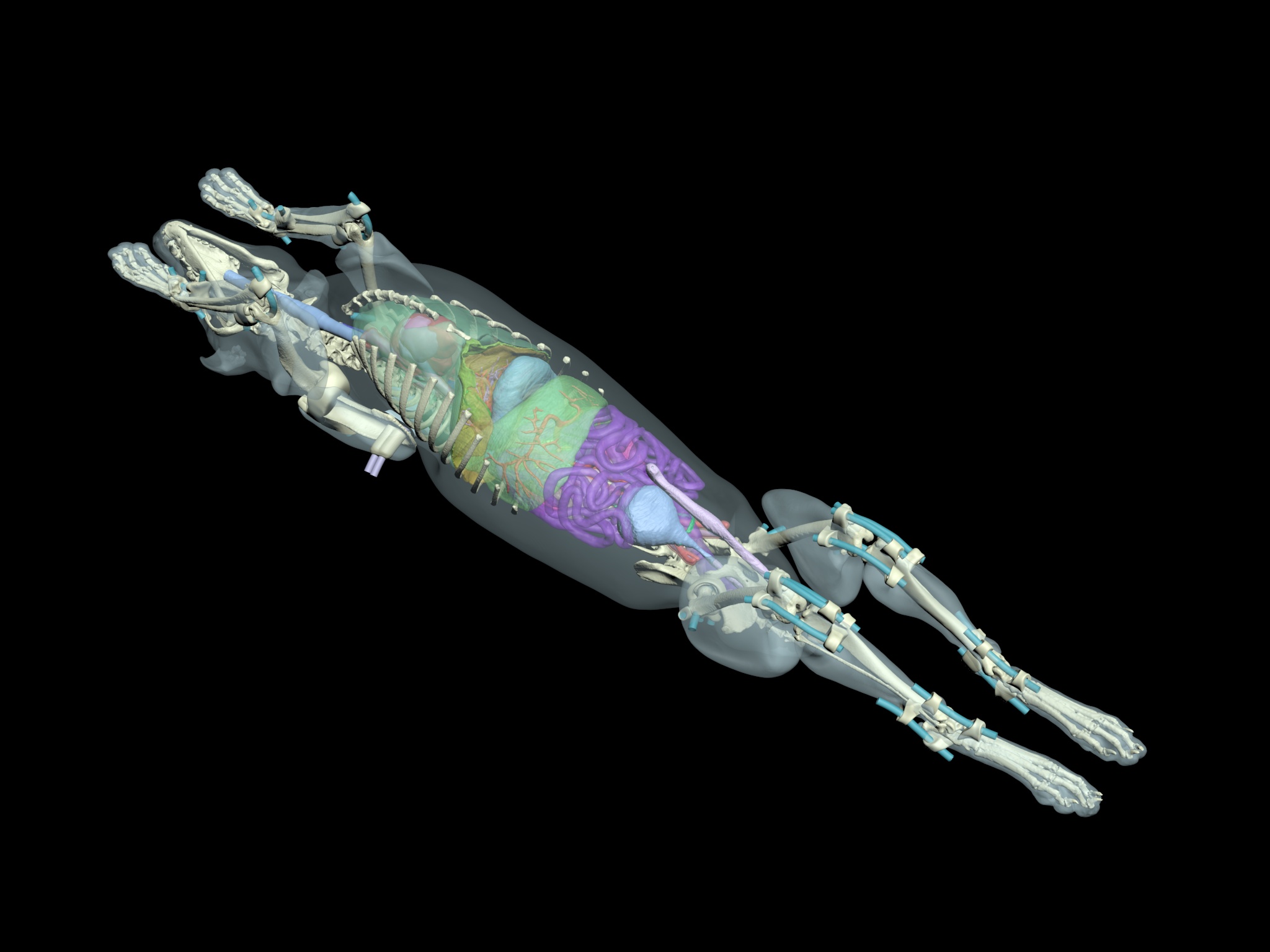

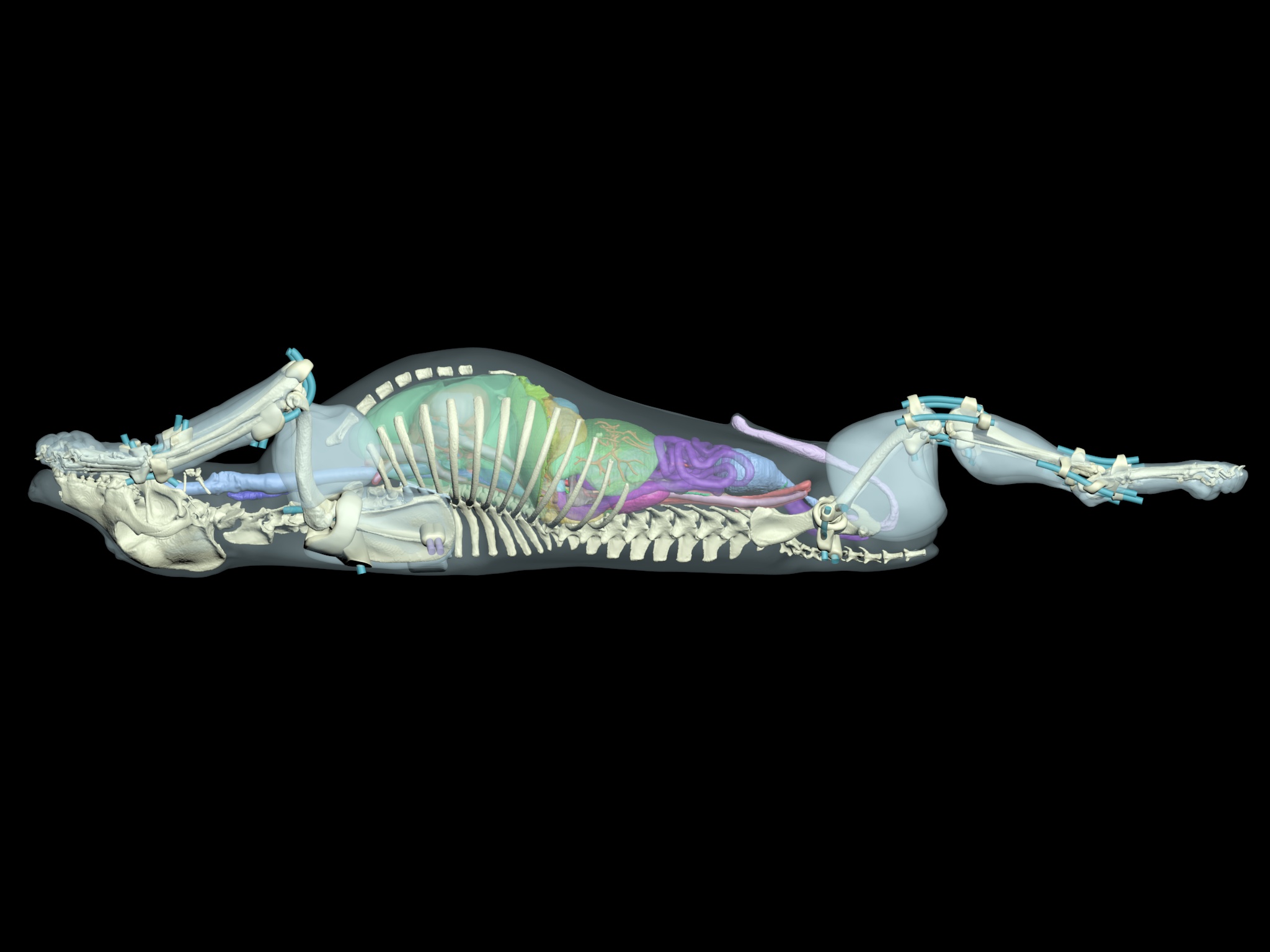

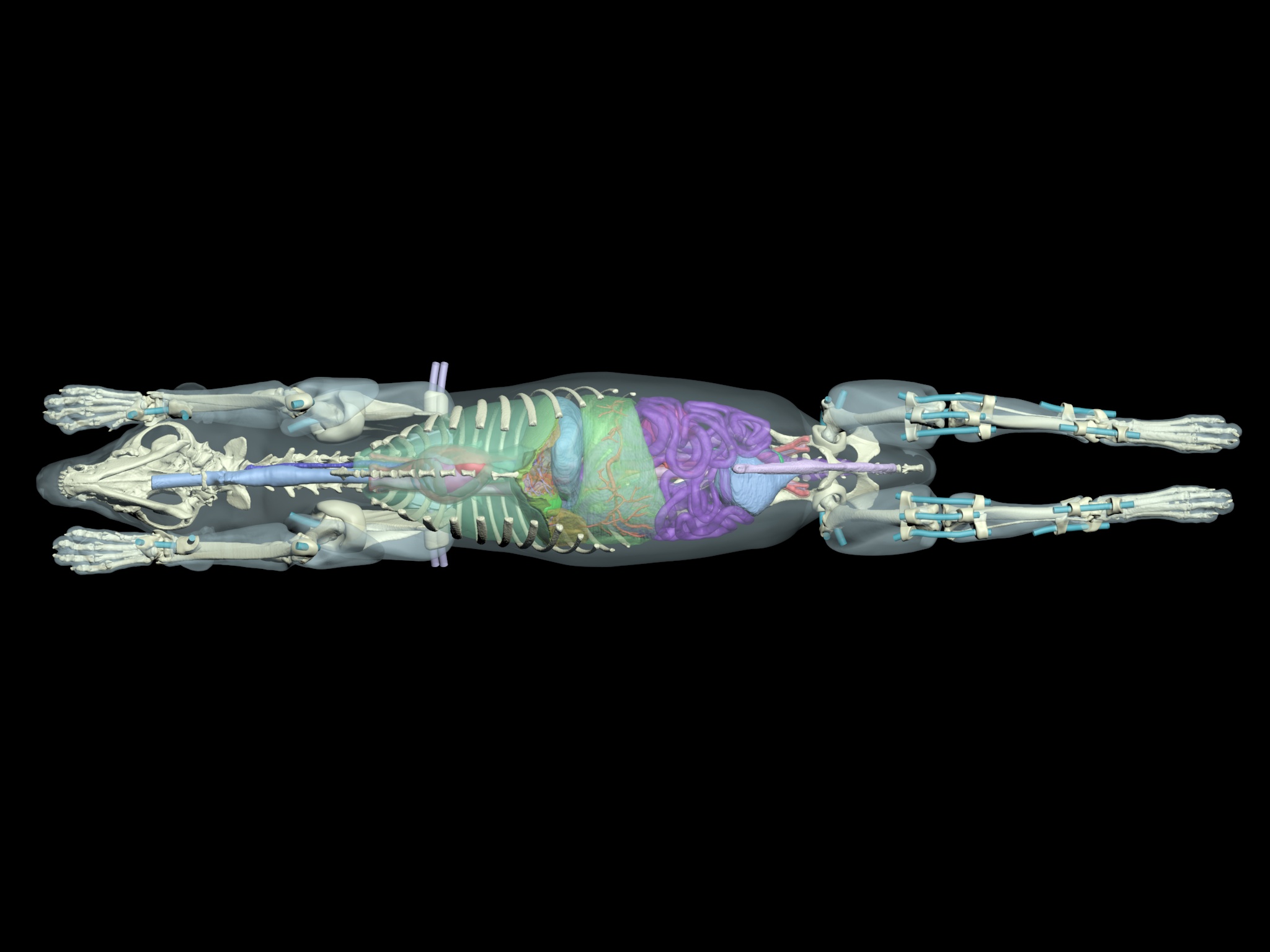

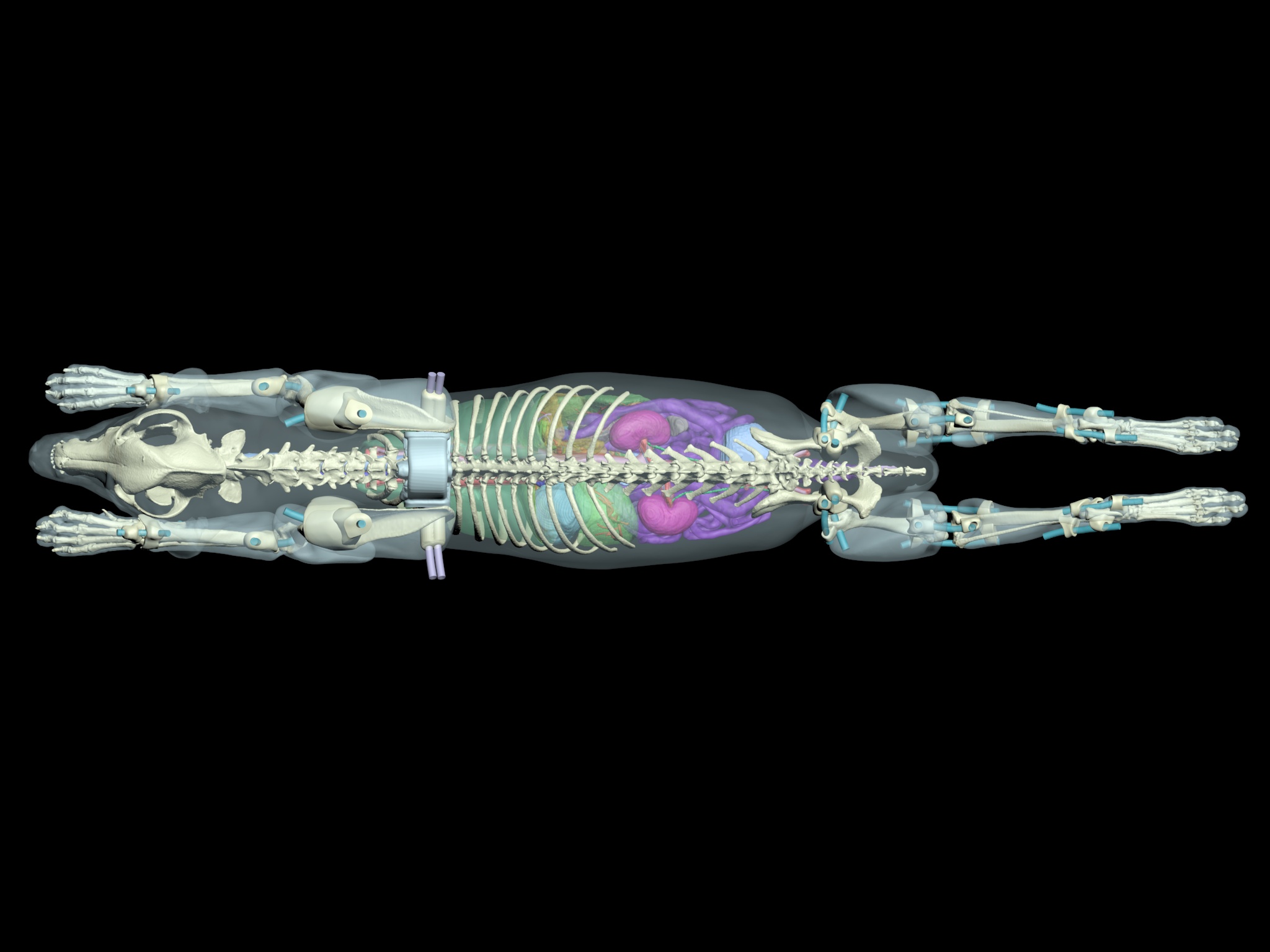

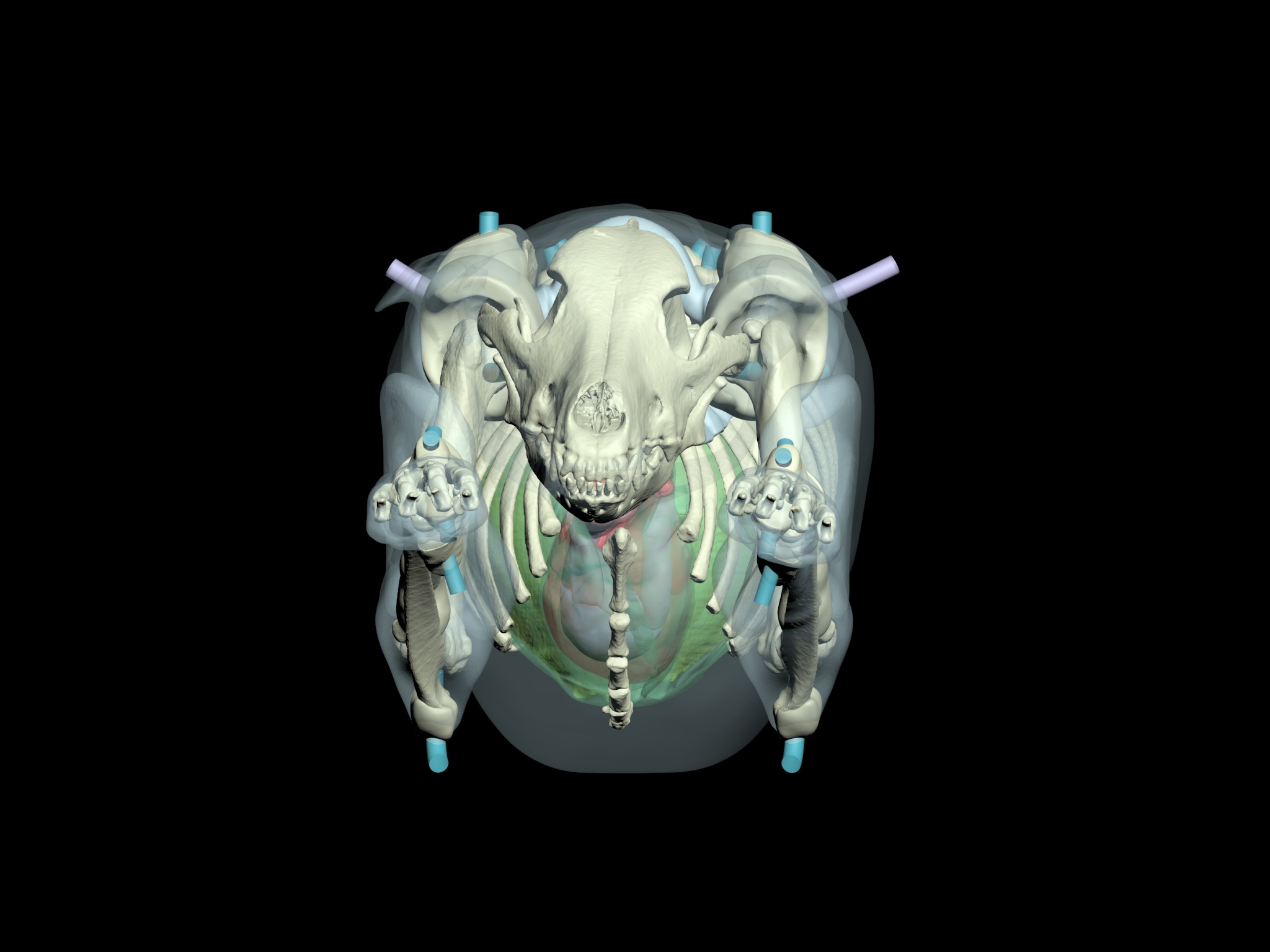

Design

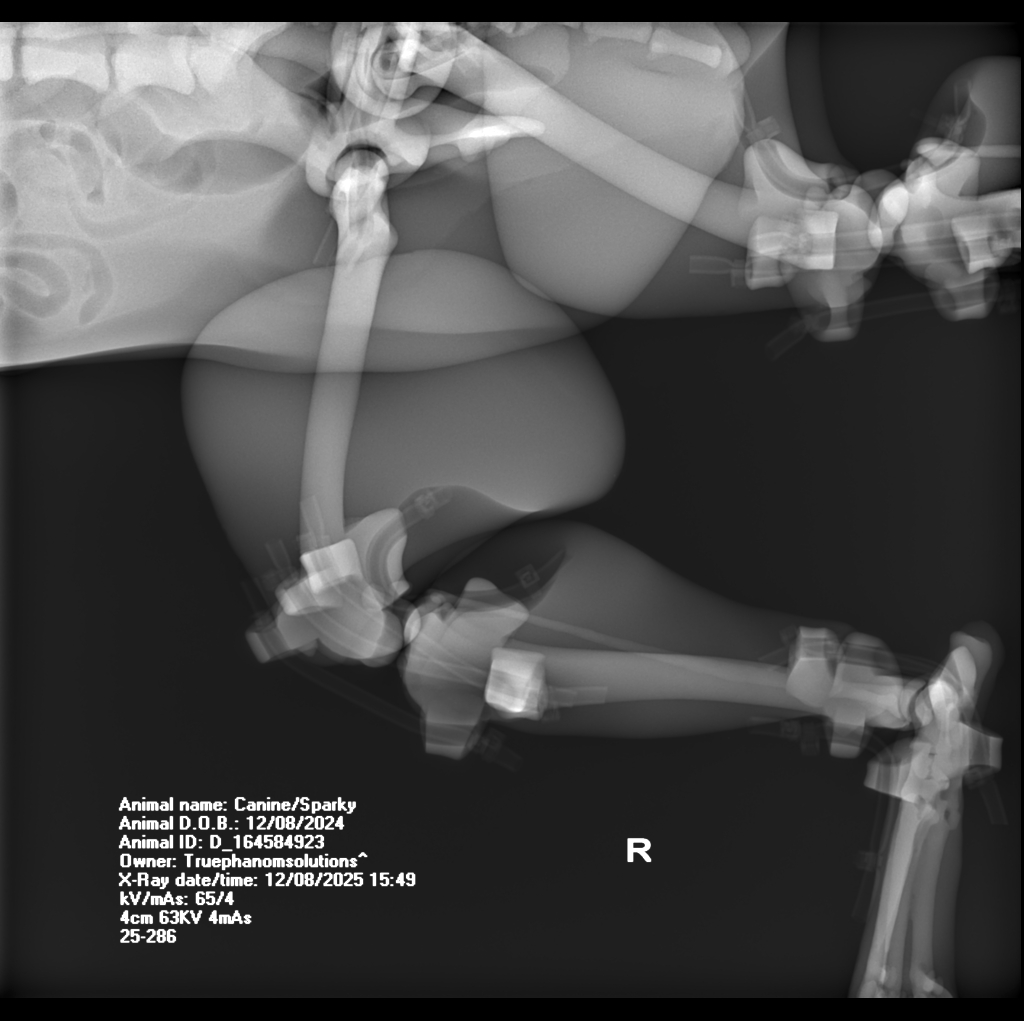

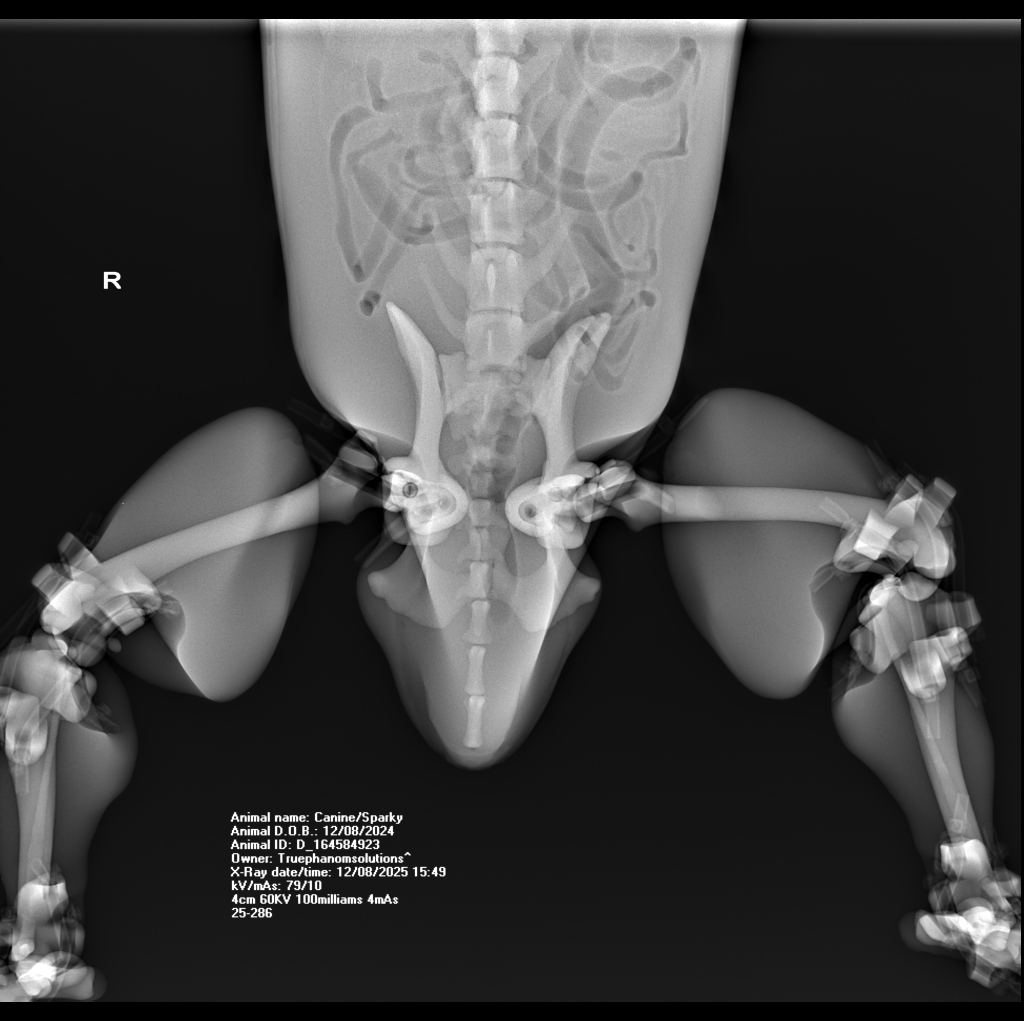

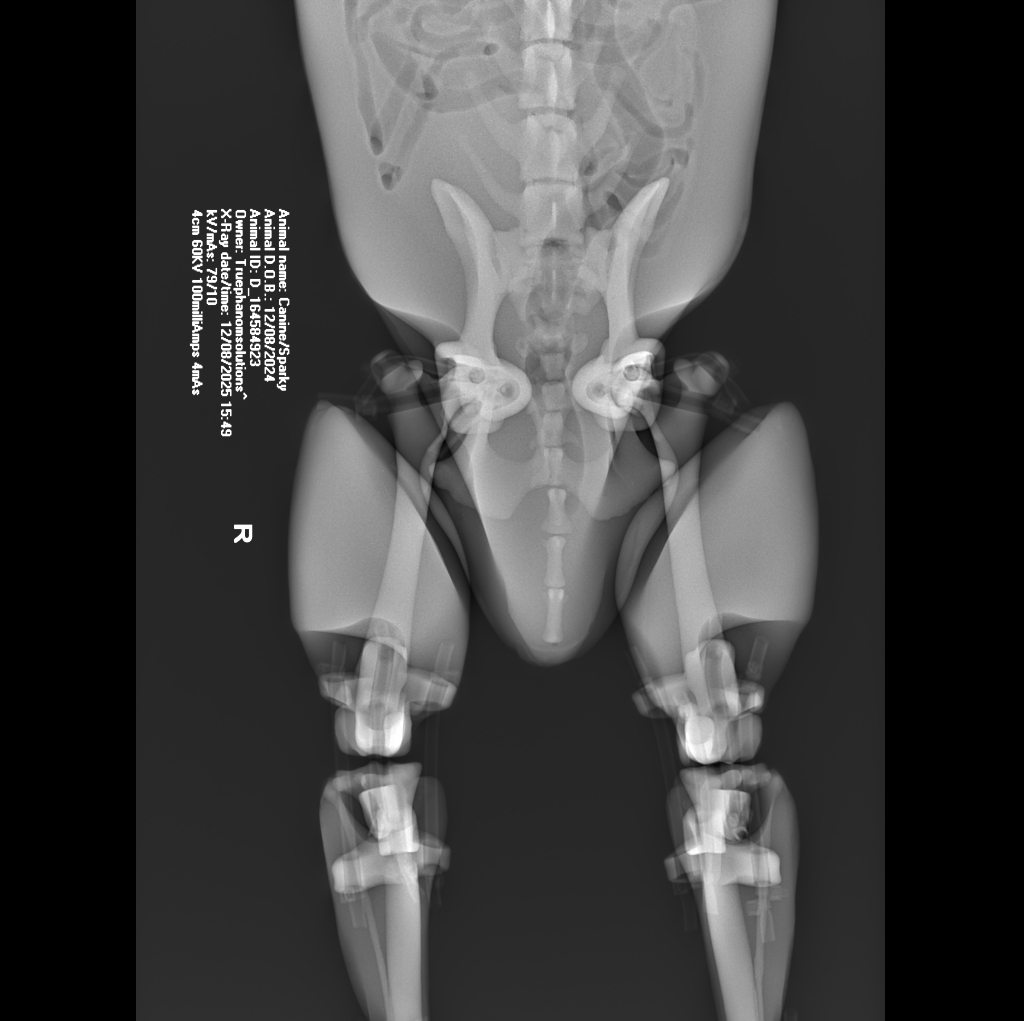

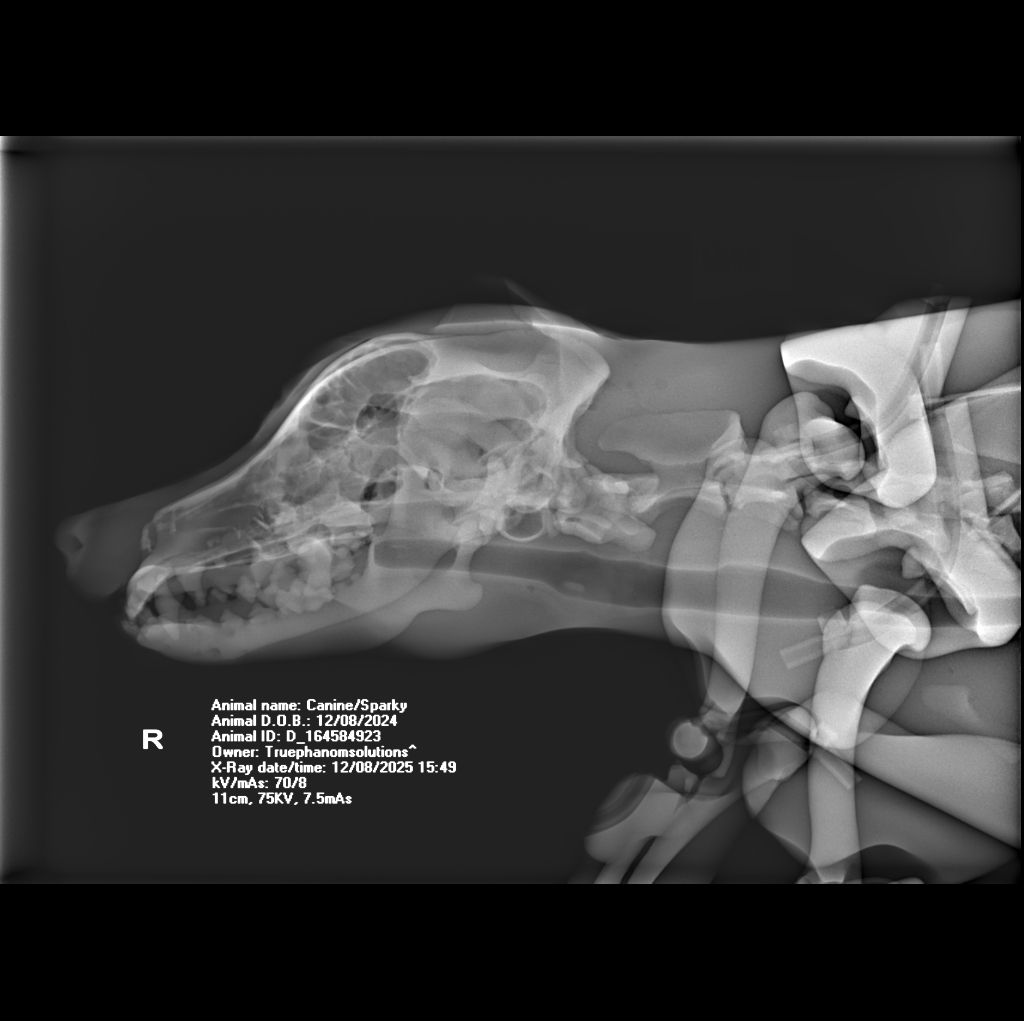

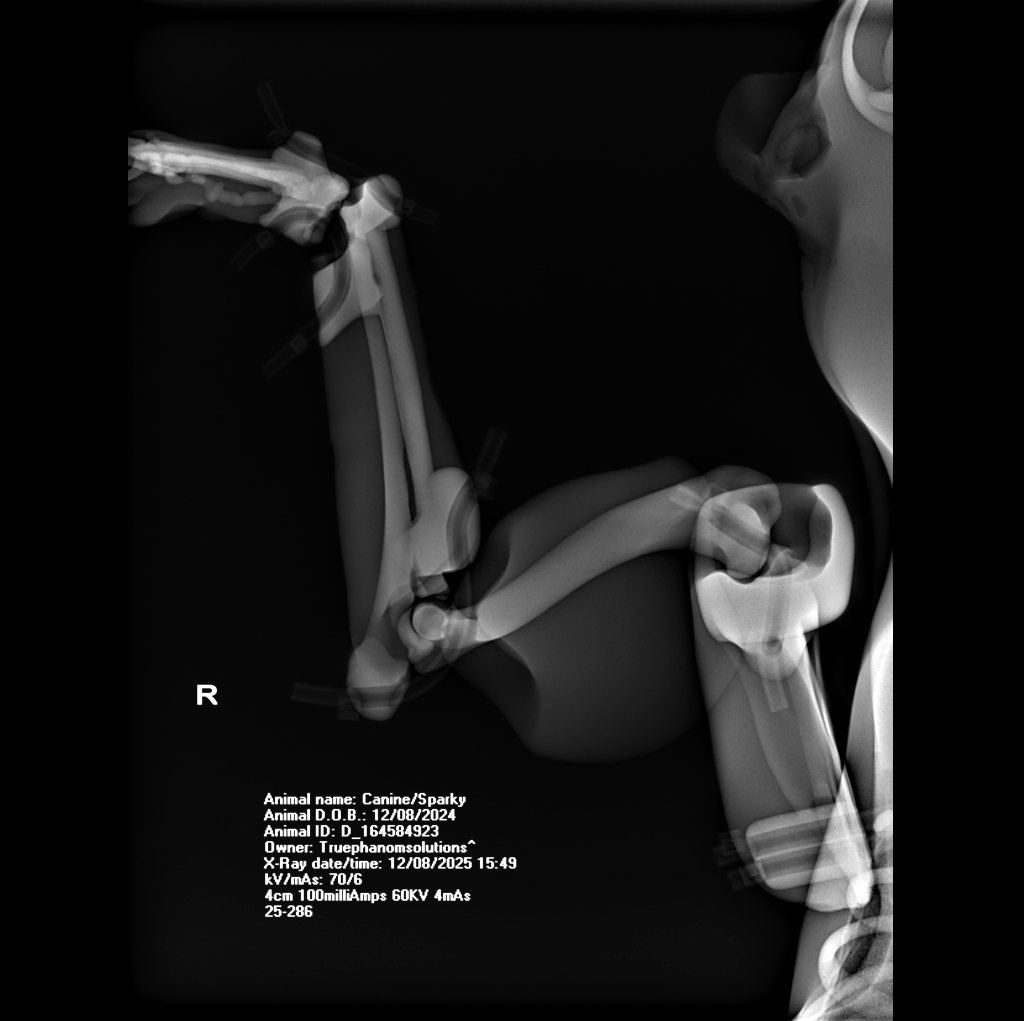

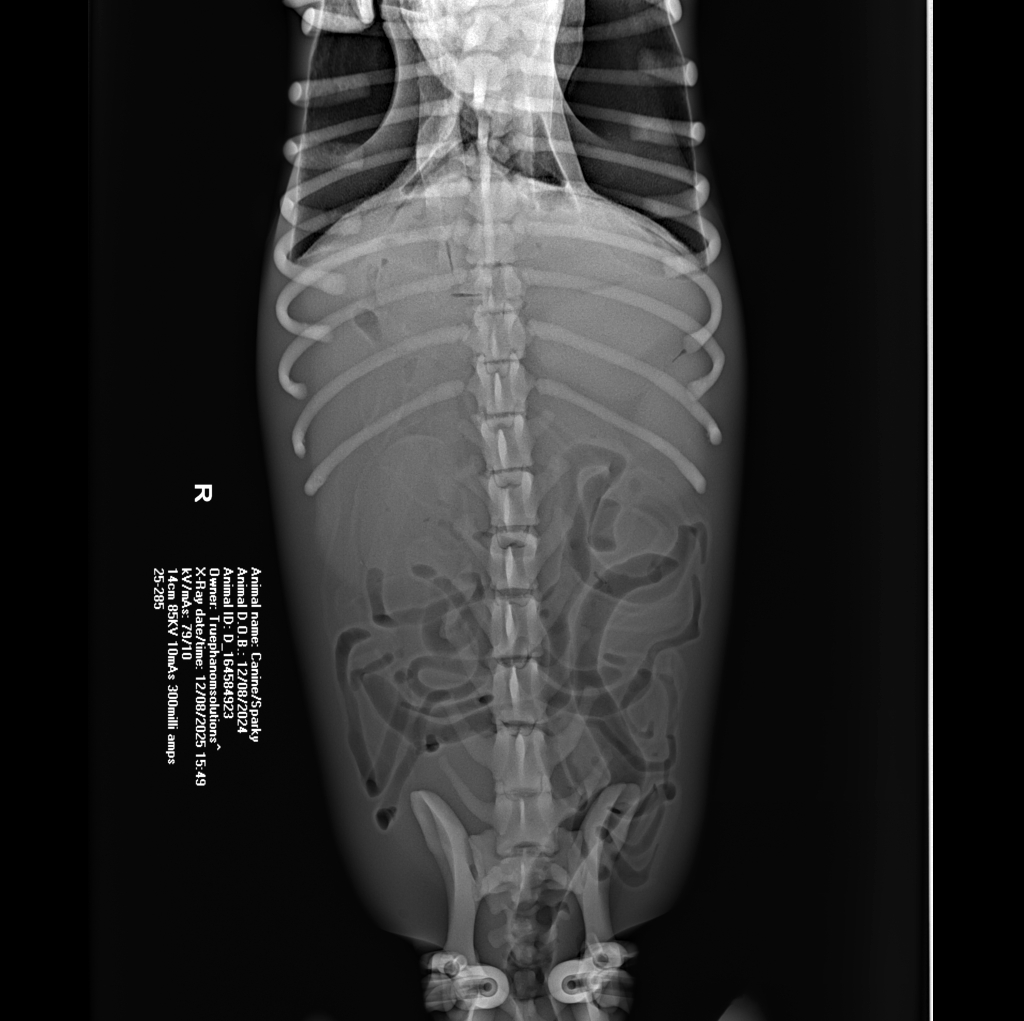

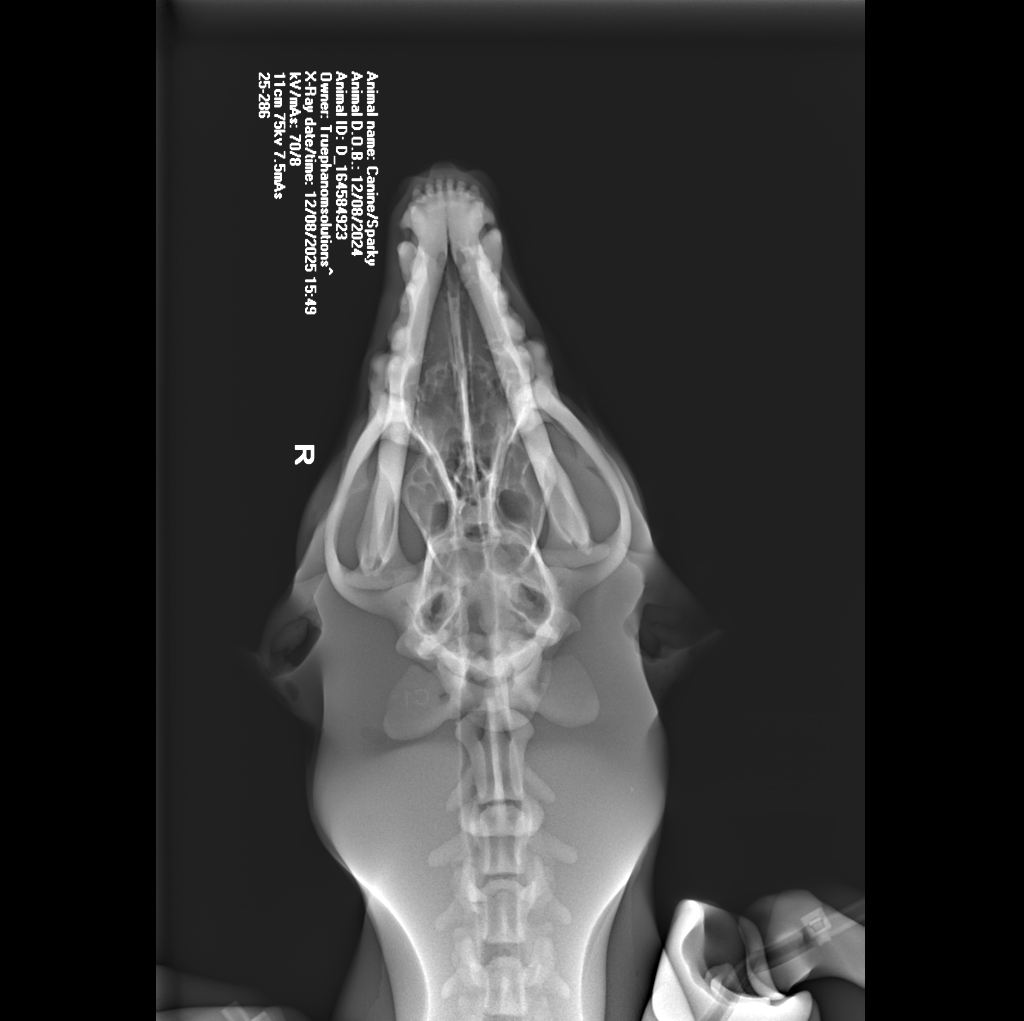

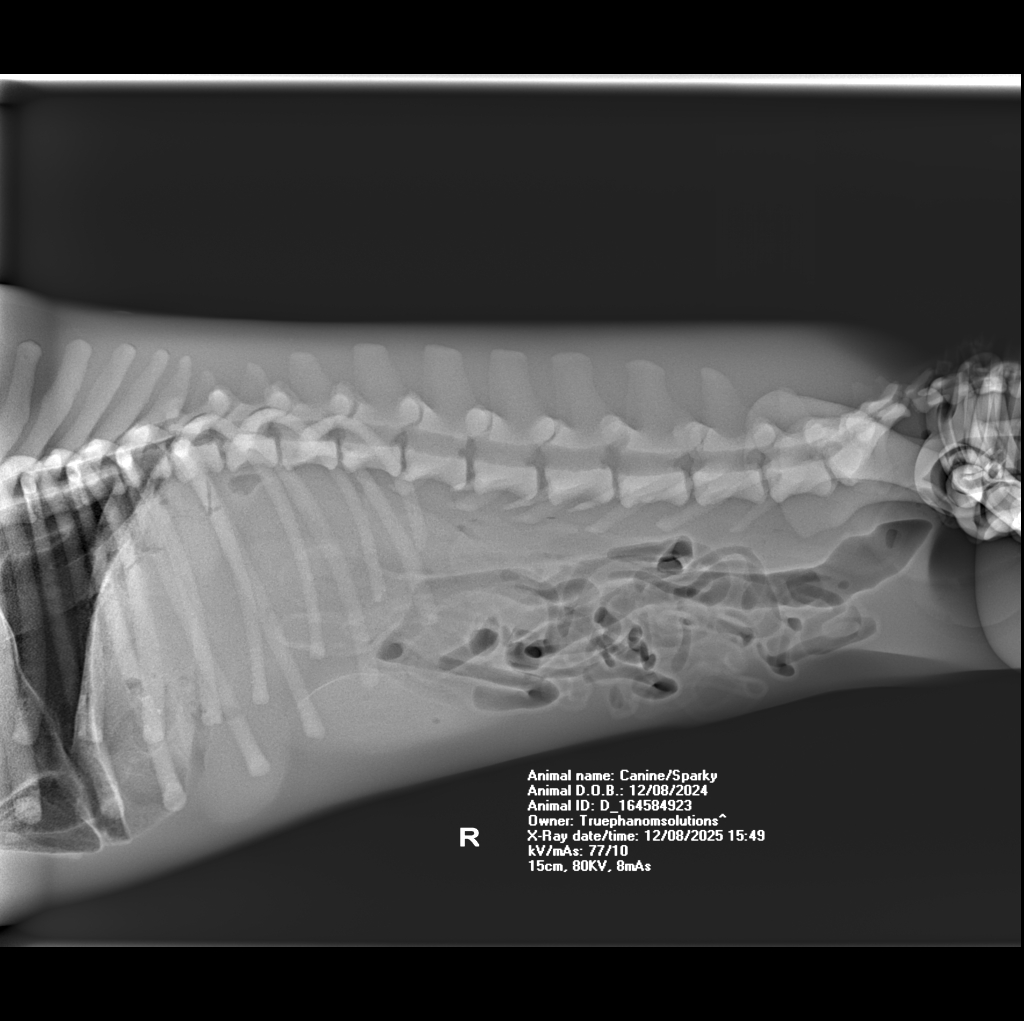

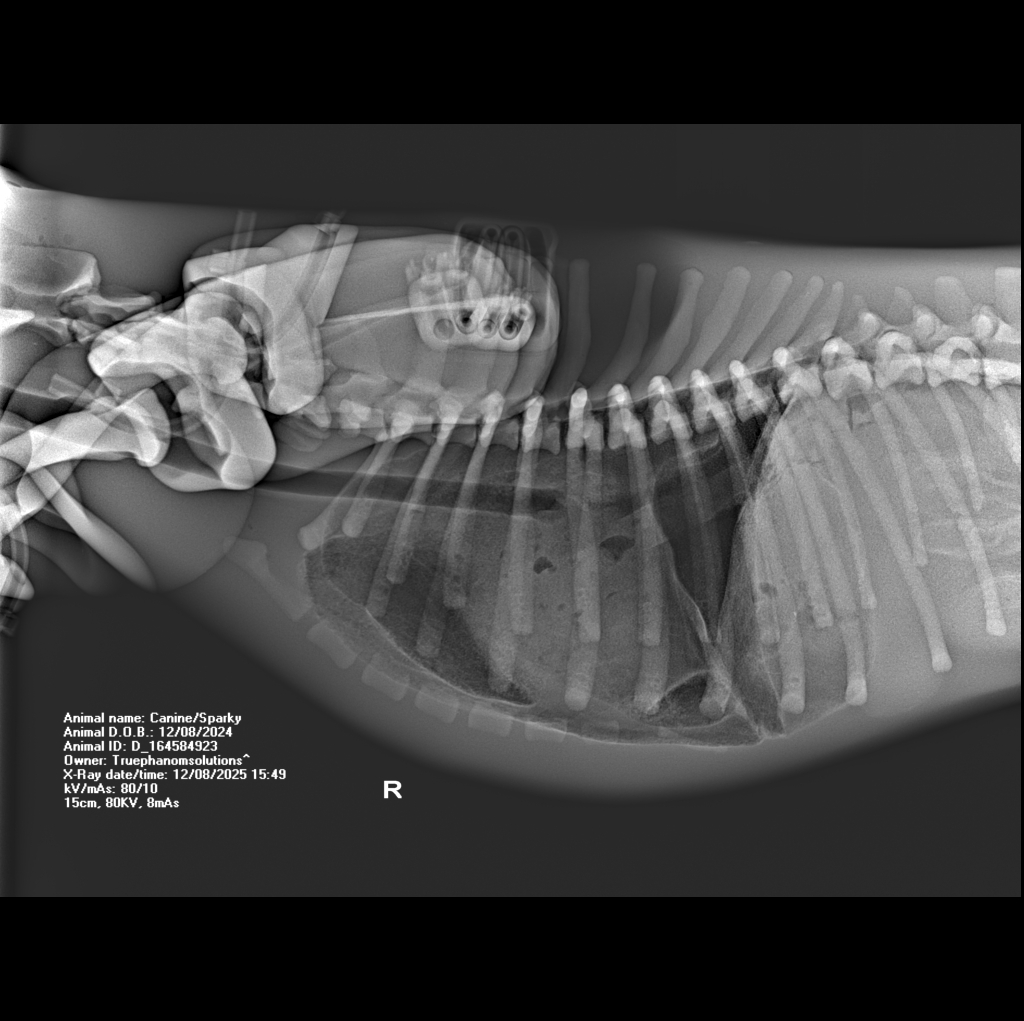

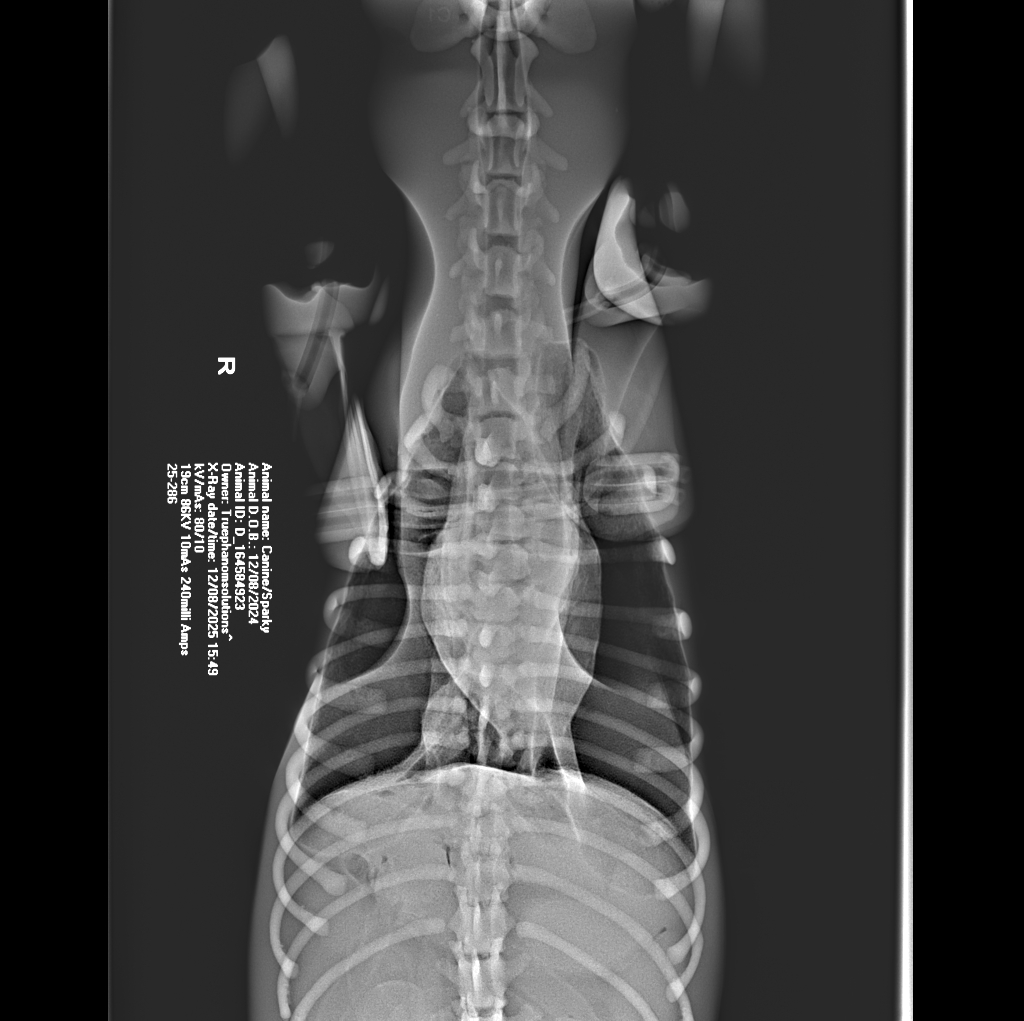

X-Ray Scans

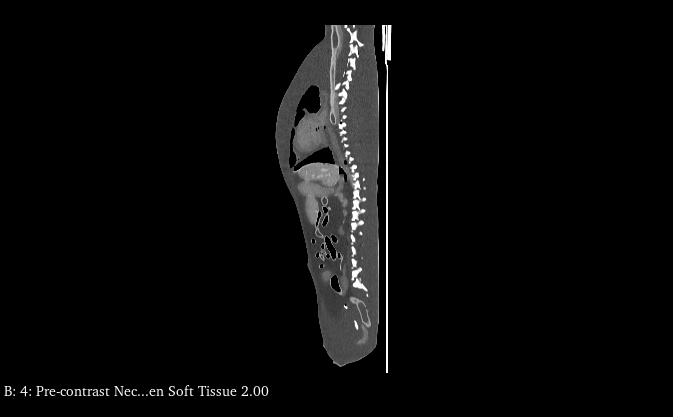

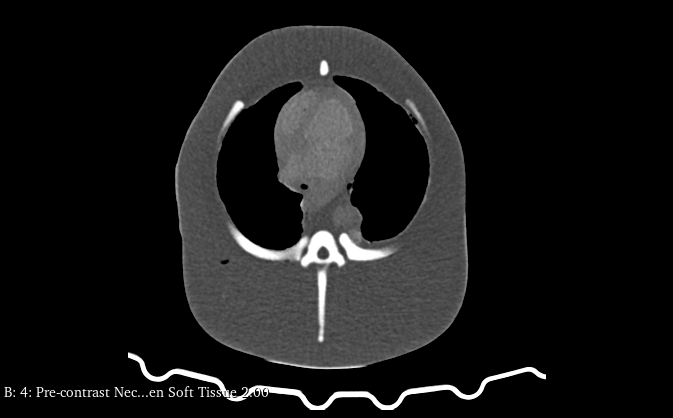

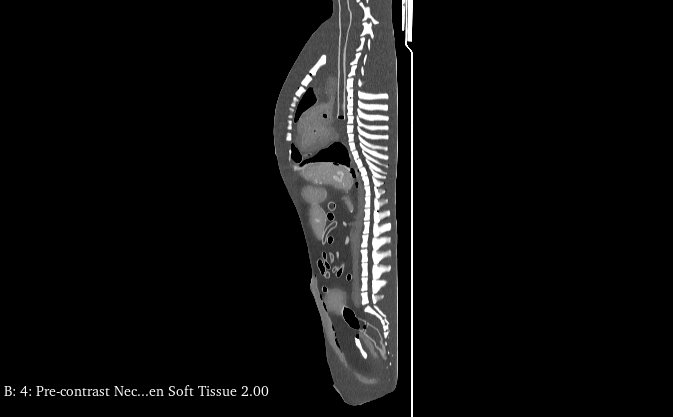

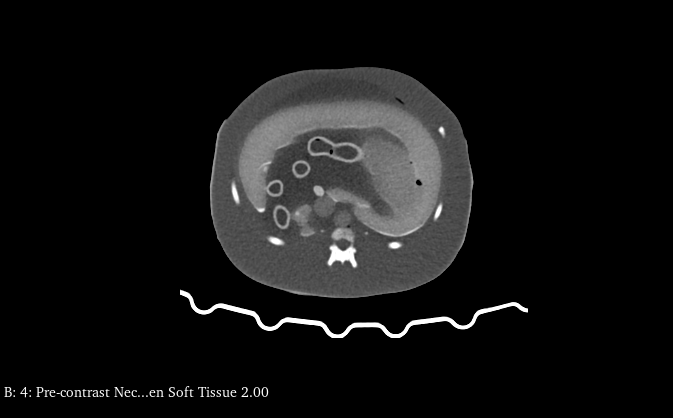

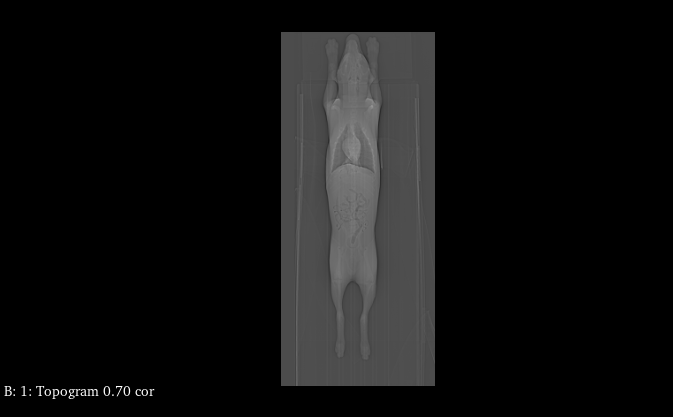

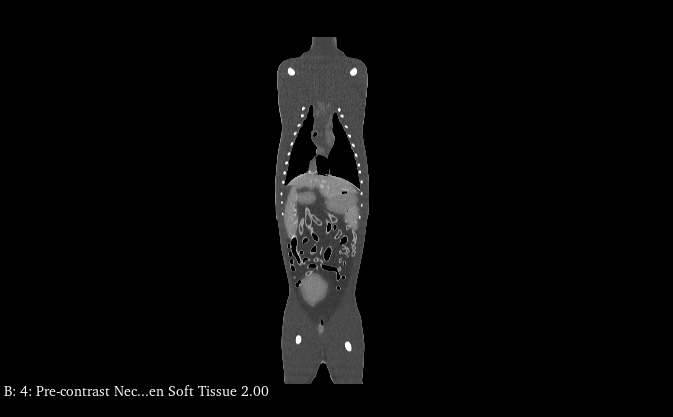

CT Scans

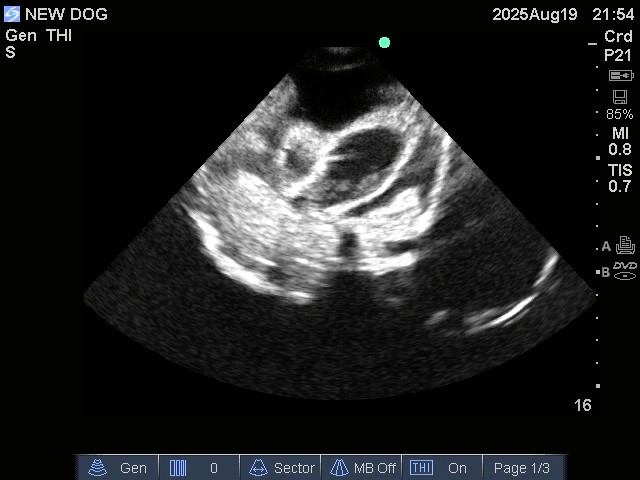

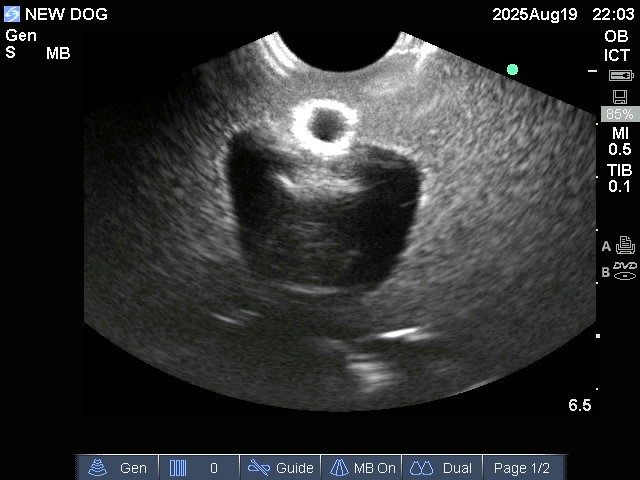

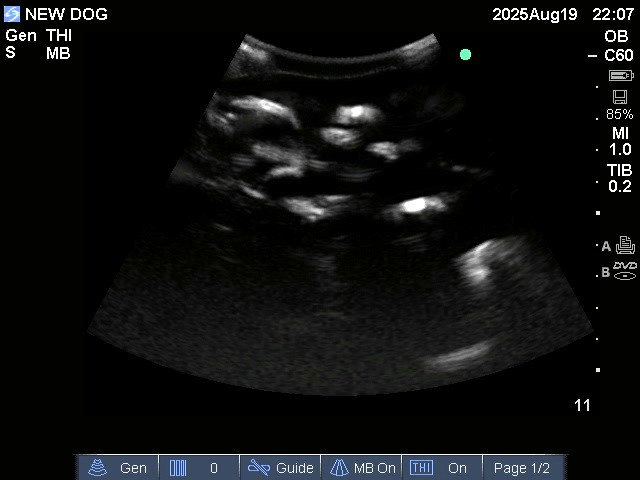

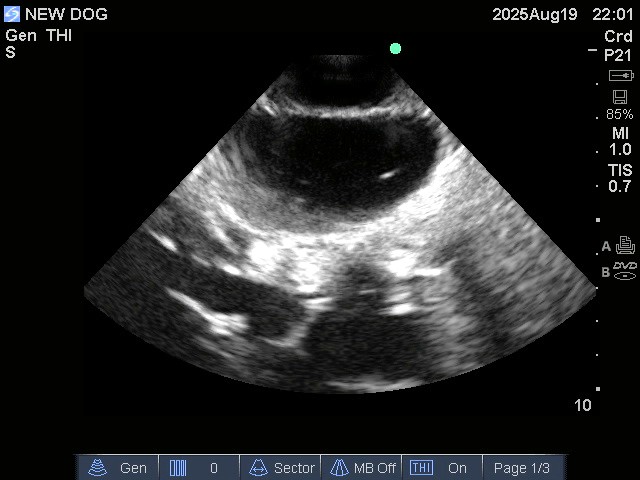

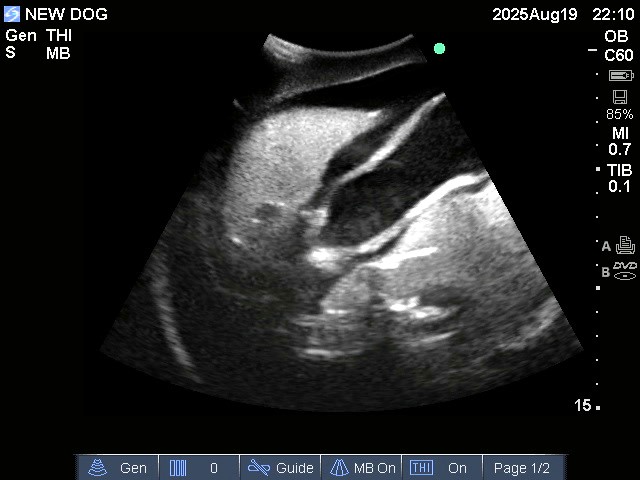

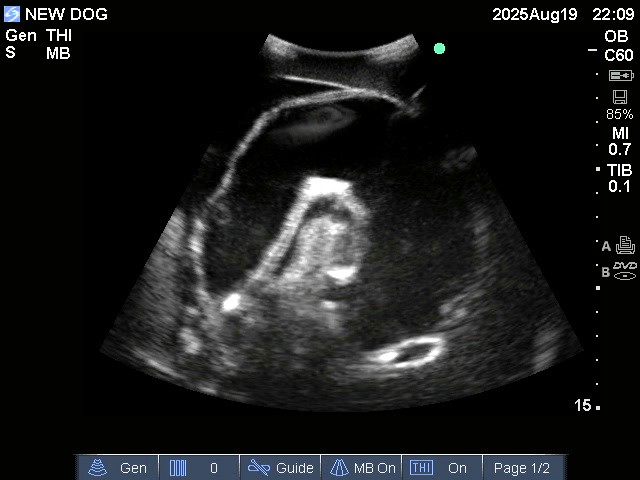

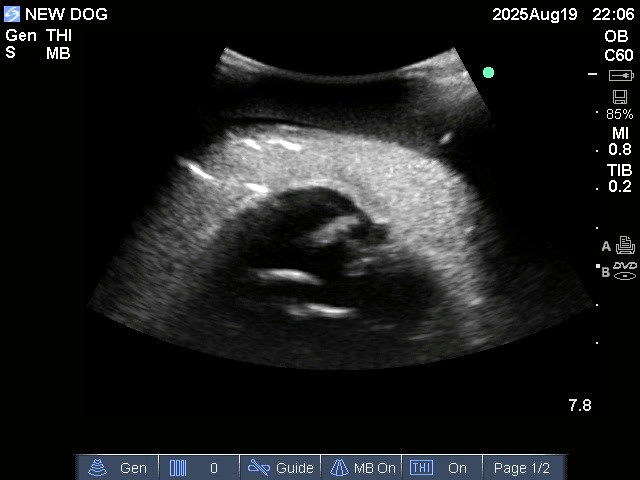

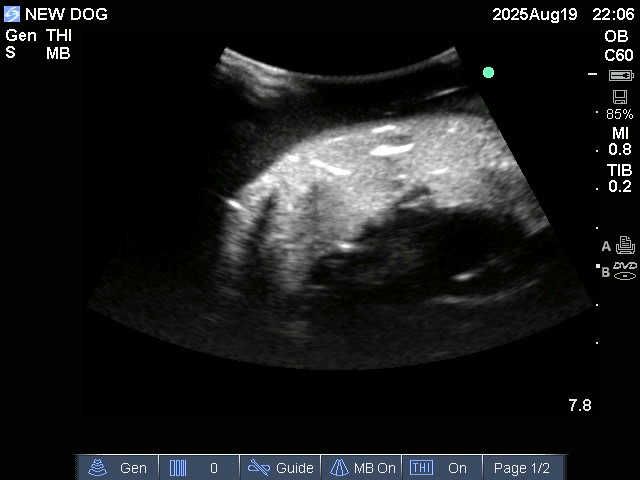

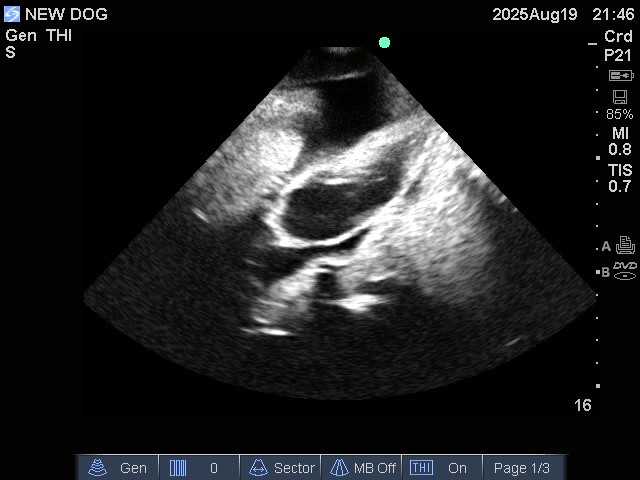

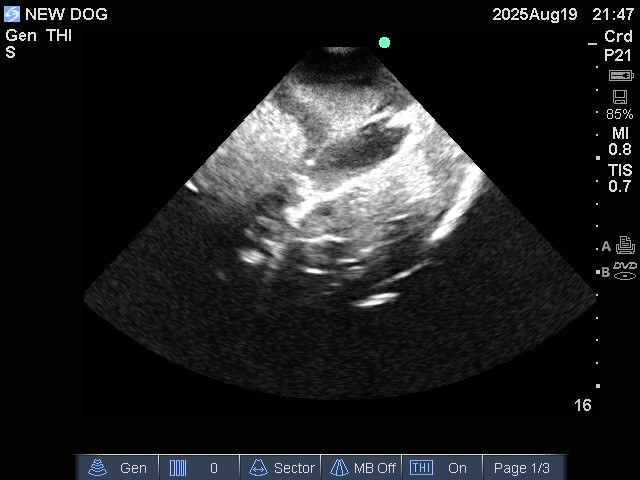

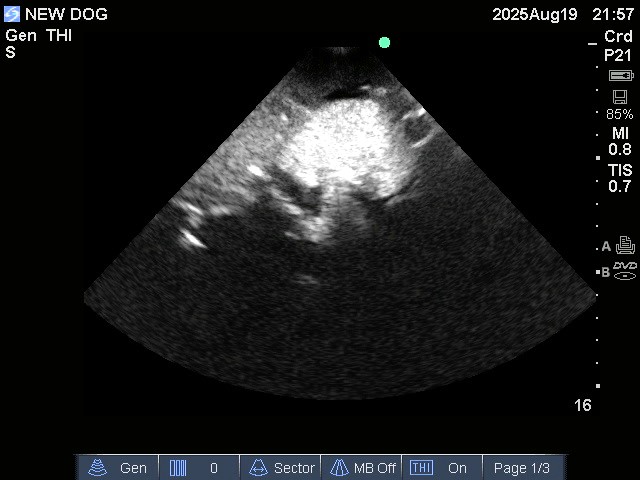

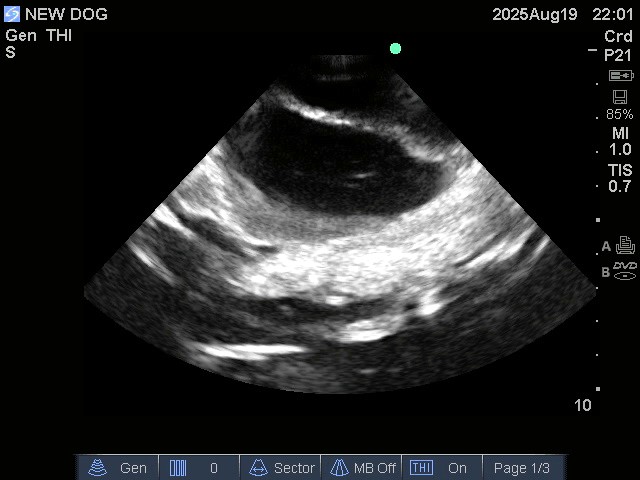

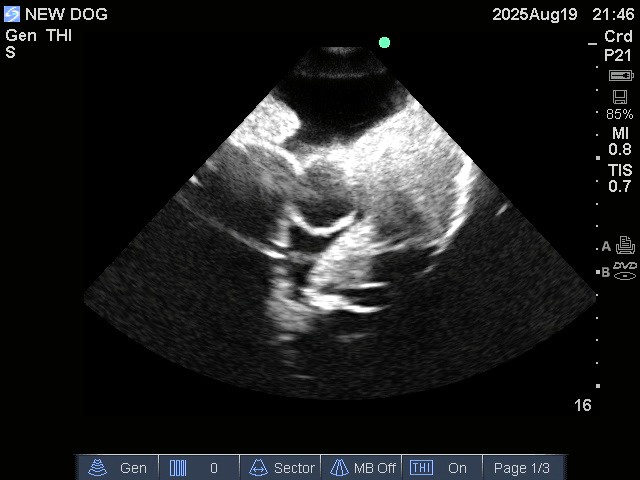

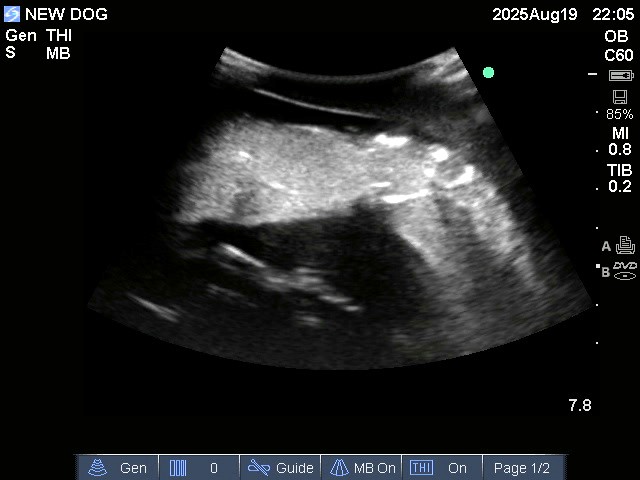

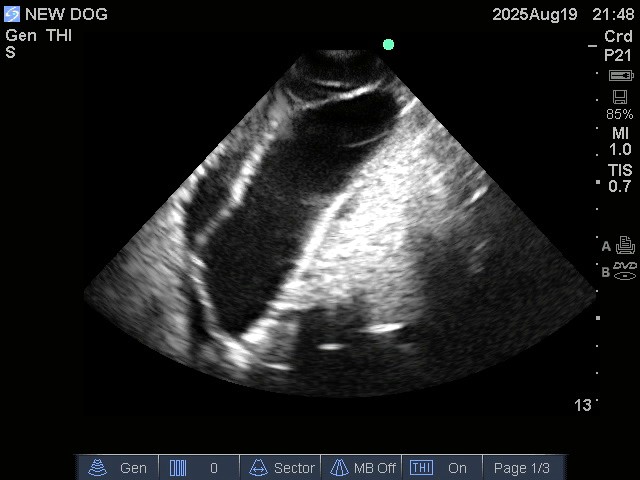

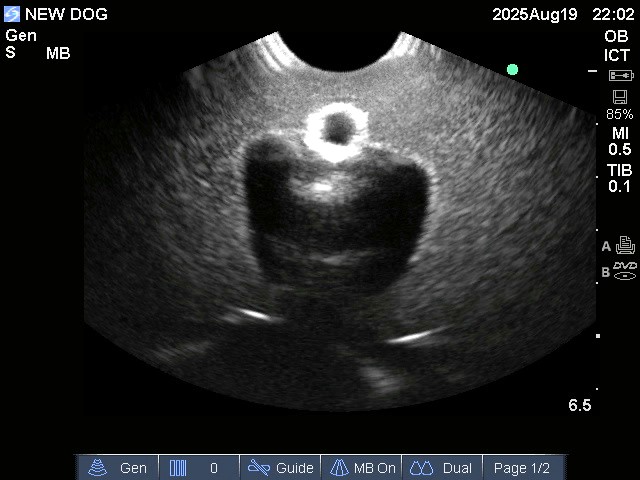

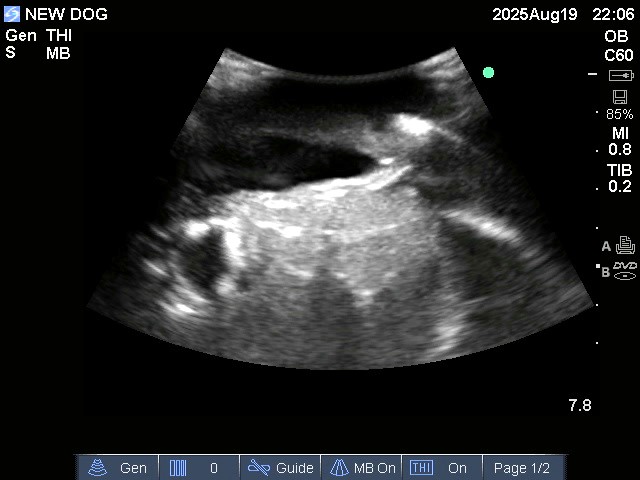

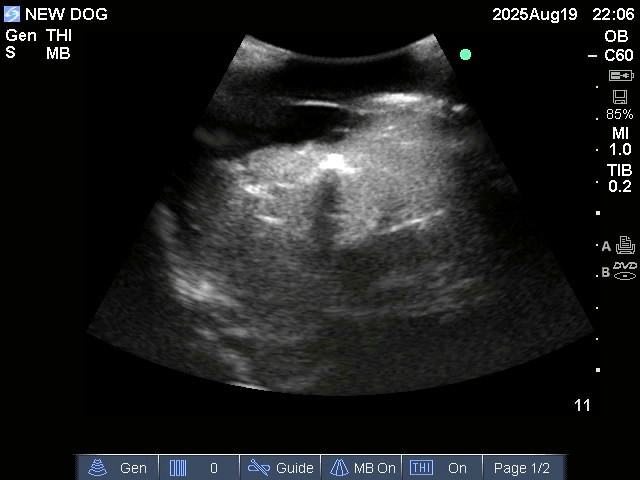

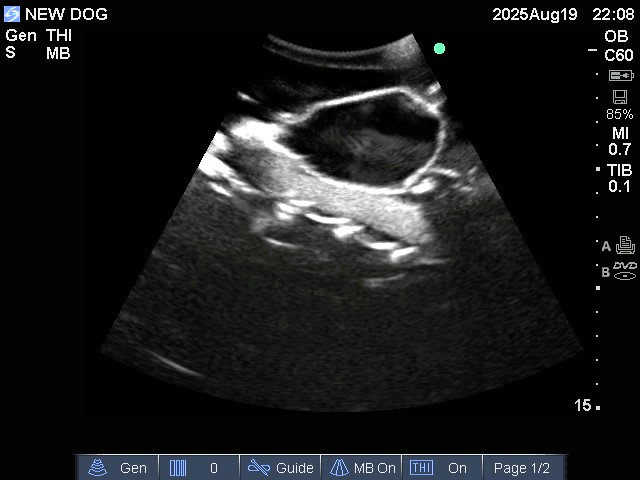

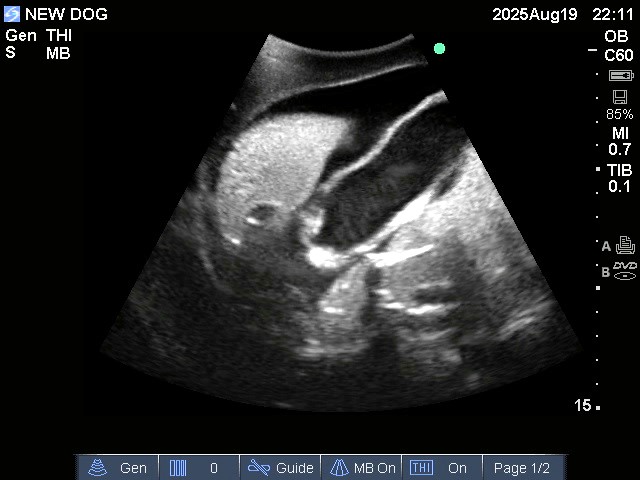

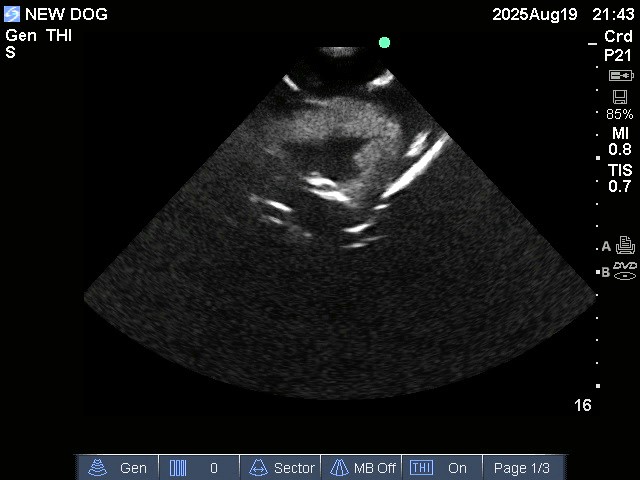

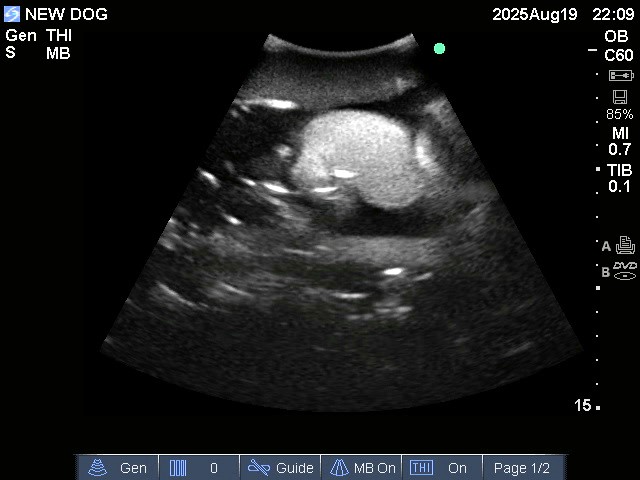

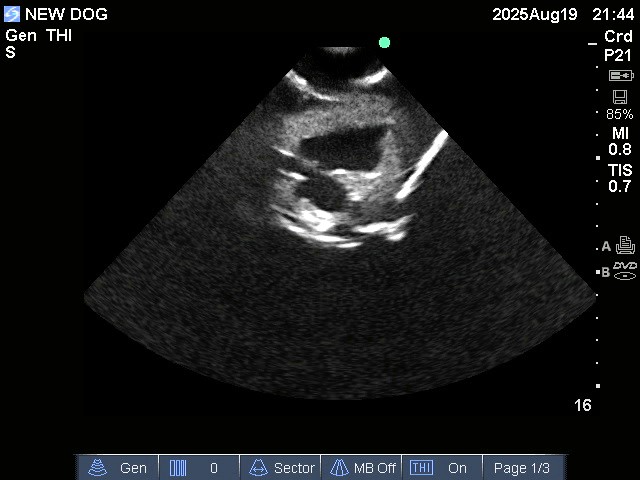

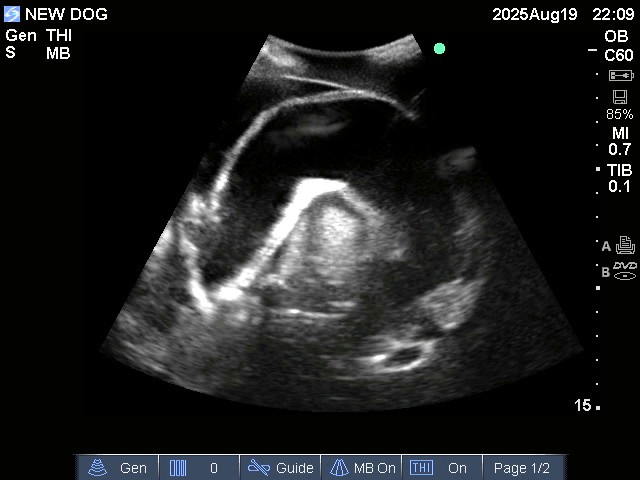

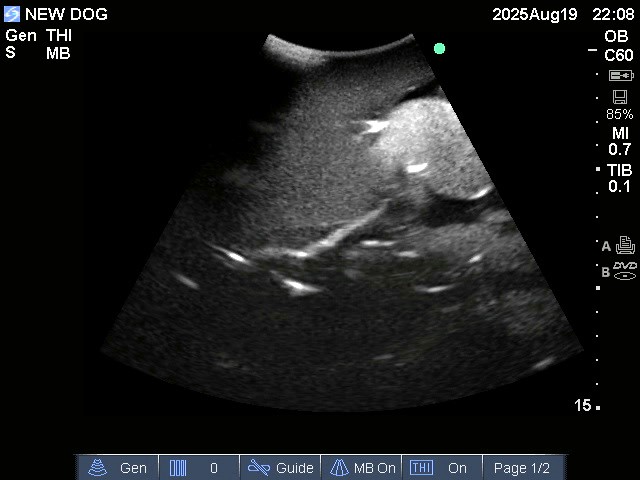

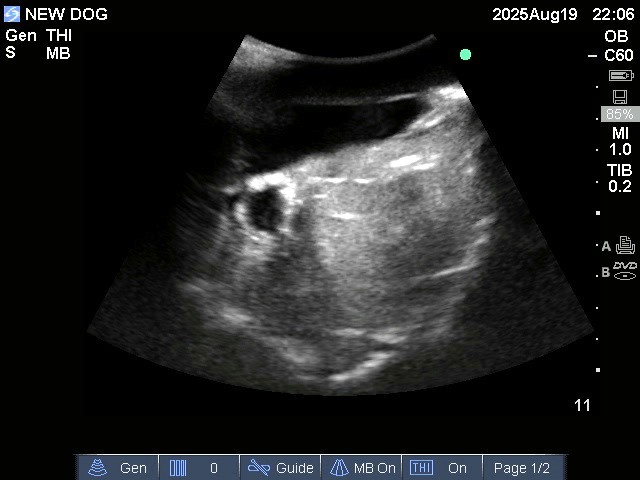

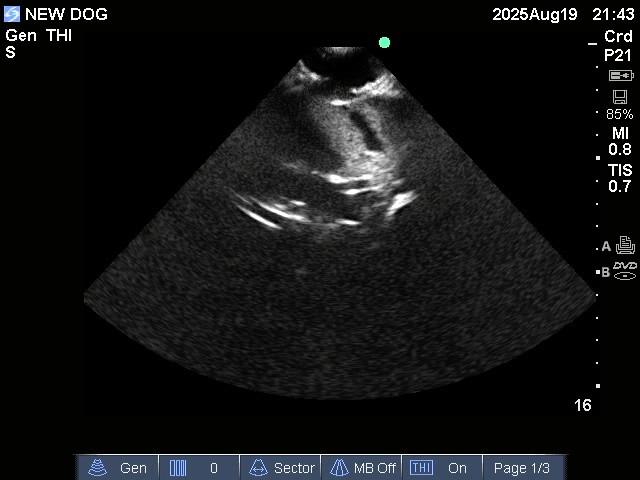

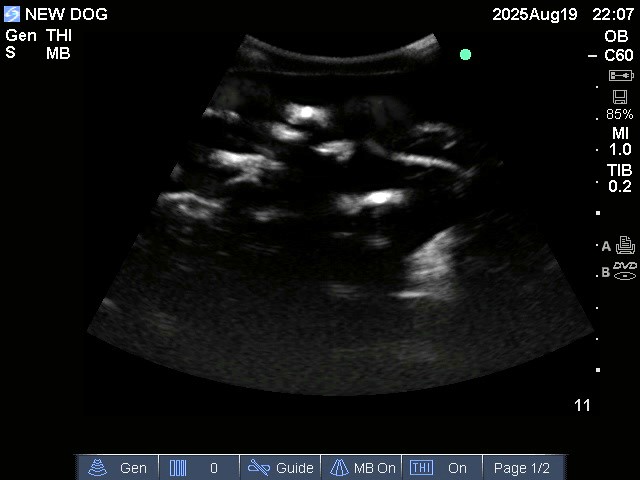

Ultrasound Scans
- Chambers
- Large Intestine
- Adult Canine Head
- Skull
- Major Heart Vessels-IVC,SVC, Small Intestine
- Printed Jaw Bone
- Adult Canine Torso
- Aorta
- Caecum
- Complete Spine
- Complete Ribcage
- Lungs
- Rectum
- Shoulder (Scapula bones)
- Diaphragm
- Pancreas with Vessels
- Realistic Heart with Internal
- Bladder
- Stomach
- structures
- Valves
- Liver with vessels
- Ureter
- Gallbladder
- Penis
- Kidney with Vessels and Arter-
- Urethra
- ies
- Adult Canine Front Arms and
- Spleen with Vessels
- Rear legs
| Phantom Size | 110cm x 20cm x 20cm |
| Phantom Weight | 35 Lbs (approx.) |
| Shipment Size | 120cm x 42cm x 24cm |
| Shipment Weight | 65 Lbs (approx.) |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Vena Cava | 40 |
| 4 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 5 | Pancreas | 110 |
| 6 | Spleen | 110 |
| 7 | Kidneys | 110 |
| 8 | Bladder | 35 |
| 9 | Rectum Wall | 100 |
| 10 | Sigmoid Colon Wall | 100 |
| 11 | Heart | 40 |
| 12 | Liver | 110 |
| 13 | Gallbladder | 35 |
| Appearance | Amber Translucent, Skin |
| Model | X-Ray CT, US, MRI, US |
