Rat Phantom (Cylindrical) for X-Ray CT, US
$2,950 USD
Rat Phantom (Cylindrical) can be fabricated as a simple cylinder or as an anatomically correct rat. Either of these phantoms is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices.
Rat Phantom Model: Cylindrical (X-Ray·CT·US)
Anatomical (X-Ray·CT·US)
Cylindrical (X-Ray·CT·MRI)
Cylindrical (X-Ray·CT·US)
Anatomical (X-Ray·CT·MRI)
This product can be customized based on your requirements — contact us.

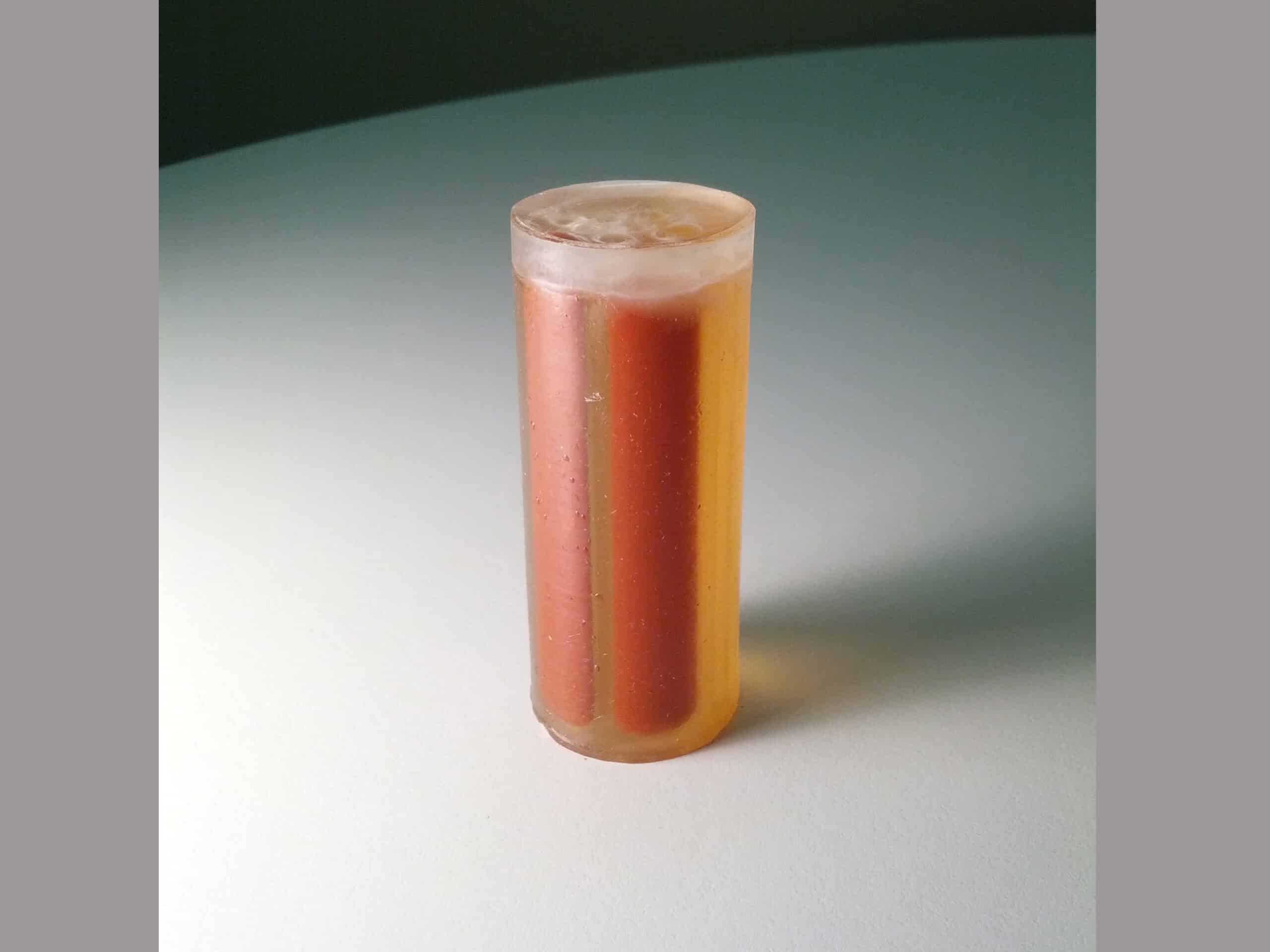

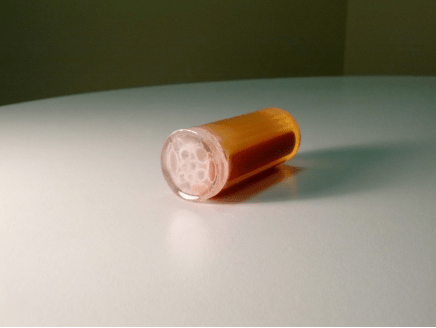

Rat Phantom (Cylindrical) is designed to mimic complex rat anatomy in a form of a simple cylinder. It is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices. The cylindrical phantom has a 27mm diameter and 70mm height, which correspond to the dimensions of small animals (i.e. a laboratory rat/mouse.).

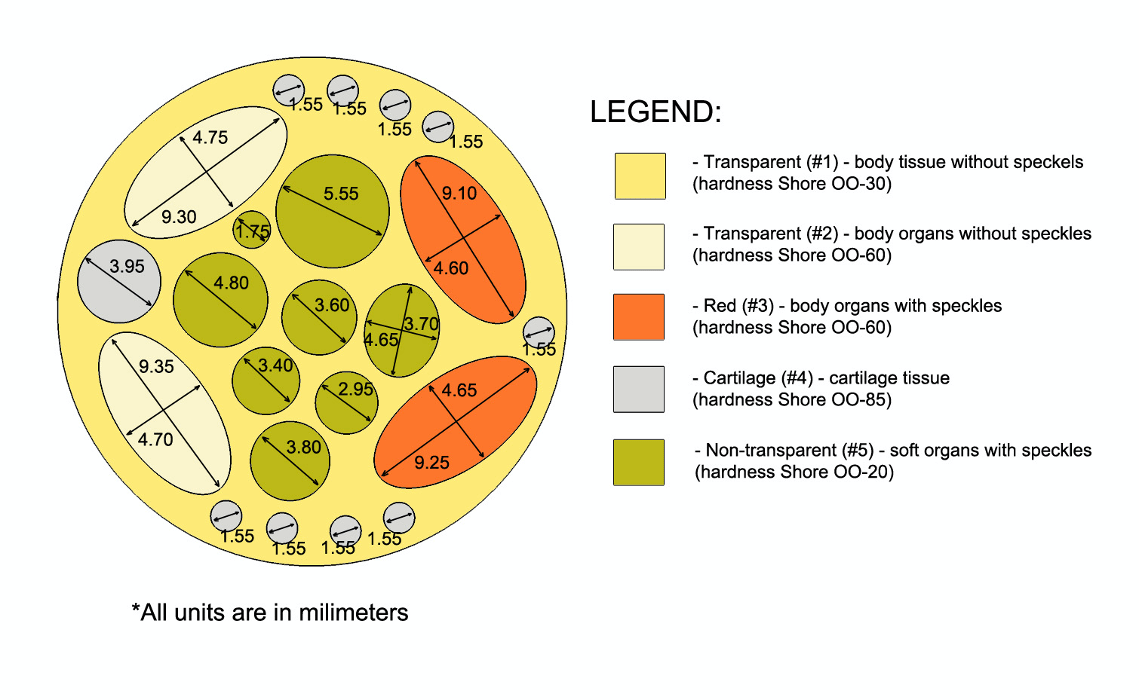

Design

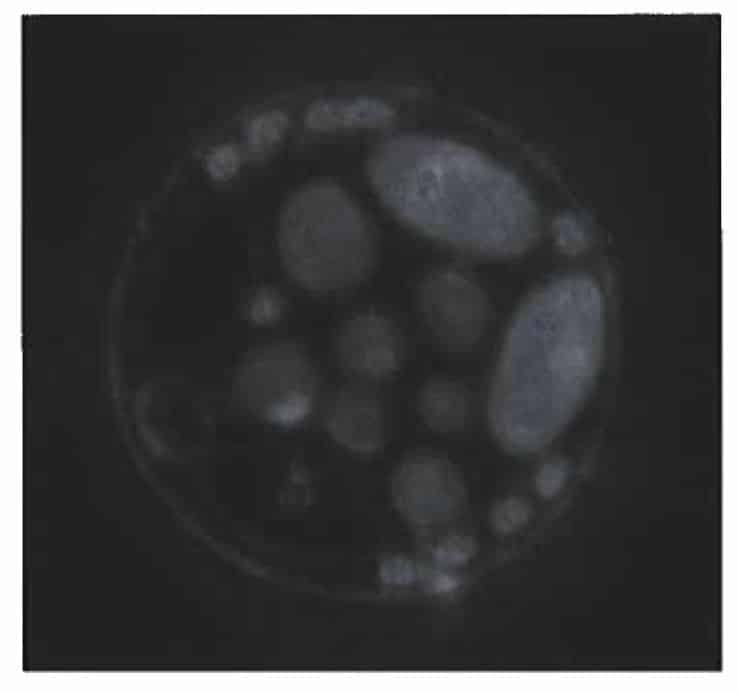

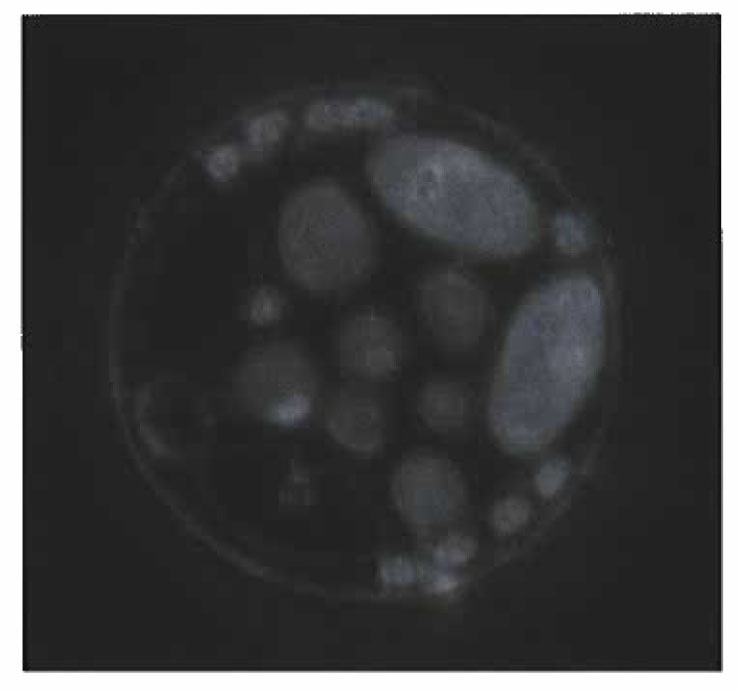

Ultrasound Scans
- Soft Body Tissue
- Soft Body Tissue
- for better imaging results and optical transparency, the phantom
- tissue is translucent and has no ultrasonic speckles
- Organs without Speckles
- those are organs with low ultrasound echogenicity. They appear dark on ul-
- trasonic images.
- Organs with Speckles
- those are the organs with higher stiffness and echogenicity than the surrounding
- body tissue (i.e. muscles).
- Cartilage Tissue
- very stiff and much more attenuative tissue than the organs and body tissue.
- Soft Organs with Speckles
- those are soft organs with a high level of ultrasonic speckles and low ultra-
| Phantom Size | 1 x 1 x 3 Inches |
| Phantom Weight | 1 Lb (approx.) |
| Shipment Size | 10 x 8 x 6 Inches |
| Shipment Weight | 3 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| (#1) – Transparent | 1400 ± 10 | 1.01 | 30 | N/A | NO | 1.3 ± 0.2 |
| (#2) – Transparent | 1400 ± 10 | 1.03 | 60 | N/A | NO | 1.8 ± 0.2 |
| (#3) – Red | 1400 ± 10 | 1.04 | 60 | N/A | YES | 1.8 ± 0.2 |
| (#4) – Cartilage | 1850 ± 10 | 1.06 | 85 | N/A | NO | 30 ± 2 |
| (#5) – Non-Transparent | 1400 ± 10 | 1.00 | 20 | N/A | YES | 1.0 ± 0.2 |
| Rat Models | Rat (Anatomical), Rat (Cylindrical), Rat (Sectional) |
| Model | X-Ray CT, US, X-Ray CT, MRI, X-Ray CT |
