Adult Skull with Brain for X-Ray CT, US, MRI
$7,949 USD

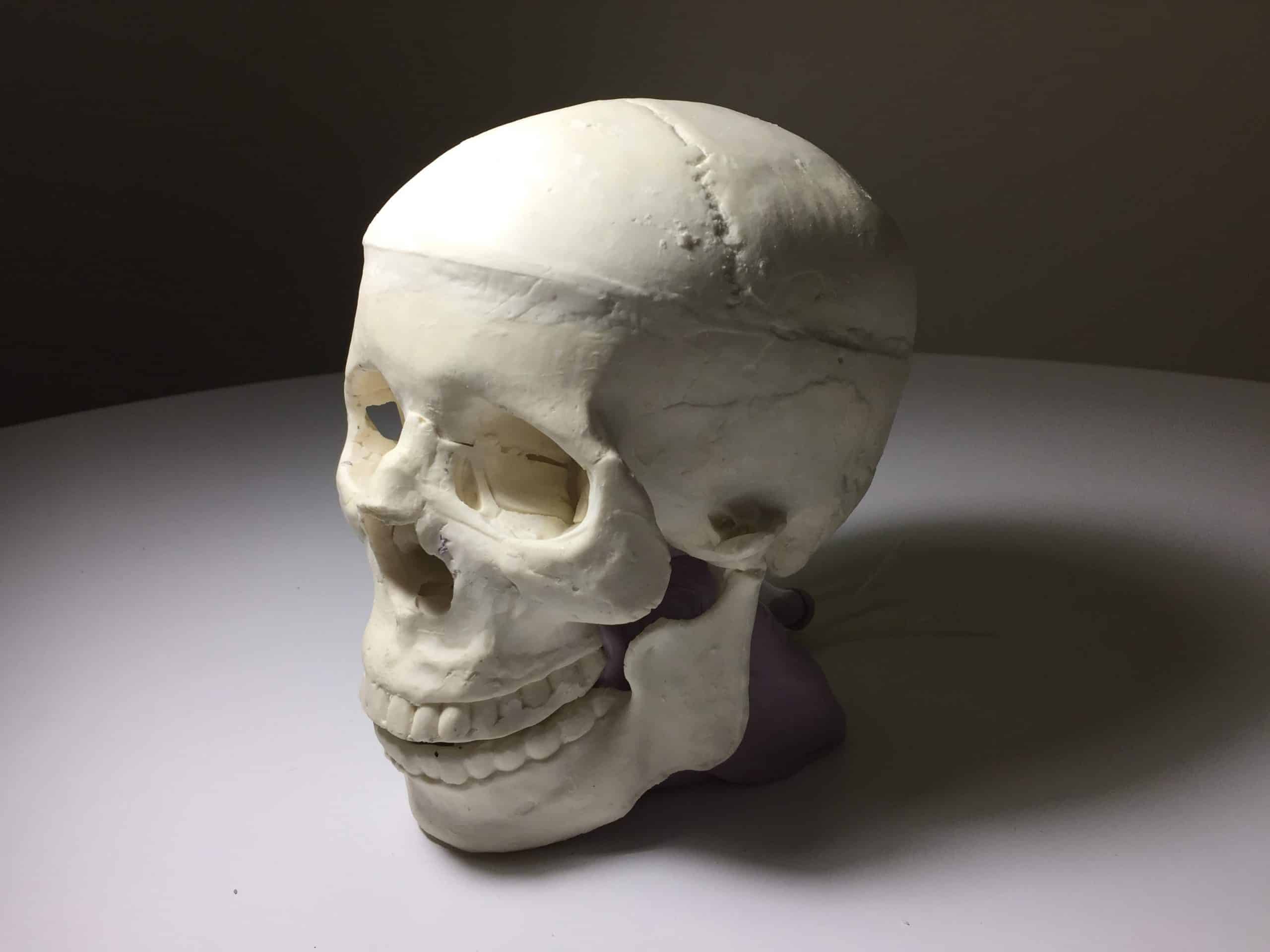

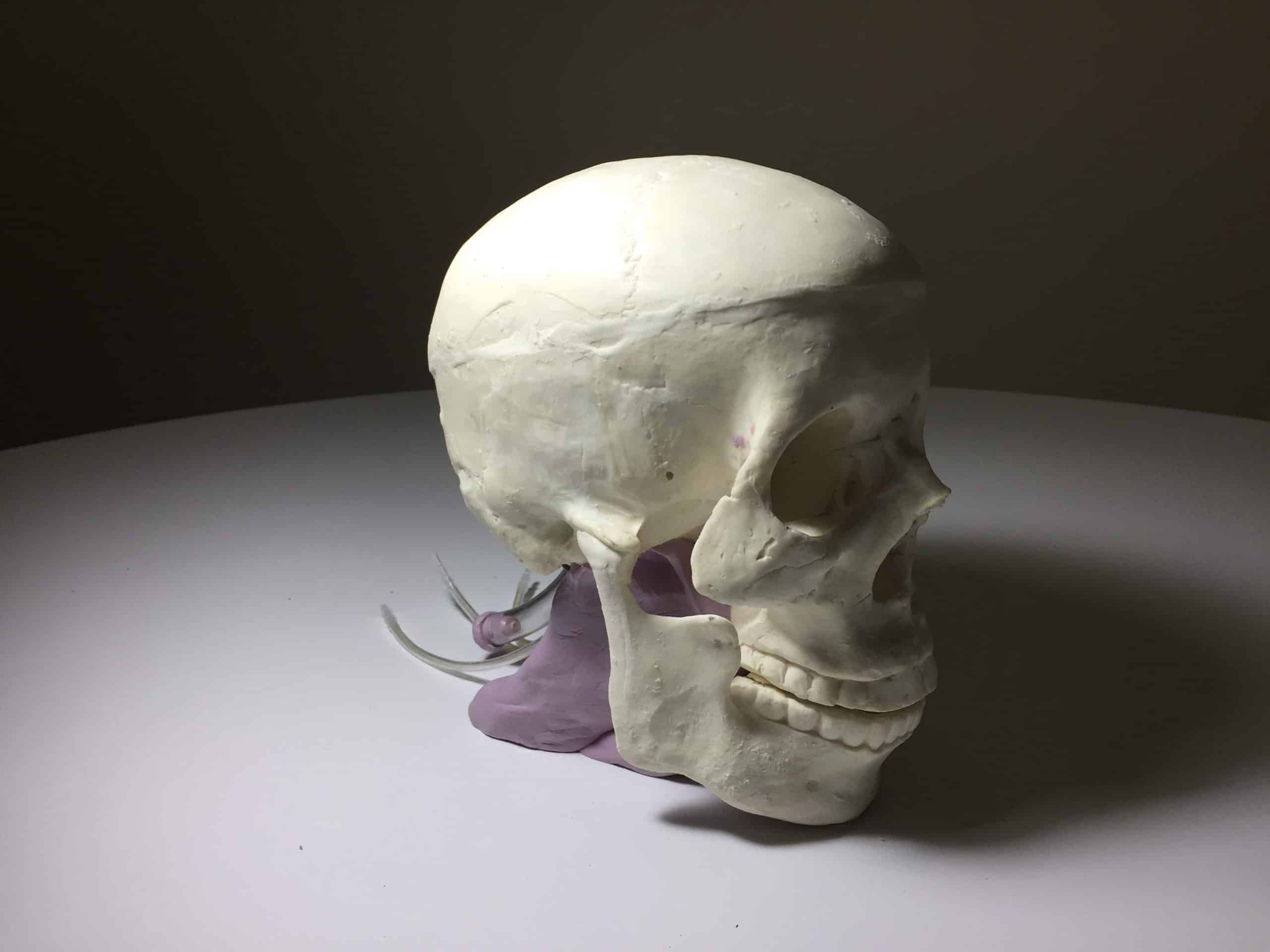

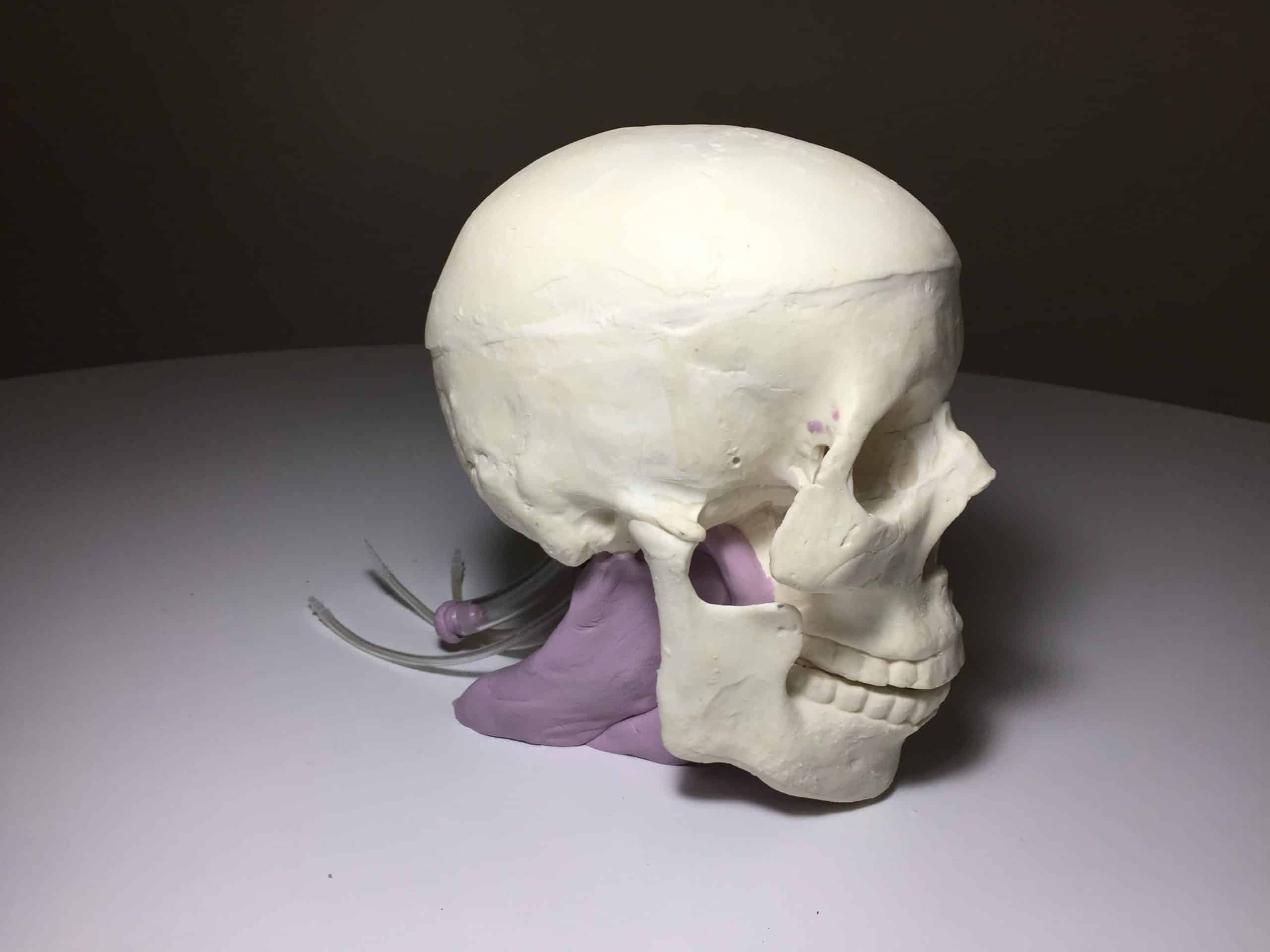

The Adult Skull with Brain Phantom is a versatile tool for medical imaging research, treatment planning of non-invasive brain surgeries, and more. It features a realistic three-layered skull structure and an inner diploe layer made from a patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT scans. The brain inside the phantom includes blood vessels and bifurcation features.
This product can be customized based on your requirements — contact us.
The Adult Skull with Brain Phantom is a versatile tool for medical imaging research, treatment planning of non -invasive brain surgeries, and more. It features a realistic three-layered skull structure and an inner diploe layer made from a patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT scans. The brain inside the phantom includes blood vessels and bifurcation features

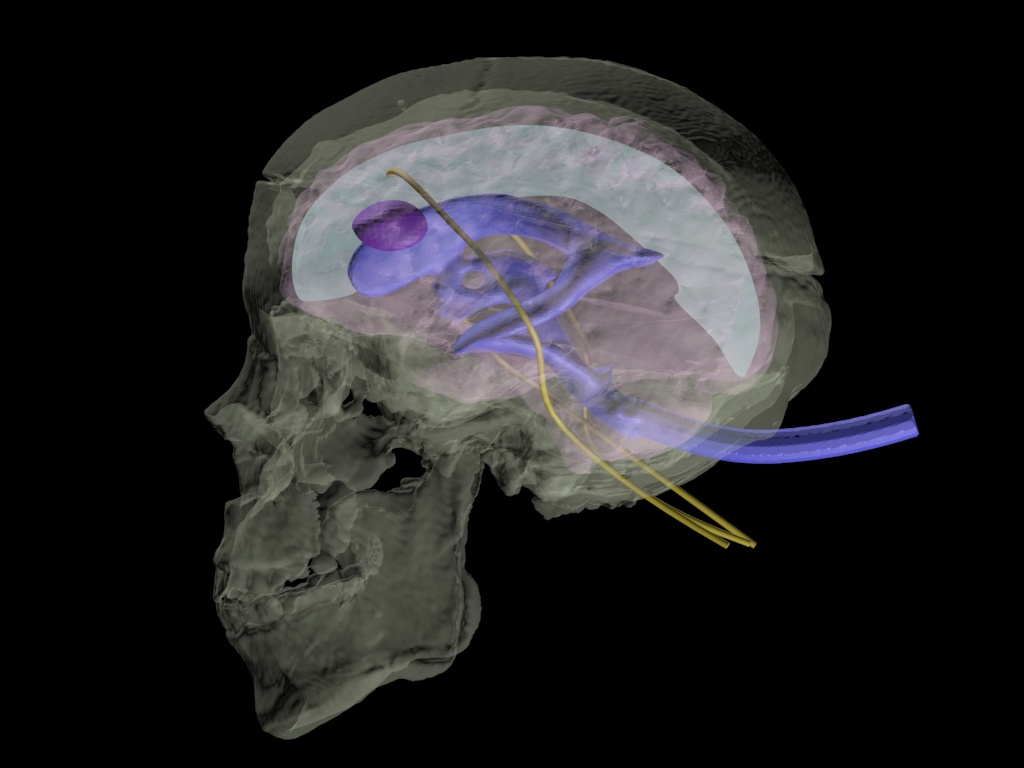

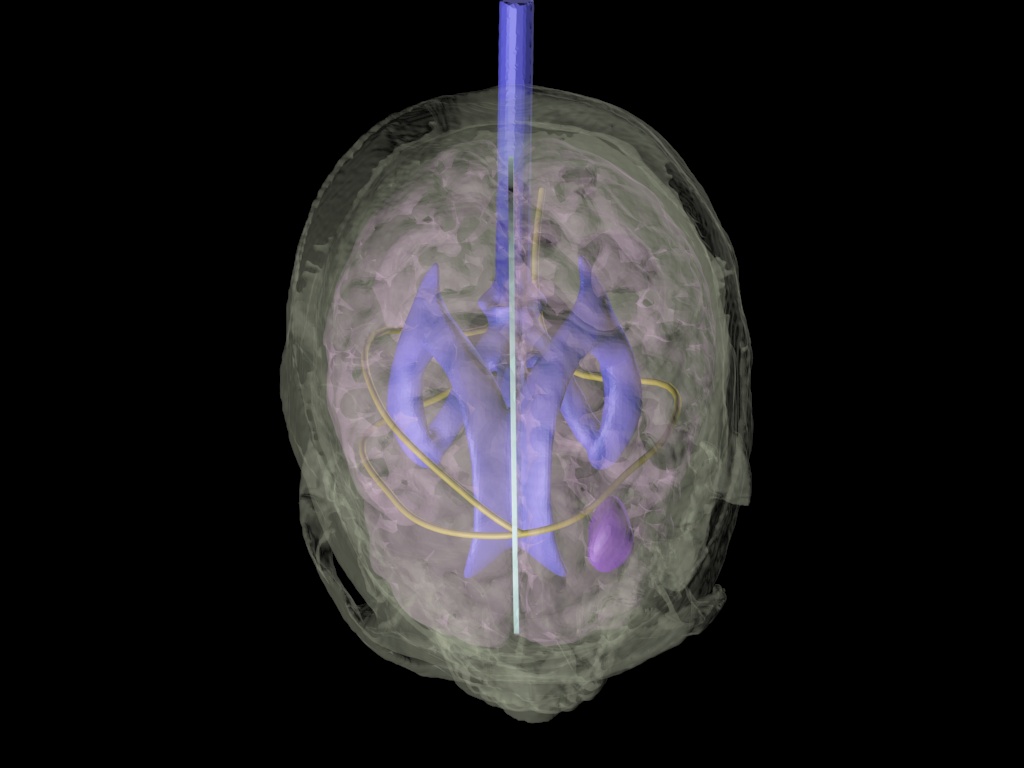

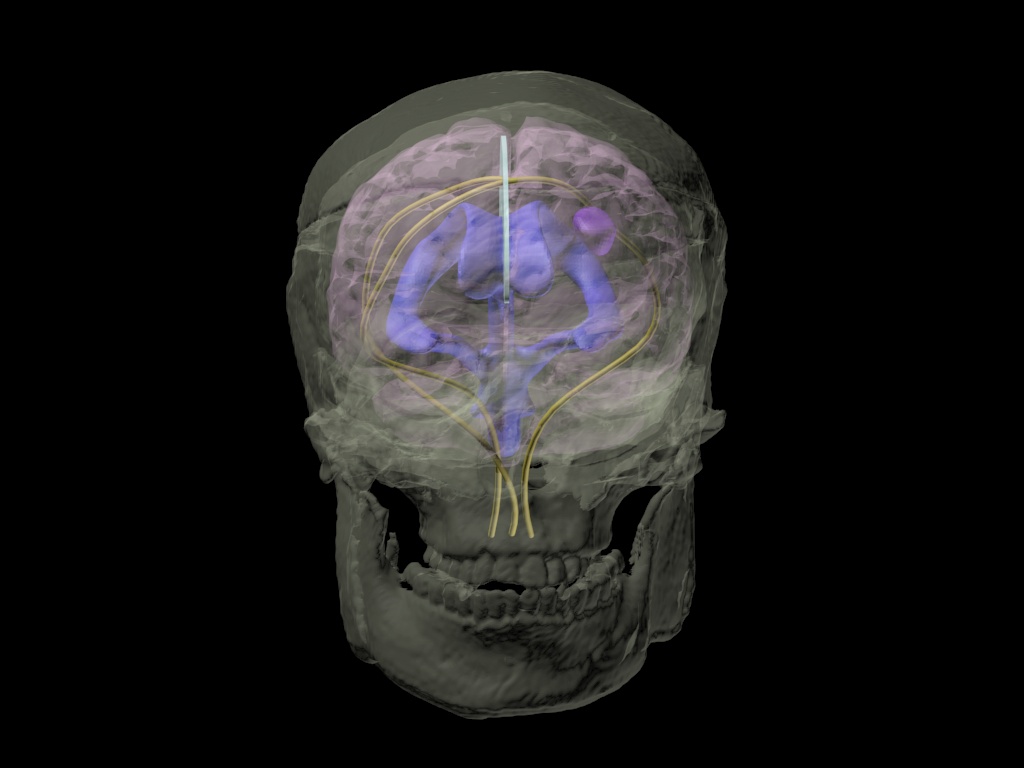

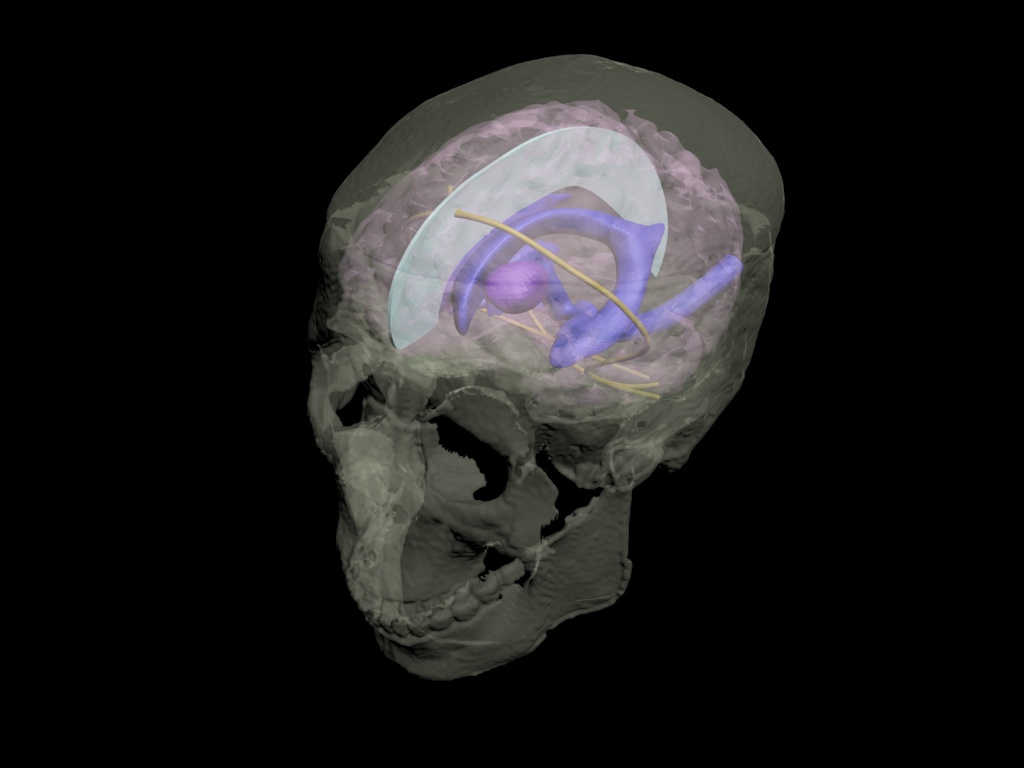

Design
- Human Skull
- Human Brain
- Blood Vessels
- Bifurcation
- Brain Ventricles
- Tumor
| Phantom Size | 6 x 8 x 9 Inches |
| Phantom Weight | 4 Lbs (approx.) |
| Shipment Size | 16 x 12 x 10 Inches |
| Shipment Weight | 15 Lbs (approx.) |
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| Skull Models | Adult Skull (Without Brain), Adult Skull (With Brain) |
